Product Type	Food Processor
Brand	SilverCrest
Model	SSM 175 A1
Power Consumption	1200 W
Bowl Capacity	5 L
Speeds	2 speeds + pulse
Blade Material	Stainless steel
Functions	Chopping, slicing, shredding, kneading, mixing, blending
Dimensions (W x D x H)	40 x 25 x 30 cm
Weight	5 kg
Material	Plastic housing, stainless steel blades
Protection Features	Overload protection, safety lock
Non-Slip Feet	Yes
Dishwasher Safe Parts	Bowl, lid, blades, accessories
Cleaning	Wipe motor unit with damp cloth; other parts dishwasher safe
Accessories Included	S-blade, slicing disc, shredding disc, kneading hook, pusher
Spare Parts Availability	Available from SilverCrest
Warranty	2 years

Frequently Asked Questions - SSM 175 A1 SILVERCREST

Can I wash the bowl and blades in the dishwasher?

Yes, the bowl, lid, blades, and accessories are dishwasher safe. Place them on the top rack. Wipe the motor unit with a damp cloth only.

What is the maximum capacity of the bowl?

The bowl capacity is 5 liters. Do not exceed the MAX fill line for liquids or solid ingredients.

Can this food processor knead dough?

Yes, it includes a dough kneading hook. Use speed 1 for kneading. Maximum dough weight: 1.5 kg.

How do I use the pulse function?

Press the pulse button for short bursts. This gives you control over chopping and mixing without over-processing.

What does the safety lock feature do?

The safety lock prevents the appliance from operating unless the bowl and lid are properly locked in place. It ensures safe use.

Are spare parts available for this model?

Yes, spare parts like blades, bowls, and lids can be purchased from SilverCrest or authorized retailers.

Can I crush ice with this food processor?

It is not recommended to crush ice with this model. Use ice cubes only in small quantities for blending, not for crushing alone.

What is the warranty period?

The warranty period is 2 years from the date of purchase. Keep your receipt for any claims.

How do I replace the blade?

Turn off and unplug the unit. Remove the bowl and lid. Hold the blade shaft and twist the S-blade counterclockwise to remove. Install new blade by twisting clockwise.

Can I use the food processor for hot ingredients?

No, do not process hot ingredients above 60°C. Let hot liquids cool down before processing to avoid steam burns or damage.

USER MANUAL SSM 175 A1 SILVERCREST

Black-and-white product photo of a SilverCoast blender with fruit and beverage items, no visible text or symbols on the main objects.

BATIDORA DE FRUTAS SSMP 900 A1 MIXER PER SMOOTHIE SSMP 900 A1

ES

BATIDORA DE FRUTAS

Operating instructions

IAN 277042

Español....2

Italiano 14

Português 26

English.... 38

Deutsch....50

Vista general / Panoramica / Visão geral / Overview / Übersicht

3D diagram of a cylindrical device with internal fan and base, labeled with numbers 3 and 4 (no text or symbols on the device itself)

Line drawing of a cylindrical container with lid and side supports (no text or symbols)

Line drawing of a bucket with lid and label '61' (no text or symbols on the diagram itself)

2
5

3D diagram of a mechanical component with a central pin and concentric rings, labeled with number 7 (no text or symbols on the object itself)

Diagram of a cylindrical object with internal layered structure and labeled number 8 (no text or symbols beyond label)

3D diagram of a circular object with internal features and a numbered label '9' pointing to its edge (no text or symbols on the object itself)

Indice

1. Overview 38
2. Intended purpose 39
3. Safety instructions 39
4. Items supplied 42
5. How to use 42
6. Operation 42

6.1 Uses.... 42
6.2 Preparing food 43
6.3 Mixing/Chopping.... 43
6.4 Drink immediately 43
6.5 Storage 44
6.6 Overheating protection.... 44

1. Cleaning 44
2. Storage 45
3. Disposal 45
4. Troubleshooting 45
5. Recipes 46
6. Technical specifications 47
7. Warranty of the HOYER Handel GmbH 47

1. Overview

1 Base unit
2 Suction feet
3 Cable spool
4 Power cable with mains plug
5 Blender jug (large, max. 700 ml)
6 Blender jug (2x small, max. 350 ml)
7 Blade assembly with a cross blade
8 Blade assembly with a flat blade
9 Lid (2x)
10 Ring (2x)
11 Nose (3x at each blender jug)

Thank you for your trust!

Congratulations on your new Smoothie-Mixer Pro.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial use.
- Above all, observe the safety instructions!
• The device should only be used as described in these operating instructions.
- Keep these operating instructions for reference.
- If you pass the device on to someone else, please include these operating instructions. The operating instructions are a part of the product.

We hope you enjoy your new Smoothie-Mixer Pro!

Symbol on your device

The food-safe material of devices with this symbol will not change the taste or smell of food.

2. Intended purpose

The Smoothie-Mixer Pro is intended ...

... for mixing whole-fruit beverages (smoothies) and chopping ice cubes. For this purpose, use the blade assembly with the cross blade 7. ... for chopping solid foods (e.g. nuts). For this purpose, use the blade assembly with the flat blade 8.

The device is designed for private, domestic use. The device must only be used indoors. This device must not be used for commercial purposes.

Foreseeable misuse

WARNING! Risk of material damage!

• Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.
  The device must not be used to chop especially hard food such as e.g. bones or nutmegs.

3. Safety instructions

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

• This device must not be used by children.
• Children must not play with the device.
• The device and the power cable must be kept away from children.

- This device can be used by people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding if they are supervised or instructed on how to use this device safely and if they are aware of the resulting risks.

- If the mains power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.

- This device is not intended to be operated using an external timer clock or a separate remote control system.

- Disconnect the mains plug from the wall socket ...

... when it is not supervised, ... before you assemble or disassemble the device, and ... before you clean the device.

- Clean the blade assemblies, the blender jugs, the rings and the lids with warm water and a bit of detergent or in the dish washer.

- The blades of the blade assembly are sharp. Please be very careful when handling them.

DANGER for children

Children must not play with packing material. Do not allow children to play with plastic bags. There is a risk of suffocation.

- Please ensure that children are not able to pull the device down from the work surface with the power cable.

- Keep the device out of the reach of children.

DANGER to and from pets and livestock

Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the

device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

The device must never be operated in the vicinity of a bathtub, a shower, a filled hand basin or similar.

The motor unit, the power cable and the mains plug must not be immersed in water or other liquids.

- Protect the motor unit, the power cable and the mains plug from dampness and dripping or splashing water.

- If liquid gets into the motor unit, remove the mains plug immediately. Have the device checked before reusing.

- Never touch the device with wet hands.

- If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device.

DANGER! Risk of electric shock

- Only plug the mains plug into the wall socket after the device has been completely assembled. - Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

- Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device.

The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.

- When using the device, ensure that the power cable cannot be trapped or crushed.

- When removing the mains plug from the wall socket, always pull the plug and never the cable.

- Disconnect the mains plug from the wall socket ... ... if there is a fault, ... when you are not using the smooth mixer, ... during thunderstorms.

Do not use the device if there is visible damage to the device or the power cable.

- To avoid any risk, do not make modifications to the device.

DANGER! Risk of injury from cutting

The blades of the blade assembly carry on rotating after the device has been switched off. Wait until the blades have come to a standstill before you remove the blender jug.
The blades of the blade assembly are sharp. Please be very careful when handling them. When washing manually, the water should be sufficiently clear that you can see the blades easily.
- Under no circumstances should the device be operated without the blender jug.

WARNING! Risk of material damage

• Do not use the blade assembly with a flat blade for liquids!
• Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.
  Do not put any ingredients with a temperature in excess of 85 °C into the blender jug.
  In order to prevent damage to the device, interrupt the blending process immediately if the blades of the blade assembly rotate with difficulty or not at all. Pull out the mains plug and investigate whether there is an obstruction in the blender jug or whether the contents are too viscous. Also check whether the device is assembled correctly.
  Do not operate the device with empty blender jugs, as this causes the motor to overheat and may result in it being damaged.
• Only operate the device when a blade assembly is screwed onto the blender jug.
  The device is designed for a maximum operating time of 60 seconds without interruption. After this, the device must remain switched off until it has cooled down to room temperature.

• Only use the original accessories.
  The device (base unit, power cable with mains plug) is not dishwasher-safe.
• Do not use any astringent or abrasive cleaning agents.
  The device is fitted with non-slip plastic bases. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain ingredients that could attack and soften the non-slip plastic bases. If necessary, place a non-slip mat under the device.

4. Items supplied

1 base unit 1
1 blender jug large 5 (max. 700 ml)
2 blender jugs small 6 (max. 350 ml)
1 blade assembly 7 (cross blade)
1 blade assembly 8 (flat blade)
2 lid 9
2 rings 10
1 operating instructions

Unpacking

1. Remove all parts from the packaging.
2. Check that all parts are present and intact.

5. How to use

• Remove all packing material.
• Check to ensure that all parts are present and undamaged.
• Clean the device prior to its first use! (see "Cleaning" on page 44)
• Unwind the desired length of cable from the cable spool 3 on the underside of the device.
• Place the device on a dry, level, non-slip surface.

6. Operation

DANGER! Risk of electric shock! Only plug the mains plug 4 into the wall socket when the smoothie mixer is completely assembled.

DANGER! Risk of injury from cutting!

Under no circumstances should the device be operated without the blender jug 5/6.
The blades of the blade assemblies 7/8 are sharp. Please be very careful when handling them.
The blades of the blade assembly 7/8 carry on rotating after the device has been switched off. Wait until the blades have come to a standstill before you turn over the blender jug 5/6 and screw off the blade assembly.

WARNING! Risk of material damage!

In order to prevent damage to the device, interrupt the blending process immediately if the blades of the blade assemblies 7/8 rotate with difficulty or not at all. In this case, pull out the mains plug 4 and check whether there is an obstruction in the blender jug 5/6.

6.1 Uses

Blade assembly with a cross blade 7

Use the blade assembly with the cross blade 7 for mixing whole-fruit beverages (smoothies) and chopping ice cubes.

Blade assembly with a flat blade 8

WARNING! Risk of material damage!

- Do not use the blade assembly with a flat blade 8 for liquids!

Use the blade assembly with a flat blade 8 for chopping solid food (e. g. nuts).

NOTE: with an operating time of approx. 8-10 seconds, use no more than 50 g when chopping nuts.

6.2 Preparing food

WARNING! Risk of material damage!

- Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.

• Rinse or wash the fruits.
• Cut the fruit into rough pieces (approx. 3-4 cm edge length).
• For smoothies: use a sufficient amount of liquid (mineral water, juice, milk, yoghurt). We recommend a mixing ratio of 1:1.

6.3 Mixing/Chopping

CAUTION: mind the marking MAX for the maximum filling quantity.

NOTE: if the smoothie is too thick, add a little mineral water, fruit juice, milk or yoghurt to suit your taste.

1. Connect the mains plug 4 with the wall socket.
2. Place the fruit pieces and any other ingredients into the blender jug 5/6 as desired. Mind the marking MAX for the maximum filling quantity.

3. Figure A: screw the required blade assembly 7/8 onto the blender jug 5/6. Ensure that the blade assembly is tightly screwed to the blender jug.

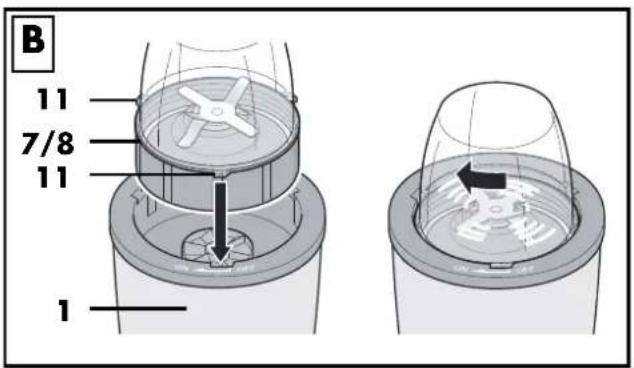

4. Figure B: turn the blender jug 5/6 around and place it on the base unit 1. The small noses 11 on the edge of the blender jug fit into the recesses at the head of the base unit 1.

5. A slight clockwise turn of the blender jug 5/6 switches the device on. Let the device run for no more than 60 seconds.
6. A slight anticlockwise turn of the blender jug 5/6 switches the device off. Wait until the blade 7/8 has come to a standstill.
7. Remove the blender jug 5/6 from the base unit 1 and turn it around.
8. Unscrew the blade assembly 7/8 and ensure that the liquid drips into the blender jug 5/6.
9. Before using it again and if necessary, rinse the blade assembly 7/8 briefly under running water.
10. Disconnect the mains plug 4 from the wall socket.
11. Clean the device as soon as possible after use.

6.4 Drink immediately

• Figure C: in order to drink the fresh smoothie directly from the blender jug 5/6, place the ring 10 on the edge of the blender jug 5/6. This is more pleasant because the thread of the blender jug 5/6 will thus not come in contact with your lips. Both rings fit onto all blender jugs 5/6.
- Remove it by simply pulling the ring 10 off upwards.

6.5 Storage

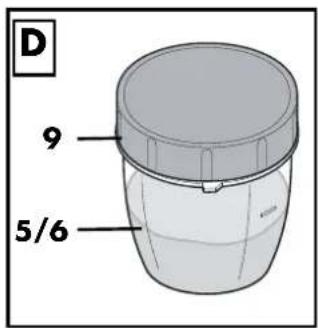

• Figure D: smoothies are intended for immediate consumption. For shortly storing a smoothie, screw a lid 9 onto one of the blender jugs 5/6. Then, it is best to put the smoothie in the refrigerator. Both lids 9 fit onto all blender jugs 5/6.

- Remove the lid 9 by unscrewing it.

6.6 Overheating protection

The device has an overheating protection system. If the device has been in operation for too long thus causing the device to become too hot, it automatically switches off.

- In this case, pull out the mains plug and allow the device to cool.

- You may then put the device back into operation.

7. Cleaning

Clean the device prior to its first use!

DANGER! Risk of electric shock!

- Pull the mains plug 4 out of the wall socket before you clean the smoothie maker.

- The base unit 1 and the power cable with the mains plug 4 must not be immersed in water or other liquids.

DANGER! Risk of injury from cutting!

- When washing manually, the water should be sufficiently clear for you to see the blade assembly 7/8 easily.

WARNING! Risk of material damage!

- Do not use any astringent or abrasive cleaning agents.

After every use

• Clean the device and all individual parts used after each use and remove all food residues.
• Prior to cleaning, all parts must be separated (e.g. remove the ring 10 from the blender jug 5/6).

Base unit

Wipe off the base unit 1 and the power cable 4, using a lightly moistened cloth. Dry with a dry cloth.

Manual cleaning

1. The accessories (blade assemblies 7/8, blender jugs 5/6, the lids 9 and rings 10) can be cleaned with warm water and some detergent.

2. Afterwards, rinse all parts with clean water.

3. Allow all parts to dry completely before you put them away or use the device again.

Dishwasher

The following parts can be cleaned in the dishwasher:

• the blade assemblies 7/8
• the blender jugs 5/6
• the lids 9 and
• the rings 10

8. Storage

DANGER for children!

- Keep the device out of the reach of children.

DANGER!

In order to avoid accidents, the mains plug 4 must never be connected to a wall socket while in storage.

• Figure E: wind the power cable 4 around the cable spool 3 at the underside of the device.
- Select a location where neither high temperatures nor moisture can affect the device.

9. Disposal

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union.

This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

10. Troubleshooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	Has the device been connected to the power supply?Check the connection.Has the blender jug 5/6 been engaged properly?Has the overheating protection switched off the device? (see "Overheating protection" on page 44)
Blade of the blade assembly 7/8 not turning or turning with difficulty.	Switch off immediately, pull out mains plug 4 and check: is there any obstacle in the blender jug 5/6?
Liquids are running out	Is the quantity of ingredients filled into the blender jug too large?

11. Recipes

CAUTION: depending on the hardness and consistency of the ingredients in the blender jug 5/6, do not fill it to the maximum; otherwise the blade assembly 7/8 could become clogged.

Green Smoothie

Ingredients:

1 handful of fresh leaf spinach

12 mango

12 banana (peeled)

1 pineapple slice

Juice from 12 lime

200 ml water

2 ice cubes

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

Tropical Smoothie

Ingredients:

100 g pineapple

12 banana (peeled)

1 kiwi (peeled)

100 ml orange juice

1 handful of spinach

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

Eye-Openers

Ingredients:

1 banana (peeled)

12 mango

1 handful of leaf spinach

12 tsp oil (e.g. sunflower oil)

100 ml apple juice

100 ml water

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

Honey Flip

Ingredients:

400 ml milk

4 cl black currant juice

2 tbs honey

2 egg yolks

2 ice cubes

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

Strawberry Banana Shake

Ingredients:

1 banana (peeled)

150 g strawberries

1 packet of vanilla sugar

200 ml milk

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

Berry Dream

Ingredients:

50 g blueberries

75 g raspberries

75 g strawberries

12 banana (peeled)

75 g natural yoghurt

1.5 tbs oatmeal

75 ml milk

Honey to taste

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

Good Night Smoothie

Ingredients:

12 banana (peeled)

12 apple

1 tbs lemon juice

1 tbs honey

1 small handful of spinach

200 ml water

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

Mango Shake

Ingredients:

250 g mango

250 ml milk

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

Raspberry Pear Smoothie

Ingredients:

1 ripe pear

150 g raspberries

200 ml water

Honey to taste

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

Peach Banana Smoothie

Ingredients:

1 banana (peeled)
2 peaches (peeled and cored)
100 ml grapefruit juice
1 squirt of lemon juice

- Put all ingredients into the blender jug 5/6 and mix until the desired consistency is reached (max. 1 minute).

12. Technical specifications

Model: SSMP 900 A1
Mains voltage: 220-240 V ~ 50/60 Hz
Protection class: I
Power rating: Max 900 W
Max continuous operation (KB):	1 minute

CE Subject to technical modification.

13.Warranty of the HOYER Handel GmbH

Dear Customer, your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number
  IAN: 277042 and the purchase receipt as a purchase verification for all inquiries.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN: 277042

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Kühnehöfe 5

22761 Hamburg

Germany
