Product type	Massage device
Brand	SilverCrest
Model	SSMN 2 B1
Power supply	Mains 220-240 V ~ 50/60 Hz
Dimensions (approx.)	30 x 15 x 10 cm
Weight (approx.)	0.8 kg
Cover material	Faux leather and soft textile
Massage modes	Kneading, tapping
Heat function	Yes, adjustable
Intensity adjustment	3 levels
Automatic shut-off	After 15 minutes
Recommended use	Neck, shoulders, back
Cleaning	Damp cloth, do not immerse
Storage	In a dry place protected from dust
Protection rating	IPX0 (not waterproof)
Cable length	Approximately 1.8 m
Included accessories	Power adapter, user manual
Repairability	Spare parts available via SilverCrest customer service
Operating temperature	5°C to 40°C
Certification	CE

Frequently Asked Questions - SSMN 2 B1 SILVERCREST

How to use the SilverCrest SSMN 2 B1 massage device?

Plug in the power adapter, place the device on the area to be massaged (neck, shoulders, back), then select the desired mode and intensity. The heat function can be activated separately. The device automatically shuts off after 15 minutes.

Can I use the massager on my whole body?

It is designed for areas such as the neck, shoulders, and back. Avoid using it on bony areas, joints, or sensitive parts.

How to clean the device?

Unplug the device. Clean the cover with a slightly damp cloth and mild soap. Never immerse the device in water and avoid abrasive products.

What to do if the device does not turn on?

Check that the power adapter is properly connected and that the wall outlet works. If the problem persists, contact SilverCrest customer service.

Is the heat function dangerous?

No, it is safe. The temperature is regulated to prevent burns. Do not use it on irritated or damaged skin, and do not leave the device unattended.

How many massage modes does this device offer?

It generally offers two modes: kneading and tapping, with three intensity levels for each mode.

Is the device noisy?

The noise level is moderate, comparable to a manual massage. A slight humming is normal.

Can I use the device while lying down?

Yes, you can use it sitting or lying down, as long as the device is properly positioned and the cable does not obstruct.

What to do if the fabric tears?

Stop using it and contact SilverCrest customer service for a replacement part or repair. Do not use the device with damaged cover.

Is the power adapter universal?

It is suitable for a voltage of 220-240 V. For use in other regions, a travel adapter may be necessary.

USER MANUAL SSMN 2 B1 SILVERCREST

SHIATSU-NACKENMASSAGE-HÖRNCHEN SSMN 2 B1

DE AT CH

SHIATSU-NACKENMASSAGE-HÖRNCHEN

Bedienungsanleitung

IT CH

CUSCINO CERVICALE MASSAGGIANTE

Operating instructions

IAN 114205

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

Inhaltsverzeichnis

Einleitung 2

Urheberrecht....2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garanzia

Disposal of the packaging 35

Appliance description 36

Technical data 36

Safety instructions 37

What is Shiatsu massage? 39

Operation 39

Connection 39

Fitting 39

In use 39

After the massage 40

Cleaning 40

Storage 41

Troubleshooting 41

Disposal of the appliance .... 41

Disposal of the mains adapter ....4 1

Importer....42

Warranty 42

Service 42

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these documents on, together with the product, to any future owner.

GB

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This appliance is intended for massaging the neck and shoulders of adults. This appliance is intended solely for personal use in the domestic sector, it is not to be used for medical or commercial applications and may not substitute for medical treatment. The appliance is designed for use in dry indoor rooms. It is not intended for use in the medical/therapeutic or commercial fields.

WARNING

Risks from unintended use!

Risks can be engendered if this appliance is used for purposes not intended for it and/or for other types of use.

▶ Use the appliance exclusively for its intended purposes.
▶ Pay heed to the procedures described in these operating instructions.

NOTICE

Risks can be engendered if this appliance is used for purposes not intended for it and/or for other types of use. Use the appliance exclusively for its intended purposes. Observe the procedures described in these operating instructions. Claims of any kind for damage resulting from unintended use, incompetent repairs, unauthorised modification or the use of unauthorised spare parts will not be accepted. The operator alone bears liability.

Items supplied

The appliance is delivered with the following components as standard:

• Shiatsu Neck Massage Cushion
- Mains adapter
- Operating Instructions

1) Remove all parts of the appliance and the operating instructions from the carton.
2) Remove all packaging material.
3) Clean all parts of the appliance as described in the section "Cleaning".

NOTICE

▶ Check the contents to ensure that everything is present and for signs of visible damage.
▶ If the delivery is not complete or something is damaged due to defective packaging or through transportation contact the Service Hotline (see chapter Service).

Disposal of the packaging

The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations.

NOTICE

If possible, preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can package the appliance appropriately for its return.

Appliance description

① Massage heads
② Hand loops
3 Socket
4 "Warmth" button
⑤ "Massage" button
6 "On/Off" button

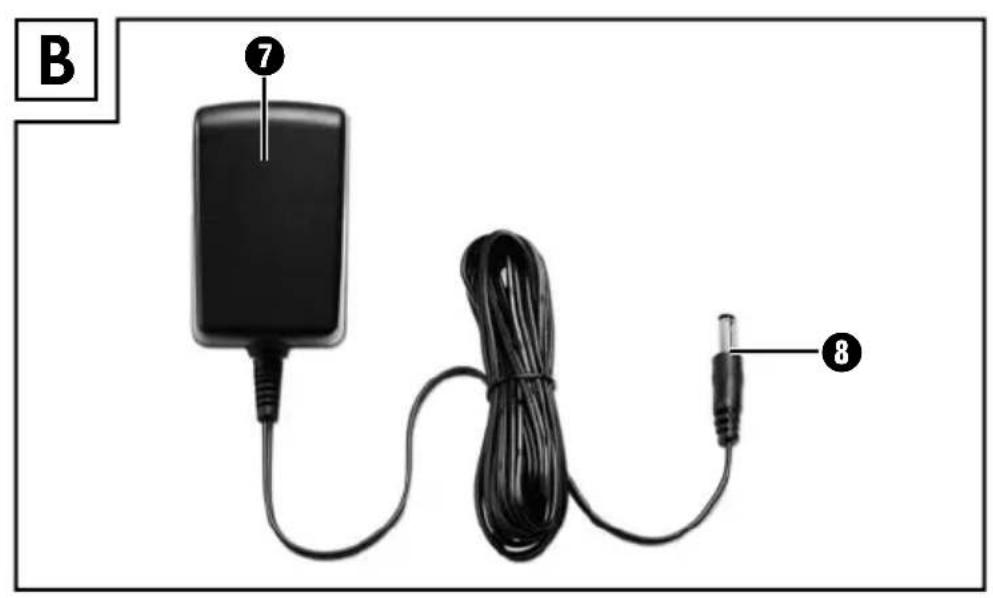

⑦ Mains adapter
8 Connection plug

Technical data

Mains adapter 7
Type YJS010A-1201000G
Input voltage 100 - 240 V	~, 50/60 Hz
Current consumption 350 mA.
Output voltage 12 V	---
Output current 1000 mA
Protection class
Polarity
Appliance
Input voltage 12 V	---
Current consumption 1 A
Protection class

Safety instructions

RISK OF ELECTRIC SHOCK

- Connect the appliance only to correctly installed and earthed mains power sockets. Ensure that the rating of the local power supply tallies completely with the details given on the rating plate of the appliance.

▶ Ensure that the power cable cannot become wet or damp while the appliance is in operation. Place it such that it cannot be crushed or damaged.

- Keep the power cable away from hot surfaces.

▶ Do not perform any repairs on the appliance. All repairs must be performed by our Customer Services or by qualified personnel.

▶ Always remove the plug from the mains power socket before you clean the appliance.

▶ Do not use the appliance in damp areas, such as in the bathroom.

▶ To avoid risks, arrange for defective plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.

▶ Do not insert needles or other sharp objects into the appliance.

⚠ WARNING! RISK OF INJURY!

▶ Do not use an external timing switch or a separate remote control system to operate the appliance.

This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.

⚠ WARNING! RISK OF INJURY!

• Do not massage infants, young children, helpless persons or animals with the appliance.
  ▶ NEVER use the appliance if you have injuries or pain in the neck or cervical spine.
• Stop treatment with the appliance IMMEDIATELY if you feel it to be uncomfortable or painful.
  ▶ During use the appliance has a hot surface. Individuals who are insensitive to heat must take care when using the appliance.
  ▶ Do not use the appliance on swollen, burnt, inflamed, diseased or injured regions of the skin and body areas. If in doubt, obtain medical advice before using the appliance.
  ▶ Ensure that your fingers or other body parts do not come between the rotating massage heads. Risk of crush injuries!
  The appliance may not be used in the face (e.g. eyes), on the throat, feet or other sensitive body parts.
  ▶ During use do not cover the appliance (with a pillow, blanket, etc.). NEVER use the appliance in the vicinity of petrol or other inflammable materials.

WARNING - PROPERTY DAMAGE!

Use the appliance only indoors.

▶ Operate the appliance only with the supplied power adapter.

What is Shiatsu massage?

Shiatsu (shi = finger, atsu = pressure) is a form of massage developed in Japan, which itself emerged from traditional Chinese medicine. Shiatsu massage consists of a relaxing and powerful massage with fingers, thumbs or palms. This massager mimics the movements of shiatsu massage with the help of rotating massage heads ①.

Operation

Connection

1) Connect the connection plug ⑧ on the mains adapter ⑦ with the socket ③ on the appliance.
2) Connect the mains adapter ⑦ into a mains power socket.

Fitting

1) Place the appliance around your neck so that the massage heads ① lie on the sides of the neck. You can use the hand loops ② to align it.

In use

Preferably, lie back for the massage and relax. Provide for a relaxing atmosphere. For example, dim the lights a little.

NOTICE

▶ Ensure that you experience the massage as comfortable and relaxing. If needs be, vary the pressure and/or your position. Stop the massage immediately if it is painful or uncomfortable.

INFORMATION

▶ Never use the appliance for more than 15 minutes. A longer massage may lead to tension caused by overstimulation of the muscles.

You can select between 2 functions:

• Shiatsu massage with the massage heads ① (fast and slow)
• Warmth (2 of the massage heads ① illuminate and warm up)

You can combine various massage functions with each other or use them individually:

■ Press the "On / Off" button ⏻ 6. The massage heads ① begin with the slow massage.

■ Press the button "Massage" 📌 5 to increase the massage speed. Press the button "Massage" 📌 5 once again to stop the massage heads 1.

Press the "Warmth" button ④, to switch the warmth on. The "Warmth" button ④ and the massage heads ① light up. Press the "Warmth" button ④ again to switch the warmth function off. The light on the massage heads ① as well as the button "Warmth" button ④ goes out.

NOTICE

The appliance switches off automatically after 15 minutes.

If you want to terminate the massage before the end of 15 minutes and wish to switch the appliance off, press the "On/Off" button ⏻6.

After the massage

1) Disconnect the connection plug 8 from the socket 3.

2) Remove the appliance.

3) Disconnect the mains adapter ⑦ from the mains power socket.

Cleaning

RISK OF ELECTRIC SHOCK

Before you clean the appliance, always disconnect the mains adapter ⑦ from the mains power socket.
▶ UNDER NO CIRCUMSTANCES should you immerse the appliance in water or other liquids during cleaning!

WARNING - PROPERTY DAMAGE!

▶ Do not use any aggressive cleaning liquids or solvents. They could damage the surface.

NOTICE

The zipper on the appliance must not be opened, because it is fitted only for production-technical reasons.

1) Wipe the appliance with a damp cloth. If necessary, add a little mild detergent onto the cloth.

2) Wipe the mains adapter ⑦ off with a damp cloth.

3) Let all parts dry thoroughly before re-use.

Storage

■ Clean the appliance as described in the chapter "Cleaning".

■ Store the appliance at a clean and dry location.

Troubleshooting

Defect Cause Remedy
The appliance does not work.	The mains adapter 7 is not connected into a mains power socket.	Connect the mains adapter 7 with a mains power socket.
	The appliance is not switched on.	Switch the appliance on.
	The appliance is defective.	Contact Customer Services.
	The connection plug 8 is not connected to the socket 3 on the appliance.	Connect the connection plug 8 with the socket 3.

Disposal of the appliance

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Pay heed to the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Disposal of the mains adapter

Do not dispose of the mains adapter with the normal household waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the mains adapter at an approved disposal centre or your community waste facility. Please observe applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Warranty

You receive a 3-year warranty for this appliance as of the purchase date. This appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty is valid only for material or manufacturing faults, not for transport damage, parts subject to wear or damage to fragile parts, e.g. switches.

This product is for domestic use only and is not intended for commercial use.

The warranty becomes void in the event of abusive and improper handling, use of force and modifications not carried out by our authorised Service Centre.

Your statutory rights are not restricted in any way by this warranty.

The warranty period is not extended by repairs effected under warranty.

This applies also to replaced and repaired parts.

Damages or defects discovered after purchase are to be reported directly after unpacking, at the latest two days after the purchase date.

Repairs carried out after lapse of the warranty period are subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 114205

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)
