Z16531 - Stapler POWERFIX - Free user manual and instructions

Product Type	Hand-held stapler set
Brand	Powerfix
Model	Z16531
Intended Use	Stapling lightweight materials (cardboard, leather, cloth, etc.) onto wood or chipboard
Included Items	1 stapler gun, 500 flat crown staples (8 mm), 500 round crown staples (12 mm), 500 nails (10 mm), operating instructions
Staple/Nail Types Supported	Flat crown staples, round crown staples, T-nails
Flat Crown Staple Dimensions	A: 4–14 mm, B: 11.2–11.5 mm, C: 1.1–1.3 mm
Round Crown Staple Dimensions	A: 10–12 mm, B: 6.2–6.5 mm, C: 1.1–1.3 mm
T-Nail Dimensions	A: 10–14 mm, B: 1.6–2 mm, C: 1.1–1.3 mm
Impact Force Adjustment	Adjusting screw (turn clockwise to increase, counterclockwise to decrease)
Magazine Capacity	Approximately 50–100 staples (depending on type)
Operating Handle	Lever-style manual compression
Safety Features	Warning against pointing at people/animals; do not place hands near front; wear safety glasses
Cleaning	Wipe with slightly damp, lint-free cloth; no abrasive or corrosive cleaners
Storage	Indoors, dry, enclosed, out of reach of children
Repairability	Use only manufacturer's original spare parts; have repaired by qualified specialist for serious defects
Weight (approx.)	0.5 kg (1.1 lbs)
Dimensions (approx.)	250 mm x 150 mm x 40 mm (length x width x height)
Commercial Use	Not intended for commercial use

Frequently Asked Questions - Z16531 POWERFIX

What types of staples or nails can I use with the Powerfix Z16531 stapler?

The stapler accepts flat crown staples, round crown staples, and T-nails. The specific dimensions are provided in the manual. Only use the recommended sizes to avoid damage.

How do I load staples or nails into the stapler?

Press the staple pusher slightly and pull it downward to remove it completely. Insert the staples or nails into the magazine, ensuring correct orientation (see Figs. B–D in the manual). Then reinsert the pusher and click it into place.

How can I adjust the impact force of the stapler?

Turn the adjusting screw clockwise to increase force, or counterclockwise to decrease it. Never unscrew it completely, as this may damage the device.

What should I do if a staple gets jammed in the stapler?

Remove the staple pusher and then pull the magazine upward by pressing the side wings backward. Clear the jammed staple from the magazine, then reattach the magazine by pressing it downward until it clicks. Ensure the handle is not pressed during this process.

How do I remove a misfired or unwanted staple from the workpiece?

Ensure the handle is not pressed. Slide the hook under the staple head, then pull the rear of the stapler upward to extract the staple.

Is it safe to use the stapler on hard materials like metal or concrete?

No. The stapler is intended only for lightweight materials such as cardboard, leather, cloth, or similar on wood or chipboard. Using it on hard surfaces may cause injury or damage.

Can children use this stapler?

No. Keep the stapler and packaging materials out of reach of children. It is not a toy and may cause serious injury if misused.

How should I clean and maintain the stapler?

Clean with a slightly damp, lint-free cloth. Do not use corrosive or abrasive cleaners. Keep it dry and free of oil or lubricants. Store in a dry place indoors.

What should I do if the stapler is damaged or not working properly?

Discontinue use. For minor issues, clear jams. For serious defects (e.g., damaged body), have it repaired by a qualified specialist using original spare parts only.

Can I use different staple types at the same time in the magazine?

It is recommended to fill only one type of staple or nail at a time for best performance. Ensure the magazine is empty before switching to another type.

USER MANUAL Z16531 POWERFIX

HAND-HELD STAPLER SET

Operation and Safety Notes

FI

KÄSINITOJASETTI

GB / IE Operation and Safety Notes Page 5

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with a bracket and a slide (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with two views: one showing a U-shaped bracket and the other showing a coiled spring-like structure (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Introduction

Hand-Held Stapler Set

- Introduction

Before using the product for the first time, take time to familiarise yourself with the product first. Read the following operation

instructions and safety instructions carefully. Only use the product as described and for the designated areas of application. Please keep these instructions in a safe place. If you hand this product on to a third party, you must also pass on all documents relating to the product.

- Proper Use

The stapler gun is intended exclusively for stapling cardboard, leather, cloth (textile or natural fibres) or similar lightweight materials on to hardwood, softwood, chipboard or similar plywood-type materials. Any use other than previously mentioned or any product modification is prohibited and can lead to injuries and / or product damage. The manufacturer is not liable for any damages caused by any use other than for the intended purpose. The product is not intended for commercial use.

● Description of parts

1 Operating handle
2 Staple pusher
3 Hook
4 Magazine
5 Side wing
6 Staple eject opening
7 Adjusting screw

- Included items

1 x Stapler gun 500 Flat crown staples (8 mm) 500 Round crown staples (12 mm) 500 Nails (10 mm) 1 x Operating instructions

- Staples / nails

Note: The precision components of the device are designed to use the following standard, widely available staples and nails:

Type	A(mm)	B(mm)	C(mm)
Flat crown staples	4 - 14	11.2 - 11.5	1.1 - 1.3
Round crown staples	10 - 12	6.2 - 6.5	1.1 - 1.3
T-nails	10 - 14	1.6 - 2	1.1 - 1.3

● Supply Scope

Immediately after unpacking, check that the delivery is complete and that the product and all its parts are in perfect condition. Do not under any circumstances assemble the product if the delivery is incomplete.

5 GB/IE

Safety advice

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

■

WARNING: DANGER OF LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. Danger of suffocation. Keep out of the reach of children. It is not a toy.

■ Always keep the product out of reach of children.

Children often underestimate danger. Store the device indoors in an enclosed, dry place where it cannot be reached by children.

■ Ensure that staples and nails cannot under any circumstances strike people or animals. Failure to observe this advice may lead to injury.

■ Wear personal protective equipment and always wear safety glasses. This also applies to people who may be helping with the work by supporting or holding the workpiece.

CAUTION! Do not support yourself with your hands under any circumstances near or in front the stapler gun or on the surface being tacked. One slip may result in injury.

■ Every time before you use the device, check that it is in perfect condition. Damage to any of its components may lead to injury.

- Check that all parts have been assembled and fitted properly. Incorrect assembly or fitting may lead to injury.

■ Remain alert at all times and always watch what you are doing. Proceed with caution. Just one moment of inattention during assembly may lead to injury.

Before moving or putting away the stapler gun, check that there are no staples or nails still in the device.

- Operation

● Filling with staples / nails

⚠ CAUTION! Use only the staples and nails described in these operating instructions (see "Staples / nails"). Failure to observe this advice may result in damage to the device.

Note: You can use three different types of staples / nails in the stapler gun; flat crown staples, round crown staples and T-nails. All three types are supplied with the stapler gun.

Follow these steps:

1. Press in the staple pusher 2 slightly and then pull it downwards. Then pull the staple pusher 2 completely out of the magazine 4 (see Fig. A).

2. Push the staples or the T-nails into the magazine 4.

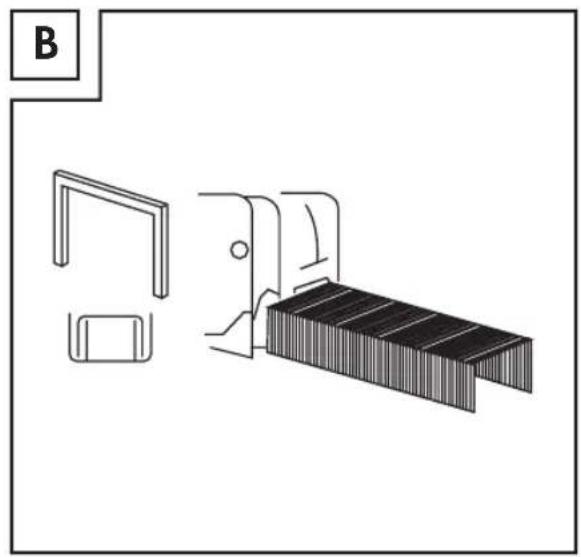

CAUTION! Ensure that the staples or T-nails are correctly inserted (see Figs. B, C, D).

1. Push the staple pusher 2 back into the magazine 4. Press in the staple pusher 2 slightly and then pull it slightly upwards to fix it in place.

- Setting the impact force

CAUTION! Never screw the adjusting screw completely out of the stapler gun. This could result in damage to the device.

□ Screw out the adjusting screw 7 Go reduce the impact force.

☐ Screw in the adjusting screw 7 to increase the impact force.

- Stapling

CAUTION! Never support yourself by placing your hands near or in front of the stapler gun or the workpiece surface. A slip can result in injury.

Follow these steps:

1. Press the staple eject opening 6 on the spot where you wish to staple.

Operation / Cleaning and care / Disposal

1. Adjust the impact force to suit the materials, staples or nails.
2. Press the operating lever 1 down firmly.

Examples of use:

The stapler gun is suitable for the following purposes:

• Attaching coverings to the seating surface of chairs.
• Attaching a skirting at the joint between wall and floor coverings.
• Stretching and stapling canvasses to frames.
• Attaching protective films to insulation materials when installing thermal insulation.
• Attaching decorative materials.

- Removing staples

⚠️ To avoid the risk of injury!

☐ Ensure that the operating handle 1 will not be pressed
□ Push the hook 3 under the staple or nail head (see Fig. F).
☐ Pull the rear part of the stapler gun upwards to draw out the staple or nail from the workpiece.

● Removing jammed staples from the stapler gun

Staples or nails may become jammed in the stapler gun during operation. Remove jammed staples as follows:

1. Press in the staple pusher 2 slightly and then pull it downwards. Then pull the staple pusher completely out of the magazine 4.
2. Turn the stapler gun over so that the magazine 4 is pointing upwards.
3. Press the magazine 4 at the side wings 5 backwards and pull the magazine 4 upwards (see Fig. E).
4. Now remove the jammed staples from the magazine 4.
5. Press the magazine 4 at the side wings 5 backwards and press it downwards until it engages to fix the magazine 4 back in place.

Note: Do not use the stapler gun if it shows more serious defects (damage to body etc.). If necessary have your stapler repaired by a qualified specialist. Take note that the manufacturer's original spare parts only should be used in any repair.

Tips

1. In order to have a good quality of stapling, it is suggested to fill only one of staple / nail type in the staple gun in each time.
2. When you want to change other types of staples, please make sure all remaining staples / nails are used up or not in staple gun before insert other types of staples/nails.

- Cleaning and care

☐ The product must be kept clean, dry and free of oil or lubricants at all times.
□ Clean the product with a slightly dampened, non-fluffing cloth.
□ Never use corrosive or abrasive cleaning agents. These may damage the surface of the product.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

7 GB/IE
