KI52FADF0 - Refrigerator SIEMENS - Free user manual and instructions

Product Type	Refrigerator
Brand	Siemens
Model	KI52FADF0
Dimensions (H x W x D)	177.2 cm x 54.1 cm x 54.5 cm
Net Weight	62 kg
Power Supply	220-240 V, 50 Hz
Energy Class	E
Net Refrigerator Capacity	254 L
Number of Shelves	5
Cooling Type	Ventilated (No Frost)
Interior Lighting	LED
Main Functions	Electronic temperature control, holiday mode, open door alarm
Maintenance and Cleaning	Clean with warm water and a mild detergent, do not use abrasive products
Safety	Child lock, surge protection system
Spare Parts and Repairability	Parts available on Siemens website, availability for 10 years
General Information	Indoor use, climate class SN-T, noise level 36 dB(A)

Frequently Asked Questions - KI52FADF0 SIEMENS

What is the ideal temperature for the refrigerator?

The ideal temperature is between +2°C and +8°C. For optimal conservation, set the thermostat to +4°C.

How to clean the inside of the refrigerator?

Use a soft cloth dampened with warm water and mild detergent. Rinse and dry thoroughly. Avoid abrasive products.

Why is my refrigerator making noise?

A slight hum is normal due to the compressor. Gurgling noises may come from the cooling circuit. If the noise is excessive, check the appliance's leveling.

How to defrost the refrigerator?

The KI52FADF0 model is equipped with the No Frost system, it does not require manual defrosting.

What to do if the door does not close properly?

Check that nothing is blocking the closure (food, improperly positioned drawer). Clean the seals. If the problem persists, contact after-sales service.

How to change the interior light bulb?

The lighting is LED, it cannot be replaced. Contact an authorized technician in case of failure.

Can I install the refrigerator in an unheated garage?

The climate class SN-T allows use from +10°C to +43°C. Below that, the compressor may not function correctly.

How to activate holiday mode?

Press the 'Vacation' key until the symbol appears. The temperature automatically sets to +14°C to save energy.

Where can I find spare parts?

On the Siemens Spare Parts website, enter the model KI52FADF0 to order original parts.

What does the alarm indicator mean?

The audible or visual alarm may indicate an open door or a temperature that is too high. Check the door closure and the set temperature.

USER MANUAL KI52FADF0 SIEMENS

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Ремонт

Пантите са свалени.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Ремонт

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing inward, no text or symbols present.

Ремонт

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a refrigerator with an eye icon above, showing shelves and doors (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Brtva vrata je postavljena.

Popravak

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Popravak

1. 1. Otpustite četiri vijka (1).

2. Gurnite vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi su uklonjeni.

4.2.2 Postavljanje ravnog zgloba

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

1. Spustite izvlačnu policu i zaokrenite je bočno.

2. Izvlačna je polica uklonjena.

4.5.2 Postavljanje izvlačne police

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena spremnika za voće i povrće

Zahtjev:

Vrata su otvorena.

→ Spremnik je uklonjen.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Uklonite spremnik za voće i povrće.→35

2. 1. Pritisnite polugu ispod obje strane pregrade (1).
3. Povucite pregradu prema naprijed (2).

1. Podignite pregradu i zaokrenite je bočno prema van.

→ Pregrada je uklonjena.

Spremnik za održavanje svježine je uklonjen.

4.8.2 Postavljanje spremnika za održavanje svježine

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Popravak

Close-up of a refrigerator interior showing glass panels and a circular doorbell (no text or symbols visible)

Abstract graphic with a rectangular panel and arrows pointing to it, set against a dark background with abstract wave-like patterns (no text or symbols)

Popravak

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Oprava

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Oprava

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Oprava

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present

→ Beholderen er fjernet.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Reparation

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Reparation

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

1. Afbryd LED-spotlampens elektriske tilslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Reparatie

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparatie

Close-up of a refrigerator interior showing glass panels and a circular button with an arrow pointing to the door (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Reparatie

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

1.2 Explanation of symbols 103

1.2.1 Danger levels.... 103

1.2.2 Hazard symbols 103

1.2.3 Structure of the warnings.... 104

1.2.4 General symbols.... 104

Safety.... 105

2.1 General Safety instructions 105

2.1.1 All domestic appliances 105

Tools and aids.... 106

Repair 107

4.3 Replacing door rack....112

4.6 Replacing fruit and vegetable container 115

4.6.1 Removing fruit and vegetable container.... 115

4.6.2 Installing fruit and vegetable container.... 115

4.7 Replacing partition and cover of fruit and vegetable container 116

4.7.1 Removing partition and cover of fruit and vegetable container ..... 116

4.7.2 Installing partition and cover of fruit and vegetable container 116

4.8 Replacing cool-fresh container.... 117

4.8.1 Removing cool-fresh container 117

4.8.2 Installing cool-fresh container 117

4.9 Replacing LED side bar light.... 118

4.9.1 Removing LED side bar light 118

4.9.2 Installing LED side bar light 119

4.10 Replacing LED spot light 120

4.10.1 Removing LED spot light.... 120

4.10.2 Installing LED spot light 121

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Suction cup[00342224]	∅50 mm
Special tool[00342180]
Torx Bit TX20[00340865]	6,3 mm (1/4")

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

1. (if) If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing flat hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door is removed. See Installation Instruction.
√ Door is open.

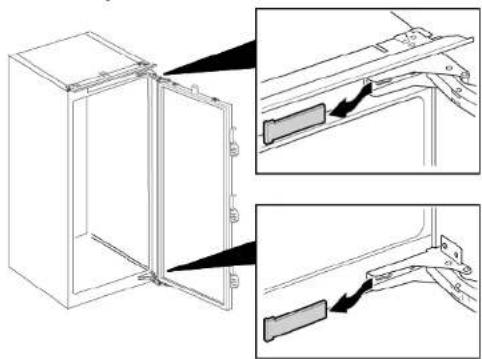

1. Remove two hinge covers.


Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Repair

1. 1. Loosen four screws (1).

2. Slide out and remove door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

Hinges are removed.

4.2.2 Installing flat hinge

▶ Install in reverse order.

Repair

4.3 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.4 Replacing shelf

Prerequisite:

Door is open.

4.4.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.4.2 Installing shelf

▶ Install in reverse order.

Repair

4.5 Replacing extendable shelf

Prerequisite:

√ Door is open.

4.5.1 Removing extendable shelf

1. Pull out extendable shelf until the locking catch is released.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

1. Lower extendable shelf and swing it out to the side.

2. ➕ Extendable shelf is removed.

4.5.2 Installing extendable shelf

▶ Install in reverse order.

Repair

4.6 Replacing fruit and vegetable container

Prerequisite:

√ Door is open.

4.6.1 Removing fruit and vegetable container

▶ 1. Pull container out all the way (1).

1. Remove container (2).

Container is removed.

4.6.2 Installing fruit and vegetable container

▶ Install in reverse order.

Repair

4.7 Replacing partition and cover of fruit and vegetable container

Prerequisite:

Door is open.

4.7.1 Removing partition and cover of fruit and vegetable container

1. Remove glass plate from partition.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

1. Remove fruit and vegetable container.→ Page 115

2. 1. Press lever on the underside on both partition sides (1).
3. Pull the partition forwards (2).

1. Lift the partition and swivel it out to the side.

Partition is removed.

1. 1. Lift the cover of fruit and vegetable container.

2. Pull cover of fruit and vegetable container forwards and swivel it out to the side.

Cover of fruit and vegetable container is removed.

4.7.2 Installing partition and cover of fruit and vegetable container

▶ Install in reverse order.

Repair

4.8 Replacing cool-fresh container

Prerequisite:

√ Door is open.

4.8.1 Removing cool-fresh container

▶ 1. Tilt cool-fresh container forwards (1).
2. Remove cool-fresh container (2).

Cool-fresh container is removed.

4.8.2 Installing cool-fresh container

▶ Install in reverse order.

Repair

4.9 Replacing LED side bar light

Required tools:

Suction cup ∅50 mm [00342224]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.9.1 Removing LED side bar light

1. Stick the suction cup on the upper third of LED side bar light.

Close-up of a refrigerator interior showing a door, shelf, and door panel (no text or symbols visible)

Repair

1. Pull suction cup with forward LED side bar light in one rotary movement.

Close-up of a refrigerator interior showing glass shelves and a circular button with an arrow pointing to the door (no text or symbols visible)

1. Disconnect electrical connection of LED side bar light.

LED side bar light is removed.

4.9.2 Installing LED side bar light

1. Connect electrical connection of LED side bar light.
2. Fix LED side bar light into it's location on compartment wall (hooks click).
   LED side bar light is installed.

Repair

4.10 Replacing LED spot light

Required tools:

Special tool [00342180]

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.
√ Fridge compartment shelves are removed.

4.10.1 Removing LED spot light

1. Release LED spot light cover.

1. Pull LED spot light cover inwards and simultaneously push forwards.

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Repair

1. Detach LED spot light module.

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

1. Disconnect LED spot light electrical connection.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED spot light is removed.

4.10.2 Installing LED spot light

▶ Install in reverse order.

Remonditeave - Külmik

i Selle dokumendiga seoses 123

1.1 Tähtis teave 123

1.1.1 Eesmärk 123

1.2 Sümbolite selgitus 123

1.2.1 Ohutasemed.... 123

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a refrigerator with an eye icon above, showing shelves and doors (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Remont

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Remont

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a rectangular object and two arrows pointing outward, set against a dark background with faint white patterns (no text or symbols)

Remont

Diagram of a tool interacting with a device, showing motion lines and no visible text or symbols

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a door opening with two inset views showing internal components (no text or symbols)

Korjaus

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Cool-fresh-lokero on poistettu.

4.8.2 Cool-fresh-lokeron asennus

Imukuppi ∅50 mm [00342224]

Close-up of a refrigerator interior showing a door, shelf, and door panel (no text or symbols visible)

Korjaus

Close-up of a refrigerator interior showing glass shelves and a circular button with an arrow pointing to the door (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Korjaus

1. Irrota LED-kohdevalomoduuli.

Diagram of a tool interacting with a device, showing motion lines and no visible text or symbols

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Réparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Close-up of a refrigerator interior showing a door, glass panel, and shelf (no text or symbols visible)

Réparation

Close-up of a refrigerator interior showing glass shelves and a circular button with an arrow pointing to the door (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Réparation

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two views showing internal components (no text or symbols)

Instandsetzen

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Interior view of a refrigerator showing a glass door and adjacent storage unit (no text or symbols visible)

Instandsetzen

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Instandsetzen

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Επισκευή

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

To páfi aφαιρέθηκε.

Diagram showing a mechanical assembly with an arrow indicating direction and a blue component, no text or symbols present.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a door, shelves, and a close-up of the door handle (no text or symbols visible)

Επισκευή

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door panel (no text or symbols visible)

Abstract graphic with a document icon and two arrows pointing right, set against a dark gray background (no text or symbols)

Επισκευή

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Javítás

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a door, shelf, and door panel (no text or symbols visible)

Javítás

Interior view of a refrigerator showing the door, shelves, and a hanging glass (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Javítás

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Riparazione

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Riparazione

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Riparazione

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Remonts

Viras ir nonemtas.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Tvertne ir iznemta.

4.6.2 Auglu un dârzenu tvertnes uzstâdîsana

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Starpliku paceliet un sagaziet uz sāniem, lai iznemtu.

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Remonts

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

1. Atvienojiet sānu LED apgaismes joslas elektriskos savienojumus.

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Remonts

1. Atvienojiet LED starmeša moduli.

Diagram showing a tool interacting with a rectangular device, no text or symbols present

1. Atvienojiet LED starmeša elektrisko savienojumu.

3D rendering of a rectangular device mounted on a wall with a red panel and white circular elements, against a gray background (no text or symbols)

LED starmetis ir nonemts.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Remontas

Vyriai nuimti.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Talpykla išimta.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing the door, glass panel, and lid (no text or symbols visible)

Remontas

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Remontas

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device mounted on a wall with a red panel and white circular elements, against a gray background (no text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Reparasjon

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Beholderen er demontert.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Cool-Fresh-beholderen er demontert.

Interior view of a refrigerator showing the door, glass panel, and shelf (no text or symbols visible)

Reparasjon

1. Trekk sugekoppen forover med LED-lampen i sidelisten i en roterende bevegelse.

Close-up of a refrigerator interior showing glass shelves and a circular button with an arrow pointing to the door (no text or symbols visible)

1. Koble fra den elektriske tilkoblingen for LED-lampen i sidelisten.

LED-lampen i sidelisten er demontert.

4.9.2 Montering av LED-lampe i sidelist

1. Koble til den elektriske tilkoblingen for LED-lampen i sidelisten.
2. Fest LED-lampen i sidelisten på rett sted på veggen i apparatrommet (krokene klikker på plass).
   LED-lampen i sidelisten er montert.

Reparasjon

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Reparasjon

1. Løsne LED -spotlightmodulen.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

LED-spotlight er demontert.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Naprawy

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.4.2 Montaż półki

Diagram showing a mechanical assembly with an arrow indicating direction and a blue component inside (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Close-up of a refrigerator interior showing the door, glass panel, and lid (no text or symbols visible)

Naprawy

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door panel (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Naprawy

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon, showing internal compartments and directional arrows (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparação

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparação

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Cap torx TX20 6.3 mm (1/4") [00340865]

Technical line drawing of a door opening with inset close-ups showing internal components (no text or symbols)

Repararea

Balamalele sunt demontate.

4.2.2 Montarea balamalei plate

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Interior view of a refrigerator showing a glass door and adjacent storage unit (no text or symbols visible)

Repararea

Interior view of a refrigerator with shelves and a door, showing a black arrow pointing to the door (no text or symbols visible)

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Repararea

Diagram of a tool interacting with a rectangular device, showing motion lines and no text or symbols

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Oprava

Závesy sú odobraté.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

4.3.2 Montáž poličky do dvierok

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Nádoba je odobratá.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Odoberte nádobu na ovocie a zeleninu.→395

2. 1. Stlačte páčku na spodnej strane oboch strán priehradky (1).
3. Potiahnite priehradku dopredu (2).

1. Zdvihnite priehradku a vyklopte ju nabok.

Priehradka je odobratá.

Nádoba cool-fresh je odobratá.

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Oprava

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door panel (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Oprava

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device mounted on a wall with a red panel and white circular elements, against a gray background (no text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

1. Odstranite pokrovčka tečaja.


Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Popravilo

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.4.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

1. Odstranite predal za sadje in zelenjavo.→415

2. 1. Pritisnite pritrdila na spodnji strani steklene plošče (1).
3. Pregrado potegnite k sebi (2).

1. Pregrado dvignite in jo z obračanjem na stran odstranite. → Pregrada je odstranjena.

2. 1. Dvignite polico nad predalom za sadje in zelenjavo.
3. Polico nad predalom za sadje in zelenjavo potegnite k sebi in jo z obračanjem na stran odstranite. → Polica nad predalom za sadje in zelenjavo je odstranjena.

4.7.2 Namestitev pregrade in police nad predalom za sadje in zelenjavo

▶ Namestite v obratnem vrstnem redu.

Popravilo

Close-up of a refrigerator interior showing a door, shelf, and lid (no text or symbols visible)

Popravilo

Close-up of a refrigerator interior showing glass panels and a circular button with an arrow pointing to the door (no text or symbols visible)

1. Pokrovček točkovne lučke LED povlecite navznoter in ga hkrati potisnite naprej.

Abstract graphic with a document icon and arrows, no readable text or symbols

Popravilo

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device mounted on a wall with a red panel and white circular elements, against a gray background (no text or symbols)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparación

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Reparación

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Reparación

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Cool fresh-facket har tagits bort.

4.8.2 Montera cool fresh-fack

Sugkopp ∅50 mm [00342224]

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparation

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

1. Lossa elanslutningen till LED-sidoramplampan.

LED-sidoramplampan har tagits bort.

4.9.2 Montera LED-sidoramplampa

Abstract graphic with a document icon and two arrows pointing right, set against a dark background (no text or symbols)

Reparation

1. Ta loss LED-spotlightmodulen.

Diagram of a tool interacting with a device, showing motion lines and no visible text or symbols

1. Lossa LED-spotlightens elanslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

LED-spotlighten har tagits bort.

4.10.2 Montera LED-spotlight

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted device with multiple shelves and an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Onarim

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Kap çıkartılmıştır.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Onarim

Close-up of a refrigerator interior showing glass panels and a circular doorbell (no text or symbols visible)

Special tool [00342180]

Düz tornavida Biçak 2,4 mm x 0,4 mm x 60 mm,

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Onarim

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols
