Serie 6 BGC41X36 - Vacuum Cleaner BOSCH - Free user manual and instructions

Product type	Vacuum cleaner
Brand	Bosch
Model	Series 6 BGC41X36
Power supply	Mains (alternating current) with grounded plug
Filter type	Lint filter, dust container filters, exhaust filter
Sensor Control sensor	Yes, automatically adjusts power when dirty
Power adjustment	Power selector with on/off
Floor brush	Adjustable brush with click fastening
Telescopic tube	With push button and clip fastening
Hose	Yes, with handle
Dust container capacity	Not specified but easy emptying with handle
Cord length	Automatic rewind (length not specified)
Weight	Not specified
Dimensions	Not specified
Noise level	Not specified
Maximum operating altitude	2000 m above sea level
Use	Private household, enclosed rooms, room temperature
Safety	Do not vacuum harmful substances, liquids, ashes, etc.
Maintenance	Clean filters, container and appliance with soft cloth
Spare parts	Use only original parts
Warranty	See conditions on Bosch website via QR code
Environmental standard	EU Directive 2012/19/EU (WEEE)

Frequently Asked Questions - Serie 6 BGC41X36 BOSCH

How to empty the dust container?

Press the unlocking button on the dust container, then empty it. Refer to figures 19-22 in the manual.

How to clean the lint filter?

Remove the lint filter and clean it as shown in figures 23-25. Use a soft cloth or rinse if necessary.

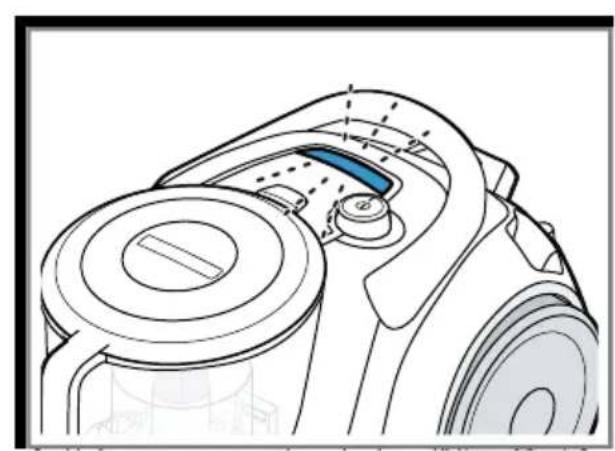

What does the flashing red Sensor Control indicator mean?

The flashing red indicator means the dust container filter is dirty. Turn off the appliance and clean the filters.

What to do if the Sensor Control indicator lights up continuously red?

This indicates the dust container is full or the lint filter is dirty. Check and empty the container or clean the filter.

Can I vacuum liquids with this vacuum cleaner?

No, the vacuum cleaner is designed only for dry cleaning. Never vacuum damp or liquid substances.

How to use the vacuum cleaner on stairs?

Make sure no one is below the appliance while using it on stairs.

How to change the exhaust filter?

Clean the exhaust filter regularly as shown in figures 34-46. Replace it if necessary with an original part.

Does the vacuum cleaner automatically stop in case of clogging?

Yes, if the brush, tube or hose is blocked, the appliance reduces its power. Turn it off and clear the blockage.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with an adjustable floor brush, a hose, a telescopic tube and a handle.

Where can I find the Bosch after-sales service contact details?

Scan the QR code on the accompanying document or visit the Bosch website for contact details and warranty conditions.

USER MANUAL Serie 6 BGC41X36 BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Bagless vacuum cleaner

BGS41... BGC41...

https://digitalguide.bsh-group.com/?mat-no=8001259468

[en] You can find additional information and explanations online. Scan the QR code on the title page.

Two vertical diagrams showing a blue object being lifted by arrows, with no text or symbols present.

6

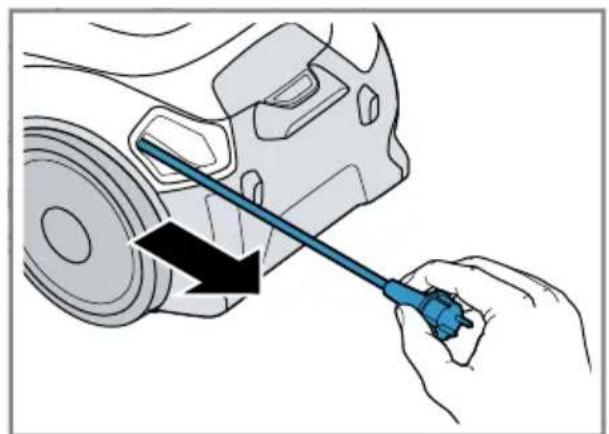

Illustration of a hand holding a blue cable inserted into a car's head panel, with an arrow indicating direction (no text or symbols present)

7

Line drawing of a hand adjusting a blue component on a mechanical device (no text or symbols)

8

9

10

Diagram showing a car being adjusted to a blue vacuum cleaner's airbag, with no text or symbols present.

11

12

The image is too blurry to recognize any text content.

Illustration of a vacuum cleaner next to a blue handheld vacuum cleaner (no text or symbols present)

14

m = 311

16

17

18

19

20

21

Illustration of a blue plastic container pouring granular material into a rectangular basin (no text or symbols)

22

Diagram of a water purifier with a blue component inside and an upward arrow indicating flow or movement (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is incorrect because underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it exists, violating Rule 2. Therefore, the OCR result is inconsistent with the Ground Truth.

Illustration of a blue showerhead spraying water onto a textured base (no text or symbols)

24

25

Illustration of a hand holding a blue device with a mesh floor, next to a transparent container with a small object (no text or symbols)

26

Diagram of a kitchen appliance showing a blue mesh drain with a black arrow indicating rotation (no text or symbols)

27

Diagram showing a blue grid-patterned object being inserted into a container, with an arrow indicating the process (no text or symbols present)

28

Illustration of a hand holding a blue textured object with triangular patterns (no text or symbols)

m = 311

Diagram showing a blue showerhead spraying water onto a meshed surface (no text or symbols)

30

m = 311

32

33

Technical line drawing of a vacuum cleaner's internal components (no text or symbols)

34

Diagram of a car seatbelt mechanism with hand and arrow indicating direction (no text or symbols)

35

Diagram of a car interior showing engine, dashboard, and air vent with directional arrows indicating flow or movement (no text or symbols)

36

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Diagram of a car interior showing a blue 3D mesh device inserted into a housing, with an upward arrow indicating direction (no text or symbols present)

38

Illustration of a hand pressing a grid device into a blue tray (no text or symbols)

The image is too blurry to recognize any text content.

Diagram showing a blue showerhead spraying water onto a grid-patterned air vent (no text or symbols)

40

The image is too blurry to recognize any text content.

Diagram of a car interior showing internal components and airflow direction (no text or symbols)

42

Illustration of a hand pressing down on a blue rectangular object with motion lines indicating movement (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a blue showerhead spraying water onto a rectangular surface (no text or symbols)

44

The image is too blurry to recognize any text content.

46

4 Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
■ for cleaning surfaces.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
  ▶ Never operate a damaged appliance.
  ▶ Never operate an appliance with a cracked or fractured surface.
  ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
  ▶ Never pull or carry the appliance by the power cord.
• If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
  ▶ Call customer services.→Page 17
  ▶ Only use the appliance in enclosed spaces.
  ▶ Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.
  ▶ Never let the power cord come into contact with hot appliance parts or heat sources.
  ▶ Never let the power cord come into contact with sharp points or edges.
  ▶ Never kink, crush or modify the power cord.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
• Do not apply flammable substances or substances containing alcohol to the filter.
• When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
  ▶ Pull out the power cord completely.
• Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
  ▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
• When vacuuming stairs, ensure that there are no persons underneath the appliance.
• When taking a break from vacuuming, switch off the appliance and pull out the mains plug.
  ▶ Retract the power cord.

en Preventing material damage

• When the cord is being rewound automatically, ensure that the mains plug is not thrown in the direction of persons, body parts, animals or objects.
• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.

Preventing material damage

▶ Never place the appliance on the hose.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never operate the appliance without the motor protection filter.
▶ Never operate the appliance without the exhaust filter.

Overview

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→Fig. 1

1	Adjustable floor tool with click connection ^1
2	Hose
3	Telescopic tube with sliding switch and click connection ^1
4	Handle
5	Power cord
6	Sensor Control indicator
7	Parking aid
8	Rear flap release button
9	Rear flap
10	Handle
11	Power control and on/off switch
12	Dust container release button
13	Fluff filter

14 Dust container

15 Dust container handle

16 Storage aid

Operation

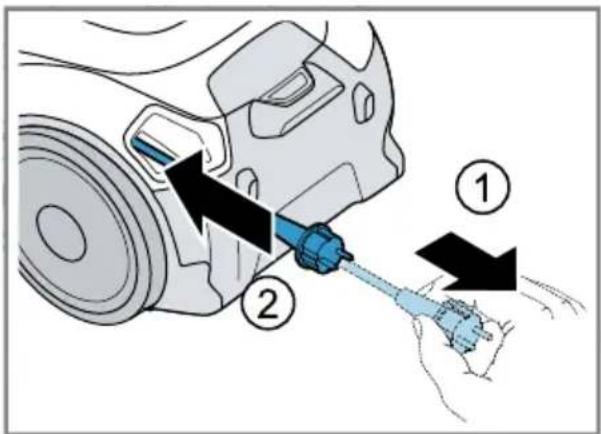

Installing the appliance

→Fig. 2 - 5

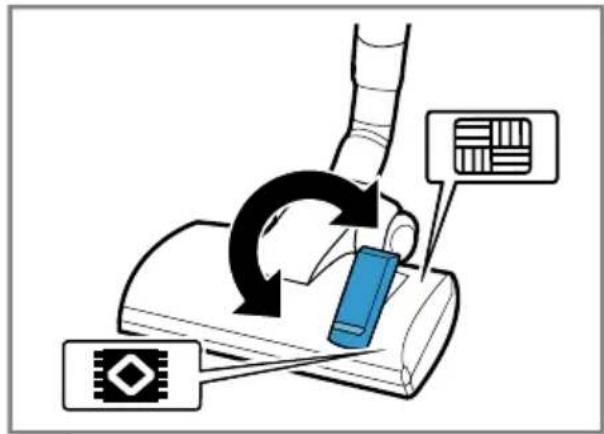

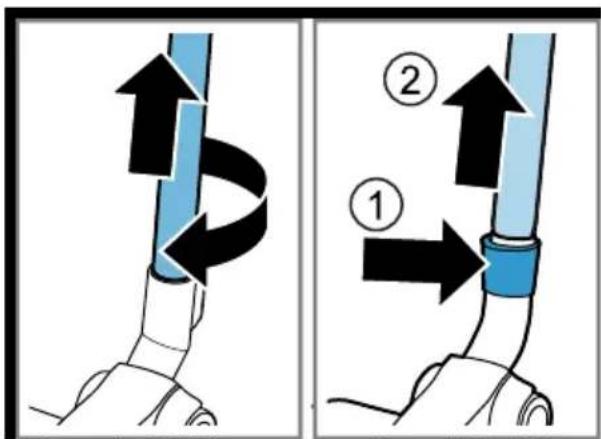

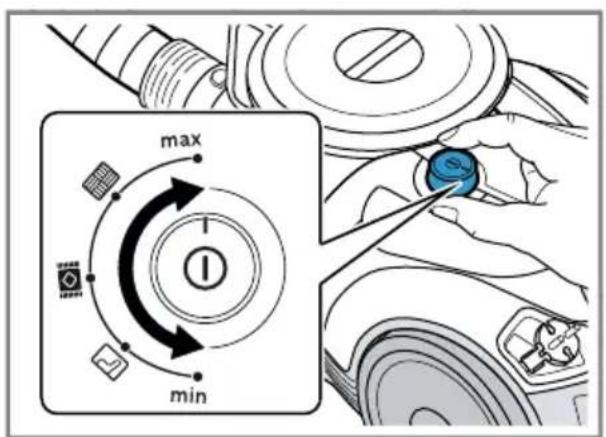

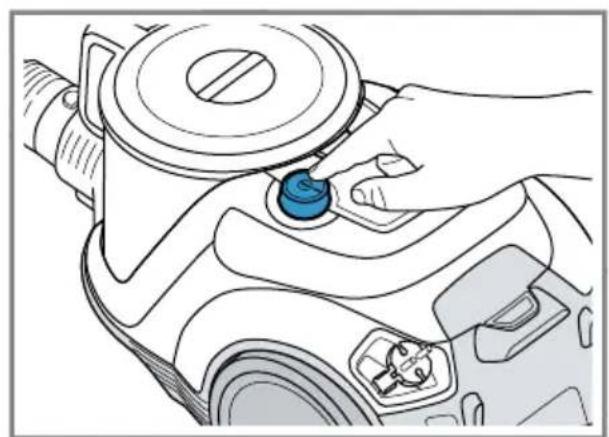

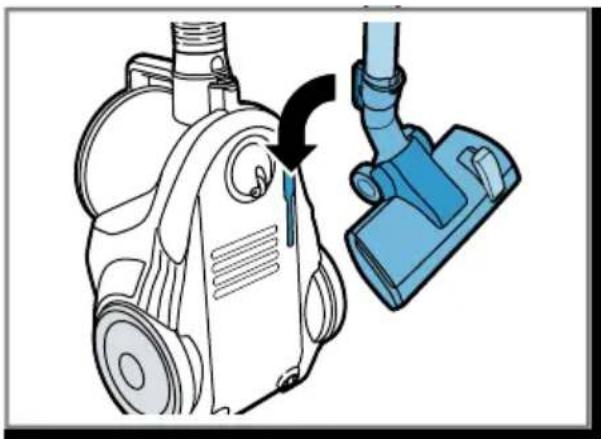

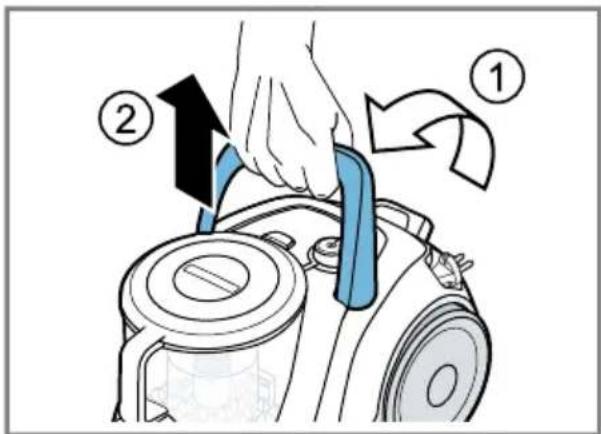

Operating the appliance

→Fig. 6 - 14

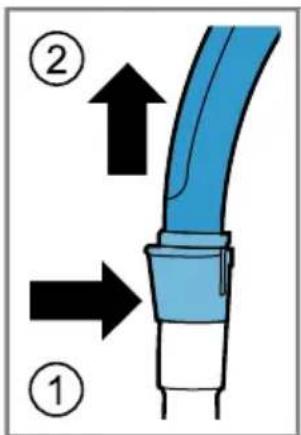

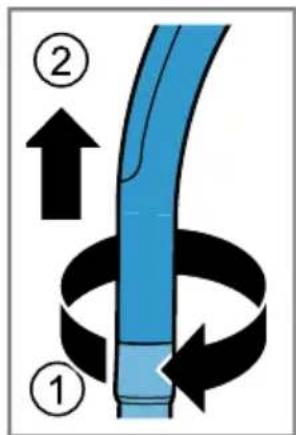

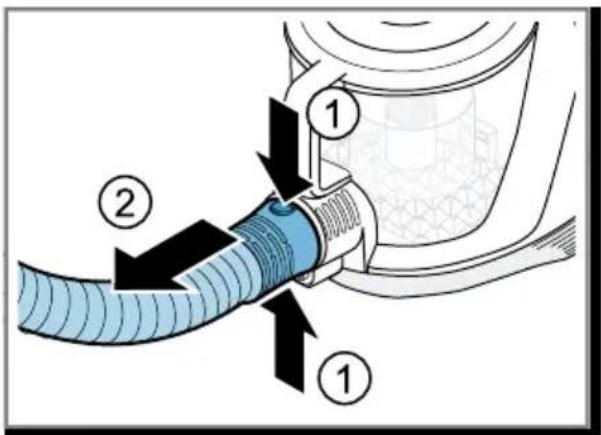

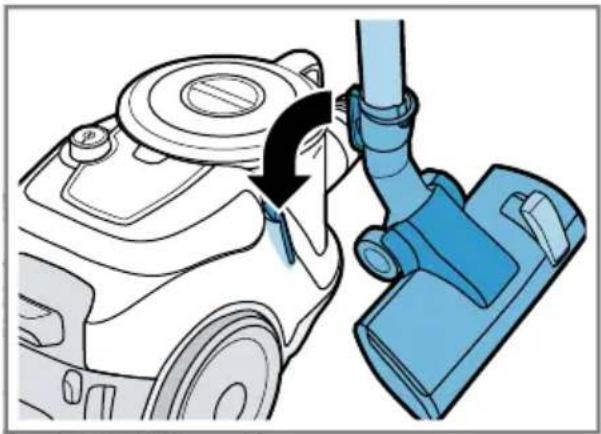

Removing the appliance

→Fig. 15 - 17

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

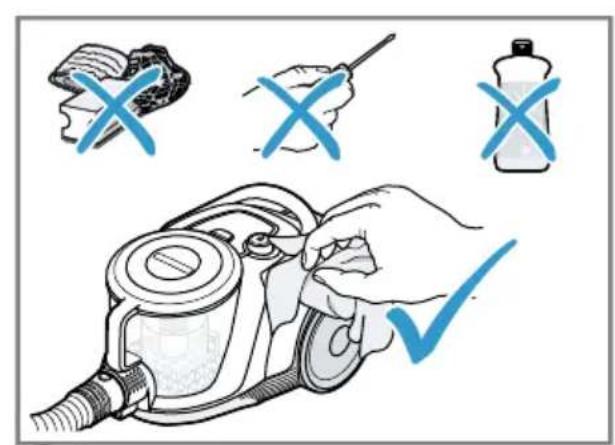

Cleaning the appliance

Requirement: The appliance is switched off.

- Clean the appliance and the accessory using a soft cloth and a commercially available plastic cleaner. →Fig. 18

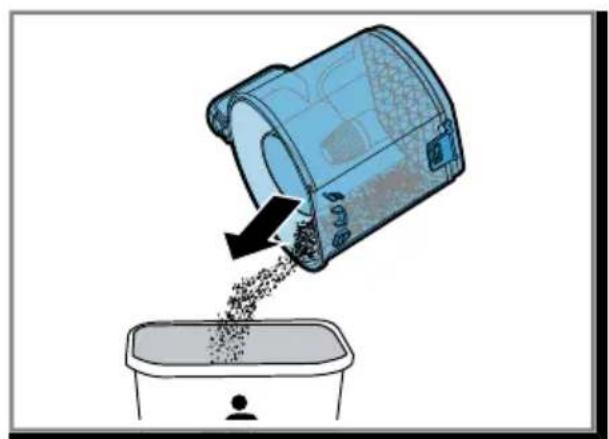

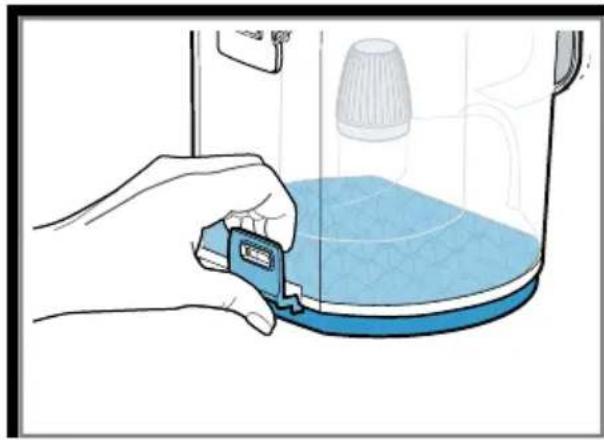

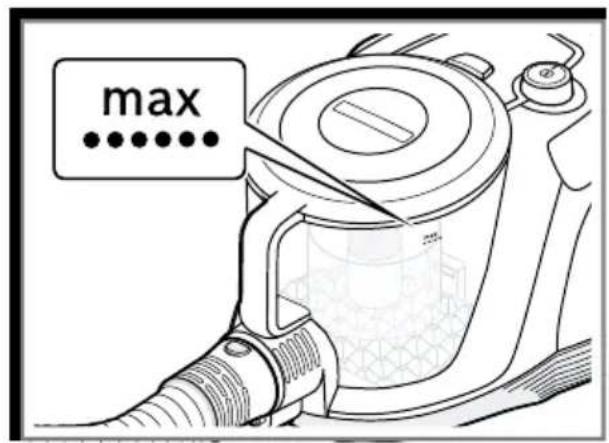

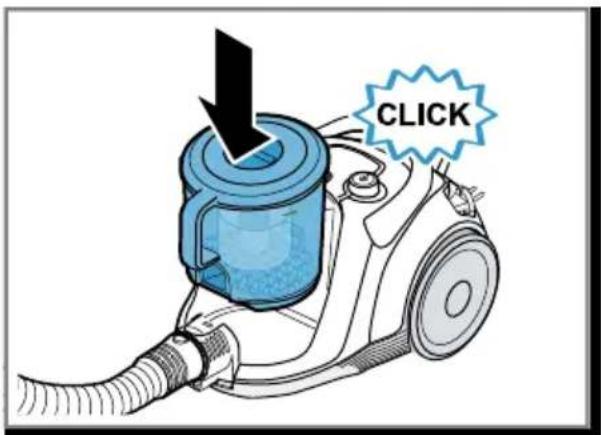

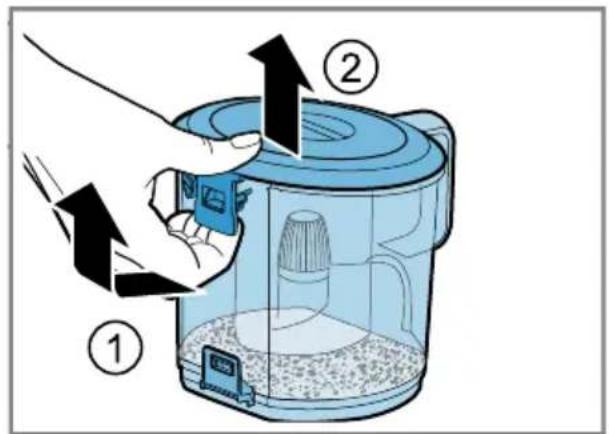

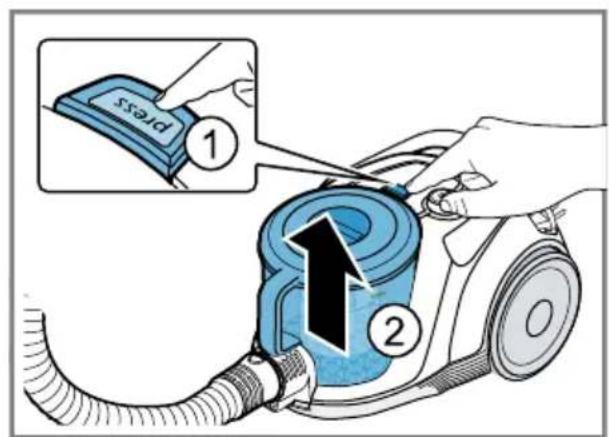

Emptying the dust container

→Fig. 19 - 22

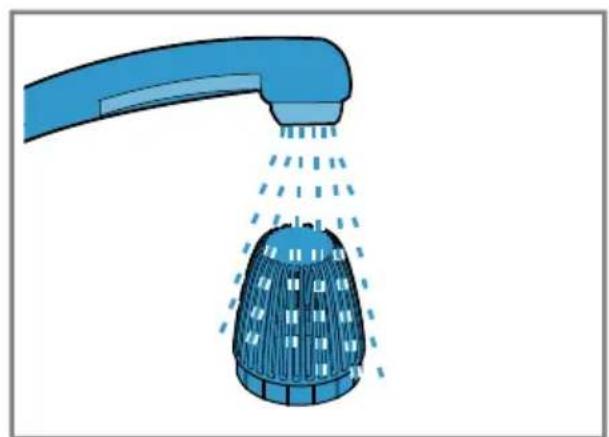

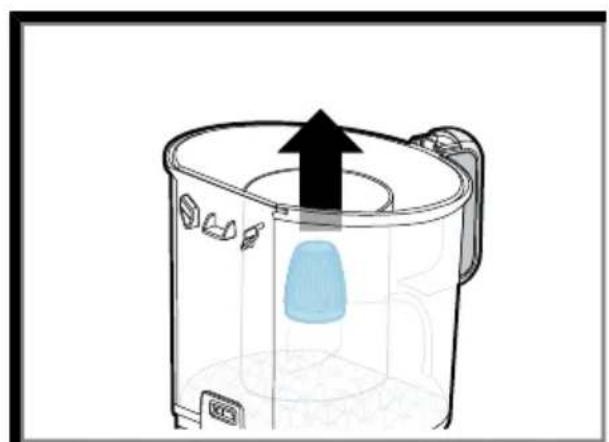

Cleaning the fluff filter

→Fig. 23 - 25

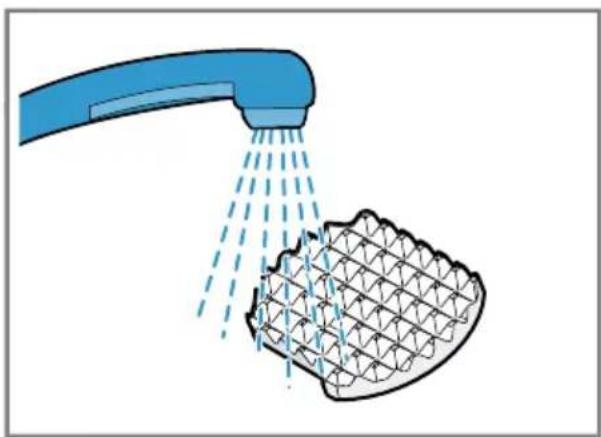

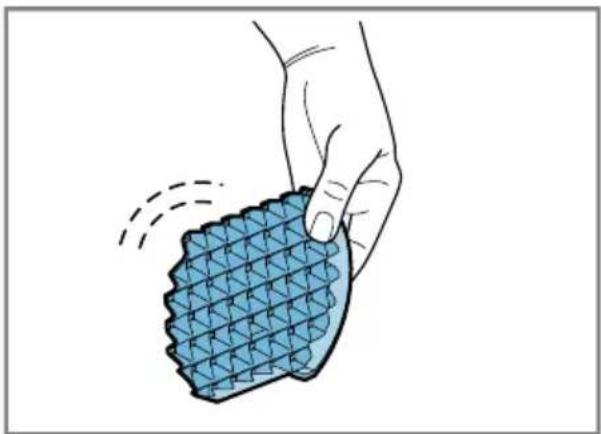

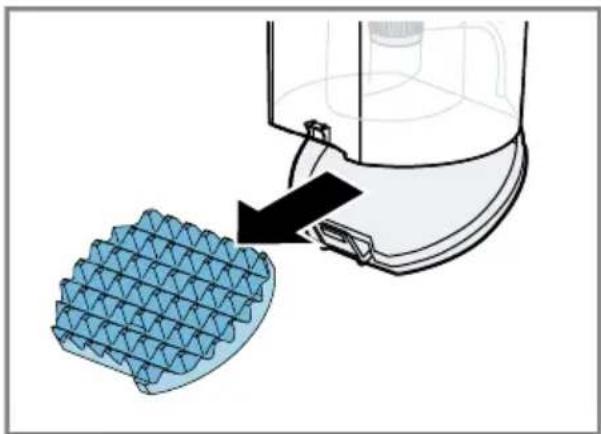

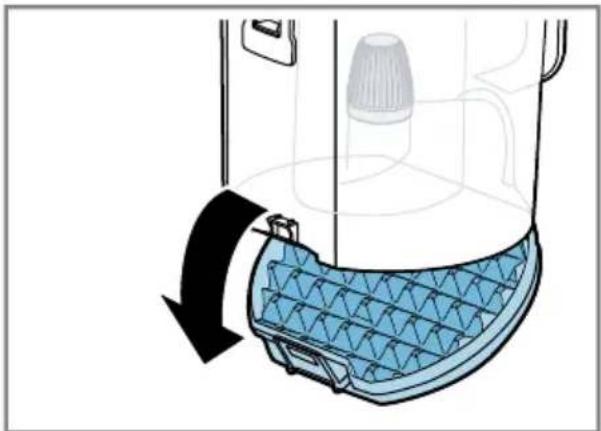

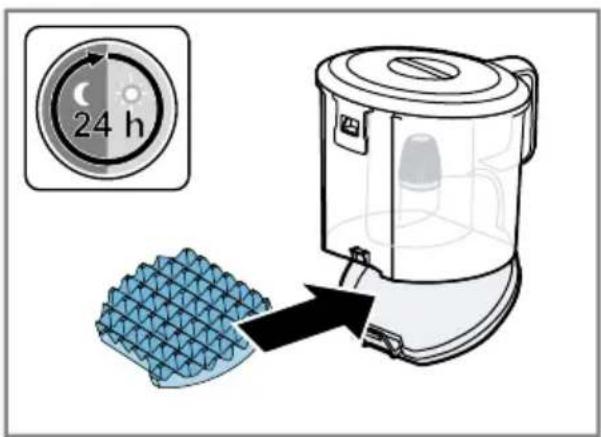

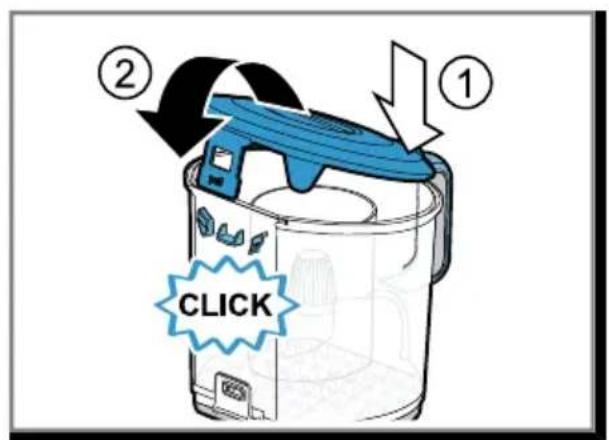

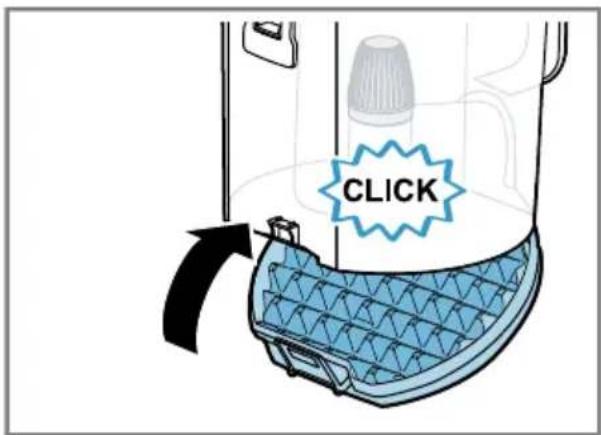

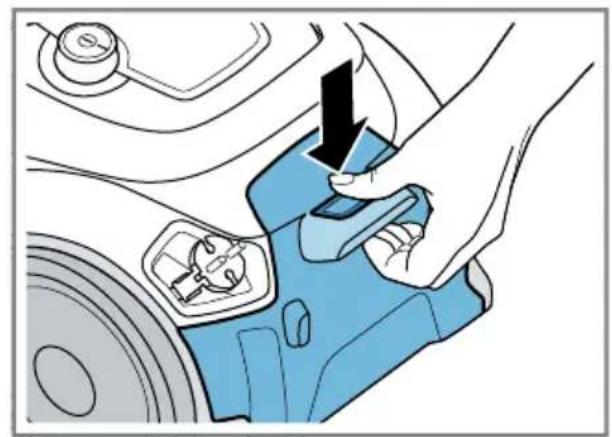

Cleaning the filter in the dust container

→Fig. 26 - 33

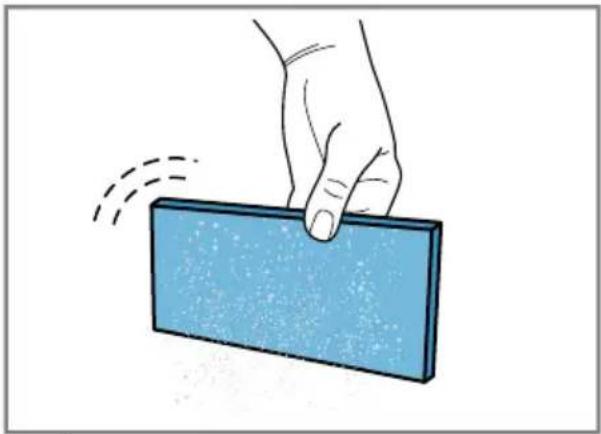

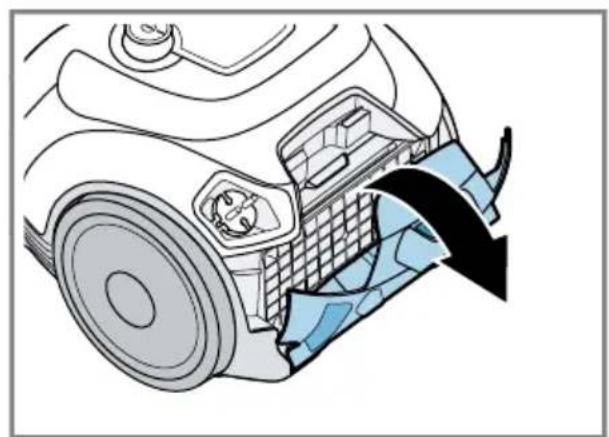

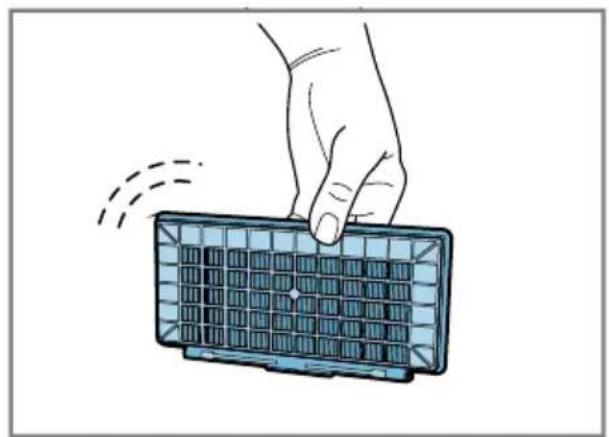

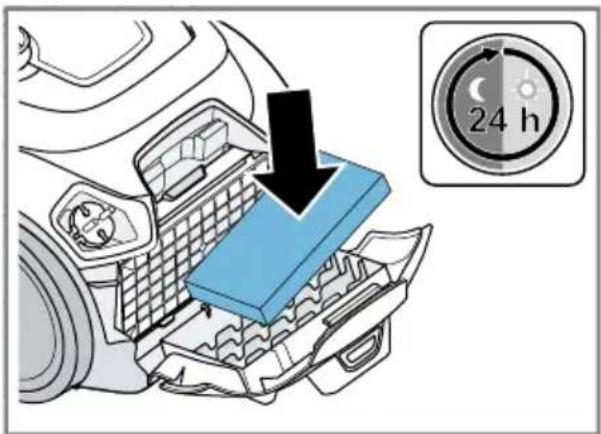

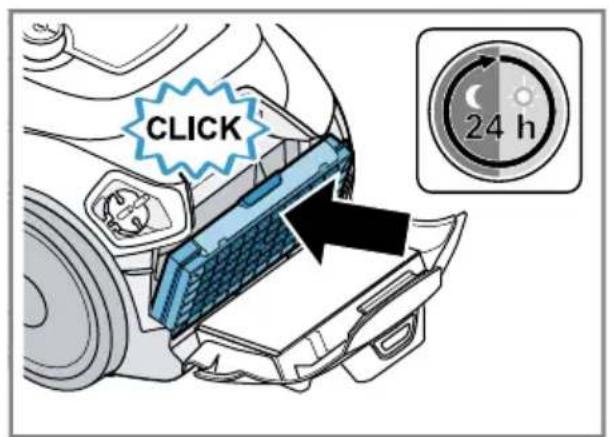

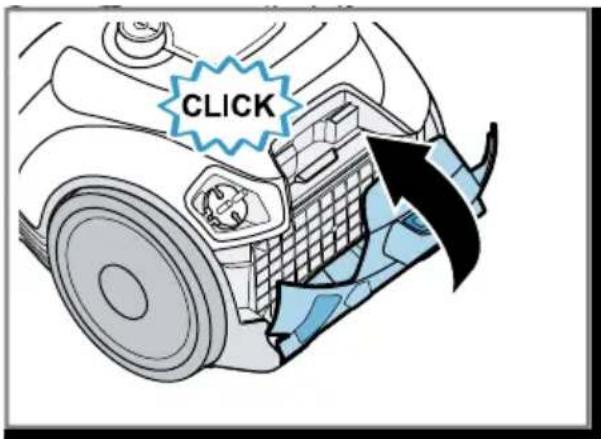

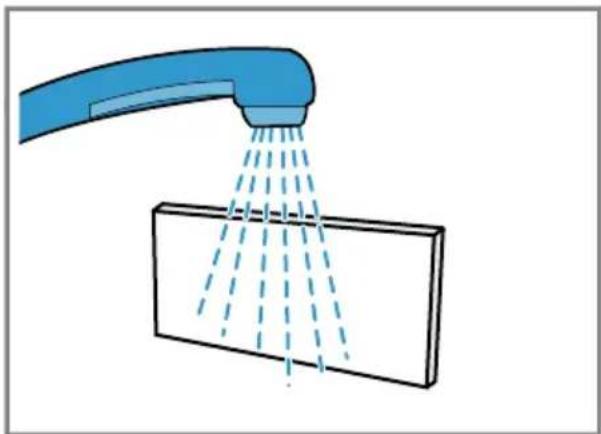

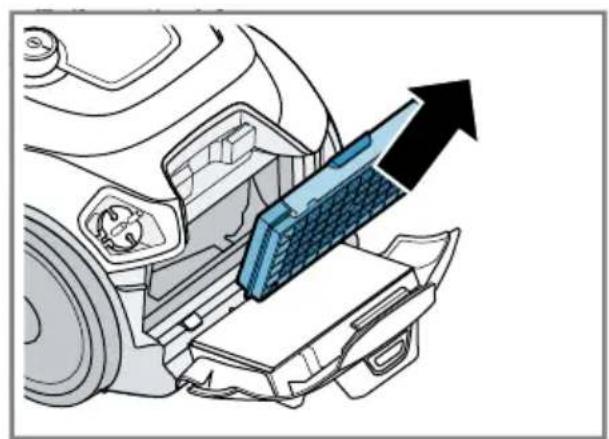

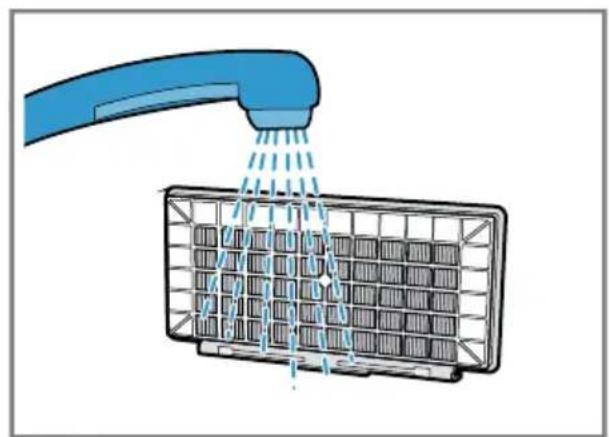

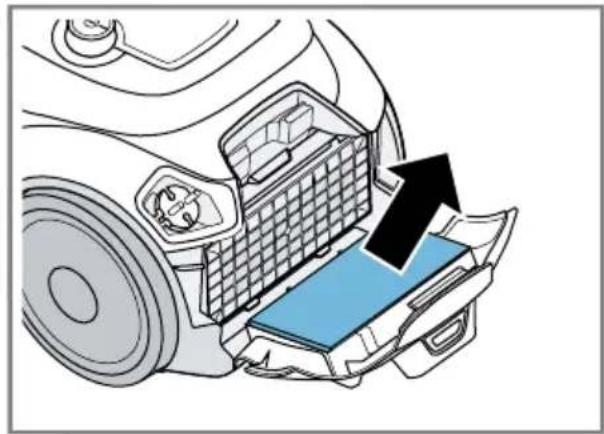

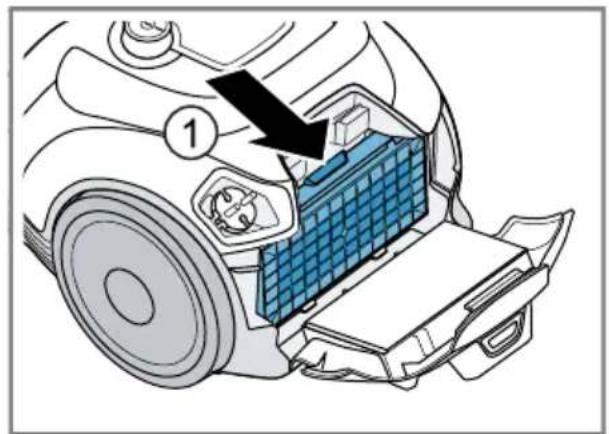

Cleaning the exhaust filter

→Fig. 34 - 46

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

The appliance is adjusted to the lowest power level.	Filter in the dust container is soiled.1. Switch off the appliance.2. Clean the filter in the dust container.
The Sensor Control indicator flashes red.	Exhaust filter is dirty.▸ Clean the exhaust filter.
The appliance is adjusted to the lowest power level.	Dust container is full1. Check the fill level of the dust container.2. Empty the dust container as needed.
The Sensor Control indicator lights up red.	Fluff filter is soiled.▸ Clean the fluff filter.
	Nozzle, telescopic tube or hose are blocked.1. Switch off the appliance.2. Dismantle the appliance.3. Remove the blockage.
Brush on the turbo nozzle does not turn.	Brush roller is soiled.▸ Clean the brush roller.
	Suction power is too low.▸ Turn the power controller to maximum suction power.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website. You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

4Sécurité

e-mail: [e-mail]

e-mail: [e-mail]

electrical and electronic

equipment - WEEE）进行标记。

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

8001346301 (050313)

de, en, fr, it, nl, es, pt, el, tr, pl, hu, kk, ru, bg, uk, az, ka, zh, th, ar
