BD2056IFAN - Refrigerator Profilo - Free user manual and instructions

Product type	Combined refrigerator with freezer compartment
Height (cm)	177
Width (cm)	54
Depth (cm)	54
Net weight (kg)	60
Energy class	E
Annual consumption (kWh/year)	250
Noise level (dB)	38
Total net capacity (L)	310
Refrigerator capacity (L)	210
Freezer capacity (L)	100
Power failure autonomy (h)	10
Climate class	SN-T
Cooling system	Static cooling with automatic defrost of the refrigerator
Interior lighting	LED
Glass shelves	Yes (3 adjustable shelves)
Door balconies	Yes (4 balconies)
Fruit and vegetable drawer	Yes (1 drawer)
Adjustable feet	Yes (2 front feet)
Door reversibility	Possible
Power supply (V/Hz)	220-240 V ~ 50 Hz
Cleaning	Clean with a soft cloth and soapy water. Avoid abrasive products.

Frequently Asked Questions - BD2056IFAN Profilo

How to adjust the refrigerator temperature?

Use the adjustment knob inside the refrigerator. The recommended temperature is 4°C for the refrigerator and -18°C for the freezer.

Why is my refrigerator making noise?

A slight noise is normal (compressor, gas circulation). If the noise is loud, check that the appliance is level and not touching a wall.

How to defrost the freezer?

This model has automatic defrost for the refrigerator. For the freezer, if frost forms, unplug the appliance, empty it, and leave the door open until the ice melts.

What to do if the interior light does not work?

Check the LED bulb. If it is burnt out, replace it with a bulb of the same type (see the manual). If the problem persists, contact a professional.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to reverse the hinges. You will need a screwdriver and possibly a wrench.

How to clean the door gaskets?

Clean the gaskets with a soft cloth soaked in warm water and mild soap. Rinse and dry. Do not use aggressive chemicals.

What is the power consumption of this refrigerator?

The annual consumption is about 250 kWh, which corresponds to energy class E.

How to install the refrigerator?

Place the appliance in a dry, well-ventilated area away from heat sources. Leave at least 5 cm of space at the back. Adjust the feet to make it level.

What to do in case of a power outage?

Avoid opening the doors. Food will stay cold for about 10 hours. If the outage lasts longer, check the food before consuming it.

Where to find spare parts?

Contact Profilo customer service or an authorized dealer. Parts such as shelves, balconies or bulbs are available.

USER MANUAL BD2056IFAN Profilo

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Ремонт

Ремонт

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram showing a red object being inserted into a pink container with a black arrow indicating direction (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram of a two-panel door handle assembly with arrows indicating direction (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Ремонт

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Ремонт

Interior view of a refrigerator showing the door, shelves, and a circular dial (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Brtva vrata je postavljena.

Popravak

Popravak

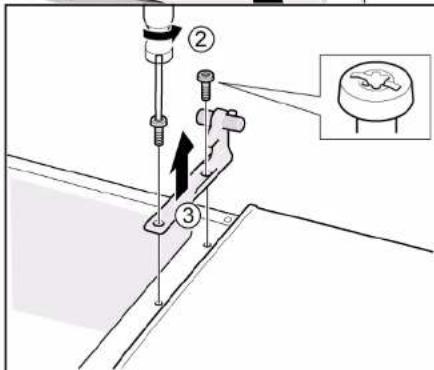

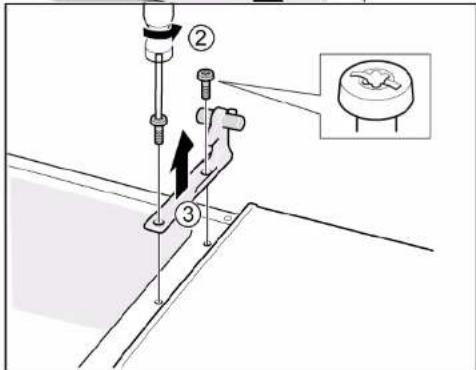

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Okrenite poklopac zgloba (3).
4. Uklonite poklopac gornjeg zgloba (4).
5. Odvijte dva vijka (5).
6. Uklonite gornji zglob (6)/

Gomji je zglob uklonjen.

4.3.2 Postavljanje gornjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Popravak

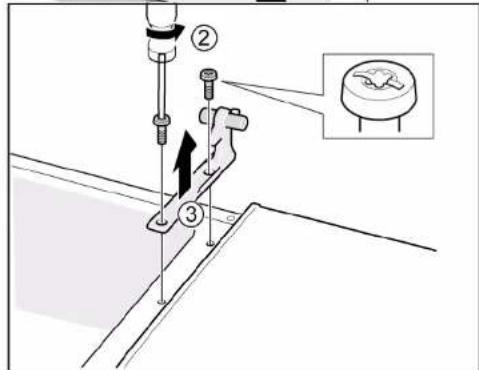

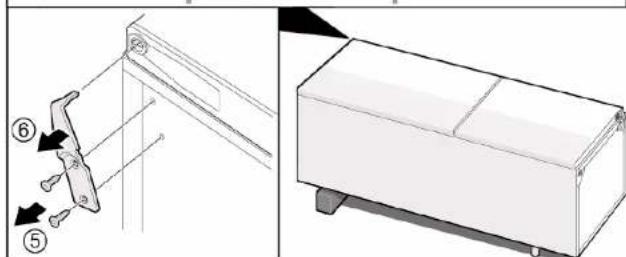

1. 1. Uklonite poklopac gornjeg zgloba (1).

2. Uklonite poklopac kutije za kabele (2).

3. Odvojite električni priključak (3)
4. Odvijte vijak priključka za uzemljenje (4).
5. Uklonite zaštitu kabela (5).
6. Odvijte vijak (6)

Gomji je zglob uklonjen.

4.4.2 Postavljanje gornjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Diagram of a mechanical device with a handle and arrow, no visible text or symbols

Srednji je zglob uklonjen.

4.5.2 Postavljanje srednjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena donjeg zgloba vrata

Specijalni alati:

Nastavak Torx TX20 6,3 mm (1/4") [00340865]

Teški, veliki uređaji!

Diagram of a mechanical device with a labeled component (①) and directional arrow, no readable text or symbols present.

Donji je zglob vrata uklonjen.

4.6.2 Postavljanje donjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police

- Izvucite policu.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

1. Na isti način skinite lijevi dio podesive police.

Podesiva polica je skinuta.

4.8.2 Postavljanje podesive police

▶ Postavite obratnim redoslijedom.

Popravak

4.9 Zamjena fleksibilne police

Zahtjev:

Vrata su otvorena.

4.9.1 Skidanje fleksibilne police

▶ 1. Skinite staklenu policu (1).
2. Podignite fleksibilnu policu i izvucite je (2).

→ Fleksibilna polica je skinuta.

4.9.2 Postavljanje fleksibilne police

▶ Postavite obratnim redoslijedom.

Popravak

Diagram of a red container being inserted into a transparent container, with a black arrow indicating the process (no text or symbols present)

Komplet za doručak je skinut.

4.10.2 Postavljanje kompleta za doručak

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Polica za boce je uklonjena.

4.11.2 Postavljanje police za boce

▶ Postavite obratnim redoslijedom.

Popravak

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

Spremnik za zamrznute namirnice je uklonjen.

4.13.2 Postavljanje spremnika za zamrznute namirnice

▶ Postavite obratnim redoslijedom.

Popravak

Spremnici su uklonjeni.

- Izvlačni spremnik je uklonjen.

4.15.2 Postavljanje izvlačnog spremnika

▶ Postavite obratnim redoslijedom.

Popravak

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with a tool inserted, showing a component being inserted into a housing (no text or symbols visible)

Popravak

Close-up of a refrigerator interior showing a glass door and adjacent shelf, with a circular component inserted (no text or symbols visible)

Popravak

Interior view of a refrigerator showing the door, shelves, and a circular dial (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Oprava

Oprava

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red container being inserted into a transparent container, with a black arrow indicating the process (no text or symbols present)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Oprava

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Oprava

Close-up of a refrigerator interior showing glass doors and a circular door with a black arrow pointing to the door (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparation

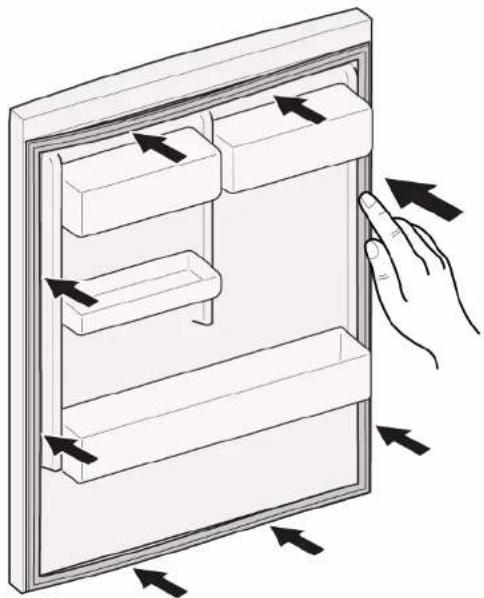

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Reparation

▶ Sørg for at sikre apparater mod at glide.

PAS PÅ!

Reparation

▶ Sørg for at sikre apparater mod at glide.

PAS PÅ!

Diagram of a device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram of a red container being inserted into a transparent container, with a black arrow indicating the process (no text or symbols present)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

1. Afbryd LED-spotlampens elektriske tilslutninger.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red component, no visible text or symbols

Reparation

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Reparation

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Reparatie

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Reparatie

Reparatie

Diagram of a mechanical assembly with a folded paper and a black arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red container being inserted into a transparent container, with a black arrow indicating the process (no text or symbols present)

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a screwdriver inserted into a mechanical component, showing a red component and alignment lines (no text or symbols)

Reparatie

Interior view of a refrigerator showing a glass door and adjacent shelf (no text or symbols visible)

Reparatie

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

Repair hints - Fridge-freezer

i Concerning this document.... 148

1.1 Important information.... 148

1.1.1 Purpose.... 148

1.2 Explanation of symbols 148

1.2.1 Danger levels.... 148

1.2.2 Hazard symbols 148

1.2.3 Structure of the warnings.... 149

1.2.4 General symbols.... 149

Safety

2.1 General Safety instructions 150

2.1.1 All domestic appliances 150

Tools and aids....1

Repair

4.4 Replacing door upper hinge (door with display) 158

4.4.1 Removing door upper hinge.... 158

4.4.2 Installing door upper hinge....159

4.5 Replacing door middle hinge 160

4.5.1 Removing door middle hinge 160

4.5.2 Installing door middle hinge 160

4.6 Replacing door lower hinge....161

4.6.1 Removing door lower hinge 161

4.6.2 Installing door lower hinge 161

4.7 Replacing shelf....162

4.7.1 Removing shelf.... 162

4.7.2 Installing shelf.... 162

4.8 Replacing variable shelf 163

4.8.1 Removing variable shelf.... 163

4.8.2 Installing variable shelf....163

4.9 Replacing flexible shelf.... 164

4.9.1 Removing flexible shelf 164

4.9.2 Installing flexible shelf 164

4.10 Replacing breakfast set 165

4.10.1 Removing breakfast set 165

4.10.2 Installing breakfast set 165

4.11 Replacing bottle tray 166

4.11.1 Removing bottle tray 166

4.11.2 Installing bottle tray.... 166

4.12 Replacing door rack 167

4.12.1 Removing door rack.... 167

4.13.1 Removing frozen food container 168

4.13.2 Installing frozen food container 168

4.14 Replacing container 169

4.14.1 Removing container.... 169

4.14.2 Installing container.... 169

4.15 Replacing extendable container 170

4.15.1 Removing extendable container 170

4.15.2 Installing extendable container 170

4.16 Replacing LED spot light 171

4.16.1 Removing LED spot light.... 171

4.16.2 Installing LED spot light 171

4.17 Replacing LED top light 172

4.17.1 Removing LED light.... 172

4.17.2 Installing top LED light 173

4.18 Replacing LED side bar light.... 174

4.18.1 Removing LED side bar light 174

4.18.2 Installing LED side bar light 175

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
	Danger	Non-observance of the warning message will result in death or serious injuries.
	Warning	Non-observance of the warning message could result in death or serious injuries.
	Caution	Non-observance of the warning message could result in minor injuries.
Notice		Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Slotted screwdriver Blade 2.4 mm x 0.4 mm x60 mm, in the kit [00341820]
Special tool[00342180]
Suction cup[00342224]	∅50 mm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Slotted screwdriver Blade 10 mm x 1.6 mm x200 mm

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

1. If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing door handle

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Slotted screwdriver Blade 10 mm x 1.6 mm x 200 mm

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Door handle is removed.

Door handle for the second door can be removed in the same manner.

▶ Install in reverse order.

Repair

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

Repair

1. 1. Press upper hinge cover on both sides (1).

2. Move out upper hinge cover (2)

3. Rotate hinge cover (3).
4. Remove upper hinge cover (4).
5. Unscrew two screws (5).
6. Remove upper hinge (6)

Upper hinge is removed.

▶ Install in reverse order.

Repair

4.4 Replacing door upper hinge (door with display)

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by trained specialists.
To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

Repair

1. 1. Remove upper hinge cover (1).

2. Remove cable box cover (2).

3. Disconnect electrical connection (3)
4. Unscrew ground connection screw (4).
5. Remove cable protection (5).
6. Unscrew the screw (6)

Upper hinge is removed.

▶ Install in reverse order.

Repair

4.5 Replacing door middle hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Door upper hinge is removed.

√ Upper door is removed.

4.5.1 Removing door middle hinge

▶ 1. Remove fridge compartment door (1).
2. Unscrew two screws (2) 3. Remove middle hinge (3)

Middle hinge is removed.

4.5.2 Installing door middle hinge

▶ Install in reverse order.

Repair

4.6 Replacing door lower hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Upper hinge is removed.

√ Middle hinge is removed.

4.6.1 Removing door lower hinge

▶ 1. Remove freezer compartment door (1).
2. Unscrew the screw (2).
3. Turn lower hinge out (3).
4. Remove lower hinge (4).

Door lower hinge is removed.

▶ Install in reverse order.

Repair

4.7 Replacing shelf

Prerequisite:

Door is open.

4.7.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Shelf is removed.

4.7.2 Installing shelf

▶ Install in reverse order.

Repair

4.8 Replacing variable shelf

Prerequisite:

√ Door is open.

4.8.1 Removing variable shelf

1. 1. Pull the right-hand section of variable shelf forwards (1).

2. Remove right-hand section of variable shelf (2).

1. Remove left-hand section of variable shelf in the same manner.

→ Variable shelf is removed.

4.8.2 Installing variable shelf

▶ Install in reverse order.

Repair

4.9 Replacing flexible shelf

Prerequisite:

√ Door is open.

4.9.1 Removing flexible shelf

▶ 1. Remove glass shelf (1).
2. Lift flexible shelf and pull it out (2).

→ Flexible shelf is removed.

4.9.2 Installing flexible shelf

▶ Install in reverse order.

Repair

4.10 Replacing breakfast set

Prerequisite:

√ Door is open.

4.10.1 Removing breakfast set

▶ Lift breakfast set and pull it out.

Diagram of a red container being inserted into a transparent container, with a black arrow indicating the process (no text or symbols present)

Breakfast set is removed.

4.10.2 Installing breakfast set

▶ Install in reverse order.

Repair

4.11 Replacing bottle tray

Prerequisite:

√ Door is open.

4.11.1 Removing bottle tray

▶ Pull out bottle tray.

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

→ Bottle tray is removed.

4.11.2 Installing bottle tray

▶ Install in reverse order.

Repair

4.12 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or force, no text or symbols present.

Door rack is removed.

▶ Install in reverse order.

Repair

4.13 Replacing frozen food container

Prerequisite:

√ Door is open.

4.13.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove food container (2).

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Frozen food container is removed.

4.13.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.14 Replacing container

Prerequisite:

√ Door is open.

4.14.1 Removing container

1. Move out lower fridge container (1).
2. Move out upper fridge container (2).

Containers are removed.

4.14.2 Installing container

▶ Install in reverse order.

Repair

4.15 Replacing extendable container

Prerequisite:

√ Door is open.

4.15.1 Removing extendable container

1. Pull extendable container out all the way (1).
2. Remove extendable container (2).

Extendable container is removed.

4.15.2 Installing extendable container

▶ Install in reverse order.

Repair

4.16 Replacing LED spot light

Required tools:

Special tool [00342180]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.16.1 Removing LED spot light

1. Use special tool to pull out LED spot light (1).

1. Unplug electrical connections of LED spot light.

LED spot light is removed.

4.16.2 Installing LED spot light

▶ Install in reverse order.

Repair

4.17 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Danger Risk of electric shock due to live Danger to life through electric shock - Electric parts should be rep - After the repair have a safe specific regulations perform

Danger Risk of electric shock due to live Death by electrocution ▶ Disconnect appliances from before starting repairs.

Caution Sharp edges! Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.
√ Upper interior fittings are removed.

4.17.1 Removing LED light

1. Move the LED light to the left side.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

LED light electrical connection is disconnected.

1. Release LED light hooks.

Diagram of a screwdriver inserted into a mechanical component, showing no text or symbols

Repair

1. Remove LED light moving it forward.

LED light is removed.

4.17.2 Installing top LED light

▶ Install in reverse order.

Repair

4.18 Replacing LED side bar light

Required tools:

Suction cup ∅50 mm [00342224]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.18.1 Removing LED side bar light

1. Stick the suction cup on the upper third of LED side bar light.

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Repair

1. Pull suction cup with forward LED side bar light in one rotary movement.

Close-up of a refrigerator interior showing the door and shelf, with a black arrow pointing to the door handle (no text or symbols visible)

1. Disconnect electrical connection of LED side bar light.

→ LED side bar light is removed.

4.18.2 Installing LED side bar light

1. Connect electrical connection of LED side bar light.
2. Fix LED side bar light into it's location on compartment wall (hooks click).
   LED side bar light is installed.

Remonditeave - Kombikülmik

i Selle dokumendiga seoses 177

1.1 Tähtis teave 177

1.1.1 Eesmärk 177

1.2 Sümbolite selgitus 177

1.2.1 Ohutasemed.... 177

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Remont

Remont

Diagram of a device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red container being inserted into a transparent container, with a black arrow indicating the process (no text or symbols present)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted, showing a component being inserted (no text or symbols present)

Remont

1. Eemaldage LED-tuli, liigutades seda ettepoole.

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Remont

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing arrows indicating movement (no text or symbols present)

Korjaus

Korjaus

Diagram of a device with a labeled component (①) and an arrow indicating direction, no text or symbols present.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Aamiaissetti on poistettu.

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Korjaus

Imukuppi ∅50 mm [00342224]

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Korjaus

Close-up of a refrigerator interior showing glass doors and a circular door with a black arrow pointing to the door (no text or symbols visible)

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Réparation

Réparation

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Réparation

Interior view of a refrigerator showing the door, glass panel, and shelf (no text or symbols visible)

Réparation

Close-up of a refrigerator interior showing glass panels and a circular doorbell (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Instandsetzen

Instandsetzen

Diagram of a mechanical device with a handle and arrow, no visible text or symbols

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red block and mechanical assembly (no text or symbols)

Instandsetzen

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Instandsetzen

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door (no text or symbols visible)

Illustration of hands connecting a cable to a door panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Επισκευή

Επισκευή

Diagram of a device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram of a red container being inserted into a transparent container, with a black arrow indicating the process (no text or symbols present)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

To theckopiko surtári aφαιρέθηκε.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red block and mechanical assembly (no text or symbols)

Επισκευή

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Επισκευή

Interior view of a refrigerator showing the door and shelf, with a circular dial indicator highlighting a specific area (no text or symbols present)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Javítás

Javítás

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red container being inserted into a transparent container, with a black arrow indicating the process (no text or symbols present)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Javítás

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Javítás

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Riparazione

Riparazione

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Riparazione

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Riparazione

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Remonts

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Durvju rokturis ir nonemts.

Otru durvju rokturi nonem tāpat.

Remonts

Remonts

Diagram of a mechanical device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram of a mechanical assembly with a red component being inserted into a pink housing, showing a black arrow indicating direction (no text or symbols present)

Brokastu tvertne ir iznemta.

4.10.2 Brokastu tvertnes ielikšana

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

- Izvelkamä tvertne ir iznemta.

1. Atvienojiet LED starmeša elektriskos savienojumus.

LED starmetis ir nonemts.

Diagram of a mechanical or electrical component with a red component and black arrow indicating direction (no text or symbols present)

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Remonts

1. Lai nonemtu LED gaismekli, virziet to uz priekšu.

→ LED gaismeklis ir nonemts.

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Remonts

Close-up of a refrigerator interior showing glass panels and a circular door (no text or symbols visible)

1. Atvienojiet sānu LED apgaismes joslas elektriskos savienojumus.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remontas

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Remontas

Remontas

Diagram of a mechanical device with a handle and arrow, no visible text or symbols

Diagram of a mechanical device with a labeled component (①) and directional arrow, no readable text or symbols present.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram of a mechanical assembly with a red component being inserted into a pink housing, showing a black arrow indicating direction (no text or symbols present)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Talpyklos išimtos.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Remontas

LED lemputė išimta.

Close-up of a refrigerator interior showing a door, shelf, and a circular component with an arrow pointing to the door (no text or symbols visible)

Remontas

Interior view of a refrigerator showing the door and shelf, with a circular dial indicator highlighting a specific area (no text or symbols present)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Reparasjon

∅vre hengsel er demontert.

Reparasjon

∅vre hengsel er demontert.

Diagram of a mechanical device with two compartments and an arrow indicating direction (no text or symbols)

Diagram of a device with a labeled component (①) and an arrow indicating direction, no text or symbols present.

→ Nedre dørhengsel er demontert.

4.6.2 Montering av nedre dørhengsel

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Frokostsettet er demontert.

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Flaskehyllen er demontert.

4.11.2 Montering av flaskehylle

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

→ Beholderen for frysevarer er demontert.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

LED-lampens elektriske tilkobling kobles fra.

1. Løsne LED-lampens kroker.

Diagram of a mechanical assembly with a tool inserted, showing a red component and a gray base (no text or symbols)

Reparasjon

LED-lampen er demontert.

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparasjon

1. Trekk sugekoppen forover med LED-lampen i sidelisten i en roterende bevegelse.

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door handle (no text or symbols visible)

1. Koble fra den elektriske tilkoblingen for LED-lampen i sidelisten.

LED-lampen i sidelisten er demontert.

4.18.2 Montering av LED-lampe i sidelist

1. Koble til den elektriske tilkoblingen for LED-lampen i sidelisten.
2. Fest LED-lampen i sidelisten på rett sted på veggen i apparatrommet (krokene klikker på plass).
   LED-lampen i sidelisten er montert.

Illustration of hands connecting a cable to a refrigerator panel (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Naprawy

Naprawy

Diagram of a mechanical device with a handle and arrow, no text or symbols present

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.7.2 Montaż półki

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Naprawy

Close-up of a refrigerator interior showing a door, glass panel, and a circular component with an arrow pointing to the door (no text or symbols visible)

Naprawy

Interior view of a refrigerator showing the door and shelf, with a circular dial indicator highlighting a specific area (no text or symbols present)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Reparação

1. 1. Pressione a tampa da dobradiça superior de ambos os lados (1).

2. Extraia a tampa da dobradiça superior (2).

3. Rode a tampa da dobradiça (3).
4. Remova a tampa da dobradiça superior (4).
5. Desaperte dois parafusos (5).
6. Remova a dobradiça superior (6).

Reparação

Diagram of a mechanical device with a handle and arrow, no text or symbols present

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a red arrow pointing to a specific section (no text or symbols present)

Diagram of a screwdriver inserted into a mechanical component, showing no text or symbols

Reparação

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Reparação

Interior view of a refrigerator showing the door, shelves, and a circular dial (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Cap torx TX20 6.3 mm (1/4") [00340865]

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Cap torx TX20 6.3 mm (1/4") [00340865]

Diagram of a mechanical device with an arrow indicating direction and a numbered label (1), no readable text or symbols present.

Cap torx TX20 6.3 mm (1/4") [00340865]

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

→ Containerele sunt demontate.

Instrument special [00342180]

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Repararea

Interior view of a refrigerator showing the door, glass panel, and shelf (no text or symbols visible)

Repararea

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door handle (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

Oprava

Oprava

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Odkladacia plocha flexible je odobrata.

4.9.2 Montáž odkladacej plochy flexible

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Raňajková sada je odobratá.

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Odkladací priestor na fl'aše je odobratý.

4.11.2 Montáž odkladacieho priestoru na fl'aše

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red component, no visible text or symbols

Oprava

LED svetlo je odobraté.

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Oprava

Interior view of a refrigerator showing the door, shelves, and a circular button with an arrow pointing to the door (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Popravilo

Poškodbe hrbta in mišic

Popravilo

Poškodbe hrbta in mišic

Diagram of a device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.7.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Diagram of a mechanical assembly with a red component being inserted into a pink housing, showing a black arrow indicating direction (no text or symbols present)

Komplet za zajtrk je odstranjen.

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Električni priključek lučke LED je odklopljen.

1. Sprostite zatiče lučke LED.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Popravilo

1. Lučko LED premaknite naprej in jo odstranite.

→ Lučka LED je odstranjena.

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Popravilo

Close-up of a refrigerator interior showing glass doors and a circular door with a black arrow pointing to the door (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Reparación

Reparación

Diagram of a mechanical device with a handle and arrow, no text or symbols present

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Reparación

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Reparación

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door (no text or symbols visible)

4.14.1 Ta bort fack....662

4.14.2 Montera lâda....662

4.15 Byta utdragbar låda....663

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Reparation

Reparation

Diagram of a device with an arrow pointing to a lid, labeled with number ① (no text or symbols on the diagram itself)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a red tray with a black arrow indicating downward motion, no text or symbols present

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Flaskhyllan har tagits bort.

4.11.2 Montera flaskhylla

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

4.12.2 Montera dörrhylla

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a screwdriver inserted into a mechanical component with a red component, no visible text or symbols

Reparation

→ LED-lampan har tagits bort.

Sugkopp ∅50 mm [00342224]

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Reparation

Close-up of a refrigerator interior showing glass panels and a circular doorbell (no text or symbols visible)

1. Lossa elanslutningen till LED-sidoramplampan.

LED-sidoramplampan har tagits bort.

4.18.2 Montera LED-sidoramplampa

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Onarim

Onarim

Diagram of a mechanical device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a red component being inserted into a blue housing, showing a black arrow indicating direction (no text or symbols present)

Abstract diagram of wavy blue lines with a black arrow pointing downward, no text or symbols present

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Special tool [00342180]

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Onarim

LED ışığı söküldü.

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Onarim

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to a circular component (no text or symbols visible)
