KA171L - Orbital sander BLACK & DECKER - Free user manual and instructions

Brand	Black & Decker
Model	KA171L
Type	Orbital sander
Power input	200 W
Voltage	230 V
Oscillations (no load)	15,000 min⁻¹
Orbits (no load)	30,000 min⁻¹
Weight	1.5 kg
Sanding base	Yes
Paper clamp lever	Yes
Paper punch	Yes
Dust cassette	Yes
Dustbag	Yes
Louvre attachment	Yes (KA171L only)
Dust extraction outlet	Yes
On/Off switch	Yes
Double insulated	Yes
Sound pressure level (LpA)	84.7 dB(A)
Sound power level (LWA)	95.7 dB(A)
Hand/arm vibration	<5.0 m/s²
Guarantee period	24 months
Intended use	Sanding wood, metal, plastics, painted surfaces

Frequently Asked Questions - KA171L BLACK & DECKER

How do I change the sanding sheet on the KA171L?

For sheets with nylon loops, press firmly onto the sanding base ensuring holes align. For regular sheets, soften the sheet, open the paper clamp levers, insert edges, and close levers. Use the paper punch if holes are needed.

How do I empty the dust cassette?

Empty the dust cassette every 10 minutes. Pull it off the tool, remove the cover by twisting counter-clockwise, hold with filter facing down and shake to empty. Shake the cover separately, then reassemble.

Can I use the sander without a sanding sheet?

No, never use the tool without a sanding sheet or accessory in place. It can damage the base and reduce effectiveness.

How do I clean the dust cassette filter?

Do not brush, use compressed air, or wash the filter. Remove the filter by pulling it off (do not twist), tap it into a dustbin to remove excess dust, then replace.

What is the louvre attachment for?

The louvre attachment (included with KA171L) allows you to sand in crevices and use the sanding base on both sides. It is attached with four screws.

What safety precautions should I take when sanding?

Always wear a dust mask and eye protection. Avoid sanding lead-based paint without proper mask. Keep bystanders away, and ensure the work area is clean and well-lit.

What voltage does the KA171L require?

The tool operates on 230 V AC. Always check that the power supply matches the rating plate voltage.

Is the KA171L double insulated?

Yes, it is double insulated, so no earth wire is required. However, always use an appropriate outlet.

How often should I empty the dustbag?

Empty the dustbag every 10 minutes of use to maintain efficient dust collection. Simply shake out the contents.

What is the guarantee period for the KA171L?

Black & Decker offers a 24-month guarantee from the date of purchase, covering faulty materials or workmanship. Proof of purchase is required.

USER MANUAL KA171L BLACK & DECKER

Diagram of a robotic arm with a textured surface and directional arrow, labeled 'A' (no text or symbols on the diagram itself)

Illustration showing a hand operating a device with arrows indicating motion or force, and a close-up of a tray with circular holes (no text or symbols)

ENGLISH

Intended use

Your Black & Decker sander has been designed for sanding wood, metal, plastics and painted surfaces. This tool is intended for consumer use only.

Design and Patent information

European Patent EP1419856B1

GB Design No 3011677

General safety rules

Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS.

1. Work area

a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention

while operating power tools may result in serious personal injury.

b. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Avoid accidental starting. Make sure that the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, make sure that these are connected and properly used. Use of these devices can reduce dust related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool,

taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will make sure that the safety of the power tool is maintained.

Addition safety instructions for sanders

◆Always wear a dust mask whenever sanding.

◆Thoroughly remove all dust after sanding.

Take special care when sanding paint which is possibly lead based or when sanding some woods and metal which may produce toxic dust:

- Wear a dust mask specifically designed for protection against lead paint dust and fumes and make sure that persons within or entering the work area are also protected.

- Do not let children or pregnant women enter the work area.

- Do not eat, drink or smoke in the work area.

- Dispose of dust particles and any other debris safely.

Before using the tool on wooden workpieces, make sure to fit the dust cassette.

Before you use the tool on metal workpieces, make sure that you remove the dust cassette.

◆Never use the tool without a sanding sheet.

◆Never use the tool without a sanding base.

This appliance is not intended for use by young or infirm persons without supervision. Children must be supervised to make sure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Electrical safety

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

Features

1. On/off switch
2. Gel comfort grip (KA171GT only)
3. Cover
4. Dust cassette (KA171, KA171GT, KA171L)
5. Dust extraction outlet
6. Sanding base
7. Paper clamp lever
8. Paper punch
9. Louvre attachment (KA171L)
10. Filter
11. Dustbag

Assembly

Warning! Before assembly, make sure that the tool is switched off and unplugged.

Fitting sanding sheets (fig. A & B)

Warning! Never use the tool without a sanding sheet or accessory in place.

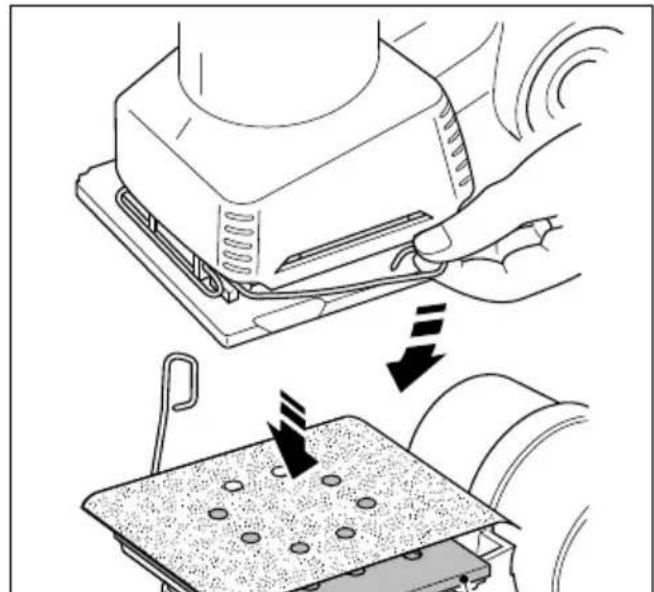

Fitting sanding sheets with nylon loops (fig. A)

Warning! Make sure that the tool is switched off and unplugged.

◆Press the sheet firmly and evenly onto the sanding base (6), making sure that the holes in the sheet line up with the holes in the base.

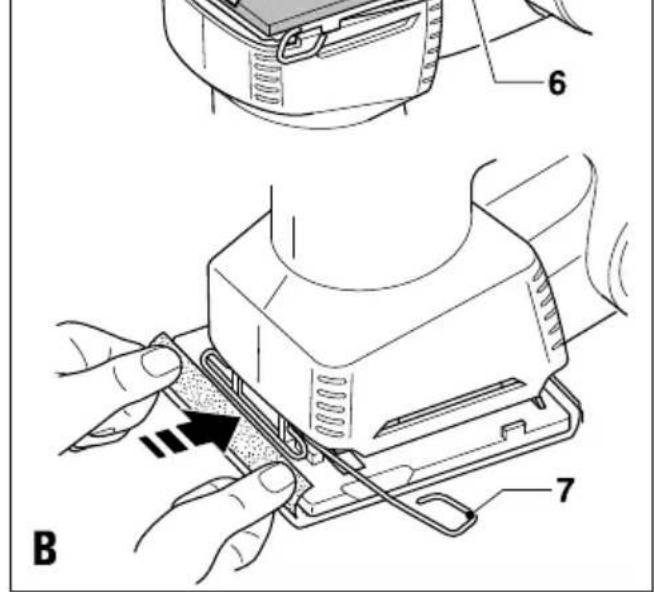

Fitting regular sanding sheets (fig. B)

Warning! Make sure that the tool is switched off and unplugged.

◆Soften the sanding sheet by rubbing its non-abrasive side over the edge of a worktop.
◆Press the paper clamp levers (7) upwards to release them from the retaining grooves and open the paper clamps (7) by pressing them down.
◆Place the sheet onto the sanding base (6).
◆Insert the edge of the sanding sheet into the front paper clamp (7) as shown.
◆Press the front paper clamp lever (7) downwards and locate it in the retaining groove.
◆While keeping a slight tension on the sheet, insert the rear edge of the sheet into the rear paper clamp (7).
◆Press the rear paper clamp lever (7) downwards and locate it in the retaining groove.

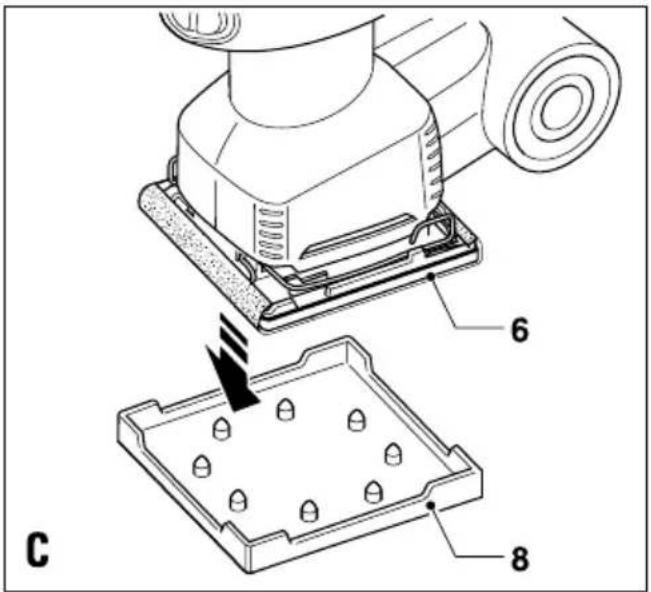

Punching sanding sheets (fig. C)

The paper punch (8) is used for punching dust extraction holes in sanding sheets without pre-punched holes.

Fit a sanding sheet.

◆Hold the tool in position right above the paper punch (8).

ENGLISH

◆Press the tool with the sanding base (6) down into the paper punch.
◆Take the tool off the paper punch and check whether the holes in the sanding sheet have been fully pierced.

Fitting and removing the dust cassette (fig. F) KA171, KA171GT, KA171L only

◆Fit the dust cassette (4) over the dust extraction outlet (5).
◆To remove the dust cassette (4), pull the dust cassette to the rear and off the outlet.

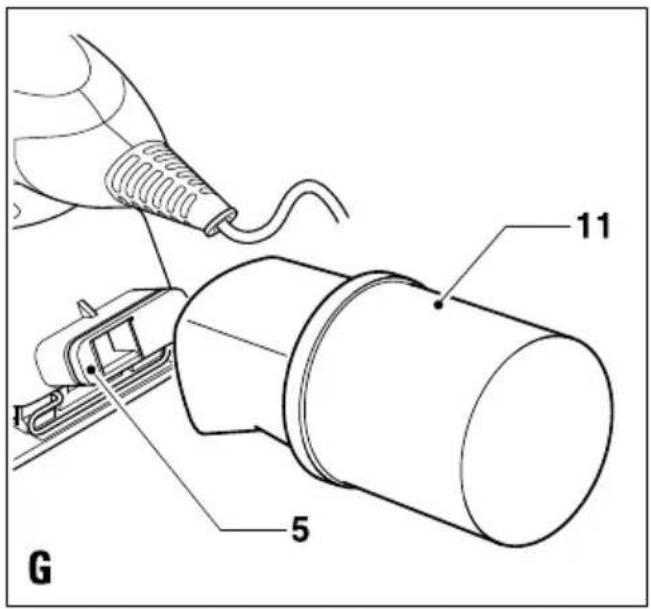

Fitting and removing the dustbag (fig. G)

◆Fit the dustbag (11) over the dust extraction outlet (5).
◆To remove the dustbag, pull the dustbag to the rear and off the outlet.

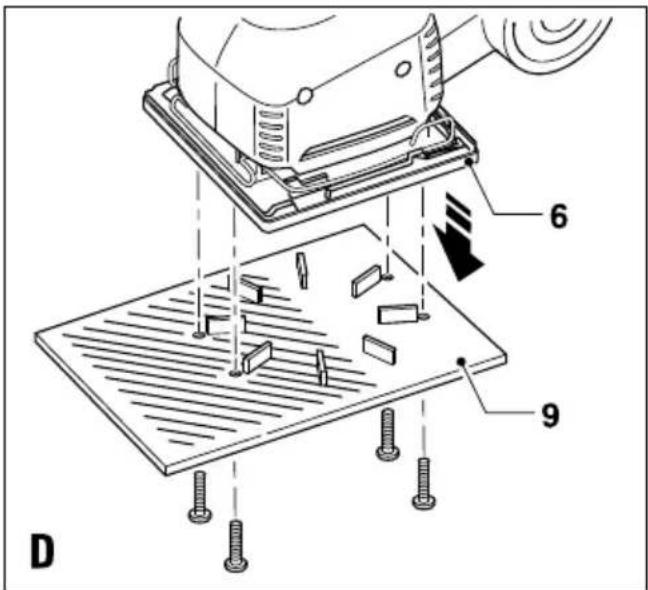

Louvre attachment (fig. D) KA171L only

With this attachment you can work in crevices and use the sanding base on both sides.

◆Locate the front of the louvre attachment (9) onto the sanding base (6).
◆ Secure it in position with the four screws supplied.
◆Place a 1/2 sheet to the underside of the louvre (9) base. Part of it will fold over the front part of the base.
◆To remove the louvre attachment, reverse the procedure.

Use

Warning! Let the tool work at its own pace.

Warning! Do not overload.

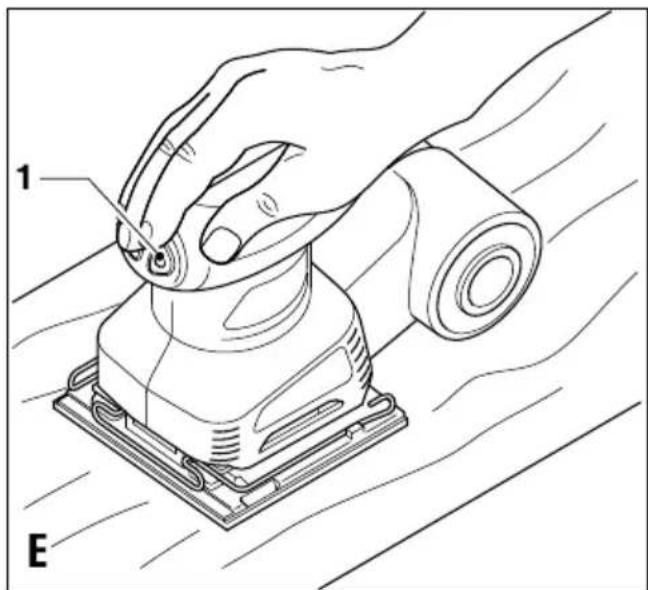

Switching on and off (fig. E)

◆ To switch the tool on, press the part of the on/off switch (1) marked 'I'.
◆To switch the tool off, press the part of the on/off switch (1) marked '0'.

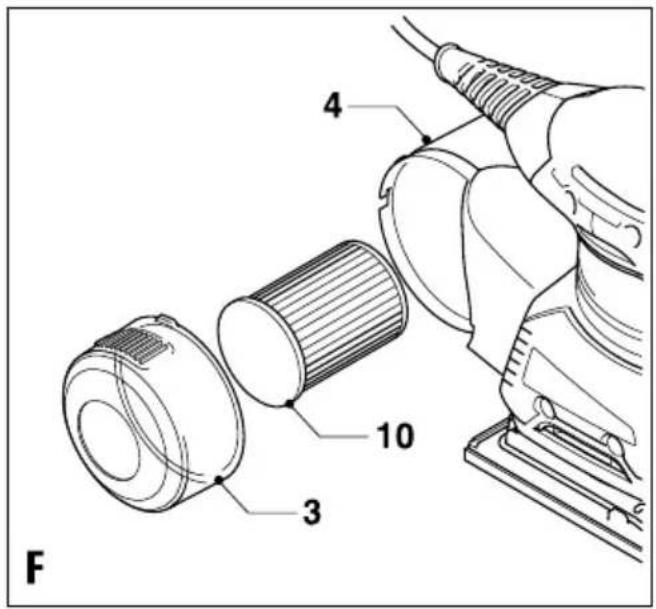

Emptying the dust cassette (fig. F)

◆The dust cassette (4) should be emptied every 10 minutes.
◆Pull the dust cassette (4) to the rear and off the tool.
- Remove the cover (3) by twisting it counter-clockwise. - Hold dust cassette with the filter (10) facing down and shake the cassette (4) to empty the contents.
◆Shake the cover (3) to empty the contents.
◆ Refit the cover (3) onto the dust cassette (4), twisting it clockwise until it locks into place.
◆Refit the dust cassette (4) onto the tool.

Cleaning the dust cassette filter

Warning! Do not brush or use compressed air or sharp objects to clean the filter. Do not wash the filter.

• The dust cassette filter (10) is re-usable & should be cleaned regularly.
  ◆Empty the dust cassette filter (10) as described above.

◆Pull the filter (10) off the dust cassette (4). DO NOT TWIST THE FILTER.
◆Shake off the excess dust by tapping the filter (10) into a dustbin.
◆Replace the filter (10).
◆Fit the cover (3).
◆Fit the dust cassette (4) onto the tool.

Emptying the dustbag

◆The dustbag (11) should be emptied every 10 minutes.
◆Shake the dustbag to empty the contents

Hints for optimum use (fig. E)

◆Do not place your hands over the ventilation slots.
◆Do not exert too much pressure on the tool.
◆Regularly check the condition of the sanding sheet. Replace when necessary.
◆Always sand with the grain of the wood.
When sanding new layers of paint before applying another layer, use extra fine grit.
◆On very uneven surfaces, or when removing layers of paint, start with a coarse grit. On other surfaces, start with a medium grit. In both cases, gradually change to a fine grit for a smooth finish.
- Consult your retailer for more information on available accessories.

Maintenance

• Your Black & Decker tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
  ◆Before performing any maintenance, switch off and unplug the tool.
  ◆Regularly clean the ventilation slots in your tool using a soft dry brush or dry cloth.
  ◆Regularly clean the motor housing using a clean damp cloth. Do not use any abrasive or solvent-based cleaner.

Protecting the environment

Should you find one day that your tool needs replacement, or if it is of no further use to you, think of the protection of the environment. Black & Decker repair agents will accept old Black & Decker tools and ensure that they are disposed of in an environmentally safe way.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Technical data

	KA171 KA171GT KA171L
Voltage Vac 230 230 230
Power input W 200 200 200
Oscillations (no load) min-1 15,000 15,000 15,000
Orbits (no load) min-1 30,000 30,000 30,000
Weight kg 1.5 1.5	1.5

EC declaration of conformity

KA171, KA171GT, KA171L

Black & Decker declares that these products conform to:

98/37/EC, 89/336/EEC, EN 60745, EN 55014, EN61000

LpA (sound pressure) 84.7 dB(A),

LWA (acoustic power) 95.7 dB(A),

hand/arm weighted vibration <5.0 m/s²

Kpa (sound pressure uncertainty 3 dB(A),

Kwa (sound power uncertainty 3 dB(A),

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham

DL16 6JG,

United Kingdom

31-03-2006

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products

subjected to fair wear and tear or replace such products to make sure of the minimum inconvenience to the customer unless:

◆The product has been used for trade, professional or hire purposes.
◆The product has been subjected to misuse or neglect.
◆The product has sustained damage through foreign objects, substances or accidents.
◆Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk.

DEUTSCH

Director of Consumer Engineering

Spennymoor, County Durham

DL16 6JG,

Spennymoor, County Durham

DL16 6JG,

Royaume-Uni

31-03-2006

Garantie

Spennymoor, County Durham

DL16 6JG,

Regno Unito

31-03-2006

Garanzia

Spennymoor, County Durham

DL16 6JG,

Reino Unido

31-03-2006

Garantía

Director of Consumer Engineering

Spennymoor, County Durham

DL16 6JG,

Verenigd Koninkrijk

31-03-2006

Garantie

Spennymoor, County Durham

DL16 6JG,

Reino Unido

31-03-2006

Garantia

Director of Consumer Engineering

Spennymoor, County Durham

DL16 6JG,

Storbritannien

31-03-2006

Garanti

Spennymoor, County Durham

DL16 6JG,

Storbritannia

31-03-2006

Garanti

Black & Decker er trygg på kvaliteten til sine produkter og tilbyr en enestående garanti. Denne garantierklæringen komme i tillegg til dine lovbestemte rettigheter, og er ikke i konflikt med disse. Garantien er gyldig i EU- og EFTA-medlemsstatene.

Director of Consumer Engineering

Spennymoor, County Durham

DL16 6JG,

Storbritannien

31-03-2006

Garanti

Director of Consumer Engineering

Spennymoor, County Durham

DL16 6JG,

Iso-Britannia

31-03-2006

Takuu

Spennymoor, County Durham

DL16 6JG,

The following table is part of the 'at least one year' and is also included in the text.

A.U.D. on value appreciation

◆ Data protection act: Tick the box if you prefer

koneesi? • Eival to evaporatio auto in npurtm oas ayopod?

The image contains no text or content.

[Non-Text]

♦ Town ♦ Ort ♦ Ville ♦ Citra ♦ Plants

◆Ciudad ◆Localidade ◆Ort ◆By ◆By

♦ Town ♦ Ort ♦ Ville ♦ Citra ♦ Plants

♦ Parkakunta ♦ Toayn: ♦ Ciudad ♦ Localidade

- Is this tool your first purchase? Is diseases

◆ Is this tool your first purchase? ◆ Ist diseases

- Is this tool your first purchase? Is diseases

◆ Is this tool your first purchase? ◆ Ist diseases

◆ Is this tool your first purchase? ◆ Ist diseases

◆ Is this tool your first purchase? ◆ Ist diseases

◆ Is this tool your first purchase? ◆ Ist diseases

◆ Is this tool your first purchase? ◆ Ist diseases

◆ Is this tool your first purchase? ◆ Ist diseases

◆ Is this tool your first purchase? ◆ Ist diseases

◆ Is this tool your first purchase? ◆ Ist diseases

◆ Is this tool your first purchase? ◆ Ist diseases

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

……

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

......

......

......

......

......

English Please complete this section immediately after the purchase of your

tool and send it to Black & Decker in your country. If you live in Australia or New Zealand, please register by using the alternative

guarantee card supplied.

Black & Decker in uw land.
