Product type	Orbital sander
Brand	Black & Decker
Model	KA196
Supply voltage	230 V
Power consumption	135 W
No-load speed	11,000 min⁻¹
No-load oscillations	22,000 min⁻¹
Sanding surface	90 x 187 mm
Weight	1.3 kg
Insulation	Double insulation (without earth wire)
Abrasive paper attachment	Clamping levers (normal paper) or hook-and-loop strip (accessory)
Vacuum cleaner connection	Adapter included (standard diameter)
Speed regulator	No (model KA196) / Yes (model KA196E)
Intended use	Sanding of wood, metal, plastic and painted surfaces – domestic use
Sound pressure level (LpA)	78 dB(A)
Sound power level (LwA)	89 dB(A)
Hand/arm vibration	6.86 m/s²
Maintenance	Clean the ventilation openings with a soft brush; clean the motor compartment with a damp cloth
Warranty period	24 months (applicable conditions)
Included accessories	Sanding sheets, vacuum adapter

Frequently Asked Questions - KA196 BLACK & DECKER

How to change the abrasive paper on the KA196 sander?

Make sure the tool is unplugged. Lift the clamping levers (4), insert the sheet aligning the holes, then close the levers. For the hook-and-loop system, press the sheet firmly onto the base.

Can I use a vacuum cleaner with this sander?

Yes, connect the supplied adapter (6) into the dust extraction port (2) and connect the vacuum hose (7) to the adapter.

What sanding speed to use for which material?

The KA196 model has a fixed speed of 11,000 min⁻¹. For the KA196E (variable speed), use high speed for wood, medium for plywood/synthetic, low for non-ferrous metals and paint stripping.

How to turn the sander on and off?

To turn on, press the front part (I) of the on/off switch (1). To turn off, press the rear part (0).

What safety precautions should I take?

Wear safety glasses and a dust mask. Keep the work area clean and well lit. Do not wear loose clothing. Unplug the tool before any adjustment.

How to maintain the sander?

Clean the ventilation openings regularly with a soft brush or dry cloth. Clean the motor compartment with a damp cloth; do not use abrasive or solvent-based products.

What to do if the power cord is damaged?

The cable must be replaced by the manufacturer or a Black & Decker authorized repairer to avoid any accident.

What materials can I sand with this machine?

Wood, metal, plastic and painted surfaces. Suitable for domestic use only.

Is the sander double insulated?

Yes, the tool is double insulated and does not require an earth wire. However, check that the mains voltage matches that indicated on the rating plate.

How to recycle the sander at the end of its life?

Do not dispose of it with household waste. Take it to a Black & Decker authorized repairer or a waste collection point for separate collection of electrical appliances.

USER MANUAL KA196 BLACK & DECKER

English 3

Deutsch 7

Français 11

Italiano 15

Nederlands 19

Español 23

Português 27

Svenska 31

Norsk 35

Dansk 39

Suomi 43

Ελληνικα 47

ENGLISH

Intended use

Your Black & Decker sander has been designed for sanding wood, metal, plastics and painted surfaces. This tool is intended for consumer use only.

General safety rules

Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS.

1. Work area

a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

4. Power tool use and care

ENGLISH

g. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional safety instructions for sanders

◆Always wear a dust mask whenever sanding.
◆Thoroughly remove all dust after sanding.
Take special care when sanding paint which is possibly lead based or when sanding some woods and metal which may produce toxic dust:
- Wear a dust mask specifically designed for protection against lead paint dust and fumes and ensure that persons within or entering the work area are also protected.
- Do not let children or pregnant women enter the work area.
- Do not eat, drink or smoke in the work area.
- Dispose of dust particles and any other debris safely.
- This appliance is not intended for use by young or infirm persons without supervision. Children must be supervised to ensure they do not play with the appliance.
◆If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Electrical safety

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

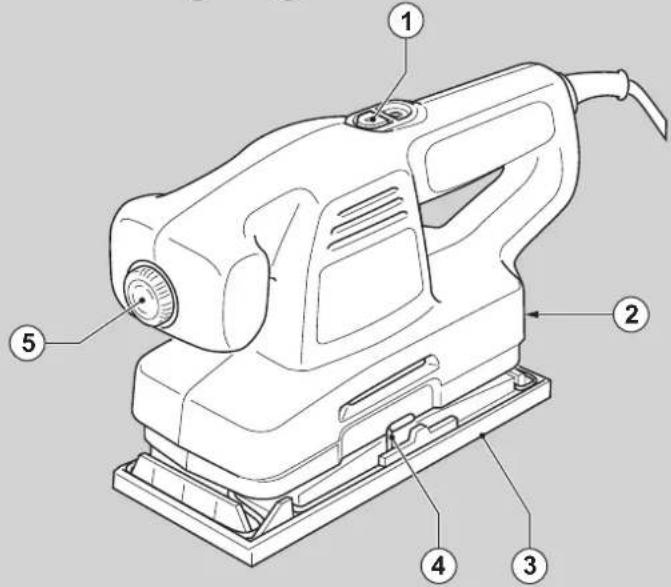

Features

1. On/off switch
2. Dust extraction outlet
3. Sanding base
4. Paper clamp lever
5. Variable speed control knob (KA196E)

Assembly

Warning! Before assembly, make sure that the tool is switched off and unplugged.

Fitting sanding sheets (fig. A & B)

Warning! Never use the tool without a sanding sheet or accessory in place.

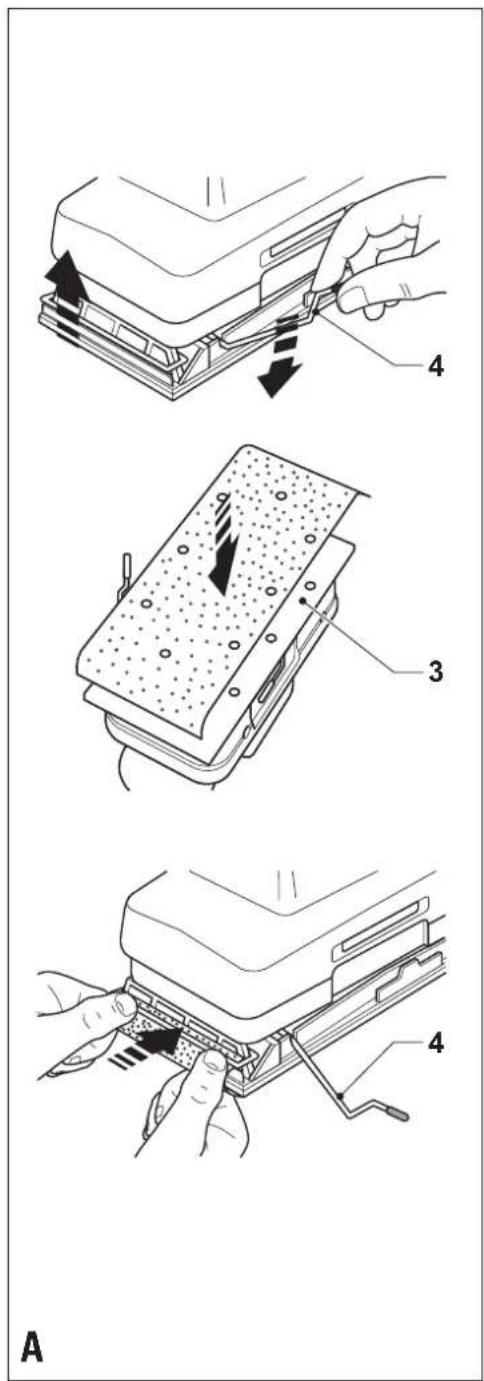

Fitting regular sanding sheets (fig. A)

◆Make sure that the tool is switched off and unplugged.
- Soften the sanding sheet by rubbing its non-abrasive side over the edge of a worktop.
◆Press the paper clamp levers (4) upwards to release them from the retaining grooves and open the paper clamps by pressing them down.
◆Place the sheet onto the sanding base, making sure that the holes in the sheet line up with the holes in the base.
◆Insert the edge of the sanding sheet into the front paper clamp as shown.
◆Press the front paper clamp lever (4) downwards and locate it in the retaining groove.
◆While keeping a slight tension on the sheet, insert the rear edge of the sheet into the rear paper clamp.
◆Press the rear paper clamp lever (4) downwards and locate it in the retaining groove.

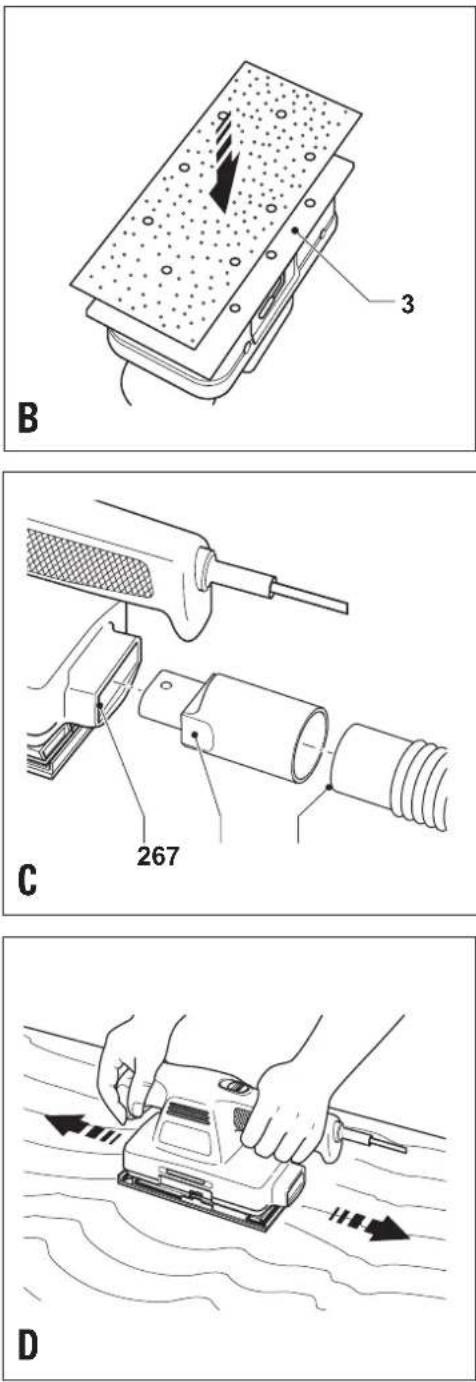

KA196/KA196E - Fitting sanding sheets with nylon loops (fig. B)

◆Make sure that the tool is switched off and unplugged.
◆Press the sheet firmly and evenly onto the sanding base (3), making sure that the holes in the sheet line up with the holes in the base.

Connecting a vacuum cleaner (fig. C)

◆Insert the adaptor (6) into the dust extraction outlet (2).

◆Connect the hose (7) of the vacuum cleaner to the adaptor.

Use

Warning! Let the tool work at its own pace. Do not overload.

KA196E - Variable speed control

The variable speed control allows you to adapt the speed of the tool to the workpiece material.

◆Set the control knob (5) to the desired setting. Use a high speed for wood, medium speed for veneer and synthetics and low speed for acrylic glass, non-ferrous metals and for removing paints.

Switching on and off

CD380/CD400/AST4XC

◆To switch the tool on, slide the on/off switch (1) forward (position I).
◆To switch the tool off, slide the on/off switch to the rear (position 0).

ENGLISH

KA196/KA196E

◆To switch the tool on, press the front part I of the on/off switch (1).
◆To switch the tool off, press the rear part O of the on/off switch.

Hints for optimum use

◆Always hold the tool with both hands (fig. D).
◆Do not exert too much pressure on the tool.
◆ Regularly check the condition of the sanding sheet. Replace when necessary.
◆Always sand with the grain of the wood.
- When sanding new layers of paint before applying another layer, use extra fine grit.
On very uneven surfaces, or when removing layers of paint, start with a coarse grit. On other surfaces, start with a medium grit. In both cases, gradually change to a fine grit for a smooth finish.
◆Consult your retailer for more information on available accessories.

Maintenance

Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

◆Regularly clean the ventilation slots in your tool using a soft brush or dry cloth.
◆Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

◆Safely dispose of the old plug.
◆Connect the brown lead to the live terminal in the new plug.
◆Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 5 A.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

EC declaration of conformity

AST4XC/CD380/CD400/KA196/KA196E

Black & Decker declares that these products conform to: 98/37/EC, 89/336/EEC, 2002/95/EEC, EN 60745, EN 55014, EN 61000

L_FA (sound pressure) 78 dB(A), L_ A (acoustic power) 89 dB(A), hand/arm weighted vibration 6.86 m/s ^2 K_ A (sound pressure uncertainty) 3 dB(A), K_ A (acoustic power uncertainty) 3 dB(A)

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-5-2005

Technical data

AST4XC CD380 CD400 KA196 KA196E
Voltage V	^AC	230 230 230 230 230
Power input W 135 125 135 135 135
No-load speed min	^1	11,000 11,000 11,000 11,000 6,500 - 11,000
Oscillations (no load) min	^-1	22,000 22,000 22,000 22,000 13,000 - 22,000
Sanding base surface	mm	90 x 187	90 x 187	90 x 187	90 x 187
Weight	kg	1.2	1.2	1.2	1.3

ENGLISH

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆The product has been used for trade, professional or hire purposes;
◆The product has been subjected to misuse or neglect;
◆The product has sustained damage through foreign objects, substances or accidents;
◆Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk
