TBG501 - Blender BLAUPUNKT - Free user manual and instructions

Product Type	Table Blender
Brand	Blaupunkt
Model	TBG501
Power Consumption	300W
Voltage / Frequency	220-240V ~ 50/60Hz
Capacity	1 Liter
Maximum Continuous Operating Time	3 minutes
Minimum Waiting Time Between Uses	30 minutes
Jar Material	Glass
Blade Material	Stainless Steel (sharp)
Speed Settings	2 speeds + Pulse
Control Type	Rotary knob
Safety Features	Lid safety interlock; overload protection (max 3 min); grounded plug
Cleaning	Removable parts (jar, lid, blades) are dishwasher safe; base wipe with damp cloth
Usage Restrictions	Do not blend liquids above 55°C; do not crush hard ingredients like coffee beans
Warranty / Support	Contact service: Tel. [phone], email [e-mail]

Frequently Asked Questions - TBG501 BLAUPUNKT

What is the maximum capacity of the Blaupunkt TBG501 blender?

The maximum capacity is 1 liter. Do not fill more than 3/4 of the jar to avoid overflow.

Can I blend hot liquids in this blender?

No. Do not pour liquids or ingredients above 55°C into the blender jar to prevent damage or injury.

How long can I run the blender continuously?

The maximum continuous operating time is 3 minutes. After that, let the blender rest for at least 30 minutes before next use.

Is the glass jar dishwasher safe?

Yes, all removable parts (jar, lid, blades) can be washed in a dishwasher or with dishwashing liquid. The motor base should only be wiped with a damp cloth.

Can I crush ice or coffee beans with this blender?

No. The blender is not designed for crushing hard ingredients like ice, coffee beans, or cocoa. Such use may damage the blades.

What speeds and functions does the TBG501 offer?

The control knob has three positions: P (Pulse), 1 (low speed), and 2 (high speed).

How do I clean the blender safely?

Always unplug the blender before cleaning. Wipe the motor base with a slightly damp cloth and dry it. Wash the jar, lid, and blades in warm soapy water or the dishwasher, but handle the sharp blades carefully.

What should I do if the blender stops working during use?

The blender may have an overload protection. Unplug it and let it cool down for 30 minutes before trying again. If the problem persists, contact customer service.

Can I blend without the lid on?

No. The lid must always be placed securely on the jar before operating the blender to prevent splashing and accidents.

Where can I find the user manual for the TBG501?

The manual is available for free download on notice-facile.com or on the Blaupunkt support website.

USER MANUAL TBG501 BLAUPUNKT

Exterior view of a modern kitchen blender with a black handle and control knob (no text or symbols visible)

Enjoy it.

Table blender	Miješalica
Blender Kielichowy	Μπλέντερ
Mixér	Παςατοργιτ
Mixér	Blenderul
Turmixgép	Maïšytuvas
stolový mixér	Kannmikser

IMPORTANT NOTES

• To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product.

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an earthed socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Make sure the cable is grounded, 3-cores with a socket and an earth cable.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull

the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken

to a professional service location to be fixed or replaced to prevent any hazards from arising.

• Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Use extreme caution with the blades, which are very sharp.
• Do not put your fingers or utensils into blender cup, when the device is plugged in.
• Do not pour hot liquids or put hot ingredients into the blender cup (above 55 degrees C).
• Do not run the blender when the lid has not been placed on the cup.
• Do not use the blender for crushing hard ingredients like coffee beans and cocoa.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD) - Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power: 300W

Voltage: 220-240V \~50/60Hz

Capacity: 1L

Max continuous working time KB = 3 min

Minimal time between use = 30 min

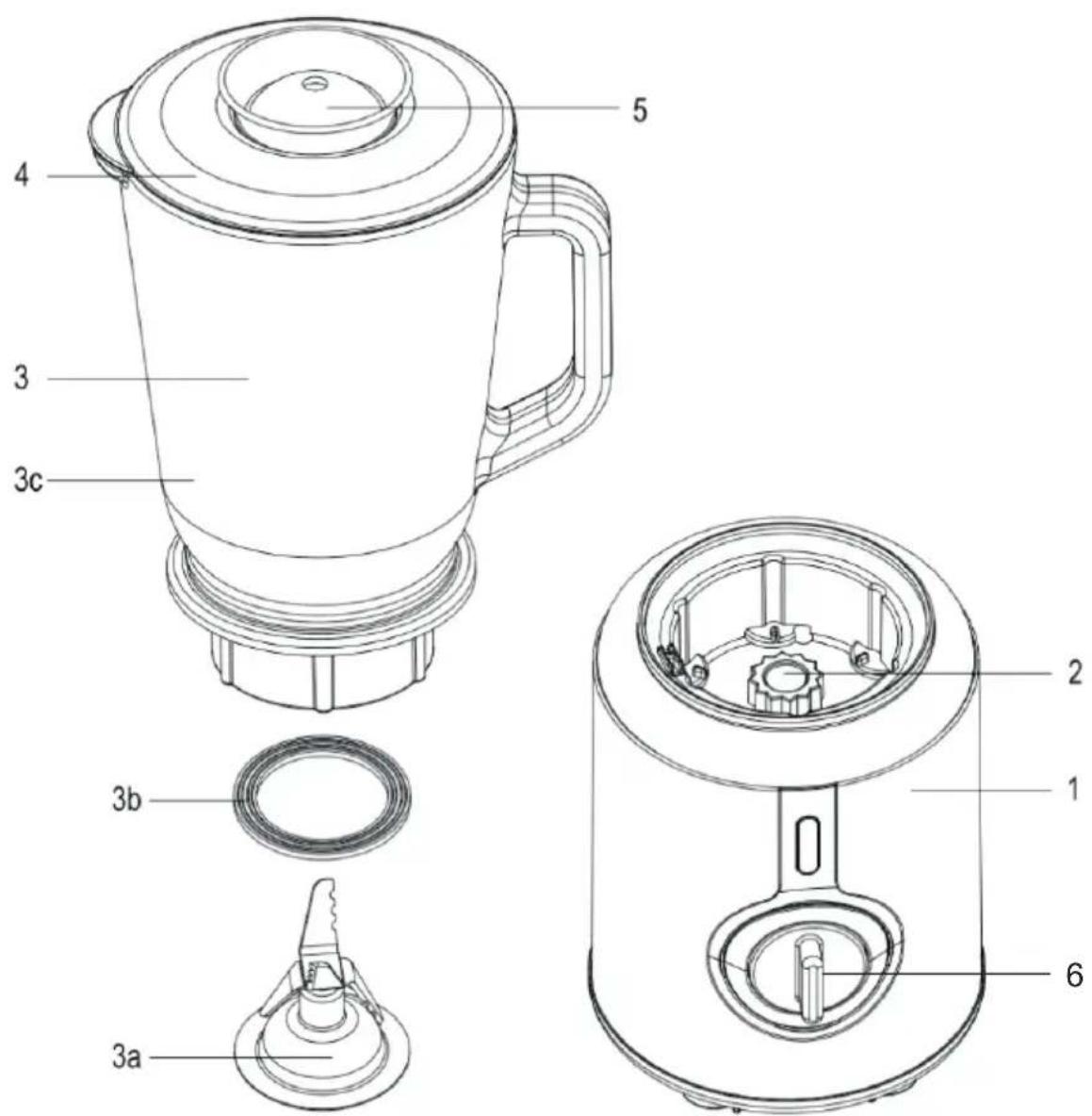

1. Base with motor
2. Rotor

3. Blender's jar (a - blades, b - seal, c - glass jar)

4. Lid

5. Small lid
6. Control knob (P – pulse, 1 – lower speed, 2 – higher speed)

BEFORE FIRST USE

1. Remove all papers, cartons, foil which secure the blender and blender's parts
2. Clean the blender following the advice in Cleaning and Maintenance chapter.

FOOD PREPARATION

Remove stones (plums, peaches, cherries etc).

Remove tough skins (melons, pineapples, cucumbers, potatoes etc).

Soft-skinned and other foods just need washing

Cut the food into small pieces (2-3 cm).

USING THE BLENDER

Place a blender cup (3) on the main unit (1), fit the rotor (2) to the coupling of knives in the bottom of the blender cup. Put the ingredients into the cup. Pour some water. It is recommended not to fill more than 34 cup's capacity. Cover the cup with a lid (4).

Note: the blender jar need to be hold during operation.

Plug the blender to the mains.

Turn on the blender by switching the function with a knob (6).

When the ingredients will become the right consistency, turn off the device. Do not operate the blender for more than 3 minutes. Wait 30 minutes before the next run.

After operation, pull out the plug from the electric socket.

CLEANING AND MAINTENANCE

Make sure that the blender is disconnected from the power supply.

The body may be wiped with lightly dampened cloth, then wipe it dry. Do not immerse the body in water and other liquids.

All the dismountable parts (excluding base with motor) can be washed with dishwashing liquid or in the dishwasher machine.

WAŻNE INFORMACJE

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
