Livero 4155 90000 - Hob Eta - Free user manual and instructions

Product Type	Contact Grill
Brand	Eta
Model	Livero 4155 90000
Dimensions (W x D x H)	295 x 386 x 145 mm
Weight	Approx. 3.35 kg
Protection Class	I
Input Power	Refer to type label (typical 2000-2200 W)
Voltage	Refer to type label (typical 220-240 V ~)
Power Cord Length	Approx. 0.9 m (estimated)
Grill Plate Material	Non-stick coated
Removable Plates	Yes (2 plates)
Temperature Control	Dial with 3 positions (1-2-3)
Floating Hinge	Yes, automatically adjusts to food thickness
Indicator Light	Red power-on light
Drip Container	2 included (removable, dishwasher safe)
Lock Plates	For secure storage/transport
Safety Features	Overheating protection, safety fuse, hot surface warning
Cleaning	Wipe with damp cloth; plates removable for cleaning; drip container dishwasher safe
Intended Use	Indoor household use only
Warranty	Refer to warranty card or manufacturer

Frequently Asked Questions - Livero 4155 90000 Eta

How do I clean the grill plates?

Allow the grill to cool down completely. Remove the plates by pressing the lock button and tilting them off. Clean with warm soapy water or a damp cloth. Do not use abrasive cleaners or put the plates in the dishwasher unless specified. The drip container is dishwasher safe.

Can I use the grill outdoors?

No, the grill is intended for indoor household use only. Using it outdoors can be hazardous and may damage the appliance.

Why is there smoke when I first use the grill?

During the first use, the protective coating on the heating elements may produce a slight smoke. This is normal and not a defect. Operate the grill for about 10 minutes in a ventilated area, then let it cool and wipe the plates clean.

How do I adjust the temperature?

The temperature is controlled by a dial with positions 1, 2, and 3. Position 1 is lowest, 3 is highest. Allow the grill to preheat for about 10 minutes before adding food.

Can I grill thick foods like a whole chicken breast?

Yes, the floating hinge automatically adjusts to the thickness of the food. You can also slightly push the plates together using the handle for even contact.

Is the grill dishwasher safe?

Only the drip container is dishwasher safe. The grill plates and main body should be cleaned by hand with a damp cloth. Do not immerse the grill in water.

What should I do if the grill overheats?

The grill has a safety fuse that protects against overheating. If it triggers, unplug the appliance, let it cool, and check for obstructions. If the problem persists, contact a professional service center.

Can I use metal utensils on the grill plates?

It is recommended to use non-metallic utensils to avoid scratching the non-stick coating. A plastic kitchen turner is suitable for removing residues.

How do I store the grill?

Allow the grill to cool completely. Close the lid and snap it shut using the lock plates. Store in a dry place away from heat sources. Wrap the power cord loosely.

What should I do if the power cord is damaged?

Do not use the appliance. The power cord must be replaced by the manufacturer, its service technician, or a similarly qualified person to avoid hazard.

USER MANUAL Livero 4155 90000 Eta

Black plastic electronic device with 'eta' branding and warning symbol, no readable text or symbols beyond branding

Illustration of hands operating a laptop with a grid and keyboard (no text or symbols visible)

Hand pressing a button on a car wheel (no text or symbols visible)

Illustration of a hand using a pen to lift a cylindrical object, with an arrow indicating motion (no text or symbols)

Close-up of a mechanical tool with a numbered circle and directional arrow (no text or symbols)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNINGS

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket.

- The power cord plug has to be connected to a properly connected and grounded socket according to the national standard.

- Do not insert to or take the plug out of a socket with wet hands and do not pull the power cord!

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Never use the appliance if the power cord or power plug are damaged, if it is not functioning correctly or if it has fallen on the floor and been damaged or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- Pay careful attention when handling the grill to avoid injury, (e.g. burns, scalding). When handling the appliance use the handles.

- If the power cord of this appliance is damaged, the cord must be replaced by the manufacturer, their service technician or by a similarly qualified person, this will prevent the creation of a dangerous situation.

- Before replacing accessories or accessible parts, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- Always unplug the appliance from power supply if you leave it unattended.

- After finishing work, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.

- NOTICE – Some parts of this product may become very hot and cause burns. Take special care when children or handicapped persons are present.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- Never use the grill outdoors! Never use the grill for heating a room!

- Do not use the appliance in the environment that is saturated with explosive or flammable steams.

- The appliance must not be used in areas where chemicals, paints and other flammable, explosive, volatile and harmful substances are used or stored.

- Never immerse the panel (or its part) in water and do not clean it in running water!

- Never leave the appliance in operation when unsupervised and check it during the whole time of preparing meals!

- Do not use the grill for other purposes (e.g. for drying textile products, footwear, etc.) than those recommended by the producer.

- The product is equipped with a safety fuse which protects it against overheating.

- Do not place the grill on unstable, fragile and flammable surfaces (e.g. paper, glass, paper and plastic, varnished wooden plates and various fabrics/cloths).

- Use the grill in the work position only at places where the risk of tilting over is prevented and which is far enough from flammable objects (e.g. curtains, drapes, wood, etc.), heat sources (e.g. heater, electric/gas stove, etc.) and from wet surfaces (sinks, wash basins, etc.).

- Do not place the appliance near objects or under objects which could get damaged by steam, e.g. walls, kitchen cupboards, sideboards, paintings, or curtains. Leaking steam could damage them.

- While grilling there is a risk of self-ignition of the prepared food. In the case of sudden ignition, disconnect the appliance from power supply and extinguish the fire.

- Before every connection to the power grid make sure that the temperature control dial is in the position minimum. After finishing work and before any maintenance always turn the temperature control dial to the position minimum and disconnect the appliance from the electrical grid by pulling the power cord plug from the power socket.

- Do not carry the appliance when it is hot, if by chance it is tipped over there is a danger of a burn injury. Due to high temperature, the pad under the appliance may heat up. Do not touch it until it cools down.

- The power cord must not be damaged with sharp or hot objects, open fire and it must not be sunk into water. Never put it on hot surfaces or do not let it hang over the edge of a table or work tables. Hitting, stumbling or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!

- The appliance is portable and it is equipped with a movable connector with a plug which ensures double-pole disconnection from power supply.

- With regards to fire safety, the grill complies with EN 60 335-2-6. Within the intention of the standard, this appliance can be operated on a table or on a similar surface while safe distance must be maintained from flammable materials of at least 200 ~mm in the direction of the main heat radiation, i.e. above the plate, and at least 100 ~mm in the other directions.

- Use the appliance only with original accessories from the producer. Using another appliance can represent a risk for the operator.

• Never use the appliance for any other purpose than that described in these instructions for use!
• Use the appliance only for the purpose it is intended for as specified in this manual. Never use the appliance for any other purpose.
• The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories (e.g. food deterioration, injury, burning, scalding, fire) and its guarantee for the appliance does not apply in situations when the safety warnings above are not complied with.

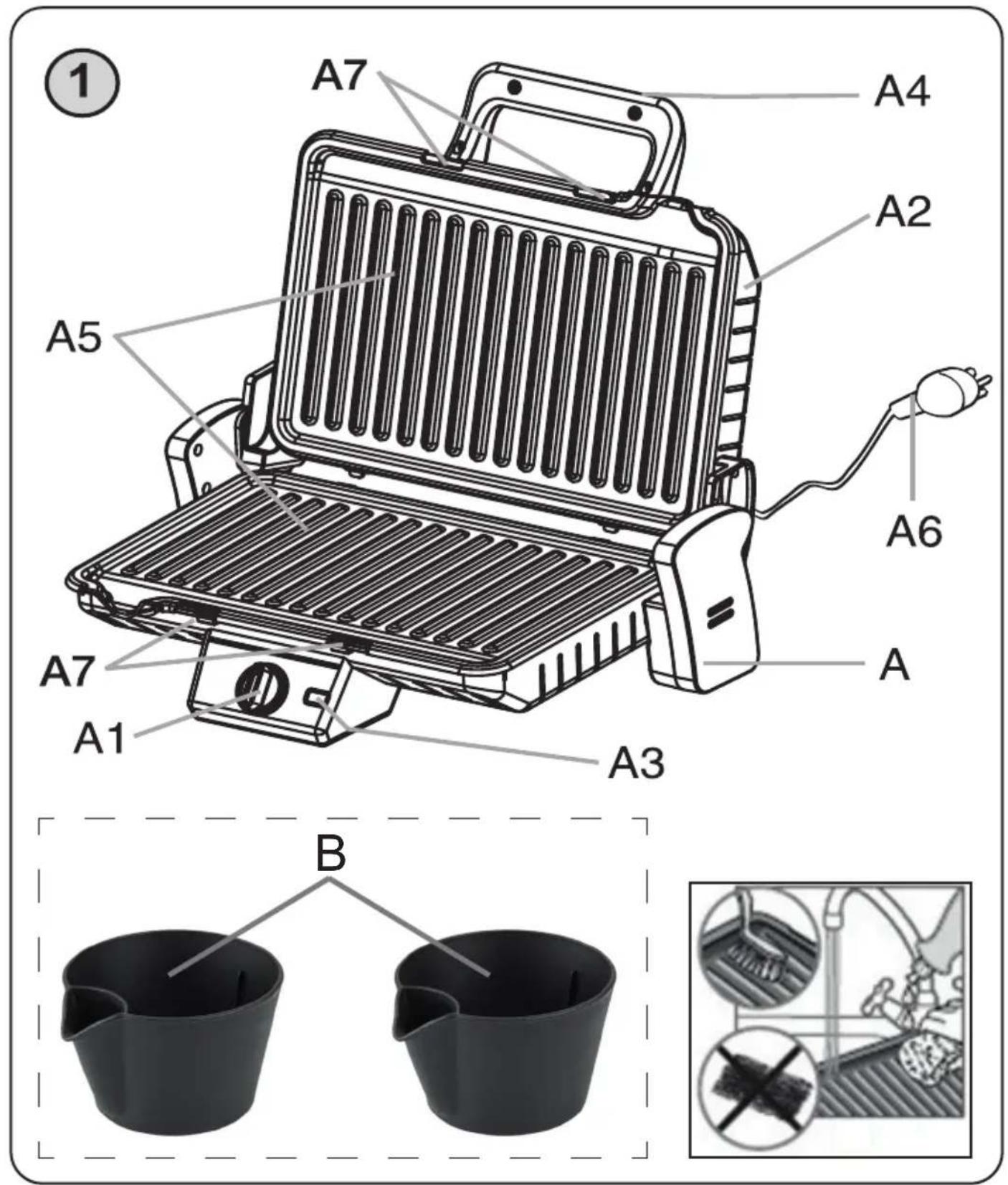

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A - grill

A1 – temperature regulator A5 – grill plates

A2 – hinged lid A6 – power cord

A3 – signaling lights ON A7 – lock plates

A4 - handle

B – drip container (2 pcs) – Do not use fat in the drip container for the further processing!

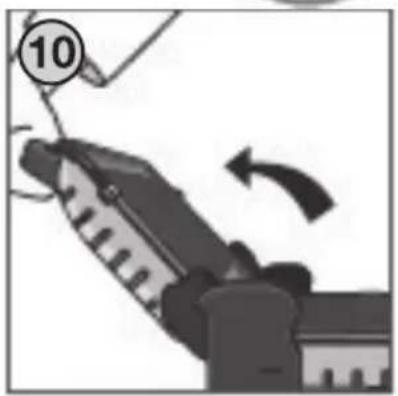

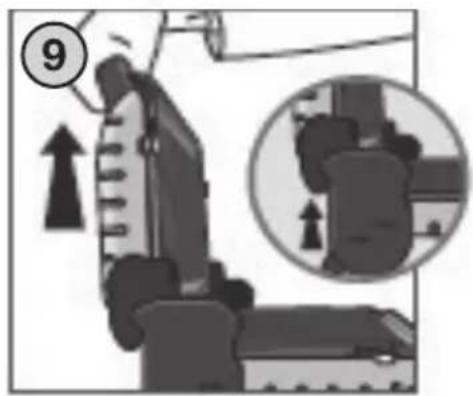

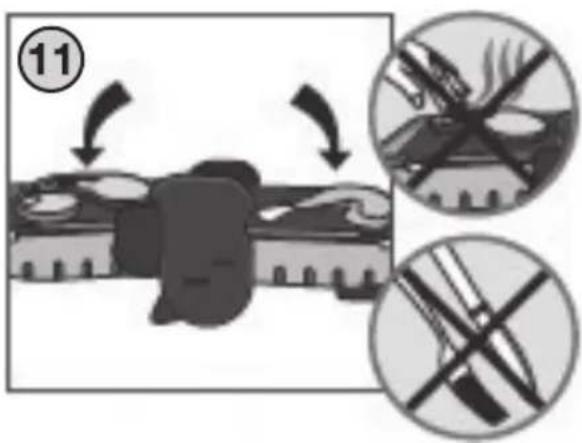

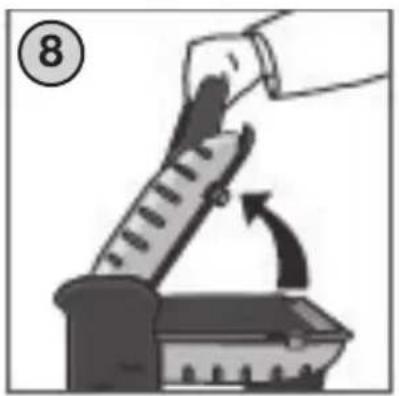

Grill opening (Fig. 8, 9,10, 11)

old lid A2 with handle A4 and lift it off to the blocked position (about 50°), to the maximum position and lift it off so that the grill is opened to the horizontal position (180°). In this state you can prepare various kinds of food on each separate grill plate (e.g. sausages, pancakes, fried eggs etc.) You can fold the grill by snapping the lid shut.

III. PREPARATION AND USE

After the first putting into operation, set the 3 position and let an grill in operation with a window open for about 10 minutes, then turn it off and let it cool down. Possible short-time mild smoke is not a defect and the appliance is not subject to a complaint for this reason.

After the appliance cools down, swipe the parts that come in contact with food with a soft, wet and clean cloth or a paper towel. Now the appliance is ready for use.

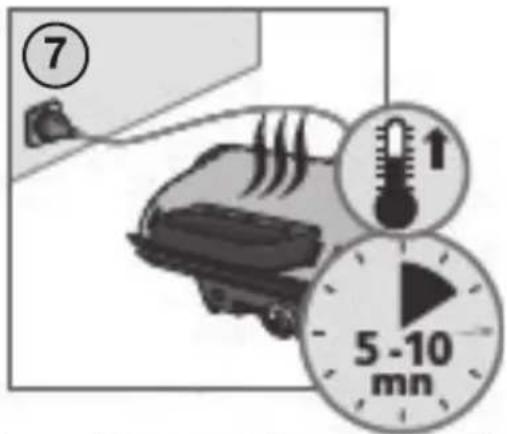

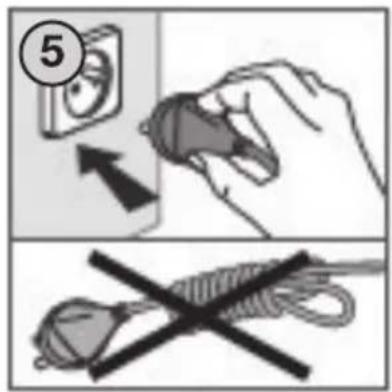

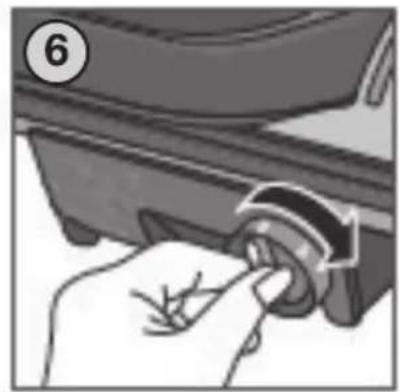

IV. INSTRUCTIONS FOR USE (Fig. 5, 6, 7)

Insert the power cord fork A7 into the electric socket and make sure the power cord is not damaged, it goes under the grill or through any sharp or hot surfaces. A red signaling light A3 will come on, signaling connection to electric power supply. The plates will start to heat. Leave enough space to ensure sufficient ventilation. Do not forget to place a drip container B (saucer or plate) under the drip channel of your plates to collect any juices, oil and fat. that might run off. Set the grill to the required decline or on a flat surface, or you fully open it. Set the control dial A1 to the 1 or 2 or 3 position. Allow the grill to heat up for approximately 10 minutes without placing any food on it. When the operating temperature is reached, put food on lower plate A5 (preferably on its centre) and snap the lid shut. The floating hinge automatically adapts height of the upper lid to thickness/strength of food. During grilling, you can push plates "slightly" to each other using handle A4.

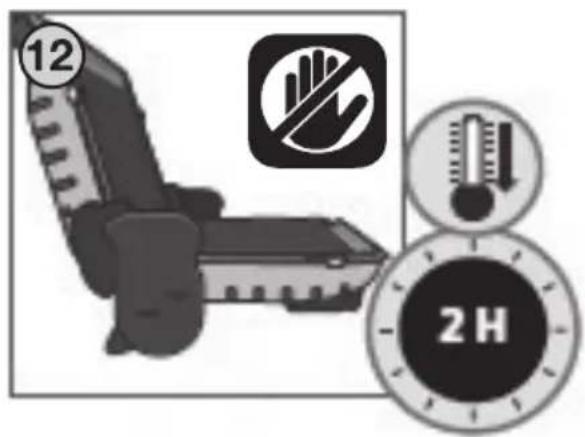

V. MAINTENANCE (Fig. 1, 12)

Clean the grill only after it has cooled down! Clean the appliance regularly after every use by wiping with a wet soft cloth. Do not use rough and aggressive detergents (e.g. sharp objects, caustic agents for cleaning ovens etc.). Do not use any pressure-cleaning appliance (e.g. dishwasher, WAP, steam cleaners)!

Remove possible residues of fat and food that got stuck on the plates, using a common, plastic kitchen turner. You can take out the boards from the appliance for easier cleaning. Clean drip container B in hot water with a detergent and wipe till dry (you can use a dishwasher). Generally, you should clean the grill whenever it has been used. Before every other use, dry all parts and surface of the grill thoroughly. If the power cord is soiled, wipe it with a wet cloth. The plates.can be kept clean and shiny even after long use if treated with a drop of oil or some fat.

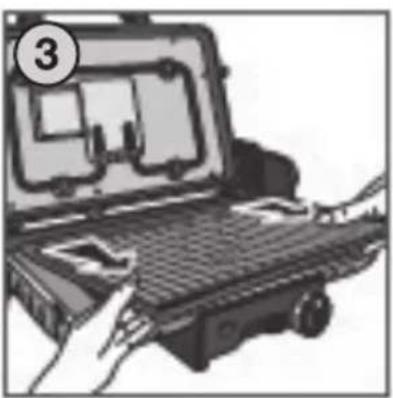

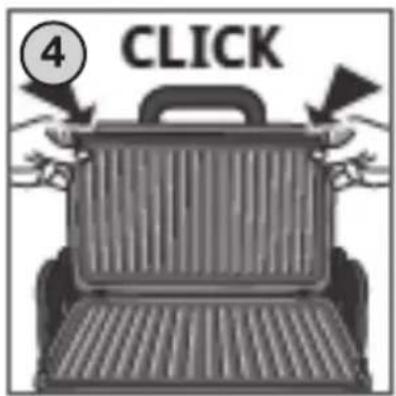

Changing the boards (Fig. 2, 3, 4)

Press button A7 and remove board A5 by tilting. Insert the protrusions on the board to the two openings in the coating and secure by tilting (you will hear a click sound).

VI. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electric or electronic products must not be disposed of together with municipal waste. For proper disposal of the product, hand it over at special collection places where it will be taken over free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or in the nearest collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation for good, after disconnecting it from power supply we recommend cutting off the power cord and thus it will not be possible to use the appliance again.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to warranty repair!

VII. TECHNICAL DATA

Voltage (V) Shown on the type label of the appliance Input (W) Shown on the type label of the appliance Weight about (kg) 3.35 Protection class of the appliance I. Size of the product (mm) 295 x 386 x 145 Input in off mode is 0.00 W.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

NOTICE

WARNING: HOT SURFACE
