Product Type	Sonic electric toothbrush with travel charging case and UV sanitizer
Brand	Eta
Model	Sonetic 4707 90000
Dimensions (toothbrush)	224 x 77.5 x 41.5 mm
Weight	Approx. 0.32 kg
Input Voltage	100-240 V AC
Charging System	Induction (contactless) via charging base or USB via travel case
Charging Time	Approx. 11 hours (first charge 24 hours)
Battery Runtime	2-3.5 hours (approx. 1-2 months with twice-daily 2-minute use)
Battery Type	Li-ion (built-in)
Cleaning Modes	3 modes: C (standard intensive), S (gentle), M (pulse massage)
Brushing Timer	2 minutes with 30-second quadrant intervals
UV Sanitizer	Built-in travel case, 10-minute cycle, eliminates up to 99.9% of bacteria
Included Brush Heads	2 pieces with colored rings to distinguish users
Replacement Brush Heads	ETA 070790100 (standard) and ETA 070790200 (soft)
Replacement UV Lamp	ETA 470700020
Water Resistance (brush body)	IPX7 (can be rinsed under water, not fully immersible)
Charging Base/Case Care	Wipe with damp cloth; do not immerse in water
Safety Certifications	Class III (appliance/adapter/case), complies with electromagnetic safety standards
Recommended Replacement Interval for Brush Head	Every 3 months

Frequently Asked Questions - Sonetic 4707 90000 Eta

How do I charge the toothbrush?

You can charge the toothbrush using the induction charging base or the travel case. Place the brush body on the base or connect the case via Micro-USB cable (provided) to a USB power adapter (5V/600mA). Charging time is about 11 hours; the battery indicator flashes during charging and stays lit when full.

What are the different cleaning modes?

The toothbrush has three modes: C (standard intensive for regular cleaning), S (gentle for sensitive teeth), and M (pulse massage for gums). Press the power button repeatedly within 3 seconds to cycle through modes.

How long does the battery last?

A full charge provides 2 to 3.5 hours of runtime, which typically lasts 1 to 2 months when brushing twice daily for two minutes. If the device hasn't been used for over 3 months, charge it for 24 hours initially.

How does the UV sanitizer work?

The travel case has a UV lamp that disinfects brush heads. Place used brushes in the storage slots with bristles facing the UV light, close the lid, and ensure the case is connected to power. The UV light runs for about 10 minutes and turns off automatically, eliminating up to 99.9% of bacteria.

How do I clean the toothbrush and charging base?

Rinse the brush head and brush body under running water. Wipe the charging base and case with a damp cloth. Never immerse the brush body or base in water, and do not use a dishwasher. Allow all parts to dry before reuse.

When should I replace the brush head?

Replace the brush head every 3 months or sooner if bristles show wear. Replacement brush heads are available under order numbers ETA 070790100 (standard) and ETA 070790200 (soft).

Can the toothbrush be used with braces or dental implants?

Yes, you can use the toothbrush with braces, facets, crowns, or implants. Use gentle mode (S) if needed, and note that bristles may wear faster with braces. Consult your dentist if unsure.

What should I do if the UV bulb breaks?

If the UV bulb breaks, leave the room for at least 30 minutes, then ventilate thoroughly. Do not touch the mercury with bare hands (especially if pregnant). The replacement UV lamp is model ETA 470700020.

Is the toothbrush waterproof?

The brush body has IPX7 water resistance, meaning it can be rinsed under water but not fully immersed. The charging base and case are not waterproof and must be kept away from water to avoid electric shock.

How do I dispose of the toothbrush and battery?

Do not dispose of the product with household waste. Remove the battery only when fully discharged (see manual Fig. 11). Take the appliance and battery to a designated collection point for recycling, in accordance with local regulations.

USER MANUAL Sonetic 4707 90000 Eta

White dental tool kit with open case showing toothbrush and teeth (no text or symbols visible)

White electric toothbrush with 'eta' and 'Soarthe' branding, no visible text or symbols on the device body

Technical line drawing of a mechanical device with internal components and a numbered label (6), no readable text or symbols present.

Illustration of a hand holding a handheld device with a downward arrow indicating motion (no text or symbols)

Product images are for illustrative purposes only.

Illusztratív képek.

Technical line drawing of a mechanical component with no visible text or symbols

Sonic toothbrush with travel charging case and UV sanitizer

eta 4707

SONETIC

INSTRUCTIONS FOR USE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. GENERAL SAFETY INSTRUCTIONS

• Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Please check if the voltage specified on the rating place complies with the voltage in your electrical socket (this product is designed to operate within a range of 100-240 volts). The charging base must be connected to electric socket in the electrical mains complying with the applicable standards.
• This product is not intended for children under 3.

Children at the age of 3 to 14 and persons with limited physical, sensory or mental capabilities may only use the toothbrush if they are supervised or have been instructed of the use of the appliance in a safe manner and understand possible risks. Children must not play with the appliance. Children must not perform cleaning and maintenance intended to be performed by users, unless they are older than 8 years and are under supervision. Children under 8 years of age must be kept of out reach of the appliance and its charging base.

• If the charging base / charging case or its power cord is damaged, it must be replaced by the manufacturer, its service technician or a person with similar qualification, to prevent occurrence of hazardous situation.
• The connected charging base / charging case must not be used at the places where it could fall in bathtub, sink or swimming pool. If it falls into water yet, do not take it out! First disconnect the appliance from the electrical socket, and then take it out from water. In such cases bring the application to the repair shop to verify its safety and correct functions.

- Never use the appliance if the charging base/ case, power cord or plug is damaged, if it operates incorrectly, fell on ground or is damaged, or if the charging base fell into water. In such cases bring the appliance to the specialised repair shop to verify its safety and correct functionality.

- For additional protection we recommend installing a protective switch (RCD) in the electrical circuitry of the bathroom, with the nominal actuating current not exceeding 30 mA. Ask an inspecting technician or an electrician for advice.

- If UV bulb is broken, leave the room for at least 30 minutes, and then ventilate it thoroughly. Do not touch the mercury with unprotected hands (particularly if you are pregnant!).

- If UV light is on even when the lid is open, immediately disconnect the charging case from the mains, stop using the appliance and bring it to the service centre to verify its proper operation. Do the aforementioned also in the case that the lid is damaged, and direct exposure to UV light is imminent. The lid is specially designed to block ultraviolet radiation, therefore the lid must remain clean, undamaged and operable.

- Do not touch UV bulb during operation (or shortly thereafter), as the bulb is hot.

- In order to prevent overexposure to ultraviolet light, people and domestic animals must stay at the distance of at least 30 cm from the case when UV lamp is on. Never look directly into UV light, and avoid being too close with your face or skin to UV lamp when the light is turned on. UV light may cause burns to eyes and skin.

- The appliance is only intended for individual use at home for personal oral cavity care! It is not intended for commercial use, for more than one patient in dentist's consulting rooms or in any other healthcare facilities!

- The charging base provided with appliance is only designated for this appliance. Do not use it for other purposes. Only use the provided charging base for this appliance, do not use other types of charging base for recharging (for example from other appliance).

- Do not use the application in exterior or where aerosol products are used (such as sprays), or where oxygen is handled.

- Do not use the charging base during bathing.

– Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

- Do not plug or unplug the charging base power cord to/from the electrical socket with wet hands!

- Never immerse the charging base / charging case in water or other liquids (not even partially) and do not wash it under running water!

• Do not insert the appliance or its accessories in any body cavities, except for oral cavity.
• The appliance is not designed to care for animal teeth.
• Only use the charging base at horizontal position at places where overturning is not imminent, and in a sufficient distance from heat sources (such as stove, fireplace, or heat radiators).
• Clean the accessories after each use. Failure to adhere to this instruction might cause worsening your state of health, because without disinfection, spread of mildew and bacteria is supported.
• Charge the accumulator at the normal room temperature. Do not expose the accumulator to temperatures higher than 50^ to prevent causing damage to the accumulator.
• The accumulator must not be removed when the appliance is normally used. Only remove the accumulator if the appliance is to be discarded (see article V. ECOLOGY).
• Do not leave the appliance unattended!
• Protect the appliance from dust, chemicals, toiletries, liquid cosmetics, large fluctuations in temperature, and direct sunshine.
• WARNING: Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically.
• Do not attempt to repair the appliance by yourselves.

SPECIAL SAFETY INSTRUCTIONS

• If you have unpleasant feeling in your mouth or if you feel pain during the cleaning, stop using the appliance and contact your dentist. Contact the dentist also in the case that you have any doubt about use of the appliance in your individual case.
• If your toothpaste contains peroxide, baking soda or other bicarbonate (frequently used in whitening toothpastes), thoroughly clean the brush and its handle after use to prevent damaging the appliance.
• Do not use the appliance in care for children, incapacitated persons or persons who are unable to express their feelings.
• If you have undergone tooth or gum operation recently, suffered long-term problems with your teeth or were subject to extensive medical interventions in the last 2 months, or if you suspect problems of dental character (with fillings, crowns, etc.), consult your dentist before using the appliance.
• If you experience any health troubles (for example considerable bleeding, or if any bleeding persists even after 2 weeks of use of the brush), stop using the appliance and contact your physician for consultation.

• The appliance complies with the safety standards for electromagnetic radiation. However if you use any of the following devices: cardiostimulator, electrocardiograph or other medical device implanted in your body or used as a support, consult your physician or the implant manufacturer before use.

• For hygienic reasons do not share the toothbrush with another person or more persons. Infections could spread or oral cavity inflammation could be initiated.

• The charging base power cord must not be damaged by sharp or hot items or open flam, and they must not be immersed in water or bent over sharp edges. They must not freely hang over the desktop edge within reach of children.
• If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.
• Regularly check the condition of the charging base power cord.
• Only use the appliance with the original accessories designated for the respective type. Do not use damaged/deformed adapters.
• Only use this appliance including its accessories for the designated purpose as described in this instruction manual. The appliance is only designed for cleaning teeth, gums and tongue. Never use the appliance for any other purpose.
• WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.
• All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.
• The producer does not undertake any responsibility for damage caused by improper use of the appliance (e.g. injury etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

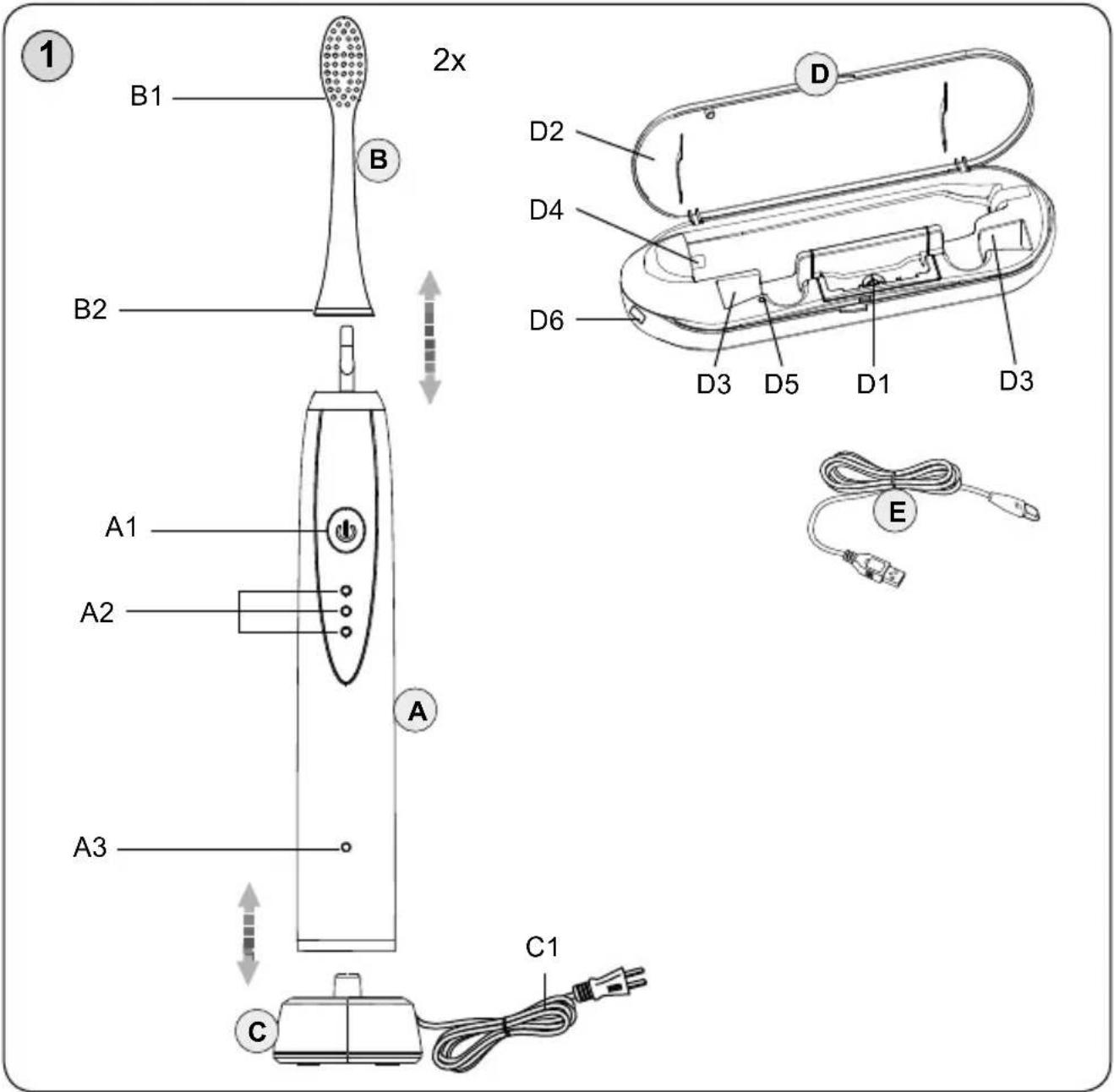

II. DESCRIPTION OF FEATURES (FIG. 1)

A – Brush body

A1 – ON/OFF switch + mode switch (POWER; ON/OFF)

A2 – active mode indicator

A3 – battery indicator light

B – Brush (2 pieces included)

B1 – brush head

B2 – coloured ring to distinguish users

C – Charging base

C1 – power cable

D – Travel charging case and UV sanitizer

D1 – UV light

D2 – protective lid

D3 – storage space for brushes

D4 – charging base projection

D5 – UV sanitizer indicator light

D6 – Power USB slot

E - Micro-USB cable \*

Note: Replacement brushes (B) and UV light (D1) can be purchased under order number ETA 070790100, ETA 070790200 (soft) and ETA 470700020.

* Micro-USB cable: Use AC power adapter with USB or mobile power.

III. INSTRUCTIONS FOR USE

Remove all packaging materials and take out the appliance and any accessories. Parts which come in contact with the oral cavity must be rinsed in warm drinking water before first use.

Charging the brush with the base (C)

This appliance is equipped with a contactless (induction) charging system which works on the principle of energy transfer through an electromagnetic field. No direct connection with the power cable is required which makes charging more convenient and thanks to the enhanced insulation (IPX7) also safer.

Connect the charging base to the mains first and place the brush body (A) onto the cylindrical projection in the charging base (C). The charging procedure is signalled by a flashing (A3) LED indicator. When the battery is fully charged, the (A3) LED indicator is lit. For a full charge, the battery needs to be charged for approximately 11 hours. Depending on the cleaning mode used, a fully charged battery will provide approximately 2-3.5 hours of operation which corresponds to about 1-2 months when used twice a day for two minutes.

Note: Although the brush should not be charged before it is fully discharged, we recommend charging it at regular intervals (e.g. after 2-3 weeks of use) in order to ensure optimum battery life.

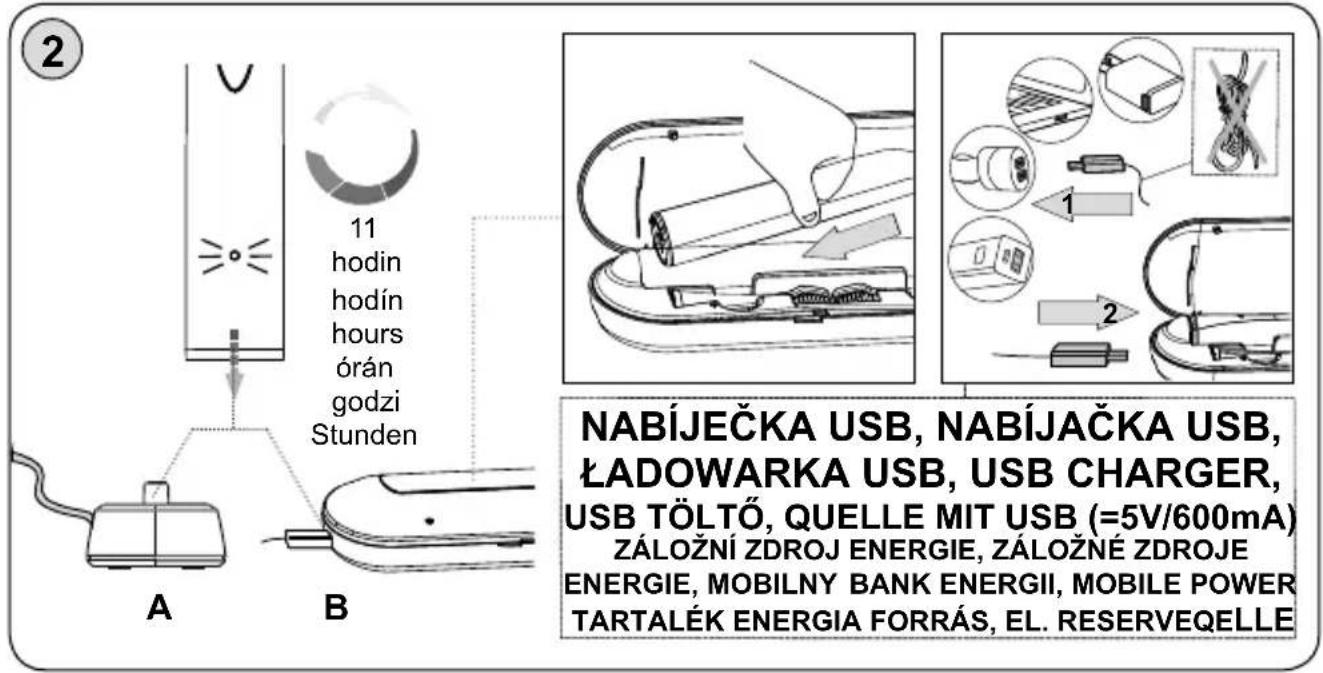

You can use the charging station as follows (Fig. 2):

a) charging base on its own (spacing-saving, suitable for travelling),
b) charging base in a stable stand (increased stability, suitable for use at home); assemble as per Fig. 1.

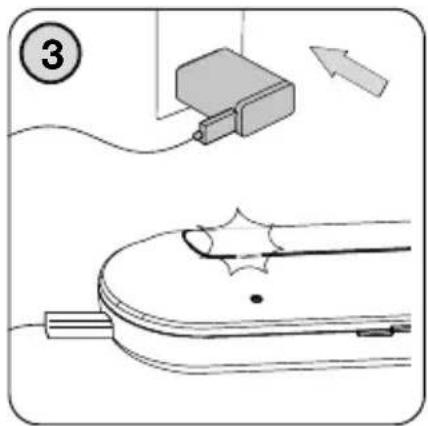

Charging the brush with the case (D), (Fig. 2B)

- Please confirm the voltage of the external electric device is 5 V / 600 mA (at least) before charging it.

1) Make sure the appliance is off.
2) Put the provided charge micro-USB cable (E) into the charge slot (D6) of case, connect the other charger compatible AC wall adapter or mobile power.
3) The charging procedure is signalled by a flashing (A3) LED indicator.
4) tWhen the battery is fully charged, the (A3) LED indicator is lit. Unplug the adaptor from the wall socket first and only then unplug the connector from the case.

Caution

• During operation, the (A3) LED indicator is lit, when the battery of the accumulator is low and it needs to be recharged, the LED indicator starts flashing.
• When charged for the first time, or if the appliance was not in use for more than 3 months, it needs to be charged for 24 hours.
• Do not exceed the recommended time of charging (11 hours) during regular charging!
• The charging base / case also serves as a stand where you can place the brush after use. However, do not connect the base / case to the mains unless you wish to charge the brush. Do not leave the charging base / case connected to the mains permanently!
• Do not leave the USB cable permanently plugged in the case.
• The appliance warms up during charging, but this is normal and not a defect.
• The operating time is only approximate. The time depends on the condition of the battery, ambient temperature, age, method of charging, etc.

USE

Before use, slide the brush (B) onto the brush body (A) to connect them (See Fig. 1). A small gap will remain between the brush body (A) and the coloured ring (B2) which is not a defect. To remove the brush, proceed the other way round. Do not switch on the appliance without the brush attached!

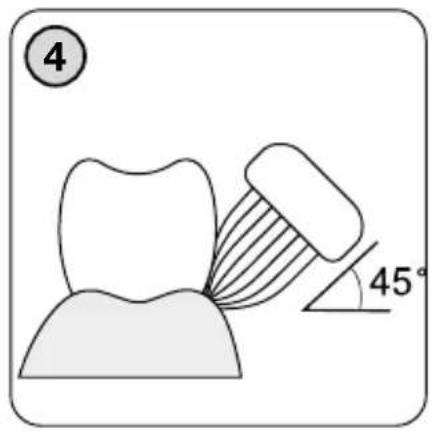

Moisten the brush and apply a small amount of toothpaste on it. Put the brush to the teeth at a slight angle towards the gums (see Fig. 4) and switch on any mode by pressing the mode on/switch button (A1). Move the brush slowly along the teeth back and forth, applying a slight pressure, so as not to miss any tooth or area in the mouth. Clean each tooth for about 2-3 seconds.

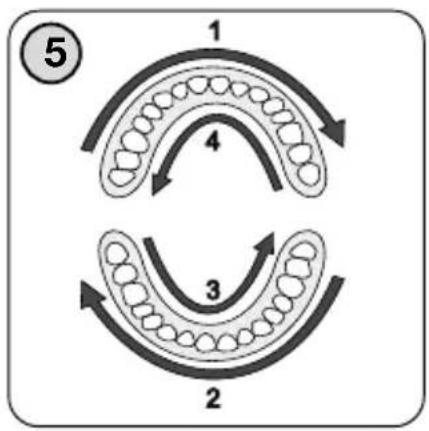

The brush operating time is limited to 2 minutes which corresponds to the time for cleaning recommended by experts. If you wish to continue cleaning, simply switch on the brush again. Each part of the mouth (quadrant) should be cleaned for about 30 seconds (see Fig. 5); A short interruption of the brush operation will prompt you to move to another quadrant after this time elapses.

Notes

• If this is your first sonic toothbrush and you have not had any experience with this cleaning technology, it might take you a while to get used to the specific vibration (tingling). However, most users say that they got used to it quickly after a few uses and cleaning became perfectly natural for them.
• Do not apply excessive pressure on your teeth.
• You can also use this brush when you have fixed braces, facets, crowns, etc. However, please bear in mind that if the brush is used with braces, the brush bristles are subject to more wear.
• We recommend that you replace the brush (B) with a new one after 3 months of use. However, if the brush is showing signs of significant wear or damage.

Mode on/switch button control A1

When you press the button once, the brush switches on in mode C. If you press the button again within 3 seconds, the brush will switch to mode S. If you press the button repeatedly within 3 seconds, the brush will switch to mode M. When you press the button again, the brush will switch off. The brush will also switch off if you press the button (A1) in mode C/S after 3 seconds after its activation.

Cleaning modes:

1) C mode - standard intensive mode for regular cleaning of healthy teeth,
2) S mode - gentle mode for sensitive teeth or mouth parts; recommended in case of increased sensitivity of teeth, exposed necks, periodontitis, implants and other dentures,
3) M mode - pulse mode for gentle gum massaging.

Activation of the mode selected is indicated by the indicator (A2) coming on.

UV sanitizer

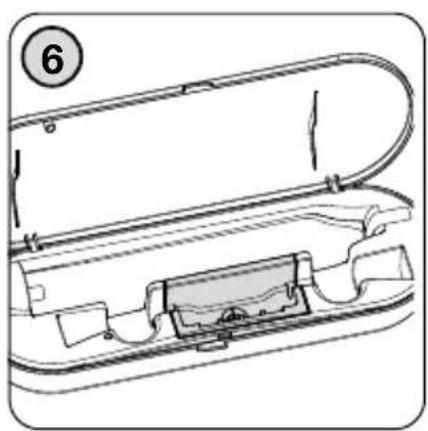

The charging case (D) features a disinfection chamber where used toothbrushes (B) are disinfected with UV light. UV light can eliminate up to 99,9 % of bacteria which might otherwise cause trouble in your mouth. Put used brushes (B) into storage space for brushes (D3), the bristles pointing towards the UV lamp. The sanitizer is activated when you simply close the protective lid (D2) when the charging case (D) is connected to the mains, or when you connect the charging case (C) to the mains (provided that the protective lid is closed). The UV lamp is on for about 10 minutes and switches off automatically after this time.

Note

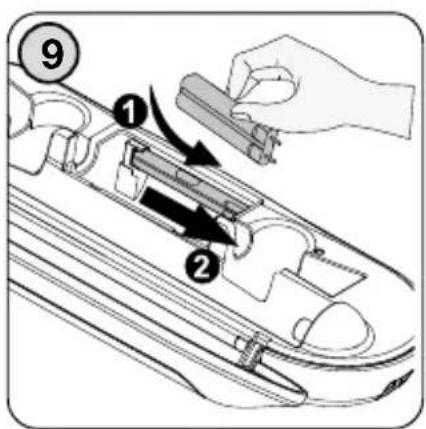

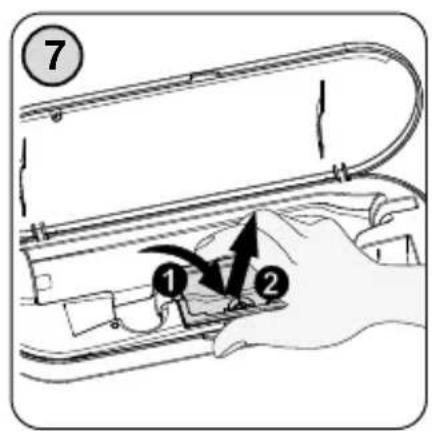

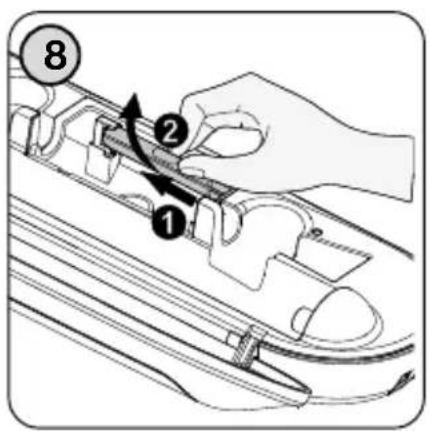

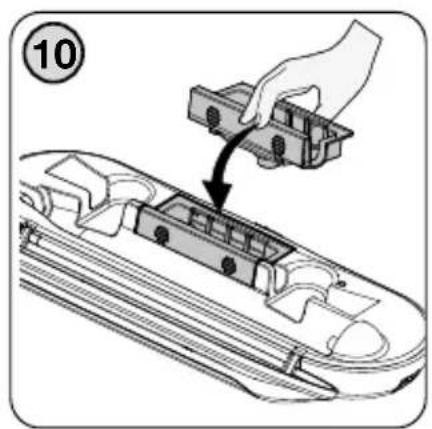

• The UV lamp has a long service life. However, if it stops working or gets damaged, replace it with a new one (of identical type ETA 470700020), proceed according to Fig. 6 -10.
• It might be more difficult to see the UV light in well-lit areas.

IV. CLEANING AND MAINTENANCE

Before performing maintenance of the charging base (C), unplug it from the mains first! For maximum hygiene, disinfect used brushes (B) after each use in the sanitizer using the UV light! Rinse the brush head (B1) and the brush body (A) under running water and wipe the brush body with a damp cloth. Use the damp cloth to wipe the charging base and its cable as well. Never immerse the brush body (A) or the charging base (C) in water! Do not use a dishwasher for cleaning! Allow the brush body (A), the charging base (C) and the cable to dry properly before re-use.

Store the appliance and all the accessories in a dry, dust-free and safe place, out of reach of children and incapacitated persons. The brush body and brushes can also be stored inside the case.

V. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal of the product, hand it over at special collection places where it will be taken over free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. This appliance is equipped with a Li-ion battery with long life. For environmental protection it is necessary to remove the battery from the appliance after its service life and the battery and the appliance must be disposed of safely using special collection networks. Ask for more details at the local authority or at the local waste collection site.

Removing the battery

Remove the battery from the appliance only when completely discharged. The procedure for removing the battery is shown in Fig. 11:

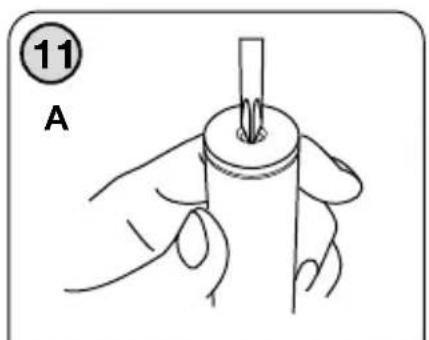

1. Using a screw-driver, remove the screw cover and loosen the screw.
2. Hold the brush body (A) upside down, press the charging part (see arrows in the figure) and remove the 2 hooks which hold the inner components of the brush body (A).
3. Remove the battery from the compartment using a screw-driver.

VI. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Weight (kg) approximately 0.32

Appliance/Adapter/Case Protection Class III./II.

Size toothbrush, (mm):

$$ 2 2 4 \times 7 7. 5 \times 4 1. 5 $$

The manufacturer reserves the right to change the technical specifications and accessories for the respective models. Expert service must do the large maintenance or to intervene into inside parts of the appliance! Non-observance of the instructions of the manufacturer cancels the right for guarantee repair!

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.
