Product Type	Digital Body Analysis Scale
Brand / Model	Eta Christine 1781 90000
Dimensions (W x D x H)	300 x 300 x 25 mm
Net Weight	1.5 kg
Power Supply	3 x 1.5 V AAA batteries (included)
Weighing Range	5 kg to 180 kg (11 lb to 397 lb, 0:8 st to 28.3 st)
Measurement Increment	0.1 kg
Body Fat Measurement Range	5% – 85%
Body Water Measurement Range	7% – 75%
Muscle Mass Measurement Range	13% – 82%
Bone Weight Measurement Range	0.5 kg – 8 kg
User Memory	10 users (0-9)
Auto Step-On	Yes
Unit Options	kg, lb, st:lb
Height Setting Range	80 cm to 220 cm (2'07.5" – 7'02.5")
Age Setting Range	6 – 100 years
Technology	Bioelectrical Impedance Analysis (BIA)
Display	LCD digital display
Cleaning	Wipe with soft damp cloth; do not immerse
Safety Notes	Do not use with pacemaker; avoid wet feet; do not step on edge
Intended Use	Household only

Frequently Asked Questions - Christine 1781 90000 Eta

How do I set up the scale for the first time?

Remove all packaging and adhesive foils. Open the battery cover on the bottom, insert 3 AAA batteries with correct polarity, and close the cover. Place the scale on a flat, stable, dry surface. Tap the weighing surface to turn it on, and select your preferred weight unit (kg, lb, or st:lb) using the arrow buttons.

How do I measure body fat and other body composition metrics?

First, save your personal data (memory number, gender, height, age) by following the setup procedure. Then step onto the scale barefoot with dry feet. Stand still; the scale will automatically measure weight, body fat %, body water %, muscle mass %, bone weight, BMI, and daily kilocalorie requirement. Results cycle on the display.

What do the error codes mean?

'LO' means battery is dead. 'Err2' indicates very low or very high body fat percentage. 'Err' appears when weight exceeds the maximum 180 kg. If unusual signs appear, remove and reinsert the battery or move the scale away from electromagnetic interference.

How do I replace the batteries?

Open the battery cover on the bottom of the scale. Remove old batteries and insert 3 new AAA 1.5 V batteries with correct polarity. Close the cover. Do not mix old and new batteries or different types.

How should I clean and maintain the scale?

Clean the surface with a soft, damp cloth. Do not use harsh chemicals, abrasives, or solvents. Never immerse the scale in water. Store horizontally in a dry place away from direct sunlight and heat sources.

Who should not use the body fat analysis feature?

Do not use the body fat analysis if you have a pacemaker, electrocardiograph, or other implanted medical device. Also, avoid use during pregnancy, if you have edema, or during dialysis treatment.

Can I use the scale on a carpet?

No, the scale should be placed on a flat, hard, and stable surface. Soft or uneven surfaces like carpet can affect measurement accuracy.

Why does the scale not turn on?

Check that batteries are inserted correctly and have sufficient charge. If the display shows nothing, replace the batteries. Also ensure the scale is on a flat surface and you step firmly to activate auto step-on.

How do I switch between weight units?

Turn on the scale and wait until 0.0 appears. Press the ▲ or ▼ arrow button to cycle between kg, lb, and st:lb. The selected unit will be saved.

What is the maximum weight the scale can measure?

The maximum weight capacity is 180 kg (397 lb or 28.3 st). Do not exceed this limit to avoid damaging the scale.

USER MANUAL Christine 1781 90000 Eta

Digital balance scale with digital display showing 56.2 kg (no text or symbols on the device itself)

Digital balance scale with two black footprints on a gray surface, no text or symbols present

Silhouette of a foot stepping on a surface with a small object nearby (no text or symbols)

FT;In = stopa;palec 1 FT = 30.48 cm; 1 In = 2,54 cm

Výmena batérií

Silhouette of a hand pressing down on a surface with a tool, no text or symbols visible

Illustration of a pair of boots on a mat with a falling object, no text or symbols present

VÁŽI IHNEĎ: na váhu sa stačí postavit' – automaticky dôjde k zapnutiu a zváženiu

Digital body analysis scale

eta 1781

Christine

INSTRUCTIONS FOR USE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- The appliance is intended for use in households only and for similar use! It is not intended for use in health-care facilities and for commercial use!

- Never use the appliance if it malfunctions, if it fell to the ground and got damaged or if it fell into water. In these cases bring the appliance to a specialised service to have the safety and functions of the device checked.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- We recommend: Do not step onto the scale with wet feet or on wet surface of the scale, there is a risk of slipping.

- Never immerse the scale into water (even their parts)!

- If the scale was stored in lower temperatures, let it adjust to the room temperature.

- Use the scale in a horizontal position only and at places where they cannot knock over, in sufficient distance from heat sources (e.g. stove, fireplace, heat radiators), sources of increased air humidity (e.g. sauna, bathroom, swimming pool) and equipment with strong electromagnetic field (e.g. microwave oven, radio, mobile phone).

- Protect the personal scale from dust, chemicals, excessive humidity, toiletries, liquid cosmetic preparations, intensive temperature changes and do not expose them to direct sunlight.

- Do not step on the edge of the scale! The scale could overturn and cause injury!

- Do not place the scale on uneven surface or on surface covered with carpet. Unstable or soft surface under the scale can have negative effect on precision of weighing.

– In handling the scale, make sure injury of persons or damage of the appliance is prevented.

- Do not overload the appliance with weight higher than the maximum capacity! You will thus prevent damaging the appliance

- Do not use the fat analysis feature on this scale if you are using one of the following devices: pace maker, electrocardiograph and/or other medical device implanted in the body or device used as support.

- Handle the scale with care. Do not throw them or jump on them. The scale is durable, but improper handling can destroy their electronic sensors.

• Do not disassemble the scale and do not take any parts out.
• Do not put any objects on the surface of the scale during storing, they could be damaged.
• If the battery is leaking, remove it immediately; it can damage the scale.
• Do not use worn and new batteries together and do not use rechargeable accumulators.
• Dispose of a discharged batteries in a suitable way.
• Never use the appliance for any other purpose than for that described in these instructions for use!

- Keep in mind that the data read from this scale are approximate and inaccurate in comparison to results of actual medicinal analyses. The exact determination of biometrical characteristics can be done only by a doctor via medical methods.

- Keep batteries and scale out of reach of children and incapacitated people. A person, who would swallow the batteries, must seek medical help immediately.

- Do not use during pregnancy, with symptom of edema and during dialysis treatment.

- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.

- The producer is not responsible for damage caused by improper use of the appliance (e.g. breaking the board, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warnings above.

II. GENERAL INFORMATION

Body Fat Ratio Chart

Age	Female (%) Male (%)
	Low	Healthy	High	Obese	Low	Healthy	High	Obese
<39 <21	21 - 33	38 - 39	39> <8	8 - 19	19 - 25	25>
40-59	<23	23 - 35	35 - 40	40>	<11	11 - 22	22 - 28	28>
60>	<24	24 - 36	36 - 42	42>	<13	13 - 25	25 - 30	30>

The optimal percentage of body water is about 50-65 % for men and 45-60 % for a women.

Muscle Ratio Chart

Age	Female %			Male %
	Low	Healthy	High	Low	Healthy	High
<30	<34	34 - 43	>43	<42	42 - 57	>57
31 - 50	<31	31 - 38	>38	<40	40 - 52	>52
51>	<27	27 - 34	>34	<37	37 - 48	>48

BMI

The technology used in these scales, Bio-electrical Impedance Analysis (BIA) is more technologically advanced than the order Body Mass Index (BMI) method where fat % is calculated using only height and weight. BIA technology uses 5 parameters to get a more accurate resolution for the analysis (weight and biological resistance which are automatically measured by the scales together with the three personal parameters entered manually - sex, height and age). This index sets mutual ratio between the body weight and height.

It can be used to determine whether the person suffers from underweight, overweight or obesity or whether his/her health condition is normal. Also with regards to heart and vascular diseases, body mass index is a relatively good risk index, particularly in healthy people.

However, the index is for reference only. Experts recommend supplementing the calculation by at least measuring the waist, which makes determining disposition of the body fat more precise. BMI will not provide very reliable information for small children, elderly people and active sportsmen who have a lot of muscle mass as their results can be biased.

BMI	Underfat Healthy Overfat Obese
	< 18,5 18,5 - 27 28 - 39 > 40

Optimum energy consumption KCAL

It represents optimum amount of energy consumption necessary for maintaining the basic vital functions and balanced metabolism. The data on the display show the optimum daily consumption of energy that you give out at your weight, height, age and gender. You should also take in this amount of energy to keep your metabolism balanced. If you intend to reduce your weight, your daily energy intake should be a bit lower. However, remember to keep carbohydrates, fats and proteins balanced in your diet. 239 cal = 1 kJ

Important notes:

1) This scale requires you to weigh yourself barefoot for the reason of correct conductivity during the body fat analysis.

2) Do not place the scale on an uneven surface or a surface covered with a carpet.

3) Do not use the fat analysis feature on this scale if you are using one of the following devices: pace maker, electrocardiograph and/or other medical device implanted in the body or device used as support.

4) Excessive drinking, eating, exercising, health conditions, used medicaments, women's menstruation cycle etc. influence the results of the analysis.

5) Tables and information concerning optimum arrangement of body characteristics is only orientational.

III. PREPARATION FOR USE

Symbols shown on the display

A - age

B – symbol for muscle mass analysis

C – symbol for bone analysis

D - Male / Female

E - User memory 0 to 9

F – Units of height and weight

G – Particular items of the analysis (“fat”; “TBW”=total body water; “BMI”=Body Mass Index; „KCAL“=recommended daily calorie amount

Analysis result indicator

Underfat=malnutrition

Healthy=normal

Overfat=overweight

Obese=obesity

Remove all the packing material and take the scale out. Remove all possible adhesion foils, stick-on labels or paper from the scale. Open the battery cover on the bottom of the scale, insert the battery with the correct polarity and close the cover in the opposite direction.

Place the scale on flat, stable and dry surface. Turn on the scale by tapping your foot on the weighing surface and check the weight unit displayed on the display (kg). If you prefer to set st:lb or lb unit, you can switch it over after you turn on the scales (in weighing mode) by pushing one of the directional arrow-button (▲, ▼).

$$ \begin{array}{l l} \text {kg = kilogram} & 1 \mathrm{kg=2.2lb} \ \text {lb=pound(British weight unit)} & 1 \mathrm{lb=0.454kg} \ \text {st:lb=stone:pound(American / British weight unit)} & 1 \mathrm{st=6,356kg} \ \text {FT;In=feet;inches} & 1 \mathrm{FT=30.48cm;1In=2,54cm} \end{array} $$

Replacing the batteries

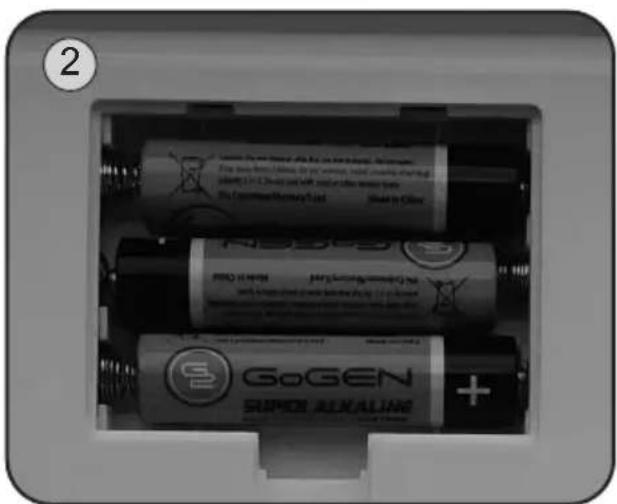

Open the battery cover on the bottom of the scale (pic. 2). Insert a battery with the right polarity and close the cover. Use AAA batteries (3 pcs) for this appliance. If you are not using the appliance for some time, take the batteries out!

Notes

• Do not combine various types of batteries. Do not even combine used and new batteries together.
• Batteries not intended for this purpose must not be charged.
• Remove the batteries if you will not be using the appliance for a long time.
  – The supply terminals must not be short-circuited.

IV. INSTRUCTIONS FOR USE

Your scale is fine electronic equipment. One of the things that are most difficult to weigh is human body as it is always in motion. If you want to obtain reliable results, always try to step with your feet at the same place on the scale and stand still (Fig. 1). If possible, weigh yourself at the same time of the day (best in the morning) and also on the same place to get comparable results. Remember that excessive clothes can increase your weight as well as eating and drinking before weighing. Short-term weight fluctuation is generally attributed to loss of liquids.

A) Regular weighing mode

Turn the scale on by stepping on the weighing surface. After a moment, the measured weight flashes and the value remains displayed for several seconds. Then the scale are switched off automatically.

B) Weighing and total body analysis mode

Setting (change) of personal data for the body fat and water analysis

Before the first analysis, it is necessary to put in personal data (sex, height and age) which will be saved to the memory. It is possible to save data of 10 persons in the scale's memory.

The input data can be set and gradually changed in the following range:

Memory Gender Height Age
0 – 9 male / female	female	80 – 220 cm2'07.5" – 7'02.5"	6 - 100

1. Turn the scale on by stepping on the weighing surface (until will show 0.0).
2. Press the ⬙ button Number of memory will start the flash on the display (e.g. 1).
3. Select the number of the memory (with button ▲or )▼ which you want to save the data for the person to be weighed.

Confirm by pressing the button.

1. Set your sex with the ▲ or ▼ button:

male / female

Confirm by pressing the button.

1. Set your height with the ▲ or button.

Confirm by pressing the button.

1. Set your age with the ▲ or button (Age)

Confirm by pressing the button.

Now all the personal data is saved (changed). Wait till 0.0 appears. Stand on the scale and wait for results.

The following data will start to show after a few seconds:

1. • Weight in set units
2. • Body fat contents in % (fat)
3. • Body water contents in % (TBW)
4. • Musculature contents in %
5. • Bone weight contents in kg
6. • Daily kilocalorie requirement (KCAL)
7. • BMI (Body Mass Index)

The results will display in a cycle. After three repetitions, the scale will automatically turn off.

Notice

There must not be a contact between feet, calves or thighs. Otherwise the measurement could be inaccurate.

For a repeated analysis of body characteristics (after saving the input data of the person to the memory – e.g. 1), proceed as follows:

1) Press the button (if you were using the scale in the regular weighing mode).
2) Wait for 0.0 on the display or choose the number of memory with the ▲ or ▼ button where your setting is saved.
3) Do not press anything after selecting the respective number of memory (wait till 0.0 appears). Step on the scale and your weight and bodily characteristics will begin to be analyzed.

Note

The scale is switched on automatically if you do not step on it within approx. 20 seconds after „0.0“ is displayed.

Error messages and their symbols

Symbols displayed Interpretation
LO Battery is	dead
Err2	Very low % of fat
	Very high % of fat
Err	The measured weight is higher than maximum allowed value of the scale.

V. TROUBLESHOOTING OF POSSIBLE PROBLEMS

If you have problems with weight:

• Check whether the batteries are inserted properly.
• Check whether you selected the proper weight unit.
• Check whether the scale is on a flat floor and they do not touch the wall.
• If nothing appears on the scale when you want to switch them on by tapping on them or if "appears only, replace the battery.

- If "appears on the display, the scale was overloaded.

- If unusual signs are displayed, remove the insert the battery again.

- If signs appear, such as if the display is flashing or if there is a faulty sign, try to move the scale away from the influence of a source of interference or ensure switching off the source for the time of using the scale.

VI. STORING

After using the scale, put it into the horizontal position (not vertically), out of reach of children and incapacitated people (see par. I. SAFETY WARNINGS).

VII. MAINTENANCE

Do not use coarse and aggressive cleaning agents (e.g. sharp objects, scrapers, diluting agents or other solvents). Clean the board by wiping with a soft wet cloth.

Make sure that water does not get inside the appliance.

VIII. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. Remove a discharged battery and dispose of it in a suitable and safe way through the special collection networks. Never dispose of the battery by burning!

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by a professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

IX. TECHNICAL DATA

Weighing range max 180 kg / 397 lb / 28.3 st

Discrimination: 0.1 kg

Power supply: 3x Batteries 1.5 V AAA (included)

Net weight of device: 1,5 kg

Memory capacity: 10

Mass alignment: from 80 to 220 cm (2'07.5" - 7'02,5 „Ft:in)

Age: from 6 to 100 years

Minimum weight: from 5 kg (11 lb / 0:8 st)

Maximum weight: 180 kg (397 lb/28.3 st)

Body fat measuring range: 5% – 85%

Body water measuring range: 7% – 75%

Muscle mass measuring: 13% – 82%

Bone measuring range: 0,5 kg – 8 kg

Size of the product (mm) 300 x 300 x 25

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Illustration of a foot pressing down on a mat with a screwdriver (no text or symbols)

AUTO STEP ON – just step on the scale and stand still, the scale will automatically turn ON and start taking measurements.

Silhouette of a human foot pressing down on a surface with a spoon (no text or symbols)

Do not step onto the scale with wet feet or on wet surface of the scale, there is a risk of slipping.

FT;In = láb;hüvelyk 1 FT = 30.48 cm; 1 In = 2,54 cm

Elem csere

Illustration of a foot touching a surface with a tool and scattered objects (no text or symbols)

Illustration of a pair of boots on a mat with a falling object, no text or symbols present

Illustration of a foot stepping on a surface with a tool and scattered objects (no text or symbols)

Illustration of a foot stepping on a surface with a small dot and a downward arrow (no text or symbols)

Silhouette of a human foot stepping on a surface with scattered objects (no text or symbols)

Illustration of a pair of boots on a mat with a falling object, no text or symbols present
