Brand	Bosch
Model	PXY875DE1E
Category	Cooktop
Product type	Built-in induction hob
Dimensions (W x D x H)	80 x 52 x 5 cm
Net weight	15 kg
Power supply	220-240 V / 50-60 Hz
Total power	7.4 kW
Number of cooking zones	5 induction cooking zones
Main functions	PowerBoost, FlexInduction, Touch control, Timer, Keep warm function
Care and cleaning	Clean with a soft cloth and a ceramic hob cleaner; do not use abrasive sponges
Safety	Child lock, Automatic safety shut-off, Residual heat indicator
Spare parts and repairability	Parts available through Bosch after-sales service; repairability index available online
General information	User manual available in multiple languages; Made in Germany

Frequently Asked Questions - PXY875DE1E BOSCH

How to turn on the hob?

Press the On/Off button for about 1 second. A beep sounds and the display lights up.

How to use the PowerBoost function?

Select a cooking zone, then press the PowerBoost button. Maximum power is activated for a limited time.

What to do if the display shows an error code?

Refer to the 'Troubleshooting' section in the manual. Common codes include E0 (no pan) or E2 (overheating). Turn the appliance off and on again.

How to clean the ceramic glass?

Use a soft cloth and a special ceramic glass cleaner. Avoid abrasive sponges that scratch the surface.

Do all pans work on induction?

No, only pans with a ferromagnetic (magnetic) base are suitable. Use a magnet to check.

How to activate the child lock?

Press the + and - buttons simultaneously for 4 seconds. A lock symbol appears.

Can I use a cast iron griddle?

Yes, if the cast iron is flat and the base is ferromagnetic. Avoid sliding the griddle to prevent scratching the ceramic glass.

How to set the timer?

Select a cooking zone, then press the Timer button. Use the + and - buttons to set the time.

What does the 'H' indicator mean on the display?

The H indicator shows residual heat. The zone is still hot even when off. Do not touch.

Where to order spare parts?

Visit the Bosch Service website or contact the after-sales service. The model number is PXY875DE1E.

USER MANUAL PXY875DE1E BOSCH

Wireless Temperature Sensor

HEZ39050

de Gebrauchsanleitung....3
en Instruction manual ..... 8
fr Mode d'emploi....13
it Istruzioni per l'uso ..... 19
nl Gebruiksaanwijzing ..... 25
da Brugsanvisning. 30
no Bruksveiledning .... 35
sv Bruksanvisning....40
fi Käyttöohje 45
es Instrucciones de uso ..... 50
pt Instruções de serviço.....56
el Οδηγίες χρήσης ....61
tr Kullanma kılavuzu ..... 67
cs Návod k použití ..... 72
sk Návod na obsluhu....77
hu Használati utasítás ..... 82
pl Instrukcja obsługi....88
ro Instructiuni de utilizare ..... 94
bg Ръководство 99
ru Правила пользования.....104
uk Інструкція з використання. . 109
sr Uputstva za upotrebu.....115
hr Upute za uporabu ..... 120
sl Navodila za uporabo.....125
sq Udhëzim për përdorim ..... 130
mk Упатство за употреба ..... 135
et Kasutusjuhend ..... 140
It Naudojimo instrukcija ..... 145
Iv Lietošanas instrukcija ..... 150
zh 说明手册 155
zh-hk 說明手冊 158

Inhaltsverzeichnis

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Hinweise

Illustration of a blue pulley or wheel component with a blue arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular housing (no text or symbols)

Achtung!

Diagram of a mechanical component with two circular parts and internal features, showing directional arrows (no text or symbols)

Diagram of a screwdriver interacting with a mechanical component (no text or symbols)

Illustration of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Hinweis:

Important safety information. . . .9

Environmental protection .....10

Environmentally-friendly disposal . . . 10

Wireless temperature sensor . .10

Preparing and maintaining the wireless temperature sensor 11 Cleaning. 12 Declaration of Conformity. 13

Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com

Intended use

Read these instructions carefully. Please keep the instruction in a safe place for later use or for subsequent owners.

Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not use the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will lose your right to any type of compensation.

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance.

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

When using the cooking functions, set the hotplate on which you have placed the saucepan with the temperature sensor.

Important safety information

Warning

Danger of suffocation!

Packaging material is dangerous to children. Never allow children to play with packaging material.

Warning

Hazard due to magnetism!

The wireless temperature sensor is magnetic. The magnetic elements in it may damage electronic implants, e.g. pacemakers or insulin pumps. People fitted with electronic implants should therefore not carry the temperature sensor in their pockets and always keep it at least 10 cm away from their pacemaker or similar medical device.

Warning

Risk of injury!

■ The wireless cooking sensor is equipped with a battery, which may become damaged if it is exposed to high temperatures. Remove the sensor from the cookware and store it away from any heat sources.

■ The temperature sensor may be very hot when removing it from the saucepan. Wear oven gloves or use a tea towel to remove it.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

The wireless temperature sensor is battery-powered. Dispose of used batteries in an environmentally responsible manner.

Wireless temperature sensor

Additional information can be found in the detailed instruction manual for the hob in chapter "Cooking Assist Functions". Read it through carefully.

Preparing and maintaining the wireless temperature sensor

In this section, you will find the following information:

■ Adhering the silicone patch
■ Using the wireless temperature sensor
■ Changing the battery

You can obtain a temperature sensor and silicone patches from specialist retailers or through our technical after-sales service. Always quote the relevant reference number.

00577921 Set of 5 silicone patches

HEZ39050 Temperature sensor and set of 5 silicone patches

Adhering the silicone patch

The silicone patch attaches the temperature sensor to the cookware.

When a pan is used for the first time with the cooking functions, the silicone patch must be adhered directly to the pan. It is important

1. that the adhesive area on the pan is free from grease. Clean the pan, dry it thoroughly and wipe the adhesive area with a spirit.
2. Remove the protective film from the silicone patch. Adhere the silicone patch to the outside of the pan in the correct place using the enclosed template as a guide.

1. Press down all over the surface of the silicone patch, including in the centre.

The adhesive requires one hour to fully harden. Do not use or clean the pan during this time.

Notes

■ Do not leave the pan with the silicone patch to soak soapy water for long periods of time.
■ If the silicone patch comes off, attach a new one.

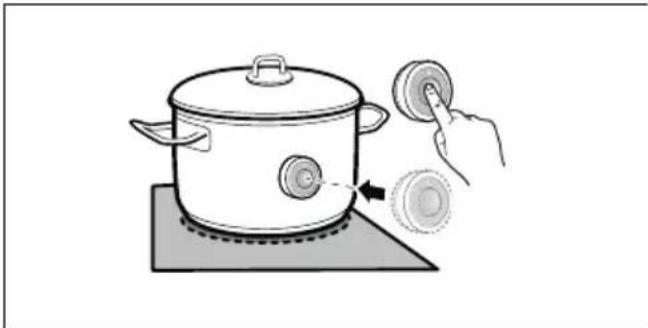

Fitting the wireless temperature sensor

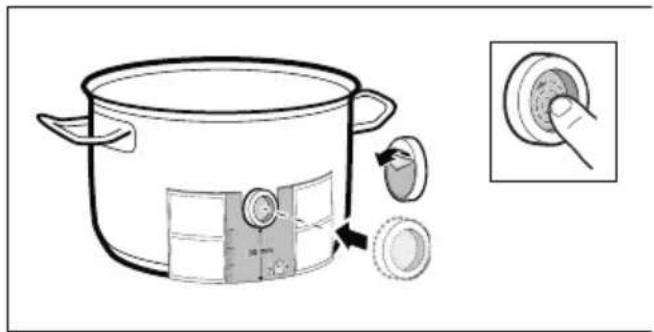

Attach the temperature sensor to the silicone patch and align it correctly.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Notes

■ Make sure that the silicone path is completely dry before attaching the temperature sensor.
■ Position the cookware in such a way that the temperature sensor is pointing towards the outer side of the hob.
■ To prevent overheating, the temperature sensor must not be pointed towards another item of cookware that is hot.
■ Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place away from sources of heat.

Changing the battery

If the temperature sensor does not light up when the symbol is pressed, the battery is flat.

en

Changing the battery:

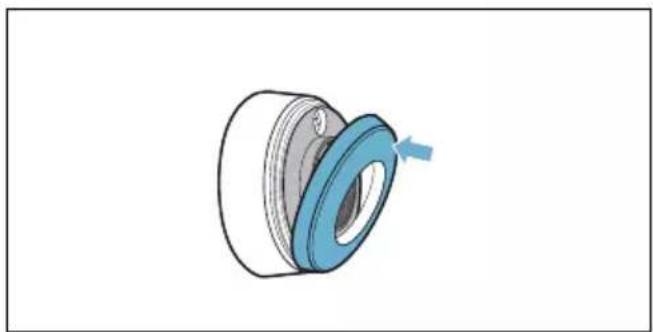

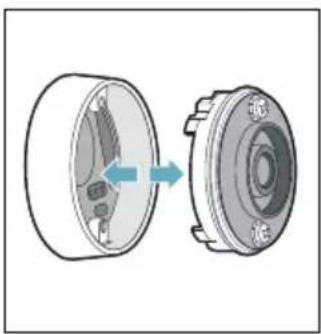

1. Remove the silicone cover from the lower section of the temperature sensor housing and remove both screws using a screwdriver.

Diagram of a mechanical component with a blue pulley and a gray ring, showing a rotation arrow (no text or symbols)

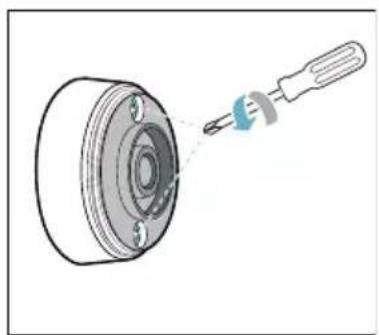

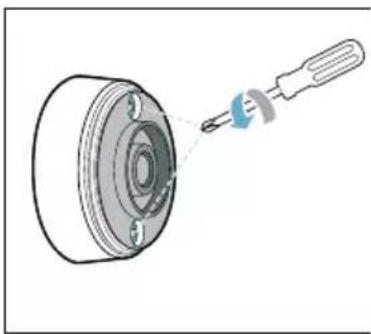

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

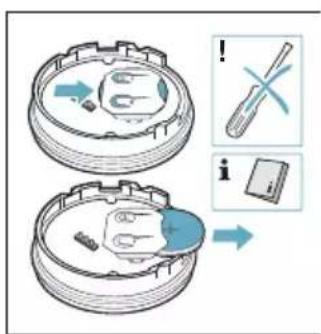

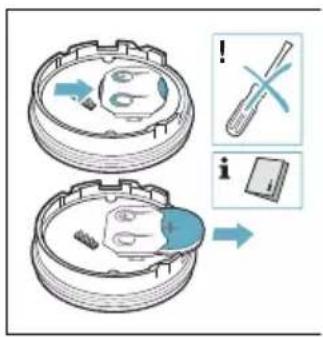

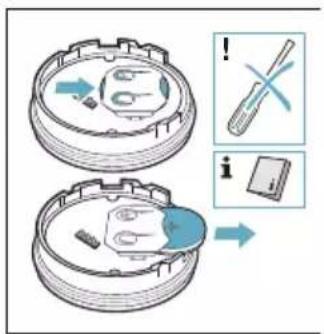

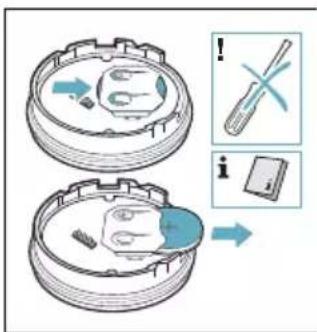

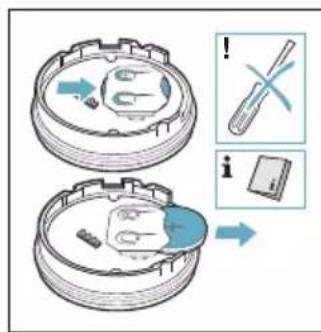

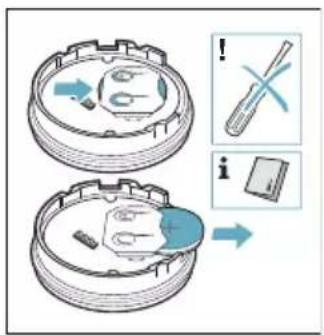

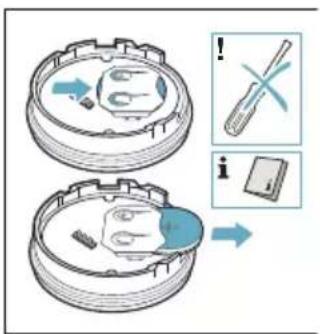

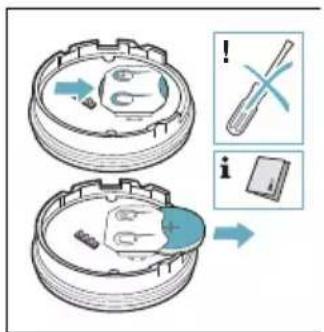

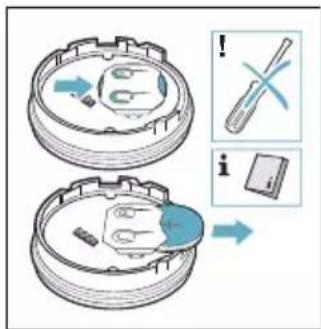

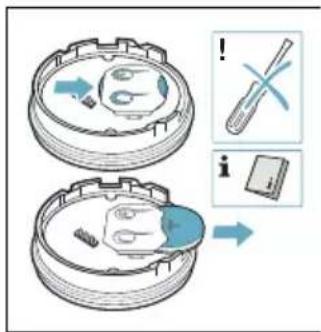

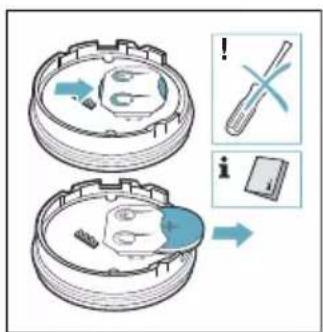

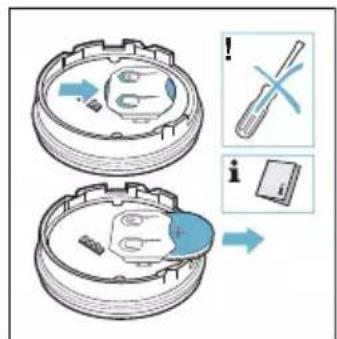

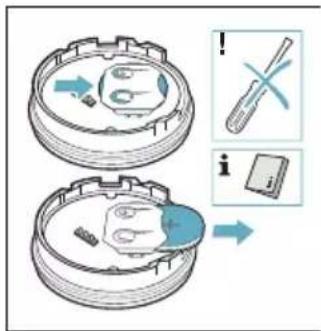

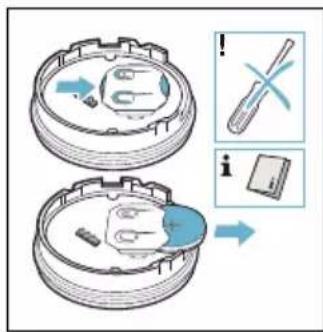

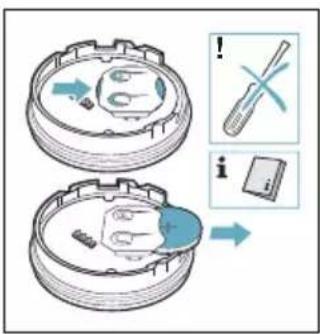

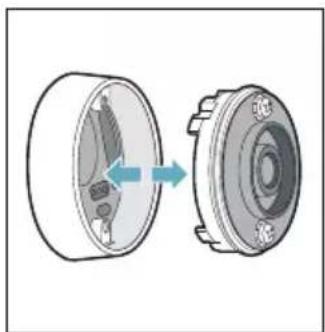

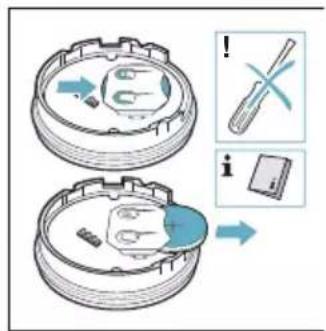

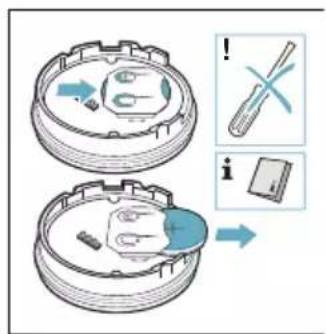

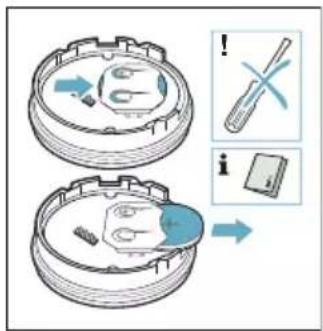

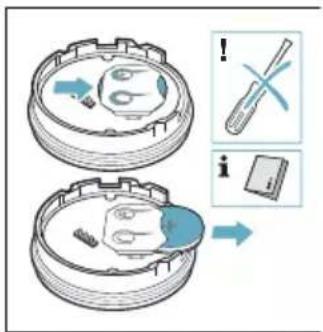

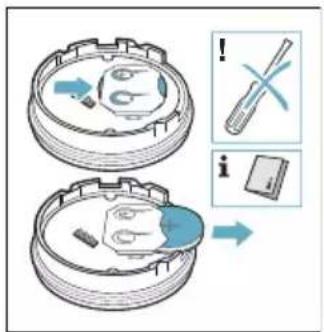

1. Open the closure of the temperature sensor. Remove the battery from the lower section of the housing and insert a new battery (pay attention to the correct orientation of the battery poles).

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Caution!

Do not use any metal objects to remove the battery. Do not touch the battery connection points.

Mechanical assembly diagram showing a gear-like component with a highlighted circular component and directional arrows (no text or symbols)

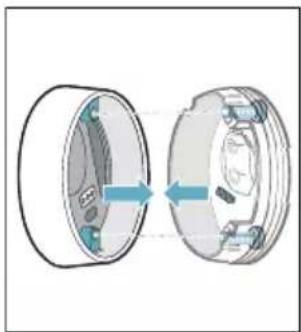

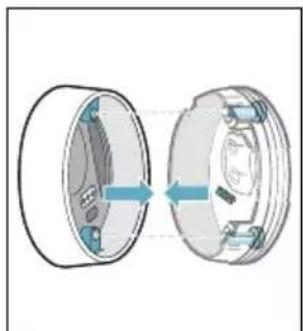

1. Close the closure of the temperature sensor (the notches for the screws on the closure must align with the notches on the lower section of the housing). Tighten the screws with a screwdriver.

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a screwdriver and a circular base, showing no text or symbols.

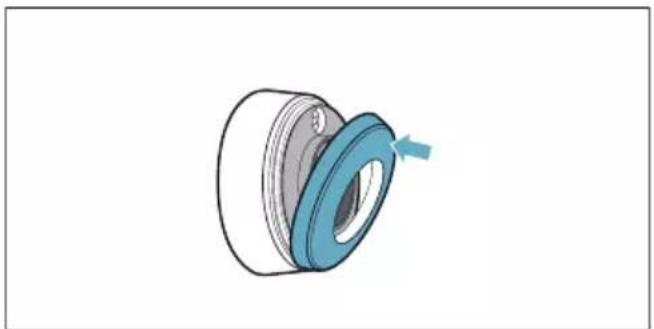

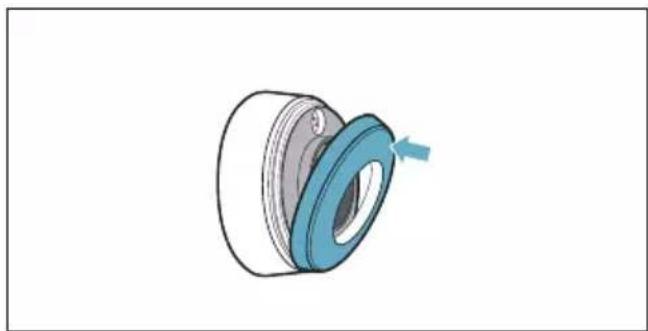

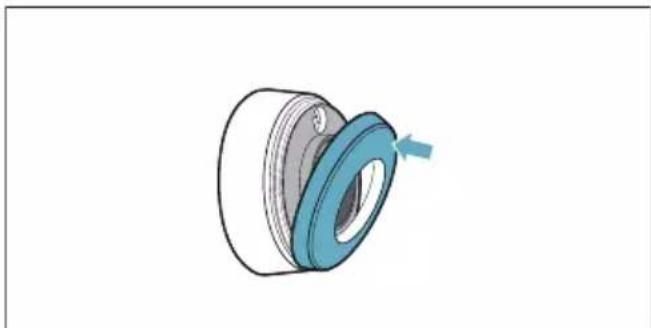

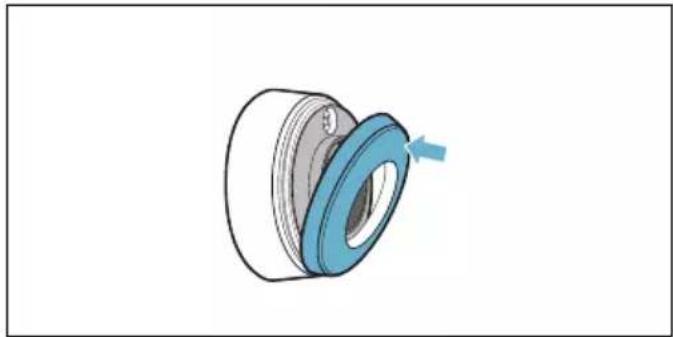

1. Reattach the silicone cover to the lower section of the temperature sensor housing.

Diagram of a mechanical component with a blue pulley and arrow indicating direction (no text or symbols)

Note:

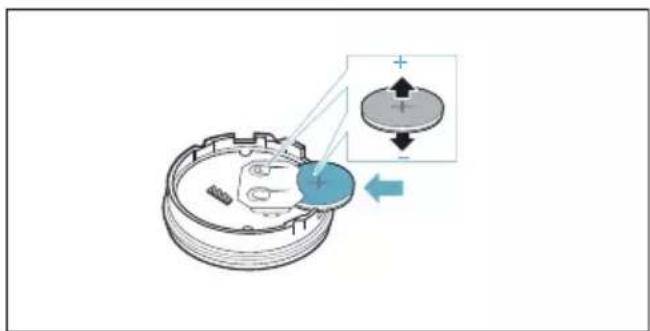

Use only high-quality batteries of the type CR2032 in order to guarantee a long service life.

Cleaning

Temperature sensor

Clean the temperature sensor with a damp cloth. Never clean it in the dishwasher. Do not immerse it in water or clean it under running water.

Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place (such as in its packaging) away from sources of heat.

Silicone patch

Clean and dry before attaching to the temperature sensor. Dishwasher safe.

Note:

Cookware with the silicone patch must not be left to soak for long periods in soapy water.

Temperature sensor window

The sensor window must always be clean and dry. Proceed as follows:

■ Remove dirt and oil splatters regularly.
■ Use a soft cloth or cotton buds and window cleaner for cleaning.

Notes

■ Do not use abrasive cleaning agents such as scouring pads, scrubbing brushes or cream cleaners.
- Do not touch the sensor window with your fingers. This may make it dirty or scratch it.

Declaration of Conformity

Robert Bosch Hausgeräte GmbH hereby declares that the appliance with wireless temperature sensor function meets the basic requirements and other relevant provisions of the Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at www.bosch-home.com/de on the product page for appliance in the additional documents.

The logos and the Bluetooth® brand are registered trademarks and property of Bluetooth SIG, Inc. These trademarks are used by Robert Bosch Hausgeräte GmbH under licence. All other trademarks and brand names are owned by the respective companies.
