Product Type	Portable Induction Cooktop
Brand	Brandt
Model	TI1SLIM
Dimensions (H x W x D)	42 x 280 x 360 mm
Net Weight	2.1 kg
Power Supply	220-240 V ~ 50/60 Hz
Maximum Power	2000 W
Number of Cooking Zones	1
Cooking Zone Diameter	19 cm
Control Type	Touch Panel
Cooking Functions	Simmering, Frying, Boiling, Boost, Keep Warm
Timer	Yes, adjustable from 1 to 180 minutes
Control Lock	Yes
Safety	Overheat protection, pan detection, automatic shut-off, child lock
Pan Compatibility	Magnetic stainless steel, diameter 12 to 26 cm
Care and Cleaning	Soft damp cloth, mild detergent; no steam cleaner
Spare Parts and Repairability	Contact Brandt after-sales service
General Information	Indoor domestic use; do not use outdoors

Frequently Asked Questions - TI1SLIM BRANDT

What types of cookware can I use on the Brandt TI1SLIM induction cooktop?

Use cookware with a magnetic base (stainless steel, cast iron). Check with a magnet: if it sticks, the cookware is compatible. The diameter must be between 12 and 26 cm. Avoid aluminum, copper, glass, or ceramic.

How do I start cooking after plugging in the appliance?

After plugging in, the screen displays 'L' (cold). Press the On/Off key (4), the screen displays '--'. Then use the + or - keys to select the power from 1 to 10 (max 2000 W).

What is the Boost function and how do I use it?

The Boost function (key 3) sets the cooktop to full power (level 10) without risk of overheating. Press the key; the indicator lights up. To deactivate, press + or -.

How do I use the timer on the induction cooktop?

Select a cooking mode, then press the Timer key (2). The screen displays '00:00'. Within 4 seconds, use + or - to set the time (1 to 180 minutes). One press = 1 min, hold = 10 min. At the end of the cycle, the appliance beeps and displays 'H'.

What should I do if the screen shows an error code like E1 or E2?

Error codes are: E1 (no pan detected or incompatible), E2 (overheating), E3/E4 (abnormal voltage), E5/E6 (short circuit). For E1-E4, inspect the cooktop and cookware. For E0, E2, E5, E6, contact after-sales service.

How do I clean the ceramic glass cooktop without damaging it?

Unplug the appliance and allow it to cool. For light dirt, use a soft damp cloth. For grease, add a little toothpaste or mild detergent. Never use an abrasive sponge, metal scraper, or steam cleaner.

The induction cooktop suddenly stops during cooking, why?

This may be due to internal overheating. Allow the appliance to cool, clear the air inlets, and reset the timer. Also check the error code displayed.

How do I lock the keys to prevent accidental operation?

Press the Lock key (1); the screen displays 'Lo'. Only the On/Off key remains active. To unlock, press the same key for 3 seconds.

Is the Brandt TI1SLIM induction cooktop compatible with stainless steel pots?

Yes, if the stainless steel is magnetic (stainless steel 430 or similar). Check with a magnet. Aluminum, copper, ceramic, or glass cookware will not work.

What is the energy consumption of this induction cooktop?

The energy consumption for the single zone is 186.6 Wh/kg of water (according to Eco Design standard). The maximum power is 2000 W. To save energy, use appropriate lids.

USER MANUAL TI1SLIM BRANDT

Black-and-white photo of a pasta topped with noodles and garnished with cheese, accompanied by decorative paper flutes (no text or symbols)

Thank you for buying a BRANDT product and for your confidence in our company.

This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years.

So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and answer all your questions or suggestions

You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information.

BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full.

Important: Before starting your machine, please read this guide for installation and use carefully in order to familiarise yourself with how it operates quickly.

CONTENTS

1) FOR THE USER'S ATTENTION.... 17

a) Safety Instructions.... 17
b) Technical Data....20
c) Environmental Protection....20

2) INTRODUCTION TO YOUR MACHINE 21

a) Description of Your Induction Cooker Control Panel.... 21
b) Before Using for the First Time 21
c) Compatible and Incompatible Pans 21
d) The Safety Pack.... 22

a) Description of the Control Panel.... 22
b) Starting the Machine....23
c) Using the Functions....23
d) Stopping the Machine....24

4) LOOKING AFTER YOUR MACHINE AND DEALING WITH FAULTS 25

a) Cleaning the Machine 25
b) Troubleshooting....26

1) FOR THE USER'S ATTENTION

Keep these instructions with your machine. If you sell this machine to another person second-hand, make sure you give the new owner these instructions. Please read these instructions before installing and using your machine. They are written for your safety and that of others.

a) Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS TO BE READ CAREFULLY AND KEPT FOR A SUBSEQUENT USER

General information

This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• After removing your product from its packaging check that the machine is in perfect condition and, in particular, that the plug or the power supply lead are not damaged. If there is any doubt contact your dealer's after-sales service.
• Children should be supervised to ensure that they do not play with the appliance.
  • Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children aged less than 8 years.
• This appliance incorporates an earth connection for functionalpurposes only.

Safety Instructions for Installing the Machine

Install or place this cooker as the installation instructions recommend.

See the 'INTRODUCTION TO YOUR MACHINE' section.

• This machine must not be placed on furniture.
• Do not obstruct your machine's air inlets.
• If this machine is covered or in contact with a flammable material including curtains, drapes and similar items, there is a fire risk when it is working.
• Keep the power cable away from the hot surface.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Safety Instructions for Using the Machine

The machine and its accessible parts may become hot during use. Young children should be kept away.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• The accessible parts of this machine may become hot when it is operating.
• Make sure that the pans used are compatible with use on an induction hob.
• Precautions must be taken when handling saucepans to avoid burns.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they can get hot.

• After use the cooking area is hot. To avoid burning yourself touching the cooking area is not recommended.
- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Safety Instructions for Cleaning the Machine

Turn off the plate and unplug the power cable before cleaning.

Lack of maintenance for the hob may lead to deterioration of the surface and thus damage to the machine.

• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• This machine must be cleaned regularly and all food residues removed.
• Do not use an abrasive sponge or metal scraper to clean the ceramic plate because they might scratch the surface, which could then cause the glass to crack.
• For your safety a steam cleaner must not be used.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This product is guaranteed by your distributor. For more details please refer to the guarantee conditions provided by the distributor.

Non-compliant use

The manufacturer denies all responsibility in the event of non-compliant use. This machine is exclusively intended for the use described in the manual. Take into account the general and safety recommendations listed in this chapter.

• This induction hob is not intended for outdoor use.
• This induction cooker is only intended for domestic use in private dwellings. The use of this product in communal or

professional premises such as rooms for breaks, workshops, camping or hotel premises, etc. does not represent compliant use as defined by the manufacturer.

b) Technical Data

Model	TI1SLIM2
Voltage/Frequency	220-240V— 50/60Hz
Power	2000W
Net weight	2.1 Kg
Dimensions mm (HxWxD)	42 x 280 x 360mm

Eco Design Information/Product Data Sheet

	Symbol	Value	Unit
Brand	Brandt
Model	TI1SLIM2
Type of plate	Portable
Heating technology	Induction
Number of heating zones		1	-
Diameter of the useful heating surface (single zone)		19.0	cm
Energy consumption per heating zone (single zone)	EC_zone	186.6	Wh/kg water
Energy consumption of the hob	EC_hob	186.6	Wh/kg water

c) Environmental Protection

At the end of its life this product must not be discarded with household waste. It must be taken to a recycling centre or to your dealer. This makes it possible to avoid consequences resulting from inappropriate disposal that are harmful to health and the environment, and to recycle materials to save energy and significant resources.

A logo appears on the product reminding you not to discard it with household waste. For further information, contact your council offices or the shop where you bought this product.

Energy saving advice

Cook with a well-fitting lid to save energy. If you use a glass lid you can control cooking perfectly.

If it is necessary to take precautions during installation of the appliance, appropriate details are given.

For appliances marked with different rated voltages or different rated frequencies (separated by a /), instructions are included to indicate to the user or installer what action must be taken to adjust the appliance for operation at the required rated voltage or rated frequency.

2) INTRODUCTION TO YOUR MACHINE

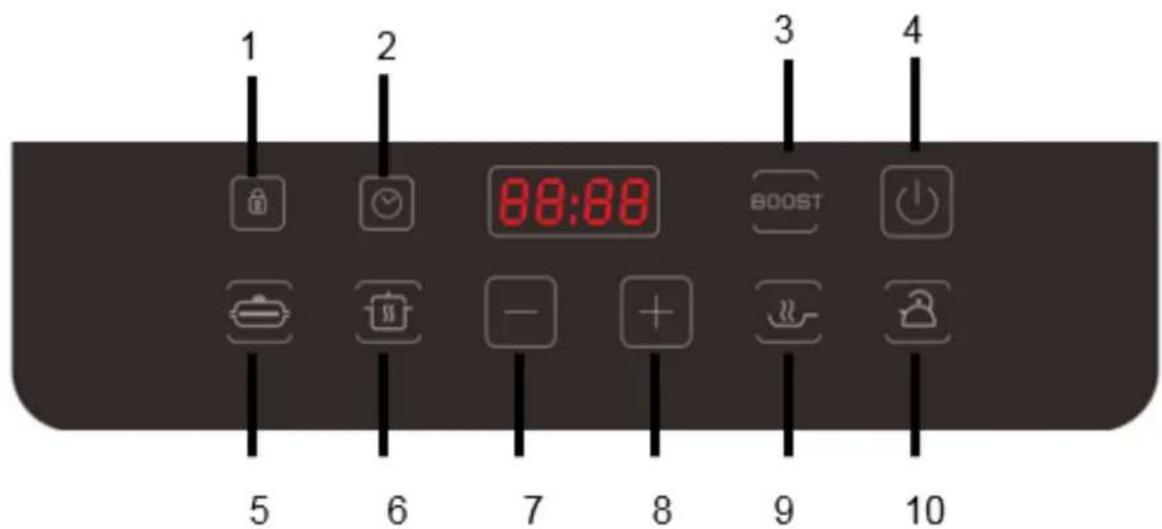

a) Description of Your Induction Cooker Control Panel

Control Panel

1. Locking
2. Timer
3. Boost Function
4. Start/Stop

5. "Keep Warm" (Maintien au chaud) Function

6. Simmering Function

7. Increase the power/time
8. Reduce the power/time
9. Frying Function
10. Boiling Function

b) Before Using for the First Time

• Unpack the machine and remove all the paper and plastic. Make sure no pieces of packaging remain on the parts of the machine.
• Before using the induction cooker for the first time, it is wise to ensure that it is at least 10 centimetres from all walls, partitions or flammable materials (curtains, drapes, etc.).
• Then plug the cooker into a 10 ampere (minimum) earthed socket. If the use of an extension lead proves to be indispensable make sure that it is in good condition and compliant. Your machine must rest on a clean, horizontal, flat, stable surface that is heat-resistant, Do not move the machine when it is operating.
• When using the machine you may hear a slight noise which is due to a very slight vibration of the pan at high frequency. This is normal and is not a source of danger.

c) Compatible and Incompatible Pans

Compatible pans must be used. In order to determine whether your pans are compatible or not you just need to use a magnet. If the magnet sticks to the bottom of the pan this means that your pan is compatible with induction cookers.

You can also refer to the diagram below showing compatible pans:

Metal frying pan

Stainless steel pan

Metal pan

Metal kettle

Enamel and stainless steel kettle

Silhouette of a cooking pot with a lid and handle (no text or symbols)

Enamel saucepan

Cooking tray

The compatibility of these pans refers to tests performed on pans containing stainless steel 430 with a base of 180 +/- 10 mm. Other cooking utensils do not guarantee results of equivalent quality.

Pans in aluminium, copper, ceramic, glass or aluminium alloy must not be used with this machine, as well as those with a diameter of less than 12 cm or more than 26 cm.

This machine can in fact take saucepans with a diameter of between 12 and 26 cm.

d) The Safety Pack

The machine has a complete safety pack:

• Warning about the plate temperature: if the screen shows "L" the plate is cold and if it shows "H" it is hot.
• Anti-overheating system. If the temperature inside the machine is too high, it will stop heating.
• Protection against over-current or voltage anomalies. When the voltage is abnormal or when the current is cut abruptly the induction cooker will stop to avoid any damage. Once the problems have been dealt with the induction cooker will function normally again.
• The pan detection system. If a pan is removed whilst the machine is in operation the machine will stop heating. After that it will go on standby.
• Automatic switch-off. When the timer reaches the end of the time set the machine will stop automatically until the user turns on the timer again. Similarly the machine will turn off automatically if a dish being cooked has been forgotten for a long time.
• Locking the controls (1). This key makes it possible to lock all the controls to simplify cleaning and also to protect children from any risk.

a) Description of the Control Panel

- The control keys are touch-sensitive. There is no need to apply pressure.

- Use the base of your finger and not the tip as shown in the pictures below.

- Push the +/- keys with your finger to increase or decrease the power.

• You will hear a beep each time an action is recorded.

- The control panel must always be clean, dry and not covered by an object or a fabric. Even a fine film of water may create malfunctions.

b) Starting the Machine

After turning the machine on, the alarm sounds and the screen displays "L" (cold). Then press the Start/Stop key (4), The screen displays "--" meaning that the machine is on standby and ready to be programmed. You can now use your induction plate.

Now, you only have to press the + or - keys on your machine to select the desired power level.

Never place an empty pan on the machine when it is in operation.

Note:

After use, when the machine is switched off, the screen displays "L" or "H" and there will be a ventilation noise for 60 seconds; once the time has elapsed, the noise will stop.

If you remove something from the machine during heating, the screen will display "E1" for 30 seconds before going into standby mode and displaying "L".

In "standby" mode, if no button is touched for a duration of 60 seconds, the machine will switch itself off automatically.

In "usage" mode, if no utensil is set on the plate for a duration of 30 seconds, the machine will switch itself off automatically.

c) Using the Functions

- Simmering Function

To use this function press the Simmering key (6). An indicator light comes on above the key. The heating power is adjusted to 2 by default. Pressing the +/- keys deactivates the mode.

- Frying Function

To use this function press the Frying key (9). An indicator light comes on above the key. The heating power is adjusted to 6 by default. Pressing the +/- keys deactivates the mode.

- Boiling Function

This function enables you to boil water. To use this function press the Boiling key (10). An indicator light comes on above the key. The heating power is adjusted to 10 by default. After about 7 minutes it turns itself down to 8 automatically. For this mode the heating time is set to 15 minutes. Pressing the +/- keys deactivates the mode.

Note: To avoid any risk of boiling over do not fill your pan to more than three quarters full.

- Boost Function

The Boost key (3) makes it possible to put the machine on full power for 10 minutes and then maintain a maximum power level without the machine or the cooking utensil overheating. An indicator light comes on above the key. Pressing the +/- keys deactivates the mode.

To keep your preparation at service temperature press the Maintien au chaud (Keep Warm) key (5). An indicator light comes on above the key. The machine will automatically adjust itself to the minimum power 1 and will stop after 60 minutes. To adjust the power again press the +/- keys.

- Timer

In order to use the timer just select a cooking mode and then press the Timer key (2). An indicator light comes on above the key. The digital screen will then show "00:00". Within 4 seconds press the +/- keys to adjust the cooking time. Each press increases or decreases the time by 1 minute. If you hold down the key the time will increase or decrease by 10 minute increments. The timer can be adjusted from 1 minute to 180 minutes. Once the time has elapsed the digital screen will display "H" and a beep will be heard.

To change the time during use press the Timer key (2) again and then press the +/- keys. To stop the timer press the Timer key (2) for several seconds. The timer light will go out.

- Locking function

To lock all the control keys during cooking press the locking key (1). The "Lo" indicator will appear on the screen.

In this situation only the Start/stop key (4) can be used to turn off the machine. To unlock the controls press the locking key for 3 seconds.

d) Stopping the Machine

After use the electric plate will be hot, the audible alarm sounds and the "H" indicator flashes on the screen. To turn of the machine press the Start/Stop key (4) and then unplug it.

For information, you can refer to the following table to find the heating level relating to each number on your control panel.

Level	1	2	3	4	5	6	7	8	9	10
Wattage (W)	120	300	500	800	1000	1200	1400	1600	1800	2000

4) LOOKING AFTER YOUR MACHINE AND DEALING WITH FAULTS

a) Cleaning the Machine

Ensure the machine is off and unplugged before cleaning.

Carry out cleaning when the plate has cooled down.

About the vitroceramic plate and the control panel

• Lightly soiled: clean with a soft, damp cloth
- Soiled with fat: clean with a soft, damp cloth with a little toothpaste or neutral detergent until the residues are removed.
- Do not use an abrasive, flammable, acid or alkaline cleaning liquid

Note: When cleaning never clean with surface of the hob with a stiff brush.

About the air inlet and the air vent

After a long period of use dust and other dirt may accumulate in the air inlet or the air vent. The body of the induction cooker should be cleaned carefully with a clean, dry cloth. The dust around the air inlet and the air vent must be cleaned with a supple brush or a cleaner.

Note: Do not immerse the induction cooker in water and do not clean it with a steam cleaner.

b) Troubleshooting

Below you will find the inspections recommended for the defects encountered most often:

Do not dismantle the machine yourself to avoid any danger or deterioration of the induction cooker.

Problems		Points to be checked
After plugging the machine in the indicator for the Start/Stop key does not light up and there is no display on the screen.		Check the machine is correctly connected to the electric socket.Check that the switch, the plug and the fuse are in good condition.
The Start/Stop key indicator light comes on but heating does not start.		Make sure that the pans are compliant with use on induction hobs.Make sure that the pans are correctly placed on the induction hob.Call an engineer.
The machine stops heating abruptly when it is operating.		Let the machine cool.Clear the air inlet and outlet.Adjust the timer again.Refer to the fault codes below.
Display of error codes	E0	The machine circuits are defective
	E1	The induction cooker has not detected a pan or the pans on the induction cooker are not compatible
	E2	The induction cooker has overheated
	E3	The voltage is too high
	E4	The voltage is too low
	E5, E6	Short-circuit
	E1-E4	Inspect the product to resolve the problem before any other approach
	E0-E2-E5-E6	Contact Customer Service

Silhouette of a cooking pot with a lid and handle (no text or symbols)

Cacerola de esmalte

Placa de cocción

Silhouette of a cooking pot with a lid and handle (no text or symbols)

Kookpan in email

Bakplaat
