Product Type	Laptop
Brand	Dell
Model	Latitude X300
Display Size	12.1 inches
Processor	Intel Pentium M (up to 1.7 GHz)
RAM	256 MB to 1 GB DDR
Storage	30-60 GB HDD
Operating System	Windows XP Professional
Weight	Approximately 1.3 kg (2.9 lbs)
Dimensions (W x D x H)	11.1 x 7.9 x 0.8 inches (282 x 201 x 20 mm)
Battery	6-cell or 11-cell lithium-ion
Power Supply	65W AC adapter
Connectivity	WiFi 802.11b/g, Ethernet, Modem, USB 2.0, VGA
Keyboard	Backlit QWERTY keyboard (optional)
Pointing Device	TrackPoint (stick) and Touchpad
Maintenance	Clean with a soft, dry cloth; avoid liquids
Safety	Kensington lock slot, TPM module (optional)
Repairability	User-accessible RAM and HDD; battery replaceable
Spare Parts	Battery, AC adapter, keyboard, hard drive, RAM modules available

Frequently Asked Questions - Latitude X300 DELL

How do I perform a factory reset on the Dell Latitude X300?

To factory reset, restart the laptop and press F8 repeatedly at boot. Select 'Repair Your Computer' or 'Safe Mode with Command Prompt'. Use the recovery partition if available, or insert the Windows XP installation disc and follow on-screen instructions. Ensure you back up data first.

What is the maximum RAM supported by the Latitude X300?

The Dell Latitude X300 supports up to 1 GB of DDR RAM (two 512 MB modules). It uses PC2700 (333 MHz) SODIMMs.

Can I upgrade the hard drive on the Latitude X300?

Yes, the hard drive is user-replaceable. It uses a standard 2.5-inch PATA (IDE) drive with a maximum height of 9.5 mm. Replace it by removing the battery and the hard drive cover on the bottom.

How do I replace the battery on my Latitude X300?

Slide the battery release latch on the bottom of the laptop to the unlock position, then slide and lift the battery out. Insert a new battery and press it down until it clicks into place.

Why is my Latitude X300 overheating?

Overheating can be caused by dust in the fan or vents. Clean the vents with compressed air. Ensure the laptop is on a hard, flat surface. If the fan is loud or not spinning, it may need replacement.

How do I connect to WiFi on the Latitude X300?

Enable the wireless switch on the side of the laptop. Click Start > Control Panel > Network Connections, right-click 'Wireless Network Connection', and select 'View Available Networks'. Choose your network and enter the password.

What type of AC adapter does the Latitude X300 use?

It uses a 65W AC adapter with a standard Dell connector. The part number is often PA-6 or similar. Ensure the voltage matches your region (100-240V).

How do I create a recovery disc for the Latitude X300?

If Dell MediaDirect is installed, press the MediaDirect button and follow the prompts. Otherwise, use a third-party software to create a system image, or contact Dell for recovery CDs if they were included.

Can I use a USB keyboard or mouse with the Latitude X300?

Yes, the laptop has two USB 2.0 ports that support standard USB mice and keyboards. Plug them in and Windows XP will automatically install drivers.

How do I clean the screen of the Latitude X300?

Turn off the laptop and unplug it. Use a soft, lint-free cloth slightly dampened with water or a 50/50 water-vinegar mix. Gently wipe the screen in circular motions. Do not spray liquid directly on the screen.

USER MANUAL Latitude X300 DELL

System Information Guide

Příručka k zařízení

Systeminformation

Järjestelmätiedot

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see the User's Guide (depending on your operating system, double-click the User's Guide icon on your desktop or click the Start button, click Help and Support Center, and click User and system guides).

If you purchased a Dell ^™ n-Series computer, any references in this document to Microsoft ^® Windows ^® operating systems are not applicable.

Information in this document is subject to change without notice.

© 2002-2003 Dell Computer Corporation. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Latitude, and TrueMobile are trademarks of Dell Computer Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other than its own.

Model PP04S

June 2003 P/N J1962 Rev. A00

Contents

CAUTION: Safety Instructions 5

General 5

Power 6

Battery 7

Air Travel 8

EMC Instructions 8

When Using Your Computer 9

Ergonomic Computing Habits 10

When Working Inside Your Computer 10

Protecting Against Electrostatic Discharge ..... 11

Battery Disposal 11

Finding Information for Your Computer 12

Setting Up Your Computer 15

Front View 17

Left Side View 18

Right Side View 18

Back View 19

Bottom View 19

Removing a Battery 20

Installing a Battery 21

Installing the Optional Extended Battery ..... 21

Dell Diagnostics 21

When to Use the Dell Diagnostics 21

Starting the Dell Diagnostics ..... 22

Regulatory Notices 25

CAUTION: Safety Instructions

Use the following safety guidelines to help ensure your own personal safety and to help protect your computer and working environment from potential damage.

General

• Do not attempt to service the computer yourself unless you are a trained service technician. Always follow installation instructions closely.
• If you use an extension power cable with your AC adapter, ensure that the total ampere rating of the products plugged in to the extension power cable does not exceed the ampere rating of the extension cable.

- Do not push objects into air vents or openings of your computer. Doing so can cause fire or electric shock by shorting out interior components.

- Do not store your computer in a low-airflow environment, such as a carrying case or a closed briefcase, while the computer is turned on. Restricting airflow can damage the computer or cause a fire.

- Keep your computer away from radiators and heat sources. Also, do not block cooling vents. Avoid placing loose papers underneath your computer; do not place your computer in a closed-in wall unit or on a bed, sofa, or rug.

- Place the AC adapter in a ventilated area, such as a desk top or on the floor, when you use it to run the computer or to charge the battery. Do not cover the AC adapter with papers or other items that will reduce cooling; also, do not use the AC adapter inside a carrying case.

- The AC adapter may become hot during normal operation of your computer. Use care when handling the adapter during or immediately after operation.

- Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC power is present). Allowing sustained contact with exposed skin can cause discomfort or, eventually, a burn.

- Do not use your computer in a wet environment, for example, near a bath tub, sink, or swimming pool or in a wet basement.

- If your computer includes an integrated or optional (PC Card) modem, disconnect the modem cable if an electrical storm is approaching to avoid the remote risk of electric shock from lightning via the telephone line.

CAUTION: Safety Instructions (continued)

• To help avoid the potential hazard of electric shock, do not connect or disconnect any cables or perform maintenance or reconfiguration of this product during an electrical storm. Do not use your computer during an electrical storm unless all cables have been disconnected and the computer is operating on battery power.
• If your computer includes a modem, the cable used with the modem should be manufactured with a minimum wire size of 26 American wire gauge (AWG) and an FCC-compliant RJ-11 modular plug.
• Before you open the memory module/Mini PCI card/modem cover on the bottom of your computer, disconnect all cables from their electrical outlets and disconnect the telephone cable.
• If your computer has both a modem RJ-11 connector and a network RJ-45 connector, which look alike, make sure you insert the telephone cable into the RJ-11 connector, not the RJ-45 connector.
• PC Cards may become very warm during normal operation. Use care when removing PC Cards after their continuous operation.
• Before you clean your computer, disconnect the computer from the electrical outlet. Clean your computer with a soft cloth dampened with water. Do not use liquid or aerosol cleaners, which may contain flammable substances.

Power

- Use only the Dell-provided AC adapter approved for use with this computer. Use of another AC adapter may cause a fire or explosion.

- Before you connect the computer to an electrical outlet, check the AC adapter voltage rating to ensure that the required voltage and frequency match the available power source.

- To remove the computer from all power sources, turn the computer off, disconnect the AC adapter from the electrical outlet, and remove any battery installed in the battery bay or module bay.

- To help prevent electric shock, plug the AC adapter and device power cables into properly grounded power sources. These power cables may be equipped with 3-prong plugs to provide an earth grounding connection. Do not use adapter plugs or remove the grounding prong from the power cable plug. If you use a power extension cable, use the appropriate type, 2-prong or 3-prong, to mate with the AC adapter power cable.

CAUTION: Safety Instructions (continued)

• Be sure that nothing rests on your AC adapter's power cable and that the cable is not located where it can be tripped over or stepped on.
• If you are using a multiple-outlet power strip, use caution when plugging the AC adapter's power cable into the power strip. Some power strips may allow you to insert the plug incorrectly. Incorrect insertion of the power plug could result in permanent damage to your computer, as well as risk of electric shock and/or fire. Ensure that the ground prong of the power plug is inserted into the mating ground contact of the power strip.

Battery

• Use only Dell™ battery modules that are approved for use with this computer. Use of other types may increase the risk of fire or explosion.
• Do not carry a battery pack in your pocket, purse, or other container where metal objects (such as car keys or paper clips) could short-circuit the battery terminals. The resulting excessive current flow can cause extremely high temperatures and may result in damage to the battery pack or cause fire or burns.
• The battery poses a burn hazard if you handle it improperly. Do not disassemble it. Handle a damaged or leaking battery pack with extreme care. If the battery is damaged, electrolyte may leak from the cells and may cause personal injury.
• Keep the battery away from children.
• Do not store or leave your computer or battery pack near a heat source such as a radiator, fireplace, stove, electric heater, or other heat-generating appliance or otherwise expose it to temperatures in excess of 60^ C ( 140^ F). When heated to excessive temperatures, battery cells could explode or vent, posing a risk of fire.
• Do not dispose of your computer's battery in a fire or with normal household waste. Battery cells may explode. Discard a used battery according to the manufacturer's instructions or contact your local waste disposal agency for disposal instructions. Dispose of a spent or damaged battery promptly.

CAUTION: Safety Instructions (continued)

Air Travel

- Certain Federal Aviation Administration regulations and/or airline-specific restrictions may apply to the operation of your Dell computer while you are on board an aircraft. For example, such regulations/restrictions may prohibit the use of any personal electronic device (PED) that has the capacity for intentional transmission of radio frequency or other electromagnetic signals while on an aircraft.

• In order to best comply with all such restrictions, if your Dell portable computer is equipped with Dell TrueMobile™ or some other wireless communication device, please disable this device before you board the aircraft and follow all instructions provided by airline personnel with regard to such device.
• Additionally, the use of any PED, such as a portable computer, may be prohibited in aircraft during certain critical phases of flight, for example, takeoff and landing. Some airlines may further define the critical flight phase as any time the aircraft is below 3050m (10,000 ft). Please follow the airline's specific instructions as to when the use of a PED is allowed.

EMC Instructions

Use shielded signal cables to ensure that you maintain the appropriate electromagnetic compatibility (EMC) classification for the intended environment. For parallel printers, a cable is available from Dell. If you prefer, you can order a cable from Dell at its worldwide website at www.dell.com.

Static electricity can harm electronic components inside your computer. To prevent static damage, discharge static electricity from your body before you touch any of your computer's electronic components, such as a memory module. You can do so by touching an unpainted metal surface on the computer's input/output panel.

When Using Your Computer

Observe the following safe-handling guidelines to prevent damage to your computer:

- When setting up the computer for work, place it on a level surface.

- When traveling, do not check the computer as baggage. You can put your computer through an X-ray security machine, but never put your computer through a metal detector. If you have the computer checked by hand, be sure to have a charged battery available in case you are asked to turn on the computer.

- When traveling with the hard drive removed from the computer, wrap the drive in a nonconducting material, such as cloth or paper. If you have the drive checked by hand, be ready to install the drive in the computer. You can put the hard drive through an X-ray security machine, but never put the drive through a metal detector.

- When traveling, do not place the computer in overhead storage compartments where it could slide around. Do not drop your computer or subject it to other mechanical shocks.

- Protect your computer, battery, and hard drive from environmental hazards such as dirt, dust, food, liquids, temperature extremes, and overexposure to sunlight.

- When you move your computer between environments with very different temperature and/or humidity ranges, condensation may form on or within the computer. To avoid damaging the computer, allow sufficient time for the moisture to evaporate before using the computer.

NOTICE: When taking the computer from low-temperature conditions into a warmer environment or from high-temperature conditions into a cooler environment, allow the computer to acclimate to room temperature before turning on power.

- When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. As you pull out the connector, keep it evenly aligned to avoid bending any connector pins. Also, before you connect a cable make sure both connectors are correctly oriented and aligned.

- Handle components with care. Hold a component such as a memory module by its edges, not its pins.

- When preparing to remove a memory module from the system board or disconnect a device from the computer, turn off the computer, disconnect the AC adapter cable, remove any battery installed in the battery bay or module bay, and then wait 5 seconds before proceeding to help avoid possible damage to the system board.

When Using Your Computer (continued)

• Clean the display with a soft, clean cloth and water. Apply the water to the cloth; then stroke the cloth across the display in one direction, moving from the top of the display to the bottom. Remove moisture from the display quickly and keep the display dry. Long-term exposure to moisture can damage the display. Do not use a commercial window cleaner to clean your display.
• If your computer gets wet or is damaged, follow the procedures described in “If Your Computer Gets Wet” or “If You Drop or Damage Your Computer” in your User’s Guide. If, after following these procedures, you confirm that your computer is not operating properly, contact Dell (see the User’s Guide for the appropriate contact information).

Ergonomic Computing Habits

CAUTION: Improper or prolonged keyboard use may result in injury.

CAUTION: Viewing the display or external monitor screen for extended periods of time may result in eye strain.

For comfort and efficiency, observe the ergonomic guidelines in your User's Guide when setting up and using your computer. This portable computer is not designed for continuous operation as office equipment. For extended use in an office, it is recommended that you connect an external keyboard.

When Working Inside Your Computer

Before removing or installing memory modules, Mini PCI cards, or modems, perform the following steps in the sequence indicated.

NOTICE: The only time you should ever access the inside of your computer is when you are installing memory modules, a Mini PCI card, or a modem.

NOTICE: Wait 5 seconds after turning off the computer before disconnecting a device or removing a memory module, Mini PCI card, or modem to help prevent possible damage to the system board.

1 Shut down your computer and turn off any attached devices.
2 Disconnect your computer and devices from electrical outlets to reduce the potential for personal injury or shock. Also, disconnect any telephone or telecommunication lines from the computer.
3 Remove the main battery from the battery bay and, if necessary, the second battery from the module bay.

When Using Your Computer (continued)

4 Ground yourself by touching any unpainted metal surface on the back of the computer. While you work, periodically touch the unpainted metal surface to dissipate any static electricity that might harm internal components.

Protecting Against Electrostatic Discharge

Static electricity can harm electronic components inside your computer. To prevent static damage, discharge static electricity from your body before you touch any of your computer's electronic components, such as a memory module. You can do so by touching any unpainted metal surface on the back of the computer.

As you continue to work inside the computer, periodically touch any unpainted metal surface on the back of the computer to remove any static charge your body may have accumulated.

You can also take the following steps to prevent damage from electrostatic discharge (ESD):

• When unpacking a static-sensitive component from its shipping carton, do not remove the component from the antistatic packing material until you are ready to install the component. Just before unwrapping the antistatic packaging, be sure to discharge static electricity from your body.
• When transporting a sensitive component, first place it in an antistatic container or packaging.
• Handle all sensitive components in a static-safe area. If possible, use antistatic floor pads and workbench pads.

Battery Disposal

Your computer uses an lithium-ion battery and a reserve battery. For instructions about replacing the lithium-ion battery in your computer, refer to the section about replacing the battery in your Dell computer documentation. The reserve battery is a long-life battery, and it is very possible that you will never need to replace it. However, should you need to replace it, the procedure must be performed by an authorized service technician.

Do not dispose of the battery along with household waste. Contact your local waste disposal agency for the address of the nearest battery deposit site.

Finding Information for Your Computer

What are you looking for? Find It Here

• A diagnostic program for my computer Documentation and drivers are already installed on your computer.
• Drivers for my computer
• My computer documentation You can use the CD to reinstall drivers, run the Dell Diagnostics, or access your documentation.
  • My device documentation Readme files may be included on your CD to provide last-minute updates about technical changes to your computer or advanced technical-reference material for technicians or experienced users.

• How to set up my computer
- Warranty information
- Safety instructions

Dell™ System Information Guide

NOTE: This document is available as a PDF at support.dell.com.

• How to remove and replace parts
- Technical specifications
• How to configure system settings
• How to troubleshoot and solve problems

User's Guide

Windows XP Help and Support Center

1 Click the Start button and click Help and Support.
2 Click User's and system guides and click User's guides.

Microsoft Windows 2000

Double-click the User's Guides icon on your desktop.

What are you looking for? Find It Here (continued)

Service Tag and Express Service CodeMicrosoft Windows License Label	Service Tag and Microsoft Windows LicenseThese labels are located on your computer.Use the Service Tag to identify your computer when you use support.dell.com or contact technical support.Enter the Express Service Code to direct your call when contacting technical support. The Express Service Code is not available in all countries.Use the number on the Microsoft Windows License Label if you reinstall your operating system.
Latest drivers for my computerAnswers to technical service and support questionsOnline discussions with other users and technical supportDocumentation for my computer	Dell Support Website — support.dell.comThe Dell Support website provides several online tools, including:Solutions — Troubleshooting hints and tips, articles from technicians, and online coursesCommunity — Online discussion with other Dell customersUpgrades — Upgrade information for components, such as memory, the hard drive, and the operating systemCustomer Care — Contact information, order status, warranty, and repair informationDownloads — Drivers, patches, and software updatesReference — Computer documentation, product specifications, and white papers
Service call status and support historyTop technical issues for my computerFrequently asked questionsFile downloadsDetails on my computer configurationService contract for my computer	Dell Premier Support Website — premiersupport.dell.comThe Dell Premier Support website is customized for corporate, government, and education customers. This website may not be available in all regions.
How to use Windows XPDocumentation for my computerDocumentation for devices (such as a modem)	Windows Help and Support Center1 Click the Start button and click Help and Support.2Type a word or phrase that describes your problem and click the arrow icon.Click the topic that describes your problem.Follow the instructions on the screen.

What are you looking for? Find It Here (continued)

- How to reinstall my operating system Operating System CD

The operating system is already installed on your computer. To resintall your operating system, use the Operating System CD. See your User's Guide for operating system reinstallation instructions.

After you reinstall your operating system, use the Drivers and Utilities CD to reinstall drivers for the devices that came with your computer.

Your operating system product key label is located on your computer.

Setting Up Your Computer

CAUTION: Before you begin any of the procedures listed in this section, follow the safety instructions at the beginning of this document.

1 Unpack the accessories box.

2 Set aside the contents of the accessories box, which you will need to complete the setup of your computer.

The accessories box also contains user documentation and any software or additional hardware (such as PC Cards, drives, or batteries) you have ordered.

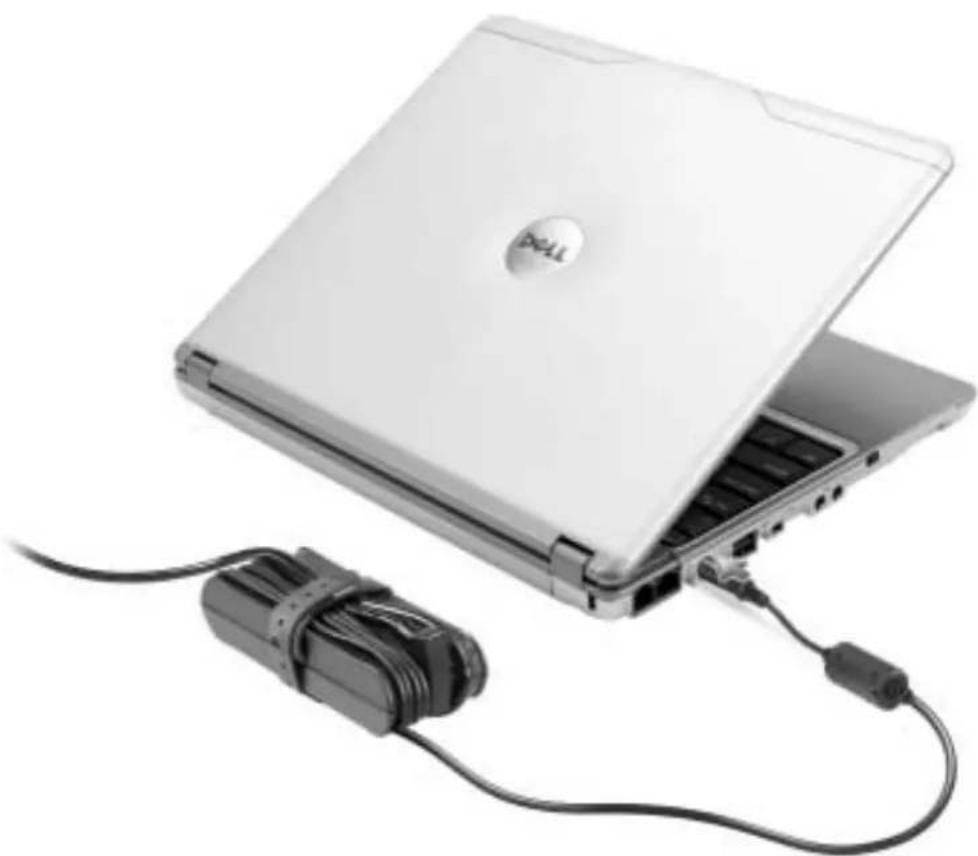

3 Connect the AC adapter to the AC adapter connector and to the electrical outlet.

Laptop with attached charging cable and a CD-ROM logo, shown against white background (no text or symbols on device)

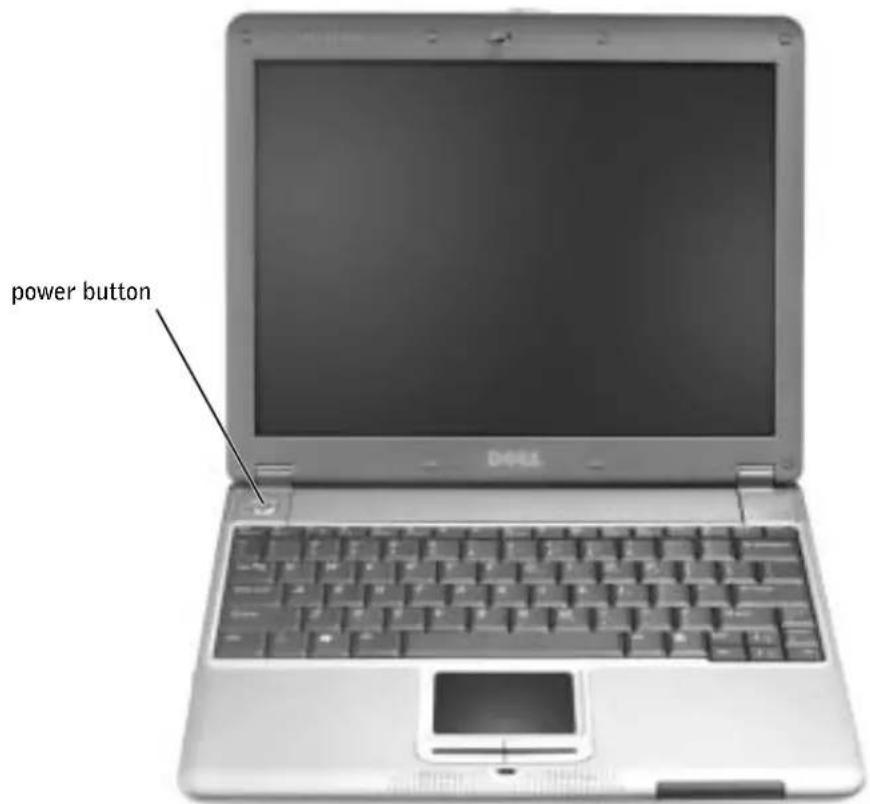

4 Open the computer display and press the power button to turn on the computer.

NOTE: Do not connect the computer to the X300 Media Base until the computer has been turned on and shut down at least once.

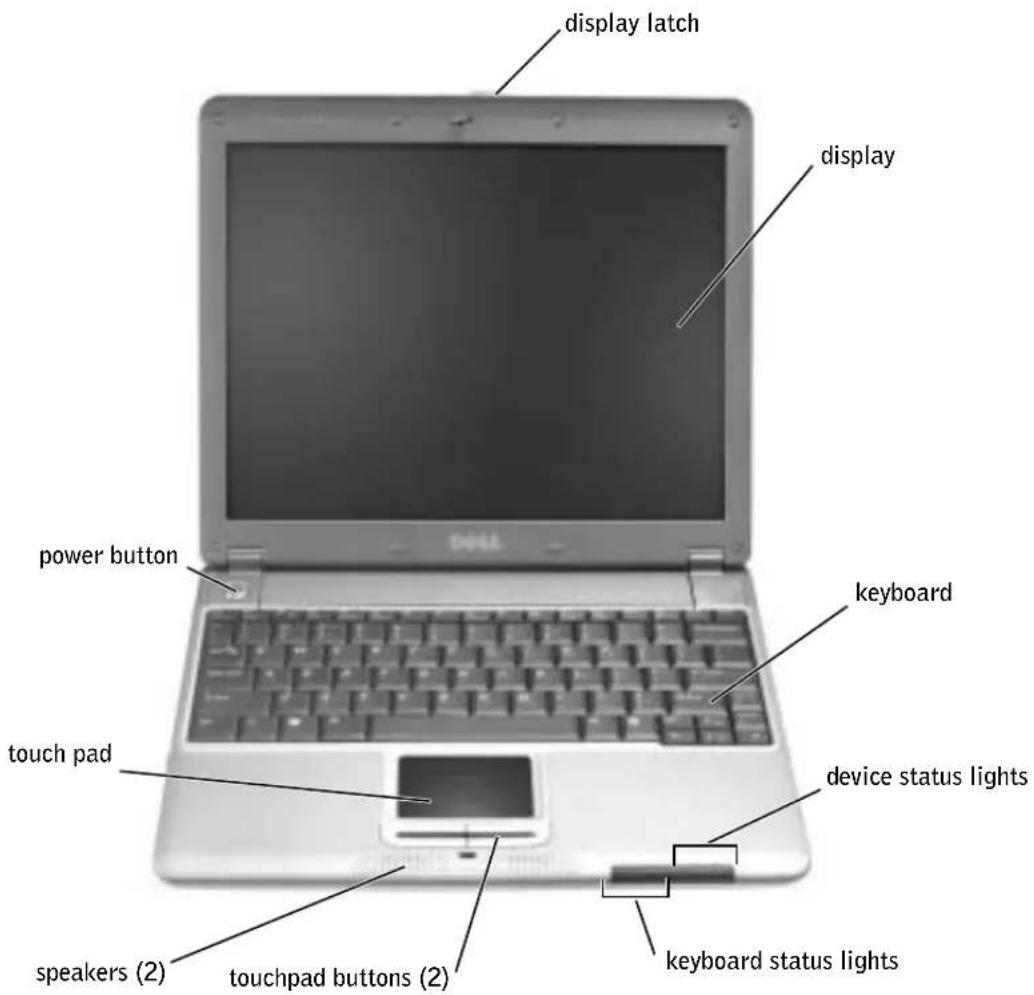

Front View

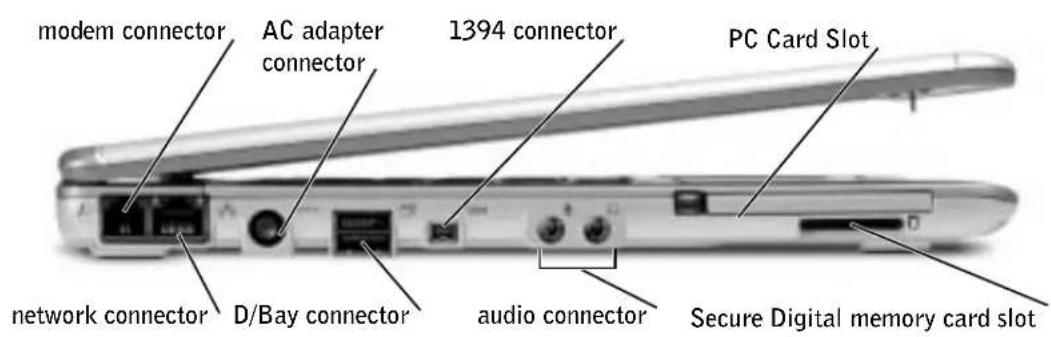

Left Side View

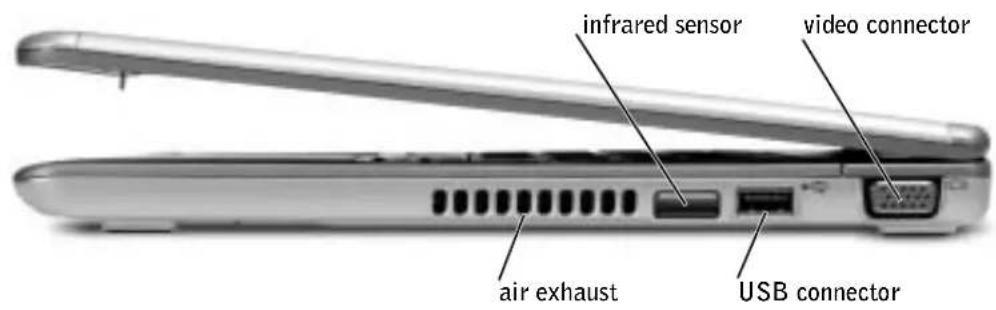

Right Side View

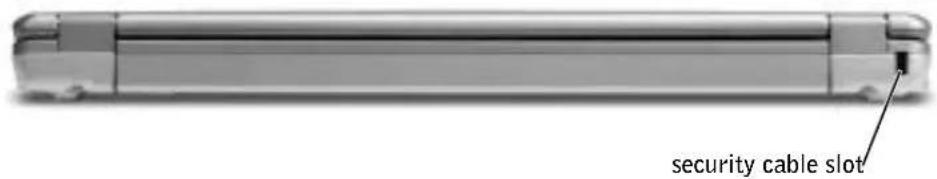

Back View

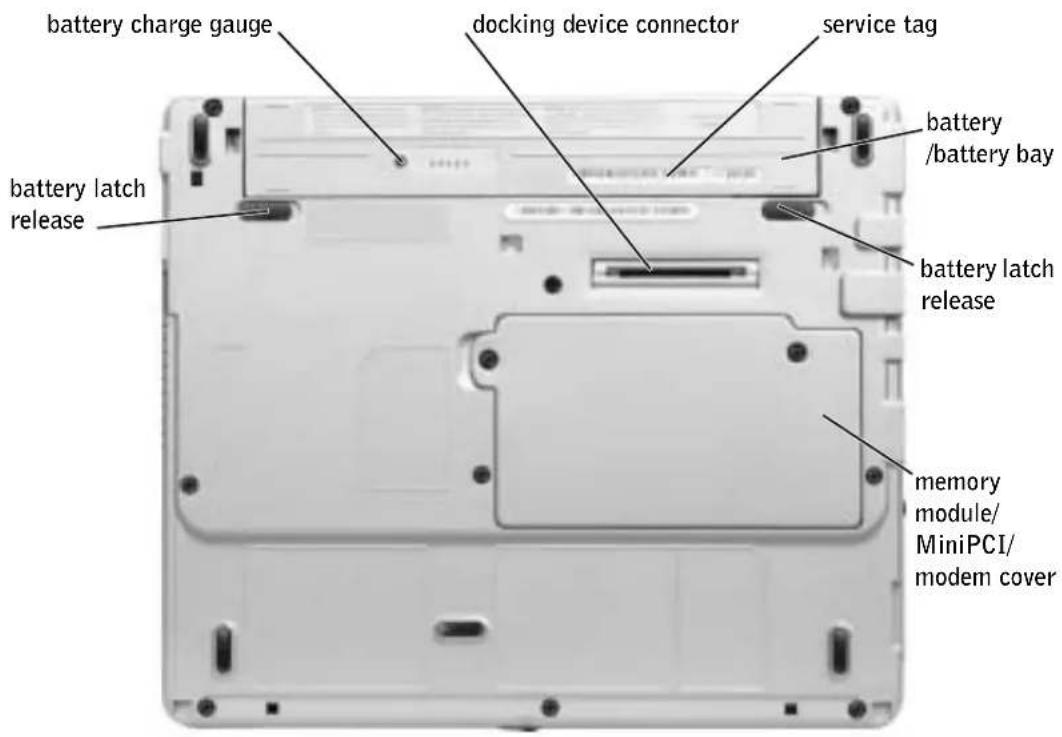

Bottom View

Removing a Battery

CAUTION: Before performing these procedures, disconnect the modem from the telephone jack.

NOTICE: If you choose to replace the battery with the computer in standby mode, you have up to 1 minute to complete the battery replacement. The computer will shut down shortly after this.

1 Ensure that the computer is turned off, suspended in a power management mode, or connected to an electrical outlet.
2 If the computer is connected to a media base (docked), undock it. See the documentation that came with your media base for instructions.

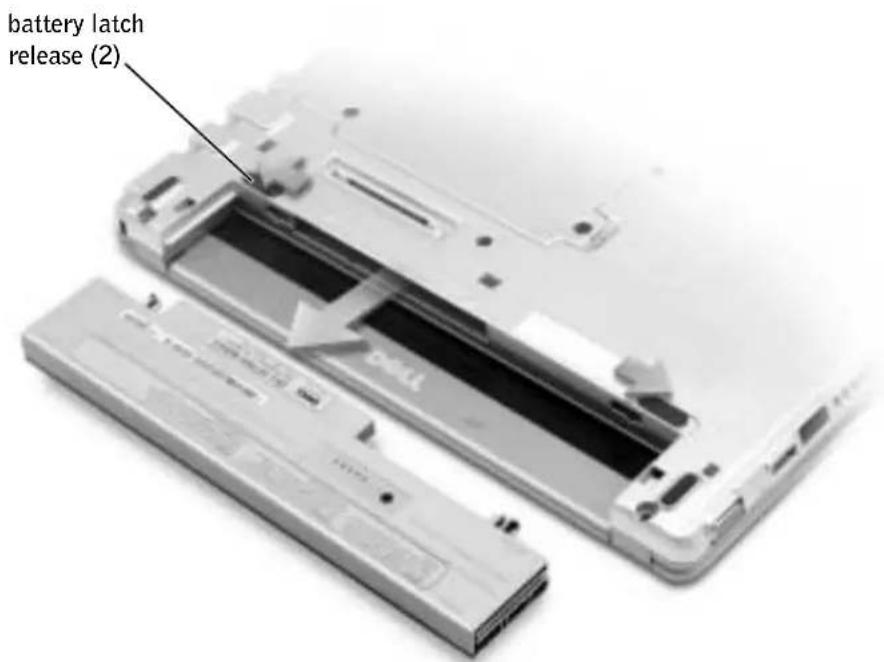

3 Slide the battery latch releases on the bottom of the computer to the unlock position and remove the battery from the bay.

Installing a Battery

1 Slide the battery into the bay until the latch release clicks.

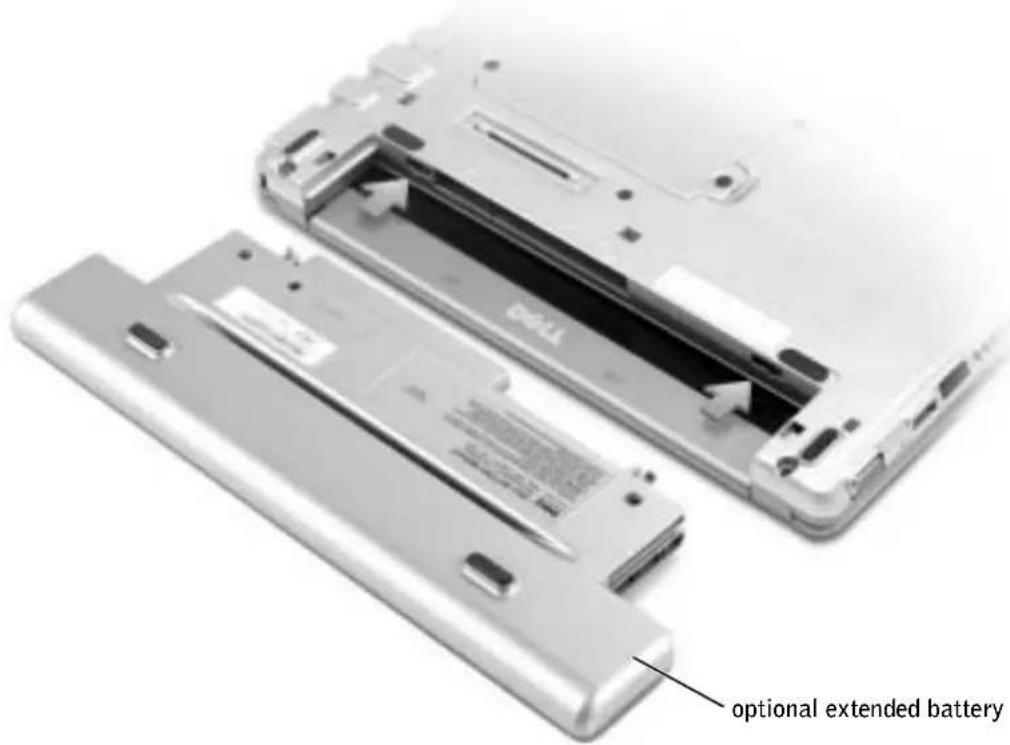

Installing the Optional Extended Battery

Dell Diagnostics

When to Use the Dell Diagnostics

If you experience a problem with your computer, perform the checks in “Solving Problems” in your User’s Guide and run the Dell Diagnostics before you contact Dell for technical assistance. Running the Dell Diagnostics may help you resolve the problem without contacting Dell. If you do contact Dell, the test results can provide important information for Dell’s service and support personnel.

The Dell Diagnostics allows you to:

• Perform tests on one or all devices.
• Select tests based on a symptom of the problem you are having.
• Choose how many times a test is run.
• Suspend testing if an error is detected.
• Access help information that describes the tests and devices.
• Receive status messages that tell you whether tests completed successfully.
• Receive error messages if problems are detected.

Starting the Dell Diagnostics

It is recommended that you print these procedures before you begin.

NOTICE: Use the Dell Diagnostics to test your Dell™ computer only. Using this program with other computers can result in error messages.

The Dell Diagnostics is located on a hidden diagnostic utility partition on your hard drive.

NOTE: If your computer cannot display a screen image, contact Dell.

1 Shut down the computer.
2 If the computer is connected to a media base (docked), undock it. See the documentation that came with your media base for instructions.

3 Connect the computer to an electrical outlet.

4 Turn on the computer. When the DELL ^™ logo appears, press immediately.

NOTE: If you cannot see anything on your display, hold down the mute button and press the computer's power button to begin the Dell Diagnostics. The computer automatically runs the Pre-boot System Assessment.

NOTE: If you see a message stating that no diagnostics utility partition has been found, run the Dell Diagnostics from your Drivers and Utilities CD.

If you wait too long and the Microsoft ^® Windows ^® logo appears, continue to wait until you see the Windows desktop. Then shut down your computer through the Start menu and try again.

5 When the boot device list appears, highlight Diagnostics and press .

The computer runs the Pre-boot System Assessment, a series of initial tests of your system board, keyboard, hard drive, and display.

• During the assessment, answer any questions that appear.
• If a failure is detected, the computer stops and beeps. To stop the assessment and restart the computer, press <N> ; to continue to the next test, press <Y> ; to retest the component that failed, press <R> .
• If failures are detected during the Pre-boot System Assessment, write down the error code(s) and contact Dell before continuing on to the Dell Diagnostics.

If the Pre-boot System Assessment completes successfully, you receive the message Booting Dell Diagnostic Utility Partition. Press any key to continue.

6 Press any key to start the Dell Diagnostics from the diagnostics utility partition on your hard drive.

7 When the Dell Diagnostics Main Menu appears, select the test you want to run.

Dell Diagnostics Main Menu

1 After the Dell Diagnostics loads and the Main Menu screen appears, click the button for the option you want.

Option Function

Express Test Performs a quick test of devices. This test typically takes 10 to 20 minutes and requires no interaction on your part. Run Express Test first to increase the possibility of tracing the problem quickly.

Extended Test Performs a thorough check of devices. This test typically takes an hour or more and requires you to answer questions periodically.

Custom Test Tests a specific device. You can customize the tests you want to run.

Symptom Tree Lists the most common symptoms encountered and allows you to select a test based on the symptom of the problem you are having.

2 If a problem is encountered during a test, a message appears with an error code and a description of the problem. Write down the error code and problem description and follow the instructions on the screen.

If you cannot resolve the error condition, contact Dell.

NOTE: The Service Tag for your computer is located at the top of each test screen. If you contact Dell, technical support will ask for your Service Tag number.

3 If you run a test from the Custom Test or Symptom Tree option, click the applicable tab described in the following table for more information.

Tab Function

Results Displays the results of the test and any error conditions encountered.

Errors Displays error conditions encountered, error codes, and the problem description.

Help Describes the test and may indicate requirements for running the test.

Configuration Displays your hardware configuration for the selected device.The Dell Diagnostics obtains configuration information for all devices from the system setup program, memory, and various internal tests, and it displays the information in the device list in the left pane of the screen. The device list may not display the names of all the components installed on your computer or all devices attached to your computer.

Parameters Allows you to customize the test by changing the test settings.

4 When the tests are complete, close the test screen to return to the Main Menu screen. To exit the Dell Diagnostics and restart the computer, close the Main Menu screen.

Regulatory Notices

Electromagnetic Interference (EMI) is any signal or emission, radiated in free space or conducted along power or signal leads, that endangers the functioning of a radio navigation or other safety service or seriously degrades, obstructs, or repeatedly interrupts a licensed radio communications service. Radio communications services include but are not limited to AM/FM commercial broadcast, television, cellular services, radar, air-traffic control, pager, and Personal Communication Services (PCS). These licensed services, along with unintentional radiators such as digital devices, including computers, contribute to the electromagnetic environment.

Electromagnetic Compatibility (EMC) is the ability of items of electronic equipment to function properly together in the electronic environment. While this computer has been designed and determined to be compliant with regulatory agency limits for EMI, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference with radio communications services, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna.
- Relocate the computer with respect to the receiver.
- Move the computer away from the receiver.
- Plug the computer into a different outlet so that the computer and the receiver are on different branch circuits.

If necessary, consult a Dell Technical Support representative or an experienced radio/television technician for additional suggestions.

For additional regulatory information, see the User's Guide that accompanied your computer.

Dell™ Latitude™ X300

Příručka k zařízení

Laptop with attached charger connected to its rear panel, showing network and cable (no text or symbols visible)

Disassembled battery pack with open casing and internal circuit board (no visible text or symbols)

Instalace baterií

Dell Diagnostics (Dell Diagnosticing) 73

Hvornår skal du bruge Dell Diagnostics (Dell Diagnosticering) 73 Sådan startes Dell Diagnostics (Dell Diagnosticering) 74

Laptop with attached charging cable and a CD4 logo, shown in open position (no text or symbols on device)

Dell Diagnostics (Dell Diagnosticing)

Hovedmenuen i Dell Diagnostics (Dell Diagnosticing)

Laptop with attached charging cable and a T-DC logo, no visible text or symbols on the device itself.

Laptop with attached charger connected to open circuit board (no visible text or symbols)

Laptop with open rear panel connected to a black cable and a charging plug (no visible text or symbols)

Hva leter du etter? Finn det her (fortsatt)

Hva leter du etter? Finn det her (fortsatt)

Laptop with attached charging cable and a CD-ROM logo, shown against white background (no text or symbols on device)

Laptop with attached charging cable and a plastic clip, no visible text or symbols

Program Dell Diagnostics

Laptop with attached charging cable and a black plastic clip, no visible text or symbols

Laptop with attached charger connected to its rear panel, showing internal components (no text or symbols visible)

• navodila za namestitev računalnika
• informacije o garanci
• varnostna navodila

Dellov priročnik z informacijami o sistemu

OPOMBA: Ta dokument je v obliki PDF na voljo na naslovu support.euro.dell.com.

Laptop with attached charger connected to its rear panel, showing network ports and cable (no text or symbols visible)

Laptop with attached cable and power adapter, no visible text or symbols

4 Dell Diagnostics- Main Menu

תְקַרָה בְּרָה

Pre-boot System Assessment – (Dell Diagnostics)

1. Men in the New York City, 1960, is a new city in New York City.

.Drivers and Utilities Dell 76

Microsoft® Windows®

. bowry Diagnostics, bowry Diagnostics

5

White laptop with attached power cord and cable, showing internal components (no text or symbols visible)

support.dell.com — Dell Support בַלְבָרִי אַתְבּוֹן כְבּוֹן, כְבּוֹן, כְבּוֹן, כְבּוֹן, כְבּוֹן, כְבּוֹן, כְבּוֹן, כְבּוֹן, כְבּוֹן, כְבּוֹן, DELL Support בַלְבּוֹן כְבּוֹן, כְבּוֹן, כְבּוֹן, DELL Support, כְבּוֹן, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELLSupport, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL Support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELLSupport, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELLsupport, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL支持, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELLsust, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL sust, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, DELL support, Dell sust, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell sust, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Dell support, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Netti sust, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nett isust, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nettis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nottis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Nattis, Ntssususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususushesususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususesususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususeusususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususu#sust, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, nottis, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, nott i sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sut, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dott i sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, dotti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sut, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, nottit sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, Notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sest, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, notti sust, nott.

Dell Computer Corporation.
