EFV719K - Range hood ELECTROLUX - Free user manual and instructions

Product Type	Range Hood
Brand	Electrolux
Model	EFV719K
Installation Type	Wall-mounted or under-cabinet
Width	90 cm
Depth	50 cm
Height (min-max)	60 – 110 cm
Net Weight	Approx. 15 kg
Power Supply	220-240 V, 50 Hz
Motor Power	200 W
Lighting	2 x 3 W LED
Number of Speeds	3 + boost
Extraction Capacity	Up to 700 m³/h
Noise Level (max)	68 dB(A)
Grease Filter Type	Aluminum mesh (washable)
Carbon Filter Option	Yes, for recirculation mode
Control Type	Touch controls
Energy Class	A+
Safety Features	Tempered glass panel, auto shut-off timer
Maintenance	Clean grease filter monthly; replace carbon filter every 6 months
Spare Parts Availability	Filters, bulbs, motor available from Electrolux service centers

Frequently Asked Questions - EFV719K ELECTROLUX

What are the dimensions of the Electrolux EFV719K range hood?

The hood is typically 90 cm wide, 50 cm deep, and has an adjustable height from 60 to 110 cm.

Can the EFV719K be used in recirculation mode?

Yes, it supports recirculation by installing a carbon filter (purchased separately).

How do I clean the grease filter?

Remove the aluminum mesh filter and wash it with warm soapy water or in a dishwasher. Allow it to dry completely before reinstalling.

What type of lighting does the hood use?

It uses LED lights (2 x 3 W) that are energy-efficient and long-lasting.

How loud is the EFV719K during operation?

The noise level is up to 68 dB(A) at maximum speed, comparable to a normal conversation.

Is installation included with the purchase?

Installation is not included; it must be installed by a qualified professional or according to the manual instructions.

What should I do if the hood stops working?

Check the power supply and circuit breaker. If the issue persists, contact Electrolux customer service or an authorized technician.

How often should I replace the carbon filter?

Replace the carbon filter every 6 months for optimal odor removal in recirculation mode.

Does the hood have a remote control?

No, the hood is controlled via touch buttons on the front panel.

What is the warranty period for the EFV719K?

Electrolux typically offers a 2-year manufacturer warranty. Please check your region for exact terms.

USER MANUAL EFV719K ELECTROLUX

Simple line drawing of a chimney with three dots on the base (no text or symbols)

EFV719K EFV716K

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a label and an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

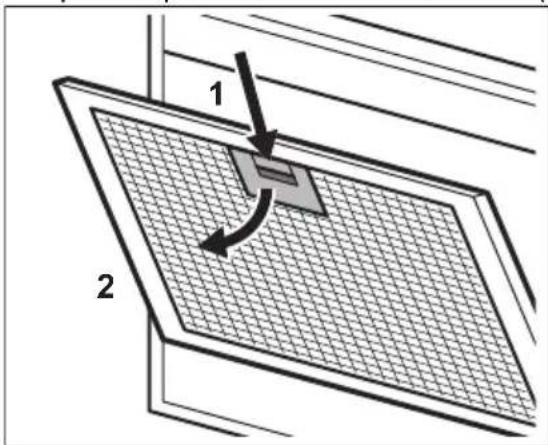

1. Tryk på grebet til monteringsclipsen på filterpanelet under emhætten (1).

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a circular base and an arrow labeled '1' indicating rotation (no text or symbols beyond the label)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a label '1' and an arrow, resting on a base (no text or symbols beyond the label)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and motion arrows (no text or symbols beyond labels)

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......54
2. SAFETY INSTRUCTIONS.... 57
3. INSTALLATION....58
4. PRODUCT DESCRIPTION....58
5. DAILY USE....59
6. CARE AND CLEANING.... 60
7. TROUBLESHOOTING....62
8. ENVIRONMENTAL CONCERNS....62

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.

- WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use adhesives to fix the appliance.

- The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.

- The discharge of air must comply with local authorities regulations.

- Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.

- Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- If the cord set is damaged, it must be replaced by a special cord set available from the manufacturer or its Authorised Service Centre.

- If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- Do not flambé under the appliance.

• Do not use to exhaust hazardous or explosive materials and vapours.
• Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• If the symbol ( ) not printed on the rating plate, the appliance must be earthed.
  • Always use a correctly installed shockproof socket.

• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

- This appliance is for cooking purpose only. Do not use the appliance for other purpose.

• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grills.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.
• If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately:

These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Installation instructions

For complete information about the installation of the appliance refer to a separate installation booklet.

4. PRODUCT DESCRIPTION

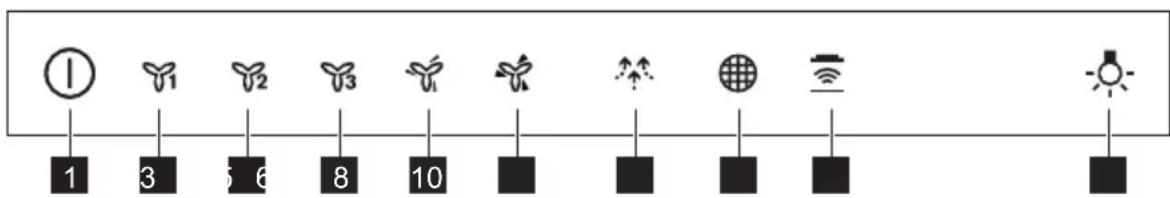

4.1 Control panel overview

Function Description

On / Off Turns the hood on and off.

Function Description
2	First speed The motor switches to first speed level.
3	Second speed The motor switches to second speed level.
4	Third speed The motor switches to third speed level.
5	Maximum speed The motor switches to maximum speed level.
6	Speed boost The motor switches to maximum speed level. After 5 minutes the appliance returns to previous setting.
7	Breeze The hood operates on the lowest speed. After 60 minutes the appliance turns off.
8	Filter notification Reminds to change or clean the charcoal filter and clean the grease filter.
9	Hob ^2 Hood Indicator of the function to control hood from hob.
10	Lamp Turns the lights on and off.

5. DAILY USE

5.1 Using the hood

Check the recommended speed according to the table below.

Y1	While heating up food, cooking with covered pots.
Y2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
Y3	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
and	While boiling and frying big quantities of food without a lid, big humidity.
	Refreshes the air in kitchen after cooking at a very low noise level. It can be activated and deactivated by touching the symbol. The function turns off automatically after 60 minutes. Use after cooking only.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control Panel is a sensor field. Touch the symbols for 1 second to activate the functions.

To operate the hood:

1. Turn on the appliance by pressing the symbol.

You can now activate the functions.

1. To activate the function touch the symbol.

The hoods light works independently to other hood functions. To illuminate the cooking surface touch

To turn off the appliance press the Ⓛ symbol again.

5.2 Hob ^2 Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.

For more information how to use the function refer to the hob user manual.

5.3 Activating Maximum Motor Speed

When you touch 🚗 the Maximum Motor Speed starts to operate for 8 minutes. After that time, the appliance returns to its previous speed settings.

When the function is turned on, additional touch on does not have any effects.

5.4 Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The

filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in care and cleaning chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function touch ⏰ for 3 seconds.

To activate or deactivate function:

1. Switch on the control panel.
2. Make sure that the icons are turned white.
3. To activate function touch 🎨 for 3 seconds.

If the function is activated, the filter icon flashes five times.

1. To deactivate function touch for 3 seconds.

If the function is deactivated, the filter icon turns on for 4 seconds.

6. CARE AND CLEANING

6.1 Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes.

Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.

After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.

Clean stains with a mild detergent.

Keep the hood clean

Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.

Follow the instructions for cleaning the accessories when filter notification is on. Refer to Filter notification in daily use chapter.

Grease filters can be washed in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

6.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

1. Pull the cover to open it.

Simple line drawing of a rectangular object with a circular arrow labeled '1' and two circular holes on a base (no text or symbols beyond the label)

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1. Slightly tilt the front of the filter downwards (2), then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

6.3 Replacing the charcoal filter

The charcoal filter must be replaced if the filter alarm is on.

Refer to the filter notification in daily use chapter for more information about function.

WARNING!

The charcoal filter is NON-washable! The filter cannot be regenerated!

To replace the charcoal filter:

1. Remove the grease filters from the appliance.

Refer to "Cleaning the grease filter" in this chapter.

1. Turn the filter counterclockwise (1) and then pull (2).

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

To mount the filters back follow the steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

6.4 Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Remedy
You cannot activate the appliance. The appliance is not connected to a power supply or it is connected incorrectly.		Check if the appliance is correctly connected to the electrical supply.
You cannot activate the appliance. The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp. Refer to the "Care and Cleaning" chapter.
The appliance does not absorb enough vapours.	The motor speed is not adequate to the appearing vapours.	Change the speed of the motor.
The filter alarm indicator is on.	The filter alarm is on. The grease filter must be cleaned or the charcoal filter must be replaced or cleaned.	Refer to the filter notification in "Daily use" chapter.

8. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

PENSAMOS EN USTED

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular holes at the base (no text or symbols beyond the label)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a label '1' and an arrow, placed on a base (no text or symbols beyond the label)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular base plates (no text or symbols)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' pointing to its base, no text or symbols present.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

5. SVAKODNEVNA UPORABA

5.1 Uporaba nape

Simple line drawing of a rectangular box with a circular arrow labeled '1' on its side, placed on a base (no text or symbols beyond the label)

1. Pritisnite ručku montažne kopče na ploči filtra ispod nape (1).

1. Lagano nagnite prednji dio filtra prema dolje (2), a zatim ga povucite.

Ponovite prva dva koraka za sve filtre.

1. Očistite filtre pomoću spužve s neabrazivnim deterdžentima ili u perilici posuđa.

i

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' pointing to its base, no text or symbols present.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' pointing to its base, no text or symbols present.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a label '1' and an arrow, placed on a base (no text or symbols beyond the label)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and motion arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' pointing to its base, resting on a flat base (no text or symbols beyond the label)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' pointing to its base, no text or symbols present.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

7. PROBLEEMOPLOSSING

WAARSCHUWING!

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a circular arrow labeled '1' and two circular holes on a base (no text or symbols beyond the label)

1. Trykk på håndtaket til monteringsklipsen på filterpanelet under ventilatoren (1).

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and motion arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

10 Lâmpada Liga e desliga as luzes.

Simple line drawing of a rectangular object with a label '1' and an arrow, resting on a base (no text or symbols beyond the label)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and motion arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular base, no text or symbols present.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular holes, resting on a base (no text or symbols beyond the label)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and motion arrows (no text or symbols beyond labels)

4. PËRSHKRIM I PRODUKTIT

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular base plates (no text or symbols)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

1. Притисните ручку стеге за монтажу на панелу филтера испод аспиратора (1).

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular holes, no text or symbols present.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a circular arrow labeled '1' and a small rectangular cutout on top, no text or symbols present.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and motion arrows (no text or symbols beyond labels)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

Simple line drawing of a rectangular object with a circular arrow labeled '1' on its base, no text or symbols present.

1.1Amana Appafal and A-shcass Appafag
