| Product Type | 4-stroke engine |
| Displacement | 160 cc |
| Power | 4.0 hp (2.9 kW) |
| Starting type | Recoil starter |
| Fuel tank capacity | 0.95 L |
| Recommended engine oil | SAE 10W-30 (0.6 L) |
| Spark plug | NGK BPR6ES |
| Air filter type | Foam filter |
| Dimensions (L x W x H) | 400 x 350 x 380 mm |
| Dry weight | 12.5 kg |
| Output shaft | Horizontal with keyway |
| Fuel | Unleaded gasoline (RON 91 or higher) |
| Oil change | Every 50 hours or once per season |
| Air filter maintenance | Clean every 25 hours, replace if damaged |
| Spark plug maintenance | Clean and adjust gap (0.7-0.8 mm) every 100 hours |
| Lubrication system | Splash lubrication |

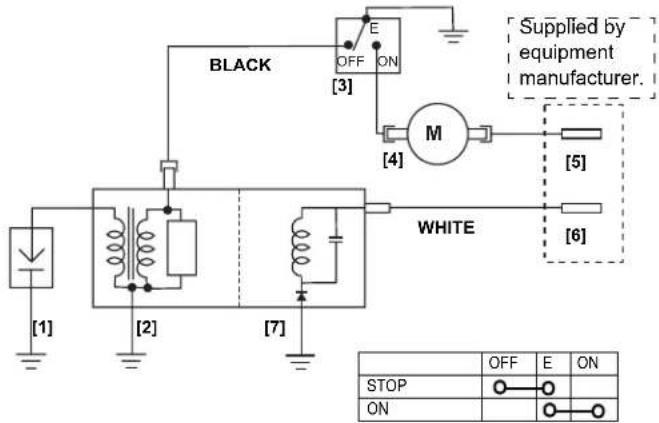

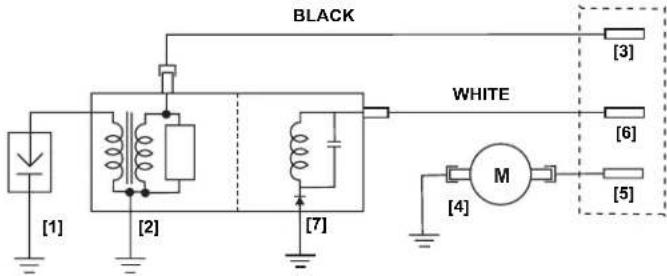

| Ignition system | Electronic ignition (transistorized) |
| Rated speed | 3600 rpm |
| Typical applications | Lawn mowers, generators, tillers |

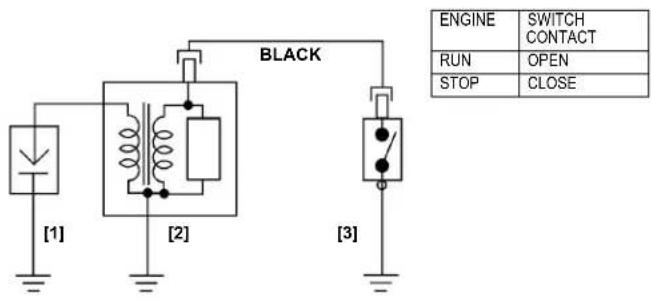

| Safety | Emergency stop via kill switch, do not use in enclosed space |
| Spare parts | Filters, spark plugs, gaskets, carburetor, oil pump available |
Frequently Asked Questions - GCV160 Honda

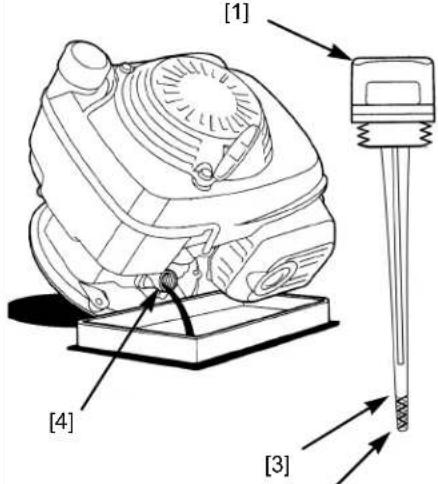

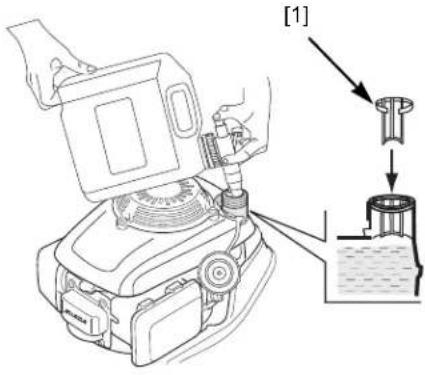

What type of oil to use in the Honda GCV160 engine?
Use 4-stroke engine oil with viscosity SAE 10W-30. The capacity is approximately 0.6 L. Check the level before each use.
What gasoline should I put in the tank?
Use unleaded gasoline with an octane rating of RON 91 or higher. Avoid gasoline with more than 10% ethanol.
How to start a cold engine?
Set the choke lever to Closed (position CHOKE). Pull the recoil starter cord until the engine starts, then gradually open the choke.
When should I change the oil?
Drain the oil every 50 hours of operation or at least once per season. Do it with the engine warm for a complete drain.

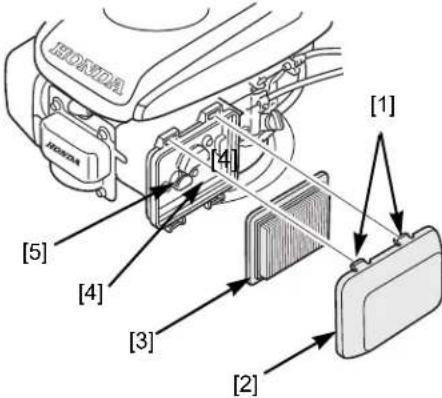

How to clean the air filter?
Remove the foam filter and wash it with soapy water. Squeeze it and let it air dry. Soak it with clean engine oil before reinstalling.
What spark plug to use?
The recommended spark plug is NGK BPR6ES or equivalent. The electrode gap should be 0.7 to 0.8 mm.
Why is my engine smoking?
Blue smoke indicates excess oil or worn rings. Black smoke indicates a too rich mixture. Check the oil level, air filter, and carburetor.
How to store the engine in winter?
Drain the gasoline or add a stabilizer. Change the oil, clean the air filter, and remove the spark plug to inject a little oil into the cylinder. Turn the engine over then reinstall the spark plug.
The engine won't start, what to do?
Check the fuel level, spark plug condition (fouled or incorrect gap), clogged air filter, and fuel supply. Make sure the choke is fully closed when cold.
What is the power of the GCV160 engine?
The engine produces approximately 4.0 horsepower (2.9 kW) at 3600 rpm. It is suitable for domestic lawn mowers and small equipment.
