Product Type	Canister Vacuum Cleaner
Brand	Gorenje
Model	VC1615G
Color	Green
Suction Power Control	Yes (button on body and airflow regulator on hose)
Dust Container Type	Spinner dust box + compatible with paper bags
Filtration System	Motor filter and exhaust filter
Noise Level	< 85 dB(A)
Cord Rewind	Automatic with button
Cord Length	Approx. 5 m
Tube Type	Assembled tube (two pieces)
Floor Nozzle	Yes, combination brush for bare floor and carpets
Additional Nozzles	Crevice tool, furniture nozzle
Parking System	Yes (for tube/nozzle storage)
Power Supply	220-240 V, 50/60 Hz
Weight	Approx. 4.5 kg
Replaceable Dust Bag	Yes (paper bags)
Replaceable Filters	Motor filter and exhaust filter
Usage	Indoor, dry surfaces only
Safety Features	Thermal overload protection (typical)

Frequently Asked Questions - VC1615G GORENJE

How do I change the dust bag?

Open the front cover after removing the flexible hose. Rotate the bag support to the correct position, remove the full bag, and insert a new one. Close the cover until it locks securely.

How do I clean or replace the filters?

Open the filter cover, take out the filter, and clean or replace it with a new one. Do not wash filters in a washing machine or dry with a hair dryer. Close the filter cover after maintenance.

What should I do if the suction power is weak?

Check if the dust bag or dust box is full and replace if necessary. Also check if the filters are clogged and clean or replace them. Ensure no blockages in the hose, tube, or nozzle.

Can I use the vacuum cleaner to pick up liquids?

No, this vacuum cleaner is designed for dry vacuuming only. Do not use it to pick up liquids, as this may damage the appliance and pose a safety risk.

How do I rewind the power cord?

Press the cord rewind button and guide the cord with your hand to prevent whipping. Always hold the plug while rewinding.

Can I use an extension cord with this vacuum?

Only use a permissible extension cord recommended by the manufacturer. Do not use a non-permissible extension cord as it may cause overheating or damage.

How do I store the vacuum cleaner?

For short breaks, use the parking system to attach the floor nozzle to the rail on the unit. For long-term storage, keep the appliance indoors in a dry place.

What does the dust bin full indicator mean?

When the red indicator reaches the middle of the window, it means the dust bin or bag is full and needs to be emptied or replaced.

How do I assemble the vacuum cleaner?

Insert the flexible suction hose into the connection opening until it locks. Attach the tube and desired nozzle. Ensure all filters are in place before use.

Can I vacuum building materials like dust or cement?

No, do not use this vacuum for fine dust, sand, lime, cement, or similar building materials. They can damage the appliance and clog filters immediately.

USER MANUAL VC1615G GORENJE

Green vacuum cleaner with black hose and stand, no visible text or symbols

VC 1615 G

Navodila za uporabo	SI
Upute za uporabu	BIH HR
Uputstvo za upotrebu	BIH SRB MNE
Упатства за употреба	MK
Instruction manual	EN
Instrucțiuni de utilizare	RO
Návod k obsluze	CZ
Návod na obsluhu	SK
Instrukcja obsługi	PL
Használati útmutató	HU
Инструкции за употреба	BG
Інструкція з експлуатації	UK
Руководство по эксплуатации	RUS

SI Navodila za uporabo .... 3

Opis sesalnika

1. Zapiralo pokrova
2. Stikalo za vklop/izklop
3. Gumb za nastavitev sesalne moči
4. Stikalo za navijanje priključne vrvice
5. Upogljiva cev
6. Sestavljiva cev
7. Talna krtača
8. Posoda za prah »Spinner«

POMEMBNA OPOZORILA

1. Papirnato vrečko zamenjajte z novo, kadar je polna.
2. S pritiskom zaprite pokrov dokler se ne zaklene.

Diagram of a robotic car with directional arrows indicating movement or force (no text or symbols)

Line drawing of a robotic vacuum cleaner (no text or symbols)

Three technical line drawings of laboratory test tubes or test tubes with no visible text or symbols

POZOR:

Opis usisavača

1. Kad se papirnata vrećica napuni prašinom, zamijenite je novom.
2. Pritiskom zatvorite poklopac, da se čujno zaključa.

2. Promjena filtra

1. Otvarajući zatvarač filtra, pomoću dva prsta povucite plastični nosač.
2. Odstranite istrošeni filtar i zamijenite ga čistim filtrom.
3. Zatvorite zatvarač filtra.

Two line drawings of a robotic device with labeled parts, showing internal components and directional arrows (no text or symbols)

Line drawings of three laboratory test tubes with different shapes and contents (no text or labels)

POZOR:

Opis usisivača

1. Zatvarač poklopca
2. Prekidač za uključivanje/isključivanje
3. Dugme za podešavanje snage usisavanja
4. Prekidač za namotavanje priključnog kabla
5. Elastična cev
6. Crevo
7. Podna četka
8. Sud za prašinu »Spinner«

Važna upozorenja

1. Kad se kesica iz hartije napuni prašinom, zamenite je novom.
2. Pritiskom zatvorite poklopac da se čujno zabravi.

2. Zamena filtera

1. Kesicu za prašinu povucite nagore.
2. Izvucite nosilec filtera nagore.
3. Odstranite filter.

Two line drawings of a robotic device with internal components, labeled (a) and (b), showing no text or symbols.

Čišćenje i nega aparata

Three technical line drawings of laboratory pipettes or test tubes, no text or symbols present

PAŽNJA!

Two line drawings of a robotic device with internal components, labeled a) and b), showing no text or symbols.

Three line drawings of laboratory glassware: a cylindrical container, a cross-sectional view, and a beaker with liquid (no text or symbols)

ВНИМАНИЕ:

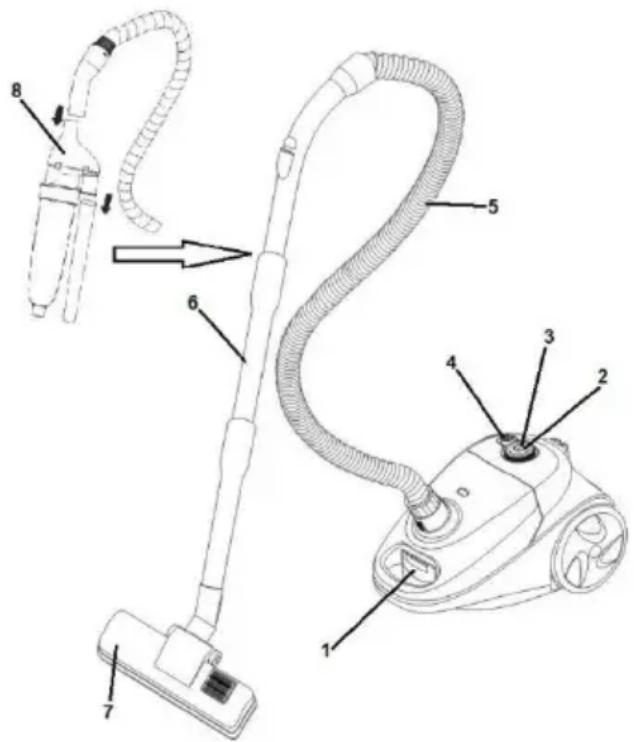

Description

1. Snap-on lock for opening cover
2. On/Off button
3. Power control button
4. Cord rewind button
5. Hose
6. Assembled tube
7. Floor brush
8. Dust box »Spinner«

Important safeguards

When using this appliance, basic precautions should always be followed:

• Please read the safety instructions carefully and use the appliance only in accordance with these instructions.
• Do not leave the appliance unattended during use.
• Caution: Assemble the appliance carefully before using it.
• Do not leave the appliance unattended when it is plugged in. Pull the plug after use or when performing maintenance work.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance

by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- The appliance is only to be used indoors, in dry rooms. The appliance must not be used for liquids.
- Operate the appliance only with parts recommended by the manufacturer.
- Do not use the device if it has been dropped, damaged, kept outdoors, or has fallen into water.
- Do not pull or carry the appliance by holding the cable only. Protect the cable from hot surfaces or other damages and do not wedge it.
- Do not pull the cable to unplug the appliance.
- Do not operate or touch the appliance or cable with wet hands.
- Do not insert any object into the openings.
- Keep the opening free from dust, hairs or other objects which might reduce the cleaning power.
- Keep your hair, loose clothes, fingers and any other body parts away from openings or moving parts.
- Switch out the device before pulling the plug.
- When cleaning stairs apply particular attention.
- Do not use the vacuum cleaner for: embers, burning cigarette stubs, matches, ect.-liquid materials (e.g.wet carpet foam)-hard, sharp objects (e.g.splinters of glass).
- Do not use the appliance in connection with a non-permissible extension cable.
- Keep the suction hose opening and other openings away from your face and body.
- Do not use the vacuum cleaner without a dust bag, outlet air filter or motor filter.
- The appliance is to be stored indoors, in dry rooms only, put the appliance aside after use.
- Hold the plug when using the automatic cable reminder.
- Switch out the device when connecting or changing the suction hose or nozzles.
- The appliance is not to be used for toner dust or similar materials.

• During use keep the suction tube, suction hose and nozzles away from your head to prevent injuries.
• For longer use pull out at least 2/3 of the cable length to awed overheating and damage.
• The appliance fulfils the applicable German and European electrical standards as well as the radio interference suppression regulation.
• Never use your vacuum cleaner for vacuuming the building material (such as fine sand, lime, cement dust etc.). Absorbed building material can damage your appliance.
• When you are using the vacuum cleaner together for several hours, pull the connecting cable to the end.
• Noise level: Lc < 85 dB(A)

CAUTION: Never use the vacuum cleaner without the filters.

Vacuum cleaner use only for home and in the inner rooms!

Do not use a vacuum cleaner in very dirty places, it will immediately obstruct filter!

Connection to the mains supply

Check, please, whether the voltage stated on the data plate comply with the data of your house mains supply.

Supply cord

If the supply cord is damaged, it must be replaced with the suitable cord, or a set for coiling the cable, which you can get in the nearest Gorenje's service outlet.

If the mains cord is damaged, you must have it replaced by Gorenje, a service centre authorised by Gorenje or similarly qualified persons in order to avoid a hazard.

Data on compliance with european standards

Test for this type of appliance confirmed that it complies with the following European directives:

• 2006/95/EEC Low voltage
• 93/68/EEC CE Marking
- 2004/108/EEC Directive on Electromagnetic Compatibility– EMC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Elimination of the appliances and environment

If one day you decide to change your appliance, or you just do not need it any more, think about the environmental protection.

Vacuum cleaner assembling

Always remove the plug from the power supply before fitting or removing accessories. Before putting the appliance into service, please check if all filters are inserted correctly.

ASSEMBLY OF THE SUCTION HOSE

- Insert the flexible suction hose into the connection opening at the top of the housing until you can feel it lock.

HOSE REMOVING

- To remove flexible hose from the vacuum cleaner, press the buttons situated on the flexible hose base, then pull to remove it from the attachment point.

ROLLING THE CABLE OUT AND UP

- Pull out the cable to such a length that easy working is ensured. Now connect the appliance to the main supply. Press the switch to activate the automatic rewinder and hold on the mains plug for safety reason.

FITTING TUBE AND ACCESSORIES

• Insert a flexible hose into a tube.
• Fit a nozzle to tube:
• Floor brush is intended for cleaning bare floor and floor coverings.
• Crevice/furniture nozzle is for cleaning corners and between cushions. According to the mark rotate the nozzle to brush position to clean curtain or dust on the decorating surfaces.

Instruction for use

• Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply.
• Press the On/Off button to switch the unit on. To stop it press the On/Off button again.
• You can adjust the air flow using the air flow regulator on the flexible hose:

- decrease power for cleaning curtains, books, furniture, etc.

- increase power for cleaning bare floor.

To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.

Maintenance

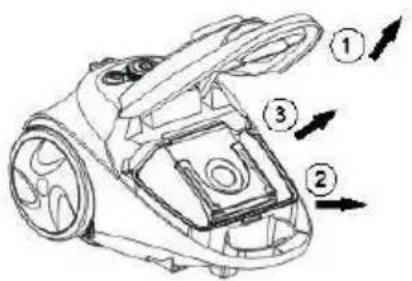

1. Changing of the dust bag

• Always operate the cleaner with dust bag installed.
- If you forget to attach the dust bag or attach it in the wrong manner, the dust cover may not close completely.

1. After removing the flexible tube, open the front cover.
2. Rotate the support of the bag to the correct position.
3. Remove the dust bag.

1. Replace the paper bag when it is full of dirty and put in a new one.
2. Close the cover by passing down until it is locked.

2. Cleaning filter

1. Open the cover for filter.
2. Take the filter out clean or change with new one.
3. Close the cover for filter.

Two technical line drawings of a robotic device, labeled a) and b), showing internal components with arrows indicating movement (no text or symbols present)

Care and cleaning

Switch off the appliance and pull out the plug from the power supply.

Clean the outside of the appliance with a soft cloth with mild detergent. Harsh or abrasive detergent will damage the outside surface.

Never immerse the appliance or cord into water and other liquids.

Three line drawings of laboratory glassware or test tubes, no text or symbols present

CAUTION:

When the dust bin full indicator reaches the middle of the window, clean the dust bin.

Never use the appliance without filters.

Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

Storage

Parking system serves for parking suction tube/floor nozzle during short-term interruptions.

For this purpose, please insert the holder of the floor nozzle into parking rail of the device.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

DIAGRAM

Descriere

Two line drawings of a robotic vehicle with directional arrows indicating movement or force (no text or symbols)

Line drawings of three laboratory glassware containers (no text or symbols)

ATENTIE:

Two hand-drawn illustrations of a robotic device with internal components, labeled a) and b), showing no text or symbols.

Údržba a čištění

Three technical line drawings of laboratory pipettes or test tubes, no text or symbols present

UPOZORNĚNÍ:

Two technical illustrations of a robotic device with directional arrows indicating movement or force (no text or symbols present)

Údržba a čistenie

Three line drawings of laboratory glassware (no text or symbols)

Upozornenie:

Opis

Diagram of a robotic car with visible internal components and directional arrows (no text or labels)

Line drawing of a robotic vacuum cleaner (no text or symbols)

Three technical line drawings of laboratory test tubes or pipettes, no text or symbols present

UWAGA:

Ismertetés

Diagram of a robotic car with directional arrows indicating movement or force (no text or symbols)

Line drawing of a robotic vacuum cleaner with a control knob (no text or symbols)

Three line drawings of laboratory test tubes or pipettes, no text or symbols present

FIGYELEM:

Line drawing of a robotic arm with directional arrows indicating movement or force (no text or symbols)

Line drawing of a robotic car with visible control panel and sensor (no text or symbols)

Почистване

Three line drawings of laboratory test tubes or pipettes, no text or symbols present

ВНИМАНИЕ:

Two technical illustrations of a robotic vehicle, labeled (a) and (b), showing internal components with arrows indicating movement or force (no text or symbols present)

Чищення та догляд

Three line drawings of laboratory glassware or test tubes, no text or symbols present

УВАГА:

Two line drawings of a robotic device with directional arrows indicating movement or force (no text or symbols present)

Уход и чистка

Line drawings of three laboratory glassware items: a pipette, a horizontally placed tube, and a beaker with liquid (no text or symbols)

ОСТОРОЖНО:
