Product Type	Cordless Drill/Driver
Model	DS 9DVA
No-Load Speed (Low/High)	0–350 / 0–1050 min⁻¹
Drilling Capacity (Wood)	21 mm
Drilling Capacity (Steel)	10 mm
Drilling Capacity (Aluminum)	10 mm
Driving Capacity (Machine Screw)	6 mm
Driving Capacity (Wood Screw)	5.5 mm × 63 mm
Battery Type	Ni-Cd 9.6 V (EB9, EB9S, EB9G, EB9B, EB9M, EB9H)
Weight (Tool)	1.7 kg
Charger Model	UC14YF or UC14YF2
Charger Weight	1.3 kg
Chuck Type	Keyless
Torque Settings	Clutch 1-8 + Drill
Sound Pressure Level	77 dB (A)
Vibration Level	≤ 2.5 m/s²
Standard Accessories	Driver bit No.2, Charger, Plastic case
Maintenance	Clean with dry cloth; store below 40°C
Safety	Use safety glasses; keep away from children

Frequently Asked Questions - DS 9DVA HITACHI

How do I change the drill bit?

Insert the bit into the keyless chuck, then firmly grasp the ring and tighten the sleeve by turning it clockwise. To remove, grasp the ring and loosen the sleeve counterclockwise. If stuck, set clutch to 1-3 and operate while turning.

How do I adjust the torque?

Rotate the cap to align the numbers 1-8 (1 is weakest) or the drill mark with the triangle mark on the body. Use higher numbers for larger screws or harder materials.

How do I charge the battery?

Connect the charger to AC power (red lamp blinks). Insert the battery fully until it contacts the bottom. Charging begins (red lamp steady). When fully charged, lamp blinks red. Disconnect and remove battery.

What batteries are compatible?

Use only Hitachi rechargeable batteries: EB9, EB9S, EB9G, EB9B, EB9M, or EB9H. Never use dry cells or car batteries.

How do I change the speed?

With the switch off, move the shift knob to LOW for low speed (0-350 rpm) or HIGH for high speed (0-1050 rpm). Never change speed while motor is running.

What maintenance is required?

Regularly inspect and tighten screws. Clean exterior with a soft dry cloth or soapy water. Store in a dry place below 40°C. Sharpen or replace dull bits.

What safety precautions should I follow?

Wear safety glasses and proper clothing. Keep work area clean and well-lit. Avoid flammable environments. Disconnect battery when not in use. Do not force the tool.

Why is the charger lamp flashing quickly?

A quick red flash (0.2 sec intervals) indicates a foreign object in the charger's battery hole or a malfunction. Check and remove any debris. If problem persists, contact an authorized service center.

Can I use the drill as a screwdriver?

Yes. Set the cap to a number (1-8) for screwdriving. Use low speed for machine screws to avoid damage. For wood screws, drill a pilot hole first.

What is the charging time?

Charging time depends on battery and charger model. For EB9/EB9S with UC14YF/UC14YF2: approx. 45 minutes. EB9G: 55 min. EB9B/EB9M: 60 min. EB9H with UC14YF2: 70 min.

USER MANUAL DS 9DVA HITACHI

BATTERIDRIVEN SKRUVIDRAGARE/BORR BATTERIDREVET

SKRUETRÆKKER/BOREMASKINE

BATTERIDREVET

Line drawing of a handheld electric drill with attached cable (no text or symbols)

The exploded assembly drawing should be used only for authorized service center.

Item No.	Part Name
34	Machine Screw (W/Sp. Washer)M3 × 5
35	Internal Wire
36	DC-Speed Control Switch
37	Pushing Button
38	Internal Wire
39	Shift Knob
40	Strap
41	Terminal Support (A)
42	Bind Screw M3 × 7
43	Fin
44	Battery
501	- Driver Bit No. 2 65L
502	Charger
503	Case

Parts are subject to possible modification.

Item No.	Part Name
1	Special Screw (Left Hand)M6 × 23
2 Drill Chuck 10VLR-N
3 Gear Box Ass'y
4 Screw Set D3 × 12
5 Plate
6 Cap
7 Cutch Plate
8 Spring
9 Spring Holder
10 Thrust Plate
11 Front Case
12 Steel Ball
13 Ring Gear
14 Carrier
15 Planet Gear (C) Set
16 Washer (A)
17 Rear Case
18 Shift Arm
19 Slide ring Gear
20 Pinion (C)
21 Planet Gear (B) Set
22 Pinion (B)
23 Planet Gear (A) Set
24 First Ring Gear
25 Washer (B)
26 Motor Spacer
27 Motor
28	Tapping Screw (W/Flange)D3 × 16
29 Name Plate
30 Machine Screw M4 × 6
31 Spring Washer M4
32 HITACHI Label
33 Housing (A). (B) Set

	Svenska Dansk Norsk Suomi English
1	Uppladdningsbart Genopladeligt batteri Oppladbart batteri Ladattava paristto Rechargeable batteri
2	Lås Smæklås Sperrehake Salpa Latch
3	Namnplåt Fabriksskilt Merkeplate Nimikilpi Nameplate
4	Dra ut Træk ud	Dra ut Ota ulos	Pull out
5	Passa in	Ilæg	Sett i	Paina sisään	Insert
6	Handtag	Håndtag	Håndtak	Kahva Handle
7	Tryck	Tryk	Skyv	Työnnä	Push
8	Passa in	Ilæg	Sett i	Paina sisään	Insert
9	Signallampa	Kontrollampe	Pilot-lys	Markkivalo	Pilot lamp
10	Hål för iläggning av det uppladdningsbara batteriet	Hul til tilslutning af det opladelige batteri	Hull for tilkopling av det oppladbare batteriet	Ladattavan pariston liitäntäaukko	Hole for connecting the rechargeable battery
11	Ring	Ring	Ring	Ranges	Ring
12	Chuckhylsa Muffe	Muffe Holkki Sleeve
13	Dra åt	Fastgøre	Stramme	Kiristää	Tighten
14	Lossa	Løsne Løsne Irrottaa Loosen
15	Startomkopplare	Aftrækkerkontakt	Starbryter	Käynnistysliipaisin	Trigger switch
16	Lågena (R) (höger) och (L) (väster)	(R) og (L) afmærkning	(R) og (L) merker	(R) ja (L) merkit	(R) and (L) marks
17	Väljarknapp	Vælgerknap	Velgerknapp	Valintapainike	Selector button
18	Hastighetsomkopplare	Omskifterknap	Omskifterbryter	Liukunäppäin	Shift knob
19	Hög hastighet	Høj hastighed	Høy hastighet	Nopea	High speed
20	Låg hastighet	Lav hastighed	Lav hastighet	Hidas	Low speed

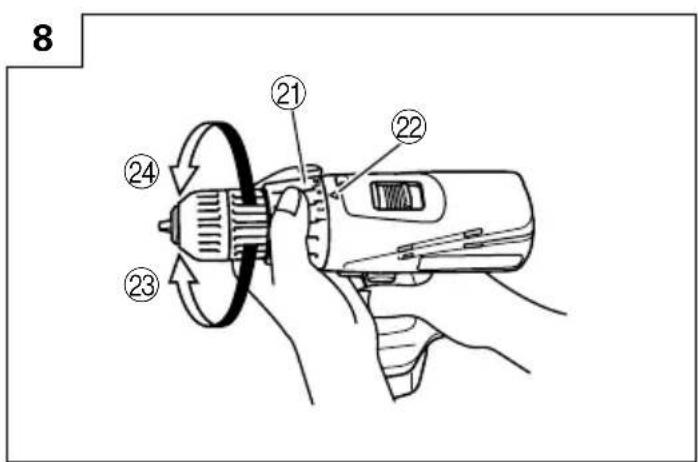

21	Borrsockel	Kappe	Hette	Holkki Cap
22	Triangelmärke	Trekantmærke	Trekantmerke	Kolmikulmiomerkki	Triangle mark
23	Stark åtdragningskraft	Stærk	Sterk	Vahva Strong
24	Svag åtdragningskraft	Svag	Svak	Kevyt	Weak

SÄKERHETSFÖRESKRIFTER

1. Batteri (EB9, EB9S, EB9G, EB9B, EB9M, EB9H)

Technical line drawing of a mechanical component with no visible text or symbols

1. Krysskruvdragarspets

1. Batteri (EB9, EB9S, EB9G, EB9B, EB9M, EB9H)

Technical line drawing of a mechanical connector or housing (no text or symbols)

1. Batteri (EB9, EB9S, EB9G, EB9B, EB9M, EB9H)

Technical line drawing of a mechanical component with no visible text or symbols

1. Plussbits

VEDLIKEHOLD OG INSPEKSJON

1. Paristo (EB9, EB9S, EB9G, EB9B, EB9M, EB9H)

Technical line drawing of a mechanical component with no visible text or symbols

1. Keep work area clean. Cluttered areas and benches invite accidents.
2. Avoid dangerous environment. Don't expose power tools and charger to rain. Don't use power tools and charger in damp or wet locations. And keep work area well lit.
   Never use power tools and charger near flammable or explosive materials.
   Do not use tool and charger in presence of flammable liquids or gases.
3. Keep children away. All visitors should be kept safe distance from work area.
4. Store idle tools and charger. When not in use, tools and charger should be stored in dry, high or locked-up place – out of reach of children. Store tools and charger in a place where the temperature is less than 40^ C.
5. Don't force tool. It will do the job better and safer at the rate for which it was designed.
6. Use right tool. Don't force small tool or attachment to do the job of a heavy duty tool.
7. Wear proper apparel. No loose clothing or jewelry to get caught in moving parts. Rubber gloves and footwear are recommended when working outdoor.
8. Use safety glasses with most tools. Also face or dust mask if cutting operation is dusty.
9. Don't abuse cord. Never carry charger by cord or yank it to disconnect from receptacle. Keep cord from heat, oil and sharp edges.
10. Secure work. Use clamps or a vise to hold work. It's safer than using your hand and it frees both hands to operate tool.
11. Don't overreach. Keep proper footing and balance at all times.
12. Maintain tools with care. Keep tools sharp at all times, and clean for best and safest performance. Follow instructions for lubricating and changing accessories.
13. When the charger is not in use, or when being maintained and inspected, disconnect the power cord of the charger from the receptacle.
14. Remove chuck wrenches and wrenches. Form habit of checking to see that wrenches are removed from tool before turning it on.
15. Avoid accidental starting. Don't carry tool with finger on switch.
16. Always use the specified charger. Never use a charger other than that specified to prevent danger.
17. Use only genuine HITACHI replacement parts.
18. Do not use power tools for applications other than those specified in the Handling Instructions.
19. To ensure the designed operational integrity of power tools and charger, do not remove installed covers or screws.
20. Consult an authorized Service Center in the event of power tool and charger failure.
21. Always use the charger at the voltage specified on the name plate.

22. Do not touch movable parts or accessories unless the battery has been removed.

23. Always charge the battery before use.

24. Never use a battery other than that specified. Do not connect a usual dry cell, a rechargeable battery other than that specified or a car battery to the power tool.
25. Do not use any transformer that has a booster.
26. Do not charge the battery from an engine electric generator or DC power supply.
27. Always charge indoors. As the charger and battery heat-up slightly during charging, charge the battery in a place not exposed to direct sunlight; which has low humidity and is well ventilated.
28. When working in a high place, pay attention to activities below. Before commencing, ensure that there are no people below.

PRECAUTIONS FOR CORDLESS DRIVER DRILL

1. Always charge the battery at a temperature of 0 - 40°C. A temperature of less than 0°C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40°C. The most suitable temperature for charging is that of 20 - 25°C.
2. Do not use the charger continuously. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.
3. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
4. Never disassemble the rechargeable battery and charger.
5. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
6. Do not dispose of the battery in fire. If the battery is burnt, it may explode.
7. When drilling into wall, floor or ceiling, check for buried electric power cable, gas pipe, etc.
8. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
9. Using an exhausted battery will damage the charger.
10. Do not insert foreign objects into the air ventilation slots of the charger. Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.
11. When mounting a bit into the keyless chuck, tighten the sleeve securely. If the sleeve is not tight, the bit may slip or come off, causing injury.

SPECIFICATIONS

POWER TOOL

Model DS9DVA
No-load speed (Low/High)			0–350/0–1050/min.
Capacity	Drilling	Wood 21 mm (Thickness 18 mm)
		Metal Steel: 10 mm, Aluminum: 10 mm (Thickness 1.6 mm)
	Driving	Machine screw 6 mm
		Wood screw 5.5 mm (diameter) × 63 mm (length)
Rechargeable battery (EB9S) Ni-Cd			battery, 9.6 V
Weight 1.7 kg

CHARGER

Model UC14YF / UC14YF2
Charging voltage 7.2 V — 14.4 V
Weight 1.3 kg

STANDARD ACCESSORIES

DS9DVA (SFK)

1 Plus driver bit (No. 2) ............12 Charger (UC14YF or UC14YF2) ............13 Plastic case ............1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES ..... (sold separately)

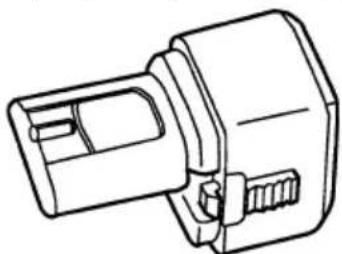

1. Battery (EB9, EB9S, EB9G, EB9B, EB9M, EB9H)

Technical line drawing of a mechanical component with no visible text or symbols

1. Plus driver bit

Bit No.	Screw size
No. 1	2 - 2.5 mm
No. 2	3 - 5 mm
No. 3	6 - 8 mm

Bit No.

1. Minus driver bit

a Screw size
0.8 mm	4 mm
1 mm	5 - 6 mm

1. Hexagon socket (for nuts and bolts)

Socket No.	Screw size
7	4 mm
8	5 mm

Socket No.

Optional accessories are subject to change without notice.

APPLICATIONS

○ Driving and removing of machine screws, wood screws, tapping screws, etc.
○ Drilling of various metals.
○ Drilling of various woods.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

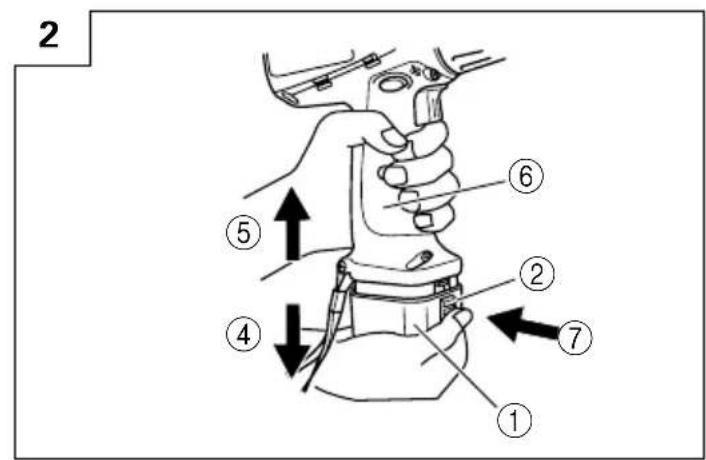

Hold the handle tightly and push the battery latch to remove the battery (see Figs. 1 and 2).

CAUTION

Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see Fig. 2).

CHARGING

Before using the driver drill, charge the battery as follows.

1. Connect the charger's power cord to a receptacle. When the power cord is connected, the charger's pilot lamp will blink in red. (At 1-second intervals.)

2. Insert the battery into the charger.

Position the battery so that the nameplate faces toward the caution plate of the charger and push in the battery until it contacts the bottom plate. (See Fig. 1 and 3)

CAUTION:

○ If the battery is inserted in the reverse direction, not only recharging will become impossible, but it may also cause the fuse to blow, or problems in the charger such as deformed charging terminals.

3. Charging

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red. When the battery is fully charged, the pilot lamp will blink in red. (At 1-second intervals.) (See Table 1)

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the pilot lamp
Before Blinks charging (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds.
While Lights charging (RED)	Lights continuously
Charging Blinks complete (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds.
Charging Flickers impossible (RED)	Lights for 0.1 seconds, Does not light Malfunction for 0.1 seconds. (off for 0.1 seconds) the charger	in the battery or
Charging Lights continuously The battery temperature is high, impossible (GREEN) making	the battery is high,

(2) Regarding the temperatures of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the table below, and betteries that have become hot should be cooled for a while before being recharged.

Table 2 Recharging ranges of batteries

Rechargeable batteries which	Temperatures at the battery can be recharged
EB9	-5^ 40^
EB9S, EB9G, EB9B, EB9M	-5^ 60^
EB9H	0^ 45^

(3) Regarding recharging time

Depending on the combination of the charger and batteries, the charging time will become as shown in Table 3.

Table 3 Charging time (At 20°C)

Battery\Charger	UC14YF	UC14YF2
EB9, EB9S	Approx. 45 min.	Approx. 45 min.
EB9G	Approx. 55 min.	Approx. 55 min.
EB9B, EB9M	Approx. 60 min.	Approx. 60 min.
EB9H	- Approx.	70 min.

NOTE: The charging time may vary according to temperature and power source voltage.

1. Disconnect the charger power cord from the rceptacle.
2. Hold the charger firmly and pull out the battery.

NOTE

After operation, pull out batteries from the charger first, and then keep the batteries properly.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging batteries 2 – 3 times.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTIONS

○If the battery has been heated right after operation (or due to sunlight, etc.), the charger's pilot lamp may not light in red. In such a case, first let the battery cool, then start charging.

When the pilot lamp flickers in red quickly (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take them to your Authorized Service Center.

○Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC14YF/UC14YF2 is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

PRIOR TO OPERATION

1. Setting up and checking the work environment

Check if the work environment is suitable by following the precautions.

HOW TO USE

1. Mounting and dismounting of the bit

(1) Mounting the bit

After inserting a driver bit, etc. into the keyless drill chuck, firmly grasp the ring and tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front). (See Fig. 4)

○If the sleeve becomes loose during operation, tighten it further. The tightening force becomes stronger when the sleeve is tightened.

(2) Dismounting the bit

Firmly grasp the ring and loosen the sleeve by turning it toward the left (in the counterclockwise direction as viewed from the front). (See Fig. 4)

CAUTION:

When it is no longer possible to loosen the sleeve, use a vise or similar instrument to secure the bit. Set the clutch mode between 1 and 3 and then turn the sleeve to the loose side (left side) while operating the clutch. It should be easy now to loosen the sleeve.

2. Confirm that the battery is mounted correctly.

1. Check the rotational direction

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the selector button. The L-side of the selector button is pushed to turn the bit counterclockwise (See Fig. 5)

(The R) and (L) marks are provided on the body.)

○When the trigger switch is depressed, the bit rotates. When the trigger is released, the bit stops.

○The rotational speed of the drill can be controlled by varying the amount that the trigger switch is pulled.

Speed is low when the trigger switch is pulled slightly and increases as the switch is pulled more.

When releasing the trigger of the switch, the brake will be applied for immediate stopping.

1. Change rotation speed

Operate the shift knob to change the rotational speed. Move the shift knob in the direction of the arrow (see Figs. 6 and 7).

When the shift knob is set to "LOW", the drill rotates at a low speed. When set to "HIGH", the drill rotates at a high speed.

CAUTION

When changing the rotational speed with the shift knob, confirm that the switch is off.

Changing the speed while the motor is rotating will damage the gears.

5. Confirm the cap position (see Fig. 8)

The tightening torque of this unit can be adjusted according to the cap position, at which the cap is set.

(1) When using this unit as a screwdriver, line up the one of the numbers "1, 2, 3 ... 8" on the cap with the triangle mark on the outer body.

(2) When using this unit as a drill, line up the cap drill mark “” with the triangle mark on the outer body.

CAUTION

Align numbers "1, 2, 3 ... 8" on the cap and drill mark "and" with the triangle mark on the main body. Note that it is impossible to fix the cap between the numbers on the cap and the numbers, or between the numbers and the drill mark.

6. Tightening torque adjustment

(1) Tightening torque

Tightening torque should correspond in its intensity to the screw diameter. When too strong power is used, the screw head may be broken or be injured. Be sure to adjust the cap position according to the screw diameter.

(2) Tightening torque indication (See Fig. 8)

The tightening torque differs depending on the type of screw and the material being tightened.

The unit indicates the tightening torque with the numbers "1, 2, 3 ... 8" on the cap. The tightening torque at position "1" is the weakest and the torque is strongest at the highest number.

(3) Adjusting the tightening torque (See Fig. 8) Rotate the cap and line up the numbers "1, 2, 3 ... 8" on the cap with the triangle mark on the outer body. Adjust the cap in the weak or the strong torque direction according to the torque you need.

CAUTIONS

○The motor rotation may be locked to cease while the unit is used as drill. While operating the driver drill, take care not to lock the motor.
When setting the shift knob to "HIGH" (high speed) and the position of the cap is "6" or "8", it may happen that the clutch does not engage and that the motor is locked. In such a case, please set the shift knob to "LOW" (low speed).

○If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.
○Too long hammering may cause the screw broken due to excessive tightening.
○A peep sound may be produced when the motor is about to rotate; This is only a noise, not a machine failure.

7. The scope and suggestions for uses

The usable scope for various types of work based on the mechanical structure of this unit is shown below.

Table 4

Work Usable range Suggestions
Drilling	Wood: 21 mm	Use after drilling a pilot hole.
	Steel: 10 mm
	Aluminum: 10 mm
Driving	Machine screw: 6 mm	Use the bit and socket matching the screw diameter.
	Nut: 6 mm
	Wood screw: 5.5 mm (diameter) × 63 mm (length)	Use after drilling a pilot hole.

8. How to select tightening torque and rotational speed

Table 5

Use Cap Position		Low Speed High speed
Driving	Machine screw 1	— 8	For 4 mm or smaller diameter For 6 mm or smaller screws. diameter screws.
	Wood screw 1	—	For 5.5 mm or smaller diameter For 3.8 mm or smaller screws. diameter screws.
Drilling	Wood	—	For 21 mm or smaller For 18 mm or smaller diameters diameters
	Metal Drill dia.	10 mm max. Drill dia.	6.5 mm max.

CAUTION

The selection examples shown in Table 5 should be considered as a general standard. As different types of tightening screws and different materials to be tightened are used in actual works proper adjustments are usually necessary.

When using the driver drill with a machine screw at HIGH (high speed), a screw may damage or a bit may lose due to the tightening torque is too strong. Use the driver drill at LOW (low speed) when tightening a machine screw.

NOTE

The use of the battery EB9H in a cold condition (below 0 degree Centigrade) can sometimes result in the weakened tightening torque and reduced amount of work. This, however, is a temporary phenomenon, and returns to normal when the battery warms up.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of as dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loosened, retighten them immediately. Failure to do so could result in serious hazard.

3. Cleaning on the outside

When the driver drill is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, as they melt plastics.

4. Storage

Store the driver drill in a place in which the temperature is less than 40^ C and out of reach of children.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Information concerning airborne noise any vibration

The measured values were determined according to EN50144.

The typical A-weighted sound pressure level: 77 dB (A).

Wear ear protection.

The typical weighted root mean square acceleration value does not exceed 2.5m/s^2 .

Svenska		Suomi
EF-DEKLARATION BETRÄFFANDE LIKFORMIGHETVi tillkännagiver med eget ansvar att denna produkt överensstämmer med standard eller standardiserat dokument EN50144, HD400, EN55014, EN60555 och/eller EN50082-1 i enlighet med råddirektiven 73/23/E∅S, 89/392/E∅S och/eller 89/336/E∅S.* Denna deklaration gäller för CE-märkningen på produkten.		EY-ILMOITUS YHDENMUKAISUUDESTAYksinomaisella vastuudella vakuutamme, että tämä tuote vastaa normeja tai normitettuja dokumentteja EN50144, HD400, EN55014, EN60555 ja/tai EN500821 yhteisön ohjeiden 73/23/ETY, 89/392/ETY ja/tai 89/336/ETY mukaisesti.* Tämä ilmoitus sovelletaan tuotekohtaiseen CE-merkintään.
Dansk		English
EF-DEKLARATION OM ENSARTETHEDVi eklærer os fuldstændige ansvarlige for, at dette produkt modsvarer gældende standard eller de standardiserede dokumenter EN50144, HD400, EN55014, EN60555 og/eller EN50082-1 i overensstemmelse med EF-direktiver 73/23/E∅F 89/392/E∅F og/eller 89/336/E∅F.* Denne erklæring gælder produkter, der er mærket med CE.		EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that this product is in conformity with standards or standardized documents EN50144, HD400, EN55014, EN60555 and/or EN50082-1 in accordance with Council Directives 73/23/EEC, 89/392/EEC and/or 89/336/EEC.* This declaration is applicable to the product affixed CE marking.
Norsk
EF's ERKLÆRING OM OVERENSSTEMMELSEVierklærerherved at vi påtar oss eneansvaret for at dette produktet er i overensstermmelse med normer eller standardiserte dokumenter EN 50144, HD400, EN55014, EN60555 og/eller EN50082-1 i samsvar med Rådsdirektiver 73/23/E∅S, 89/392/E∅S og/eller 89/336/E∅S.* Denne erklæringen gjelder produktets påklistrede CE-merking.
Hitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich, F. R. GermanyHitachi Koki Co., Ltd.Nippon Building, 6-2, Ohtemachi 2-chome,Chiyoda-ku, Tokyo, Japan		CE98K. Mitsuishi

Hitachi Koki Co., Ltd.
