Product Type	Cordless Drill/Driver
Brand	Hitachi (now Metabo HPT)
Model	FDS 9DV
No-Load Speed (Low/High)	0-280 / 0-850 min⁻¹
Drilling Capacity (Wood)	18 mm
Drilling Capacity (Steel)	10 mm
Drilling Capacity (Aluminum)	10 mm
Screw Driving Capacity (Machine Screw)	6 mm
Screw Driving Capacity (Wood Screw)	5.5 mm diameter x 45 mm length (with pilot hole)
Battery Type	Ni-Cd, 9.6 V (model FEB9)
Charger Model	UC9SC
Charging Time	Approx. 1 hour at 20°C
Tool Weight	1.5 kg
Charger Weight	1.2 kg
Chuck Type	Keyless drill chuck (10TLRD-N)
Clutch Settings	5 positions (1-5) plus drill mode
Speed Settings	Low (L) and High (H) via shift knob
Reversible	Yes, with reversing switch (R/L)
Bit Storage	Built-in bit holder on both sides
Standard Accessories	Plus driver bit No.2 x 50L, minus driver bit 4mm x 50L, charger UC9SC, plastic case
Safety Features	Lock-off (neutral position on reversing switch), overload protection (thermal), low battery shut-off
Vibration Level	≤ 2.5 m/s²
Sound Pressure Level	≤ 70 dB(A)
Maintenance	Clean with dry cloth; inspect screws; store below 40°C

Frequently Asked Questions - FDS 9DV HITACHI

How do I change the speed on the Hitachi FDS 9DV?

Use the shift knob to select low (L) or high (H) speed. Ensure the switch is off before changing. Low speed (0-280 min⁻¹) is for larger screws or drilling metal; high speed (0-850 min⁻¹) for smaller screws or wood.

How do I adjust the clutch (tightening power)?

Rotate the cap to align the white line with numerals 1-5 for screwdriving (1=weakest, 5=strongest) or to the drill mark for drilling. Adjust if screw head is damaged (too strong) or screw not driven fully (too weak).

What battery does the FDS 9DV use and how do I charge it?

It uses a Hitachi FEB9 Ni-Cd battery (9.6 V). Insert it into the UC9SC charger, connect to mains, and charge for about 1 hour at 20°C. The pilot lamp goes off when fully charged. Do not charge above 40°C or below 10°C.

How do I install or remove the battery?

To remove, hold the handle and push the battery latch while sliding the battery out. To install, align the grooves and push in until it clicks. Always ensure the reversing switch is in neutral before inserting.

What is the maximum drilling capacity?

Wood: 18 mm; Steel: 10 mm; Aluminum: 10 mm. For larger diameters in wood, use low speed. Always check for hidden wires when drilling into walls.

Can I use other batteries with this drill?

No, only use the specified Hitachi FEB9 battery. Using other batteries may cause damage or safety hazards. Do not use dry cells or car batteries.

How do I change the bit?

Use the keyless chuck: grasp the ring, turn the sleeve counterclockwise to loosen, insert the bit, then turn clockwise to tighten. If stuck, clamp the bit and turn the sleeve while operating the clutch at setting 1-3.

Why does the motor lock and what should I do?

Motor lock can occur if the clutch is set too high in high speed (setting 4-5 on H). Immediately release the switch. Switch to low speed (L) or reduce clutch setting. Avoid prolonged lock to prevent burn-out.

How do I maintain the drill?

Keep the tool clean and dry. Inspect mounting screws regularly and tighten if loose. Store below 40°C. Use only genuine Hitachi replacement parts. Wipe with a dry cloth; do not use solvents.

What safety precautions should I take?

Wear safety glasses and appropriate clothing. Keep away from rain and flammable materials. Do not carry with finger on trigger. Always disconnect charger when not in use. Use only the specified charger.

USER MANUAL FDS 9DV HITACHI

Line drawing of a handheld electric shaver with numbered parts (no text or symbols)

Read through carefully and understand these instructions before use.

Bruksanvisning

Brugsanvisning

Bruksanvisning

Käyttöohjeet

Handling Instructions

The exploded assembly drawing should be used only for authorized service center.

Item No.	Part Name
1 Name Plate
2 —	Driver Bit 4MM 50L
3 Housing (A) · (B) Set
4 Tapping Screw (W/Flange) D3×14
5 Bit Holder (B)
6 Strap
7 Flat Hd. Screw (Left Hand) M5×20
8 Drill Chuck 10TLRD-N
9 Cap
10 Spring Holder
11 Spring
12 Thrust Plate
13 Steel Ball
14 Spindle • Gear Set
15 Shift Arm
16 Shift Knob
17 Shift Spring
18 Tapping Screw D3×8
19 Bit Holder (A)
20 +Driver Bit No.2 50L
21 Motor
22 Switch
23 HITACHI label
24 Mark Plate
25 FT Screw M3×10
26 FT Screw M3.5×8
27 Fin Ass'y
28 Terminal
29 Battery FEB9
501 Case
502 Charger (Model UC9SC)

Parts are subject to possible modification without notice due to improvements.

	Svenska Dansk Norsk

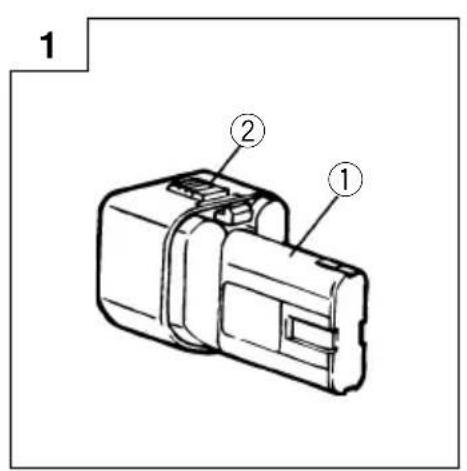

1	Unpladdningsbart batteri Genopladeligt batteri Oppladbart batteri
2	Lås smæklås Sperrehake
3	Dra ut Træk ud Dra ut
4	Passa in Ilæg Sett i
5	Handtag Håndtag Håndtak
6	Tryck Tryk Skyv
7	Passa in Ilæg Sett i
8	Signallampa Kontrollampe Pilot-lys
9	Hål för iläggning av det Hul til tilslutning af det Hull for tilkopling av det uppladdningsbara batteriet opladelige batteri oppladbare batteriet
10	Reverserströmställare	Skiftekontakt	Strømbryter
A	Startomkopplare	Aftrækkerkontakt	Startbryter
B	Friläge	Neutral stilling	Nøytral posisjon
C	Borrsockel	Kappe	Hette
D	Vit linje	Hvid linie	Hvit linje
E	Borrläge (###)	Boremærkning (###)	Bormerke (###)
F	Svag åtdragningskraft	Svag	Svak
G	Stark åtdragningskraft	Stærk	Sterk
H	Hastighetsomkopplare	Omskifterknap	Omskifterbryter
I	Låg hastighet	Lav hastighed	Lav hastighet
J	Hög hastighet	Høj hastighed	høy hastighet
K	Ring	Ring	Ring

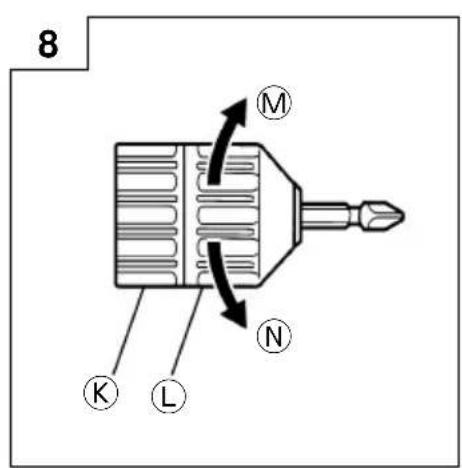

L	Chuckhylas	Muffe	Muffe
M	Dra åt Fastgøre	Stramme
N	Lossa	Løsne Løsne

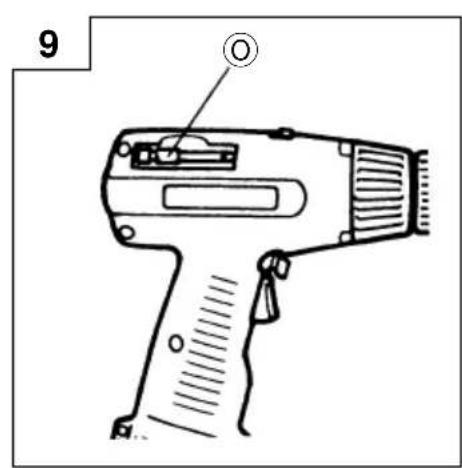

O	Skruvdragarspets	Skruetrækkerbits	Skrutrekkerbits
P	Lågena (R) (höger) och (L) (väster)	(R) og (L) afmærkning	(R) og (L) merker

Technical line drawing of a mechanical connector or housing (no text or symbols)

1. Krysskruvdragarspets

Spets Nr.	Skruvstorlek
No 2	3 - 5 mm

Technical line drawing of a mechanical connector or housing (no text or symbols)

Technical line drawing of a mechanical connector or housing (no text or symbols)

1. Plussbits

VEDLIKEHOLD OG INSPEKSJON

Technical line drawing of a mechanical connector or housing (no text or symbols)

1. Keep work area clean. Cluttered areas and benches invite accidents.
2. Avoid dangerous environment. Don't expose power tools and charger to rain. Don't use power tools and charger in damp or wet locations. And keep work area well lit.
   Never use power tools and charger near flammable or explosive materials.
   Do not use tool and charger in presence of flammable liquids or gases.
3. Keep children away. All visitors should be kept safe distance from work area.
4. Store idle tools and charger. When not in use, tools and charger should be stored in dry, high or locked-up place—out of reach of children. Store tools and charger in a place in which the temperature is less than 40^ C.
5. Don't force tool. It will do the job better and safer at the rate for which it was designed.
6. Use right tool. Don't force small tool or attachment to do the job of a heavy duty tool.
7. Wear proper apparel. No loose clothing or jewelry to get caught in moving parts. Rubber gloves and footwear are recommended when working outdoor.
8. Use safety glasses with most tools. Also face or dust mask if cutting operation is dusty.
9. Don't abuse cord. Never carry charger by cord or yank it to disconnect from receptacle. Keep cord from heat, oil and sharp edges.
10. Secure work. Use clamps or a vise to hold work. It's safer than using your hand and it frees both hands to operate tool.
11. Don't overreach. Keep proper footing and balance at all times.
12. Maintain tools with care. Keep tools sharp at all times, and clean for best and safest performance. Follow instructions for lubricating and changing accessories.
13. When the charger is not in use or when being maintained and inspected, disconnect its power cord of the charger from the receptacle.
14. Remove chuck wrenches and wrenches. Form habit of checking to see that wrenches are removed from tool before turning it on.
15. Avoid accidental starting. Don't carry tool with finger on switch.
16. Always use only the specified charger. Never use a charger other than that spaced to prevent danger.
17. Use only genuine HITACHI replacement parts.
18. Do not use power tools for applications other than those specified in the Handling Instructions.
19. To ensure the designed operational integrity of power tools and charger, do not remove installed covers or screws.
20. Consult an authorized Service Center in the event of power tool and charger failure.
21. Always use the charger at the voltage specified on the name plate.
22. Do not touch movable parts or accessories unless the power source has been disconnected.

23. Always charge the battery before use.

24. Never use a battery other than that specified. Do not connect a usual dry cell, a rechargeable battery other than that specified or a car battery to the power tool.

25. Do not use any transformer containing a booster.
26. Do not charge the battery from an engine electric generator or DC power supply.
27. Always charge indoors. As the charger and battery heat-up slightly during charging, charge the battery in a place not exposed to direct sunlight, which has low humidity and is well ventilated.
28. When working in a high place, pay attention to activities below. Before commencing, ensure that there are no people below.

PRECAUTIONS FOR CORDLESS DRIVER DRILL

1. Always charge the battery at a temperature of 10 – 40°C. A temperature of less than 10°C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40°C. The most suitable temperature for charging is that of 20 – 25°C.

2. Do not use the charger continuously. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

3. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.

4. Never disassemble the rechargeable battery and charger.
5. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
6. Do not dispose of the battery in fire. If the battery is burnt, it may explode.
7. When drilling in wall, floor or ceiling, check for buried electric power cord, etc.
8. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
9. Using an exhausted battery will damage the charger.
10. Do not insert object into the air ventilation slots of the charger. Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.
11. When mounting a bit into the keyless chuck, tighten the sleeve adequately. If the sleeve is not tight, the bit may slip or come off, causing injury.

SPECIFICATIONS

POWER TOOL

Model FDS9DV
No-load speed (Low/High)			0 – 280/0 – 850/min.
Capacity	Drilling	Wood 18 mm
		Metal Steel: 10	mm, Aluminum: 10 mm
	Driving	Machine screw	6 mm
		Wood screw	5.5 mm (diameter) · 45 mm (length) (There is a pilot hole)
Rechargeable battery (FEB9) Ni-Cd			battery, 9.6 V
Weight 1.5 kg

CHARGER

Model	UC9SC
Charging time	Approx. 1 hour (at 20°C)
Charging voltage	9.6 V
Weight	1.2 kg

STANDARD ACCESSORIES

FDS9DV
	1 Plus driver bit (No. 2×50L)......12 Minus driver bit (4mm ×50L)......13 Charger (UC9SC)......14 Plastic case......1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

1. Battery (FEB9)

Technical line drawing of a mechanical component with no visible text or symbols

1. Plus driver bit

Bit No. Screw	size
No. 2 3-5 mm

1. Minus driver bit

a Screw size
0.8 mm 4 mm

1. Hexagon socket (for nuts and bolts)

Socket No. Screw size
7	4
8	5
10 6 mm

Optional accessories are subject to change without notice.

APPLICATIONS

○Driving and removing of machine screws, wood screws, tapping screws, etc.
○Drilling of various metals.
○Drilling of various woods.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latch to remove the battery (see Figs. 1 and 2). CAUTION

Never short-circuit the battery.

1. Battery installation

Insert the battery while observing its polarities (see Fig. 2).

CHARGING

Before using the driver drill, charge the battery as follows.

1. Insert the battery in the charger.

Position the battery so that the nameplate faces toward the nameplate of the charger and press in the battery until it comes into contact with the bottom surface. (See Figs. 1 and 3)

1. Connect the charger power cord to the receptacle. Connecting the power cord will turn on the charger (the pilot lamp lights up).

CAUTION

If the pilot lamp does not light up pull out the power cord from the receptacle and check the battery mounting condition.

About 1 hour is required to fully charge the battery at a temperature of about 20^ . The pilot lamp goes off to indicate that the battery is fully charged.

The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low.

When the pilot lamp does not go off even if more than four hour has passed after start of the charging, stop the charging and contact your HITACHI AUTHORIZED SERVICE CENTER.

CAUTION

If the battery is heated due to direct sunlight, etc., just after operation, the charger pilot lamp may not light up. At that time cool the battery first, then start charging.

1. Disconnect the charger power cord from the receptacle.
2. Hold the charger firmly and pull out the battery.

PRIOR TO OPERATION

1. Setting up and checking the work environment

Check if the work environment is suitable by following the precautions.

HOW TO USE

CAUTION:

Before installing batteries, make sure that the reversing switch is in neutral position. (See Fig. 4.)

1. Confirm the cap position (see Fig. 5)

The tightening power of this unit can be adjusted according to the cap position, at which the cap is set.

(1) For using the unit as a screw driver, set the cap white line to one of the numerals "1" to "5" on the outer frame.
(2) For use as a drill, set the white line at the drill mark "◀◀◀" (see Fig. 5).

CAUTION

○Set the cap white line at one of either the numerals or drill marks.

1. Tlightening power adjustment
   (1) Tightening power

Tightening power should correspond in its intensity to the screw diameter. When too strong power is used, the screw head may be broken or be injured. Be sure to adjust the cap position according to the screw diameter.

(2) Tightening power indication

Tightening power should be changed according to

the screw type and the materials to be tightened. Guidance of the tightening power is indicated on the outer frame of this unit with numerals "1", "2", "3", "4" and "5". The minimum power is from "1" position and bigger numerals are stronger power than smaller numerals (see Fig. 5).

(3) How to adjust the tightening power

Rotate the cap and set to one of the numerals. Adjust the power by cap rotation in such a way that when the power is too strong, set to the next smaller numeral and set to the next larger numeral when too weak.

CAUTION

○The motor rotation may be locked to cease while the unit is used as a drill. While operating the driver drill, take care not to lock the motor.
○Too long hammering may cause the screw broken due to excessive tightening force.

3. Change rotation speed

Operate the shift knob to change the rotation speed. Move the shift knob in the direction of the arrow (see Figs. 6 and 7).

When the shift knob is set to "L", the drill rotates at a low speed. When set to "H", the drill rotates at a high speed.

CAUTION

When changing the rotation speed with the shift knob, confirm that the switch is off. Changing the speed while the motor is rotating will damage the gears.

When setting the shift knob to "H" (high speed) and the position of the cap is "4" or "5", it may happen that the clutch does not engage and that the motor is locked. In such a case, please set the shift knob to "L" (low speed).
○If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt out.

4. The scope and suggestions for uses

The usable scope for various types of work based on the mechanical structure of this unit is shown in Table 1.

Table 1

Work Usable range		Suggestions
Drilling	Wood: 18 mm	Use for drilling purpose.
	Steel: 10 mm
	Aluminum: 10 mm
Driving	Machine screw: 6 mm	Use the bit and socketmatching the screw diameter.
	Nut: 5 mm
	Wood screw: 5.5 mm (diameter) · 45 mm (length)	Use after drilling a preparatory hole.

5. How to select tightening power and rotation speed

Table 2

Use		Cap Position	Rotating speed selection (Position of the shift knob)
			L(Low speed)	H(High speed)
Driving	Machine screw	1-5	For 4 mm or smaller diameter screws.	for 5 mm or larger diameter screws.
	Wood screw	1-5	For 3.5 mm or smaller nominal diameter screws.	For 3.8 mm or larger nominal diameter screws.
Drilling	Wood		For 10 mm or larger diameters.	For 10 mm or smaller diameters.
	Metal		For drilling with an iron working drill.	——

CAUTION

The selection examples shown in Table 2 should be utilized as a general standard. As different types of tightening screws and different materials to be tightened are used in actual works, proper adjustments are naturally necessary.

6. Mounting and dismounting of the bit.

(1) Mounting the bit

After inserting a driver bit, etc. into the keyless drill chuck, firmly grasp the ring and tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front). (See Fig. 8)

○If the sleeve becomes loose during operation, tighten it further. The tightening force becomes stronger when the sleeve is tightened additionally.

(2) Dismounting the bit

Firmly grasp the ring and loosen the sleeve by turning it toward the left (in the counterclockwise direction as viewed from the front). (See Fig. 8)

CAUTION:

When it is no longer possible to loosen the sleeve, use a vise or similar instrument to secure the bit. Set the clutch mode between 1 and 3 and then turn the sleeve to the loose side (left side) while operating the clutch. It should be easy now to loosen the sleeve.

NOTE

○There is a plus driver bit and a minus driver bit on both sides of the main unit. The bits can be removed by pulling them forward. After using the bits, make sure to firmly attach them to the main unit again. (Fig. 9)

7. Confirm that the battery is mounted correctly.

8. Check the rotation direction

When the reversing switch is set to (R), the drill rotates clockwise when viewed from the drill rear. When set to (L), the drill rotates counterclockwise (see Fig. 10). (The (L) and (R) marks are provided on the body.)

CAUTION:

○Make sure to firmly switch the reversing switch. If it is not switched firmly, the drill may not rotate even if the switch is turned on.

9. Switch operation

When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops.

○The rotational speed of the drill can be controlled

by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.

NOTE

A peep sound may be produced when the motor is about to rotate; This is only a noise, not a machine failure.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

1. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

1. Cleaning on the outside

When the driver drill is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

1. Storage

Store the driver drill in a place in which the temperature is less than 40^ C and out of reach of children.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Information concerning airborne noise and vibration

The measure values were determined according to EN50144.

The typical A-weighted sound pressure level does not exceed 70 dB (A).

Wear ear protection.

The typical weighted root mean square acceleration value does not exceed 2.5 m/s ^4 .

Line drawing of a quill pen writing in an inkwell (no text or symbols present)

Svenska		Suomi
EF-DEKLARATION BETRÄFFANDE LIKFORMIGHETVi tillkännagiver med eget ansvar att denna produkt överensstämmer med standard eller standardiserat dokument EN50144, HD400, EN55014, EN60555 och/eller EN50082-1 i enlighet med räddirektiven 73/23/E∅S, 89/392/E∅S och/eller 89/336/E∅S.* Denna deklaration gäller för CE-märkningen på produkten.		EY-ILMOITUS YHDENMUKAISUUDESTAYksinomaisella vastuudella vakuutamme, että tämä tuote vastaa normeja tai normitettuja dokumentteja EN50144, HD400, EN55014, EN60555 ja/tai EN50082-1 yhteisön ohjeiden 73/23/ETY, 89/392/ETY ja/tai 89/336/ETY mukaisesti.* Tämä ilmoitus sovelletaan tuotekohtaiseen CE-merkintään.
Dansk		English
EF-DEKLARATION OM ENSARTETHEDVi erklærer os fuldstændige ansvarlige for, at dette produkt modsvarer gældende standard eller de standardiserede dokumenter EN50144, HD400, EN55014, EN60555 og/eller EN50082-1 i overensstemmelse med EF-direktiver 73/23/E∅F 89/392/E∅F og/eller 89/336/E∅F.* Denne erklæring gælder produkter, der er mærket med CE.		EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that this product is in conformity with standards or standardized documents EN50144, HD400, EN55014, EN60555 and/or EN50082-1 in accordance with Council Directives 73/23/EEC, 89/392/EEC and/or 89/336/EEC.* This declaration is applicable to the product affixed CE marking.
Norsk
EF's ERKLÆRING OM OVERENSSTEMMELSEVierklærerherved at vi påtar oss eneansvaret for at dette produktet er i overensstermmelse med normer eller standardiserte dokumenter EN 50144, HD400, EN55014, EN60555 og/eller EN50082-1 i samsvar med Rådsdirektiver 73/23/E∅S, 89/392/E∅S og/eller 89/336/E∅S.* Denne erklæringen gjelder produktets påklistrede CE-merking.
Hitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich, F. R. GermanyHitachi Koki Co., Ltd.Nippon Building, 6-2, Ohtemachi 2-chome, Chiyoda-ku, Tokyo, Japan		CE97K. Mitsuishi

Hitachi Koki Co., Ltd.
