DV70H4400CW - Tumble drier SAMSUNG - Free user manual and instructions

Product Type	Tumble Dryer
Brand	Samsung
Model	DV70H4400CW
Capacity	7 kg
Drying Type	Condenser (Heat Pump)
Energy Efficiency Class	A+
Annual Energy Consumption	560 kWh
Dimensions (W x D x H)	60 cm x 60 cm x 85 cm
Weight	50 kg
Power Supply	220-240 V, 50 Hz
Noise Level	65 dB(A)
Drum Material	Stainless Steel
Sensor Dry	Yes
Reverse Tumble	Yes
Delay Start	Up to 24 hours
Anti-Crease Function	Yes (up to 180 min)
Self-Cleaning Condenser	Yes
Lint Filter	Removable, easy clean
Child Lock	Yes
Smart Control (Wi-Fi)	No
Warranty	2 years

Frequently Asked Questions - DV70H4400CW SAMSUNG

How do I install the Samsung DV70H4400CW tumble dryer?

Ensure the dryer is on a level surface and connected to a dedicated power outlet. Leave at least 10 cm clearance on all sides for ventilation. For condenser models, no external venting is required.

How do I clean the lint filter on this dryer?

Open the door and pull out the lint filter located in the door opening. Remove lint by hand or with a soft brush. Rinse under water if needed and dry thoroughly before reinserting.

What does error code 'E4' mean on my Samsung dryer?

Error code E4 typically indicates a heating issue. Check the lint filter, condenser, and ensure the power supply is stable. If persistent, contact Samsung support.

How often should I clean the condenser unit?

Clean the condenser every 6 months or when the 'Clean Condenser' indicator appears. Remove the lower panel, pull out the condenser, and rinse with water.

Can I use fabric softener sheets in this dryer?

Yes, but it is not recommended as they can leave residue on the lint filter, reducing efficiency. Use only one sheet per load and clean the filter regularly.

What is the maximum load size for the DV70H4400CW?

Maximum load is 7 kg of dry laundry. Overloading may cause poor drying results and increased energy consumption.

How long does a typical drying cycle take?

Drying time varies by fabric and load size. A cotton load at normal dryness takes approximately 60-90 minutes. Use the Quick Dry program for smaller loads.

Why is my dryer not starting?

Check if the door is fully closed, the child lock is off, and the dryer is plugged in. Also ensure the water container is empty (if applicable) and the power button is pressed.

How do I prevent clothes from wrinkling?

Use the Anti-Crease function which intermittently tumbles the drum after drying. Remove clothes promptly and avoid overloading.

Is it normal for the dryer to produce condensation water?

Yes, for condenser dryers, water is collected in a container. Empty the container after each cycle. You can also connect a drainage hose for continuous draining.

USER MANUAL DV70H4400CW SAMSUNG

Condensing Dryer user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

SAFETY INFORMATION

3

INSTALLING YOUR DRYER

10

OPERATING INSTRUCTIONS, TIPS

19

CARE AND CLEANING

29

SPECIAL LAUNDRY TIPS

32

TROUBLESHOOTING

33

APPENDIX

36

3 What you need to know about Safety Instructions
3 Important safety symbols and precautions

10 Unpacking your dryer and Installing guide

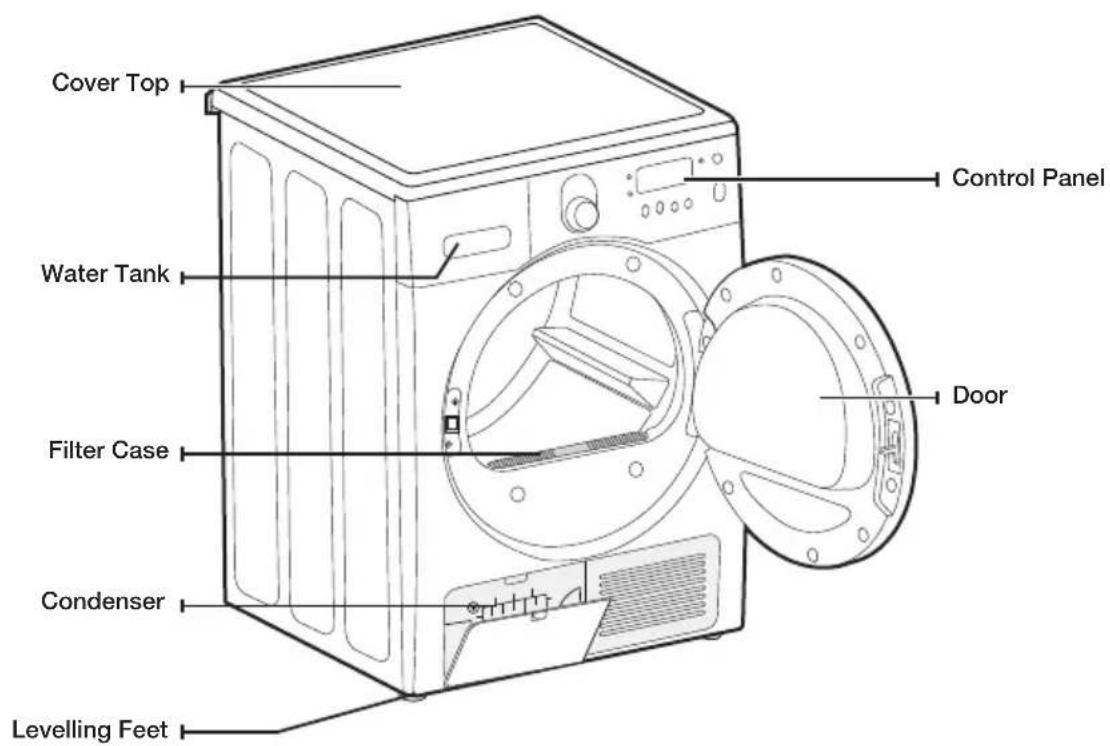

10 See dryer exterior

11 Check before installing

11 Before using the product

11 Important to installer

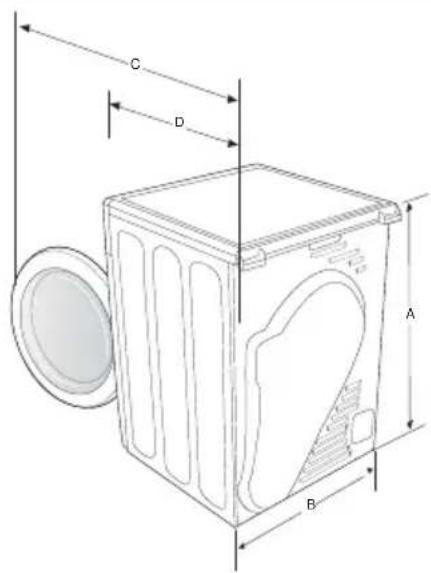

11 Location considerations

12 Alcove or closet installation

12 Electrical requirements

12 Grounding

13 Installation side by side

13 Final installation checklist

14 Draining water without using the water tank

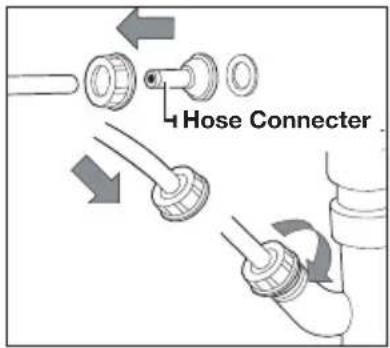

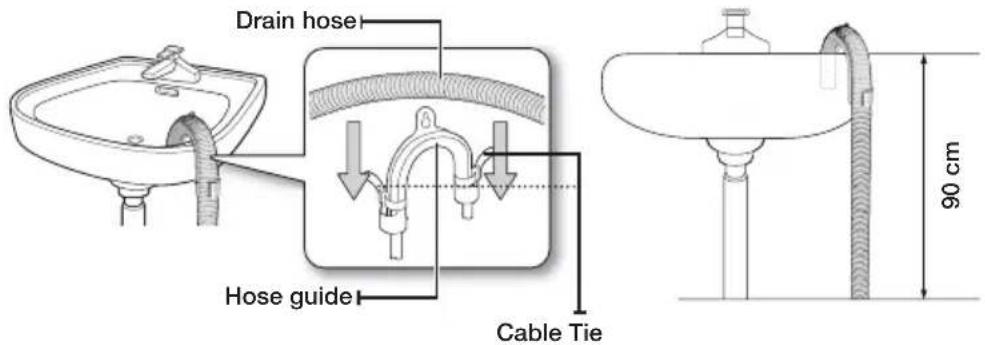

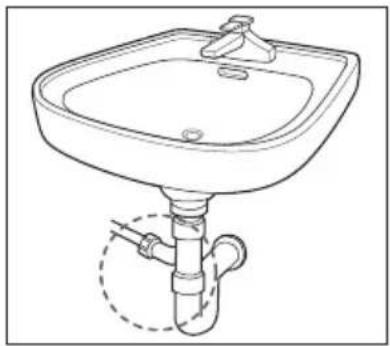

14 Connecting the drain hose

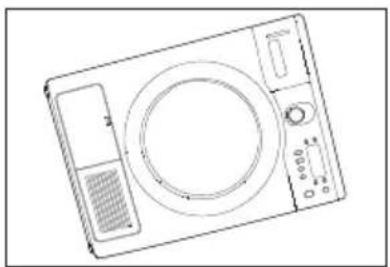

16 Installation stacking

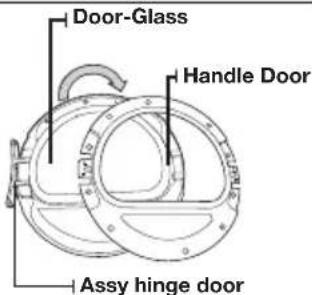

17 Door Reversal

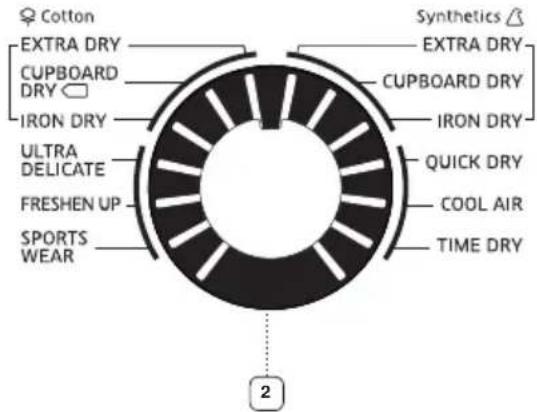

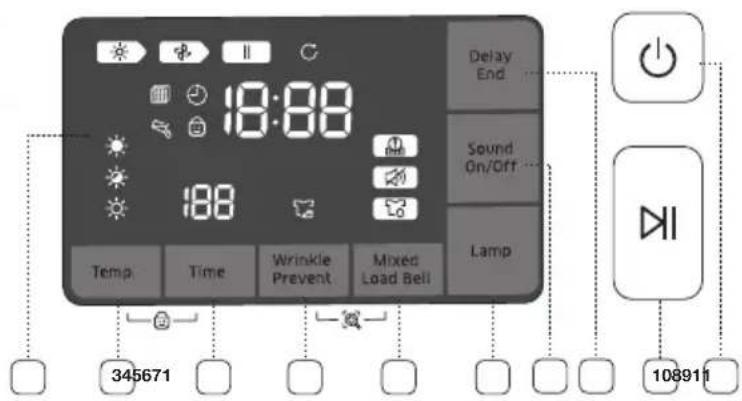

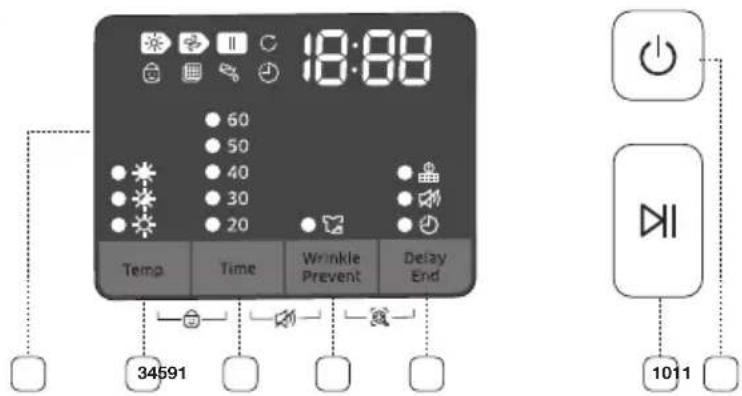

19 Overview of the control panel

22 Child lock

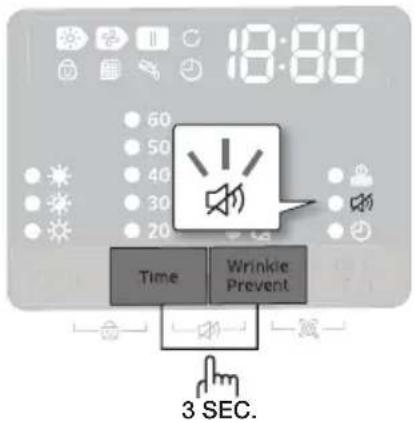

23 Sound on/off

24 Delay end

24 Interior lamp (on some models)

25 Smart check

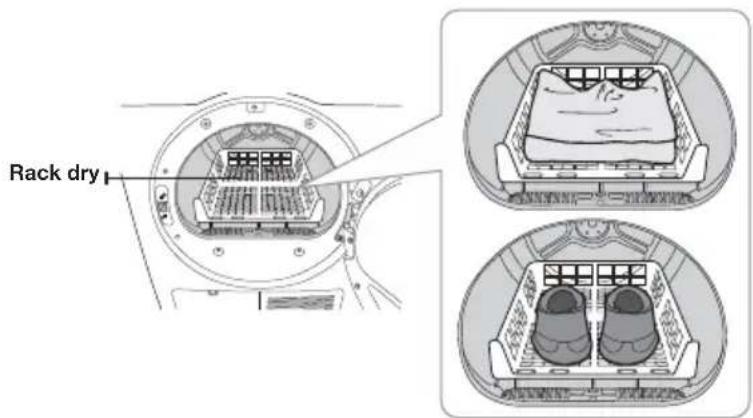

27 Rack dry (on some models)

28 Load the dryer properly

28 Getting started

29 Clean the filter case

29 Clean the condenser

29 Control panel

29 Tumbler

29 Stainless steel tumbler

29 Dryer exterior

30 Dumping condensed water (

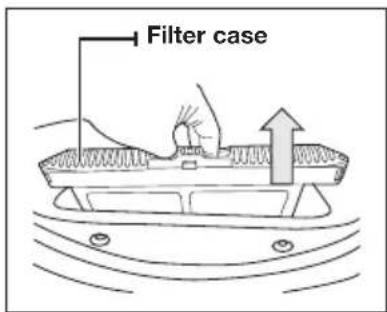

30 Cleaning the filter case ( [icon] )

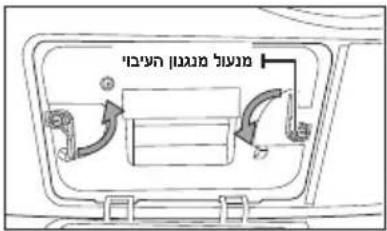

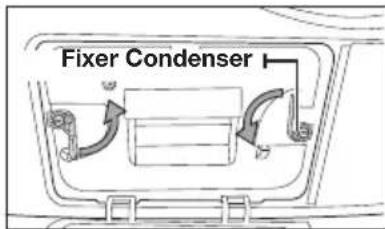

31 Cleaning the condenser assembly

32 Special laundry tips

33 Check these points if your dryer...

35 Information codes

36 Fabric care chart

37 Protecting the environment

37 Specifications

38 Cycle chart

39 Consumption data

safety information

Congratulations on your new Samsung Dryer. This manual contains important information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer's many benefits and features.

WARNING - Risk of Fire

• Clothes dryer installation must be performed by a qualified technician.
- Install the clothes dryer according to the manufacturer's instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

WARNING	Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION	Hazards or unsafe practices that may result in minor personal injury or property damage.
CAUTION	To reduce the risk of fire, explosion, electric shock, or personal injury when using your dryer, follow these basic safety precautions:
	Do NOT attempt.
	Do NOT disassemble.
	Do NOT touch.
	Follow directions explicitly.
	Unplug the power plug from the wall socket.
	Make sure the machine is grounded to prevent electric shock.
	Call the service center for help.
	Note
	Read the instructions

WARNING
CAUTION
CAUTION

These warning icons are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

Read all instructions before using the appliance.

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. For use in Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
6. For appliances with ventilation openings in the base, that a carpet must not obstruct the openings.
7. For use in Europe: Children of less than 3 years should be kept away unless continuously supervised.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
9. The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

10. The lint trap has to be cleaned frequently, if applicable.

11. Lint must not to be allowed to accumulate around the tumble dryer. (not applicable for appliances intended to be vented to the exterior of the building)

12. Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
13. Do not dry unwashed items in the tumble dryer.
14. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
15. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
16. Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
17. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
18. Remove all objects from pockets such as lighters and matches.
19. WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
20. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
21. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
22. Heat pump model only : The instructions shall also include the substance of the following:
    WARNING: In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.
    WARNING: Do not damage the refrigerant circuit.

The installation of this appliance must be performed by a qualified technician or service company.

- Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.

Plug the power cord into a wall socket that meets local electrical specifications. Use the socket for this appliance only, and do not use an extension cord.

• Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire.
• Ensure that the power voltage, frequency and current are the same as those of the product specifications. Failure to do so may result in electric shock or fire. Plug the power plug into the wall socket firmly.

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or fire.

Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over its head, it may result in suffocation.

This appliance must be properly grounded.

Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

• This may result in electric shock, fire, an explosion, or problems with the product
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes.

Do not install or keep the product exposed to the outdoor elements.

Do not use a damaged power plug, damaged power cord or loose wall socket.

- This may result in electric shock or fire.

If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified technician in order to avoid a hazard.

This appliance should be positioned to be accessible to the power plug after installation.

Do not pull or excessively bend the power cord.

Do not twist or tie the power cord.

Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• This may result in electric shock or fire.
  Do not pull the power cord, when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or fire.

This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes. See installation instructions for grounding this appliance.

Install this appliance in a location with solid, level floor.

- Failure to do so may result in abnormal vibrations, noise or problems with the product.

Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger so that dew may appear on the outer surface of the appliance when the cooling operation is running, do not install the appliance in a beauty salon.

This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are accessible.

Do not let children or pets on or into the product. In addition, when disposing of this product, disassemble the door lock (lever).

• This may result in children falling and injuring themselves.
• If children become locked in the product, there is a danger of suffocation.

Do not try to access the inside of the product when the drum is rotating.

Do not sit on the product or lean against the door.

- This may result in the product turning over and resulting in injury.

Dry the laundry only after it was spun by an appropriate washing machine.

Do not dry unwashed items in the tumble dryer.

Do not drink the condensed water.

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene, benzene, thinner, alcohol, etc.

• This may result in electric shock, fire or explosion.
  Do not let pets chew or play with the dryer.
• This may result in electric shock or injury.

When disposing of the product, separate the door and the power cord before disposing of the product.

- Failure to do so may result in damage to the power code or injury.

Do not touch the power plug with wet hands.

- This may result in electric shock.

When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power cord, ventilate immediately.

• At this time, do not use the ventilating fan.
• A spark may cause an explosion or fire.

Do not repair, replace, or attempt to service any part of the appliance unless specifically recommended in the user-repair instructions. You must also have the skills necessary to service this appliance.

Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse(such as copper, steel wire, etc.) other than the standard fuse.
• When repairing or reinstalling the appliance is required, contact your nearest service center.
• Failure to do so may result in electric shock, fire, problems with the product, or injury.

The product you have purchased is designed for domestic use only.

The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.

If the product generates strange noise, smells of something burning, or generates smoke, immediately cut-off the power and contact the service center.

- Otherwise, it may cause an electric shock or fire as a result.

Do not let children (or pets) play in or on your product. The product door does not open easily from the inside and children may be seriously injured if trapped inside.

Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in electric shock, fire, problems with the product, or injury.

Do not touch the glass door and inside of the drum during or just after drying as it is hot.

- This may result in burns.

Do not press the buttons using sharp objects such as pins, knives, fingernails, etc.

- This may result in electric shock or injury.

Do not dry laundry containing forming rubber (latex) or similar rubber textures.

- If forming rubber is heated, it may start a fire.

Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil will not be removed when washing the laundry. In addition, use the Cool Down cycle so that the laundry is not heated.

- The oxidization heat of the oil may start a fire.

Make sure that the pockets of all clothing to be dried are empty.

- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.

Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and eyelets, button-up covers).

If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt, apron strings, and underwire bras which can dissolve or break during a cycle.

Recommend against using drying sheets to reduce static electricity as this could lead to damage to your laundry and also potential damage to the appliance.

- This may result in damage to the laundry.

Do not use the dryer near dangerous powders such as coal dust, wheat flour, etc.

- This may result in electric shock, fire or an explosion.

Do not place inflammable materials near the product.

- This may result in toxic gases from the product, damage to parts, electric shock, fire or an explosion.

- The appliance should not be placed behind lockable doors etc.

Do not touch the rear side of the appliance during or immediately after drying is complete.

- The appliance remains hot, resulting in a burn.

Do not clean the appliance by spraying water directly onto it.

Do not use benzene, thinner or alcohol to clean the appliance.

- This may result in discolouration, deformation, damage, electric shock or fire.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failure to do so may result in electric shock or fire.

Clean the filter case before and after using the dryer.

Clean the inside of the product on a regular basis by asking an authorized service engineer.

Clean the condenser with water once a month.

The interior of the dryer should be cleaned periodically by qualified service personnel.

installing your dryer

UNPACKING YOUR DRYER AND INSTALLING GUIDE

Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup, adjustment, and connection, it is considered the responsibility of the installer. It is recommended that a professional is called to install this appliance, especially for more difficult installations involving draining to the mains water supply or product stacking. If problems of installation result in a service visit to fix a fault, this is typically considered to be the responsibility of the installer.

Make sure you have everything necessary for proper installation (AC 220-240 V 50 Hz).

A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements (See page12).

SEE DRYER EXTERIOR

Parts

Hose guide

Cable tie

Hose connector

Long drain hose (2m) Manual book

CHECK BEFORE INSTALLING

• Do not plug the power cord into the wall outlet before completing the dryer installation.
• Check the appearance of the product for any damaged parts before starting the product installation.
• If there are any parts that appear to be damaged, please contact your nearest Samsung Customer Service Center.
• When moving the product, do not move the product by yourself.
  • Take care of the edges of the dryer as they can be sharp.
• Do not install the dryer in a location exposed to frost. Cold water may damage the product.
• Use the product indoors only.
• Do not place the dryer on one side when lifting it, and do not move the dryer in such a way that the internal parts shake. This may result in damage to the internal parts of the product.

BEFORE USING THE PRODUCT

• Check if there are any accessories remaining inside the drum.
• Plug in the power cord just before operating the product.
• Do not block the air inlet hole of the cooling grill at the front of the dryer.
• Do not place inflammable objects near the dryer and keep the surroundings clean.
• Keep the dryer level with the ground.
• Do not remove the adjustable levelling feet of the dryer. They are necessary to keep the product level with the ground.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept for future reference.

REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD SUFFOCATING.

LOCATION CONSIDERATIONS

Because a condensing type has been adopted, which condenses and processes air inside the dryer, external ventilation is not required.

Therefore, The dryer can be installed and used in any location where the temperature is between 5 and 35 degrees centigrade, unlike a conventional dryer that requires an external exhaust system.

installing your dryer

ALCOVE OR CLOSET INSTALLATION

To operate safely and properly, your new Dryer requires minimum clearances of:

Sides - 25 mm Rear - 51 mm

Top - 25 mm Front - 465 mm

If both the washing machine and a dryer are installed together, the front of the alcove or closet must have at least 465 mm unobstructed air opening.

ELECTRICAL REQUIREMENTS

Electrical Requirements is AC 220\~240 V / 50 Hz.

- Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is properly grounded. Do not modify the plug provided with your dryer – if it doesn't fit the outlet, have a proper outlet installed by a qualified electrician.

- To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with local codes, or in the absence of local codes, It is your responsibility to provide adequate electrical services for your dryer.

GROUNDING

Your dryer must be grounded. If your dryer malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.

Your dryer comes with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Improperly connecting the equipment-grounding conductor can result electrical shock.

Check with a qualified electrician or serviceman if you are unsure if the dryer is properly grounded. Do not modify the plug provided with the dryer. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

If the product is not grounded, there is a danger of fire or electric shock.

For proper installation, we recommend that you hire a professional. To install:

1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side-by-side. Lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it will lay across both cushion-tops.
2. Set your dryer back in an upright position.

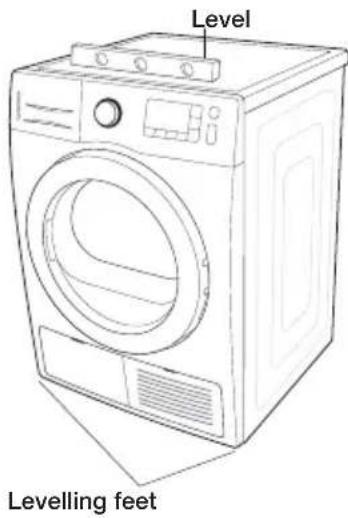

3. To ensure that the dryer provides optimal drying performance, it must be level. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

To set the dryer to the same height as the washer, fully retract the levelling feet by turning them counterclockwise, then loosen the legs by turning them clockwise.

Adjust the levelling feet only as much as necessary to level the dryer. Extending the levelling feet more than necessary can cause the dryer to vibrate.

1. Review Electrical Requirements section (See page 12). BEFORE OPERATING OR TESTING.
2. With a level, check your dryer and make necessary adjustments to the levelling legs.
3. Plug in your dryer, and check operation by using the checklist below.

FINAL INSTALLATION CHECKLIST

☐ Dryer is plugged into electrical outlet and is properly grounded.
☐ Dryer is leveled and is sitting firmly on the floor.
☐ Start your dryer to confirm that it runs, heats, and shuts off.

installing your dryer

DRAINING WATER WITHOUT USING THE WATER TANK

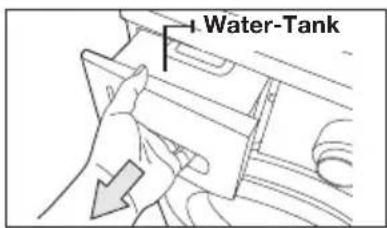

You can use the dryer without using the water tank by following the procedures below.

CONNECTING THE DRAIN HOSE

The Dryer can pump the condensed water outside of the DRYER directly with drain hose provided.

The procedures to connect the drain hose are as follows.

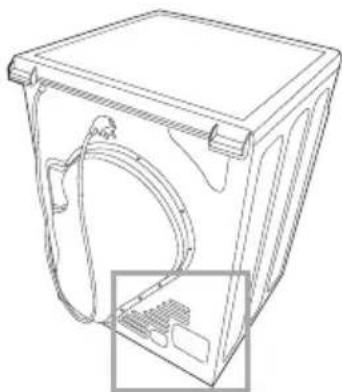

Technical line drawing of a mechanical housing or enclosure with internal components and a magnified inset showing internal structure (no text or symbols)

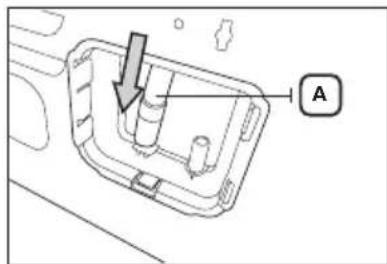

1. Disconnect the drain hose A.

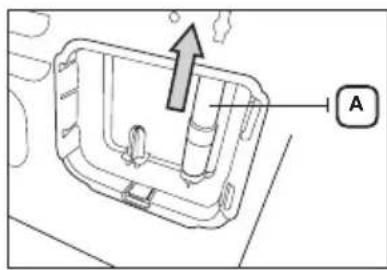

1. Connect the drain hose A to the other part.

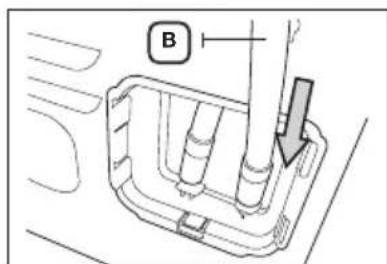

1. Connect accessory hose (long drain hose) B to the hole next to the part that is connected to drain hose A.

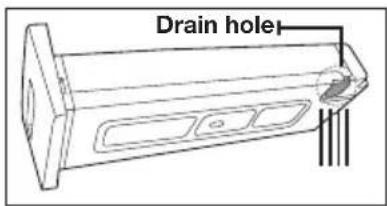

- Because the dryer's drain pump can only pump up the drain water to 90 cm height, when you connect the drain hose B to the drain point, make sure that the height of drain point does not exceed 90 cm. A drainage error may occur if the drain point exceeds 90 cm. If a drainage error occurs, the control panel di

- After connecting the drain hose, you can directly drain the condensed water via the drain-outlet through the connected drain hose or through the washstand or the drain-outlet of the washstand.

Connecting the drain hose

The end of the drain hose can be positioned in three ways:

1. Over the edge of a wash basin: The drain hose must be placed lower than 90 cm. If the end of the drain hose needs to be placed above the ground, we recommend a height of 60 cm \~ 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose from moving.

1. Assemble the drain hose and the hose guide and fix them with the cable-tie.
2. You can drain the condensed water by connecting the accessory hose (long drain hose) to the drain-outlet directly.

Connecting the direct-hose

You can immediately drain the condensed water that comes out while drying, by connecting the drain hose to the tap.

1. Assemble the hose connector and the hose.

Since there is a danger of water leaking from the hose connector and accessory hose, make sure that they are connected firmly.

1. Connect the end of the hose to the tap.

Line drawing of a square sink with a pipe fitting and a handle, showing no text or symbols.

installing your dryer

INSTALLATION STACKING

In case of purchasing the additional stacking kit, contact our Samsung service center or local distributors. [Part no. SK-DH / SK-DA / SKK-DF] The stacking kit differs depending on the model.

1. Carefully lay the dryer on its side. Use the packing material so you don't scratch the finish on the dryer.

Line drawing of a vintage washing machine with control panel and fan (no text or symbols)

1. Install rubber pads to dryer base.

2. Locate the 4 rubber pads in the parts package. Insert the rubber pads into the holes at the bottom of the levelling legs.
   • Purchase the stacking-kit package additionally.

Technical line drawing of a door with a circular knob and a scale ruler (no text or symbols)

1. Set the dryer upright.

The stacking kit can only be installed for Samsung family products.

1. Install bracket to dryer.

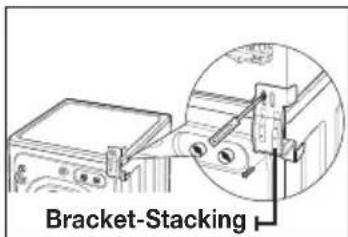

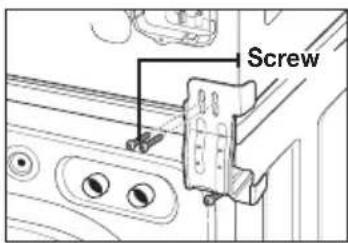

- Remove washer top cap screw from the rear left. Align left bracket holes with top cap screw hole on rear left of the unit and replace screw.

Leave screw loose so dryer hole alignment will be easier.

- Repeat the above step with the right side.

1. Install dryer and bracket on washer

- Lift the dryer on top of the washer. Protect the washer control panel with cardboard or other protection. Be sure to lift the dryer high enough to clear the washer control panel.

- More than two people are recommended to lift the dryer into position because of its weight and size. Failure to do so could result in injury.

- Align the holes in the bracket with the holes in the back of the dryer. Using a screwdriver, attach the M4x12 tapping screws.

- Tighten the washer bracket screws; then tighten all stacking kit screws.

6. Finalise the installation

• Refer to the washer Installation Instructions to complete the washer installation.
• Refer to the dryer Installation Instructions to complete the dryer installation.
• Carefully slide or walk the stacked washer and dryer into place. Use felt pads or other sliding device to assist moving and to protect flooring.
  Do not push on the dryer once installed to top of the washer. Pushing on the dryer may result in pinched fingers.

DOOR REVERSAL

Depending on your requirements (installation location, space constraints), you can change the direction the door opens.

This is done according to the customer's needs. The qualified technician or customer can do this themselves directly.

1. Unplug the power cord.
2. Remove the two screws from the door-hinge.
3. Lift the door to separate it.

1. Remove the 16 screws. Disassemble the air seal and remove the 6 screws. (Only for Crystal Gloss door models)

Diagram of a circular mechanical or electrical component with internal bands and a central shaft (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Crystal Gloss Door

1. After removing the screw, rotate the Assy hinge door, the handle door by 180^ as shown in the figure. Caution • Work carefully so that the door-seal is not removed.

Diagram of a mechanical device with a blue cable and circular housing (no text or symbols)

Crystal Gloss Door

1. Fasten the 16 screws in the correct positions. Fasten the 6 screws and replace the air seal. (Only for Crystal Gloss door models)
2. Note that two of the screws have a different length from the others. (Use the longer screws for the door-lever.)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

installing your dryer

1. Move the position of the screw at the back of the door-hinge.

Technical line drawing of a mechanical component with no visible text or symbols

1. Fasten the screw in the bottom hole.

Technical line drawing of a mechanical component with a circular feature and a pointer (no text or symbols)

1. Remove the two screws holding the front-frame at the left.
2. Remove the two screws holding the holder-lever at the left.

1. Now, move to the right side of the product and fasten the two screws holding the front-frame and the two screws holding the lever-holder.

Diagram of a mechanical component with a tool inserted, showing no text or symbols

1. Align the door with the fixing holes.
2. Fasten the two screws holding the door-hinge.

You can restore the direction the door opens by following the procedures above, if necessary.

operating Instructions, tips

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

OVERVIEW OF THE CONTROL PANEL

DV8 Series

DV7 Series

1 Digital Graphic Display

Displays the remaining drying cycle time, all cycle information, and error messages. The display window shows the estimated time remaining in the cycle after you have pressed the Start/Pause button. The estimated time remaining may fluctuates as the cycle progresses.The Drying light will illuminate and remain lit until the cycle is complete.When your dryer is in the cool-down phase, the Cooling light will illuminate. When your dryer is in the Wrinkle Prevent phase, the “Wrinkle Prevent light” will illuminate.When the cycle is complete, “End” (or “0”) will appear in the display panel until you push the Start/Pause button or the Power button. If your dryer is paused during a cycle, the indicators will light up until you press the Start/Pause button.

operating Instructions, tips

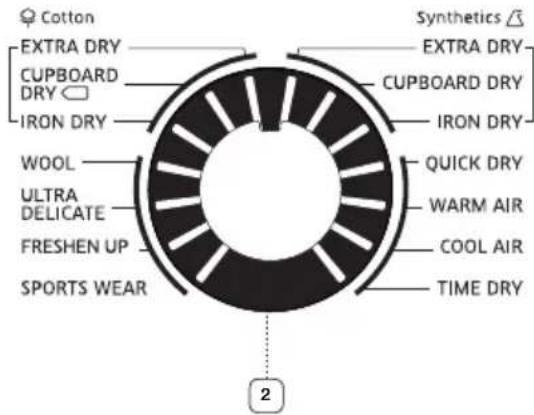

2 Cycle Selector	When you turn on your dryer, the [Cotton] CUPBOARD DRY cycle is selected as default.Turn the Cycle Selector to select the cycle you want.Cotton- For averagely or lightly soiled cottons, bed linen, table linen, underwear, towels, shirts, etc.·EXTRA DRY - Use for heavy-duty fabrics or items that should be very dry.·CUPBOARD DRY - Use this cycle to dry loads such as cotton, underwear, and linen (NOT appropriate for jeans).·IRON DRY - Finishes the dry cycle in a moist state appropriate for Ironing.Synthetics- For averagely or lightly soiled blouses, shirts, etc., made of polyester (diolen, trevira), polyamide (perlon, nylon) or other similar blends.·EXTRA DRY - Use for heavy-duty fabrics or items that should be very dry.·CUPBOARD DRY - Use this cycle to dry loads such as shirts, blouses, bed linen and table linen. (NOT appropriate for jeans).·IRON DRY - Finishes the dry cycle in a moist state appropriate for Ironing. QUICK DRY- 29 min is automatically set as the drying time.WARM AIR- For small items, pre-dried laundry and normal fabrics in 20 minutes. (DV8 Series)COOL AIR- For all fabrics to need freshing tumbles without heating.TIME DRY- Time Dry allows you to select the desired cycle time.Turn the cycle selector dial to TIME DRY, then press Time Button to set the drying time. Press the Time button repeatedly to scroll through the time settings. The drying time increase in every 20 minutes up to 90 minutes.After drying the laundry with the normal airy dry cycle, and you feel that the laundry has not dried completely, you can extend the drying time using the TIME DRY cycle.After drying the laundry using a drying cycle, and you feel that the laundry has not dried completely, you can extend the drying time using the TIME DRY cycle.WOOL- For machine washable and tumble dryable wool only. (DV8 Series)For better drying results, turn the laundry inside out before drying it. Overloading the dryer may not yield the same results. For the Max Load of each drying course, refer to the Cycle Chart in the appendix.ULTRA DELICATE- The Delicates cycle is designed For lingeries.FRESHEN UP- With this cycle the odors can be removed and especially this cycle freshens garments.SPORTS WEAR- Use for light sportswear such as sweatsuit.
3 Temp. button	Press this button repeatedly to cycle through the available temperature level for the drying. (●: high, Mid., : Low)
4 Time button	When using TIME DRY, WARM AIR, COOL AIR cycles, time can be adjusted by pressing the Time button.20 min → 30 min → 40 min → 50 min → 60 min → 70min → 80 min → 90 min (DV8 Series)20 min → 30 min → 40 min → 50 min → 60 min (DV7 Series)Except the TIME DRY, QUICK DRY, WARM AIR, COOL AIR cycle, the time indicator of manual is off because exact drying times are determined by fluctuating humidity levels.

5	Wrinkle Prevent button	Wrinkle Prevent provides approximately 60 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. Press the Wrinkle Prevent button to activate this feature.The indicator light above the pad will illuminate when Wrinkle Prevent is selected. Dried laundry is prevented from becoming wrinkled by periodic drum rotations after the completion of the drying course. (Even after "End" (or "0") is displayed, the drum rotates intermittently.)
6	Mixed Load Bell button	This is an alarm that notifies the user when the average drying level is damp dry (80 % dried) when the laundry contains various types of materials and fabric.If the corresponding condition is satisfied, the Mixed load bell LED blinks
7	Lamp button	Lights the dryer drum while the dryer is running.It can be set while your dryer is not only running but also when it is stopped.If you do not turn the Drum Light off within 5 minutes of turning it on, it is automatically turned off.
8	SoundOn/Off button	The Sound On/Off function can be selected during all courses. When this function is selected, sound is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is retained.For DV7 Series model, press the Time and Wrinkle Prevent buttons at the same time for 3 seconds.
9	Delay End button	Press this button repeatedly to cycle through the available Delay End options. (from 1 hours to 19 hours in one hour increments).The hour displayed indicates the time when the dry cycle will be finished.See page 24 for detail.
10	Start/Pause button	Press to start a dry cycle. If the dryer is running, press it once and it will pause the dryer. Press it again to restart the dry cycle.
11	Power button	Press once to turn your dryer on, press again to turn it off. If your dryer is left on for more than 10 minutes without any buttons being touched, the power automatically turns off.

If you insert laundry into your dryer while it is extremely tangled immediately after your washer has finished a wash or spin cycle, it may degrade the drying efficiency or cause the door to open. We recommend that you disentangle your laundry appropriately before inserting it.

Each indicator on the graphic display means:

	Drying in Progress Temp. 3 (High)
	Cooling in Progress Temp. 2 (Mid.)
	Stop Temp. 1 (Low)
	Filter Check Condenser Clean Alarm
	Delay End Sound On/Off
	Dumping Condensed Water Mixed Load Bel
	Child Lock On/Off Smart Check

operating Instructions, tips

CHILD LOCK

A function to prevent children from playing with your dryer.

Activating/Deactivating

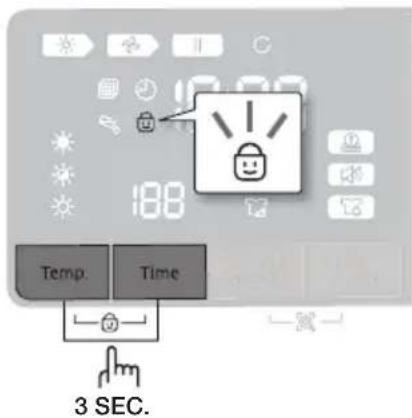

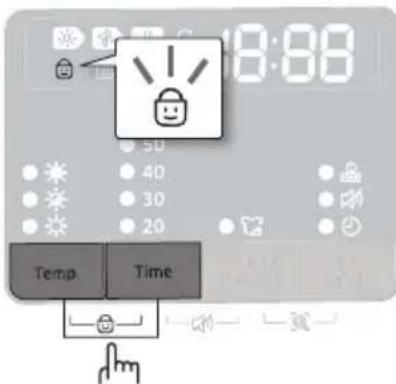

If you want to activate or deactivate the Child Lock, press both the Temp. and Time buttons simultaneously for 3 seconds.

The "Child Lock 🔒" will be lit when this feature is activated.

• When the power is turned on, the Child Lock function is available.
• Once you set the Child Lock function, no button, except for the Power button, will respond until you release the Child Lock function.
• If the dryer is powered on again, the Child Lock function stays on.
• When other buttons, except for the Power button, do not respond, check the "Child Lock" indicator to see if the function is on.

DV8 Series

DV7 Series

3 SEC.

SOUND ON/OFF

The Sound On/Off function can be selected during all courses. When this function is selected, sound is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is retained.

Activating/Deactivating

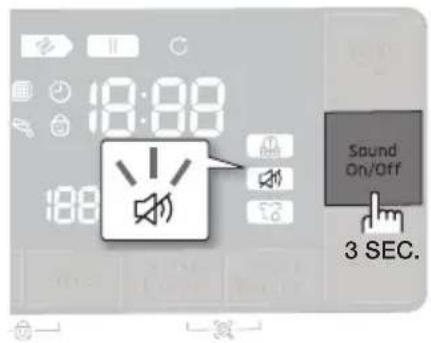

If you want to activate or deactivate the Sound On/Off function, press the Sound On/Off button.

DV8 Series

DV7 Series

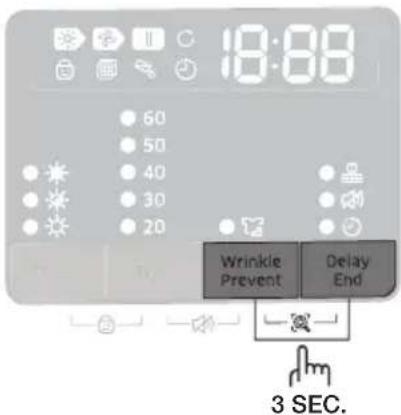

If you want to activate or deactivate the Sound Of function, hold down the Time and Wrinkle Prevent buttons at the same time for 3 seconds.

The "Sound On/Off" indicator will light up when this feature is activated.

DELAY END

You can set the dryer to finish your drying cycle automatically at a later time, choosing a delay of between 1 to 19 hours (in 1 hour increments). The hour displayed indicates the time at which the dry will be finished.

The Delay End settings range from 1 hour to 19 hours, depending on the course.

1. Manually or automatically set your drying machine according to the type of laundry you are drying.
2. Press the Delay End button repeatedly until the required delay time is set. If the delay time is set, the "Delay End" function becomes ON state.
3. Press the Start/Pause button. The "Delay End ⏻" indicator will blink and the clock will begin counting down until it reaches the set time.
4. To cancel a Delay End function, press the Power button and then turn the dryer on again.

INTERIOR LAMP (ON SOME MODELS)

Lights the dryer drum while the dryer is running.

Setting & releasing

If you want to set or release the Interior Lamp, press both the Lamp buttons simultaneously.

This can be set as long as the power is turned on. If you do not turn the Drum Light off within 5 minutes of turning it on, it is automatically turned off.

This function enables you to check the status of the dryer using a smartphone.

The Smart Check function has been optimized for: Galaxy & iPhone series (cannot be supported for some models)

Downloading the Samsung Smart Washer app

Download the Samsung Smart Washer app to your mobile phone from the Android market or Apple App store and install it. You can easily find it by searching for "Samsung Smart Washer".

Using the Smart Check function

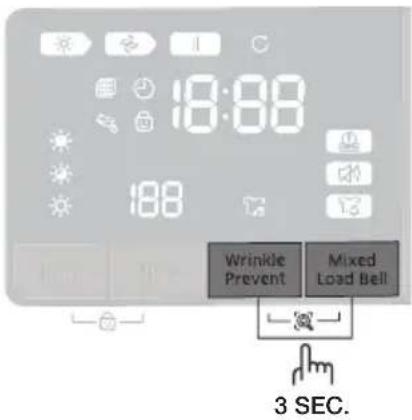

1. Hold down the Wrinkle Prevent and Mixed Load Bell or Wrinkle Prevent and Delay End buttons at the same time for 3 seconds when an error occurs to run the Smart Check function. Alternatively, the Smart Check function can be run if no button is pressed after the dryer is turned on.

2. The LED segments on the display panel rotate for 2 or 3 seconds and the Smart Check code is displayed on the dryer's display panel.

DV8 Series

DV7 Series

operating Instructions, tips

1. Run the Samsung Smart Washer app on your smart phone and tap the Smart Check button.

‘Smart Check’ may be changed to ‘Smart Care’ according to the language selection.

1. Focus your smart phone's camera on the Smart Check code displayed on the dryer's display panel.

2. If light from a light bulb, fluorescent bulb or lamp is reflected on the display panel of the dryer, the smart phone may not be able to easily recognize the Smart Check code.

3. If you hold the smart phone at a too wide angle relative to the front of the display panel, it may not be able to recognize the error code. For best results, hold the smart phone so that the front of the display panel and the smart phone are parallel or nearly parallel.

4. If it focuses correctly, the Smart Check code is automatically recognized, and the detailed information of the status of your dryer, the error and the countermeasures are displayed on your smart phone.

5. If the smart phone fails to recognize the Smart Check code more than twice, please enter the Smart Check code displayed on your dryer's display panel into the Samsung Smart Washer app manually.

Installing the drying rack

1. Open the dryer door.
2. Position the drying rack in the tumbler, placing the front lip of the drying rack on the top of the lint filter case.
3. Place the items to be dried on the rack, leaving space between them so air can circulate.
4. Close the dryer door.

5. Press the Power button.

6. Select TIME DRY by using the cycle selector dial, set the time and then press the Rack Dry button.

• You can set a drying time up to 90 minutes. The temperature setting is automatically set to Low and cannot be changed. Select the time according to the moisture and weight of the items. Start dryer. It may be necessary to reset the timer if a longer drying time is needed.

• If do not select TIME DRY cycle, Rack Dry function is not selected.

• Press the Start/Pause button.

SUGGESTED ITEMS REMARKS (MAX 1.5 kg)

Washable sweaters(block to shape and lay flat on rack)	When drying the laundry using the Rack, fold and place the clothes on the Rack to prevent the clothing from becoming wrinkled.
Stuffed toys(cotton or polyester fiberfilled)
Stuffed toys(foam or rubber-filled)
Foam rubber pillows
Sneakers	To dry sports shoes, place the shoes on the Rack so that the soles of the shoes are facing downwards.

Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the items and lead to a fire hazard.

Since damage may result when drying shoes, use the Rack Dry course to dry shoes.

operating Instructions, tips

LOAD THE DRYER PROPERLY

• Place only one washload in your dryer at a time.
• Mixed loads of heavy and lightweight fabrics will dry differently, which may result in lightweight fabrics being dry while heavy fabrics remain damp at the end of a drying cycle.
• Add one or more similar items to your dryer when only one or two articles of clothing need drying. This improves the tumbling action and drying efficiency.
• Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics.
• Make sure to insert laundry that has been spun by an appropriate washing machine.
• No unwashed textiles should be dried
• Textiles which have been in contact with oil, alcohol, petrol etc. should not be dried.

GETTING STARTED

1. Load your dryer loosely - DO NOT overload.
2. Close the door.
3. Select the appropriate cycle and options for the load (see pages 22, 25).
4. Press the Start/Pause button.
5. The dryer indicator light will illuminate.
6. The estimated cycle time will appear in the display. The time may fluctuate to better indicate drying time remaining in the cycle.

• When the cycle is complete and "End" (or "0") will appear in the display.
• Pressing Power cancels the cycle and stops your dryer.
• The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those portions of the cycle.

care and cleaning

CLEAN THE FILTER CASE

• After each load.
  • To shorten drying time.
  • To operate more energy efficiently.

Do not operate your dryer without the filter case in place.

There is a danger of damaging the laundry when drying laundry without the filter case.

CLEAN THE CONDENSER

• Clean once a month
• Clean with water

If you do not clean it for a long time, the drying performance may be degraded.

CONTROL PANEL

Clean with a soft, damp clothes. Do not use abrasive substances.

Do not spray cleaners directly on the panel.

The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products.

Apply such products away from your dryer and wipe up any spills or overspray immediately.

TUMBLER

Remove any stains such as crayon, ink, or fabric dye (from new items such as towels or jeans) with an all-purpose cleaner.

Tumble old towels or rags to remove any excess stain or cleaning substance.

Once these steps are followed, stains may still be visible, but should not transfer to subsequent loads.

STAINLESS STEEL TUMBLER

To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel surfaces.

Remove the cleaner residue and dry with a clean cloth.

DRYER EXTERIOR

The entire dryer has a high-gloss finish. Clean with a soft, damp cloth. Do not use abrasive substances. Protect the surface from sharp objects as they may scratch or damage the finish.

Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased pedestal or in a separate storage box.

DUMPING CONDENSED WATER (9%)

1. Pull the water-tank forwards to separate it.

When removing the water tank from the product, hold the water tank using both hands as it is heavy and take care not to spill any water inside the tank. Otherwise, it may cause an injury to your wrist.

1. Remove the condensed water inside the water-tank.

- Remove the condensed water in the tank after every drying operation.

Since there is a danger of water leaking if you do not drain the water after using the product, make sure to drain the water.

If you empty the water tank and press the Start/Pause button, the Water Tank Full ( ≤_b ) in the LED panel is turned off.

CLEANING THE FILTER CASE (图)

1. Open the door and remove the filter by pulling it upwards.

1. Open and clean the filter case.

- Clean the filter case after the drying operation is completed.

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

- Since the drying performance may be degraded and there is a danger of fire if you do not clean the filter case after the specified period of use, clean the filter case at the specified cleaning interval.

- Since the drying performance may be degraded and there is a danger of fire if you use a damaged or broken filter case, replace the filter case in this case.

- Clean the filter case after every drying operation.

- If the surface of the filter is wet, use the filter after drying it completely.

- If you clean the filter case and press the Start/Pause button, the Filter (☑) in the LED panel is turned off.

CLEANING THE CONDENSER ASSEMBLY

1. Open the condenser compartment cover.

Hand holding a tool with a curved arrow indicating rotation (no text or symbols)

1. Unlock the fixer condenser.

1. Remove the condenser.

Line drawing of a hand inserting a fan into a device (no text or symbols)

1. Clean the condenser completely under the tap letting water to flow through.

Illustration of hands holding a computer with a magnifying glass (no text or symbols)

• Since the drying performance may be degraded if you do not clean the condenser after a specified period of use, clean the condenser at the specified cleaning interval.
• Clean it at least once a month.
• When assembling the condenser after cleaning it, make sure to that the fixer condenser is set to the lock position.

special laundry tips

SPECIAL LAUNDRY TIPS

Please follow the care label or manufacturer's instructions for drying special items. If care label instructions are not available, use the following information as a guide.

Bedspreads & Comforters	Follow the care label instructions or dry on the Cotton Cupborad and High temperature.Make sure the item is thoroughly dry before using or storing.May require repositioning to ensure even drying.
Blankets	Use Cotton Cupborad and dry only one blanket at a time for best tumbling action.Make sure the item is thoroughly dry before using or storing.
Cloth Nappies	Use the Cotton Cupborad and the High temperature settings for soft,fluffy diapers.
Down-filled Items (jackets, sleeping bags, comforters, etc.)	Use the Cotton cupboard and the Low or Low temperature setting.Adding a couple of dry towels shortens drying time and absorbs moisture.
Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)	DO NOT dry on a heat setting. Use the COOL AIR cycle (no heat).WARNING – Drying a rubber item with heat may damage it or be a fire hazard.
Pillows	Use the Cotton Cupborad.Add a couple of dry towels to help the tumbling action and to fluff the item.DO NOT dry kapok or foam pillows in dryer. Use the COOL AIR cycle.
Plastics (shower curtains, outdoor furniture covers, etc.)	Use the COOL AIR cycle or the TIME DRY cycle and the Low or Low temperature settings depending on the care label instructions.

THINGS TO AVOID :

• Fiberglass items (curtains, draperies, etc.).
- Woolens, unless recommended on the label.
• Vegetable or cooking oil-soaked items.

CHECK THESE POINTS IF YOUR DRYER...

PROBLEM SOLUTION
Doesn't run.	Make sure the door is latched shut.Be sure the power cord is plugged into a live electrical outlet.Check the home's circuit breaker and fuses.Press the Start/Pause button again if the door is opened during the cycle.Empty the water in the condensed water tank.Clean the filter case.
Doesn't heat.	Check the home's circuit breaker and fuses.Select a heat setting other than cool air.Check the case filter and condenser and clean them if necessary.Dryer may have moved into the cool-down phase of the cycle.
Doesn't dry.	Check all of the above, plus...Do not overload. 1 wash load = 1 dryer load.Sort heavy items from lightweight items.Large, bulky items like blankets or comforters may require repositioning to ensure even drying.Check that the dryer is draining properly to extract adequate water from the load.Load may be too small to tumble properly. Add a few towels.Clean the filter case.Clean the Condenser.Check if the cooling air vent is blocked.
Is noisy.	Check the load for objects such as coins, loose buttons, nails, etc.Remove promptly.Be sure the dryer is leveled properly as outlined in the installation instruction.It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and fan.
Dries unevenly.	Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. Select the extra dry setting if desired.If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level. Sort heavy items from lightweight items for best drying results.
Has an odour.	Household odors from painting, varnishing, strong cleaners, etc. may enter the dryer with the surrounding room air. This is normal as the dryer draws the air from the room, heats it, pulls it through the tumbler, and exhausts it outside.When these odors linger in the air, ventilate the room completely before using the dryer.
Shuts off before load is dry	Dryer load is too small. Add more items or a few towels and restart the cycle.Dryer load is too large. Remove some items and restart the dryer.

troubleshooting

PROBLEM SOLUTION
Lint on clothes	Make sure the lint filter is cleaned before every load. With some loads that produce high amounts of lint, it may be necessary to clean the filter case during the cycle.Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they should be dried separately from clothes that are lint trappers (for example, a pair of black linen pants)Divide larger loads into smaller loads for dryingCheck pockets thoroughly before drying and drying clothes.
Garments still wrinkled after Wrinkle prevent	Small loads of 1 to 4 items work best.Load fewer garments.Load similar-type garments.
Odours remain in clothing after Refresh.	Fabrics containing strong odors should be washed.

INFORMATION CODES

Information codes may be displayed to help you better understand what is occurring with your Dryer.

ERROR DISPLAY	MEANING SOLUTION
tE	Clogged filter case is restricted. Clean	the filter case or condenser.If the problem continues call for service.
tE5
dE	Running the dryer with door open Close	the door and then restart.If the problem continues call for service.
bE	Button stuck for more than 30 secs Make sure a button is NOT beingpressedcontinuously. Try restarting the cycle.If the problem continues, call for service.
hE	Clogged filter case is restricted.Invalid heating Temp when runningthe dryer.	Clean the filter case or condenser.If the problem continues call for service
5E	The water tank is full of water.The drain pump is out of order.	Empty the water tank and start again.If the problem continues call for service.

For any codes not listed above, or if the suggested solution doesn't fix the problem, call your Samsung Service Centre or local Samsung dealer.

FABRIC CARE CHART

The following symbols provide garment care direction. The Clothing care labels include symbols for drying, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems.

Wash Cycle Special Instructions				Warning Symbols for Laundering
	Normal Line Dry/ Hang to	DryDo Not Wash
	Permanent Press / Wrinkle Resistant / Wrinkle Control		Drip Dry Do Not Wring
	Gentle/Delicates Dry Flat Do Not Bleach
	Hand Wash	Heat Setting			Do Not Tumble Dry
[25K2]			High		No Steam (added to iron)
...	Hot Medium Do Not Iron
	Warm Low
•	Cold Any Heat Dry Clean
Bleach			No Heat/Air Do Not Dry Clea
	Any Bleach (when needed)	IT			Line Dry/ Hang to Dry
	Only Non-Chlorine (color-safe) Bleach (when needed)		High Drip Dry
	Tumble Dry Cycle Medium	C at
Normal			Low
	Permanent Press/ Wrinkle Resistant/ Wrinkle Control
	Gentle/ Delicates

** The dot symbols represent appropriate wash water temperatures for various items. The temperature range for Hot is 41 \~ 52 °C, for Warm 29 \~ 41 °C and for Cold 16 \~ 29 °C. (Wash water temperature must be a minimum of 16 °C for detergent activation and effective cleaning.)

PROTECTING THE ENVIRONMENT

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

SPECIFICATIONS

TYPE FRONT LOADING DRYER
DIMENSIONS	A. Height	85.0 cm
	B. Width	60.0 cm
	C. Depth with door open 90°	110.9 cm
	D. Depth	60.0 cm
WEIGHT		42 kg
HEATER RATING		2500 W (1750 W+750 W)
POWER CONSUMPTION	NO HEAT	175 W
	HEATING	2675 W
ALLO WABLE TEMPERATURE		5 ~ 35 °C

CYCLE CHART

(● user option)

Cycle		Max load (kg) (Dry Laundry)		Temp	Wrinkle Prevent	Mixed Load Bell (Only DV8 Series)	Interior Lamp (Only DV8 Series)	Sound On/ Off	Delay End
		DV8 Series	DV7 Series
Cotton	EXTRA DRY	8	7	●	●			●
	CUPBOARD DRY			●	●			●
	IRON DRY			●	●	-	●	●	●
Synthetics	EXTRA DRY	4 3.5		●	●			●
	CUPBOARD DRY			●	●			●
	IRON DRY			●	●	-	●	●	●
WOOL * (Only DV8 Series)		1	1	-	●	-	●	●	●
ULTRA DELICATE		1	1	-	●	●		●	●
FRESHEN UP		1.5 1.5 -			●	-	●	●	●
SPORTS WEAR		1.5 1.5 -			●	●		●	●
QUICK DRY		1	1	-	●	-	●	●	●
TIME DRY		-	-	●	●	-	●	●	●
WARM AIR (Only DV8 Series)		-	-	-	●	-	●	●	●
COOL AIR		-	-	-	●	-	●	●	●

* Depending on the percentage of wool in the laundry, the time may extend up to 43 minutes

CONSUMPTION DATA

Model Program		Load (kg)*	Energy (kWh)	Max. Duration (Minutes)
DV8 Series	Cotton Cupboard **	8	4.70	145
		4	2.57	84
	Cotton Iron **	8	4.53	105
	Synthetics Cupboard	4	2.32	70
DV7 Series	Cotton Cupboard **	7	4.22	125
		3.5	2.31	81
	Cotton Iron **	7	4.04	95
	Synthetics Cupboard	3.5	2.15	68

1. * : Weight of dry laundry

** : EN 61121:2013 test program

1. All data without a "star" against it was calculated using EN 61121:2013

Consumption data can vary from the nominal values given above depending in the size of the load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity supply and any extra options selected.

SAMSUNG

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Line drawing of a square sink with a pipe fitting and a dashed circle indicating a gap or connection point (no text or symbols)

Line drawing of a microwave oven with control panel and fan (no text or symbols)

Technical line drawing of a door with a knob and handle (no text or symbols)

Pure diagram of concentric circular loops without any text, numbers, or symbols

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Diagram of a medical device with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a pin inserted (no text or symbols)

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Hand holding a tool or device with a curved handle, no visible text or symbols

Line drawing of a hand inserting a fan into a device (no text or symbols)

Illustration of hands holding a device with a magnifying glass (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Technical diagram of a mechanical component with no visible text or symbols

Line drawing of a square sink with a faucet and pipe fitting (no text or symbols)

.2

Line drawing of a microwave oven with control panel and fan (no text or symbols)

Technical line drawing of a door with a circular knob and handle (no text or symbols)

Pure diagram of concentric circular layers with no text, numbers, or symbols

Crystal Gloss n'

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

.הכלה 16הע'ר 4

Line drawing of a medical device with a blue arc and label (no text or symbols)

Crystal Gloss

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

.8

Technical line drawing of a mechanical component with a circular feature and a tool inserted (no text or symbols)

.9

Diagram of a medical device with a tool inserted, showing no text or symbols

12

.JOHN NEXO'YUN

.13

.14

.1

.2

•

Diagram of a mechanical device with a curved arrow indicating motion or force (no text or symbols present)

Hand holding a mechanical component with a curved handle (no text or symbols visible)

.1

Line drawing of a hand inserting a fan into a rack-mounted air vent (no text or symbols)

.3

Illustration of hands holding a device with a tool, no text or symbols visible
