Product Type	Electric Sonic Toothbrush
Brand	Philips
Model	ExpertClean 7300 HX9601
Handle Dimensions	Approximately 25 x 3 x 3 cm
Weight	Approximately 150 g
Power Supply	Rechargeable lithium-ion battery
Battery Life	Approximately 3 weeks (2 brushings per day)
Technology	Sonic up to 31,000 strokes/min
Brushing Modes	5: Clean, White, Gum Health, Deep Clean, Tongue Care
Pressure Sensor	Yes, visual and audible alert when pressure is too high
Timer	2-minute timer with QuadPacer (30 seconds per quadrant)
Charge Indicator	LED on handle (green, orange, red)
Water Resistance	IPX7 (submersible up to 1 meter for 30 minutes)
Maintenance	Rinse handle and brush head under water after each use; dry
Head Replacement	Every 3 months or when bristles splay
Compatible Heads	Philips Sonicare C2 Optimal White, C3 Premium Gum Health, etc.
Charger	Induction charger included, 110-240 V
Travel	Travel lock mode (hold power button 3 seconds)
Warranty	2 years
Disposal	Do not dispose of with household waste; removable battery for recycling

Frequently Asked Questions - ExpertClean 7300 HX9601 PHILIPS

How to charge the Philips ExpertClean 7300 toothbrush?

Place the handle on the induction charger. The LED light flashes during charging and becomes solid green when the battery is full. A full charge takes approximately 24 hours.

How to replace the brush head?

Pull the worn head upward to remove it. Snap on a new compatible Philips Sonicare head by pushing until it clicks. Replace every 3 months or sooner if bristles are worn.

How to clean my ExpertClean 7300?

Rinse the handle and brush head under running water after each brushing. For deep cleaning, wipe with a damp cloth. Do not use abrasive products. Remove the head to clean the metal shaft.

What do the different brushing modes mean?

Clean: standard brushing. White: stain removal. Gum Health: gum massage. Deep Clean: intense brushing. Tongue Care: tongue cleaning. Press the mode button to switch.

How does the pressure sensor work?

If you brush too hard, the handle emits a sound and the light turns orange. Reduce pressure so it turns green again. This protects your gums.

How long does the battery last?

A full charge provides approximately 3 weeks of use (2 two-minute brushings per day). The light turns orange then red when the battery is low.

How to use the timer and QuadPacer?

The toothbrush automatically stops after 2 minutes. The QuadPacer emits a short pause every 30 seconds to prompt you to change quadrants. You can disable QuadPacer by holding the mode button for 2 seconds.

Can I use my toothbrush in the shower?

Yes, the toothbrush is waterproof with IPX7 certification. You can use it safely in the shower. However, avoid intentionally submerging it in water.

What to do if the toothbrush does not turn on?

Check that the battery is charged. If it does not turn on after charging, try resetting by holding the power button for 10 seconds. If the problem persists, contact Philips service.

How to activate travel mode?

Hold the power button for 3 seconds until the light flashes rapidly. To deactivate, hold again for 3 seconds. This prevents accidental activation in luggage.

USER MANUAL ExpertClean 7300 HX9601 PHILIPS

Illustration of an open book with a grid pattern and a curved arrow pointing to it (no text or symbols)

English 6

Azərbaycanca 29

Čeština 54

Dansk 78

Deutsch 102

Eesti 129

Español 153

Français 178

Hrvatski 203

Italiano 228

Latviešu 253

Lietuviškai 276

Magyar 301

Nederlands 326

Norsk 351

O'zbek 374

Polski 399

Português 425

Română 450

Shqip 475

Slovenščina 500

Slovensky 523

Srpski 548

Suomi 572

Svenska 597

Türkmençe 620

Ελληνικά 644

Български 672

Кыргызча 699

Македонски 725

Русский 752

Точикй 781

Українська 808

Қазақша 834

Rwjtntu 859

Jusmygno 865 888

הכלה 916

Introduction

Welcome to the Philips Sonicare family! This toothbrush enables you to obtain superior plaque removal, whiter teeth and healthier gums. Using Sonicare's combination of gentle sonic technology and clinically developed and proven features, you can be confident that you're getting the very best clean, every time.

Further support and product registration are available to you at: www.philips.com/support

Important safety information

Only use the product for its intended purpose. Read this important information carefully before you use the product and its batteries and accessories, and save it for future reference. Misuse can lead to hazards or serious injuries.

Warnings

• Keep the chargers and UV sanitizer away from water.
• After cleaning, make sure the charger and/or sanitizer is completely dry before you connect it to the wall socket.
• This appliance can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• Only use original Philips accessories or consumables. Only use the charger provided with the product. If supplied, only use the original USB cable and USB power supply unit.
• This appliance contains no user-serviceable parts. If the appliance is damaged, stop using it and contact the Consumer Care Center in your country. Devices with cord only: If the cord is damaged, replace the charger with sanitizer with a new one.

• Do not use the charger and/or sanitizer outdoors or near heated surfaces.

• Do not clean any part of the product in the dishwasher.

• This appliance has only been designed for cleaning teeth, gums and tongue.
• Keep the sanitizer out of the reach of children at all times.
• Stop using the sanitizer if the UV light bulb remains on when the door is open. UV light can be harmful to the human eye and skin.
• Only operate the sanitizer with the protective screen in place.
• Do not touch the UV sanitizer's UV light bulb when it is hot.
• Stop using a brush head with crushed or bent bristles. Replace the brush head every 3 months or sooner if signs of wear appear.
• Avoid direct contact with products that contain essential oils or coconut oil. Contact may result in bristles dislodging.
• Stop using the appliance and consult your dentist/doctor if excessive bleeding occurs after use, if bleeding continues to occur after 1 week of use or if you experience discomfort or pain.
• If you have had oral or gum surgery in the previous 2 months, consult your dentist before you use this appliance.
• If you have a pacemaker or other implanted device, contact your doctor or the manufacturer of the implanted device prior to use.
• If you have medical concerns, consult your doctor before you use this appliance.
• This appliance is a personal care device and is not intended for use on multiple patients in a dental practice or institution.

Battery safety instructions

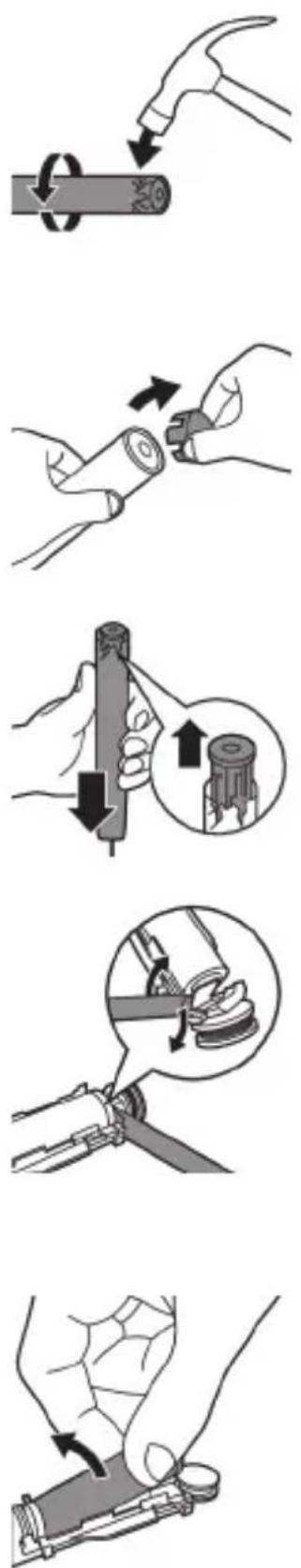

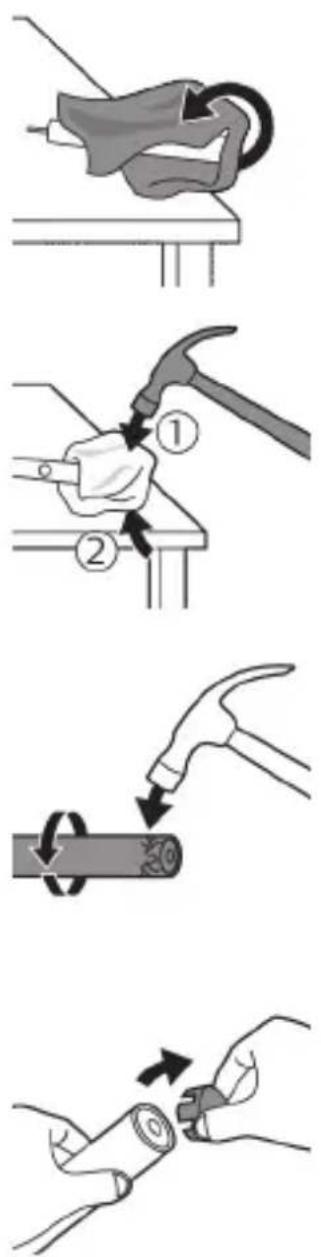

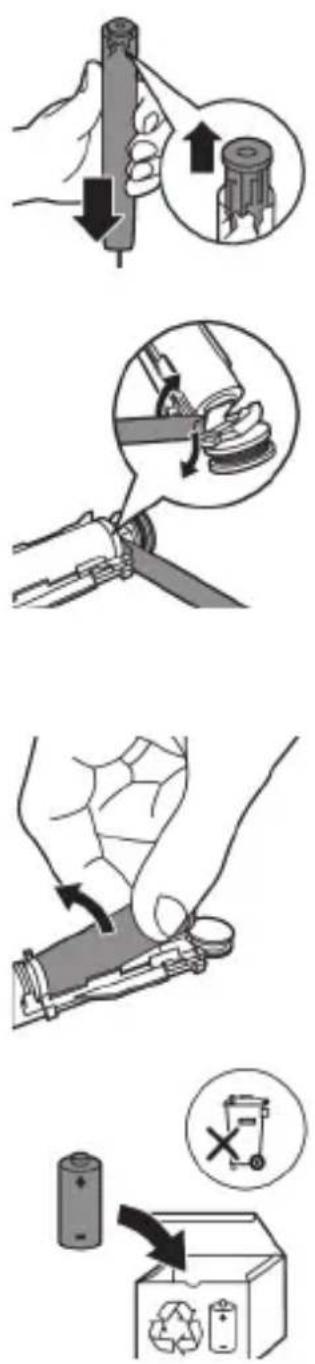

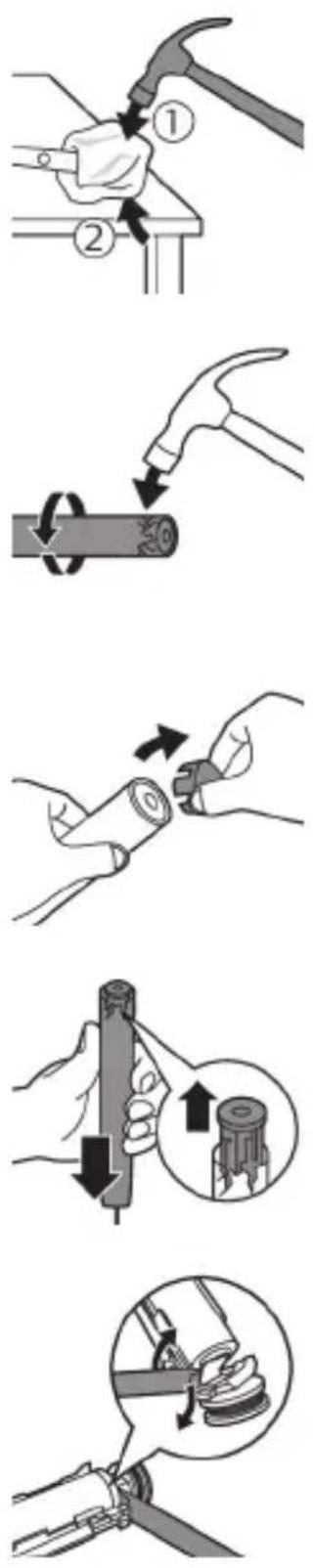

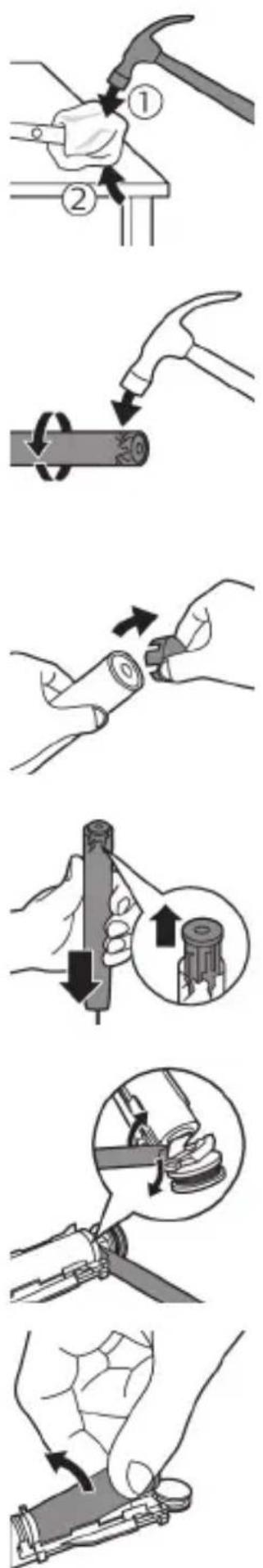

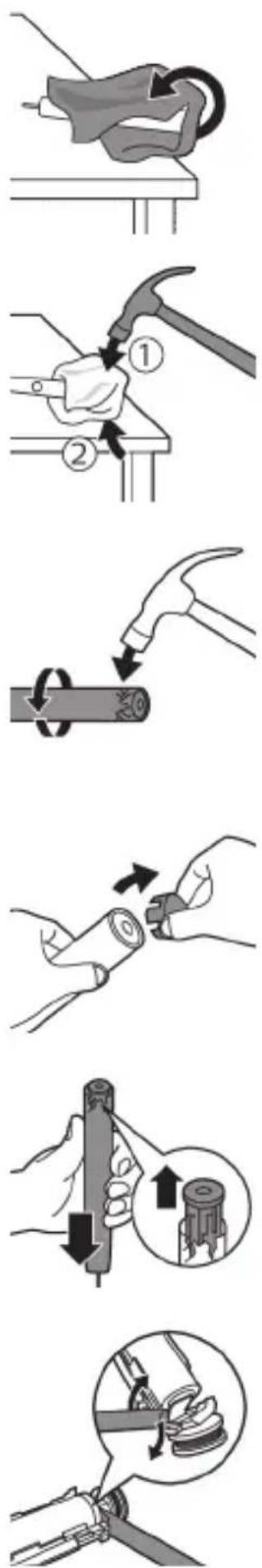

- This appliance contains batteries that are only to be removed by skilled persons

• Only use the product for its intended purpose. Read this information carefully before you use the product and its batteries and accessories, and save it for future reference. Misuse can lead to hazards or serious injuries. Accessories supplied may vary for different products.
• Only use original Philips accessories and consumables. Only use detachable supply unit TCBxxxx, HX6100, HX6110, HX6160 or WAAxxxx.
• Keep product and batteries away from fire and do not expose them to direct sunlight or high temperatures.
• If the product becomes abnormally hot or smelly, changes color or if charging takes longer than usual, stop using and charging the product and contact Philips.
• Do not place products and their batteries in microwave ovens or on induction cookers.
• Do not open, modify, pierce, damage or dismantle the product or battery to prevent batteries from heating up or releasing toxic or hazardous substances. Do not short-circuit, overcharge or reverse charge batteries.
• This appliance contains batteries that are non-replaceable. When the battery is at end of life, the appliance shall be properly disposed of, see section on recycling.
• If batteries are damaged or leaking, avoid contact with the skin or eyes. If this occurs, immediately rinse well with water and seek medical care.
• When you handle batteries, make sure that your hands, the product and the batteries are dry.
• To avoid accidental short-circuiting of batteries after removal, do not let battery terminals come into contact with metal object (e.g. coins, hairpins, rings). Do not wrap batteries in aluminium foil. Tape battery terminals or put batteries in a plastic bag before you discard them.
• Charge and use the product at a temperature between 0 °C and 40 °C (32°F and 104°F).

Storage and transportation conditions

Temperature -10°C to 60°C (14 °F to 140 °F).

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Radio Equipment Directive

Hereby, Philips declares that electric toothbrushes with radio equipment type (Bluetooth, NFC) are in compliance with Directive 2014/53/EU.

• The Bluetooth radio frequency interface in applicable products operates at 2.4 GHz.
• The maximum output power by the Bluetooth appliance is 3 dBm.
• The NFC radio frequency interface in applicable products operates at 13.56 MHz.
• The maximum RF power transmitted by the appliance is 30.16 dBm.

The full text of the EU declaration of conformity is available at the following internet address:

www.philips.com/support

Note: The Features of different models may vary. Some models may not be equipped with Bluetooth or NFC.

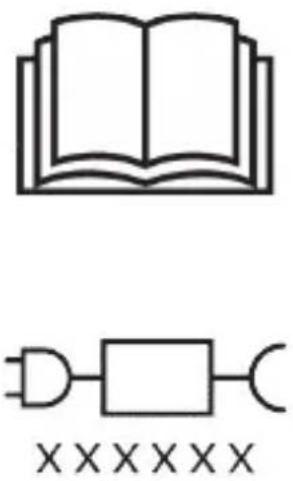

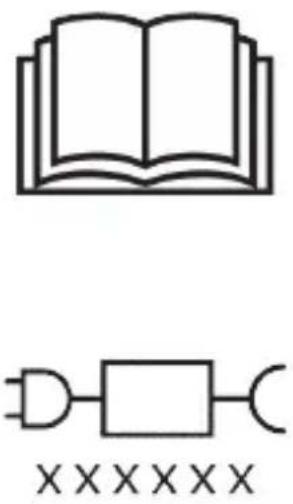

The following symbols may appear on the product: Read Operator's Manual.

Simple line drawing of an open book with no text or symbols visible

Detachable Power Supply Part: The "xxxxx" indicates the model number of the approved chargers to be used. (TCBxxxx, HX6100, HX6110, HX6160 or WAAxxxx)

Intended use

Sonicare ExpertClean power toothbrushes are intended to remove adherent plaque and food debris from the

teeth to reduce tooth decay and improve and maintain oral health. Sonicare ExpertClean power toothbrushes are intended for personal use. Use by children should be with adult supervision.

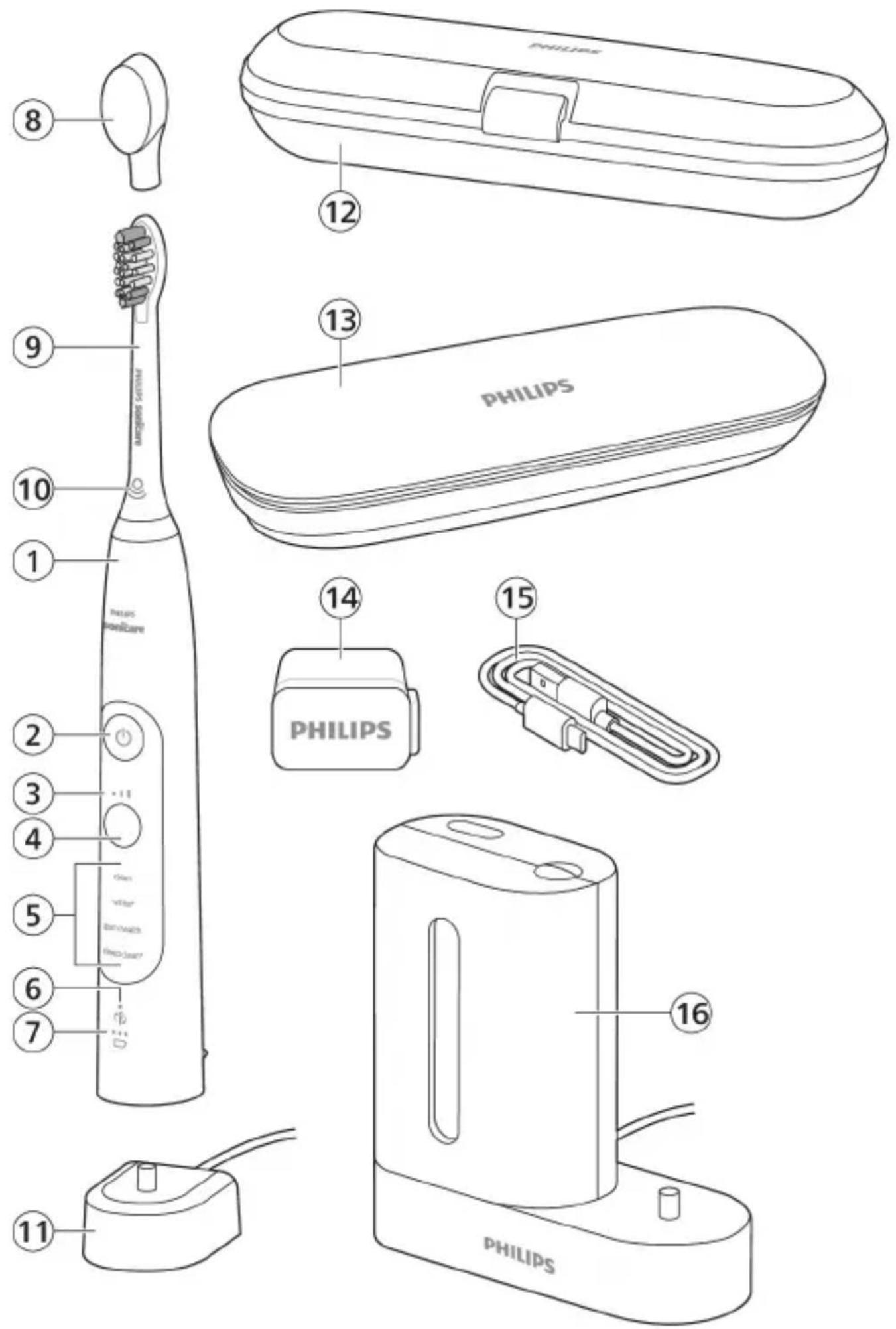

Your Philips Sonicare (Fig 1.)

1 Handle
2 Power on/off button
3 Intensity indicator
4 Mode/intensity button
5 Mode indicator
6 Brush Head Replacement Reminder
7 Battery indicator

Accessories:

8 Brush head cap
9 Smart brush head(s)
10 BrushSync symbol
11 Charging stand
12 Travel case
13 Charging travel case
14 USB-A wall adapter
15 USB-A cable
16 UV sanitizer and charger

Note: Accessories included may vary based on the model purchased.

Sonicare app - Getting started

The Sonicare app pairs with your toothbrush to provide you a connected experience. By connecting your toothbrush to your Sonicare app account, you will be able to:

• Track your brushing progress
• Receive personalized tips and actionable recommendations to improve your oral health
• Access the full range of benefits and receive ongoing upgrades

The app is compatible with a wide range of mobile devices.

To start using the Sonicare app:

1 Download the Sonicare app to your phone.

2 Ensure that Bluetooth for your device is turned on.
3 Pick up your toothbrush to ensure it is active (lights on).
4 Open the app and follow the steps.
5 Pair your toothbrush with the app.
6 Create your account via the app. Complete firmware update, if prompted, to access the latest improvements and features.
7 Brush regularly with your toothbrush connected to the app. When you regularly sync the toothbrush with the app, you will receive updates to help improve your oral healthcare.
8 Sync regularly.
9 Keep your phone close to your toothbrush for optimal data transfer.

To sync manually: Pair/connect your toothbrush with the app every two weeks to benefit from the app features/capabilities.

To sync automatically: Allow location permission while setting up the app. By allowing location permission, your phone knows when it is in the connection range of your toothbrush and can refresh your brushing data in the app to provide the latest insights and recommendations.

Note: Make sure your phone's Bluetooth is switched on when using the app so that your toothbrush can transfer and update your brushing data in the app. If you have questions about why your brushing data is collected, be sure to review the Sonicare Privacy Statement, available throughout the app setup process.

App features

Your Sonicare power toothbrush is equipped with smart sensors to provide you with feedback about your brushing habits, including:

• Daily brushing sessions
• Time spent during each brushing session
• Applied brushing pressure
• Personalized tips and actionable recommendations
• Brush head replacement reminder (based on actual use)

The Sonicare app collects the data provided by the smart sensors and tracks your brushing habits over time.

Getting started

Attaching the brush head

Illustration showing a hand brushing a tooth with a brush, and a close-up of a tooth being examined (no text or symbols present)

1 Align the brush head so the bristles point in the same direction as the front of the handle.

2 Firmly press the brush head down onto the metal shaft until it will not go any further.

Note: It is normal to see a slight gap between the brush head and the handle.

Using your Philips Sonicare toothbrush

If you are using your Sonicare toothbrush for the first time, it is normal to feel more vibration than when using a non-electric toothbrush. It is common for first-time users to apply too much pressure. Only apply gentle pressure and let the toothbrush do the brushing for you. Please follow the brushing instructions below for the best experience.

To help you transition to your new Sonicare power toothbrush, use a lower setting for the first 1-2 weeks then transition to a higher setting.

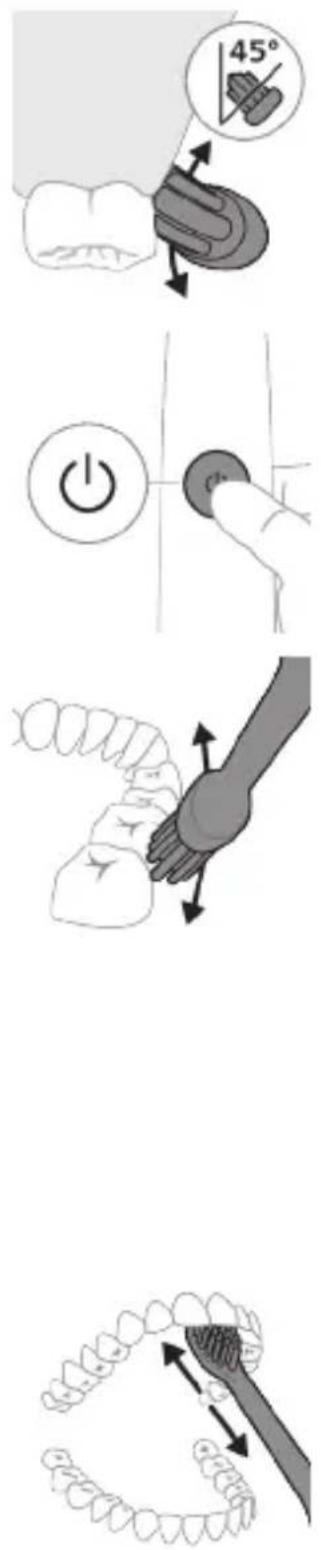

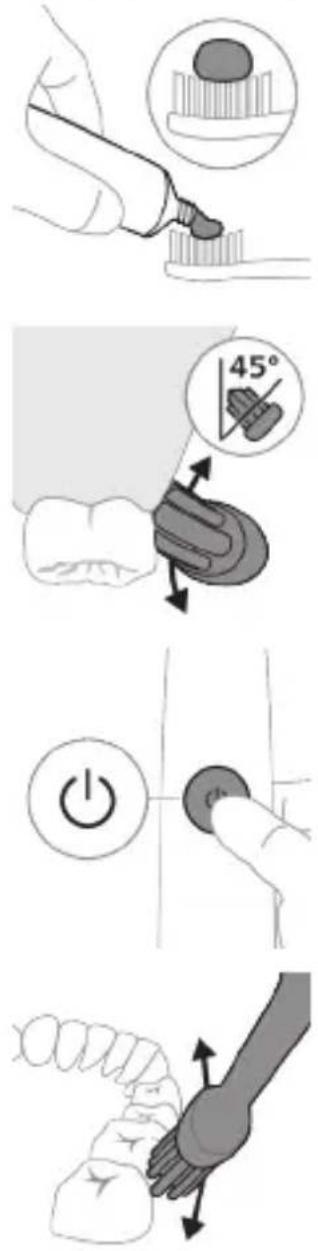

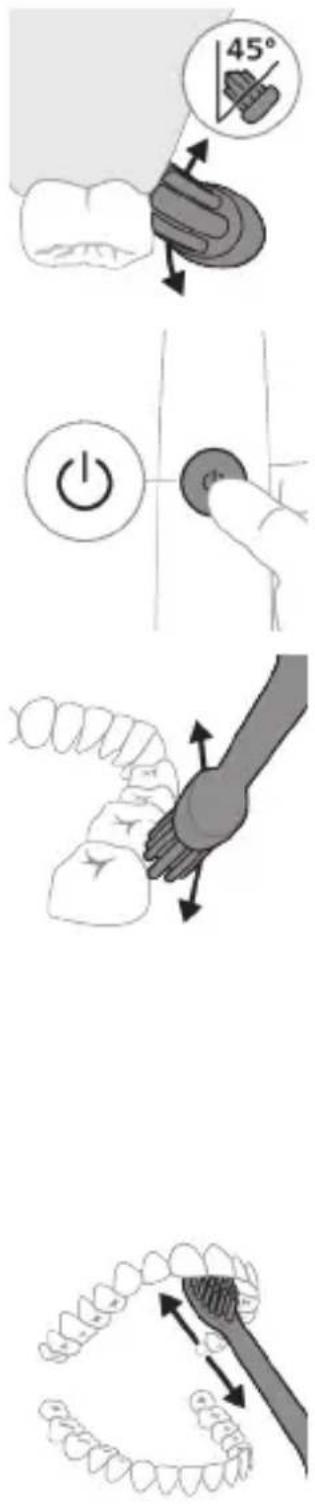

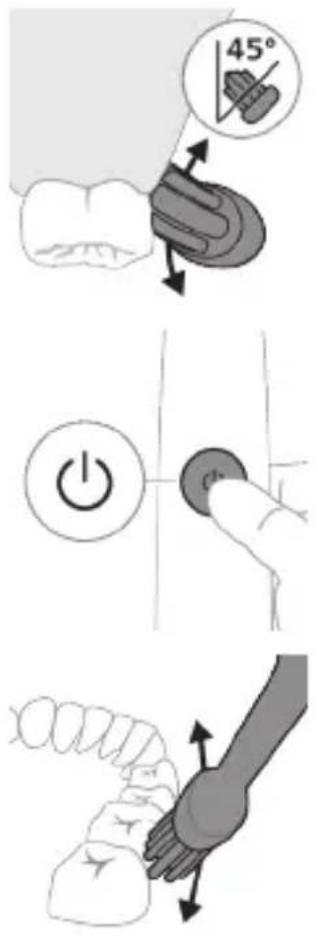

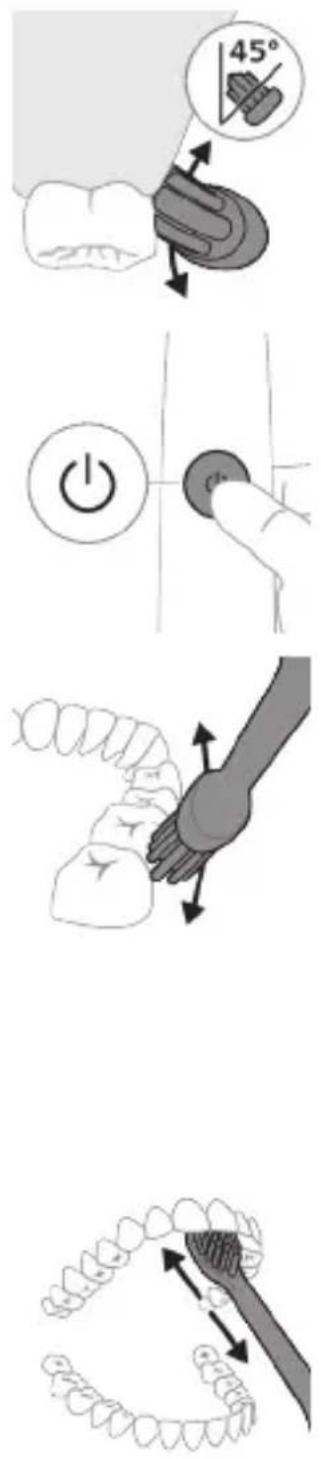

Brushing instructions

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a magnified view of a textured surface (no text or symbols present)

1 Wet the bristles and apply a small amount of toothpaste.

2 Place the toothbrush bristles against the teeth at a slight angle (45 degrees). Pressing firmly to make the bristles reach the gumline or slightly beneath the gumline.
Note: Keep the center of the brush in contact with the teeth at all times.

3 Press the power on/off button to switch on the Philips Sonicare.

4 Gently keep the bristles placed on the teeth and in the gumline. Brush your teeth with small back and forth motion so the bristles reach between the teeth. Continue this motion throughout your brushing cycle.

Note: The bristles should slightly flare. It is not recommended to scrub as you would with a manual toothbrush.

Note: If you apply too much pressure, you will be alerted by a change in vibration of the handle and the brush head replacement reminder flashing amber.

5 To clean the inside surfaces of the front teeth, tilt the brush handle semi-upright and make several vertical overlapping brushing strokes on each tooth.

6 After you have completed the brushing cycle, you can spend additional time brushing the chewing surfaces of your teeth and areas where staining occurs. You can also brush your tongue, with the toothbrush switched on or off, as you prefer.

Note: Your Philips Sonicare toothbrush is safe to use on braces (brush heads wear out sooner when used on braces) and dental restorations (fillings, crowns, veneers) if they are properly adhered and not compromised.

BrushPacer

To make sure you brush evenly throughout the mouth, divide your mouth into 6 sections using the BrushPacer feature. The BrushPacer divides the brushing time into 6 equal segments and indicates when you should move to the next area. The segments are indicated with a brief pause in vibration. The toothbrush automatically stops at the end of the brushing session.

Note: Additional time may be added when you use the White+ or Gum Health modes.

Modes

Your power toothbrush is equipped with up to 4 different modes: Clean, Deep Clean+, Gum Health and White+ (specific models only).

Based on the smart brush head you use, the optimal mode and intensity will be selected automatically by the BrushSync technology.

To manually change the mode, press the mode/intensity button when the toothbrush is off. All brush heads work with each mode.

Clean and Deep Gum Health White+ Clean+

Benefit Plaque removal Plaque removal			Plaque and surface stains removal
		and gum massage
Recommended intensity level	High High High
Total brushing time	Clean: 2 minutesDeep Clean+: 3 minutes*	3 minutes and 20 seconds	2 minutes and 40 seconds

Clean and Deep Gum Health White+ Clean+

How to brush Clean: Brush each segment 20 seconds.

Brush each segment for 20 seconds,

Brush each segment for 20 seconds,

Deep clean+: Brush each segment for 30 seconds.*

then brush segments 7,8,9 and 10 for 20 seconds each.

then brush segments 7 and 8 for 20 seconds each.

Illustration of a dental arch with a numbered callout (7) indicating a specific tooth position on the upper dental arch.

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

*Note: When brushing with the Philips Sonicare app in 'Deep Clean+' mode, the brushing time will be 2 minutes when connected to the app and 3 minutes when not connected to the app

Intensities

Your power toothbrush comes with 3 different intensity settings:

• low intensity (one bar)
• medium intensity (two bars)
• high intensity (three bars)

Simple diagram with three circles and a central oval, no text or symbols present

When attached to the handle, the smart brush head will automatically select the recommended intensity/ If you wish to change to a different intensity, you can do so by pressing the mode/intensity button while brushing. The intensity cannot be changed as long as the handle is powered off or paused.

BrushSync technology

Diagram of a microphone with signal icon and connection point (no text or symbols)

BrushSync technology enables your brush head to communicate with your handle using a microchip. The symbol at the bottom of the brush head indicates that the brush head is equipped with this technology.

BrushSync technology enables:

• Brush head replacement reminder
• BrushSync mode pairing

Philips Sonicare offers a wide range of smart brush heads, equipped with BrushSync technology. To explore our full range of toothbrush brush heads, and find the brush head that is best for you, go to

www.philips.com/toothbrush-heads for more information.

Features

• Pressure Sensor Feedback
• BrushPacer
• SmarTimer
• EasyStart
• Brush Head Replacement Reminder
• Brush Head Mode Pairing

Pressure Sensor Feedback

Pure electrical circuit lines without any symbols

Your Sonicare toothbrush measures the pressure you apply while brushing, to protect your gums and teeth from damage.

If you apply excess pressure, the handle changes its vibration and the brush head replacement reminder light on the handle flashes amber until you reduce the pressure.

Note: Your product comes with the Pressure Sensor activated. To deactivate this feature (see 'Activating or deactivating features').

BrushPacer

The BrushPacer is an interval timer that helps you to brush evenly through the mouth by dividing your mouth into 6 sections.

SmarTimer

The SmarTimer indicates that your brushing cycle is complete by automatically switching off the toothbrush at the end of the brushing cycle. Dental professionals recommend brushing no less than 2 minutes twice a day.

Note: If you press the power on/off button after you started the brushing cycle, the toothbrush pauses. After a pause of 30 seconds, the SmarTimer resets.

EasyStart

This Philips Sonicare model comes with the EasyStart feature deactivated. The EasyStart feature gently increases the power over the first 14 brushings to help you get used to brushing with the Philips Sonicare. The EasyStart feature works with all modes.

Disclaimer

When the Philips Sonicare toothbrush is used in clinical studies, it must be used at high intensity with the handle fully charged and the EasyStart feature deactivated.

To activate EasyStart (see 'Activating or deactivating features').

Brush Head Replacement Reminder

Your Philips Sonicare is equipped with BrushSync technology that tracks the wear of your brush head.

Note: This feature only works with Philips Sonicare smart brush heads with BrushSync technology.

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

1 When you attach a new smart brush head for the first time, the handle recognizes that you have a Philips brush head with BrushSync technology and begins tracking brush head wear.
2 Over time, based on the pressure you apply and the total time the brush head has been used, the handle tracks brush head wear in order to determine the optimal time to replace your brush head. This feature guarantees the best cleaning and care of your teeth.
3 When the Brush Head Replacement Reminder indicator lights up amber, you should replace your brush head.

Note: All smart brush heads come with the brush head replacement reminder feature activated. To deactivate the brush head replacement reminder see 'Activating or deactivating features'.

Brush head mode pairing

Brush heads with BrushSync technology are equipped with a microchip which communicates with the handle and automatically pairs it with the recommended mode and intensity. Most brush heads with BrushSync technology will auto pair to Clean Mode. Brush heads with specific benefits will pair with the corresponding mode (when available), examples include:

• G3 Premium Gum Care: Gum Health Mode
• W3 Premium White or W(c) DiamondClean(compact): White+ Mode

Note: If you choose to change mode/intensity from the recommended setting, the brush head will remember the your chosen setting for future brushing sessions.

Activating or deactivating features

You can activate or deactivate the following features of your toothbrush:

• EasyStart
• Brush Head replacement reminder
• Pressure Sensor Feedback

Note: You can only activate or deactivate the brush head replacement reminder when a smart brush head is on the handle.

From handle:

Step 1: Place the handle on a plugged in charger/charging travel case.

Step 2: Press and hold power on/off button for:

EasyStart Brush Head Replacement Reminder Pressure Sensor Feedback

Up to 3 seconds Up to 5 seconds Up to 7 seconds

Step 3: Let go of the power on/off button when you hear:

1 beep 1 beep and then 1 beep, 2 beeps and then 3 beeps 2 beeps

Together with:

Simple diagram with a circular symbol and a vertical line, no text or labels present

If you see the left LED for the battery indicator flash green 2 times and hear 3 tones low to high, then the feature has been activated.

OR

Simple diagram with a circular symbol containing a minus sign and a small circle connected by lines (no text or labels)

If you see the left LED for the battery indicator flash amber 1 time and hear 3 tones high to low, then the feature has been deactivated.

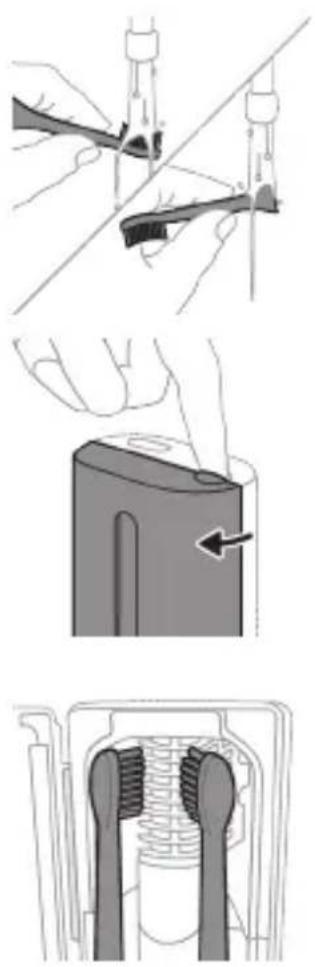

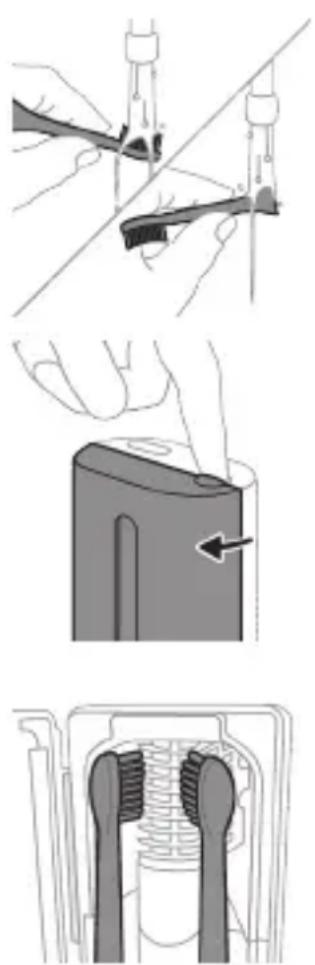

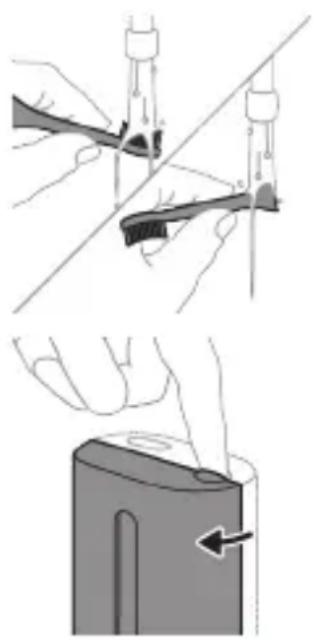

UV sanitizer

Three-step diagram illustrating a tool application: adding a tool, adjusting a component, and inserting into a device (no text or symbols present)

Note: Accessories included may vary based on the model purchased.

With the UV sanitizer you can clean your brush head after every use.

Unplug the sanitizer, discontinue use and call Consumer Care if:

• The UV light bulb remains on when the door is open.
• The window is broken or missing from the sanitizer.
• The sanitizer gives off smoke or a burning smell while it is operating.

Note: UV light can be harmful to the human eye and skin. This device should be kept out of reach of children at all times.

1 After brushing, rinse the brush head and shake off excess water.

Warning: Make sure that the brush head cap is not on the brush head when the brush head is being cleaned in the sanitizer.

2 Place your finger in the door recess on top of the sanitizer and pull open the door.

3 Place the brush head on one of the 2 pegs in the sanitizer with the bristles facing the light bulb.

Note: Only clean Philips Sonicare snap-on brush heads in the sanitizer.

Note: Do not clean Philips Sonicare for Kids brush heads in the sanitizer.

4 Make sure the sanitizer is plugged into a live outlet of appropriate voltage.

Line drawing of a hand holding a small object on a cylindrical base (no text or symbols)

5 Close the door and press the green power on/off button once to select the UV clean cycle.

Note: you can only switch on the sanitizer if the door is properly closed.

Note: the sanitizer stops operating if you open the door during the sanitizer cycle.

Note: The sanitizer cycle takes approximately 10 minutes and then switches off automatically.

The sanitizer is in operation when the light glows through the window.

Charging and battery status

This Philips Sonicare toothbrush is designed to provide at least 28 brushing sessions, each session lasting 2 minutes (14 days if used twice per day) on a fully charged battery. The battery indicator shows the battery status when you complete the 2-minute brushing session, when you pause the toothbrush, or while it is charging.

Note: It can take up to 24 hours to fully charge the battery before first use, but you can use the Philips Sonicare toothbrush before it is fully charged.

Charging

Simple line drawing of a mechanical component with a star-shaped head and base, no text or symbols present.

Charging on charger or UV Sanitizer

1 Plug the charger or sanitizer into an electrical outlet.
2 Place the handle on the charger or sanitizer.

• The handle emits 2 short beeps to confirm that the handle is placed properly.
• The flashing light of the battery indicator shows that the toothbrush is charging.
• When the handle is fully charged on the charger, the battery indicator lights up green for 30 seconds and then switches off.

Charging with the travel case

Diagram of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Note: Accessories included may vary based on the model purchased.

1 Insert the USB cable to the charging travel case.
2 Connect the attached USB cable to the 5V DC input power either from:
- The USB adapter provided.
- A UL-listed or certified to ANSI/UL 60950-1 personal computer's standard USB connector.
- A UL-listed or certified to ANSI/UL 60950-1 LPS power supply with USB output port.
- A UL-listed or certified 1310 Class 2 power supply.

Important: The wall adapter must be a safe extra low voltage source, compatible with the electrical ratings marked on the bottom of the device.

3 Place the handle in the charging travel case.

• The handle emits 2 short beeps to confirm that the handle is placed properly.
• The flashing light of the battery indicator shows that the toothbrush is charging.

4 The travel case will charge your toothbrush until your toothbrush is fully charged.

- When the handle is fully charged, the battery indicator lights up green for 30 seconds and then switches off.

Note: Charging the handle with the charging travel case may take longer than on the charger.

Battery status

Battery status (handle on plugged-in charger/charging travel case)

When the handle is placed on the charger or in the charging travel case, the battery indicator shows the battery level.

Battery status Number of flashing LEDs

LED color

Low 1 Flashing green

Partially full 2 Flashing green

Full 3 Flashing green until full,

then green for 30

seconds and then

switches off

Battery status (when handle is not on plugged-in charger/charging travel case)

When the toothbrush is awake, the battery indicator at the bottom of the handle shows the battery level.

Battery status Number of LEDs LED color

Full 3 Solid green
Partially full 2 Solid green
Low 1 Solid green
Empty 1 with beeps Flashes amber
	Note: To save energy, the battery indicator will switch off when not in use.
	Note: When the battery is completely empty, the toothbrush switches off. Place the toothbrush on the charger to charge it.
	Note: To keep the battery fully charged at all times, you may keep your toothbrush on the charger when not in use.

Cleaning

Toothbrush handle

Line drawing of a medical procedure involving a tool and tubing (no text or symbols)

1 Remove the brush head and rinse the metal shaft area with warm water. Make sure you remove any residual toothpaste.

Caution: Do not push on the rubber seal on the metal shaft with sharp objects, as this may cause damage.

2 Wipe the entire surface of the handle with a damp cloth.

Note: Do not tap the handle on the sink to remove excess water.

Brush head

Illustration of two hands holding a tool with a ruler and connecting rod (no text or symbols)

1 Rinse the brush head and bristles after each use.
2 Remove the brush head from the handle and rinse the brush head connection with warm water at least once a week. Rinse the travel cap as often as needed.

Charger

1 Unplug the charger before you clean it.
2 Wipe the surface of the charger with a damp cloth.

Travel case

Rinse with warm water and use a damp cloth to clean inside of travel case.

Charging travel case

1 Unplug the charging travel case before cleaning.
2 Use damp cloth to wipe the surface of the travel case.

UV Sanitizer

Warning: Do not immerse the sanitizer in water or rinse it under the faucet.

Warning: Do not clean the sanitizer when the UV light bulb is hot.

For optimal effectiveness, it is recommended to clean your sanitizer weekly.

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

1 Unplug the sanitizer.
2 Pull the drip tray straight out. Rinse the drip tray and wipe it clean with a damp cloth.
3 Clean all interior surfaces with a damp cloth.
4 Remove the protective screen in front of the UV light bulb.

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

To remove the screen, grasp the edges next to the snaps, gently squeeze and pull out the protective screen.

5 Remove the UV light bulb.

To remove the light bulb, grasp it and pull it out of the metal clasp.

6 Clean the protective screen and the UV light bulb with a damp cloth.

7 Reinsert the UV light bulb.

To reinsert the light bulb, align the bottom of the light bulb with the metal clasp and push the bulb into the clasp.

8 Reinsert the protective screen.

To reinsert the screen, align the pegs on the screen with the slots on the reflective surface near the UV light bulb. Push the screen straight into the slots on the sanitizer.

9 Place the drip tray back in the UV sanitizer.

10 After cleaning, make sure the sanitizer is completely dry before you connect it to the mains.

Storage

If you are not going to use the product for an extended period of time, unplug it from the electrical outlet, clean it and store it in a cool and dry place away from direct sunlight.

Replacement

Replace Philips Sonicare brush heads every 3 months to achieve optimal results. Use only Philips Sonicare replacement brush heads.

Locating the model number

Look on the bottom of the Philips Sonicare toothbrush handle for the model number (HX9600)

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty exclusions

What is not covered under warranty:

• In mouth attachments including brush heads and nozzles.
• Damage caused by use of unauthorized replacement parts or unauthorized brush heads.
• Damage caused by misuse, abuse, neglect, alterations or unauthorized repair.
• Normal wear and tear, including chips, scratches, abrasions, discoloration or fading.
• UV light bulb.

Recycling

• This symbol means that electrical products and batteries shall not be disposed of with normal household waste.
• Follow your country's rules for the separate collection of electrical products and batteries.
• The UV light bulb of the sanitizer contains mercury. Do not throw the UV light bulb away with the normal household waste at the end of its life. Hand it in at an official collection point for recycling.

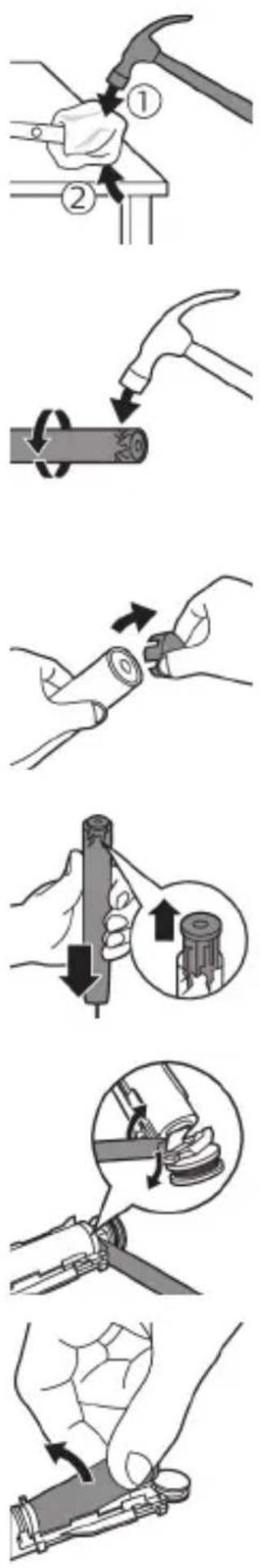

Removing the rechargeable battery

The built-in rechargeable battery must only be removed by a qualified professional when the appliance is discarded. Before removing the battery, make sure that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the appliance and when you dispose of the rechargeable battery. Be sure to protect your eyes, hands, fingers, and the surface on which you work.

When you handle batteries, make sure that your hands, the product and the batteries are dry.

To avoid accidental short-circuiting of batteries after removal, do not let battery terminals come into contact with metal objects (e.g. coins,

hairpins, rings). Do not wrap batteries in aluminum foil. Tape battery terminals or put batteries in a plastic bag before you discard them.

To remove the rechargeable battery, you need a towel or cloth, a hammer and a flat-head (standard) screwdriver. Observe basic safety precautions when you follow the procedure outlined below.

1 To deplete the rechargeable battery of any charge, remove the handle from the charger, turn on the toothbrush and let it run until it stops. Repeat this step until you can no longer turn on the toothbrush.
2 Remove and discard the brush head. Cover the entire handle with a towel or cloth.

3 Hold the top of the handle with one hand and strike the handle housing 0.5 inch above the bottom end. Strike firmly with a hammer on all 4 sides to eject the end cap.

Note: You may have to hit on the end several times to break the internal snap connections.

4 Remove the end cap from the toothbrush handle. If the end cap does not release easily from the housing, repeat step 3 until the end cap is released.

5 Holding the handle upside down, press the shaft down on a hard surface. If the internal components do not easily release from the housing, repeat step 3 until the internal components are released.
6 Wedge the screwdriver between the battery and the black frame at the bottom of the internal components. Then pry the screwdriver away from the battery to break the bottom of the black frame.
7 Insert the screwdriver between the bottom of the battery and the black frame to break the metal tab connecting the battery to the green printed circuit board. This will release the bottom end of the battery from the frame.
8 Grab the battery and pull it away from the internal components to break the second metal battery tab.

Caution: Be aware of the sharp edges of the battery tabs so as to avoid injury to your fingers.

9 Cover the battery contacts with tape to prevent any electrical short from residual battery charge.

The rechargeable battery can now be recycled and the rest of the product discarded appropriately.

Note: Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Giriş

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a directional arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark mark (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a textured surface (no text or symbols)

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and a central oval, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular symbol with a traffic light icon and a starburst shape connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a device with a circular arrow pointing to the handle (no text or symbols)

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object with a hole, no text or symbols present

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Diagram of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Line drawing of a medical procedure showing a needle inserted into tissue (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rods (no text or symbols)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand hammering a cylindrical object with a circular arrow indicating rotation (no text or symbols)

Illustration of hands fastening a cylindrical object with a belt, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and an inset showing a magnified view of the object (no text or symbols)

Diagram of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration showing a hand brushing a tooth with a brush and arrow indicating direction, alongside a close-up of a tooth with a circular mark and checkmark (no text or symbols)

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a magnified view of a small object (no text or symbols present)

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

Diagram of dental arching technique showing tooth arrangement and tool placement (no text or labels)

Clean a Deep Clean+ Gum Health White+

Clean a Deep Clean+ Gum Health White+

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper dental arch.

Illustration of a human upper dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and magnified view (no text or symbols)

Simple line drawing of a gear and gear icon with no text or symbols

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by an arrow (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power button (no text or symbols)

Simple diagram with a circular element and a vertical line, no text or symbols present

Simple diagram with a circular icon and a small circle connected by lines, no text or symbols present.

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Illustration of a handheld electronic device with a curved cable and plug, no text or symbols present

Line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rod (no text or symbols)

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a textured internal component and an arrow indicating direction (no text or symbols)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration showing a toothbrush applying material to a tooth with a circular mark and a checkmark (no text or symbols)

Illustration of a hand applying a toothbrush to a tooth, with an inset showing a magnified view of the tooth (no text or symbols present)

Illustration of a hand holding a tool interacting with a segmented object (no text or symbols)

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and speech bubble, no text or symbols present

Simple diagram with a circular icon containing a vehicle and a starburst symbol connected to a vertical line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple diagram with a circle containing an internal symbol and a small arrow pointing to it, connected by a line (no text or labels)

Illustration showing two-step cleaning procedure: hand holding tool, then using a brush to clean battery (no text or symbols)

Diagram of a mechanical component with two protruding ports and internal structure (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Illustration of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to lift or adjust a gun, with no visible text or symbols

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration showing a toothbrush applying material to a tooth with a sensor icon, and a checkmark indicating the correct procedure (no text or symbols present)

Illustration of a hand using a pipette to apply a substance, with an inset showing a magnified view of a sample (no text or symbols present)

Illustration of a hand holding a small object with directional arrows indicating movement or force (no text or symbols)

Diagram showing dental tool interacting with teeth (no text or labels)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with a sensor icon and signal symbol (no text or labels)

Simple line diagram showing a circular icon with a road symbol and a star-like shape connected by a dot (no text or labels)

- G3 Premium Gum Care: Gum Health Putzprogramm

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Illustration of two hands using a tool to measure a mechanical component, with no visible text or symbols.

Hand holding a device with a circular arrow pointing to the handle (no text or symbols visible)

Diagram of a mechanical component with two protruding parts, no visible text or symbols

Line drawing of a hand holding a small object with a hole, no text or symbols present

Simple line drawing of a device with a starburst symbol above it, showing a button or connector (no text or symbols present)

Illustration of a handheld electronic device with a hand holding a cable, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to connect two objects, with no visible text or symbols

Ladegerät

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured surface (no text or symbols visible)

Diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Diagram of dental arching technique showing tooth arrangement and tooth penetration (no text or labels)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with a sensor icon and connection point (no text or symbols)

www.philips.com/toothbrush-heads.

Omadused

Simple diagram with a circular symbol containing a vehicle and a star-like shape connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to the right (no text or symbols)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple diagram with a circle containing an internal rectangle and a small circle connected by a line (no text or symbols)

Illustration showing two-step procedure: adding a tool to a cable or cable with a handle, then using a device to close the cable (no text or symbols present)

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Diagram of a handheld electronic device with a hand holding a plug, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a directional arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a magnified view of the tooth (no text or symbols present)

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

BrushPacer

Clean y Deep Gum Health White+ Clean+

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with a circular icon showing signal waves (no text or symbols)

Simple diagram with a circular icon containing a road sign and a starburst symbol, connected by a line to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

- W3 Premium White o W(c) DiamondClean(compact): Modo White+ (Blanqueado+)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Simple diagram with a circular symbol and a small circle connected by an arrow (no text or labels)

Simple diagram with a circular icon containing an internal symbol and a small circle connected by a line (no text or labels)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Three-step illustration showing a hand holding a device, then two views of a mechanical component with teeth and a base (no text or symbols)

Simple line drawing of a device with a starburst symbol above it, showing a button or connector (no text or symbols present)

Illustration of a handheld electric toothbrush with a curved handle, no text or symbols present

Line drawing of a hand holding a pen inserted into a bundle of noodles (no text or symbols)

Illustration of two hands using a tool to connect two objects, no text or symbols present

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured surface (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and an inset showing a magnified view of the object (no text or symbols present)

Diagram of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

www.philips.com/support

Simple line drawing of an open book and a circuit symbol (no text or labels)

Illustration of a hand holding a toothbrush with a directional arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Illustration of a hand interacting with a segmented body, showing motion direction (no text or symbols)

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and speech bubble, no text or symbols present

Simple line drawing of a parking lot with a star-shaped location pin and a star symbol (no text or labels)

Simple diagram showing a circular icon with traffic symbols and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power button (no text or symbols)

Diagram of a handheld electric shaver with a curved cable, showing no text or symbols

Simple line drawing of a fork with a pen inserted, no text or symbols present

Illustration of two hands using a tool to lift or lift weights, with no visible text or symbols

Hand inserting a component into a device housing (no text or symbols visible)

Hand holding a camera module with a black arrow pointing to the interior (no text or symbols visible)

Simple line drawing of an open book with no text or symbols visible

Odvojiv dio jedinice za napajanje: „xxxxx” označava broj modela punjača odobrenih za uporabu. (TCBxxxx, HX6100, HX6110, HX6160 ili WAAxxxx)

Namjena

Električne četkice za zube Sonicare ExpertClean namijenjene su za uklanjanje naslaga i ostataka hrane sa zuba kako bi se smanjilo propadanje zuba te poboljšalo i održavalo oralno zdravlje. Električne četkice za zube Sonicare ExpertClean namijenjene su za osobnu uporabu. Djeca četkicu trebaju upotrebljavati uz nadzor odrasle osobe.

Vaš Philips Sonicare (Slika 1)

1 drška
2 gumb za uključivanje/isključivanje
3 indikator intenziteta
4 gumb za način rada / intenzitet
5 indikator načina rada
6 podsjetnik o zamjeni glave četkice.
7 Indikator baterije

Dodaci:

8 poklopac glave četkice
9 pametne glave četkice
10 simbol značajke BrushSync
11 postolje za punjenje
12 putna kutija
13 Putna kutija za punjenje
14 zidni USB-A prilagodnik
15 USB-A kabel
16 Uređaj za UV dezinfekciju i punjač

Napomena: priloženi dodaci mogu se razlikovati ovisno o kupljenom modelu.

Aplikacija Sonicare – početak

Aplikacija Sonicare uparuje se s vašom četkicom za zube kako bi vam omogućila povezivanje. Povezivanjem četkice za zube s vašim računom u aplikaciji Sonicare moći ćete:

Illustration showing a toothbrush applying material to a tooth with a circular mark and a checkmark (no text or symbols present)

Illustration of a hand applying a toothbrush to a tooth with a magnified inset showing a textured surface (no text or symbols)

1 Smočite čekinje i nanesite malu količinu paste za zube.

Simple line drawing of a hand pressing a button on a vertical line, with a power button symbol nearby (no text or labels)

Illustration of a hand holding a curved object with directional arrows indicating movement or force (no text or symbols)

Diagram of dental arching with tooth structure and tool (no text or labels)

Da biste ručno promijenili način rada, pritisnite gumb za način rada / intenzitet dok je četkica za zube isključena. Sve glave četkice rade u svakom načinu rada.

Clean i Deep Gum Health White+ Clean+

Prednost uklanjanje naslaga		uklanjanje naslaga i masaža desni	uklanjanje naslaga i površinskih mrlja
Preporučena razina intenziteta	visoka visoka visoka
Ukupno vrijeme četkanja	Clean: 2 minuteDeep Clean+: 3 minute*	3 minute i 20 sekundi	2 minute i 40 sekundi

Clean i Deep Clean+ Gum Health White+

Kako četkati Clean: četkajte svaki segment20 sekundi.	Četkajte svaki segment20 sekundi,	Četkajte svaki segment20 sekundi,
Deep Clean+:četkajte svaki segment30 sekundi.*	a zatim segmente 7,8,9 i 10 četkajte svakog po20 sekundi.	a zatim segmente 7 i 8 četkajte svakog po20 sekundi.

*Napomena: pri četkanju uz aplikaciju Philips Sonicare u načinu rada Deep Clean+ vrijeme četkanja bit će 2 minute ako ste povezani s aplikacijom odnosno 3 minute ako niste povezani s aplikacijom.

Jačine

Vaša električna četkica za zube ima tri različite postavke intenziteta:

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Tehnologija BrushSync omogućava glavi četkice da komunicira s drškom s pomoću mikročipa. Šimbol na donjem dijelu glave četkice naznačuje da je glava četkice opremljena tom tehnologijom.

Tehnologija BrushSync omogućuje:

Simple line diagram showing a circular symbol with a traffic light icon and a starburst shape connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to the right (no text or symbols)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple diagram with a circle containing an internal rectangle and a small circle connected by a line (no text or symbols)

Ako lijeva LED žaruljica indikatora baterije jednom zatreperi u narančastoj boji i oglase se tri zvučna signala od visokog do niskog, to znači da je značajka deaktivirana.

Illustration showing two-step cleaning procedure: hand holding tool, then using a device to clean or adjust the component (no text or symbols present)

1 Nakon četkanja isperite glavu četkice i otresite višak vode.

Upozorenje: Pri čišćenju glave četkice u uređaju za dezinfekciju pazite da kapica glave četkice nije na četkici.

2 Stavite prst u utor za vratašca pri vrhu uređaja za dezinfekciju i otvorite vratašca.

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object on a cylindrical base (no text or symbols)

3 Stavite glavu četkice na jedan od dva nastavka u uređaju za dezinfekciju tako da vlakna budu okrenuta prema žarulji.

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Punjenje na punjaču ili u uređaju za UV dezinfekciju

1 Priključite punjač ili uređaj za dezinfekciju u električnu utičnicu.
2 Postavite dršku na punjač ili uređaj za dezinfekciju.
- Drška će emitirati dva kratka zvučna signala kao potvrdu da je drška pravilno postavljena.
- Treperenje indikatora baterije pokazuje da se četkica puni.
- Kad je drška na punjaču potpuno napunjena, indikator baterije svijetli 30 sekundi u zelenoj boji prije nego što se isključi.

Diagram of a handheld electronic device with a curved handle and cable, showing internal components (no text or symbols)

Napomena: priloženi dodaci mogu se razlikovati ovisno o kupljenom modelu.

1 Umetnite USB kabel u putnu torbicu za punjenje.
2 Povežite umetnuti USB kabel s ulaznim napajanjem istosmjerne struje od 5 V iz:
- isporučenog USB prilagodnika
- standardnog USB priključka osobnog računala s UL oznakom ili certifikatom ANSI/UL 60950-1
- LPS napajanja s USB izlaznim priključkom s UL oznakom ili certifikatom ANSI/UL 60950-1
- napajanja klase 2 s oznakom UL ili certifikatom 1310.

Line drawing of a medical procedure showing a tool interacting with tissue manipulation (no text or symbols)

1 Odvojite glavu četkice i isperite metalnu osovinu toplom vodom. Pobrinite se da uklonite svu preostalu zubnu pastu.

Oprez: Nemojte koristiti oštre predmete za guranje gumene brtve na metalnu osovinu jer to može prouzročiti oštećenja.

2 Cijelu površinu drške obrišite vlažnom tkaninom.

Napomena: Nemojte lupkati drškom po umivaoniku kako biste uklonili višak vode.

Glava četkice

Illustration of two hands using a tool to connect a pen and a ruler, with no visible text or symbols.

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a mechanical component with a black arrow pointing to a textured section (no text or symbols visible)

Da biste uklonili štitnik, uhvatite rubove štitnika pokraj nosača, nježno pritisnite i zatim izvucite štitnik.

5 Izvadite UV žarulju. Kako biste izvadili žarulju, primite ju i izvucite iz metalne kopče.
6 Štitnik i UV žarulju očistite vlažnom krpom.
7 Vratite UV žarulju na mjesto. Kako biste vratili žarulju, poravnajte dno žarulje s metalnom kopčom i gurnite žarulju u kopču.
8 Vratite štitnik na mjesto. Kako biste vratili štitnik, poravnajte klinove na štitniku s utorima na površini koja stvara odsjaj blizu UV žarulje. Gurnite štitnik izravno u utore na uređaju za dezinfekciju.
9 Stavite pladanj za ocjeđivanje natrag u uređaj za UV dezinfekciju.
10 Nakon čišćenja provjerite je li uređaj za dezinfekciju potpuno suh prije no što ga priključite na napajanje.

Pohrana

Diagram of a mechanical or electrical component with a curved arrow indicating motion (no text or symbols)

Punjiva baterija se sada može reciklirati a ostatak proizvoda se može odbaciti na odgovarajući način.

Napomena: Aparat koji se više ne može koristiti nemojte odlagati s uobičajenim otpadom iz kućanstva, nego ga odnesite u predviđeno odlagalište na recikliranje. Time pomažete u očuvanju okoliša.

Introduzione

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a textured surface (no text or symbols)

Clean e Deep Clean+
Gum Health White+

Simple diagram with three circles and two vertical lines, no text or symbols present

Simple line diagram showing a circular symbol with a traffic light icon and a starburst shape connected to a vertical line (no text or labels)

Simple diagram with a circle containing a white rectangle and a small circular element connected by a line (no text or symbols)

Simple diagram with a circle containing a white rectangle and a small circle connected by a line (no text or symbols)

Three-step diagram illustrating a mechanical assembly process: tool insertion, device pressing, and final assembled view (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands holding a tool with a pointed tool, connected by wires (no text or symbols visible)

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a mechanical component with a black arrow pointing to a textured section (no text or symbols visible)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a toothbrush applying material to a tooth with a circular mark, and a checkmark indicating the correct removal (no text or symbols present)

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

1 Samitriniet sarus un uzklājiet mazliet zobu pastas.

Illustration of a hand holding a curved object with directional arrows indicating movement or force (no text or symbols)

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

Simple diagram with three circles and two vertical lines, no text or symbols present

• vidēja intensitāte (divi stabini)
• augsta intensitate (tris stabini)

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand pressing down on a device component with an arrow indicating left motion (no text or symbols)

Cross-sectional diagram of a mechanical component with two protruding parts (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to lift or adjust a mechanical component, with no visible text or symbols.

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

Hand holding a camera module with a textured screen and arrow indicating compression (no text or symbols)

Simple line drawing of a mechanical component or tool interacting with a base (no text or symbols)

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a hand brushing a tooth with a brush and arrow, and a close-up of a tooth being smoothed (no text or symbols)

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position, no text or symbols present.

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and two vertical lines, no text or symbols present

Pure electrical circuit lines without any symbols

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Simple line drawing of a hand pressing a button on a bottle with a power button (no text or symbols)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Illustration of two hands using a tool to lift or rotate a rifle, with no visible text or symbols

Illustration of a hand pressing down on a device component with an arrow indicating the process (no text or symbols present)

Cross-sectional diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object on a cylindrical device (no text or symbols)

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Ikrovimas naudojant ikroviklj arba UV nukenksminimo jrenginj

Diagram of a handheld electronic device with a scroll wheel and cable, showing internal components (no text or symbols)

Diagram of a handheld electronic device with a scroll wheel and cable, showing internal components (no text or symbols)

Baterijos büsena

Line drawing of a person holding a pen over their tentacles (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

Hand holding a camera module with a textured screen and arrow indicating compression (no text or symbols)

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small electronic component with an arrow indicating rotation (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand applying a toothbrush to a nail, with an inset showing a magnified view of the tooth (no text or symbols present)

Simple diagram with three circles and two vertical lines, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Pure electrical circuit lines without any symbols

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

Simple diagram with a circle containing an internal symbol and a vertical line with a small circle connected by a line (no text or labels)

Simple diagram with a circular symbol and a small circle connected by lines, no text or labels present.

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand pressing down on a device component with an arrow indicating the left side (no text or symbols present)

Cross-sectional diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a device with a starburst symbol and an arrow pointing to a small component (no text or symbols)

Illustration of a handheld electric shaver with a hand holding the cable (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a hand holding a device with a black arrow indicating rotation (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

website: www.philips.com/support

Illustration showing a hand brushing a tooth with a brush, and a close-up of the tooth being examined with a circular sensor (no text or symbols present)

Illustration of a hand using a pipette to apply granular material, with an inset showing a magnified view of granular material (no text or symbols present)

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

Clean en Deep Clean+
Gum Health White+

Deep Clean+: poets elk segment 30 seconden lang.*

Illustration of a dental arch with a numbered circle highlighting the tooth (number 7), no text or symbols present.

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and magnified view (no text or symbols)

Simple diagram with a circular emblem containing a vehicle and a star-shaped symbol connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle, with a power button icon nearby (no text or symbols)

Simple diagram with a circular symbol and a vertical line, no text or labels present

Simple diagram with a circle containing an 'O' and a small circle connected by a line (no text or symbols)

Illustration of two hands using a tool to measure a mechanical component (no text or symbols present)

Opladen op oplader of UV-reiniger

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Line drawing of a person holding a tool near a bundle of noodles (no text or symbols)

Illustration of two hands using a tool to lift or adjust a mechanical component (no text or symbols present)

Hand inserting a component into a device (no text or symbols visible)

Hand holding a mechanical component with a downward arrow indicating a force or direction (no text or symbols present)

Illustration of a hand holding a cylindrical object with arrows indicating direction, and an inset showing a magnified view of the object (no text or symbols present)

Diagram of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols)

Illustration of a hand holding a small electronic component with a circular button, no text or symbols present

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Illustration of a hand interacting with a segmented body, showing motion direction (no text or symbols)

Diagram of dental arching technique showing tooth arrangement and tooth penetration (no text or labels)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with a circular icon showing signal waves, no text or symbols present

Simple line diagram showing a circular symbol with a vehicle icon and a star-like shape connected by a dot (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Simple diagram with a circular icon and a vertical line, no text or symbols present

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Illustration of a dental implant procedure showing step-by-step insertion and disassembly (no text or symbols)

Simple line drawing of a device with an arrow pointing to a small component (no text or symbols)

Lading i lader eller UV-renser

1 Koble laderen eller renseren til et strømuttak.
2 Plasser håndtaket på laderen eller i renseren.
- Håndtaket avgir 2 korte pip for å bekrefte at håndtaket er riktig plassert.
- Det blinkende lyset på batteriindikatoren viser at tannbørsten lades.
- Når håndtaket er fulladet på laderen, lyser batteriindikatoren grønt i 30 sekunder og slår seg deretter av.

Illustration of a handheld electric toothbrush with a screwdriver inserted, showing no text or symbols.

Line drawing of a medical procedure showing a tool interacting with tissue manipulation (no text or symbols)

1 Ta av børstehodet, og skyll metallstangen i varmt vann. Pass på at du har fjernet alle tannkremrester.
Forsiktig: Ikke bruk skarpe gjenstander mot gummiforseglingen på metallstangen. Den kan bli ødelagt.
2 Tørk hele overflaten på håndtaket med en fuktig klut.

Illustration of two hands using a tool to lift or stand (no text or symbols present)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured internal component and an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool interacting with a spring, showing a magnified view of the mechanism (no text or symbols present)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

1 Cho'tka tuklari dastaning old qismi bilan bir xil yo'nalishda bo'lishi uchun cho'tka kallagini tekislang.

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

2 Cho'tka kallagini u boshqa kirmagunigacha metall valga qattiq bosing.

Izoh: Cho'tka kallagi va dasta orasida kichik tirqish ko'rinishi – normal holat.

Philips Sonicare tish pastangizdan foydalanish

Agar Sonicare tish pastasidan birinchi marta foydalanayotgan bo'lsangiz, elektr bo'Imagan tish cho'tkasidan foydalanishga qaraganda ko'proq tebranish sezish normal holat. Odatda birinchi marta foydalanayotgan foydalanuvchilar ortiqcha bosim beradi. Faqat yumshoq bosib bering va tish cho'tkasi siz uchun tozalashiga imkon bering. Eng yaxshi taassurot uchun tish tozalash ko'rsatmalariga amal qiling.

Yangi Sonicare motorli tish cho'tkasiga o'tishingizga yordam berish uchun ilk 1-2 hafta pastroq sozlamada foydalaning, keyin yuqoriroq sozlamaga o'ting.

Tish tozalash ko'rsatmalari

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a magnified view of a small object (no text or symbols present)

1 Cho'tkani namlang va unga kam miqdorda tish pastasi surting.

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

2 Tish cho'tkasini tishlar qarshisida kichik (45 daraja) burchak ostida tuting. Cho'tkalar milk chizig'iga yoki uning tagiga yetishi uchun uni qattiq bosing.

Izoh: Cho'tka markazini tishlarga doimi to'liq tekkizib turing.

3 Philips Sonicare qurilmasini yoqish uchun yoqish/o'chirish tugmasini bosing.

4 Cho'tkani tishlar va milk chizig'iga yengil tutib turing. Cho'tkalar tishlar orasiga kirishi uchun cho'tka kallagini oldinga-orqaqa kichik harakatlar bilan tishlaringizni tozalang. Bu harakatlarni tish tozalash siklingiz yakunlangunga qadar bajaring.

Motorli tish cho'tkangiz 4 tagacha turli rejim bilan jihozlangan: Clean, Deep Clean+, Gum Health va White+ (faqat alohida modellarda).

Siz ishlatayotgan aqli cho'tka kallagidan kelib chiqib, maqbul rejim va jadallik BrushSync texnologiyasi tomonidan avtomatik ravishda tanlanadi.

Bu rejimni oddiy usulda almashtirish uchun tish cho'tkasi o'chiq paytda rejim/jadallik tugmasini bosing. Barcha cho'tka kallaklari alohida rejim bilan ishlaydi.

Clean va Deep Gum Health White+ Clean+

Foydasi Qasmoqlarniketkazish		Qasmoqlarniketkazish vamilklarni uqalash	Qasmoqlarni va yuzadagidog’larniketkazish
Tavsiya etilganjadallik darajasi	Yuqori Yuqori Yuqori
Jami tishtozalash vaqti	Clean: 2 daqiqaDeep Clean+: 3daqia*	3 daqiqa va 20soniya	2 daqiqa va 40soniya

Clean va Deep Clean+

Gum Health White+

Tozalash usuli Clean: Har bir segmentni 20 soniyadan tozalang.

Deep clean+: Har bir segmentni 30 soniyadan tozalang.*

7,8,9- va 10-segmentlarning har birini 20 soniyadan tozalang.

7- va 8- segmentlarning har birini 20 soniyadan tozalang.

Illustration of a dental arch with a numbered callout (7) indicating a specific tooth position (no text or symbols present)

Illustration of a human tooth with labeled number 8 (no text or symbols beyond the number)

*Izoh: Philips Sonicare ilovasi bilan "Deep Clean+" rejimida tozalaganingizda tish tozalash vaqti ilovaga ulanganda 2 daqiga va ilovaga ulanmaganda 3 daqiga vaqt oladi

Intensivlik

Motorli tish cho'tkangiz 3 turdagi jadallik sozlamalari bilan jihozlangan:

• past jadallik (bitta chiziq)
• o'rta jadallik (ikkita chiziq)
  -yuqori jadallik (uchta chiziq)

Simple diagram with three circles and two vertical lines, no text or symbols present

Dastaga biriktirilganida smart cho'tka kallagi tavsiya etilgan jadallikni avtomatik ravishda tanlaydi/ Agar boshqa jadallikka o'zgartirishni xohlasangiz, tish tozalash paytida rejim/jadallik tugmasini bosish orqali buni bajarishingiz mumkin. Dasta o'chirilgani yoki pauza qilingani uchun jadallikni o'zgartirish imkonsiz.

BrushSync texnologiyasi

BrushSync texnologiyasi cho'tka kallagining dasta bilan mikrochip orgali muloqot qilishiga yordam beradi.

Cho'tka kallagi ostidagi belgisi cho'tka kallagi ushbu texnologiya bilan jihozlanganini anglatadi.

BrushSync texnologiyasi quyidagilarni faollashtiradi:

- Cho'tka kallagini almashtirishni eslatish funksiyasi

- BrushSync rejimini jiftlash

Philips Sonicare BrushSync texnologiyasiga ega keng turdagi smart cho'tka kallaklarini taklif qiladi. Tish cho'tkasining cho'tka kallaklari to'liq ko'lami bilan tanishish va sizga eng mos keladigan cho'tka kallagini topish uchun www.philips.com/toothbrush-heads veb-saytiga kiring.

Funksiyalar

• Bosim sensori bildirgisi
• BrushPacer
• SmarTimer
• EasyStart
• Cho'tka kallagini almashtirishni eslatish funksiyasi
• Cho'tka kallagini juftlash rejimi

Simple line drawing of a gear symbol with a starburst and gear icon, connected to a vertical line (no text or labels)

Sonicare tish cho'tkangiz miklar va tishlaringiz shikastlanishining oldini olish uchun tish tozalash vaqtida qo'llangan bosimni o'Ichaydi.

Ortiqcha bosim qo'llasangiz, bosimni kamaytirmaguningizgacha dasta tebranishini o'zgartiradi va dastadagi cho'tka kallaklarini almashtirish eslatma chirog'i sariq rangda miltillaydi.

Izoh: Mahsulotingizda bosim sensori faol holatda taqdim etiladi. Bu funksiyani faolsizlantirish uchun (qarang "Funksiyalarni faollashtirish yoki faolsizlantirish").

BrushPacer

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Izoh: Bu funksiya BrushSync texnologiyasiga ega Philips Sonicare aqlli cho'tka kallaklari bilan ishlaydi.

1 Yangi smart cho'tka kallagini birinchi marta biriktirganingizda dasta sizda BrushSync texnologiyasiga ega Philips cho'tka borligini aniqlaydi va cho'tka kallagi eskirishini kuzatadi.
2 Vaqt o'tgani sari siz qo'llagan bosim va cho'tka ishlatilgan jami vaqtga qarab dasta cho'tka kallagingizni o'zgartirish uchun optimal vaqtni aniqlash maqsadida cho'tka kallagini kuzatadi. Bu funksiya tishlaringizni eng yaxshi tozalash va parvarishlashni kafolatlaydi.
3 Cho'tka kallagini almashtirish haqida eslatuvchi indikator sariq rangda yonganida cho'tka kallagingizni almashtirishingiz kerak.

Izoh: Barcha aqlli cho'tka kallaklari cho'tka kallaklarini almashtirishni eslatish funksiyasi yoqilgan holatda yetkaziladi. Cho'tka kallagini almashtirishni eslatish funksiyasini faolsizlantirish uchun qarang: "Funksiyalarni faollashtirish yoki faolsizlantirish".

Cho'tka kallagini juftlash rejimi

BrushSync texnologiyasiga ega cho'tka kallaklari, dasta bilan muloqot qiladigan hamda uni tavsiya qilingan rejim va jadallik bilan dastaga juftlaydigan mikrochip bilan jihozlangan. BrushSync texnologiyasiga ega ko'pchilik cho'tka kallaklari Clean rejimida avtomatik juftlanadi. Ma'lum afzalliklarga ega cho'tka kallaklari tegishli rejim bilan juftlanadi (mavjud bo'lganda), masalan:

• G3 Premium Gum Care: Gum Health rejimi
• W3 Premium White yoki W(c) DiamondClean (ixcham): White+ rejimi

Izoh: Agar tavsiya etilgan sozlamadan rejim/jadallikni o'zgartirishni tanlasangiz, cho'tka kallagi kelgusida tozalash seanslari uchun tanlagan sozlamangizni yodda saqlaydi.

Funksiyalarni faollashtirish yoki faolsizlantirish

2-bosqich: Quyidagi uchun yoqish/o'chirish tugmasini bosib turing:

EasyStart Cho'tka kallagini almashtirishni eslatish funksiyasi

Simple diagram with a circle containing a minus sign and a small circle connected by a line (no text or symbols)

Agar batareya quvvati indikatori uchun chap LED yashil rangda 2 marta miltillaganini ko'rsangiz va 3 ta pastdan yuqoriga ohangni eshitsangiz, demak funksiya faollashtirilgan.

YOKI

Simple diagram with a circular symbol and a vertical line, no text or labels present

Agar batareya quvvati indikatori uchun chap LED sariq rangda 1 marta miltillaganini ko'rsangiz va 3 ta yuqoridan pastga ohangni eshitsangiz, demak, funksiya faolsizlantirilgan.

Ultrabinafsha sanitayzer

Izoh: Qadoqdagi aksessuarlar xarid qilingan modelga qarab farqlanishi mumkin.

Ultrabinafsha nur sanitayzeri bilan cho'tka kallagingizni har foydalanishda tozalashingiz mumkin.

Quyidagi holatlarda sanitayzerni uzing, foydalanishni to'xtating va Mijozlarga yordam xizmatiga telefon qiling:

• Ultrabinafsha chiroq eshik ochilganda ham yonib tursa.
• Oyna singan bo'lsa yoki sanitayzerda bo'lmasa.
• Sanitayzer ishlayotganida tutasa yoki undan kuygan hid kelsa.

Izoh: Ultrabinafsha nur odam ko'ziga va terisiga zararli bo'lishi mumkin. Bu qurilmani har doim bolalardan uzoqda tuting.

1 Tish tozalagandan keyin cho'tka kallagini chaying va ortiqcha suvni silkiting.

Illustration showing two-step cleaning procedure: hand holding tool, then using a brush to clean material (no text or symbols)

Ogohlantirish: Cho'tka kallagi sanitayzerda tozalanayotganida cho'tka kallagi qopqog'i cho'tka kallagida emasligini tekshiring.

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

3 Cho'tka kallagini sanitayzerdagi 2 ta ilgakdan biriga cho'tkalarini chiroqqa qaratgan holda joylang.

Izoh: Sanitayzerda faqat Philips Sonicare biriktiriladigan cho'tka kallaklarini tozalang.

Izoh: Sonicare for Kids cho'tka kallaklarini sanitayzerda tozalamang.

4 Sanitayer mos keladigan kuchlanishdagi rozetkaga ulanganini tekshiring.
5 Eshikni yoping va ultrabinafsha nur tozalash siklini tanlash uchun yashil quvvatni yoqish/o'chirish tugmasini bir marta bosing.

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

2 Dastani quvvatlagich yoki sanitayzerga joylang.

• Dasta quvvatlash moslamasiga to'g'ri o'rnatilganini tasdiqlash uchun 2 marta qisqa signal chaladi.
• Batareyaning miltillovchi indikatori tish cho'tkasi quvvatlanayotganini bildiradi.
• Quvvatlagichdagi dasta to'liq quvvatlansa, batareya indikatori 30 soniya yashil rangda yonadi va keyin o'chadi.

Sayohat g'ilofi bilan quvvatlash

Diagram of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Izoh: Qadoqdagi aksessuarlar xarid qilingan modelga qarab farqlanishi mumkin.

1 USB kabelni sayohat quvvatlagich g'ilofiga kiriting.
2 Biriktirilgan USB kabelni quyidagi 5V kuchlanishli doimiy tokka ulang:

- Taqdim etiladigan USB adapter.

- UL bilan qayd etilgan yoki ANSI/UL 60950-1 bilan sertifikatlangan shaxsiy kompyuter USB konnektori.

- UL bilan qayd etilgan yoki ANSI/UL 60950-1 LPS bilan sertifikatlangan, USB chiqish portiga ega quvvat ta'minoti.

- UL bilan qayd etilgan yoki 1310 Toifa 2 bilan sertifikatlangan quvvat ta'minoti.

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

1 Cho'tka kallagini chiqarib oling va metall val atrofini iliq suv bilan yuving. Har qanday tish pastasi qoldig'ini tozalaganingizni tekshiring.

Ogohlantirish: Metall valdagi rezina zichlagichni o'tkir narsalar bilan bosmang, bu shikastlanishga olib kelishi mumkin.

2 Dastaning butun yuzasini nam mato bilan artib oling.

Izoh: Ortiqcha suvni yo'qotish uchun dastani rakovinaga urmang.

Cho'tka kallagi

Illustration of two hands using a tool to lift or lift a curved object, with no visible text or symbols.

1 Cho'tka kallagi va cho'tkani har foydalanishdan keyin yuving.
2 Cho'tka kallagini dastadan chiqarib oling va cho'tka kallagi ulanish qismini kamida haftada bir marta iliq suv bilan yuving. Sayohat qopqog'ini zarur bo'lgancha tez-tez yuvib tashlang.

Quvvatlash moslamasi

1 Tozalashdan avval, quvvatlagichni tarmoqdan uzing.
2 Quvvatlash moslamasining butun yuzasini nam mato bilan artib oling.

Sayohat g'ilofi

Iliq suv bilan yuving va sayohat g'ilofi ichini tozalash uchun nam matodan foydalaning.

Quvvatlash sayohat g'ilofi

1 Tozalashdan oldin sayohat quvvatlagich g'ilofini uzing.
2 Sayohat g'ilofi yuzasini artish uchun nam matodan foydalaning.

Ultrabinafsha sanitayzer

Ogohlantirish: Sanitayzerni suvga botirmang yoki jo'mrak ostida chaymang.

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Ogohlantirish: Sanitayzerning ultrabinafsha chirog'i issiqligida sanitayzerni tozalamang.

Optimal samaradorlik uchun sanitayzeringizni har hafta tozalash tavsiya etiladi.

1 Sanitayzerni tarmoqdan uzing.
2 Tomchi tomini to'g'riga tortib chiqaring. Tomchi novini chaying va uni nam mato bilan tozalab arting.
3 Barcha ichki yuzalarini nam mato bilan tozalang.
4 Ultrabinafsha chiroqdan himoya plyonkasini chiqarib oling.

Plyonkani chiqarib olish uchun qisqichlar yonidagi chetlaridan ushlab, himoya plyonkasini tortib oling.

5 Ultrabinafsha chiroqni chiqarib oling.
Chiroqni chiqarib olish uchun uni ushlang va metall qisqichdan tortib chiqaring.
6 Himoya plyonkasi va ultrabinafsha chiroqni nam mato bilan tozalang.
7 Ultrabinafsha chiroqni qayta kiriting.
Chiroqni qayta kiritish uchun chiroq quyi qismini metall qisqich bilan tekislang va chiroqni qisqichga itaring.
8 Himoya plyonkasini qayta kiriting.
Plyonkani qayta kiritish uchun plyonkadagi ilgaklarni ultrabinafsha chiroq yaqinidagi aks ettiruvchi yuzadagi uyalar bilan tekislang. Plyonkani to'g'ri sanitayzerdagii uyalarga itaring.
9 Tomchi novini ultrabinafsha nur sanitayeriga qayta joylang.
10 Tozalashdan keyin sanitayzer elektr tarmoqqa ulanishdan oldin to'liq quriganiga ishonch hosil qiling.

Xotira

Illustration of a hand holding a device with a black arrow indicating rotation (no text or symbols)

7 Batareyani yashil bosma plata bilan ulab turadigan metall tilchani sindirish uchun otvertkani batareya osti va qora korpus orasiga kiriting. Bu batareyaning ostki uchini korpusdan chiqarib oladi.
8 Ikkinchi metall tilchani sindirish uchun batareyani oling va uni ichki qismlarga teskari tarafga torting.

Ogohlantirish: Barmog'ingizni tilib olmaslik uchun batareya tilchasining o'tkir qirralaridan ehtiyot bo'ling.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration showing a hand brushing a tooth with a brush and arrow indicating the process (no text or symbols present)

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a textured object (no text or symbols present)

Simple diagram with three circles and two vertical lines, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular icon with a parking sign and a star-shaped symbol connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by an arrow (no text or labels)

Simple line drawing of a hand pressing a button on a vertical line, with a power symbol and arrowhead (no text or labels)

Simple line drawing of a mechanical component with a star-shaped label and a downward arrow, no text or symbols present.

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and a directional arrow (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with a surgical instrument (no text or symbols present)

Illustration of hands using a tool to connect two objects, no text or symbols present

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a device with a black arrow indicating rotation (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a directional arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a magnified view of the product (no text or symbols present)

Clean e Deep Gum Health White+ Clean+

Clean e Deep Clean+ Gum Health White+

Simple diagram with three circles and two vertical lines, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular symbol with a traffic light icon and a star-shaped connector (no text or labels)

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

Simple diagram with a circular arrow and a small circle connected by a line, no text or symbols present.

Simple diagram with a circular icon and a small circle connected by lines, no text or symbols present.

Illustration showing two-step cleaning procedure: top shows tool positioning and angle measurement, bottom shows device with handle (no text or symbols)

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, resembling a device or tool (no text or symbols present)

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Diagram of a handheld electronic device with a hand holding a plug, showing internal components and an arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a pen inserted into a bundle of noodles (no text or symbols)

Illustration of two hands using a tool to lift or stand, with no visible text or symbols

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Diagram showing a mechanical assembly with a magnified inset of a component being inserted (no text or symbols present)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a directional arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a textured surface (no text or symbols)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple line diagram showing a circular icon with a parking sign and a star-shaped connector (no text or symbols)

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

Simple diagram with a circular symbol and a small circle connected by lines, no text or labels present.

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Illustration of two hands holding a rifle with ropes and a diagonal line (no text or symbols)

Illustration of a hand pressing down on a cylindrical device with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical component with two textured surfaces and internal channels (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, next to a cylindrical device (no text or symbols)

Simple line drawing of a device with a star-shaped label and an arrow pointing to a small component (no text or symbols)

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to lift or stand, with no visible text or symbols

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured section (no text or symbols visible)

Diagram of a mechanical or electrical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a textured surface (no text or symbols)

Illustration of a dental arch with a numbered callout (7) indicating a specific tooth position on the upper dental arch.

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and two vertical lines, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Simple diagram with a circular symbol and a vertical line, no text or labels present

Simple diagram with a circle containing a white rectangle and a small circle connected by a line (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, no text or symbols present

Simple line drawing of a mechanical component with a base and arrow, no text or symbols present.

Diagram of a handheld electric toothbrush with a curved handle, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to connect two objects, no text or symbols present

Illustration of a hand inserting a device into a device housing (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Diagram showing a mechanical assembly with a magnified inset of a component being inserted (no text or symbols present)

Illustration of a hand holding a device with a circular component, showing a curved arrow indicating rotation (no text or symbols present)

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a toothbrush applying material to a tooth with a circular mark, and a checkmark indicating the correct step (no text or symbols present)

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

3 Zobno ščetko Philips Sonicare vklopite tako, da pritisnete gumb za vklop/izklop.

Illustration of a hand interacting with a segmented body, showing motion direction (no text or symbols)

Diagram of dental arching technique showing tooth arrangement and tool placement (no text or labels)

Clean in Deep Clean+ Gum Health White+

Clean in Deep Clean+ Gum Health White+

Simple diagram with three circles and two vertical lines, no text or symbols present

- visoka intenzivnost (tri črtice)

Diagram of a microphone with a sensor icon and connection point (no text or symbols)

Simple diagram with a circular icon containing a parking sign and a starburst symbol, connected to a vertical line with a star (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

• G3 Premium Gum Care: Način Gum Health
• W3 Premium White ali W(c) DiamondClean(compact): Način White+

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Korak 2: Pritisnite in pridržite gumb za vklop/izklop:

Illustration of a medical procedure showing step-by-step steps in a procedure involving a tool, device, and tubing (no text or symbols present)

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Diagram of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Line drawing of a medical procedure showing a tool interacting with a bundle of tissue or filaments (no text or symbols present)

Illustration of two hands using a tool to lift or stand, no text or symbols present

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

8 Baterijo primite in jo odmaknite od notranjih delov, da prelomite drugi kovinski jeziček baterije.

Opozorilo: Pazite, da si z ostrimi robovi jezičkov baterije ne poškodujete prstov.

9 Stike baterije prekrijte z lepilnim trakom, da preprečite kratek stik zaradi preostale napetosti v bateriji.

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a vertical structure with a checkmark (no text or symbols)

Illustration of a hand using a tool to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

4 Jemne udržujte štetiny v polohe na zuboch a d'asnách. Zuby čistite krátkymi pohybmi dopredu a dozadu tak, aby štetiny dosahovali do priestorov medzi zubami. Tento pohyb opakujte počas celého čistiaceho cyklu.

Diagram of dental arching with tooth structure and tool (no text or labels)

BrushSync automaticky vyberie optimálny režim a intenzitu.

Simple diagram with three circles and two curved lines, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a parking sign with directional arrows and a star-shaped symbol (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by an arrow (no text or labels)

Hand holding a power button next to a bottle (no text or symbols visible)

Simple diagram with a circular arrow and a small circle connected by a line, no text or symbols present.

Simple diagram with a circle containing an internal symbol and a small circle connected by lines, next to a vertical rectangle (no text or labels)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

5 Zatvorte dvierka a raz stlačte zelené tlačidlo zap./vyp., čím vyberiete čistiaci UV cyklus.

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Illustration of a handheld electronic device with a hand holding a cable, showing internal components and a directional arrow (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to lift or stand, with no visible text or symbols

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a camera module with a black arrow pointing to the interior (no text or symbols)

Illustration of a mechanical component with a curved arrow indicating motion (no text or symbols)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Deo napajanja koji se može skinuti: Oznaka „xxxxx“ predstavlja broj modela odobrenih punjača koji bi trebalo da se koriste. (TCBxxxx, HX6100, HX6110, HX6160 ili WAAxxxx)

Namena

Električne četkice za zube Sonicare ExpertClean namenjene su za uklanjanje nakupljenog kamenca i ostataka hrane sa zuba u cilju sprečavanja karijesa i poboljšavanja oralnog zdravlja. Električne četkice za zube Sonicare ExpertClean namenjene su za ličnu upotrebu. Deca treba da koriste proizvod uz nadzor odraslih.

Philips Sonicare četkice za zube (slika 1)

1 Drška
2 Dugme za uključivanje/isključivanje
3 Indikator intenziteta
4 Dugme za režim/intenzitet
5 Indikator režima
6 Podsetnik za zamenu glave sa četkicom
7 Indikator baterije

Dodaci:

1 Poravnajte glavu četkice tako da su vlakna okrenuta u istom smeru kao i prednja strana drške.

2 Čvrsto pritisnite glavu četkice na metalnu osovinu do kraja.

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

1 Pokvasite vlakna i nanesite malu količinu paste za zube.

2 Postavite vlakna četkice za zube na zube tako da budu pod blagim uglom (45 stepeni). Čvrsto pritisnite kako bi vlakna stigla do desni ili malo ispod desni.

Simple line drawing of a hand pressing a button on a power button (no text or symbols)

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

4 Nežno držite vlakna na zubima i desnima. Perite zube blagim pokretima unapred i unazad tako da vlakna mogu da dosegnu između zuba. Nastavite sa ovakvim pokretima tokom celog ciklusa pranja zuba.

Diagram of dental arching technique showing tooth arrangement and tooth penetration (no text or labels)

Električna četkica za zube ima do 4 različita režima rada: Clean, Deep Clean+, Gum Health i White+ (samo određeni modeli).

Na osnovu pametne glave sa četkicom koju koristite, BrushSync tehnologija će automatski izabrati optimalan režim i intenzitet.

Da biste ručno promenili režim, pritisnite dugme za režim/intenzitet kad je četkica za zube isključena. Sve glave sa četkicom rade u svakom režimu.

Clean i Deep Clean+ Gum Health White+

Pogodnost Uklanjanje plaka Uklanjanje plaka i masaža desni			Uklanjanje plaka i mrlja sa površina
Preporučeni nivo intenziteta	Visoka Visoka Visoka
Ukupno vreme pranja zuba	Clean: 2 minutaDeep Clean+: 3 minuta*	3 minuta i 20 sekundi	2 minuta i 40 sekundi
Kako se pere Clean: perite svaki segment 20 sekundi.		perite svaki segment 20 sekundi,	perite svaki segment 20 sekundi,
	Deep Clean+: perite svaki segment 30 sekundi.*	a zatim perite segmente 7,8,9 i 10, svaki po 20 sekundi.	a zatim perite segmente 7 i 8, svaki po 20 sekundi.

Simple diagram with three circles and two vertical lines, no text or symbols present

Električna četkica za zube ima 3 različitih postavki za intenzitet:

• nizak intenzitet (jedna crta)
• srednji intenzitet (dve crte)
• visok intenzitet (tri crte)

Kada je prikačena na dršku, glava sa četkicom automatski izabira preporučeni intenzitet / Ako želite da promenite intenzitet, pritisnite dugme za režim/intenzitet dok perete zube. Intenzitet ne može da se promeni dok god je drška isključena ili je njen rad pauziran.

Tehnologija BrushSync

Illustration of a microphone with a sensor icon and signal symbol (no text or labels)

Simple line diagram showing a circular icon with a road symbol and a starburst shape connected to a vertical line (no text or labels)

Ako prekomerno pritiskate, drška će promeniti vibraciju, lampica podsetnika za zamenu glave sa četkicom na drški će treptati žutonarandžastom bojom dok ne smanjite pritisak.

Napomena: Proizvod se isporučuje sa aktiviranim senzorom pritiska. Da biste deaktivirali ovu funkciju (pogledajte 'Aktiviranje ili deaktiviranje funkcija').

BrushPacer

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Ako vidite da leva LED lampica indikatora baterije trepće zelenom bojom 2 puta i čujete 3 zvuka, od slabog do jakog, onda je funkcija aktivirana.

ILI

Simple diagram with a circular arrow and a small circle connected by a line, no text or symbols present.

Ako vidite da leva LED lampica indikatora baterije trepće žutonarandžasto 1 put i čujete 3 zvuka, od slabog do jakog, onda je funkcija deaktivirana.

Illustration showing two-step procedure: hand holding a tool, then applying a device to a surface (no text or symbols)

1 Nakon pranja zuba isperite glavu četkice i otresite višak vode.

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, no text or symbols present

3 Postavite glavu četkice na jedan od 2 klina u aparatu za dezinfekciju tako da vlakna budu okrenuta ka lampi.

Napomena: U uređaju za sanitizaciju čistite isključivo Phillips Sonicare glave četkice za lako postavljanje.

Napomena: nemojte da čistite glave četkice Philips Sonicare for Kids u aparatu za dezinfekciju.

4 Uređaj za sanitizaciju mora biti uključen u funkcionalnu utičnicu ili na odgovarajući napon.
5 Zatvorite poklopac i jedanput pritisnite zeleno dugme za uključivanje/isključivanje da biste izabrali ciklus UV čišćenja.

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Punjenje na punjaču ili na UV aparatu za dezinfekciju

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and an arrow indicating motion (no text or symbols present)

Napomena: Uključeni dodaci mogu da se razlikuju u zavisnosti od kupljenog modela.

1 Umetnite USB kabl u putnu torbicu za punjenje.
2 Povežite priloženi USB kabl na ulazno napajanje jednosmernom strujom od 5 V sa:

- priloženim USB adapterom;

Line drawing of a medical procedure showing a tool interacting with tissue manipulation (no text or symbols)

1 Uklonite glavu četkice i isperite oblast oko metalne osovine toplom vodom. Obavezno uklonite sve ostatke paste za zube.

Oprez: Nemojte da gurate gumenu zaptivku na metalnoj osovini oštrim predmetima pošto to može da dovede do oštećenja.

2 Čitavu površinu drške obrišite vlažnom krpom.

Napomena: Nemojte da udarate ručkom o sudoperu da biste uklonili višak vode.

Glava četkice

Illustration of two hands using a tool to connect a pen and a ruler, with no visible text or symbols.

1 Glavu četkice i vlakna isperite nakon svake upotrebe.
2 Bar jednom nedeljno skinite glavu četkice sa drške i toplom vodom isperite njen priključak. Isperite poklopac za putovanja kad god je potrebno.

Punjač

1 Isključite punjač iz električne mreže pre čišćenja.
2 Obrišite površinu punjača vlažnom krpom.

Putna futrola

Isperite toplom vodom i izbrišite unutrašnjost putne futrole vlažnom krpom.

Putna futrola za punjenje

1 Prije čišćenja isključite putnu futrolu za punjenje iz utičnice.
2 Površinu putne futrole izbrišite vlažnom krpom.

Illustration of a hand inserting a component into a device (no text or symbols visible)

1 Isključite uređaj za sanitizaciju.
2 Izvucite posudu za sakupljanje tečnosti. Isperite posudu za sakupljanje tečnosti i obrišite je vlažnom krpom.
3 Očistite sve unutrašnje površine vlažnom krpom.
4 Uklonite zaštitnu foliju koja se nalazi ispred UV lampe.

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a mechanical component with a curved handle and rod, no text or symbols present

9 Kontakte na bateriji zaštitite trakom kako preostali napon baterije ne bi prouzrokovao kratak spoj. Punjivu bateriju sada je moguće reciklirati, a ostatak proizvoda odložiti na odgovarajući način.

Napomena: Aparat koji se više ne može upotrebljavati nemojte da odlažete u kućni otpad, već ga predajte na zvaničnom prikupljalištu za reciklažu. Na taj način pomažete očuvanju životne sredine.

Johdanto

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

Diagram of dental arching technique showing tooth arrangement and tooth penetration (no text or labels)

Clean ja Deep Gum Health White+ Clean+

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Illustration of a human tooth with teeth and jawbone, marked with number 8 (no text or symbols on the main subject)

Simple diagram with three circles and two vertical lines, no text or symbols present

Simple line diagram showing a circular symbol with a traffic light icon and a starburst shape connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

Simple diagram with a circular element and a vertical line, no text or symbols present

Simple diagram with a circle containing an internal rectangle and a small circle connected by a line (no text or symbols)

Illustration showing two-step cleaning procedure: hand holding tool, then using a device to clean or adjust the component (no text or symbols present)

Diagram of a mechanical component with two symmetrical parts, no text or symbols present

Line drawing of a hand holding a small object on a cylindrical base (no text or symbols)

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Diagram of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rods (no text or symbols)

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured section (no text or symbols visible)

Illustration of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Illustration of a hand interacting with a segmented object, showing motion direction (no text or symbols)

Diagram showing dental alignment with a tooth and toothbrush (no text or labels)

Simple diagram with three circles and two curved lines, no text or symbols present

- hög intensitet (tre staplar)

Diagram of a microphone with signal icon and speech bubble (no text or symbols)

Abstract geometric design with a star-like shape containing a central symbol and a small star-like shape beside it (no text or symbols present)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Simple line drawing of a hand pressing a button on a bottle with a power button (no text or symbols)

Simple diagram with a circular arrow pointing to a vertical line and a small circle connected by a line (no text or symbols)

Simple diagram with a circular symbol and a vertical line, no text or labels present

Three-step diagram illustrating a mechanical assembly process: tool insertion, close-up of component, and final assembled view (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a mechanical component with a starburst symbol and a base, no text or symbols present.

Illustration of a handheld electric shaver with a hand holding the cable (no text or symbols)

Line drawing of a hand holding a pen over a plant stem (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rods (no text or symbols)

Hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured interior and arrow indicating direction (no text or symbols)

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and a magnified inset showing the same object (no text or symbols present)

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Illustration of a hand holding a device with a circular button, no text or symbols present

www.philips.com/support

Simple line drawing of an open book and a circuit symbol (no text or labels)

Bellik: Dürli modelleriň ayratynlyklary dürlüçe bolup bilýär. Käbir modeller Bluetooth ýa-da NFC bilen enjamlaşdyrylmadyk bolup biler.

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

2 Nasadkany metal walyň üstüne ol aňryk baryp direyänçä dzümli basyň.

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

1 Gyllary öllään we üstüne azajyk diş pastasyny çalyň.

Elektrikli diş çotgañyz 4 dürli tertip bilen enjamlaşdyrylandyr: Clean, Deep Clean+, Gum Health we White+ (diñe belli bir modellerde).

Ulanýan akylly nasadkaňyza baglylykda, optimal tertip we ýygjamlyk BrushSync tehnologiýasy tarapyndan awtomatik saýlanylar.

Clean we Deep Gum Health White+ Clean+

Yeňillik Daş aýrymak Daş aýrymak wediş eti massažy			Daş we üst tegmiller aýrymak
Maslahat berilýan ýygjamlyk derejesi	Ýokary Ÿokary Ÿokary
Jemi çotgalama wagty	Clean: 2 minutDeep Clean+: 3 minut*	3 minut we 20 sekunt	2 minut we 40 sekunt

Clean we Deep Gum Health White+ Clean+

Çotgalaýys usuly

Clean: Her segmenti 20 sekunt çotgalaň.

Her segmenti 20 sekunt çotgalaň,

Her segmenti 20 sekunt çotgalaň,

Deep Clean+: Her segmenti 30 sekunt çotgalaň.*

soňra segment 7,8,9 bilen 10-iň her birini 20 sekunt çotgalaň.

soňra segment 7 bilen 8-iň her birini 20 sekunt çotgalaň.

Illustration of a dental arch with a numbered callout (7) indicating a specific tooth position (no text or symbols beyond the number)

Illustration of a human tooth with labeled point 8 (no text or symbols beyond the number)

*Bellik: "Deep Clean+" tertibinde Philips Sonicare programmasy bilen çotgalaýarkaňyz, programma birigen bolsa, çotgalama wagty 2 minut, programma birikmedik bolsa, 3 minut dowam eder

Ýygjamlyklar

Elektrikli diş çotgaňyz 3 dürli ýygjamlyk sazlamasy bilen gelýär:

Simple diagram with three circles and two vertical lines, no text or symbols present

Tutawaja dakylgy wagty, akylly nasadka maslahat berilýän ýygjamlygy awtomatik sayılar/ Başga bir ýygjamlyga üýtgetmek isleseňiz, çotgalap durkaňyz, şeýtmek üçin tertip/ýygjamlyk düwmesini basyp bilersiňiz. Tutawaç öçük ýa-da ságindirilgi wagty, ýygjamlygy üýtgedip bolmaýar.

Pure electrical circuit lines without any symbols

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

• G3 Premium Gum Care: Gum Health tertibi
• W3 Premium White ya-da W(c)

DiamondClean(compact): White+ tertibi

Simple diagram with a circular element and a vertical line, no text or symbols present

Simple diagram with a circle containing a minus sign and a small dot connected by lines (no text or symbols)

Illustration of two hands using a tool to interact with a diagonal line (no text or symbols)

Illustration of a hand pressing down on a device component with an arrow indicating the left side (no text or symbols present)

Diagram of two toothbrushes inside a mechanical component (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

5 Gapagy yapyň we ultramelewşe arassaçylyk döwresini saylamak üçin açýan/öçüryän düwmäni bir gezek basyň.

Bellik: dezinfektory diñe gapagy talabalaýyk ýapyk wagty işledip bilersiňiz.

Bellik: dezinfektor döwresiniň dowamynda gapagy açşaňyz, dezinfektor işlemegini togtadar.

Bellik: Dezinfektoryň döwresi takmynan 10 minuda çekýär we soňra awtomatik öçýär.

Simple line drawing of a device with a starburst symbol above it, no text or symbols present.

Zarýadnikde ýa-da ultramelewše dezinfektorda zarád bermek

Illustration of a handheld electronic device with a hand holding a cable, showing internal components and wiring (no text or symbols)

Simple line drawing of a fork with a knife inserted, no text or symbols present

Illustration of hands using a tool to adjust or install a mechanical component, no text or symbols present

1 Her ulanyşdan soň nasadkany we gyllary ýuwup durlaň.
2 Azyndan hepdede bir gezek nasadkany tutawaçdan aýryp, nasadkanyň birikmesini ýyly suw bilen ýuwup durlaň. Syýahat gapagyny näçe ýygylykda zerur bolsa ýuwup durlaň.

Zarýadnik

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Pure electrical circuit lines without any symbols

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Clean kai Deep Gum Health White+ Clean+

Clean kai Deep Gum Health White+ Clean+

Simple diagram with three circles and two vertical lines, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular icon with a road sign and a starburst symbol connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Illustration of two hands holding a tool with a diagonal line crossing through them (no text or symbols)

Illustration of a hand pressing down on a device component with an arrow indicating left motion (no text or symbols)

Cross-sectional diagram of a mechanical component with two textured surfaces (no text or symbols)

Line drawing of a hand holding a small object on a cylindrical base (no text or symbols)

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and an arrow indicating motion (no text or symbols present)

Line drawing of a medical procedure involving an incision or needle inserted into a bulbous structure (no text or symbols)

Illustration of two hands using a tool to connect two objects, no text or symbols present

Hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured internal component and an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component or tool with no visible text or symbols

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Simple line drawing of an open book and a circuit symbol (no text or labels)

Illustration showing a hand brushing a tooth with a brush, and a close-up of the tooth being examined with a checkmark (no text or symbols present)

Illustration of a hand using a pen to apply a sample onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

Diagram of dental arching technique showing tooth arrangement and tool placement (no text or labels)

Clean и Deep Gum Health White+ Clean+

Clean и Deep Gum Health White+ Clean+

Deep clean+: Четкайте всеки сегмент за 30 секунди.*

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Illustration of a human tooth with teeth and jawbone, marked with number 8 (no text or symbols on the main subject)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple line diagram showing a circular icon with a road sign and a starburst symbol connected to a vertical line (no text or labels)

Simple diagram with a circle containing an internal symbol and a small dot connected by lines (no text or labels)

Simple diagram with a circle containing an 'X' and a small circle connected by a line (no text or symbols)

Illustration of two hands holding a tool with a pointed tip and a pointed tip, intersected by a diagonal line (no text or symbols)

Illustration of a hand pressing down on a device component with an arrow indicating the left side (no text or symbols present)

Cross-sectional diagram of a mechanical component with internal channels and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, resembling a device or tool (no text or symbols present)

Simple line drawing of a device with a star-shaped label and an arrow pointing to a small component (no text or symbols)

Diagram of a handheld electronic device with a curved arm and connector (no text or symbols)

Line drawing of a hand holding a pen over a bundle of noodles (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured section (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and a magnified inset showing the same object (no text or symbols present)

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a hand brushing a tooth with a brush, and a close-up of the tooth being smoothed (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Illustration of a human hand holding a small object, with arrows indicating movement or force direction (no text or symbols)

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple line diagram showing a circular symbol with a gear and directional arrow, connected to a vertical line with a star-like shape (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

2-кадам: Күйгүзүү/өчүрүү баскычын коё бербей басып туруңуз:

Simple diagram with a circular icon and a small circle connected by lines, no text or symbols present.

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Illustration of two hands using a tool to measure a mechanical component, with no visible text or symbols.

Hand holding a device with a circular arrow pointing to the handle (no text or symbols visible)

2 Манжаңызды санитайзердин эшигинин оюгуна салып, эшикти тартып ачыңыз.

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, no text or symbols present

Simple line drawing of a mechanical component with a base and a starburst symbol (no text or labels)

Diagram of a handheld electric toothbrush with a screwdriver inserted, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands holding a tool with a pointed tool, connected by wires (no text or symbols visible)

Illustration of a hand inserting a component into a device (no text or symbols visible)

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pen to apply a sample onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

Clean и Deep Gum Health White+ Clean+

Simple diagram with three circles and two curved lines, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Simple diagram with a circular symbol containing a minus sign and a small circle connected by a line (no text or labels)

Illustration of two hands using a tool to connect two objects, no text or symbols present

Illustration of a hand pressing down on a device component with an arrow indicating the left side (no text or symbols present)

Diagram of a mechanical component with two protruding parts and internal structure (no text or symbols)

Line drawing of a hand holding a small object on a cylindrical device (no text or symbols)

Simple line drawing of a device with a starburst symbol above it, no text or symbols present.

Illustration of a handheld electronic device with a hand pointing to a cable or connector (no text or symbols visible)

Line drawing of a person holding a syringe above their tentacles (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rods (no text or symbols)

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Diagram of a mechanical or electrical component with a curved pipe and base, no visible text or symbols

Illustration of a hammer striking a cylindrical object with a circular arrow indicating rotation (no text or symbols)

Illustration of hands fastening a cylindrical object with a belt, no text or symbols present

Illustration of a hand holding a cylindrical tool with an arrow indicating direction, and a magnified inset showing the same tool's tip (no text or symbols present)

Diagram of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols)

Illustration of a hand holding a device with a circular component, no text or symbols present

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a circular mark and a checkmark (no text or symbols)

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a close-up of a textured object (no text or symbols present)

Diagram of dental arching technique showing tooth arrangement and tool placement (no text or labels)

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with a circular icon showing wireless signal, no text or symbols present

Simple diagram with a circular arrow and starburst symbol connected to a vertical line with a small star (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Diagram of a handheld electronic device with a cable and connector, showing internal components (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to lift or adjust a mechanical component, no text or symbols present

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured internal component and an arrow indicating direction (no text or symbols)

Illustration of hands holding a cylindrical object with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamping tool interacting with a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Кисми чудошавандаи таъминоти барк: «xxxxх» раками намунавии баркпуркунандахоеро, ки бояд истифода шавад, нишон медихад. (TCBxxxx, HX6100, HX6110, HX6160 ё WAAxxxx)

Illustration showing a hand brushing a tooth with a brush and a close-up of the tooth being smoothed (no text or symbols)

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a magnified view of a circular object (no text or symbols present)

3 Барои фаъол кардани «Philips Sonicare» тугмаи фаъол/хомўшро пахш кунед.

Illustration of a hand holding a small object with directional arrows indicating movement or force (no text or symbols)

4 Лифхои чўткаро болои дандонхо ва дар хати милки дандонхо ба таври дуруст чойгир кунед. Дандонхои худро бо харакатхои хурди пасу пеш тоза кунед, то ки лифхои чўтка байни дандонхо гузарад. Ин харакатро дар тамоми давраи дандоншўии худ идома дихед.

Шарх: Мўйякхои чўтка бояд каме васеъ шаванд. Тавсия дода намешавад, ки шумо дандонхоро мисли бо чўткаи дандоншуии дасти тоза кунед.

Чуткаи дандоншўии шумо бо то 4 речаи шиддати гуногун таўмин шудааст: «Clean», «Deep Clean+», «Gum Health» ва «White+» (танхо моделхои мушаххас).

Simple diagram with three circles and two curved lines, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Illustration of two hands holding a rifle with ropes and weights, no text or symbols present

Illustration of a hand pressing down on a device component with an arrow indicating left motion (no text or symbols)

Cross-sectional diagram of a mechanical component with two symmetrical slots and internal channels (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, no text or symbols present

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and wiring (no text or symbols)

Line drawing of a hand holding a pen over a bundle of tentacles (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rods (no text or symbols)

Illustration of a hand inserting a device into a device housing (no text or symbols visible)

1 Чудо кардани тамизкунанда.
2 Табакчаро барои катрахо рост кашида бароред. Табакчаро барои катрахо бо об шуед ва бо матои нам тоза кунед.
3 Хамаи сатххои дохилиро бо матои нам тоза кунед.
4 Экрани мухофизатиро пеш аз чароғи UV чудо кунед.

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and a magnified inset showing the same object (no text or symbols present)

5 Дастакро чаппа нигох дошта, холигиро ба сатхи сахт зер кунед. Агар чузъхои дохили ба осонй аз корпус озод нашаванд, кадами 3-ро то он даме, ки чузъхои дохили озод карда шаванд, такрор кунед.

Diagram of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols)

6 Мурваттобакро байни батарея ва чахорчубаи сиёх, дар поёни чузъхои дохилй пайваст кунед. Сипас, мурваттобро аз батарея боло бардошта, поёни чахорчубаи сиёхро кушоед.

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with a circular icon showing signal waves (no text or symbols)

Simple diagram with a circular icon containing a road sign and a starburst symbol, connected to a vertical line with a starburst (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple diagram with a circle containing a minus sign and a small circle connected by a line (no text or symbols)

Simple diagram with a circular icon containing a white rectangle and a small circle connected by a line (no text or symbols)

Three-step diagram illustrating a mechanical assembly process: tool insertion, close-up of component, and final assembled view (no text or symbols)

Line drawing of a hand holding a small object with a hole, no text or symbols present

Simple line drawing of a device with a button and cable, no text or symbols present

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Line drawing of a hand holding a pen over a bundle of noodles (no text or symbols)

Illustration of two hands using a tool to lift or adjust a mechanical component (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

Hand holding a mechanical component with a black arrow pointing to a textured section (no text or symbols visible)

Diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration showing a hand brushing a tooth with a brush, and a close-up of the tooth being smoothed (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Simple diagram with three circles and two curved lines, no text or symbols present

Diagram of a microphone with a sensor icon and connection point (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Simple diagram with a circular symbol and a vertical line, no text or labels present

Simple diagram with a circle containing a white rectangle and a small circle connected by a line (no text or symbols)

Illustration of two hands using a tool to measure a mechanical component, no text or symbols present

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Illustration of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured internal component and a black arrow pointing to it (no text or symbols)

Diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Eltlynnwutinigüwü hwünülh üwu. «xxxxxx»-n gnüg 5 unwihu hwunwnunlwið lhgpwulnnhşütph ünntüh hwúwnp, nnp wütnp 5 oqunwqnndüh: (TCBxxxx, HX6100, HX6110, HX6160 lyuü WAAXxxx)

Lwwinnwlywjhù oqinwqnndniú

Sonicare ExpertClean wunwùutŋn úwpntŋni tʃltynnwlywù hunqwùwlyutŋn ùwwhuwinttuulwò tǔ yniunwlyuud wunwùuwwhwnŋ u uùünwjhù uùwgnnnñutŋn wunwùutnhg htnwgutŋni hwúwn, hùzǔ oqùniú t ǜuìwqtgǔti wunwùutnh ywnhtún u pwntliwulti lywiú wwhwlywùti ptnwùh hunnzh wnnnŋɔnɪpəjnɪn: Sonicare ExpertClean 2wnph tʃltynnwlywù wunwúh hunqwùwlyutŋn ùwwhuwinttuulwò tǔ wùàuwlywù oqunwqnndúwù hwúwn: tʃnthuwutŋh ynnúhg oqunwqnndɔniún wṭún p ʃlhùh útδωhwwluylutŋh vtænwhulynnηnɪpəjwù útæpn:

2tn Philips Sonicare-n (Uy. 1.)

2tnpnj hwuwdwutni hwuwn.

2niqwulntp/lywwuwlygtp wunwuh hunqwüwyn hwultylwoh htun wútǔ tŋlni 2wpwən útyì' hwultylwoh hwnlynipajniùutnhg/hùwnwulnnipajniùutnhg oqnultjni hwúwn:

Uqinnuun ytnwny hwuwdwutni hwuwn.

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

1 bùnqùwùh qìhùhùn hǎuǐwùwntgntp wǔwùtu, nè uìwāqhùtùnù nìnnǚwǒ jìhùtù ǔnìjù nìnnημαjωύp, hùz pénùwùh nǐhuìwgh lùnnún:

2 Uünin utnútp hunqwùwlyh qihuhyn utnplu utunwnwlywù lhuṭnh útg, uħùzlu wju yhuìq wnùh: L2niú' hunqwùwlyh qihuhyh u pnùwlyh úhzu yhnpn wǔgph wn²ywjnupjniùn ünnúwú 5:

2tn Philips Sonicare wunwutph hunqwuwlyh oqunwqnpnniyn

tpti wnwghù wùqwú tṛp oqunwqnδnú ðtn Sonicare winwúh hunqwùwʊŋ, wʊltɪŋ 2wn jənjəng qquwɪŋ ünnuúwɪ ʒ' hwiútuwinwó nʒ ʒitlynnwʊywù hunqwùwʊŋ htún: lnnúwɪ ʒ, tnp wnwghù wùqwú oqunwqnδnñútnŋ zwiħhg 2wn tǔ utnúniú qnδwnŋnniú: Uhwju lyhnwntp üninp utnúniú u panyl unltp, nnwtuqh winwúh hunqwùwʊŋ ðtn ühnhwntǔ úwpnh: hünnniú tǔp htinutl uinnpl útnlywjwgulwó hunqwùwʊŋhg oqunultīni gnigniúutnhù' luwlwqnijù wnŋjniúpūtn uunwùwɪni hwiśwn:

Uugniun atn unn Sonicare 5thynnwlywù wunwúh hunqwùwlyhù ht2unwgutlni hwiúwn wnwghù 1-2 2wpwjaulw núpwgpniú oqinwqnndtúp wultih gwòn ywnqwuŋnniú, wjünihtuniu wǔgtp wultih pwnàn ywnqwuŋnnúwù:

Uwpnúwù hnwhwùqùtn

1 陰ngtp hunqwùwlyh úwqhúutnn u útngntp wunwúh úwðnilyh phz pwiùwlníjniú:

2 Umwúh hunqwúwwlyh úwqhúutpn nptp wunwuúutph unw nnn2 wùljuwù unwly (45 wuunhǎwù): Uúnín utnútp, nnwtuqh úwqhúutpn hwuútu jùntph tqnwaqóhu yuwí nnuwúhg útnpu:

L2niù Uúpnnq dwúwùwly hunqwùwlyh ytāunpnùn wwhtp wunwùutph htún 2yhuìwù útg:

3 Utnútp hnuwúph úhwguúwú/wúgwùnúwú ynǎwúŋ Philips Sonicare-n úhwgútúní huuúwn:

4 Urpntu wuhtp hunqwùwlyh úwqtnú winwuśutnh ynw intwnwnnluwó u lúntnh tqnwaðniú: Uwpntp winwuśuttn pārəuwlyh htun ni wnwg 2wndniuśutnnu, npwtuqh hunqwùwlyh úwqhúuttn hwuùtú winwuśutnhú: Čwnniówutp wju 2wndniún ótn úwpnuśwú yhnih wúpnng núpawgpniú:

L2niù hunqwùwlyh úwqhúuttnn wgtuŋp ʒ úh ʊhnpn lwijuwùwù: hunphnnnn zh unnuíniú winnwùuttnn úwpnti l wjuwytu, hùzwtu nnp lyuwpntbhp unlqnwwlywù winnwúh hunqwùwlynq:

L2niù 2wihwqwug útó áu2niú qnnðwnntjni ntwpniu yuunwùwp qqni2wgniu' yuhnhuh pnüwuh rænængn, u hunqwùwuh qihuhuh uhnhuúwù hh2tgúwù jniuwjhù gnighyn yuhuh pawnpāti ntūnhù qnyùnu:

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

5 Urquh winwutph utnuh uwltnunjputn uwpntni hwuwn petptp hunqwuwlyh pnuwyn yhuwninh nhnpnu l u uh pwuh ninnwhwjug uwpnn 2wndnutn ywnwntp jninwpwusynin winwuh qnw:
6 Uwpntni yhniu wuwnntinig htinn ywnn np lnwgnighs dwuwuwly hwnlywgutl winwutinh dwunn uwltpntuuttn np wwpntniu u wju hwnulwodtphu, nnuntn wnwgwuniu 5 powulnnniu: ywnn np uwu uwpnti ltqniu` hunqwuwyn wwhtinu uhwguwd ywi wugwinwdo, huzwbu uwhpunnnniu tp:

^12 niú 2tn Philips Sonicare wunwúh hunqwùwʊŋ wùlúnwùq 5 wunwútph pntlytunutph (hunqwùwʊŋ qíhuḥn 2niún 5 úw2yniú pntlytunutph ynw) u wunwútph 5tnwlywùqùnn hwnúwnwùputph (ignùniúutn, 2wwhýutn, 5túhnutn) oqnuwqnòúwù ntwρniú, tṛat ħnwùp wwwn2wǎ tǔ oqnuwqnòu niú u ztǔ huwhunu niú:

BrushPacer

yānwnu yūunnultu oujnhuw lntchún u hùntùuhúniəjniùn:

ntdhuŋ àtnpnu ynhutni hwiwn hunqwùwlyu wùgwinluwð dwúwùwly utnútp ntdhu/hùntiùuhlnipjwi u lynawlyn: Fnnn hunqwùwlyutnh qihuhlútnu w2huiunniu tǔ jninwpwùyjnin ntdhúnj:

Clean & Deep Gum Health White+ Clean+

Unwutlnjniu	Unwufuwwnhhtwngniu	Unwufuwwnhhtwngniu luünth utnuniu	Unwufuwwnhlu wyltnunjphpdtnh htnwngiu
huntuhynj-wwwwnghunnwnhawwn	Fwnan Fwnan Fwnan
qnwuwgtni pwnhwunn dwuwwlyn	Clean (Uwpnni).2 nnwtDeep Clean+`3 nnwt*	3 nnwt, 20 lwwnljuwu	2 nnwt, 40 lwwnljuwu
	Clean U Deep Clean+	Gum Health White+
hùwǒu hūnquùwǔlǐ	Clean (Uwpnniú).3nīnwpuwùyīnín hwnuìwǒn hunquùwǔlǐtp 20 uwjnljjuwù:	3nīnwpuwùyīnín hwnuìwǒn hunquùwǔlǐtp 20 uwjnljjuwù,	3nīnwpuwùyīnín hwnuìwǒn hunquùwǔlǐtp 20 uwjnljjuwù,
	Deep clean+`3nīnwpuwùyīnín hwnuìwǒn hunquùwǔlǐtp 30 uwjnljjuwù:*	www huqnquùwǔlǐtp 7,8,9-pn l u 10-pn hwnuìwǒutpnn` jnīnwpuwùyīnín 20 uwjnljjuwù:	www huqnquùwǔlǐtp 7-pn l u 8-pn hwnuìwǒutpnn` jnīnwpuwùyīnín 20 uwjnljjuwù:

*L2nu§ Philips Sonicare hwultyluwδnul «Deep Clean+» ntdhúnu lunqwùwyltihu` hunqwùwlyúwù dwúwúwln lhywquh 2 nnwta, tnp úhwgulwð § hwultyluwδhù, hul, tnp úhwgulwð § hwultyluwδhù` 3 nnwta

hùntùuhǔnīpāwǔ wùnhǎwùtǔn

Etiyunnwlywu hunqwùwlyu niúh hùnttùuhúnjiājwù 3 unwnptn ywnqwùnnniú.

• gwδη hùntǔu huìnǐjǐu (útǔ qhδ)
• uħghù hùntùuħuħniŋniù (tŋlni qħδ)

Simple diagram with three circles and two vertical lines, no text or symbols present

- pwnàn hùntìuuhílníjniù (tptp qhd) Pnùwlyhù ygúwò jhùtǐnì nǎwpniú hútiwgh hunqwùwlyh qìhuìyù wùnnúwùn yánwùnú nǔunníú t hwúwwwùnwùwù hùntìuuhílníjniùn/ tpt gwùlywùniú tṛp yhnútǐ hùntìuuhílníjniùn, lwwnn nǚ wùtǐ huuqwùwútǐnì nǔpawgpniú ntādhú/hùntìuuhílníjniú ynǎwlyn utnútǐnì úhōngnu: hùntìuuhílníjniùn zh ywnnn yhnútǐ, tnp pnùwlyù wùgwinúwò t yhuú nǎwnwntīgúwò t:

BrushSync unthuünqhw

Diagram of a microphone with signal icon and connection point (no text or symbols)

BrushSync unthuünqhwù àtn hunqwùwlyh qlhuhlyhù pniyl 5 unwihu hwnnnnwlgutl prùwlyh htun uhlynnzhwh oqūnijəjwiúp: lunqwùwlyh qlhuhlyh uunnphù hwnuŋwðniú qniùlnn ½wùn gnig 5 unwihu, nn hunqwùwlyh qlhuhlyu wwwhnyluwò 5 wju unthuünqhwjnú: BrushSync unthuünqhwù wwwhnulniú 5. - lunqwùwlyh qlhuhlyh yhnhuwnhùuwù hh2tgniú - BrushSync ntādhúh qniqwulnnniú Philips Sonicare-ü wizwgwynliú 5 BrushSync ( lunqwùwlyhUhúpnnüwgniú) unthuünqhwjnú hutlwgh hunqwùwlyh qlhuhlyutnh lwjù untuwlywùh: funqwùwlyutnh qlhuhlyutnh útn wúpnng untuwlywùniú δwiùnpawiuwini u àtbq wútiuwhwuwwwnuwuhwiú qlhuhlyn qniútini u jnwgnighs untntlynijəjniùutnh hwúwn wjgtitp www.philips.com/toothbrush-heads:

9nnδwnnɪpəʊtn

• ดูรุณวิ ดูรุณวิ ดูรุณวิ ดูรุณวิ
• BrushPacer
• SmarTimer
• EasyStart
• lunqwùwlyh qìhuìyh ǔnhùwnhùúwù hìh2tigniú
• lunqwùwuh qihuhuh ntādhūh qniqwwlnnniū

Simple diagram with a circular icon containing a road sign and a starburst symbol, connected by a line to a vertical line (no text or labels)

tptz wuhhg wultl a2niú qnnównntp, wuw pnüwlyh panrngn yhhnhuh, hul hunqwüwwyh qihuhyh yhnhuwnhüüwü hh2tgüwü lniuwwjhu gnighyn lpawnrah pnüwlyh ynw ntinhü lnijunü' uħùzu züuqwqtgutp a2niún:

• G3 Premium Gum Care' Gum Health nǚdhu
• W3 Premium White lquú W(c) DiamondClean (lúnúwúwún)‘ White+ nǚdhu

L2niù 'tpat nnn2tp yhnhutl ntdhún/hùntùuhúlniəjniùn hunnhnnn unnu̱nn lwwnwʊlnnniūhg, hunqwùwʊh qihuhʊn yhh2h 2tn lwnúhg nùnnu̱wɔd lwwnwʊlnnniūn htunwqw w2huwɪnw2ŋgwùutnh hwiūwn:

Ulnhluwgutl ywi wwwwnlnhluwgutl qnnδwnnjuəuttn

2tn wunwuh hunqwuwlyh ynw 7nip lwwnn tpr wlnhluwgutl ywu wwwwwlnhluwgutl htunljwl qnndwnnijrəutnp`

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Pwjl 2. Utnútp u utnúwð wwhtp úhwguwù/wǔgwùnúwù ynǎwlyn.

	EasyStart lunquùwùhqìhuìyhùnhùwnhùúwùhh2tigniú	òùzúwù utùunnhwnàwqwùp
	Uhùzì 3ùwjnljjuwùunlùnnnípajwúp	Uhùzì 5 Vwjjnljjuwùunlùnnnípajwúp
	↓ ↓ ↓
	Pwjjl 3. Fwug pànntip hnuwùph úhwguìwù/wùgwùnúwùlnǎwùŋ, tnp lutp.
	1 wqnwiù2wù 1 wqnwiù2wù,wwμw 2wqnwiù2wù	1 wqnwiù2wù, 2wqnwiù2wù, www 3wqnwiù2wù
	↓ ↓ ↓
	hùswuìu'uwù'
	bptú ùwnunlyngh lhgph àwhu LED gnighzn 2 wùqwú puwnrah lquwùs ľnijunū l u lutp 3 wqnwiù2wù` gwõnhg úhùzì puwnàn,wwμw qnnòwnnýpàu wlunhúwgulwò ξ:
	4UU
	bptú ùwnunlyngh lhgph àwhu LED gnighzn 1 wùqwú puwnrah ntīnhù ľnijunū l u lutp 3 wqnwiù2wù` pwnnzhg úhùzì gwòn,wwμw qnnòwnnýpàu wluwhuynhúwgulwò ξ:

NHU whunwhwihz

L2niù 3tūn nnnwùwnnúlnn wputuniwnùtnn lwwnn tǔ unwnptnúlti qùluwò uīnntìhg lwwhuìwò:

Three-step diagram illustrating a hairpin tool application: adding, adjusting the base, and inserting into a device (no text or symbols present)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a device with a button and cable, no text or symbols present

2 Enuwyn untwnntp ihgpwulnnhsh ywwu whunwhwuhsh ynw:

• Επιωμη 2 Υωπά ωηνωύ2ωμί τραπικυή, ḥυση Ηωυνωυνιμί τ, ηη επιωμη ωωυν2ωμά Υθηωνημ υτηωηνημώδ τ:
• Uwnunlngh gnighzh jawnann lnjuŋ gnjg 5 unwihu, nn wunwuh hunqwùwyn lhgpwulnnuǐniú 5:
• 6np lhgpwulnnhshù uhwgulwò pnùwluì wúpnnqniējwiúp lhgpwulnnuḥ, uwnunlyngh gnighsīn 30 lwwjnljiwùh nùpəwgpniú lyuwruiḥ lyuwruiṣ lnujunū, wwμw lyuwrguinuḥ:

Lhgpwlnnniún āwúhnnnwlqwù wwnjwùny

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

L2niu 3bunn unnuwwnpnnn wputuniwnutpn lwwnn tui unwnptnulti qiuulwod unhtjhg lwhuulwod:

1 Stnwnntp USB distinguinun ihgpwulnnuwu awuihnnnwlywu wwwunjwh ubg:
2 4gylwδ USB úwlníhun úhwgntáp 5V 33 únünpwjhù hqnnníjωuśp hnuwùphù lywú.
- 3tun unwuwnnuud USB hwnuwnhhg:
- UL uinnwnwnntphu hwiwwwnwnwhwnn lwwf ANSI/UL 60950-1-nu lwwtwnwguwd wudwwlywu hwiwwwnqzh uinnwnwnn USB uhwlghs:
- UL uunwùnwnpùtnphù hwiúwwuwinwuḥuwūnn lyuú ANSI/UL 60950-1-nú lyuútnwgulwó USB tīpwjhu úhwgpnu LPS tīlqunnwùnigniú:
- UL uinnwnwnutphu hwuwwnwnwhwunn ywwu ywwtnwguw 1310 2-nn nwh hltynnnwnunignui:

4wnplnn 5. Twnh hwnuwnhyn wtunp 5 lhuh wuulnwua zwhwqwug gwdn lwnuwi uwnpjnin, nnp hwufwuntntih wtunp 5 lhuh uwnph utnpuh uwnuni u2uud 5tlyunnwlywui hwnwzwnhtnh htun:

3 Stnwnntp pnùwln jhgpwqnnúwù āwúzhnnŋwlywù wwwunjwùh útg:

Line drawing of a fork being inserted into a tube (no text or symbols)

1 3twngntp hunqwùwlyh qjhuhyn u lywgtp utunwnwlywù lhutrh hwnuwrðn unwp gnnu: 3wúnqultp, nn httnwgntl tp wunwúh úwðníyh úuwgnnnútnp:

2qn12wgniu' Uh hntp ntunhut luhpn unin wnwnlywutpnu ntguh jhutnh utg, puuh nn wju lwwnn t hwuqtgutl yuwuuwoph:

2 Frzùwùh wúpnnq úwlytntun úwpntp hùnùwù qnnòu wǒdpnu:

^1 2ni‘ Uh hwnlwdtp pnüwlnyl luygwwnwuh‘ wultinnn gninn htnwgutlni hwúwn:

hunquwuh qihuh

Illustration of hands using a tool to connect two objects, one holding a brush and the other holding a tool (no text or symbols present)

1 3nipwpuynin oqunwqnndniuhg htunn ljuwgtp hunqwuwlyh qihuhyn u uwwqhyttn:
2 3tizwqntp hunqwùwlyh qlnihn pnzuwlyhg u wnzulwqu 2wpwnen útyi luywtp hunqwùwlyh qluhyn inwp qnnu: Luywtp āwuíhhnnnwlywù ywhwnhşu wjúpwù hwăwhu, nnpwù wùhnwdtizun 5:

Lhgpwulnnhz

1 Uguwntp Ihgpwunnhyn` uwhupwu wju uwpntln:
2 Lhgpwqnnhhsh uwwytntun uwpntp hunuwwu qnndwlwdpnu:

Δωυήηημηλωμι ωωυημι

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured internal component and an arrow indicating direction (no text or symbols)

Eynwùn htnwǔtlni hwúwn prùtp lynph δwjntnn, unpnntu utnútp u nninu hwùtp www2nwwwùhs Eynwùn:

5 3twngntp niynnwúwùni2wlywqnju lnjuh lwúwn: Lwúwn hwútni hwúwn pnutp wju u nninu pw2tp útunwnjw onwuhg:
6 Uwpntp ww2inwwuuhz hynwun u niynnwuwunizwlywnqnyu lnjuh lwufwn hunuwul 2nnnu:
7 Unphg untwnntp niunnwùwùni2wlywqnju Injuh luwúyn: Luwúyn unphg untwnntpni hwuyn luwúyh utnpuh uwwn hwuwwuntgntp utinwnwlqu uonwuh utg u luwúyn uttp onwuh utg:
8 Unhg untwnntp w2nwwuhz lynwn: lynwn unhg untwnntni hwuwn lynwn lgnnnutnp hwluwwntgntp niunnwunizwlywnjü injuh lwuwh unn qnuyn wnuwgnnn uwltntuh wugptnh htun: 3ntp lynwn ninhn whunwhuhzh wugptnh utg:
9 Чушяhlwjhù ulyniuntnn ünphg nntp nuìnnnwúwùni2wlywqnjù whuunwhwùhzh útg:
10 Uwpntinig htunn, hwünqutp, nn whunwhwuhxn Ihnuhù znn 5, uwhupwu wju hnuwuph lwntnhù uhwugutn:

اللهمني

tpt stp wwnnwwnlniú tŋlywn dwúwùwú oqunwqnδtì uwnpn, wǔgwntp wjù hīyunnwùnigúwù lwnnwlyhg, úwpntp wjù l u wwhtp qnú l u znn untənniú' wnluh nínhh ǎwn2wqwjuàutnhg htnni:

Φnħuħnħħnħ

Φnhuwnhùtp Philips Sonicare ḥunqwùwʊŋh q̥hʊhʊ̥u̥tn̥u wú̥t̥u 3 wú̥hʊŋ u̥t̥u` oʊŋnhú̥wʊl wɒŋŋni̥u̥p̥u̥tn̥ wʊŋwhnʊ̥t̥ɪn̥ hʊw̥u̥wn: Oqunwɑqnətp u̥hʊw̥u Philips Sonicare-h ʊhnhuwnhùu̥lnn q̥hʊhʊ̥u̥t̥ɪŋ̥n:

hùwǒu qúnǔl únntāh huúwūn

Luwjtp Philips Sonicare wunwuh junquuwlyh pnuwlyh utnpluh uwnuni` unntgh hwuwqn qinutni hwuwn (HX9600)

Enw2hhp u wgw4gniu

Stntlynipajniùutnh yuwú wgwulgúwù hwiúwn wjgtitp www.philips.com/support 52n yuwú lwwnnwgtp uhgwqqwjhù tnuw2huhph rətnpahyn:

tnu2huhph pfugwnnlpjnniutn

Ku zh utwnniu wju tnu2hupn`

• Ftnwùh qìhuànghnùtnh útg, útnwnjwl hunqwùwùh qìhuhyùtnn u zhnnwúyùtnn:
• 2wnnnuulw# wwwhtuinwuiwutnh ywu hunqwuiwlyh qihuhyh oqinwqnnduwi htunluwupnu wnwgwgw# ujuwuttn:
• Uhuwl oqunwqnndúwù, ʒwnw2whúwù, wùntuúwù, ʒnhnhunijənìùtɪŋ h yuwí ʒwnunnùluwð ʊtɪnwùnnquúwù htnluwúpnú ˌwjuinǎwnúluwð ʊtūwwun:
• Unünnwlywiü üw2üwödnipajniü, ütünwnjwiLshwtn, ptnöüwödpütn, pwjpwjniü, qniüwwpəwihniü lwwü üwpniü:
• Θιμημωύμινι2μλωρημίνιμυή μωύμ:

Чтпшу2wlyniu

• Uw ǔz wù wǔ yīn lǐ, nì ǐtǔ yùn nǚ yǒu uàn pò wǔ lǐ nǐ wǔ tān lǐ uì wù nǐ yǒu tān ǎu lǐ wùnn pò wǔ hǎ wǔ gǔ lǐ uì nǐ wǔ yǒu lǐ tǔ gǔ nǚ yǒu hǔ nǐ ú hǎ wǔ hǔ:
• 3tunutp 5tyunnwlywù uwnpwynnniúutnh u uwninlyngútph pawnnùwgúwù ytnwptnjwl àtn tŋynniú nùnniùluwò ywùnúutnhù:
• Uhunwhwùhsh niunnwúwùni2wlywqnijù iŋjuh lwúwn wwnniúwyniú t uünhly: Uh pəwhnúwgntp niunnwúwùni2wlywqnijù iŋjuh lwúwn unjnnwlywù ytǔgwnwjhù wnph htún, tnp wjù wnntú pəwhnúwgúwù hwuwn t: 3wùàutp wjù ytānwú2wlyúwù ww2nnùwlywù hwuwrpuwù ytānniú:

dtnwihgpwwlnnn uwnunlngh htnwgutin

Utŋluwrnnigulwð utŋnuhgpwwlnnunn uwnunlngn wltunp t htnwguh uhwju uwwuwwqhunwgulwð wùdəh ynnhg, tnp uwnpn pwwhulniú t: Uwnunlngn hwutinig wn2w g hwúnqultp, nn uwnunlngn jhnuhú lhgpwwwhulwð t:

Uwnpn fwgtini qnnδhpùtnh htun w2huwuntihu u ʊtnwɪhgpwʊlnnʊlnn uwnunyngn rəwihtihu uwhuwàtnùtp wùlnuwùqnipəjwiǔ pnlnn wùhnwdtzun ùwwhuwqqni2wlywiú uhqngùtnn: Uüwwujúwiú wμ2nuwμwùtp ðtn wṣptnn, ðtnptnn, úwnuttnn u ùwyltntun, nnh ʊnw w2huwinniú tp:

Uwnunlngutph htun qnpò niùtùwìhu hwúnqutp, nn àtn àtnptpn, uwnpwulnniún l úwnunlngutpn znn tù:

3tnwgutinig htunn uwnunlngutph wwwnwhwlqu lwná uhwgniúhg huniwwuhtni hwiúwn qtnð wwhtp uwnunlngutpn utunwnwlqu wnwnlquutph htun 2hniúhg (ophùwly' utunwnwnnnuutp, uwwqwlwltp, úwnnwùhutn): Uh yhwəwrtp uwnunlngutpn wyniúhut yhwjwrhetnh utg: ρwihtinig wnwq yhwəwrtp uwnunlngh untnúhùwlutpn lwwú úwnunlngutpn nntp gtin\$wùh nnwnwuh utg:

^4 tnpwlhgpwwlnnpnn uwnnlngn htnwgutni hwuwn àtq hwnlywuyn 5 unphs ywu lynn, üninǎ lu hwnp qihunl (uinnuŋwnpın) wunniunwlywhwù: Ψwhuwùtp wùluunuqnipjwiù hhúuwlywù uwwuqqni2wlywù úhqngutp, tnp htunluni tpr uunnpl úzylwð núpwgwlywnqhù:

1 4tnw1hgpwwunnunn uwnunyngh jhgpn uwwnntni hwuwn htnwgntp pnuwyn jhgpwwnnhzhg, uhwgntp wunwuh hunqwuwyn u panjl unutp wju w2huwinh' uħușlu ywuq wnutin: 4nlyutp wju pwjln, uħușlu wjluu slywnnnwüwp uhwgutl wunwuh hunqwuwyn:

2 3twnwqntp u pawhtp hunqwùwlyh qlhuhyn: Uúpnng pniwwlyn chwyltp unphşnu lwwú yunnnnu:

3 Frùwùh ụtnlu n úh àtnpnu ụwwhtp u hwnuŋwòtp frùwùh ụwnjwùhù ụtnpuh tqnhg 0,5 ṣnjuú pwnànniəjwiǔ ụnw: Ιιδτη hwnuŋwòtp ünipǎnu pnnn 4 ụnnútnhg` tqnh ụwwhwnhyn ṣnniu hwuṭaṇi hwu̯wn:

^12 niù 3ùwnwùnn 5' uunhwùwǒ jhùtp úh puùh wùqwú hwnylwǒtǐ dōwjnhù ǔtnphù pnùwlywìh uħwgniuśutŋn huqtīnì huuśwn:

4 3tnwqntp tqn h ywhwnhzn wunwuh hunqwùwuh pnùwuhg: tpt tqn h ywhwnhzn ht2nnipjwúp zh wqwnuŋniś wwwunjwùhg, lynyutp pwjl 3-n úhùzul tqn h ywhwnhzn nninu qw:

5 Fruwyn qihuhuwyn wwhtinu' jhutn utnplu utnútp lyn2un úwyltlnunjah ynw: trat utnphù pwnwnnhzuttn ht2unnipwup stù wqwnunniú wwwunjuhg, ynlyutp pwjl 3-n úhüslu utnphù pwnwnnhzuttn nnnu qwù:

6 Stnwnntp wunninwlywhwùn úwnunlngh u ul 2ngwùwlyh úhqu útnphù pwnwnnhşutph útnpluniú: Ujùnihtuniu qqniznptü htrzwgntp wunninwlywhwùn úwnunlnghg` ul 2ngwùwlyh útnpluh hwnulwòn lynunttini hwúwn:

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

7 Stnwnntp wunniuwlywhwùn úwnunlyngh útnpuh u ulu 2n2wùwuh úhqü’ lynuntjni útünwnwlywù útnnhnn, nnp úhwgüniú 5 úwnunlyngn ywùws unwwuuwihà: Uw lqwùgwinh úwnunlyngh útnpuh tqnq 2n2wùwuhg:
8 Frutp uwnunlngn u htnwgntp wju utnphu pwnwnnhsutnhg, nnwtuqh lynuntp uwnunlngh tlnynnn. utinwnjw utnhhnn:

2qn12wgniu 2qn12wgtp uwnunlyngh utnnhnutph unin tqntngh, npwtuqh huniwwuhtp uwnutph u'uwuuulwdputngh:

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

356163390707m0g124d6b0n0n0m0g0m0n0n0n0g0m0n.

Sonicare-nb s3n - dmpon, ψυʒnδυμο

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a circular mark and a checkmark (no text or symbols)

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

1 _S_L_Z_M_G_D_N_O_S_B_U_Z_N_O_N_G

Simple diagram with three circles and two vertical lines, no text or symbols present

zònqnnb چمjdфмтავMN Bulgaria 3 Uzbekoosub3s nbΦg6bn3mònl 3smsdʒfmn syl2:

Diagram of a toothbrush with a sensor icon and a magnified view of its tip (no text or symbols)

Simple line diagram showing a circular symbol with a gear and directional arrow, connected to a vertical line with a star-like shape (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a vertical line with a dot (no text or labels)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

650792: 0059000000000000000000000000000000000000000000000000000000

	EasyStart 5s8m0n0n0ns3s3n0gsdm3zmn0dglu6bj0dgbu6bj0s	8g6mmn0 dgrg5bjdnl0lgblummn
	3 6s3sdqg 5 6s3sdqg 7 6s3sdqg
	↓ ↓ ↓
	6s0ntn 3: sydʒnn bgm n hsm0zs/gsdmm0zn lgnmszl, hmizgunzmbj0m:
	1 lon6smn 1 lon6smn qssdydqg3 jnoq3 2 lon6smn	1 lon6smn, 2 lon6smnqss dydqg3 jnoq3 3 lon6smn
	↓ ↓ ↓
	gm0n0n:
	my gmnbbszm, hmdd oxfsmgnl dsbn6bdgdmnl dsmfgb6dsfmgl smu0dygm bsmyhs 2-tgm ddbsbgom sundyndqos qssgunzmbj0m 3 fmbbl, hmddmnny dsmsmn fmbncs6qsdmnlu3gb hsdmnbl, dsdn6, dsbslnsmgdgmngssfghyngdgmn.
	sb
	my bgwszm, hmdd oxfsmgnl dsh3gbdcmnl dsmfgb6dsfmgl smu0dygm bsmyhs 1-bgm sundyndqos fmdznlugfmnqss gunzmbj0m 3 fmbbl, hmddmnny dsmsmn fmbncs6qsdmnlu3gb hsdmnbl, dsdn6, dsbslnsmgdgm ngsmndgmn.

UV სანიტათეური

Illustration of two hands holding a tool with a pointed tip and a pointed tip, intersected by a diagonal line (no text or symbols)

Illustration of a hand pressing down on a device component with an arrow indicating the left side (no text or symbols present)

Cross-sectional diagram of a mechanical component with two symmetrical slots and internal channels (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Illustration of a handheld electronic device with a hand holding a plug, showing internal components and wiring (no text or symbols)

odds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Fund

Simple line drawing of a medical procedure with a tool inserted into tissue (no text or symbols)

Illustration of two hands using a tool to tie a pair of objects (no text or symbols present)

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

odds funds may be able to pay a money for the following:

∂muzumfghosφωδy63sφn δψsfrnl σdmbsmgtdsφ ωgfnmφgdsσn δmlsbmzσn σb φnmm, hgybn φω δmφygmssznsbn (lφsbcmsφymn) lsbmsbdn. δgdmσ m6jmnσn 3mmgφymn dglmγmgtdnls, dnnμσn lngmmbnμn b j3gdmσ dnnmγdγmn dlnmmsφn δmdgdn.

www.philips.com/support

www.philips.com/support :הכלההוּרָה

Simple line drawing of an open book and a circuit symbol (no text or labels)

Illustration showing a toothbrush applying material to a tooth with a circular mark, and a checkmark indicating the correct direction (no text or symbols present)

Diagram of dental arching technique showing tooth arrangement and tool placement (no text or labels)

+White Gum Health Deep -I Clean

+Clean

+White Gum Health Deep -I Clean

+Clean

Illustration of a dental arch with a numbered callout (7) indicating a specific tooth or location on the upper teeth.

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

BrushSync הַרְׁבָה

.7017 www.philips.com/toothbrush-heads

תְבָרִי

-γη7 11

-Brush

-Smar

-EasyS

-ΝΥΗ

-ΝΥΗ

Simple line diagram showing a circular icon with a road sign and a starburst symbol connected to a vertical line (no text or labels)

בִרְשָׁה בַרְשָׁה

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Simple diagram with a circular symbol and a small circle connected by lines, no text or labels present.

IN

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

UV χορη

Illustration of a handheld electric shaver with a hand holding the blade (no text or symbols)

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

un

.הכלההוּרָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָה

.הכלהה כרִים 2

תַרְבָּה בְּרִי

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured section (no text or symbols visible)

Illustration of a hand hammering a cylindrical object with a circular arrow indicating rotation (no text or symbols)

Illustration of hands holding a battery with a switch, no text or symbols present

www.philips.com/Sonicare

©2022 Koninklijke Philips N.V. (KPNV). All rights reserved. Philips and the Philips shield are trademarks of KPNV. Sonicare and the Sonicare logo are trademarks of Philips Oral Healthcare, LLC and/or KPNV.

300007790502 (02/12/2022)
