KT90MAS1NEC - Range hood BERTAZZONI - Free user manual and instructions

Brand	Bertazzoni
Model	KT90MAS1NEC
Product type	Range hood
Width	90 cm
Minimum distance between cooking surface and hood	650 mm (may vary according to hob instructions)
Exhaust duct diameter	Minimum 120 mm
Power supply	230 V ~ 50 Hz (check rating label)
Electrical class	Class I (mandatory grounding)
Motor power	Approximately 250 W (estimate)
Number of speeds	4 speeds (including a 6-minute timed boost at speed 4)
Lighting	Built-in (type not specified, likely LED)
Filter type	Grease filter (washable) + activated charcoal filter (replaceable)
Grease filter cleaning frequency	Every 2 months (or more often with heavy use) – dishwasher safe
Charcoal filter replacement frequency	Approximately every 4 months (non-washable)
Material	Stainless steel (probable)
Approximate weight	15 kg (estimate)
Safety instructions	Do not flambé under the hood, watch over deep fryers, ensure adequate ventilation when used simultaneously with gas appliances
Intended use	Household, elimination of cooking odors
Repairability	Have the power cord replaced by a qualified professional

Frequently Asked Questions - KT90MAS1NEC BERTAZZONI

What is the minimum installation height of the hood above the cooktop?

The minimum safety distance is 650 mm. However, if the hob instructions specify a greater distance, that shall prevail.

Can I use the hood without the charcoal filter?

Yes, if the hood is connected to an external exhaust, the charcoal filter is not necessary. In recirculation mode, it is essential and must be replaced regularly.

How to clean the grease filters?

Grease filters should be cleaned every 2 months (or more often with heavy use). They are dishwasher safe or can be hand washed with a mild detergent.

How often should I replace the charcoal filter?

The activated charcoal filter should be replaced approximately every 4 months, or more frequently with heavy use. It cannot be washed or regenerated.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer or an authorized service center to avoid any risk.

Can I use the hood at the same time as a gas cooktop?

Yes, but ensure the room is properly ventilated to prevent backflow of combustion gases. Negative pressure must not exceed 0.04 mbar.

How to activate the turbo speed (4th speed)?

Press the T3 button for 2 seconds. The hood will run at 4th speed for 6 minutes, then automatically return to the previous speed.

Why is my hood not turning on?

First check the power supply and fuse. If the problem persists, contact a qualified technician.

Can I install the hood myself?

Electrical installation and connection must be carried out by a qualified technician in accordance with current standards.

How to completely turn off the motor?

Press the T1 button – it turns off the motor, always going through first speed before stopping.

USER MANUAL KT90MAS1NEC BERTAZZONI

Line drawing of a vertical cylindrical structure mounted on a base, with no text or symbols present.

IT 3
DE 7
EN 11
FR 14
NL 18
ES 22
DA 26
FI 29
NO 32
SV 35
PL 39

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Lampada Assorbimento (W) Attacco	Voltaggio (V)	Dimensione (mm)	Codice ILCOS
[58c2]	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

DE1.SICHERHEITSINFORMATIONEN

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Technical line drawing of a mechanical assembly with a component and a control panel (no text or symbols)

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

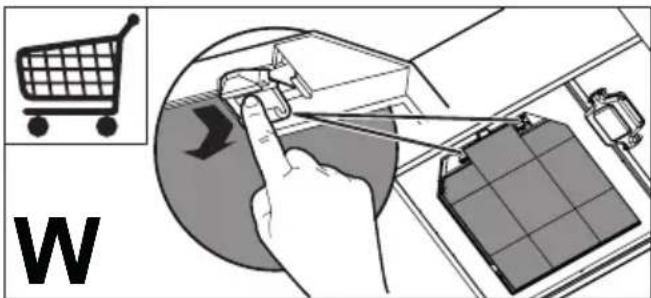

- The Activated charcoal filter is not wash able and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

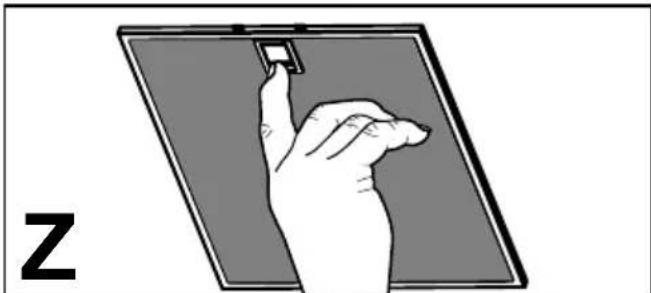

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a device on a screen, labeled 'Z' (no text or symbols on the diagram itself)

- Clean the hood using a damp cloth and a neutral liquid detergent.

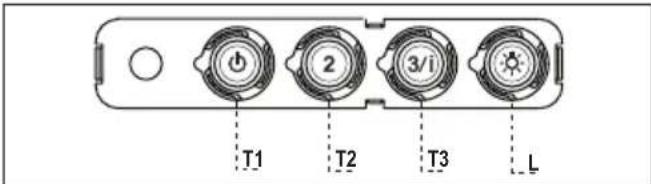

4. CONTROLS

Button	Function Led
T1 Turns the Motor on at Speed one.		On
T2 Turns the Motor on at Speed two.		On
T3 When pressed briefly, turns the Motor on at Speed three.		Fixed
		Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
- L Turns the Lighting System on and off.		-

Warning: Button T1 turns the motor off, after first passing to speed one.

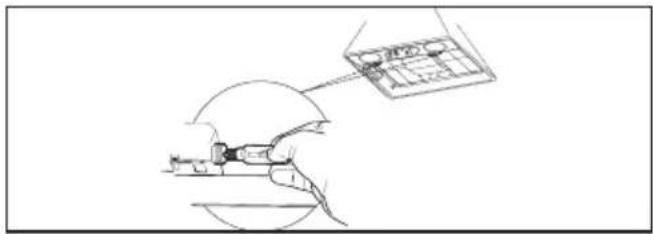

5. LIGHTING

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols present)

Lamp Power (W) Socket	Voltage (V) Dimension (mm) ILCOS Code
[DGX]4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100

FR 1. CONSIGNES DE SÉCURITÉ

Illustration of a hand using a tool to interact with a battery pack and a shopping cart icon (no text or symbols)

Illustration of a hand holding a small electronic component on a screen, with letter 'Z' and no visible text or symbols.

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Ampoule Absorption (W) Culot Voltage (V) Dimensions (mm) Code ILCOS
	4	E14	220 – 240	107 x 37	DRBB/F-4-220-240-E14-35/100

NL 1. VEILIGHEIDSINFORMATIE

Lamp Stroomopname (W) Aansluting Voltage (V) Afmeting (mm) ILCOS-code
4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100

Illustration of a hand holding a small electronic component on a screen, with letter 'Z' and no visible text or symbols.

Illustration of a hand interacting with a device on a screen, labeled 'Z' (no text or symbols on the diagram itself)

Illustration of a hand holding a small object on a flat surface, with letter 'Z' in the corner (no text or symbols on the diagram itself)

Line drawing of a mechanical assembly with a tool and a component labeled '2023' (no text or symbols on the diagram itself)

Lamppu Ottoteho (W) Kanta Jännite (V) Koko (mm) ILCOS-koodi
	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

NO 1.SIKKERHETSINFORMASJON

Illustration of a hand holding a small electronic device on a tablet screen (no text or symbols)

Lampa Förbrukning (W) Sockel Spänning (V) Mått (mm) ILCOS art.nr
[g6kz]	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

SV 1.SÄKERHETSINFORMATION

Illustration of a hand using a tool to interact with a battery pack and a shopping cart icon (no text or symbols)

Illustration of a hand interacting with a device on a screen, labeled 'Z' (no text or symbols on the diagram itself)

Line drawing of a person using a computer with an open screen (no text or symbols)

Lampa Förbrukning (W) Sockel Spänning (V) Mått (mm) ILCOS art.nr
	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

1.INFORMACJE DOTY-CZĄCE BEZPIECZEŃ-STWA

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)
