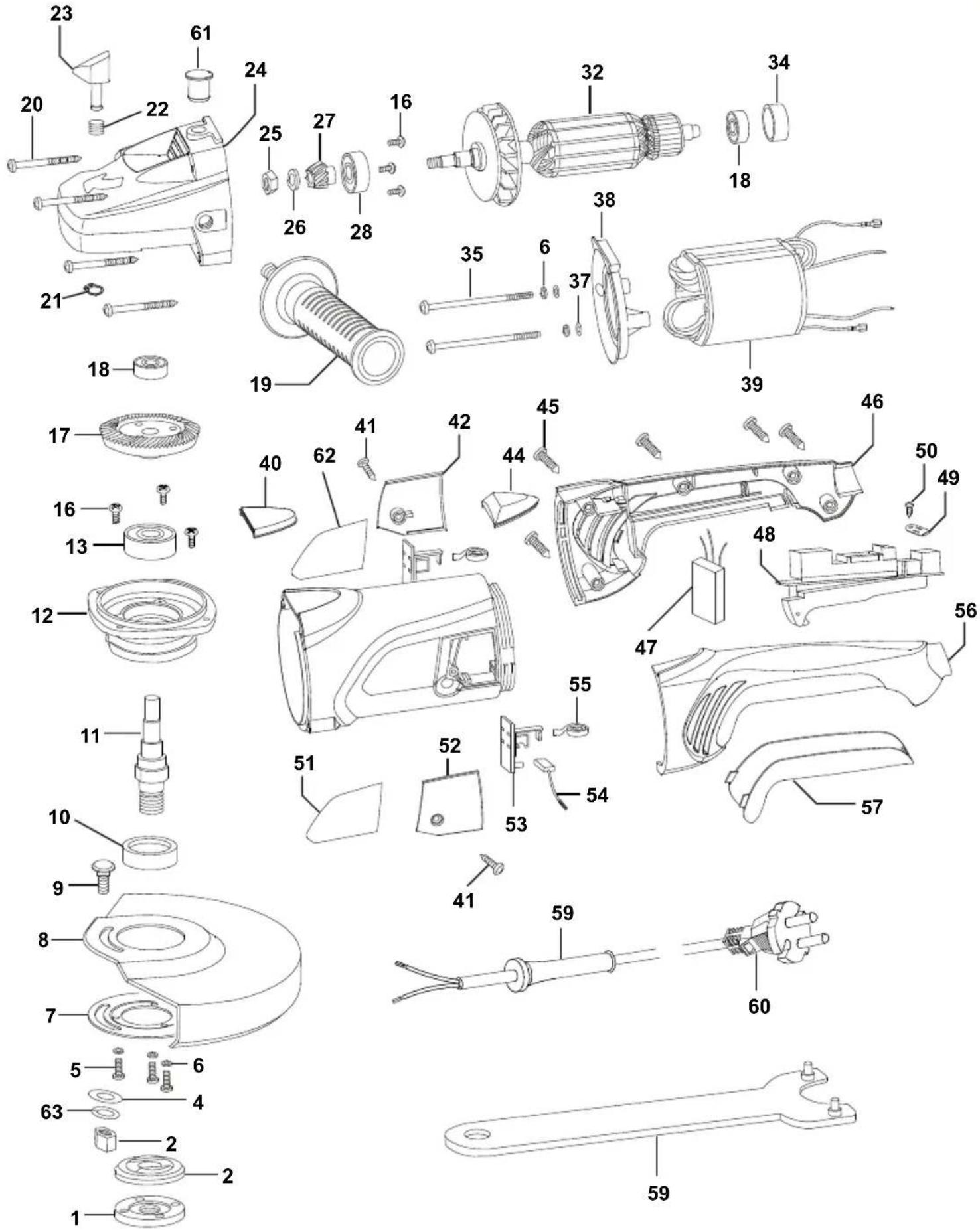

Product Type	Angle Grinder
Brand	Black & Decker
Model	KG2023
Power Input	2000 W
Voltage	230 V AC
No-Load Speed	6500 min⁻¹
Disc Diameter	230 mm
Disc Bore	22 mm
Spindle Size	M14
Weight	7 kg
Safety Features	Double insulation, lock-off button, guard, side handle
Guard Adjustment	Rotatable 180°
Maximum Disc Thickness (Grinding)	6 mm
Maximum Disc Thickness (Cutting)	3.5 mm
Maintenance	Clean ventilation slots with soft brush; motor housing with damp cloth
Guarantee	24 months (subject to conditions)
Repair Service	Authorised repair agents only
Environmental Disposal	Recycle via Black & Decker facility

Frequently Asked Questions - KG2023 BLACK & DECKER

What is the intended use of the Black & Decker KG2023 angle grinder?

The Black & Decker KG2023 is designed for cutting metal and masonry using the appropriate type of cutting or grinding disc. It is intended for consumer use only.

Can I use any grinding or cutting disc with this tool?

No, only use discs recommended in the manual. Ensure the disc's maximum speed exceeds the tool's no-load speed (6500 min⁻¹). The disc must have the correct diameter (230 mm) and bore size (22 mm). Do not use chipped or cracked discs.

How do I fit the guard on the KG2023?

Place the tool with the spindle facing up. Hold the guard over the tool, align the holes in the adjusting plate with the screw holes, press down, and tighten the screws. Never use the tool without the guard.

How do I adjust the guard position?

The guard can be rotated 180°. Loosen the screws and nut, rotate the guard as required, then re-tighten the screws and nut.

How do I switch on the tool?

First press the lock-off button, then press the on/off switch. To switch off, release the on/off switch. Do not switch off while under load.

What safety precautions should I take when using the angle grinder?

Always wear safety glasses and hearing protection. Use a dust mask if needed. Keep children away. Ensure the workpiece is secured. Do not wear loose clothing. Never remove the guard.

How do I maintain the KG2023?

Regularly clean the ventilation slots with a soft brush or dry cloth. Clean the motor housing with a damp cloth. Do not use abrasive or solvent-based cleaners.

What should I do if the tool is damaged or defective?

Do not use the tool. Have it repaired or replaced by an authorised repair agent using original spare parts. Never attempt repairs yourself.

How do I dispose of the tool at the end of its life?

Black & Decker offers a free recycling service. Return the product to any authorised repair agent who will collect it. Check www.2helpU.com for details.

What does the 24-month guarantee cover?

The guarantee covers defective parts, workmanship, or lack of conformity within 24 months from purchase. It does not cover misuse, neglect, or use for trade/professional purposes. Proof of purchase required.

USER MANUAL KG2023 BLACK & DECKER

UK

Ireland

Australia

New Zealand

Intended use

Your Black & Decker angle grinder has been designed for cutting metal and masonry using the appropriate type of cutting or grinding disc. This tool is intended for consumer use only.

Safety instructions

◆Warning! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

◆Read all of this manual carefully before operating the tool.
◆Retain this manual for future reference.
◆Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Keep work area clean

Cluttered areas and benches can cause accidents.

Consider work area environment

Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit. Do not use the tool where there is a risk of causing fire or explosion, e.g. in the presence of flammable liquids and gases.

Keep children away

Do not allow children, visitors or animals to come near the work area or to touch the tool or mains cable.

Dress properly

Do not wear loose clothing or jewellery, as these can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

Personal protection

Always use safety glasses. Use a face or dust mask whenever the operations may produce dust or flying particles.

Hearing protection should be worn.

Guard against electric shock

Prevent body contact with earthed or grounded surfaces (e.g. pipes, radiators, cookers and refrigerators). Electric safety can be further improved by using a high-sensitivity (30 mA / 30 mS) residual current device (RCD).

Do not overreach

Keep proper footing and balance at all times.

Stay alert

Watch what you are doing. Use common sense.

Do not operate the tool when you are tired.

Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

Connect dust extraction equipment

If devices are provided for the connection of dust extraction and collection facilities, ensure that these are connected and properly used.

Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

Extension cables

Before use, inspect the extension cable and replace if damaged. When using the tool outdoors, only use extension cables intended for outdoor use. Up to 30 m of Black & Decker extension cable can be used without loss of power.

Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended. Do not force the tool. Do not use the tool for purposes not intended, for example, do not use a circular saw to cut tree limbs or logs.

Warning! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

Check for damaged parts

Before use, carefully check the tool and mains cable for damage. Check for misalignment and seizure of moving parts, breakage of parts, damage to guards and switches and any other conditions that may affect its operation. Ensure that the tool will operate properly and perform its intended function. Do not use the tool if any part is damaged or defective. Do not use the tool if the switch does not turn it on and off. Have any damaged or defective parts repaired or replaced by an authorised repair agent. Never attempt any repairs yourself.

Unplug the tool

Unplug the tool when it is not in use, before changing any parts of the tool, accessories or attachments and before servicing.

Avoid unintentional starting

Do not carry the tool with a finger on the on/off switch. Be sure that the tool is switched off when plugging in.

Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

Store idle tools

When not in use, tools should be stored in a dry, locked up or high place, out of reach of children.

Maintain tools with care

Keep cutting tools sharp and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Keep handles and switches dry, clean and free from oil and grease.

Repairs

This tool complies with relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

Electrical safety

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

Additional safety instructions for Australia and New Zealand

◆This appliance is not intended for use by young or infirm persons without supervision. Children must be supervised to ensure they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Additional safety instructions for angle grinders

Read the instruction manual before use.

Wear safety glasses or goggles when operating this tool.

Wear ear protection when operating this tool.

◆Always use eye and ear protection when operating this tool.
◆Personal protective equipment such as dust mask, gloves, helmet and apron should be worn.
Do not cut or grind light metal with a magnesium content exceeding 80%, since this type of metal is flammable.
- Only use grinding and cutting discs and other accessories recommended in this manual.
◆Make sure that the maximum speed of the grinding or cutting disc exceeds the no-load speed of the tool.
◆Do not use grinding and cutting discs that do not conform to the dimensions stated in the technical data. Do not use separate reducing bushings or adapters or make unauthorised modifications to adapt large hole abrasive wheels.
◆Do not cut workpieces requiring a maximum depth of cut exceeding that of the cutting disc.
◆Do not use cutting discs for side grinding.
◆Inspect grinding and cutting discs before each use. Do not use chipped, cracked or otherwise defective discs.
◆Ensure that the abrasive product is correctly mounted and tightened before use and run the tool at no-load for 30 s in a safe position, stop immediately if there is considerable vibration or if other defects are detected. If this condition occurs, check the machine to determine the cause.

◆Ensure that blotters are used when they are provided with the bonded abrasive product and when they are required.
- When applying a threaded hole disc, ensure that the thread is long enough to accept the spindle length.
◆Never use the tool without the guard.
◆Check that the workpiece is properly supported.
◆Do not exert side pressure on the grinding or cutting disc.
◆Ensure that sparks resulting from use do not create a hazard e.g. do not hit persons, or ignite flammable substances.
◆Beware that after switching off the tool the wheel continues to rotate for a short period.
◆Ensure that ventilation slots are kept clear when working in dusty conditions. If it should become necessary to clear dust, first disconnect the tool from the mains supply. Avoid damaging internal parts, use a soft brush or dry cloth, do not use metallic objects.
♦Abrasive wheels shall be stored and handled with care in accordance with manufacturer's instructions and always store grinding and cutting discs in a dry place.

Features

This tool includes some or all of the following features.

1. On/off switch
2. Lock-off button
3. Side handle
4. Spindle lock
5. Guard

Assembly

Warning! Make sure that the tool is switched off and unplugged.

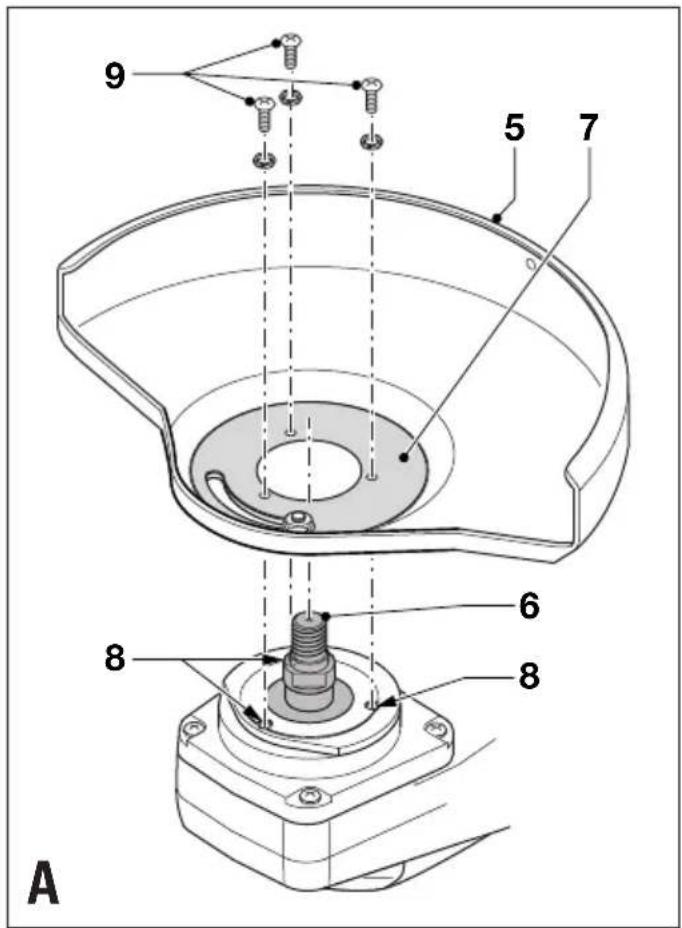

Fitting and removing the guard (fig. A)

Fitting

◆Place the tool on a table, with the spindle (6) facing up.
◆Hold the guard (5) over the tool as shown.
♦Align the holes in the adjusting plate (7) with the screw holes (8).
◆Press the guard down and insert the screws (9) into the holes.
◆Tighten the screws.

Removing

◆Remove the screws (9).
◆Take the guard off the tool.

Warning! Never use the tool without the guard.

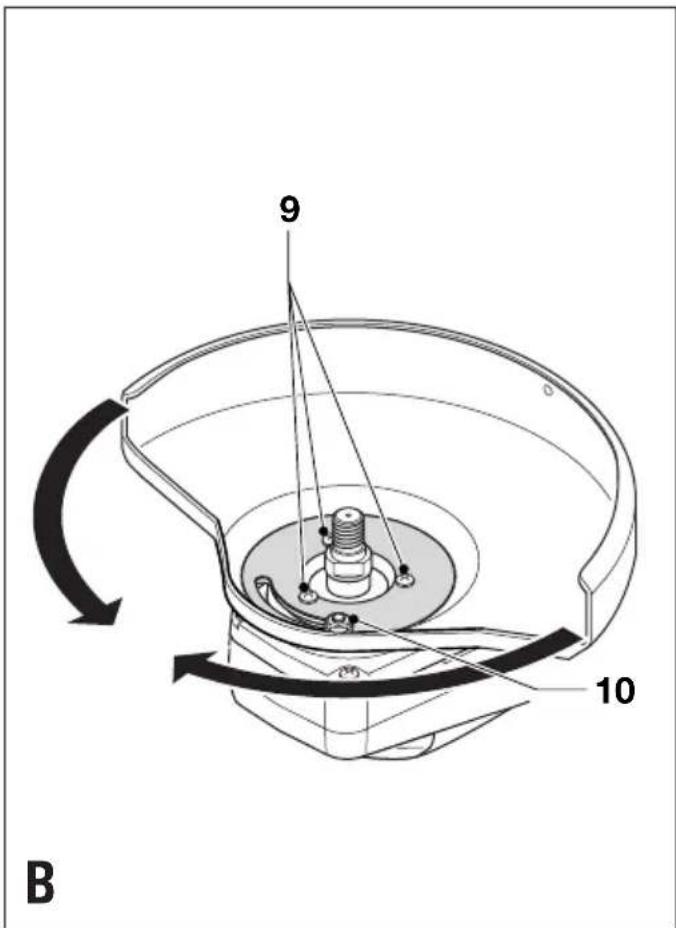

Adjusting the guard (fig. B)

The guard can be rotated 180°

◆Slacken the screws (9) and the nut (10).

◆Rotate the guard as required.
◆Re-tighten the screws and the nut.

Fitting the side handle

◆Screw the side handle (3) into one of the mounting holes in the tool.

Warning! Always use the side handle.

Fitting and removing grinding or cutting discs (fig. C - F)

Always use the correct type of disc for your application. Always use discs with the correct diameter and bore size (see technical data). The maximum thickness for grinding discs is 6 mm, for cutting discs 3.5 mm.

Fitting

◆Fit the guard as described above.

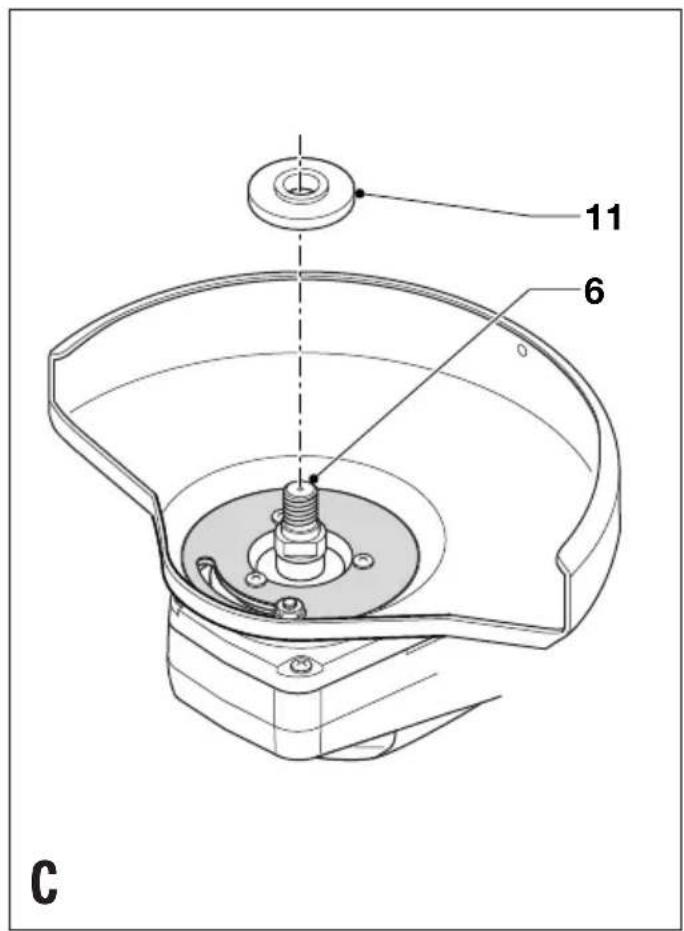

◆Place the inner flange (11) onto the spindle (6) as shown (fig. C). Make sure that the flange is correctly located on the flat sides of the spindle.

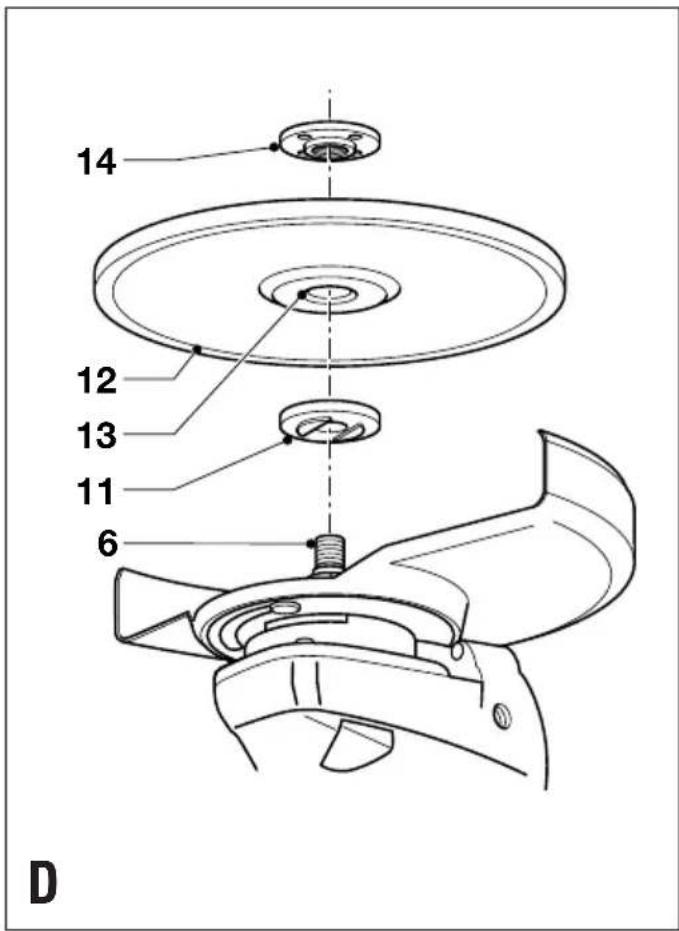

◆Place the disc (12) onto the spindle (6) as shown (fig. D). If the disc has a raised centre (13), make sure that the raised centre faces the inner flange.
◆Make sure that the disc locates correctly on the inner flange.

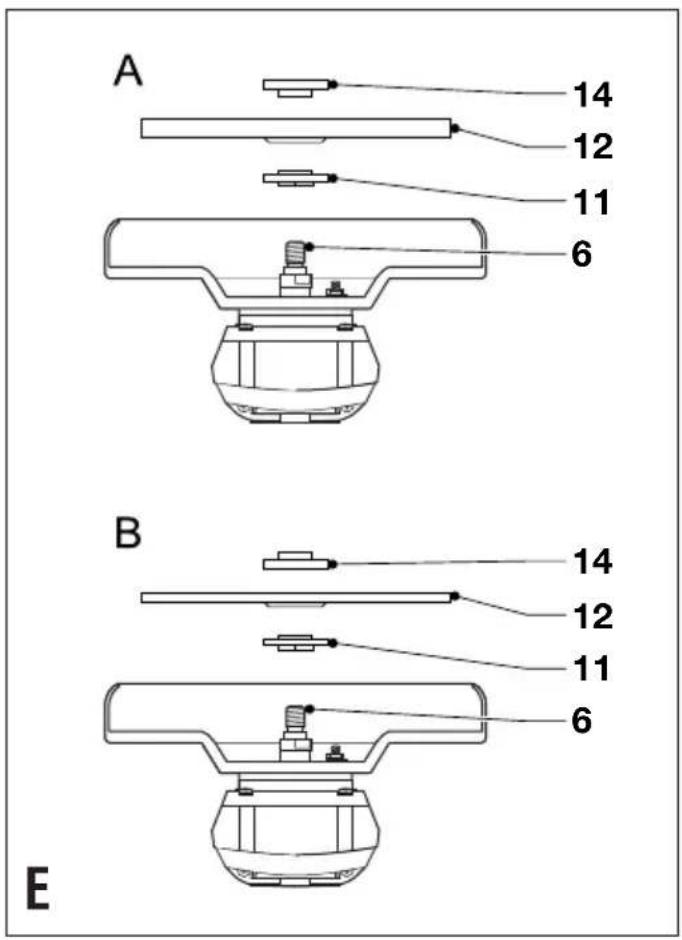

◆Place the outer flange (14) onto the spindle. When fitting a grinding disc, the raised centre on the outer flange must face towards the disc (A in fig. E). When fitting a cutting disc, the raised centre on the outer flange must face away from the disc (B in fig. E).

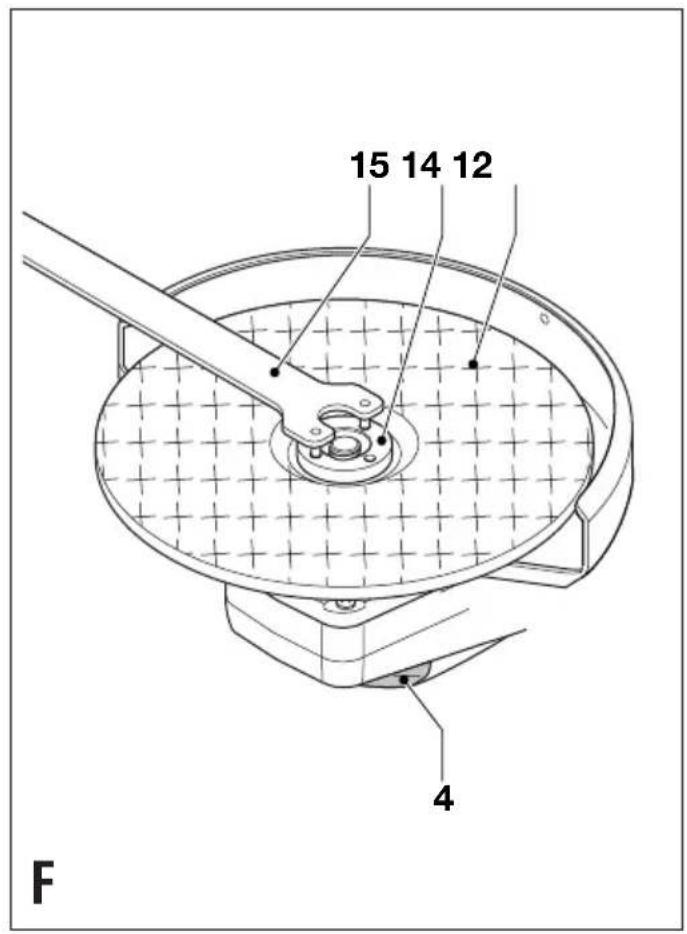

◆Keep the spindle lock (4) depressed and tighten the outer flange using the two-pin spanner (15) (fig. F).

Removing

◆Keep the spindle lock (4) depressed and loosen the outer flange (14) using the two-pin spanner (15) (fig. F).
◆Remove the outer flange (14) and the disc (12).

Use

◆Warning! Let the tool work at its own pace. Do not overload.
◆Carefully guide the cable in order to avoid accidentally cutting it.
◆Be prepared for a stream of sparks when the grinding or cutting disc touches the workpiece.
◆Always position the tool in such a way that the guard provides optimum protection from the grinding or cutting disc.

Switching on and off

◆To switch the tool on, press the lock-off button (2) and subsequently press the on/off switch (1).
◆To switch the tool off, release the on/off switch (1).

Warning! Do not switch the tool off while under load.

Hints for optimum use

◆Firmly hold the tool with one hand around the side handle and the other hand around the main handle.
When grinding, always maintain an angle of approx. 15^ between the disc and the workpiece surface.

Maintenance

Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

◆Regularly clean the ventilation slots in your tool using a soft brush or dry cloth.
◆Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

◆Safely dispose of the old plug.
◆Connect the brown lead to the live terminal in the new plug.
◆Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A.

Protecting the environment

Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Technical data

	KG2023		KG2001
Voltage V	AC	230	230
Power input W 2,000			2,000
No-load speed min	-1	6,500	8,400
Disc diameter mm 230			180
Disc bore mm 22			22
Spindle size M14			M14
Weight kg 7			7

EC declaration of conformity

Black & Decker declares that these products conform to:

98/37/EC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014

L_nA (sound pressure): 86.6dB(A), L_WA (acoustic power) 102.7

dB(A), hand/arm weighted vibration 2.9 m/s²

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆The product has been used for trade, professional or hire purposes;
◆The product has been subjected to misuse or neglect;
◆The product has sustained damage through foreign objects, substances or accidents;
◆Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please register at our website www.blackanddecker.com to be kept up to date on new products and special offers.

Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.com.

Australia

Black & Decker (Australia) Pty. Ltd. Tel. [phone]

20 Fletcher Road, Mooroolbark, Fax [phone]

Victoria, 3138

New Zealand

Black & Decker Tel. [phone]

81 Hugo Johnston Drive Fax [phone]

Penrose, Auckland, New Zealand

United Kingdom

Black & Decker Tel. [phone]

210 Bath Road Fax [phone]

Slough, Berkshire SL1 3YD Helpline 01753 574277

BLACK&DECKER®

KG2023

TYP.5

©
