| Product Type | Cordless Hedge Trimmer |
| Brand | Black & Decker |
| Model | GTC610P |
| Voltage | 18 V DC |
| Blade Length | 50 cm |
| Blade Gap | 16 mm |
| No-Load Blade Strokes | 1300 min⁻¹ |
| Blade Brake Time | < 0.5 s |
| Weight (without battery) | 2.2 kg |
| Battery Capacity | 1.7 Ah |
| Battery Type | Li-Ion (18 V, 1.7 Ah) |
| Charger Input Voltage | 230 V AC |
| Charging Time | 8 hours |
| Intended Use | Trimming hedges, shrubs, and brambles (consumer use) |
| Safety Features | Double switching system, lock-off button, blade brake, blade sheath |
| Vibration Emission | 1.1 m/s² (uncertainty K=1.5 m/s²) |
| Sound Pressure Level | 91 dB(A) (uncertainty K=4 dB(A)) |
| Maintenance | Clean ventilation slots, oil blades regularly; store with blade sheath |
| Spare Parts Available | Battery, charger, blade sheath |
| Repairability | Service by authorized Black & Decker repair agents |
| Warranty | 24 months (consumer use, EU/EFTA) |
Frequently Asked Questions - GTC610P BLACK & DECKER
User questions about GTC610P BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge trimmers in PDF format for free! Find your manual GTC610P - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GTC610P by BLACK & DECKER.
USER MANUAL GTC610P BLACK & DECKER
English (Original instructions) 5
Intended use
Your Black & Decker hedgetrimmer has been designed for trimming hedges, shrubs and brambles. This tool is intended for consumer use only.
Your Black & Decker charger has been designed for charging Black & Decker batteries of the type supplied with this tool.
Safety instructions
General power tool safety warnings
Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fi re and/or serious injury.
Save all warnings and instructions for future reference. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc., in accordance with these instructions, tak-
ing into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Additional power tool safety warnings
Warning! Additional safety warnings for hedge trimmers
- Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
- Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut the handle.
This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- The intended use is described in this instruction manual. The use of any accessory or attachment
or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.
Do not carry the tool with your hands on the front handle switch or the trigger switch unless the battery has been removed.
If you have not used a hedgetrimmer before, preferably seek practical instruction by an experienced user in addition to studying this manual.
♦ Never touch the blades while the tool is running.
♦ Never attempt to force the blades to come to a standstill.
Do not put the tool down until the blades have come to a complete standstill.
♦ Regularly check the blades for damage and wear. Do not use the tool when the blades are damaged.
Take care to avoid hard objects (e.g. metal wire, railings) when trimming. Should you accidentally hit any such object, immediately switch the tool off and check for any damage.
- Should the tool start to vibrate abnormally, immediately switch it off and check for any damage.
If the tool stalls, immediately switch it off. Remove the battery before attempting to remove any obstructions.
◆ After use, place the blade sheath supplied over the blades. Store the tool, making sure that the blade is not exposed.
◆ Always ensure that all guards are fitted when using the tool. Never attempt to use an incomplete tool or a tool with unauthorised modifications.
♦ Never allow children to use the tool.
- Be aware of falling debris when cutting the higher slides of a hedge.
◆ Always hold the tool with both hands and by the handles provided.
Vibration
The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.
Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.
When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.
Labels on tool
The following pictograms are shown on the tool:
Warning! To reduce the risk of injury, the user must read the instruction manual.
Wear safety glasses or goggles when operating this tool.
Wear ear protection when operating this tool.
Wear gloves when operating this tool.
Do not expose the tool to rain or high humidity.
Additional safety instructions for batteries and chargers
Batteries
♦ Never attempt to open for any reason.
♦ Do not expose the battery to water.
Do not store in locations where the temperature may exceed 40 °C.
♦ Charge only at ambient temperatures between 10 °C and 40 °C.
◆ Charge only using the charger provided with the tool.
When disposing of batteries, follow the instructions given in the section "Protecting the environment".
Chargers
Use your Black & Decker charger only to charge the battery in the tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
♦ Never attempt to charge non-rechargeable batteries.
◆ Have defective cords replaced immediately.
♦ Do not expose the charger to water.
♦ Do not open the charger.
♦ Do not probe the charger.
The charger is intended for indoor use only.
Read the instruction manual before use.
The charger automatically shuts off if the ambient temperature becomes too high. As soon as the ambient temperature has cooled down, the charger will resume operating.
Charge only at ambient temperatures between 10 °C and 40 °C.
Charging process completed
Charging
Electrical safety
Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.
Overview
- Front handle switch
- Trigger switch
- Lock-off button
- Ventilation slots
- Guard
- Battery
- Blade sheath
Fig. A
- Charger
- Charging indicator
- End of charge indicator
Assembly
Warning! Before assembly, remove the battery from the tool.
Fitting and removing the battery (fi g. B)
To fit the battery (6), line it up with the receptacle on the tool. Slide the battery into the receptacle and push until the battery snaps into place.
To remove the battery, push the release button (11) while at the same time pulling the battery out of the receptacle.
Use
Warning! Let the tool work at its own pace. Do not overload.
Charging the battery (fi g. A)
The battery needs to be charged before fi rst use and whenever it fails to produce sufficient power on jobs that were easily done before. When charging the battery for the fi rst time, or after prolonged storage, it will only accept an 80% charge. After several charge and discharge cycles, the battery will attain full capacity. The battery may become warm while charging; this is normal and does not indicate a problem.
Warning! Do not charge the battery at ambient temperatures below 4 °C or above 40 °C. Recommended charging temperature: approx. 24 °C.
To charge the battery (6), remove it from the tool and insert it into the charger (8). The battery will only fit into the charger in one way. Do not force. Be sure that the battery is fully seated in the charger.
♦ Plug in the charger.
8 hour charger
The battery will be fully charged in approx. 8 hours. It can be removed at any time or left in the connected charger indefinitely.
1 hour charger
Check if the red charging indicator (9) lights up. If the green end of charge indicator (10) lights up now instead, the battery is too hot and cannot be charged. If this happens, remove the battery from the charger, let the battery cool down for approx. 1 hour and re-insert it.
After approx. 1 hour of charging, the red charging indicator (9) will stop lighting and the green end of charge indicator (10) will light up. The battery is now fully charged.
♦ Remove the battery from the charger.
Switching on and off (fi g. C)
For your safety, this tool is equipped with a double switching system. This system prevents starting the tool inadvertently and will only allow operation while holding the tool with both hands.
Switching on
♦ Squeeze the front handle switch (1).
♦ Push the lock-off button (3) forward using your thumb and at the same time squeeze the trigger switch (2).
◆ Release the lock-off button.
Switching off
◆ Release the front handle switch (1) or the trigger switch (2).
Warning! Never attempt to lock a switch in the on position.
Hints for optimum use
♦ Slightly tilt the tool (up to 15^ relative to the line of cut) so that the blade tips point slightly towards the hedge (fi g. D1). This will cause the blades to cut more effectively.
♦ Start by trimming the top of the hedge. Hold the tool at the desired angle and move it steadily along the line of cut (fi g. D2). The double-sided blade allows you to cut in either direction.
In order to obtain a very straight cut, stretch a piece of string along the length of the hedge at the desired height. Use the string (12) as a guideline, cutting just above it (fi g. D2).
In order to obtain fl at sides, cut upwards with the growth (fi g. D3). Younger stems move outwards when the blade cuts downwards, causing shallow patches in the hedge.

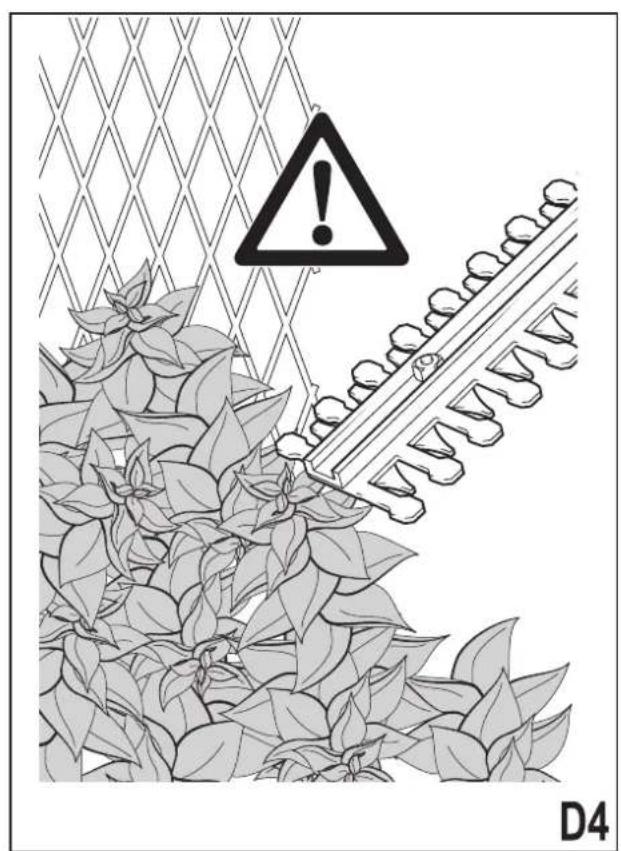

Take care to avoid any foreign objects. Especially avoid hard objects such as metal wire and railings, as these could damage the blades (fi g. D4).
♦ Regularly oil the blades.
♦ Consider purchasing a spare battery to extend the running time of this tool. The catalogue number of the battery is found in the technical data chart below.
Maintenance
Your Black & Decker tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Your charger does not require any maintenance apart from regular cleaning.
Warning! Before performing any maintenance on the tool, remove the battery from the tool. Unplug the charger before cleaning it.
♦ Regularly clean the ventilation slots in your tool and charger using a soft brush or dry cloth.
♦ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
◆ After use, carefully clean the blades. After cleaning, apply a fi lm of light machine oil to prevent the blades from rusting.
♦ Regularly clean the ventilation slots in your tool and charger using a soft brush or dry cloth.
♦ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
Protecting the environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local Black & Decker offi ce at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com
Batteries
Black & Decker batteries can be recharged many times. At the end of their useful life, discard batteries with due care for our environment:
◆ Run the battery down completely, then remove it from the tool.
- NiCd, NiMH and Li-Ion batteries are recyclable. Take them to any authorised repair agent or a local recycling station.
Technical data
| GTC610/GTC610NM | GTC610P | |||
| Voltage | V_DC | 18 | 18 | |
| Blade strokes(no load) min | -1 | 1,300 | 1,300 | |
| Blade length cm | 50 | 50 | ||
| Blade gap mm | 16 | 16 | ||
| Blade brake times | s | < 0.5 | < 0.5 | |
| Weight(without battery) | kg | 2.2 | 2.2 | |
| Battery | |||
| Voltage | V_DC | 18 | 18 |
| Capacity | Ah | 1.5 | 1.7 |
| Weight | kg | 0.8 | 0.8 |
| Charger | |||
| Input voltage | V_AC | 230 | 230 |
| Approx. charging time | h | 8 | 8 |
| Weight | kg | 0.4 | 0.4 |
EC declaration of conformity
GTC610/GTC610NM/GTC610P
Black & Decker declares that these products conform to: 98/37/EC, EN 60745
2000/14/EC, hedge trimmer, 1300 min ^-1 , Annex V
Level of sound pressure according to EN 60745: Sound pressure ( L_pA ) 91 dB(A), uncertainty (K) 4 dB(A) Acoustic power ( L_WA ) 95 dB(A), uncertainty (K) 4 dB(A) Guaranteed acoustic power ( L_WA ) 94 dB(A)
Vibration total values (triax vector sum) according to EN 60745: Vibration emission value ( a_h ) 1.1 m/s ^2 , uncertainty (K) 1.5 m/s ^2
The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.
Kevin Hewitt
Director of Consumer
Engineering
Spennymoor,
County Durham DL16 6JG,
United Kingdom
1-11-2007
Guarantee
Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:
The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.
To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com
Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk
MAGYAR
County Durham DL16 6JG,
Egyesült Királyság
2007.11.01.
Garancia határozat
(Original instructions)
Important - Addendum to instruction manual.
Black & Decker is committed to providing high quality safe products. Please note the following corrections when reading the instruction manual.
Warning! Retain this document with the instruction manual for future reference.
Residual risks.
Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.
The manufacturers address is :- Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD United Kingdom
The following corrections apply to the declaration of conformity.
- As of the 29th December 2009 98/37/EC longer applicable and the Machinery Directive 2006/42/EC applies instead.
- Where 89/336/EC is stated, 2004/108/EC applies instead. A separate declaration of conformity to 2004/108/EC has been made by Black & Decker.
- Any references to the Low Voltage Directive 73/23/EEC or 2006/95/EC are no longer applicable and should be ignored.
For more information, please contact Black & Decker at the address above.
MAGYAR
Vice-President Global Engineering
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
United Kingdom
23-10-2009
BLACK & DECKER GARANCIÁLIS FELTÉTELEK
- Intended use
- Safety instructions
- General power tool safety warnings
- Battery tool use and care
- Service
- Additional power tool safety warnings
- Vibration
- Labels on tool
- Additional safety instructions for batteries and chargers
- Batteries
- Chargers
- Electrical safety
- Overview
- Fig. A
- Assembly
- Fitting and removing the battery (fi g. B)
- Use
- Charging the battery (fi g. A)
- hour charger
- hour charger
- Switching on and off (fi g. C)
- Switching on
- Switching off
- Hints for optimum use
- Maintenance
- Protecting the environment
- EC declaration of conformity
- GTC610/GTC610NM/GTC610P
- Guarantee
- MAGYAR
- Garancia határozat
- (Original instructions)
- Important - Addendum to instruction manual.
- Residual risks.
- BLACK & DECKER GARANCIÁLIS FELTÉTELEK
Brand : BLACK & DECKER
Model : GTC610P
Category : Hedge trimmers
