Product Type	Undercounter Larder Fridge
Brand	Logik
Model	LUL55W13E
Fresh Food Storage Volume	130 L
Energy Consumption	0.25 kWh/24h (91 kWh/year)
Energy Efficiency Class	A++
Climate Class	ST (16°C - 38°C)
Storage Temperature	0°C to 8°C (average ≤ 4°C)
Defrost Type	Auto Defrost
Airborne Acoustical Noise	42 dB
Rated Voltage	220V - 240V
Rated Current	0.21 A
Overall Dimensions (W x D x H)	553 x 574 x 845 mm
Number of Adjustable Glass Shelves	2
Number of Door Shelves	3 (2 standard + 1 lower)
Salad Bin	Yes, with cover
Egg Tray	Yes
Reversible Door	Yes (left or right)
Internal Light	Yes (10W SES bulb)
Recommended Installation Clearances	25 mm sides, 50 mm rear, 30 mm top
Refrigerant	Environmentally friendly, combustible

Frequently Asked Questions - LUL55W13E Logik

How do I adjust the temperature on my Logik LUL55W13E fridge?

The thermostat control dial is located on the right side of the cabinet. Turn it to a higher number for lower temperature. Position 4 is recommended for normal room temperature (16°C - 38°C). For colder environments, use settings 1–4; for hotter, use 5–6.

Why is my fridge making unusual noises?

Most noises are normal due to refrigerant circulation and compressor operation. CFC-free gases may be more audible. This is not a fault and does not affect performance.

How do I reverse the door swing on my Logik fridge?

Unplug and empty the fridge. Adjust levelling feet to highest position. Tilt the unit backward. Remove screws and top cover, then upper hinge. Lift door off. Move hinge bracket, door stopper, and adjustable feet to opposite side. Reinstall door, ensuring alignment. A Phillips screwdriver, flat blade screwdriver, and hexagonal spanner are required.

How should I clean the interior and exterior of my fridge?

Remove shelves and salad bin. Wipe interior with a weak bicarbonate soda solution, then rinse with warm water. Clean shelves and bin in warm soapy water. Dry completely. Exterior can be wiped with a damp cloth and standard furniture polish, avoiding the door seal.

Does the Logik LUL55W13E need defrosting manually?

No, it has auto defrost. Frost on the rear inner surface will defrost automatically during the compressor off cycle. Water drains to a collection tray above the compressor and evaporates. Regularly check and clean the drain hole to prevent blockages.

How do I change the internal light bulb?

Turn the thermostat dial to 0 and disconnect the power. Unscrew and remove the light bulb cover. Replace the old bulb with a 10W SES (small Edison screw) bulb by unscrewing anticlockwise. Refit the cover and reconnect power.

What are the recommended clearances for installing my fridge?

Leave at least 25 mm of free space on both sides, 50 mm at the rear, and 30 mm at the top of the unit. Ensure adequate space for the door to fully open. The room should be well-ventilated with an average temperature between 16°C and 38°C.

How can I level my Logik fridge?

Adjust the two levelling feet at the front of the unit. Turn them to raise or lower the front until the unit is stable and the door aligns properly with the magnetic seal.

What should I do before first use?

Clean the interior with bicarbonate soda solution, wash shelves and bin, and dry. Wait 2 hours after moving before plugging in to let the coolant settle. Turn on and wait 24 hours to reach the correct temperature before adding food.

Is the door hinge reversible?

Yes, the door can be opened from either the right or left side. The manual provides step-by-step instructions for reversing the door swing. It is recommended to have two people and the proper tools (Phillips screwdriver, flat blade screwdriver, hexagonal spanner).

USER MANUAL LUL55W13E Logik

Undercounter Larder Fridge

Instruksjonsmanual

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

GB

NO

SE

FI

DK

CZ

SK

Contents

GBN

Safety Warnings....6

Unpacking....20

Installation 21

Location 21

Ensuring Optimum Performance of Your Appliance ....21

Benefits of Increased Ventilation 21

Reversing the Door Swing....22

Space Requirements....25

Levelling the Unit 25

Cleaning Before Use 25

Before Using Your Unit....25

Interior Accessories....25

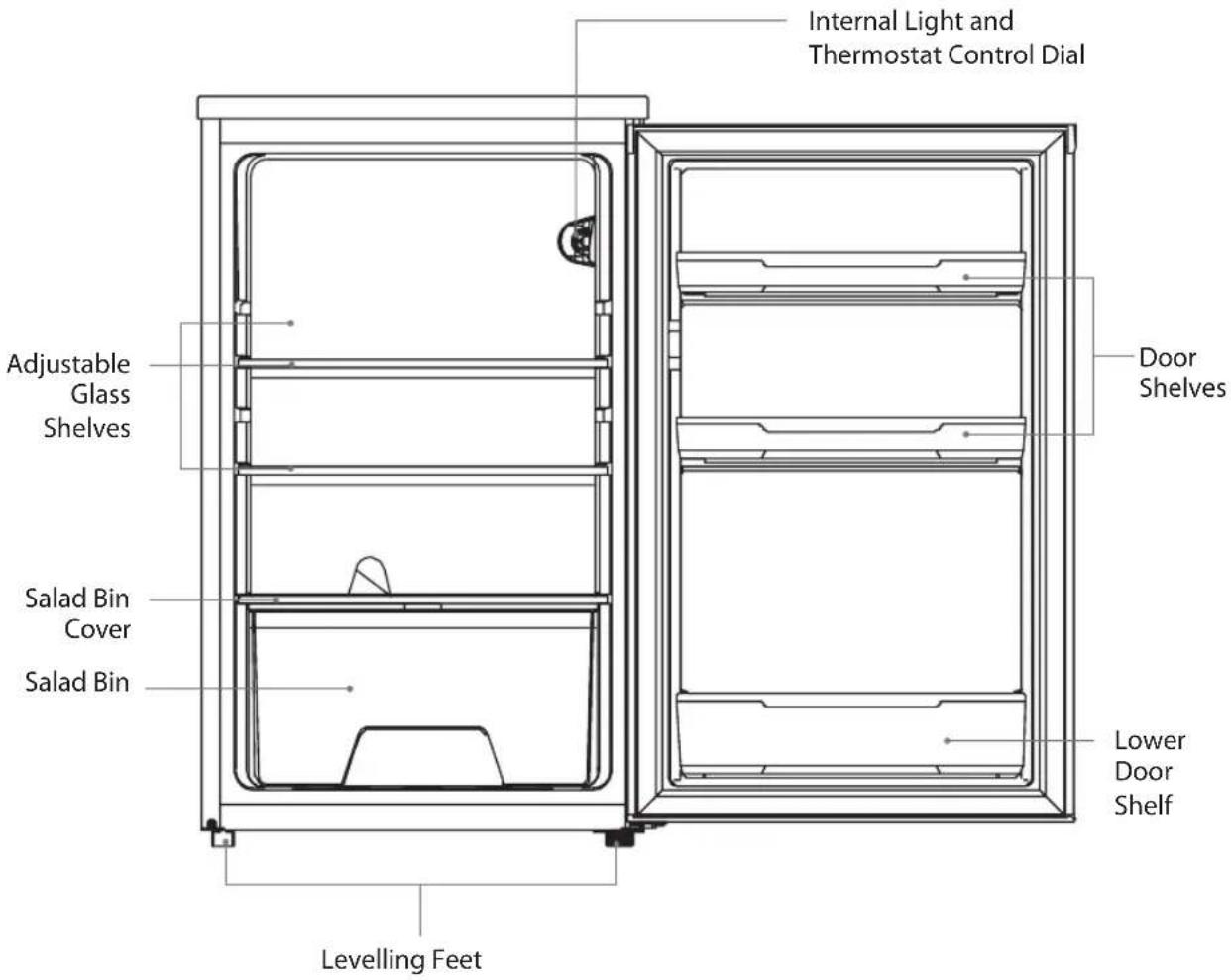

Product Overview....26

Operation 27

Switching On Your Unit 27

Adjusting the Temperature....27

Noises Inside the Unit! 28

Tips for Keeping Food in the Unit....28

Cleaning 29

Defrosting 29

Cleaning the Interior and the Exterior of the Unit....29

Cleaning Tips....29

Maintenance 30

Changing the Internal Light 30

Care When Handling / Moving Your Unit....30

Servicing 30

Switching Off for Long Periods of Time....30

Disposal....30

Specifications....31

Innhold

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• This unit is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
• Ensure that the plug is easily accessible to enable disconnection from the mains supply.
• Keep ventilation openings in the unit enclosure clear of obstructions.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.

• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• The unit must be manoeuvred by a minimum of 2 persons.

• This appliance can be used by persons aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instructions concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance.

• Cleaning and user maintenance should not be made by children unless they are older than 8 years and are supervised.

• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store volatile or flammable substances, such as aerosol cans with a flammable propellant, in the unit.
• Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Sikkerhetsadvarsler

NO

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

The Main Unit

Adjustable Glass Shelf x 2 Salad Bin Cover

Simple line drawing of a rectangular block (no text or symbols)

Door Shelf x 2 Lower Door Shelf

Egg Tray

Salad Bin

* All images in this instruction manual are for indication only; please refer to your individual unit for details.

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. If the room temperature drops below 16^ C your freezer may start to defrost. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

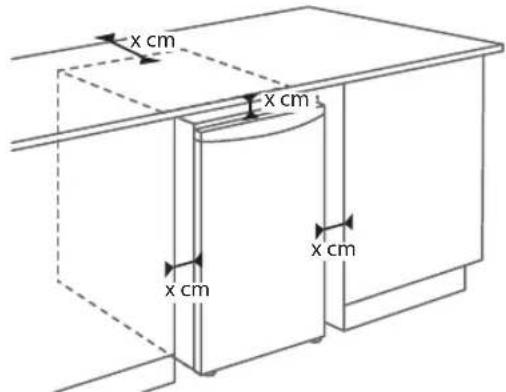

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear and 30 mm at the top of the unit. The door can be opened to the right or the left, depending on what better suits the location. Please ensure there is adequate space for the door to fully open.

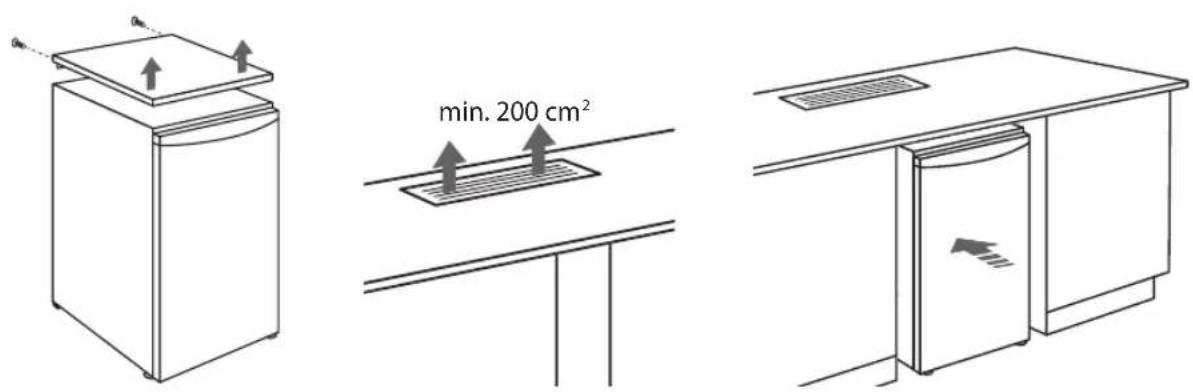

Ensuring Optimum Performance of Your Appliance

Please note that to ensure optimum performance of your appliance, sufficient ventilation must be provided to allow heat from the appliance to escape.

$$ \begin{array}{c} x \mathrm{cm} = \text { sufficient ventilation } \ \text { space required for } \ \text { optimum performance. } \end{array} $$

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm ^2 (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation.

Benefits of Increased Ventilation

- Lowered power consumption • Improved cooling performance

- Reduce running costs • Prolong product life span

- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their highest position.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.

• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• Tilt the unit slightly towards the rear and prop it securely. Two people are required to tilt the unit during the door reversal process.

• Remove the 2 screws on the back.

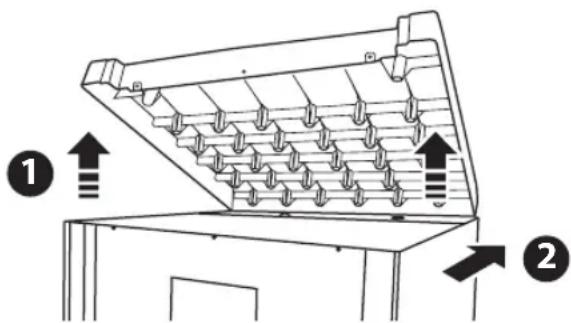

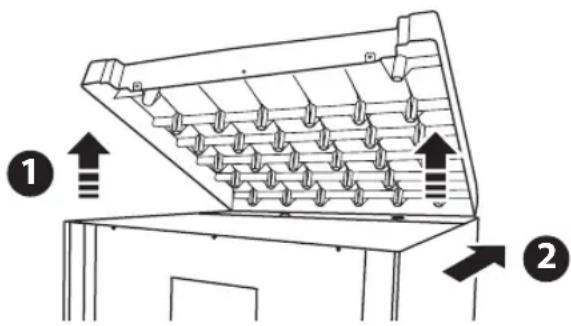

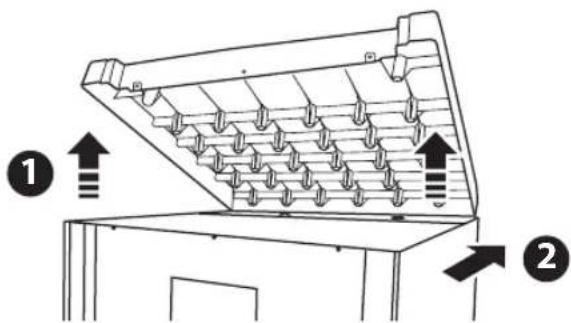

• Lift the top cover away from the fridge. Lift at rear and push forward.

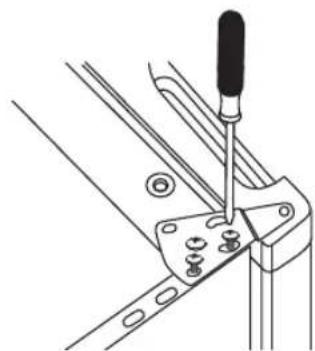

• Remove the three screws, then remove the upper hinge that hold the door in place. Lift the door and place it on a padded surface to prevent it from scratching.

Two workers exchanging a large cardboard box, no text or symbols present

Simple line drawing of a tool or bracket with a handle, no text or symbols present

INSTALLATION

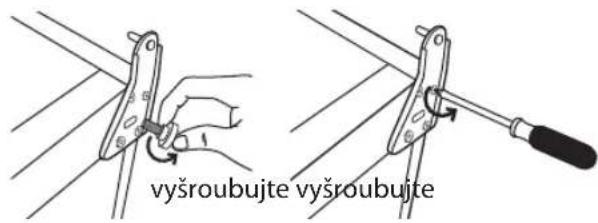

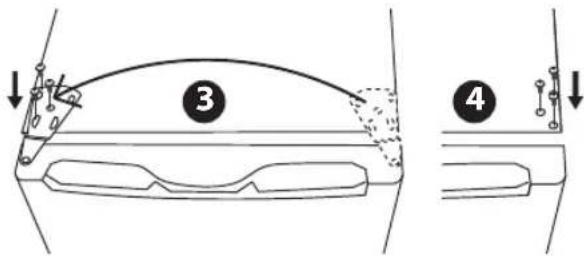

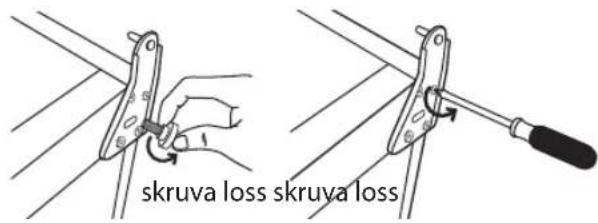

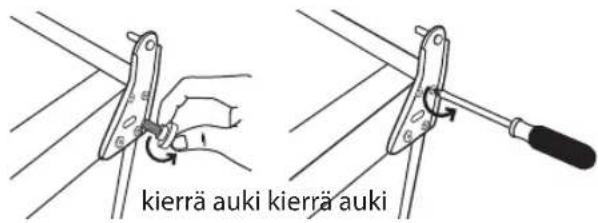

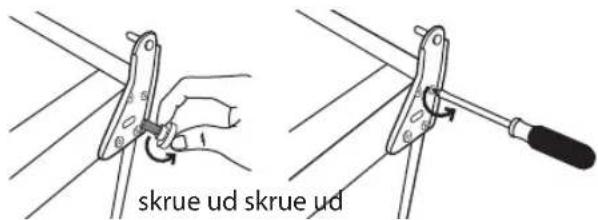

1. Unscrew the 3 screws on the opposite side, move upper door hinge and re-attach.

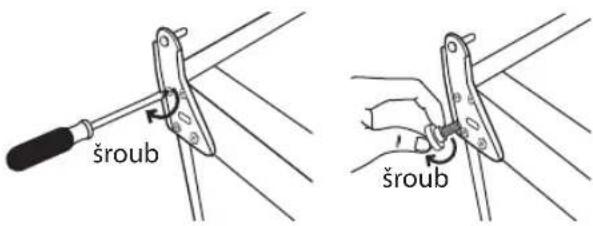

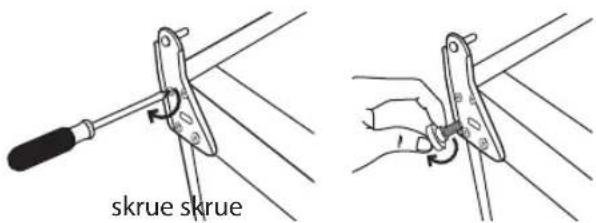

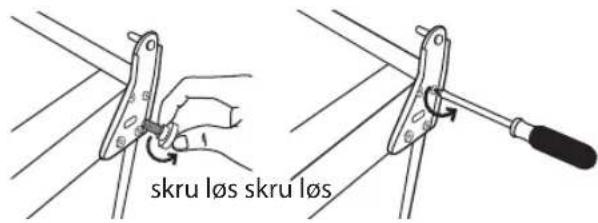

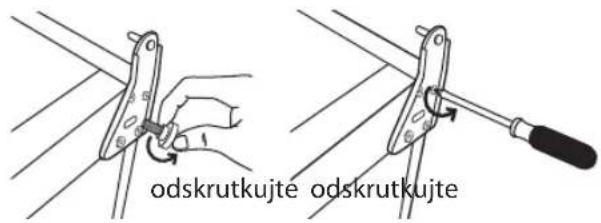

2. Remove the lower screws, hinge bracket and adjustable feet from the unit bottom.

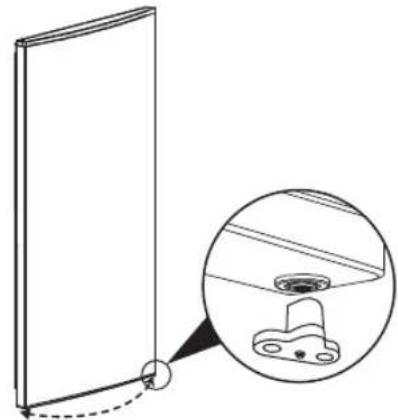

3. Swap the door stopper to the other side.

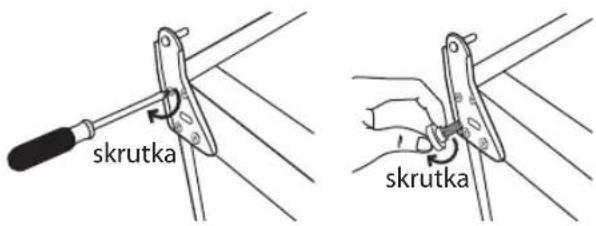

4. Remove the screw-type adjustable feet from another side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom.

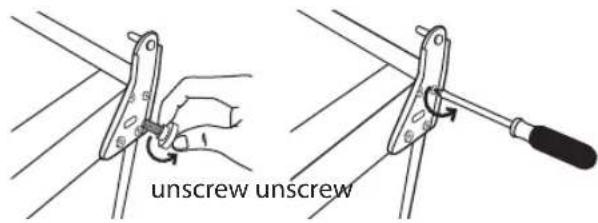

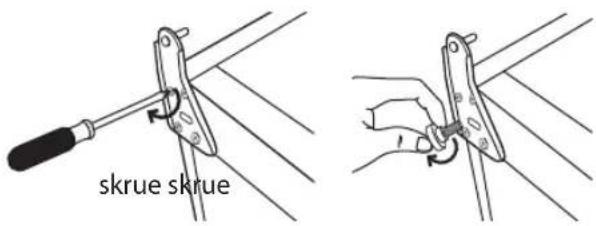

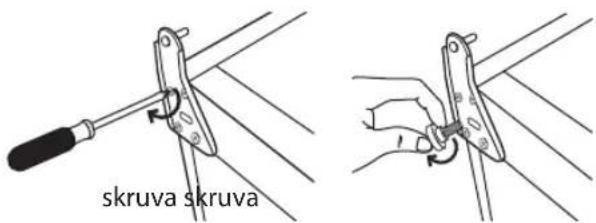

5. Reattach the two lower screws, hinge bracket and adjustable feet to the opposite side of the unit bottom. Loosely secure.

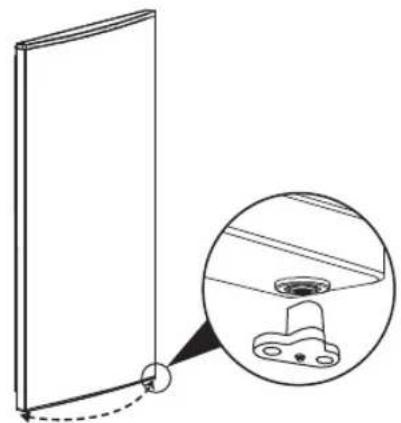

6. Carefully set the door back into place. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.
7. Insert the hinge bracket parts and screw it to the top of the unit.

Diagram showing a mechanical component with an inset close-up of its internal structure (no text or symbols)

Line drawing of a hand holding a tool near a metal bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

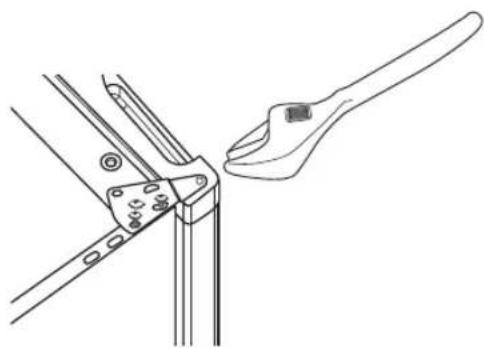

1. Use a spanner to tighten it if necessary.

Line drawing of a hand using a wrench to adjust or install a mechanical clamp (no text or symbols present)

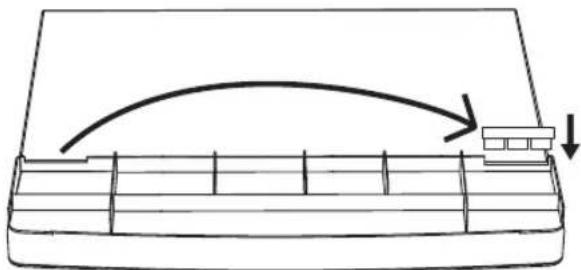

1. Before refitting the lid, the blanking plate must be swapped over.

Simple line drawing of a storage tray with an arrow indicating direction (no text or symbols)

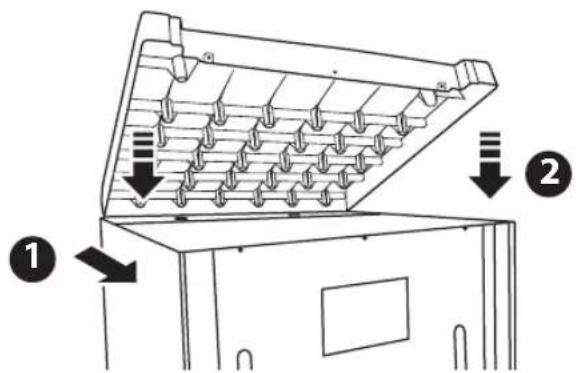

1. Put the top cover back.

1. Fix it in place with the screws.

Simple line drawing of a mechanical tool or bracket with a handle, no text or symbols present

1. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Space Requirements

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit.

If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

- Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Interior Accessories

Various glass or plastic storage shelves are included with your appliance – different models have different combinations.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swivelled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

In order to make the most of the volume of the fresh food storage compartment, the user can remove one or more shelves, drawers, according to daily use.

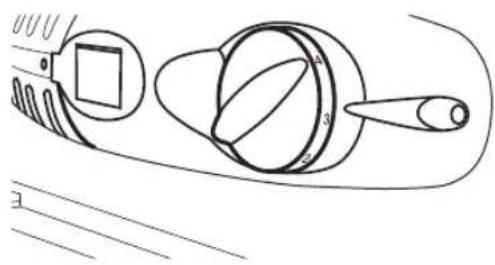

Switching On Your Unit

1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position OFF. This is located on the right side of the cabinet. Connect the mains cable to the mains socket.

2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16^ and 38^ ).

3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.

4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.

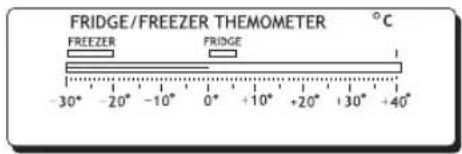

5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be 5^ C or lower.

Line drawing of a mechanical component with numbered parts (no text or symbols)

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Defrosting

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and the salad bin. To remove the salad bin first remove the lower door shelf.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Changing the Internal Light

1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply.
2. Hold and unscrew the light bulb cover.
3. Remove the plastic light bulb cover.
4. Remove the old bulb by unscrewing in an anti-clockwise direction.
5. Replace with a new bulb (10W SES). Please make sure that it is secure in the bulb cover.
6. Refit the light bulb cover and reconnect the unit to the mains supply and switch on.

Simple line drawing of a hand holding a circular object with an arrow pointing to it (no text or symbols)

Simple line drawing of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Model LUL55W13E
Fresh Food Storage Compartment Volume	130L
Storage Temperature 0 - 8°C, average ≤ 4°C
Energy Consumption 0.25 kWh/24hr
Energy consumption 91 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Household Appliances Category Category 1 (Refrigerator)
Energy Grading A++
EU Ecolabel N/A
Defrosting Type Auto Defrost
Climate Class ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 42dB
Rated Voltage 220V - 240V
Rated Current	0.21A
Overall Dimension (W x D x H)	553 x 574 x 845 mm

Features and specifications are subject to change without prior notice.

NO

Line drawing of a single refrigerator with lid and frontrest (no text or symbols)

Hovedenheten

Justerbar glasshylle x 2 Hylle over salatskuff

Simple line drawing of a rectangular block (no text or symbols)

Two workers exchanging a large cardboard box, no text or symbols present

Simple line drawing of a tool or bracket with a handle, no text or symbols present

INSTALLASJON

Diagram showing a mechanical component with an inset close-up of its internal structure (no text or symbols)

Line drawing of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

NO

INSTALLASJON

1. Bruk en skrunøkkel til å stramme den om nødvendig.

Line drawing of a hand using a wrench to adjust or clamp a metal tool (no text or symbols present)

Simple line drawing of a container with an arrow indicating direction, no text or symbols present

Simple line drawing of a mechanical tool or bracket with a handle, no text or symbols present

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Krav til plass

Nivellere enheten

Rengjøring før bruk

Line drawing of a mechanical component with numbered parts (no text or symbols)

Justere temperaturen

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

NO

Simple line drawing of a hand holding a circular object with an arrow pointing to it (no text or symbols)

Simple line drawing of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Huvudenhet

Simple line drawing of a rectangular block (no text or symbols)

Nedre dörrhylla

Ägglåda

Salladslåda

Two workers exchanging a large cardboard box, no text or symbols present

Simple line drawing of a tool or bracket with a handle, no text or symbols present

INSTALLATION

Diagram showing a mechanical component with an inset close-up of its internal structure (no text or symbols)

Line drawing of a hand holding a tool near a metal bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INSTALLATION

Line drawing of a hand using a wrench to adjust or install a mechanical component (no text or symbols present)

Simple line drawing of a rectangular container with an arrow indicating direction, no text or symbols present.

Simple line drawing of a tool or bracket with a handle, no text or symbols present

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Utrymmeskrav

Line drawing of a mechanical component with labeled parts (no text or symbols)

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

Simple line drawing of a hand holding a circular object with an arrow pointing to it (no text or symbols)

Simple line drawing of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Laite

Simple line drawing of a rectangular block (no text or symbols)

Oven hylly x 2 Oven alahylly

Munakenno

Salaattilokero

Illustration of two workers carrying a large box together (no text or symbols)

Simple line drawing of a tool or bracket with a handle, no text or symbols present

ASENNUS

Diagram showing a mechanical component with an inset close-up of its internal structure (no text or symbols)

Line drawing of a hand holding a tool near a metal bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

ASENNUS

Line drawing of a hand using a wrench to adjust or install a mechanical clamp (no text or symbols present)

Simple line drawing of a container with an arrow indicating direction, no text or symbols present

Simple line drawing of a mechanical tool or bracket with a handle, no text or symbols present

Line drawing of a single refrigerator with lid and frontrest (no text or symbols)

Tilavaatimukset

Technical line drawing of a mechanical component with numbered parts (no text or symbols)

Diagram showing a hand pressing down on a device panel with an arrow indicating motion (no text or symbols present)

FI

Simple line drawing of a curved object with a circular base and an arrow pointing to it, no text or symbols present.

Simple line drawing of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Hovedenheden

Two identical 3D rectangular prisms with no text or symbols

Justerbar glashylde x 2 Låg til salatbeholder

Two simple line drawings of rectangular blocks, one upright and one tilted, with no text or symbols.

Two workers exchanging a large cardboard box, depicted in line drawing style (no text or symbols)

Simple line drawing of a tool or bracket with a handle, no text or symbols present

INSTALLATION

Diagram showing a mechanical component with an inset close-up of its internal structure (no text or symbols)

Line drawing of a hand turning a small object into a corner panel (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INSTALLATION

Line drawing of a hand using a wrench to adjust or clamp a metal bracket (no text or symbols present)

Simple line drawing of a container with an arrow indicating direction, no text or symbols present

1. Sæt låget på igen.

Simple line drawing of a mechanical tool or bracket with a handle, no text or symbols present

Line drawing of a single refrigerator with lid and frontrest (no text or symbols)

Pladskrav

Rengøring før brug

Line drawing of a mechanical component with numbered parts (no text or symbols)

DK

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

DK

Simple line drawing of a hand holding a circular object with an arrow pointing to it (no text or symbols)

Simple line drawing of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

Hlavní jednotka

Simple line drawing of a rectangular block (no text or symbols)

Plato na vejce

Miska na salát

Illustration of two workers pushing a large box together (no text or symbols)

Simple line drawing of a tool or bracket with a handle, no text or symbols present

INSTALACE

Diagram showing a mechanical component with an inset close-up of its internal structure (no text or symbols)

Line drawing of a hand holding a tool near a metal bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INSTALACE

Line drawing of a hand using a wrench to adjust or install a mechanical component (no text or symbols present)

Simple line drawing of a storage tray with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical tool or bracket with a handle, no text or symbols present

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Line drawing of a mechanical component with numbered parts (0, 1, 2, 3) and no visible text or symbols

Nastavení teploty

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

Simple line drawing of a hand holding a circular object with an arrow pointing to it (no text or symbols)

Simple line drawing of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

Hlavné zariadenie

Two identical rectangular frames drawn with thin lines, no text or symbols present.

Two simple line drawings of rectangular blocks, one upright and one tilted, with no text or symbols.

Illustration of two people pulling a large box together (no text or symbols)

Simple line drawing of a tool or bracket with a handle, no text or symbols present

INŠTALÁCIA

Diagram showing a mechanical component with an inset close-up view (no text or symbols)

Line drawing of a hand holding a tool near a metal bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INŠTALÁCIA

1. Ak je to nutné, utiahnite ho pomocou klúča na matice.

Line drawing of a hand using a wrench to adjust or install a mechanical clamp (no text or symbols present)

Simple line drawing of a storage tray with an arrow indicating direction (no text or symbols)

1. Upevnite ho pomocou skrutiek.

Simple line drawing of a mechanical tool or bracket with a handle, no text or symbols present

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Line drawing of a mechanical component with numbered parts (no text or symbols)

Nastavenie teploty

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

Čistenie vnútrajšku a vonkajšku chladničky

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO
