Brand	Denver
Model	MT-980T2H
Product type	DVD player with DVB-T2 tuner
Power supply	100-240 V AC, 50/60 Hz
Power consumption	Less than 12 W
Built-in battery	Lithium-ion 7.4 V, charging time 3-4 h
Video output	HDMI, AV (composite)
Audio output	Stereo analog, headphone, coaxial
Disc formats	DVD, VCD, CD, MP3, JPEG
TV tuner	DVB-T/T2 (MPEG4 AVC/H.265)
Ports	USB, memory card slot, antenna
Playback functions	Repeat, zoom, slow motion, fast forward/rewind, frame by frame
Parental control	Password (default 000000)
OSD languages	Multiple (French, English, etc.)
Included accessories	Remote control, power adapter, AV cable
Cleaning and maintenance	Clean with a soft dry cloth; avoid liquids
Safety	Do not open the device; keep away from moisture

Frequently Asked Questions - MT-980T2H DENVER

How do I change the OSD display language?

Press SETUP, go to Option, then OSD Language, and select the desired language using the right/left keys.

How do I perform an automatic channel search?

Access the SETUP menu, select Channel Search then Auto Search. Press OK to start the search.

The remote control does not respond, what should I do?

Check the batteries; replace them if necessary. Make sure the remote is pointing at the receiver and there are no obstacles.

There is no image on the screen.

Check the DVB-T cable connection and power supply. Ensure the power switch is on. If the problem persists, reset the settings.

How do I set the time?

Press SETUP, select Time. Choose Auto or Manual to set the time zone and GMT offset.

How do I lock a channel for parental control?

In the SETUP menu, go to System then Parental Guidance. Enter the password (default 000000) and select the channel to lock.

How do I play multimedia files from a USB flash drive?

Insert the USB flash drive into the USB port. Press SOURCE or select USB. Navigate with the arrow keys and press OK to open the file.

How do I use the repeat function?

During playback, press the REPEAT key to choose between repeating chapter, title, disc, or off. For CD/VCD, options: once, all, off.

How do I reset the device to factory settings?

Access SETUP > System > Restore Factory Default. Enter the password (000000) and confirm. All channels and settings will be cleared.

What should I do if the image freezes or appears mosaic?

This may be due to a weak signal. Try repositioning the antenna or use a signal amplifier.

USER MANUAL MT-980T2H DENVER

denver-electronics.com

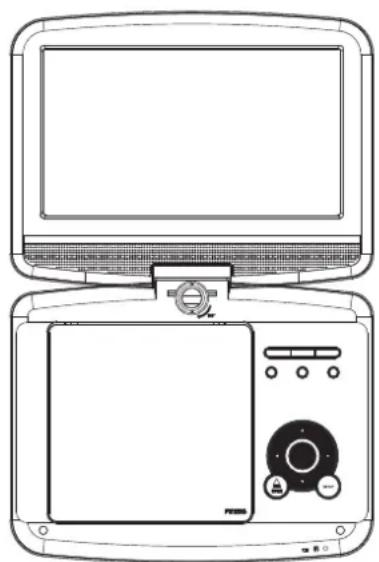

Line drawing of a vintage computer monitor and its front panel with control buttons (no text or symbols)

USER'S MANUAL MT-980T2H

facebook.com/denverelectronics
Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.

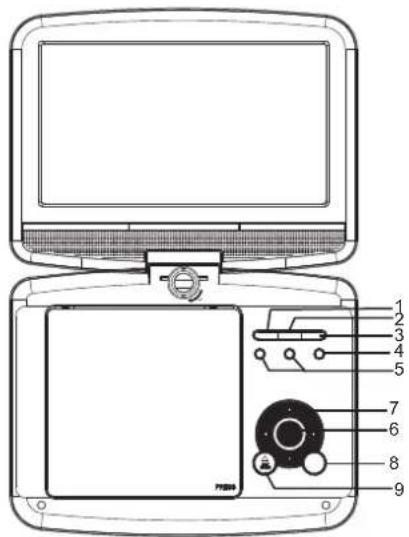

Identification of Controls

Main Unit

1. ▶ PLAY/PAUSE

2. STOP

3.SOURCE

1. MENU

2. VOL-/VOL+

3. ENTER

4. ▲/▼/◄/► (up/down/right/left)

Select an item in the menu.OK key confirms menu selection.

when playing,VCD,DVD,if available:

right: fast forward

left: fast reverse

up: previous track

down: next track

1. SETUP

2. OPEN

3. SD/MMC

4. USB

5. AV OUT

6. Earphone Socket

7. COAXIAL

8. ON/OFF

9. DC IN 9-12V

10. ANT

11. HDMI

ENG-1

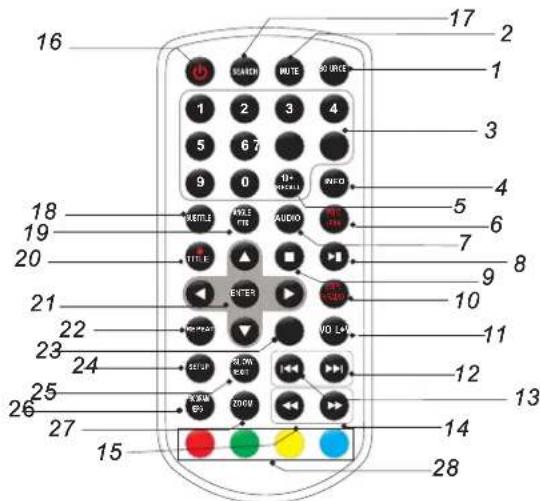

Identification of Controls

Remote control unit

1. SOURCE

DVD/CARD/USB/DVB-T.

2. MUTE

Disable Audio output.

3.0-9 NUMBER BUTTON

Selects numbered items in a menu.

4.INFO

To display the playtime and status information.

5.10+ BUTTON

In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button.

6. PBC/FAV

PBC on/off switch(VCD) in DVD mode.

Open Favorite Programs List Menu in DVB mode.

7.AUDIO

DVD Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available.

CD VCD Press AUDIO repeatedly during playback to hear a different audio channel ( Left, Right, Mix, Stereo).

8.PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback.

9.STOP

When this button is pressed once, the unit records the stopped point, from where playback will resume if PLAY( ) pressed after wards. But if STOP button is pressed again instead of PLAY( ) button, there will be no resume function.

10.STEP/TV/RADIO

Step the motion in DVD mode.

Switch between TV and Radio source in DVB mode.

11.VOL+

Adjust volume

12. Forward Skip

Go to next chapter/ track.

13.Reverse Skip

Go to previous chapter/ track to the beginning.

14. ▶▶ BUTTON

Press ▶▶ BUTTON allow skipping ahead at 5-level speed(X2->X4->X8->X16->X32->PLAY), press PLAY button return to normal playback. Parental password :"1369"

ENG-2

Identification of Controls

Remote control unit

15. ◀ BUTTON

Press ◀◀ BUTTON allow skipping back at 5-level speed(X2->X4->X8->X16->X32 PLAY), press PLAY button return to normal playback.->

16. ⏻

Turn on/off the power.

17.SEARCH

Goto time point, title or chapter you want in DVD Mode.

18.SUBTITLE

Press SUBTITLE repeatedly during playback to hear a different subtitle languages.

19.ANGLE

DVD :Press ANGLE will change the view angle, on DVDs that support this feature.

20. ● / TITLE

DVB Enter Record

Return to DVD title menu

21. ENTER

Confirms menu selection..

22.REPEAT

Press REPEAT during playback to select a desired repeat mode.

DVD : you can play select repeat chapter/title/off.

VCD CD : you can select repeat single/all/off.

23.VOL-

Adjust volume

24.SETUP

Accesses or removes setup menu.

25.SLOW

Press Slow button repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2, 1/4, 1/8, 1/16, and normal.

26.PROGRAM

DVD VCD : The program function enables you to store your favourite tracks from the disc. Press PROGRAM button ,then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles,chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select clear program option on the program menu,press PROGRAM again to exit program menu.

Open EPG in DVB mode.

27.ZOOM

DVD VCD: Use ZOOM to enlarge or shrink the video image.

1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV screen in the following sequence:

2X size → 3X size → 4X size → 1/2 size → 1/3 size → 1/4 size → normal size

JPEG: Use ZOOM to enlarge or shrink the picture.

1. Press 'ZOOM'
   2,Used " " to enlarge,or " " to shorten the picture.
   Use the button to move through the zoomed picture.

28.RED/GREEN/YELLOW/BLUE KEY

Some specific function in DVB mode.

Parameters and specifications

Electronical parameters

Item		Standard requirement
Power requirements		: AC 100-240 V, 50/60 Hz
Power consumption		:<12W
Operating humidity		: 5 % to 90 %
Output	VIDEO OUT	:1 Vp-p (75Ω)
	AUDIO OUT	:1.4 Vrms (1 KHz, 0 dB)
	Audio	:Speaker:1WX2, outputHeadphones

System

Laser	:Semiconductor laser, wavelength 650 nm
Signal system	: NTSC / PAL
Frequency response	: 20Hz to 20 kHz(3dB)
Signal-to-noise ratio	:More than 80 dB (ANALOG OUT connectors only)
Dynamic range	:More than 85 dB (DVD/CD)

Note: Design and specifications are subject to change prior notice.

Battery Parameters

Battery Specifications:

Output: 7.4V

Charge / Discharge Time:

Standard charge time: 3h \~ 4h

Storage and work circumstances:

1. Storage circumstances	Temperature	Humidity
6 months	-20^ +45^	65 ± 20%
1 week	-20^ +65^	65 ± 20%

2.Work circumstances	Temperature	Humidity
Standard charge	0°C +45°C~	65±20%
Standard discharge	-20°C +65°C~	65±20%

First Time Installation

After all connections have been made properly, switch on TV and makesure the receiver is connected to the Main Power. Press Power Button to switch receiver on. If you are using the receiver for the first time or restored to Factory Default, the Main Menu will appear on your TV screen.

(1) Select [OSD Language] and press RIGHT/LEFT key to select an language.
(2) Select [Country] and press RIGHT/LEFT key to select your country of residence.
(3) Select [Channel Search] and press RIGHT or OK key to begin Automatic channel search.
(4) Once channel tuning is complete, you are now ready to watch TV.

Basic Operation

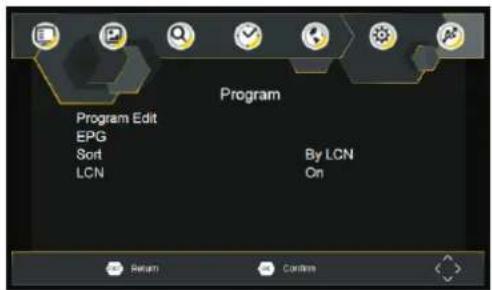

Program Manage Settings

To access the Menu, press the SETUP button and select [Program].

The Menu provides options to adjust the Program Manage Settings.

Select an option and press OK or RIGHT to adjust that setting.

Press the EXIT button to exit the Menu

Program Edit

To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '000000'.

ENG-5

First Time Installation

Set Favourite Program/s

You can create a shortlist of favourite programs that you can easily access. Set Favourite TV or Radio program:

1. Select the preferred program then press the PAVOURITE button.
   A heart-shaped symbol will appear and the program is marked as a favourite.
2. Repeat the previous step to select more Favourite programs.
3. To confirm and exit the Menu, press the EXIT key.

Disable Favourite TV or Radio Program:

Press the FAV buton on the Remote Control with the heart-shaped symbol.

View Favourite Programs:

1. Press the Fav button and the Favourite Menu will appear.
2. Press UP/DOWN to select your Favourite Programs.
3. Press OK to select your favourite program.

Delete a TV or Radio Program/s

1. Select the Program and then press the BLUE button A message will appear. Press OK to delete the program.
2. Repeat the previous step to select more programs to delete.

Skip TV or Radio Program/s

1. Select the program you would like to skip and press the GREEN button A skip symbol is displayed. The program is marked as a skip.

2. Repeat the previous step to select more programs.

3. To confirm and exit themenu, press EXIT key.

Disable a skip TV or Radio Program:

Press the GREEN button on the skip program with the skip symbol.

Move a TV or Radio Program/s

1. Select the preferred program then press the RED button. A move symbol will appear.
2. Press UP/DOWN to move the program.
3. Press OK to confirm.
4. Repeat the above steps to move more channels.

Lock Program/s

You can lock selected programs for restricted view.

Lock a TV or Radio Program:

1. Select the preferred program then press the YELLOW button. A lock-shaped symbol is displayed. The program is now marked as locked.
2. Repeat the previous step to select more programs.
3. To confirm and exit the menu, press the EXIT button.
4. Press the YELLOW button to disable the locked program.
5. To view the locked program, you will be require to enter either the default password '000000'.

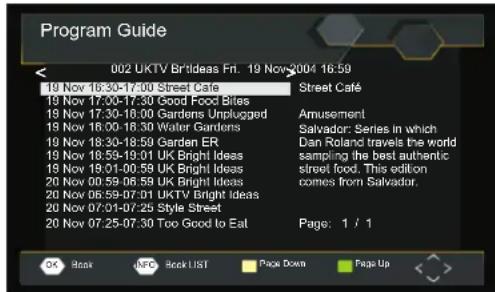

EPG (Electronic program guide)

The EPG is an on-screen TV guide that shows scheduled programs seven days in advance for every tuned channel. Press the EPG button on the Remote Control to access guide.

You can use the UP/DOWN key to select the preferred program. If there is more than one page of information, use the BLUE button for page up and the YELLOW button for page down.

First Time Installation

Sort

Sort your channels from the following options:

[LCN] - Sort the channels in ascending order.

[Name] - Sort the channels in alphabetical order.

[Service ID] - Sort the channels according to the station.

LCN (Logical channel number)

Set LCN on or off.

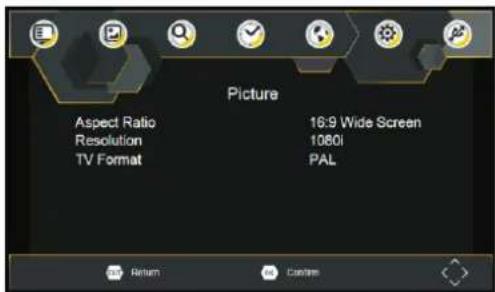

Video Setting

To access the Menu, press then select [Picture]. The Menu SETUP provides options to adjust the video settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust that setting. Press EXIT to exit the menu.

HDMI Aspect Ratio

You must set the display format to either 4:3 PanScan, 4:3 Letter Box, 4:3 Full, 16:9 Wide Screen, 16:9 PillarBox or Auto to get the maximum display when watching TV.

HDMI Resolution

If the video does not appear correctly, change the setting. This setting is to match the most common setting for HDMI.

480i for NTSC system TV.

480P: for NTSC system TV.

576i for PAL system TV.

576P: for PAL system TV.

[720P]: for NTSC or PAL system TV.

[1080I]: for NTSC or PAL system TV.

[1080P]: for NTSC or PAL system TV.

TV format

If the video does not appear correctly, you need to change the settings. This should match the most common setting for TVs in your country.

NTSC: for NTSC system TV.

PAL: for PAL system TV.

Channel Search

To access the menu, press and select [Search Channel]. SETUP The Menu provides options to adjust the Search Channel settings. Select an option and press RIGHT/LEFT to adjust the settings. Press EXIT to exit the Menu.

ENG-7

First Time Installation

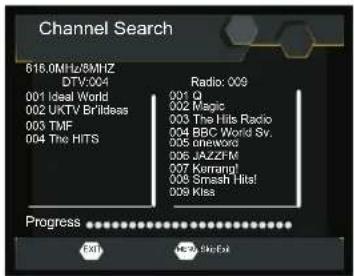

Auto Search

Search and install all channels automatically. This option overwrites all preset channels.

1. Select [Auto Search] and press OK or RIGHT to start channel search.
2. To cancel channel search, press EXIT.

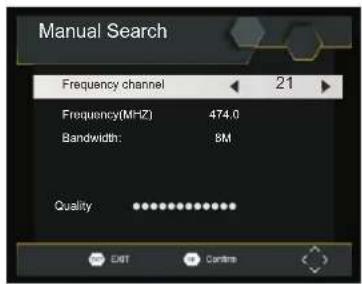

Manual Search

Install new channels manually. This option adds new channels without changing the current channels list.

1. Select [Manual Search] then press OK or RIGHT. The channel search screen will appear.

1. Press the RIGHT/LEFT key to select the channel frequency.
2. Press OK to start searching channels.
   If a channel is found, it is saved and added to the channels list. If channels can't be found, then exit the menu.

Country

Select your country of residence.

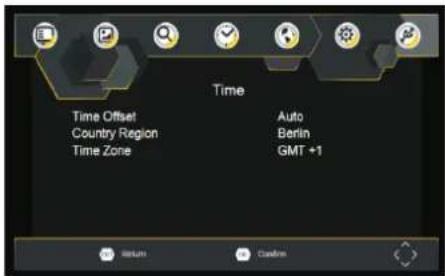

Time Setting

To access the Menu, press then select [Time]. The Menu SETUP provides options to adjust the time settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the settings. Press EXIT to exit the menu.

Time offset

Select auto or manual for GMT offset adjustments.

Country Region

Select the Country Region when [Time Offset] is set to Auto.

Time Zone

Select the Time Zone Offset when [Time Offset] is set to Manual.

ENG-8

First Time Installation

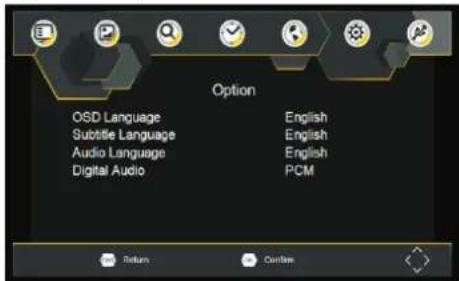

Option

To access the Menu, press and select [Option]. The menu SETUP provides options to adjust the OSD Language, Subtitle Language and Audio Language. Select an option and press RIGHT/LEFT to adjust the setting. Press EXIT to exit The Menu.

OSD Language

Select an OSD language.

Audio Language

Select the preferred audio language for watching TV channels. If the language is not available, the default program language will be used.

Subtitle Language

Select the preferred subtitle language.

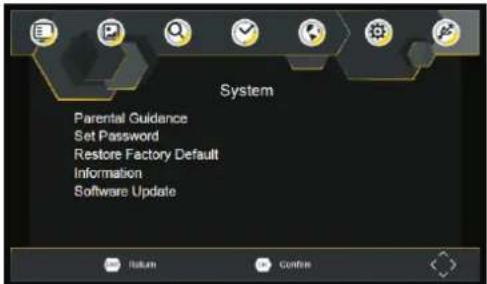

System Setting

To access the Menu, press and select [System]. The menu. SETUP Provides options to adjust the system settings. Press the UP/DOWN key to select an option and press RIGHT/LEFT to adjust the setting. Press EXIT to exit the Menu.

Parental Guidance

You can restrict access to channels that are unsuitable for children. To restrict/lock the channel you will need to enter either the default password '000000' or your own password.

Set Password

Set or change the password for Locked programs. Enter your old Password or the default password '000000'. You will then be asked to enter your new password. To confirm re-enter your new password. Once it is confirmed, press EXIT to exit the Menu.

Reset your Set Top Box to the Default Factory Settings. In Main Menu select [Restore Factory Default] and press OK or RIGHT to select. Enter your password or the default password '000000' and press OK to confirm. This option will delete all preset channels and settings.

Information

View model, hardware and software information.

Software update

If the status is set "ON", it will begin searching for new software from broadcast according to your preferred time in "Start Time".

First Time Installation

USB

To access the Menu, press the SETUP button and select USB..

Multi-Media

Switch to USB mode and plug in USB to view files.

Technical Specifications

Item	Sub Item	Parameter
Tuner	Input Frequency	170~230MHz470~860MHz
	RF Input level	-79dBm(T),-75dBm(T2)
	IF Bandwidth	7MHz and 8MHz
	Modulation	QPSK,16QAM,64QAM,128QAM(T2),256QAM(T2)
Video	Decoder Format	MPEG4 AVC/H.265 HP@L4MPEG2 [e-mail]
	Output Format	480i, 480p,576i, 576P, 720P, 1080i, 1080P,4:3 and 16:3
	Output Port	HDMI

Troubleshooting

Problem	Potential Reasons	What to do
No picture	Power isn't connected	Connect the power
	The power switch is not on	Switch on the power
Screen shows “No Signal”	DVB-T cable not connected	Plug in the DVB-T cable
	Incorrect setting	Reset setting
No sound from speaker	Sound on mute	Turn off mute function
	Incorrect sound track	Try another sound track
Only sound, no image on the screen	No or incorrect connection with AV cable	Make sure cables are connected correctly
	The program is a radio program	Presskey to shift into TV mode
Remote Control is not responding	The battery is exhausted	Change battery
	Remote Control is not facing or close enough to the Set Top Box	Adjust the position of the Remote Control and move closer to the unit
The image stopped suddenly or mosaic	The signal is too weak	Strengthen the signal

ENG-10

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Hereby, Inter Sales A/S declares that the radio equipment type MT-980T2H is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.denver-electronics.com/denver-mt-980t2h/

Operating Frequency Range: 170\~230MHz, 470\~860MHz

Imported by:

DENVER ELECTRONICS A/S

Omega 5A. Soeften

DK-8382 Hinnerup

Denmark

facebook.com/denverelectronics

DENVER®

denver-electronics.com

Line drawing of a vintage kitchen appliance with front panel and control panel (no text or symbols)

Links: Schneller Rücklauf

Sendereinstellungen

GER-7

Erstinstallation

Automatische Suche

OSD-Sprache

facebook.com/denverelectronics

DENVER®

denver-electronics.com

Line drawing of a vintage kitchen appliance with front panel and control panel (no text or symbols)

BETJENINGSVEJLEDNING MT-980T2H

1. VOL-

2. VOL+

3. AFSPIL/ PAUSE

4. STOP

5. SOURCE (signalkilde)

6. MENU

7. ENTER (ok)

8. ▲/▼φ/∅/h∅ire/venstre)

Åbner EPG I DVB-tilstand.

27. ZOOM

Programredigering

Aspektrate

DEN-7

OSD-sprog

facebook.com/denverelectronics

DENVER®

denver-electronics.com

Line drawing of a vintage kitchen appliance with front panel and control panel (no text or symbols)

Editar programa

Fije LCN en on u off.

Configuración Video

ESP-7

Idioma de OSD

facebook.com/denverelectronics

DENVER®

denver-electronics.com

Line drawing of a vintage kitchen appliance with front panel and control panel (no text or symbols)

MANUEL DE L'UTILISATEUR MT-980T2H

LECTEUR DVD PORTABLE

facebook.com/denverelectronics

Durée d'arrêt

Langue OSD

facebook.com/denverelectronics

DENVER®

denver-electronics.com

Line drawing of a vintage kitchen appliance with front panel and control panel (no text or symbols)

GEBRUIKSHANDLEIDING MT-980T2H

Programma bewerken

NED-7

Eerste installatie

Automatisch zoeken

OSD-taal

facebook.com/denverelelectronics

DENVER®

denver-electronics.com

Line drawing of a vintage kitchen appliance with front panel and control panel (no text or symbols)

PODRĘCZNIK UŻYTKOWNIKA MT-980T2H

PRZENOŚNY ODTWARZACZ DVD

1. ŽRÓDŁO

DVD/KARTA/USB.

2. MUTE (ściszenie)

Edycja programów

POL-7

Pierwsza instalacja

facebook.com/denverelectronics

DENVER®

denver-electronics.com

Line drawing of a vintage kitchen appliance with front panel and control panel (no text or symbols)

Edição do Programa

POR-7

Primeira Instalação

Pesquisa Automática

Compensação horária

Idioma OSD

Selecionar um idioma de OSD.

Idioma de Audio

facebook.com/denverelectronics

denver-electronics.com

Line drawing of a vintage kitchen appliance with front panel and control panel (no text or symbols)

HANDBOK

MT-980T2H

1. ▶ SPELA UPP / PAUSA

2. ■ STOPP

3.SOURCE (KÄLLA)

4.MENY

5.VOL-/VOL +

24. REPEAT (UPPREPA)

Redigera program

Tidsskillnad

OSD -språk

Välj ett OSD-spräk.

Ljudspråk

facebook.com/denverelectronics

Driftsfrekvensområde: 170\~230MHz, 470\~860MHz

DENVER®

denver-electronics.com

Line drawing of a portable electronic device with front panel and control panel (no text or symbols)

KÄYTTÖOHJE MT-980T2H

Kuvasuhde

OSD-kiell

facebook.com/denverelectronics

DENVER®

denver-electronics.com

Line drawing of a portable electronic device with front panel and control panel (no text or symbols)

GUIDA PER L'UTENTE MT-980T2H

Modifica programma

LCN (Logical channel number)

Impostare LCN acceso o spento.

Impostazione video

ITA-7

Prima installazione

Ricerca automatica

Lingua OSD

facebook.com/denverelectronics

DENVER®

denver-electronics.com

Line drawing of a portable electronic device with front panel and control panel (no text or symbols)

KORISNIČKI PRIRUČNIK MT-980T2H

facebook.com/denverelectronics
Prije spajanja ili podešavanja ovog proizvoda, ili rada na njemu,
molimo pažljivo pročitajte kompletan korisnički priručnik.

1. ▶ (REPRODUKCIJA/PAUZA)

2. STOP

3. IZVOF

4.LIJEVO/VOL -

5..DESNO/VOL +

1. IZBORNIK

2. ▲/▼/◄/► gore/dolje/pravo/lijevo

odaberite stavku u izborniku. OK potvrđuje odabir izbornika.

kada svira , VCD,DVD, na raspolaganje

pravo:brzo naprijed

lijevo:unatrag

gore:prethodna pjesma

dolje:sljedeći zapis

(1) Odaberite [Jezik zaslona] i pritisnite tipke RIGHT/LEFT za odabir jezika.
(2) Odáberite [Država] i pritisnite tipke RIGHT/LEFT za odabir države boravišta.
(3) Odaberite [Pretraživanje kanala] i pritisnite tipke RIGHT ili OK za pokretanje automatskog pretraživanja kanala.
(4) Po završetku ugađanja kanala, spremni ste za gledanje TV programa.

Uređivanje programa

Za uređivanje željenih postavki programa (zaključavanje, preskakanje, favoriti, pomicanje ili brisanje), morate ući u izbornik Uređivanje programa. Za pristup ovom izborniku potrebno je upisati lozinku. Unesite tvornički postavljenu lozinku "000000".

HRV-5

Prva instalacija

Postavljanje programa favorita

Možete kreirati popis programa favorita kojima ćete lako pristupati. Postavljanje TV ili radio programa favorita:

1. Odaberite željeni program te pritisnite tipku FAVOURITE. Pojavit će se simbol u obliku srca i program će biti dodan u favorite.

2. Ponavljanjem prethodnog koraka možete dodati više programa favorita.

3. Pritisnite tipku EXIT za potvrđivanje i izlaz iz izbornika.

Onemogućavanje TV ili radio programa favorita:

Tipkama UP/DOWN možete odabrati željeni program. Ukoliko postoji više stranica informacija, PLAVOM tipkom prikažite prethodnu, a ŽUTOM tipkom iduću stranicu.

Prva instalacija

Sortiranje

Kanale možete sortirati na sljedeće načine:

[LBK] - (Logični broj kanala) Sortira kanale uzlazno.

[Naziv] - Sortira kanale abecedno prema nazivu.

[Sifra usluge] - Sortira kanale prema postaji.

HRV-7

Prva instalacija

Automatsko pretraživanje

1. Pritisnite tipke RIGHT/LEFT za odabire frekvencije kanala.
2. Pritisnite OK za početak pretraživanja kanala.
   Ukoliko je kanal pronađen, pohranjuje se i dodaje na popis kanala. Ukoliko nije moguće pronaći kanal, napustite izbornik.

Država

Odaberite vašu državu boravišta.

Postavke vremena

Za pristup izborniku, pritisnite SETUP te odaberite [Vrijeme]. Izbornik pruža opcije prilagođavanja postavki vremena. Pritiskom na UP/DOWN odaberite opciju, a pritiskom na RIGHT/LEFT prilagodite postavke. Pritisnite tipku EXIT za izlaz iz izbornika.

Vremenski pomak

Odaberite automatsko ili manualno podešavanje vremenskog pomaka u odnosu na GMT.

Regija države

Odaberite regiju države kada je [Vremenski Pomak] postavljen na Auto.

Vremenski zona

Jezik zaslona

facebook.com/denverelectronics

DENVER®

denver-electronics.com

Line drawing of a vintage computer monitor and its front panel (no text or symbols)

BRUKSANVISNING

MT-980T2H

BÆRBAR DVD-SPILLER

facebook.com/denverelectronics

Les hele bruksanvisningen grundig før du kobler til, bruker eller justerer dette produktet.

1. PLAYPAUSE
2. STOPP
3. SOURCE
4. MENY
5. VOL-/VOL+
6. TAST INN
7. ▲/▼/◄/► (opp/ned/høyre/venstre)

Velg et element i menyen. OK-knappen bekrefter menyvalg.

Endre program

576p: for PAL-system TV.

[720p]: for NTSC eller PAL-system TV.

[1080i]: for NTSC eller PAL-system TV.

[1080p]: for NTSC eller PAL-system TV.

TV-format

PAL: for PAL-system TV.

Kanalsøk

Skjermvisningsspråk

Velg et skjermvisningsspråk

Lydspråk

facebook.com/denverelectronics
