Product type	Electric jigsaw
Brand	Ferm
Model	JSM1030
Supply voltage	230-240 V~
Frequency	50 Hz
Power consumption	550 W
No-load speed	0 - 3000 min⁻¹
Max. cutting depth (wood)	65 mm
Miter angle	-45° to 45°
Sound pressure (Lpa)	85 dB(A) (K=3 dB)
Sound power (Lwa)	96 dB(A) (K=3 dB)
Vibration level (wood)	11.71 m/s² (K=1.5 m/s²)
Vibration level (metal)	8.81 m/s² (K=1.5 m/s²)
Blade type	Tang blades, quick-change system
Compatible materials	Wood, metal, plastic, ceramic, rubber
Dust extraction system	Yes, vacuum cleaner connection
Speed adjustment	Variable by wheel
Angle adjustment	Yes, up to 45°
Double insulation	Yes
Protection	Removable protective guard
Maintenance	Clean the housing, ventilation slots, lubricate the guide roller
Warranty	Consult the provided terms

Frequently Asked Questions - JSM1030 Ferm

How to change the saw blade?

Turn the blade holder locking ring completely to the left to open the blade holder. Insert the saw blade fully, teeth facing up and forward, smooth side into the groove of the guide roller. Release the ring to close. Always check the fixation before use.

How to adjust the cutting speed?

Use the speed adjustment wheel located on the top of the machine. For hard materials, choose a slow speed with a fine blade; for soft materials, fast speed with a coarse blade. Never adjust the speed during operation.

How to adjust the tilt angle of the base plate?

Loosen the hex screws under the plate using the supplied wrench. Tilt the plate to the desired angle (up to 45°) then retighten the screws. Do not adjust during use.

What type of blade to use for wood?

For wood, use a coarse-tooth blade for fast cuts, medium for standard quality, or fine for curves. Follow the recommendations in the blade selection table in the manual.

Can I cut metal with this jigsaw?

Yes, with a suitable blade (fine teeth) and a slower speed. Ensure the workpiece is well secured. Wear protective equipment.

How to connect a vacuum cleaner for dust extraction?

Insert the dust extraction adapter into the connection located at the front of the saw. Connect your vacuum cleaner hose to the adapter. This reduces dust during sawing.

What to do if the saw vibrates abnormally?

Stop the machine immediately and unplug it. Check that the blade is correctly installed and not damaged. Ensure the guide roller is clean and lubricated. If the problem persists, contact after-sales service.

How to clean and maintain the jigsaw?

Before any cleaning, unplug the machine. Clean the housing with a soft cloth. Clear dust from ventilation slots. Regularly lubricate the guide roller. Replace worn blades.

What is the power of the JSM1030 jigsaw?

The power consumption is 550 W under a voltage of 230-240 V~ and a frequency of 50 Hz.

Is the jigsaw double insulated?

Yes, the machine has double insulation (symbol on label). This eliminates the need for grounding, but electrical safety instructions must be followed.

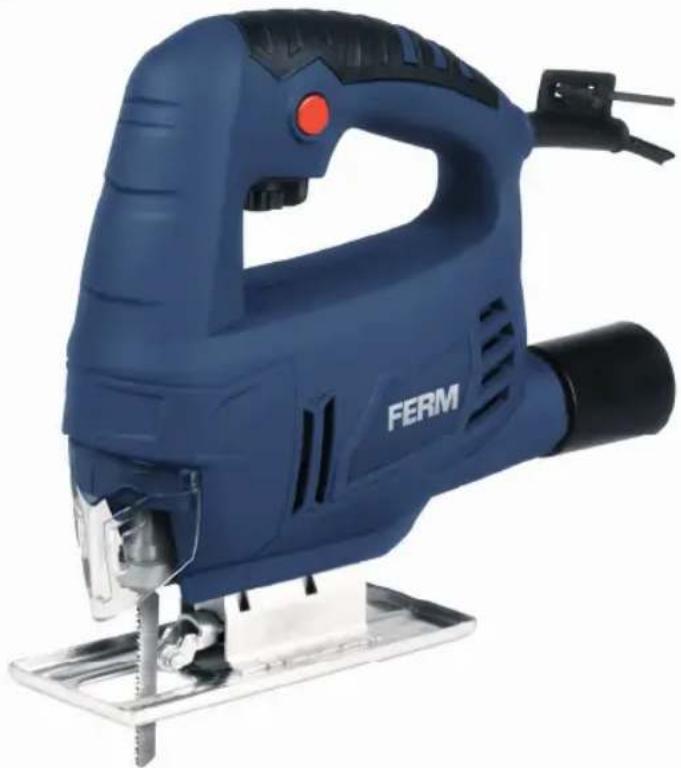

USER MANUAL JSM1030 Ferm

Blue FERM power tool with saw blade and handle, mounted on a metal base (no visible text or symbols)

JSM1030

EN Original instructions 05
DE Übersetzung der Originalbetriebsanleitung 09
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 13
FR Traduction de la notice originale 17
SV Översättning av bruksanvisning i original 21
FI Alkuperäisten ohjeiden käännös 25
DA Oversættelse af den originale brugsanvisning 28
HU Eredeti használati utasítás fordítása 32
CS Překlad původního návodu k používání 36
PL Tłumaczenie instrukcji oryginalnej 40
LT Originalios instrukcijos vertimas 44
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 48

Fig. 1

Technical line drawing of a mechanical device with labeled parts (no text or symbols beyond labels)

JIGSAW JSM1030

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text correspond with the pictures at pages 2-4.

Read this operators guide carefully, before using the machine. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine functions correctly. Keep this operator's guide and other enclosed documentation with the machine.

1. MACHINE INFORMATION

Technical specifications

Voltage 230-240 V~
Frequency	50Hz
Power 550 W
No load speed 0 - 3.000/min
Max. sawing depth (wood) 65 mm
Mitre angle - 45 to 45°
Noise and vibration
Sound pressure (Lpa) 85 dB(A) K=3dB
Acoustic power (Lwa) 96 dB(A) K=3dB
Vibration (wood) 11.71 m/s2 K=1.5 m/s2
Vibration (metal) 8.81 m/s2 K=1.5 m/s2

Wear hearing protection.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

Product information

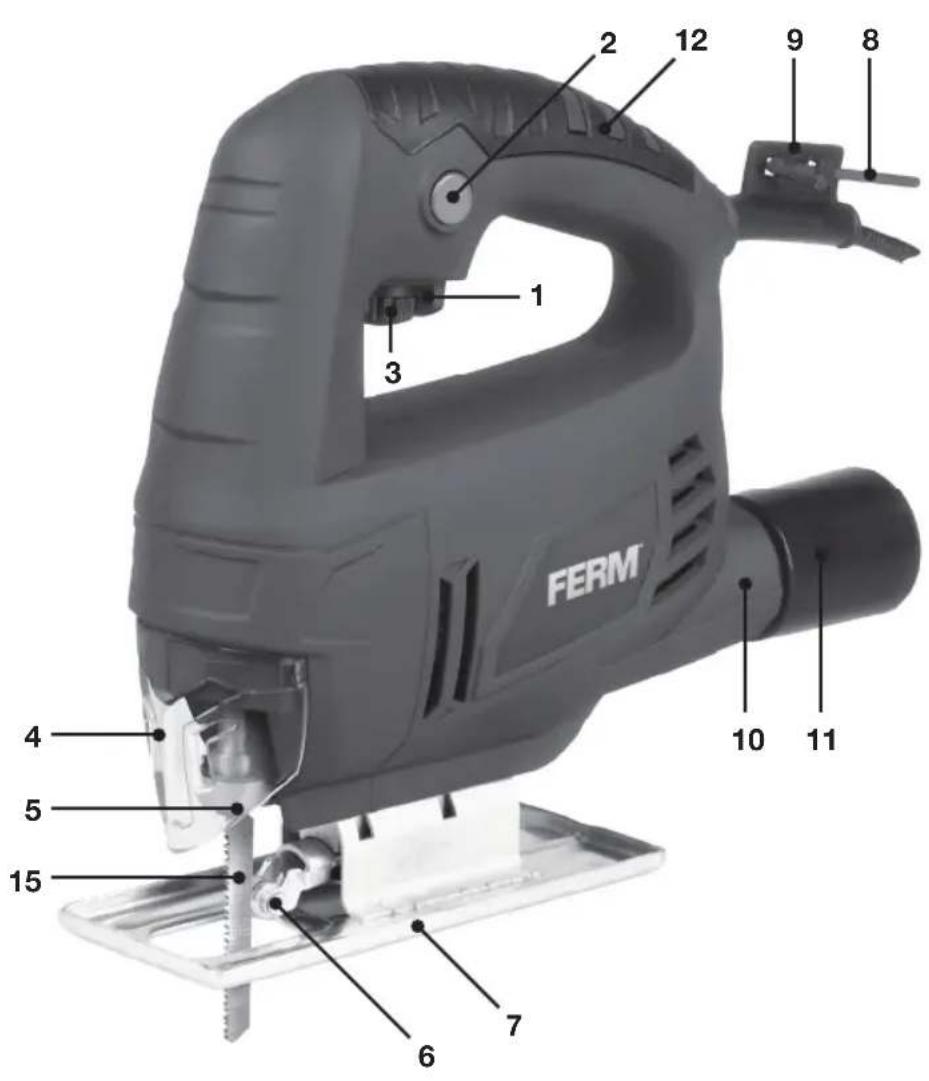

Fig. 1

1. On/off switch
2. Lock-on button
3. Speed adjustment wheel
4. Guard
5. Saw blade holder
6. Saw blade guide roller
7. Base plate
8. Hex key
9. Hex key holder
10. Dust extraction connection
11. Dust adapter
12. Grip

Your jigsaw has been designed for sawing wood, metal, plastics, ceramics, rubber, etc. to any required size and in any required shape.

2. SAFETY INSTRUCTIONS

Explanation of the symbols

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Wear safety goggles. Wear hearing protection.

Wear a dust mask.

Do not expose to rain

Keep bystanders away

Double insulated.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for jigsaws

• Do not work materials containing asbestos. Asbestos is considered carcinogenic.
• Wear safety goggles, hearing protection and if necessary other protective means, such as safety gloves, safety shoes, etc.
• Before use, remove all nails and other metal objects from the workpiece.
• Make sure that the workpiece is properly supported or fixed.
• Do not use the machine without the guard.
• Inspect the saw blade before each use. Do not use saw blades which are bent, cracked, or otherwise damaged.
• Make sure that the saw blade is properly mounted.
• Only use saw blades that are suitable for use with the machine.
• Only use saw blades with the correct dimensions.
• Do not use other accessories than saw blades.
• Do not use saw blades made of HSS steel.
• Do not use the machine on workpieces requiring a maximum sawing depth that exceeds the maximum sawing depth of the saw blade.
• Hold the machine by the insulated gripping surfaces where the saw blade may contact hidden wiring or the mains cable. If the saw

blade contacts a 'live' wire, the exposed metal parts of the machine can also become 'live'. Risk of electric shock.

• Let the machine run at no load in a safe area after mounting the saw blade. If the machine vibrates strongly, immediately switch off the machine, remove the mains plug from the mains, and try to solve the problem.
• Beware that the saw blade continues to rotate for a short period after switching off the machine. Do not attempt to bring the saw blade to a standstill yourself.

Kickback

Kickback is the upward and backward movement of the saw blade when the saw blade unexpectedly touches an object. Securely hold the machine during use. Keep your attention focused on the operation.

Kickback is usually caused by:

• unintentionally touching hard objects or materials with the rotating saw blade;
• a blunt saw blade;
• a saw blade that is not properly mounted;
• sawing into a previous cut;
• a lack of attention to the operation;
• an instable stance.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm2. If you use an extension cable reel, always fully unroll the cable.

3. ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Mounting and removing the saw blade

Refer to the table below to select the required saw blade.

Saw blade Material

Coarse	Wood
Medium	Wood
Fine	Steel, aluminium, plastic
Very fine	Wood (curves)

Remove the guard from the machine to change the saw blade.

Always saw with guard.

Fitting a saw blade

Fig. 2

The machine is equipped with a quick blade exchange system.

• Turn the clamping ring (13) of the saw blade holder (5) completely to the left, in order to open up the holder.
• Insert the saw blade (15) in the saw blade holder (5) as far as possible. The teeth of the saw blade (15) must point upward and forward. The smooth side of the saw blade must engage in the slot of the guide roller (6).
• Release the clamping ring (13) to close the holder.
• Make sure when changing the saw blade that the blade holder (5) is free of material debris (such as splinters of wood or metal).
• Before use, always check that the saw blade is securely fixed.

Removing the saw blade

• Turn the clamping ring (13) of the saw blade holder (5) completely to the left, in order to open up the holder.
• Remove the saw blade from its holder.
• Release the clamping ring (13) to close the holder.

4. USE

Switching on and off

Fig. 3

• To switch on the machine, press the on/off switch (1).

• To switch the machine to continuous mode, keep the on/off switch (1) pressed and simultaneously press the lock-on button (2).

• To switch off continuous mode, press the on/off switch (1) again.

• To switch off the machine, release the on/off switch (1).

Setting the speed

Fig. 3

The speed adjustment wheel (3) is used for setting the speed. The ideal speed depends on the profile and the teeth of the saw blade and on the material to be worked.

Do not set the speed during use.

• Turn the speed adjustment wheel (3) to the required position.
• For hard materials, use a saw blade with fine teeth and select a lower speed.
• For soft materials, use a saw blade with coarse teeth and select a higher speed.

Setting the mitre angle

Fig. 4

The mitre angle is variable between 0^ and 45^ . The mitre angle can be read from the scale.

Do not set the mitre angle during use.

• Slacken the Hex screws(14) using the Hex key(8).
• Tilt the Base plate (7) to the required position.
• Tighten the Hex screws(14) using the Hex key(8).

Dust extraction

Fig. 5

• Insert the dust extraction adapter (11) into the dust extraction connection (10).
• Connect the hose of a vacuum cleaner to the dust extraction adapter (11).

Hints for optimum use

• Clamp the workpiece. Use a clamping device for small workpieces.
• Draw a line to define the direction in which to guide the saw blade.
• Firmly hold the machine by the grip.
• Set the sawing speed.
• Set the mitre angle.
• Switch on the machine.

• Wait until the machine has reached full speed.

• Place the saw shoe on the workpiece.

• Slowly move the machine along the pre-drawn line, firmly pressing the saw shoe against the workpiece.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

5. CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

• Regularly clean the housing with a soft cloth.
- Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.
- Regularly clean the saw blade to avoid inaccuracies during use.
• Regularly lubricate the guide roller.

Replacing the saw blade

Fig. 2

Worn or damaged saw blades must be replaced immediately.

Only use sharp and undamaged saw blades.

• To remove the old saw blade (15), proceed as described in the section „fitting and removing saw blade“.
• To mount the new saw blade (15), proceed as described in the section „fitting and removing saw blade“.

ENVIRONMENT

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Disposal

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

For the conditions of warranty, please refer to the separately provided warranty card.

The product and the user manual are subject to change. Specifications can be changed without further notice.

STICHSÄGE JSM1030

1. MACHINE-INFORMATIE

Technische specificaties

CE

DECLARATION OF CONFORMITY JSM1030 JIG SAW

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht, den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilidade de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt egetansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes měrtékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnící 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Výhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpísmi: Je v súlade s normou 2011/65/EÚ Európske ho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronikom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je taizdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/EU Parla mentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovorno, šu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8. juna. 2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα: συμμορφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου 2011 ζωνίου και περιορισμό της χρήσης ορισμένων επτικίνδυνων ουσιών σε ηλεκτρονικό και ηλεκτρονικό εξοπλισμό.
(AR) كيلاتلا تامي جوكلار روينا عجلا عمر قضاوتي جكتنها اللهً الادج و لنتكولوئىم علەع نلەجى
(TR) Tek sorumlusu biz olarak bu ürünün aşağıdaki standart ve yönergelere uygun olduğunu beyan ederiz.
(MK) Изјавуваме со наша цепосна одговорност дека производот е во согласност со Смерницата 2011/65/EU на Европскиот парламент и е во согласност според Советот од 9 јни за ограничување на користење на одредени опасни супстанции во електричната и електронската опрема и дека е според следните стандарди и регулативи:

EN55014-1, EN55014-2, EN60745-1, EN60745-2-11 EN61000-3-2, EN61000-3-3

2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU

Zwolle, 01-12-2017

H.G.F Rosberg

CEO FERM B.V.

FERM B.V. - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands
