Product type	LED-backlit LCD TV
Brand	Sony
Model	Bravia KD-75ZH8
Screen size (diagonal)	189.3 cm (75 inches)
Display resolution	7,680 x 4,320 pixels (8K)
TV standards	DVB-T/T2/C/S/S2 (depending on country/region)
Color system	PAL/SECAM/NTSC
Sound output (total)	60 W (5 speakers: 4x12.5 W + 2x5 W)
HDMI connectivity	4 HDMI inputs (HDCP 2.3)
USB connectivity	3 USB ports (USB 2.0 and 3.1 Gen 1)
Network and wireless	Ethernet 100BASE-TX, Wi-Fi 802.11ac, Bluetooth 4.2
Power supply	220-240 V AC, 50 Hz
Power consumption (Standard)	361 W
Power consumption (Standby)	0.50 W
Dimensions without stand (W x H x D)	168.0 x 97.7 x 8.4 cm
Weight without stand	47.9 kg
Operating temperature	0°C to 40°C
Optional accessory (wall mount)	SU-WL450 bracket (not supplied)
Special features	Google Assistant, voice search, built-in microphone, backlit remote control, online help guide, OTA software update, USB recording (hard disk), center speaker mode, Dolby Audio/Atmos compatibility, Netflix, Google Play
Safety instructions	Installation on a stable surface, tip-over prevention, transport by two people, disconnect before handling, read the supplied safety instructions

Frequently Asked Questions - Bravia KD-75ZH8 SONY

How to restart the Sony Bravia KD-75ZH8 TV?

Press and hold the power button on the remote control for about five seconds. The TV restarts. If this does not work, disconnect the power cord, wait two minutes, reconnect it, and turn on again.

How to reset the parental control password?

Enter the default PIN 9999 to access the settings, then set a new PIN.

How to connect the TV to the Internet?

Go to Settings > Network & Internet > Wi-Fi (or Ethernet). Follow the on-screen instructions. An Internet connection is required for updates and online features.

How to use voice search?

Press the Microphone button (microphone icon) on the remote control and speak into the built-in microphone of the TV. To activate the built-in microphone, first press this button and follow the on-screen instructions.

How to mount the TV on a wall?

Use the optional wall mount bracket SU-WL450 (not supplied). Sony recommends having the installation performed by a qualified installer. Follow the instructions provided with the bracket and the TV installation guide. Use the specific screws (M6, 10-12 mm).

What to do if the remote control is not working?

Replace the remote control batteries. If the problem persists, check that nothing is blocking the remote control sensor on the TV. You can also use the buttons on the TV itself.

How to update the TV software?

Connect the TV to the Internet, then go to Settings > Device Preferences > About > Software update. Sony recommends updating regularly to get new features and improvements.

How to use the USB recording function?

Connect a compatible USB hard drive to a USB port (1, 2, or 3). Press the REC button on the remote control to record the current program. The function is available depending on region/country/model. Make sure the hard drive is formatted and recognized.

How to use the TV as a center speaker?

Connect an AV receiver to the CENTER SPEAKER IN port on the back of the TV using a speaker cable. In the settings, set Speakers to Audio system and disable TV center speaker mode if necessary.

How to disable the built-in microphone?

The built-in microphone is activated only when you press the Microphone button on the remote control. To disable it completely, you can disable Google Assistant in the settings or not use the voice function. Note that standby power consumption increases if the microphone remains active.

USER MANUAL Bravia KD-75ZH8 SONY

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, Android TV functions, Internet connection, troubleshooting, etc.
• To open it, press the HELP button on the remote control and select Help Guide.

- You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/haep1/h_aep/

IMPORTANT – Read the End User Software Licence

Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (http://www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] → [Device Preferences] → [About] → [Legal information] → [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package. They can be found by removing the terminal cover.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-85ZH8, KD-75ZH8 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :

5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.

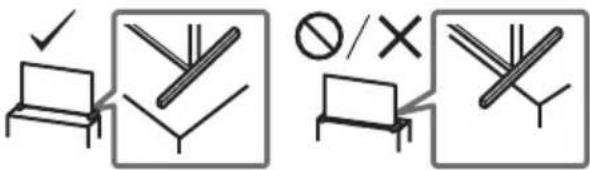

• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  • Install the TV where it cannot be pulled, pushed, or knocked over.
• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people (three or more people for KD-85ZH8) are needed to transport a large TV set.

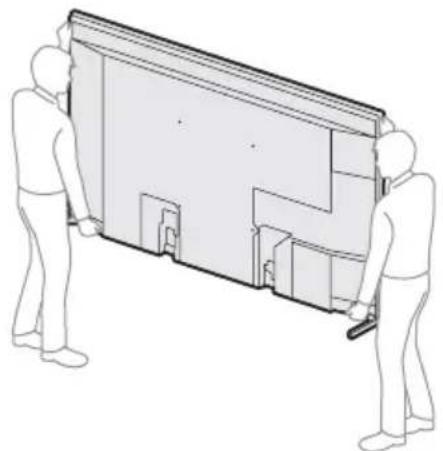

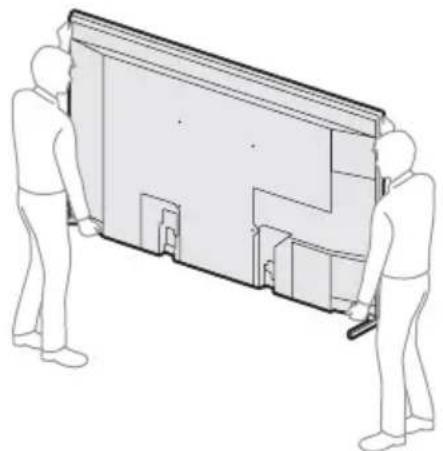

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

KD-85ZH8

Illustration of three people pushing a large screen with boxes, no text or symbols present

KD-75ZH8

Line drawing of two people pushing a large rectangular object with internal compartments (no text or symbols)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

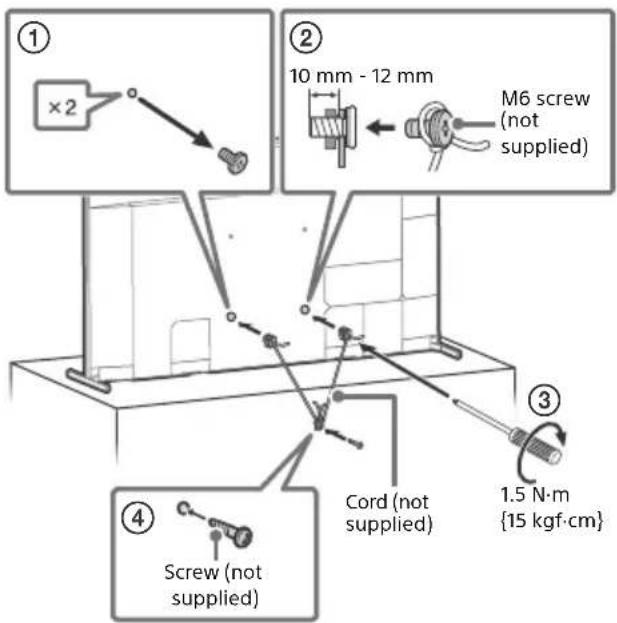

Topple prevention

Using TV as Centre Speaker

• Before connecting cables, disconnect the mains lead of both TV and AV receiver.
• Make sure the [Speakers] is set to [Audio system].

To prevent hiss when not connecting the CENTER SPEAKER IN to an AV receiver, disable [TV centre speaker mode]. For details, refer to the Help Guide.

Remote Control and TV

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

1 ↓ (Microphone): Use the Google Assistant*2*3 or voice search*3. For hints on how to control your TV press

↓ (Microphone) button and speak the phrase "voice hints". ^2

▲/▼/◄/►/⊕: On screen menu navigation and selection.

TV: Display TV channel list or switch to input.

2 ⏻ (TV standby) Number buttons

i+/Info/Text reveal): Display information.

☐ (Text): Display text information.

3 Google Play / NETFLIX ^2 / Colour buttons

4 GUIDE: Display the digital programme guide of TV or TV box*2*4.

REC LIST: Display the Rec list of USB HDD/DVR*4.

→ (Input select): Display and select the input source, etc.

(Qquick settings): Display Quick Settings.

BACK/← HOME

5 +/- (Volume)

(Jump)

O × (Mute)^*5

CH +/−/☐/☐: Select the channel, or next (☐) / previous (☐) page.

6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

HELP: Display the Help menu.

◀/▶/▶/II

● REC: Record the currently viewed programme on USB HDD/DVR ^4 .

EXIT

7 ⏻ (Power)

8 Remote Control sensor / Light sensor / LED ^4

9 Built-in MIC ^237 : To enable the built-in MIC, press (Microphone) button on the remote control and follow the on-screen instructions.

*1 The remote control backlight will illuminate when the light sensor detects the ambient light is low. Automatic illumination of the backlight can be turned off.

*2 Only on limited region/country/TV model/language.

*3 The Google Assistant or voice search requires an Internet connection.

*4 [TV box setup] setting is required.

*5 Accessibility shortcut is available by pressing and holding ⚙ (Mute).
*6 The built-in MIC LED is also included.
*7 Standby power consumption will increase because the built-in MIC is always listening when it is enabled.

For more information, refer to the Help Guide.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL450)\* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. https://www.sony.eu/support

Preparing for Wall-Mount Installation

Make sure to attach the Table-Top Stand before installing the TV to the wall by referring to the Setup Guide.

• Prepare the TV for the Wall-Mount Bracket before making cable connections.
• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

• The screws for Wall-Mount Bracket are not supplied.

• Only qualified service personnel should carry out wall-mount installations.

• For safety reasons, it is strongly recommended that you use Sony accessories, including: —Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

- Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

* Only on limited region/country/TV model.

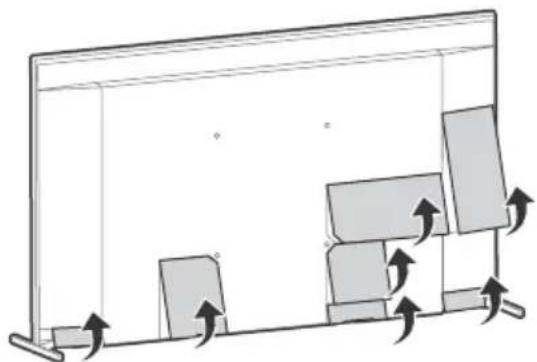

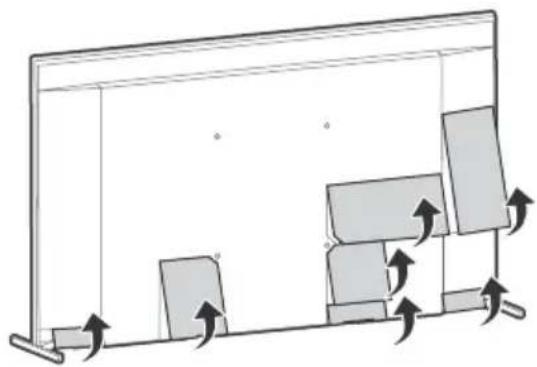

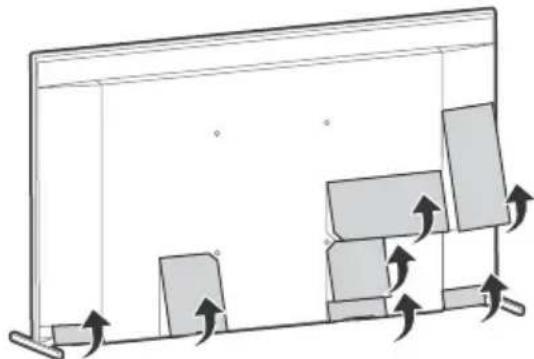

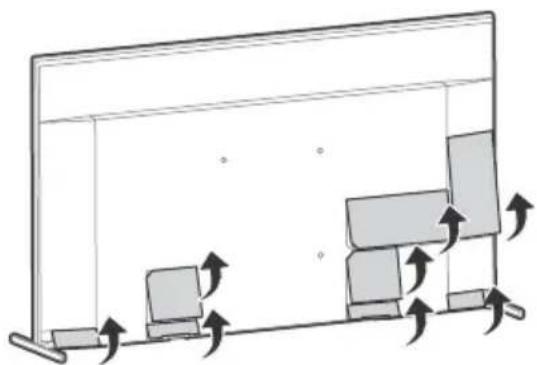

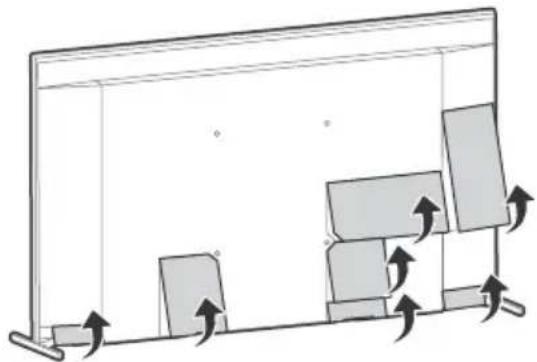

1 Remove the terminal covers.

KD-85ZH8

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

2 Remove the screws from the rear of the TV.

Diagram of a mechanical assembly with multiple bolts and directional arrows, no text or symbols present

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead. Then press the power button on the TV, and release it. Wait for two minutes, and plug in the mains lead.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

- Replace the batteries.

The parental lock password has been forgotten.

- Enter 9999 for the PIN and enter the new PIN.

For more information on troubleshooting, refer to the Help Guide.
