Product Type	8K LED TV
Brand	Sony
Model	KD-85ZH8
Screen Size	85 inches (215.9 cm)
Resolution	7680 x 4320 pixels (8K UHD)
Display Technology	LCD with Direct Full Array LED backlight
Processor	X1 Ultimate 8K HDR
HDR	Dolby Vision, HDR10, HLG
Operating System	Android TV 9.0
Dimensions (with stand)	1902 x 1171 x 380 mm
Weight (with stand)	45.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption (typical)	400 W
Connectivity	Wi-Fi, Bluetooth, Ethernet, 4 HDMI, 3 USB
Main Features	Smart TV, voice control, built-in Chromecast, Apple AirPlay
Audio	Dolby Atmos, 60 W speakers
Maintenance and Cleaning	Clean with a soft, dry cloth. Avoid solvents.
Safety	Wall stabilization recommended to prevent tipping.
Spare Parts and Repairability	Repairability score 7.9/10. Parts available through Sony after-sales service.
General Information	2-year warranty. Made in Japan.

Frequently Asked Questions - KD-85ZH8 SONY

How to install the Sony KD-85ZH8 TV?

Place the TV on a stable, flat surface. Attach the supplied stand following the manual instructions. For wall mounting, use a VESA 400x400 mm compatible bracket.

How to connect the TV to the Internet?

Go to Settings > Network > Network Setup. Choose Wi-Fi or Ethernet. For Wi-Fi, select your network and enter the password.

What resolutions are supported by the KD-85ZH8?

The TV supports resolutions up to 8K (7680x4320) at 60 Hz, as well as 4K at 120 Hz. It is compatible with HDR10, Dolby Vision, and HLG.

How to clean the TV screen?

Turn off the TV and let it cool. Use a soft, dry microfiber cloth. For stains, slightly dampen the cloth with distilled water. Never use chemical products.

How to update the TV software?

Go to Settings > Support > Software Update. Choose 'Update via Internet' or download the file from the Sony website and install it via USB.

Does the KD-85ZH8 TV have Dolby Atmos?

Yes, it supports Dolby Atmos through the built-in speakers or a compatible soundbar. Enable Audio mode to optimize the output.

How to fix a blurry picture issue?

Check the source (HDMI cable, signal resolution). Go to Settings > Display > Sharpness and adjust sharpness. Disable noise reduction options if necessary.

How to enable voice control on the TV?

Use the supplied remote with built-in microphone. Press the Google Assistant or Amazon Alexa button. Follow on-screen instructions to set up the assistant.

What is the power consumption in standby?

Standby power consumption is less than 0.5 W to meet energy-saving standards. For zero consumption, unplug the device.

How to contact Sony customer service?

You can call 01 55 90 00 00 (France) or visit sony.fr/assistance. Have the TV serial number ready.

USER MANUAL KD-85ZH8 SONY

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

- Settings, Android TV functions, Internet connection, troubleshooting, etc.

- To open it, press the HELP button on the remote control and select Help Guide.

- You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/haep1/h_aep/

IMPORTANT – Read the End User Software Licence

Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (http://www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] → [Device Preferences] → [About] → [Legal information] → [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package. They can be found by removing the terminal cover.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-85ZH8, KD-75ZH8 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :

5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
• Install the TV where it cannot be pulled, pushed, or knocked over.
• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people (three or more people for KD-85ZH8) are needed to transport a large TV set.

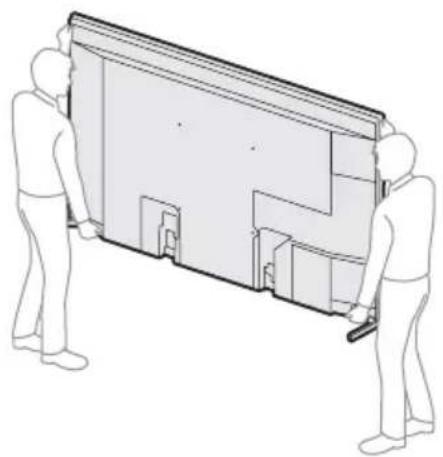

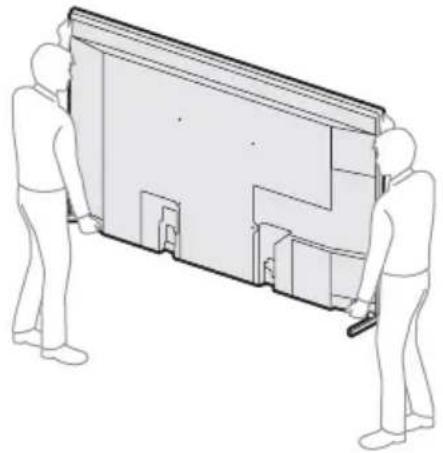

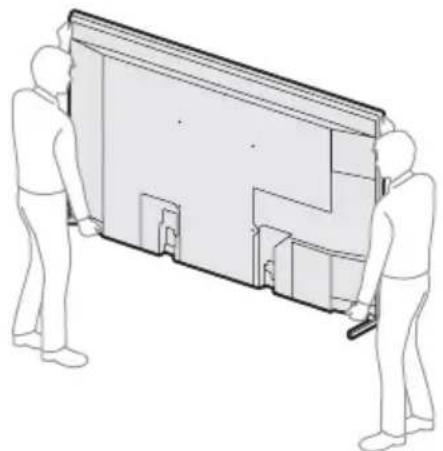

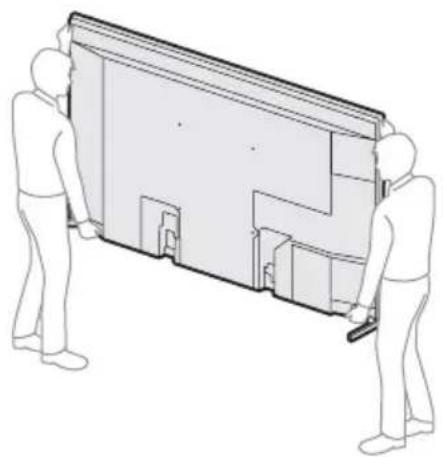

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

KD-85ZH8

Line drawing of three people pushing a large screen with boxes, no text or symbols present

KD-75ZH8

Line drawing of two people pushing a large rectangular object with internal compartments (no text or symbols)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Topple prevention

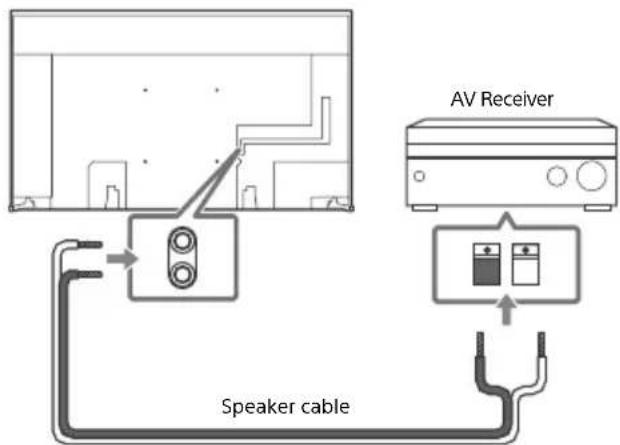

Using TV as Centre Speaker

• Before connecting cables, disconnect the mains lead of both TV and AV receiver.
• Make sure the [Speakers] is set to [Audio system].

To prevent hiss when not connecting the CENTER SPEAKER IN to an AV receiver, disable [TV centre speaker mode]. For details, refer to the Help Guide.

Remote Control and TV

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

1 ↓ (Microphone): Use the Google Assistant*2*3 or voice search*3. For hints on how to control your TV press

↓ (Microphone) button and speak the phrase "voice hints". ^2

▲/▼/◄/►/⊕: On screen menu navigation and selection.

TV: Display TV channel list or switch to input.

2 ⏻ (TV standby) Number buttons

i+/Info/Text reveal): Display information.

☐ (Text): Display text information.

3 Google Play / NETFLIX ^2 / Colour buttons

4 GUIDE: Display the digital programme guide of TV or TV box*2*4.

REC LIST: Display the Rec list of USB HDD/DVR*4.

→ (Input select): Display and select the input source, etc.

(Qquick settings): Display Quick Settings.

BACK/← HOME

5 +/- (Volume)

(Jump)

O × (Mute)^*5

CH +/−/☐/☐: Select the channel, or next (☐) / previous (☐) page.

6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

HELP: Display the Help menu.

◀/▶/▶/II

● REC: Record the currently viewed programme on USB HDD/DVR ^4 .

EXIT

7 ⏻ (Power)

8 Remote Control sensor / Light sensor / LED ^4

9 Built-in MIC ^237 : To enable the built-in MIC, press (Microphone) button on the remote control and follow the on-screen instructions.

*1 The remote control backlight will illuminate when the light sensor detects the ambient light is low. Automatic illumination of the backlight can be turned off.

*2 Only on limited region/country/TV model/language.

*3 The Google Assistant or voice search requires an Internet connection.

*4 [TV box setup] setting is required.

*5 Accessibility shortcut is available by pressing and holding ⚙ (Mute).
*6 The built-in MIC LED is also included.
*7 Standby power consumption will increase because the built-in MIC is always listening when it is enabled.

For more information, refer to the Help Guide.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL450)\* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. https://www.sony.eu/support

Preparing for Wall-Mount Installation

Make sure to attach the Table-Top Stand before installing the TV to the wall by referring to the Setup Guide.

• Prepare the TV for the Wall-Mount Bracket before making cable connections.
• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

• The screws for Wall-Mount Bracket are not supplied.

• Only qualified service personnel should carry out wall-mount installations.

• For safety reasons, it is strongly recommended that you use Sony accessories, including: —Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

- Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

* Only on limited region/country/TV model.

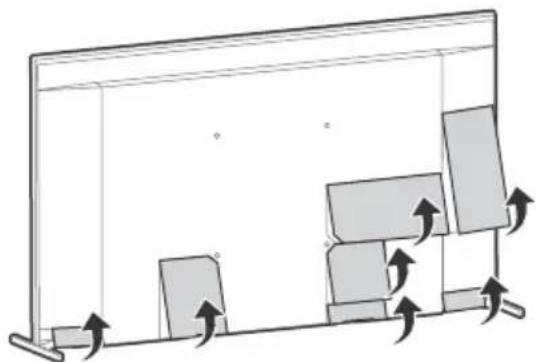

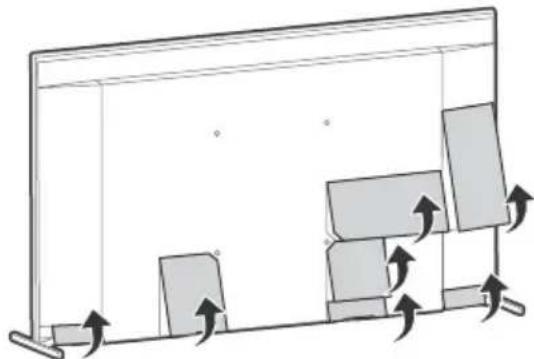

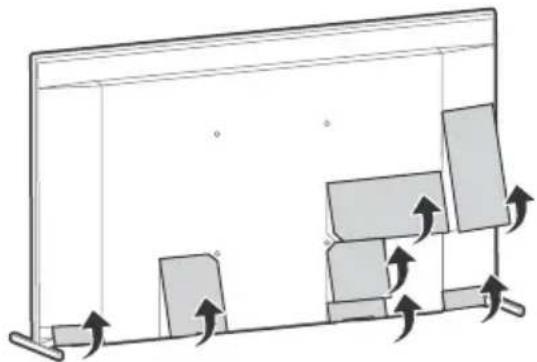

1 Remove the terminal covers.

KD-85ZH8

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

2 Remove the screws from the rear of the TV.

Diagram of a mechanical assembly with bolts and housing (no text or symbols)

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead. Then press the power button on the TV, and release it. Wait for two minutes, and plug in the mains lead.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

- Replace the batteries.

The parental lock password has been forgotten.

- Enter 9999 for the PIN and enter the new PIN.

For more information on troubleshooting, refer to the Help Guide.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight

TV system: Depending on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2 ^4

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depending on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite ^*1 : IF Frequency 950-2,150 MHz

Sound output: 12.5 W + 12.5 W + 12.5 W + 12.5 W + 5 W + 5 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency band(s)

Frequency range Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth®(TV)
2400-2483.5 MHz < 10.0 dBm
Bluetooth®(Remote control)
2400-2483.5 MHz < 10.0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna*1

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

AV IN

Video/Audio input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)^23, 4096 × 2160p

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC Formats*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)* ^4 * ^5 ,

3840 × 2160p (100, 120 Hz)* 4*5

Audio:

In eARC (Enhanced Audio Return Channel)

mode

Refer to the Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only)*6

In eARC mode

Refer to the Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio, DTS)

(Stereo mini jack)

Headphone

1, 2, 3

(HDD ^7 REC)*

USB device port (3 USB HDD device for REC feature)

USB port 1 and 2 support High Speed USB

(USB 2.0)

USB port 3 supports Super Speed USB (USB 3.1

Gen 1)

IAM (Conditional Access Module) slot

舌 LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

CENTER SPEAKER IN

Centre speaker input (Binding post)

Power, Product Fiche and others

Power requirements

220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-85ZH8: C

KD-75ZH8: C

Screen size (measured diagonally) (Approx.)

KD-85ZH8: 214.8 cm / 85 inches

KD-75ZH8: 189.3 cm / 75 inches

Power consumption

In [Standard] mode

KD-85ZH8: 487 W

KD-75ZH8: 361 W

In [Vivid] mode

KD-85ZH8: 815 W

KD-75ZH8: 590 W

Annual energy consumption ^4

KD-85ZH8: 675 kWh per year

KD-75ZH8: 501 kWh per year

Standby power consumption ^9*10

KD-85ZH8: 0.50 W (63 W in software/EPG

update mode)

KD-75ZH8: 0.50 W (52 W in software/EPG

update mode)

Display resolution

7,680 dots (horizontal) × 4,320 lines (vertical)

Output Rating

USB 1/2

5 V = 500 mA MAX

USB 3

5 V = 900 mA MAX

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand

Standard position:

KD-85ZH8: 192.0 × 111.7 × 42.8

KD-75ZH8: 169.6 × 98.6 × 35.6

Narrow position:

KD-85ZH8: 190.4 × 112.0 × 42.8

KD-75ZH8: 168.0 × 98.9 × 35.6

without Table-Top Stand

KD-85ZH8: 190.4 × 110.9 × 8.4

KD-75ZH8: 168.0 × 97.7 × 8.4

Stand width (Approx.) (cm)

Standard position:

KD-85ZH8: 192.0

KD-75ZH8: 169.6

Narrow position:

KD-85ZH8: 86.5

KD-75ZH8: 62.3

Mass (Approx.) (kg)

with Table-Top Stand

Standard position:

KD-85ZH8: 67.8

KD-75ZH8: 49.9

Narrow position:

KD-85ZH8: 67.3

KD-75ZH8: 49.4

without Table-Top Stand

KD-85ZH8: 65.6

KD-75ZH8: 47.9

Others

Optional accessories

Wall-Mount Bracket: SU-WL450

Operating temperature: 0 °C – 40 °C

Operating humidity: 10 % – 80 % RH

(non-condensing)

*1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.

*2 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].

*3 To support 18 Gbps, set [HDMI signal format] to Enhanced format.

*4 Refer to the online Help Guide for details.

*5 HDMI IN 4 only.

*6 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*7 Only on limited region/country/TV model.

*8 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*9 Specified standby power is reached after the TV finishes necessary internal processes.

*10 Standby power consumption will increase when your TV is connected to the network.

Note

- Optional accessories availability depends on countries/region/TV model/stock.

- Design and specifications are subject to change without notice.

- Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using the Google Assistant.

Notes on Digital TV function

- Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

- This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

- The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

- Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2018 Dolby Laboratories. All rights reserved.

- Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

- Google, Google Play, Chromecast, YouTube, Android TV and other related marks and logos are trademarks of Google LLC.

- For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

- Netflix is a registered trademark of Netflix, Inc.

- DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

- TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

- All other trademarks are the property of their respective owners.

https://rd1.sony.net/help/tv/haep1/h_aep/

Transport

Line drawing of three people standing in front of a large screen or monitor, with no visible text or symbols.

KD-75ZH8

Line drawing of two people pushing a large rectangular object with internal compartments (no text or symbols)

—Support de fixation murale SU-WL450

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

Dépannage

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats PC*4

7680 × 4320p (24, 25, 30, 50, 60 Hz) ^ 4 ^ 5,

3840 × 2160p (100, 120 Hz)*4*5

Audio :

En mode eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3

uniquement)*6

En mode eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Transporte

Line drawing of three people standing in front of a large screen or monitor, with no visible text or symbols.

KD-75ZH8

Illustration of two people pushing a large rectangular panel or panel with internal compartments (no text or symbols)

https://www.sony.eu/support

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

Digital: UHF/VHF/Cable

Satélite ^*1 : Frecuencia IF 950-2 150 MHz

Salida de sonido: 12,5 W + 12,5 W + 12,5 W + 12,5 W + 5 W + 5 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos de PC*4

7680 × 4320p (24, 25, 30, 50, 60 Hz) ^ 4 ^ 5,

3840 × 2160p (100, 120 Hz)*4*5

Audio:

En el modo eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Sólo HDMI IN 3)*6

En el modo eARC

→ DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos

canales: 48 kHz 16 bits, Dolby Audio, DTS)

( minitoma estéreo )

Auricular

1,2,3 (HDD ^7 REC)*

https://rd1.sony.net/help/tv/haep1/h_aep/

Transport

Illustration of three people pushing a large rectangular object with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large architectural or modular building frame (no text or symbols visible)

https://www.sony.eu/support

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

Problemen oplossen

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formaten*4

7680 × 4320p (24, 25, 30, 50, 60 Hz) ^ 4 ^ 5,

3840 × 2160p (100, 120 Hz)*4*5

Audio:

In eARC (Enhanced Audio Return Channel)-modus

Tweekanaals lineaire PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Afmetingen (ong.) (b × h × d) (cm)

met tafelstandaard

Standaardpositie:

KD-85ZH8: 192,0 × 111,7 × 42,8

KD-75ZH8: 169,6 × 98,6 × 35,6

Smalle positie:

https://rd1.sony.net/help/tv/haep1/h_aep/

Transport

Illustration of three people pushing a large rectangular object with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large architectural or modular building frame (no text or symbols visible)

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with two bolts and directional arrows indicating motion (no text or labels)

Störungsbehebung

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Computerformate* 4

7680 × 4320p (24, 25, 30, 50, 60 Hz) ^45 ,

3840 × 2160p (100, 120 Hz)*4*5

Audio:

Im eARC (Enhanced Audio Return Channel)-

Modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (nur HDMI IN 3)*6

Im eARC-Modus

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Transporte

Line drawing of three people standing in front of a large screen or board, with no visible text or symbols.

KD-75ZH8

Illustration of two people pushing a large rectangular panel or enclosure (no text or symbols visible)

https://www.sony.eu/support

1 Retire as tampas dos terminais. KD-85ZH8

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos PC*4

7680 × 4320p (24, 25, 30, 50, 60 Hz) ^ 4 ^ 5,

3840 × 2160p (100, 120 Hz)*4*5

Áudio:

No modo eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Apenas HDMI IN 3) ^6 No modo eARC

→ DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits, Dolby Audio, DTS)

https://rd1.sony.net/help/tv/haep1/h_aep/

Trasporto

Line drawing of three people pushing a large rectangular object with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large rectangular panel or panel (no text or symbols visible)

https://www.sony.eu/support

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, Formati PC*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)^45 ,

3840 × 2160p (100, 120 Hz)*4*5

Audio:

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Transport

Line drawing of three people standing beside a large screen with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large rectangular panel or panel (no text or symbols visible)

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with two bolts and directional arrows, no text or symbols present

Felsökning

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-format*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)^45 ,

3840 × 2160p (100, 120 Hz)* 4*5

Ljud:

I eARC (Enhanced Audio Return Channel)-

läge

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Endast HDMI IN 3) ^6

I eARC-läge

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Transport

Illustration of three people standing in front of a large screen with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large rectangular panel or panel (no text or symbols visible)

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

Fejlfinding

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formater*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)^45 ,

3840 × 2160p (100, 120 Hz)* 4*5

Lyd:

I eARC (Enhanced Audio Return Channel)-tilstand

→ DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM:

48 kHz 16 bit, Dolby Audio, DTS)

(Stereo-minijack)

Hovedtelefoner

1, 2, 3 (HDD ^7 REC)*

USB-port (3 USB HDD-enhed for REC-funktion)

I [Standard] tilstand

KD-85ZH8: 487 W

KD-75ZH8: 361 W

I [Kraftig] tilstand

KD-85ZH8: 815 W

KD-75ZH8: 590 W

Mål (Ca.) (b × h × d) (cm)

Inkl. TV-fod

Standardposition:

KD-85ZH8: 192,0 × 111,7 × 42,8

KD-75ZH8: 169,6 × 98,6 × 35,6

Smal position:

https://rd1.sony.net/help/tv/haep1/h_aep/

Illustration of three people standing in front of a large screen with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large rectangular panel or panel (no text or symbols visible)

Diagram of a room with furniture and directional arrows indicating movement or movement (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with two bolts and directional arrows, no text or symbols present

Vianmääritys

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-muodot*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)^45 ,

3840 × 2160p (100, 120 Hz)* 4*5

Audio:

eARC (Enhanced Audio Return Channel)-tilassa

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Vain HDMI IN 3)*6

eARC-tilassa

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Bæring

Illustration of three people standing in front of a large screen with boxes, no text or symbols visible

KD-75ZH8

Illustration of two people pushing a large rectangular panel or panel (no text or symbols visible)

(Teksting-innstilling)

HELP: Vis Hjelp-menyen.

◀/▶/▶/■

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with two bolts and directional arrows indicating motion (no text or symbols)

Feilsøking

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-formater*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)* ^4 * ^5 ,

3840 × 2160p (100, 120 Hz)* 4*5

Lyd:

I eARC (Enhanced Audio Return Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Kun HDMI IN 3) ^6

I eARC-modus

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM:

48 kHz 16 biter, Dolby Audio, DTS)

( minijack, stereo )

Hodetelefon

(HDD ^7 REC)*

Mål (ca.) (b × h × d) (cm)

med bordstativ

Standardplassering:

KD-85ZH8: 192,0 × 111,7 × 42,8

KD-75ZH8: 169,6 × 98,6 × 35,6

Snever plassering:

https://rd1.sony.net/help/tv/haep1/h_aep/

Transport

Illustration of three people pushing a large rectangular object with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large architectural or modular building frame (no text or symbols visible)

https://www.sony.eu/support

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

W trybie eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (tylko HDMI IN 3) ^b

W trybie eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Přeprava

Line drawing of three people pushing a large screen with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large architectural or modular component (no text or symbols visible)

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

Řešení problémů

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC formáty*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)^45 ,

3840 × 2160p (100, 120 Hz)* 4*5

Audio:

V režimu eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Pouze HDMI IN 3)*6

V režimu eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Preprava

Line drawing of three people pushing a large rectangular object with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large rectangular panel or panel with internal compartments (no text or symbols)

https://www.sony.eu/support

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

Riešenie problémov

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Formáty PC*4

7680 × 4320p (24, 25, 30, 50, 60 Hz) ^ 4 ^ 5,

3840 × 2160p (100, 120 Hz)*4*5

Audio:

V režime eARC (Enhanced Audio Return Channel)

Podrobnosti nájdete v Príručke.

Okrem režimu eARC

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (len model HDMI IN 3)*6

V režime eARC

Podrobnosti nájdete v Príručke.

V režime ARC

Dvojkanálový lineárny PCM: 48 kHz 16 bitov,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digitálny optický konektor (dvojkanálový lineárny PCM: 48 kHz 16 bitov, Dolby Audio, DTS)

https://rd1.sony.net/help/tv/haep1/h_aep/

Szállítás

Line drawing of three people pushing a large rectangular object with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large rectangular panel or panel with internal compartments (no text or symbols)

https://www.sony.eu/support

Diagram of a room with furniture and directional arrows indicating movement or movement (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with two bolts and directional arrows, no text or symbols present

Hibaelhárítás

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC formátumok*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)*4*5,

3840 × 2160p (100, 120 Hz)* ^4*5

Audio:

eARC (Enhanced Audio Return Channel)

üzemmodban

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Csak HDMI IN 3)*6

eARC üzemmodban

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

INFORMATIE IMPORTANTĂ

Transportul

Illustration of three people pushing a large rectangular object with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large rectangular panel or panel (no text or symbols visible)

https://www.sony.eu/support

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

Depanare

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2 ^4

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit*1: Frecvență IF 950-2.150 MHz

leşire audio: 12,5 W + 12,5 W + 12,5 W + 12,5 W + 5 W + 5 W

Tehnologie wireless

Protocol IEEE 802.11a/b/g/n/ac

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Formate PC ^*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)^45 ,

3840 × 2160p (100, 120 Hz)*4*5

Audio:

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Пренасяне

Illustration of three people pushing a large rectangular object with boxes, no text or symbols present

KD-75ZH8

Line drawing of two people pushing a large rectangular panel or panel (no text or symbols visible)

https://www.sony.eu/support

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with two bolts and directional arrows indicating motion (no text or labels)

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC формати*4

7680 × 4320p (24, 25, 30, 50, 60 Hz)^45 ,

3840 × 2160p (100, 120 Hz)*4*5

Аудио:

В режим eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (camo HDMI IN 3)*6

В режим eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Μεταφορά

Line drawing of three people pushing a large rectangular object with boxes, no text or symbols present

KD-75ZH8

Illustration of two people pushing a large architectural or modular panel (no text or symbols visible)

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with two bolts and directional arrows, no text or symbols present

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

7680 × 4320p (24, 25, 30, 50, 60 Hz)*4*5,

3840 × 2160p (100, 120 Hz) ^45

'Ηχος:

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/haep1/h_aep/

Nakliye

Line drawing of three people standing in front of a large screen or board (no text or symbols visible)

KD-75ZH8

Illustration of two people pushing a large architectural or modular panel (no text or symbols visible)

https://www.sony.eu/support

Diagram of a room with furniture and directional arrows indicating movement or force (no text or symbols)

KD-75ZH8

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical assembly with three bolts and directional arrows, no text or symbols present

Sorun Giderme

Dijital: UHF/VHF/Kablolu

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC Formatlari*4

7680 × 4320p (24, 25, 30, 50, 60 Hz) ^ 4 ^ 5,

3840 × 2160p (100, 120 Hz)*4*5

Ses:

eARC (Enhanced Audio Return Channel) modunda

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Sadece HDMI IN 3)*6

eARC modunda

→ DIGITAL AUDIO OUT (OPTICAL)

https://www.sony.eu/support
