SPM 2000 D2 - Griddle SILVERCREST - Free user manual and instructions

Product Type	Panini Grill / Griddle
Brand	SilverCrest
Model	SPM 2000 D2
Power Supply	220-240 V ~, 50 Hz
Power Consumption	2000 W
Protection Class	I (grounded plug)
Dimensions (approx.)	Approx. 40 x 30 x 15 cm
Weight (approx.)	Approx. 3.5 kg
Plate Coating	Non-stick
Adjustable Temperature	Yes, via stepped thermostat
Indicator Lights	Red Power light, green Ready light
Locking System	Safety Lock
Drip Tray	Removable juice drip tray
Included Accessories	Cleaning scraper, instruction manual
Intended Use	Household use (grilling, toasting paninis, sandwiches)
Care and Cleaning	Wipe with damp cloth; do not immerse; scraper for residues
Safety	Automatic shut-off not mentioned; unplug after use; hot surface
Spare Parts and Repairability	Spare parts available during warranty period; repairs by authorized service center
Ambient Operating Temperature	+15 to +40 °C
Allowable Humidity	5 to 75% (without condensation)

Frequently Asked Questions - SPM 2000 D2 SILVERCREST

How to clean the plates after use?

After cooling, use the cleaning scraper to remove residues. Wipe with a damp cloth. Never immerse the appliance in water and do not use abrasive products to avoid damaging the non-stick coating.

Can you use grease or oil on the plates?

The non-stick coating allows cooking without fat. If you wish to add some, use a suitable oil such as rapeseed oil. Avoid aerosol sprays.

What to do if the appliance emits smoke during first use?

This is normal. Manufacturing residues may produce slight smoke or odor. Heat the appliance at maximum temperature for 5 minutes in a ventilated area (open window).
Then clean the plates.

How to know if the desired temperature is reached?

The green Ready light turns on when the set temperature is reached. The red Power light indicates heating. The green light may turn off and the red light turn on again if the temperature drops.

Can the appliance be left unattended?

No, never leave the appliance unattended during use. Always unplug after use. The thermostat does not completely cut off the power.

What types of food can be prepared?

The appliance is designed for grilling paninis, sandwiches, baguettes, meats, and vegetables. Avoid very thick foods. The movable top plate adjusts to thickness.

How to store the appliance to save space?

After cleaning and cooling, close the safety lock and wind the cord under the appliance. You can store it vertically.

What to do in case of malfunction under warranty?

Contact customer service (phone or email) with your receipt and the article reference (IAN). Do not repair yourself. The service center will advise you on the next steps.

Can metal utensils be used on the plates?

No, to protect the non-stick coating, use only wooden, silicone, or plastic utensils. Sharp or pointed objects can scratch the surface.

How to dispose of the appliance at the end of its life?

Do not throw it in household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) or contact your local council.

USER MANUAL SPM 2000 D2 SILVERCREST

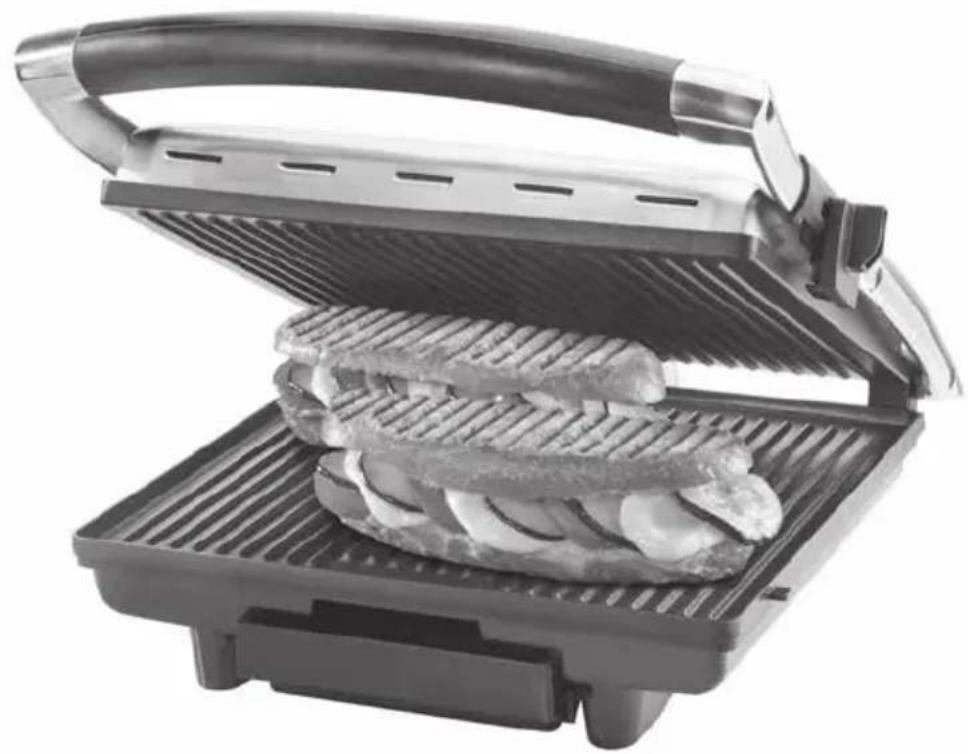

Grilled grater with open menu and side dishes (no text or symbols visible)

PANINIGRILL / PANINI GRILL APPAREIL À PANINI ET GRIL SPM 2000 D2

DE AT CH

PANINIGRILL

Bedienungsanleitung

FR BE

APPAREIL À PANINI ET GRIL

Mode d'emploi

PL

OPIEKACZ DO PANINI

Instrukcja obstugi

SK

PANINI GRIL

Návod na obsluhu

GB IE

PANINI GRILL

Operating instructions

NL BE

PANINIGRILL

Gebruiksaanwijzing

CZ

PANINI GRIL

Návod k obsluze

IAN 331466_1907

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

120 g Bacon, in Streifen

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Contents

Introduction 20

Information about these operating instructions....20

Copyright 20

Intended use 20

Warning notes 20

Safety.... 21

Basic safety guidelines 21

Operating components 25

Unpacking and assembly 25

Safety guidelines 25

Package contents and transport inspection 26

Unpacking 26

Disposal of packaging materials 26

Handling and operation 27

Before initial use 27

Operation 27

Tips and tricks 29

Cleaning and care 29

Safety guidelines 29

Storage 30

Recipes 31

Storage/disposal 34

Storage 34

Disposal of the appliance 34

Appendix 34

Technical data 34

Kompernass Handels GmbH warranty 35

Service 36

Importer 36

Introduction

Information about these operating instructions

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Intended use

The panini maker is designed for toasting small bread rolls and sandwiches or grilling other foods. It is not intended for any other use or use beyond that specified. This appliance is not intended for use in commercial or industrial environments. This appliance is intended solely for use in private households.

The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The operator bears sole liability.

Warning notes

The following warnings are used in these operating instructions:

DANGER!

A warning at this hazard level indicates an imminently hazardous situation.

If the hazardous situation is not avoided, it could result in death or serious physical injury.

▶ Follow the instructions in this warning to prevent a fatality or serious personal injury.

WARNING!

A warning at this hazard level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in physical injury.

▶ Follow the instructions in this warning to prevent physical injury.

CAUTION

A warning at this hazard level indicates potential property damage.

Failure to avoid this situation could result in property damage.

▶ Follow the instructions in this warning to prevent property damage.

NOTE

▶ A note provides additional information that will assist you in using the appliance.

Safety

In this section, you will find important safety instructions for using the appliance.

The appliance complies with the statutory safety regulations. Improper use may result in personal injury and property damage.

Basic safety guidelines

To ensure safe operation of the appliance, follow the safety guidelines set out below:

■ Prior to use, check the appliance for visible external damage. Do not operate a appliance that has been damaged or dropped.

■ Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury.

■This appliance may be used by children of the age of 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are being supervised or have been instructed with regard to the safe use of the appliance and have understood the potential risks.

■ Children must not use the appliance as a plaything.

■ Cleaning and user maintenance must not be performed by children unless they are older than 8 years of age and are supervised.

■ Children younger than eight years of age must be kept away from the appliance and the power cable.

■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Failure to make proper repairs can put the user at risk. It will also invalidate any warranty claim.

■ Repairs to the appliance during the warranty period may only be carried out by a customer service department authorised by the manufacturer. Otherwise no warranty claims can be considered for subsequent damage.

■ Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used.

■ Do not allow the power cable to come into contact with hot appliance parts. NEVER use the appliance near naked flames, a hotplate or a heated oven.

■ After use, allow the appliance to cool down completely before cleaning it. Risk of burns!

■ Set up the appliance as close as possible to the electrical power socket. Ensure that the power plug is quickly reachable in case of danger, and also that there is no danger of tripping over the cable.

■ Provide a stable location for the appliance.

HAZARD DUE TO ELECTRIC SHOCK!

The appliance should only be connected to correctly installed and earthed mains power sockets. Ensure that the rating for your local power supply corresponds with the details on the rating plate of the appliance.

- Arrange for Customer Services to repair or replace connecting cables and/or appliances that are not functioning properly or have been damaged.

▶ Do not expose the appliance to rain, and never use it in a humid or wet environment.

▶ Take steps to ensure the power cable never becomes wet or moist during use.

▶ NEVER submerse the appliance in water or other liquids! This would bring about the risk of a potentially fatal electric shock upon the next use of the appliance should moisture be present in the voltage conducting elements.

▶ Always take hold of the plug when handling the power cable. Do not pull on the cable itself and never touch the power cable with wet hands, this could result in either a short circuit or an electric shock.

- Do not place the appliance itself, furniture items or similar objects on the power cable, and take steps to ensure it cannot become jammed or trapped in any way.

- Do not open the appliance housing or attempt to repair or modify the appliance. If the housing is opened or improper modifications are made, you run the risk of receiving a potentially fatal electric shock and the warranty will be void.

HAZARD DUE TO ELECTRIC SHOCK!

• Protect the appliance from drips or splashes of water. Do not place any water-filled vessels (e.g. flower vases) on or near the appliance.
  ▶ Always pull out the plug from the wall socket after every use and before each cleaning.

RISK OF BURNS!

Caution! Hot surface!

The surfaces of the appliance become extremely hot during use. If so, touch the appliance using only the black part of the handle

CAUTION! MATERIAL DAMAGE!

• Do not use an external timer switch or a separate remote control system to operate the appliance.
  ▶ Never leave the appliance unattended during operation.
• Ensure that the appliance, the power cable and the plug do not come into contact with heat sources such as hotplates or naked flames.a
  ▶ Do not use charcoal or similar fuels to operate the appliance!
  ▶ To protect the non-stick coating, do not use metallic tools such as knives, forks, etc. Should the non-stick coating become damaged, stop using the appliance.
  ▶ Only operate the appliance with the original accessories supplied.

Operating components

Figure A:

① Red "Power" control lamp
② Heat level control
③ Power cable with mains plug
4 Safety catch
⑤ Green "Ready" control lamp
6 Handle
⑦ Fat collector tray
8 Fat outlet
9 Hotplates

Figure B:

⑩ Cleaning scraper

Unpacking and assembly

Safety guidelines

WARNING!

During the first use of the appliance there is a risk of injury and/or damage to property!

To avoid risks, observe the following safety instructions:

▶ Packaging material must not be used as a plaything. Risk of suffocation.
▶ Please follow the instructions regarding the electrical connection of the appliance to avoid damage to property.

Package contents and transport inspection

This appliance is supplied with the following components as standard (see fold-out page):

• Panini Grill
• Fat collector tray
• Cleaning scraper
• Operating instructions

NOTE

▶ Check the package for completeness and for signs of visible damage.
▶ If the consignment is incomplete or damaged due to defective packaging or carriage, contact the Service hotline (see the chapter Service).

Unpacking

◆ Remove all parts of the appliance and the operating instructions from the box.
◆ Remove all packaging material.

Disposal of packaging materials

The packaging protects the appliance from damage during carriage.

The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: Plastics,
20-22: Paper and cardboard,
80-98: Composites.

NOTE

▶ If possible, keep the original packaging of the appliance during the warranty period so that the appliance can be packed properly for returning in the event of a warranty claim.

Handling and operation

This section provides you with important information on handling and using the appliance.

Before initial use

• Clean all accessories as described in the section "Cleaning and care" to remove any possible production residues.
  ◆ Read these operating instructions carefully.
  ◆ Set up the appliance in accordance with the safety instructions.

◆ Open the safety catch 🔒 by moving the slider from the 🔒 position to the 🔒 position.

◆ Clean the appliance with a damp cloth as described in "Cleaning and Care".

◆ Close the appliance.

Insert the mains cable plug ③ in a properly connected and earthed mains power socket which supplies the voltage stated in the "Technical data" section. Allow the appliance to heat up for about 5 minutes on the maximum temperature setting by turning the heat level control ② as far as the right-hand stop.

NOTE

The first time the appliance heats up, a small amount of smoke and odour may be generated due to production-related residue. This is normal and is completely harmless. Provide sufficient ventilation; for example, by opening a window.

After heating, pull the plug ③ out of the mains socket and allow the appliance to cool down completely.

◆ Clean the appliance again with a damp cloth.

Operation

◆ Close the appliance lid using the handle ⑥.

◆ Slide the fat collector tray ⑦ into the appliance.

Replace the plug ③ in the mains mains power socket. Replace the plug in the mains power socket. The green control lamp "Ready" ⑤ lights up when the heat level control ② is set to "MIN" or lower. The appliance does not heat up in this setting.

Set the desired level on the heat level control ②. The green "Ready" control lamp ⑤ goes out and the red "Power" control light ① lights up. As soon as the set heating level has been reached, the red "Power" control light ① goes out and the green "Ready" control lamp ⑤ lights up again.

NOTE

The green control lamp "Ready" ⑤ also lights up when the heat level control ② is set to "MIN" or lower. As soon as you set the heat level control ② to the desired position, the green "Ready" control lamp ⑤ goes out until the temperature has been reached.

NOTE

The green "Ready" control lamp ⑤ may go out intermittently in the meantime and the red "Power" control lamp ① lights up. This indicates that the temperature has briefly fallen below the set temperature and the appliance is heating itself back up.

Open the lid and place the food to be toasted/grilled on the lower hotplate ⑨.

◆ Close the appliance lid using the handle ⑥.

Due to the sliding hinges fitted to the upper hotplate ⑨, it always lies parallel to the lower hotplate ⑨ even with large quantities of food. This guarantees an optimal grilling result.

Check the browning of the food after a while. To do this, open the appliance lid using the handle 6.

NOTE

▶ Start with short grilling times and increase these until you have found the correct duration.

When you are satisfied with the level of browning, remove the food.

CAUTION

Damage to the appliance!

▶ Do not use pointed or sharp objects to remove the food. These could damage the surfaces of the hotplates ⑨!

Turn the heat level control ② to the left stop and remove the plug ③ from the mains power socket.

CAUTION

▶ Always remove the plug ③ from the mains power socket when the appliance is not in use! It is not sufficient to simply set the heat level control ② to the left stop!

Tips and tricks

To make meat more tender and speed up the grilling process, you can marinate it beforehand. An ideal basis for this can be sour cream, red wine, vinegar, buttermilk or fresh papaya or pineapple juice, for example. Add herbs and spices according to taste. Do not add salt as this can draw water out of the meat and make it dry. Place the meat in the marinade so that it is completely covered and close the container. Ideally, leave it overnight.

The hotplates ⑨ have a non-stick coating, therefore extra fat is not necessary. If you wish to use fat anyway, please ensure that the fat/oil is suitable for cooking, e.g. rapeseed oil.

If you are not sure whether the food is cooked all the way through, you can use a commercially available meat thermometer.

Cleaning and care

Safety guidelines

WARNING! DANGER TO LIFE DUE TO ELECTRIC SHOCK!

Risk of injury when cleaning the appliance!

To avoid risks, observe the following safety instructions:

Before cleaning, pull out the plug ③ and wait until the appliance has completely cooled down. Risk of injury!
▶ Never clean the appliance under running water and never immerse it in water. The appliance could be irreparably damaged!

CAUTION

Damage to the appliance!

▶ To avoid irreparable damage to the appliance, ensure that no moisture gets into it during cleaning.
▶ When cleaning the surfaces use neither abrasive or chemical cleaners, nor sharp or scratchy objects.

Draw the cleaning scraper 10 over the hotplates 9 after the hotplates 9 have cooled down so that the fat and residues are pushed together and can be more easily removed.

Wipe the hotplates ⑨ with a damp cloth. For stubborn soiling use a mild detergent on the cloth. Do not use any abrasive cleaning agents, rough sponges or sharp objects for cleaning as these could damage the non-stick coating.

■ For stubborn crusting, lay a wet cloth on the baked-on residues to soften them.

A damp cloth is sufficient for cleaning the exterior surfaces. Ensure that all parts are completely dry before re-using the appliance.

Wipe the cleaning scraper ⑩ with a damp cloth. For stubborn soiling use a mild detergent on the cloth.

Storage

Store the cleaned appliance in a dry location. Close the safety catch ④.

Wrap the power cable ③ around the cable retainer on the underside of the appliance.

You can store the appliance vertically to save space.

Recipes

A panini is a warm sandwich prepared from fresh white bread. It is freshly toasted and then served.

Spinach and cheese panini

250 g spinach leaves

1 onion
1 clove of garlic
1 tbsp. cooking oil
2 tbsp. lemon juice
1 pinch of salt (and pepper)
4 slices of toasting bread/white bread
40 g herb butter
75 g Mozzarella
20 g pine nuts

Preparation

◆ Sort and wash the spinach leaves.
◆ Peel and finely chop the onion and garlic, stew in hot oil. Add the spinach. Season with lemon juice, salt and pepper.
◆ Spread the herb butter on the bread.
◆ Cut the Mozzarella into slices and place these on two slices of bread together with the drained spinach. Sprinkle with pine nuts.
♦ Top the panini with a second slice of bread.
◆ Place the panini onto the preheated panini maker (medium heat level) and close the lid.
◆ Wait until the panini are toasted golden brown. Then remove them from the panini maker.

Chicken breast panini

400 g chicken breast

20 g butter

Pepper, salt, paprika powder

120 g bacon, in strips

6 slices of toasting bread

3 tbsp. salad dressing yoghurt

30 g of iceberg lettuce

2 tomatoes

1 avocado

1 tsp. lime juice

50 g cucumber

Preparation

◆ Heat up some butter in a coated frying pan and sear the chicken breast on both sides. Turn the cooker down to a medium heat and then fry the chicken breasts for about 10 minutes. After frying, season with salt, pepper and paprika, remove from the pan and set aside.

◆ Reheat the fat in the pan and use it fry the bacon strips until they are crisp.

◆ Spread the yoghurt dressing on 3 slices of toasting bread, add the iceberg lettuce; cut the tomatoes into slices, season them and then also add these onto the bread.

◆ Cut the chicken breasts along their length and lay them on top of the tomatoes.

◆ Lay the strips of bacon on the chicken breasts.

◆ Cut open the avocados vertically and use a turning movement to remove the halves from the stone. Peel and cut the avocado into slices. Drizzle the lime juice onto the avocado to prevent from going brown. Lay the slices onto the panini.

◆ Cut the cucumber into slices and place them on the avocado.

♦ Top the panini with a second slice of bread.

◆ Place the panini onto the preheated panini maker (medium heat level) and close the lid.

◆ Wait until the panini are toasted golden brown and remove them carefully from the panini maker.

Mustard baguette

1 baguette
1 garlic clove
50 g mustard-pickled gherkins
40 g pecorino
1 tbsp. hot mustard
2 tbsp. sweet mustard
50 g butter
2 tbsp. chopped chives
Salt, pepper

Preparation

◆ Cut into the baguette at 2 - 3 centimetre intervals but do not cut all the way through.
◆ Peel and crush the garlic, dice the gherkins and grate the pecorino cheese.
Mix the hot and sweet mustards with the soft butter, garlic, diced gherkin, pecorino cheese and chives and season with salt and pepper.
◆ Fill the mustard butter into the slits in the baguette and wrap the baguettes in aluminium foil.
Place the baguette onto the preheated panini maker (medium heat level) and close the lid. The baguette should be golden-brown.

Storage/disposal

Storage

If you plan not to use the appliance for a long period, store it in a clean, dry place away from direct sunlight. You can store the appliance vertically to save space.

Disposal of the appliance

Under no circumstances should you dispose of the appliance with the normal household waste. This product is subject to the provisions of European Directive 2012/19/EU-WEEE (Waste Electrical and Electronic Equipment).

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Appendix

Technical data

Panini maker
Voltage supply 220-240 V ~	(alternating current), 50 Hz
Power consumption 2000 W
Protection class	I (protective earth)
Ambient temperature +15 to +40°C
Humidity (no condensation) 5 to 75%
	All of the parts of this appliance that come into contact with food are food-safe.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 331466_1907

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction 38

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 60

120 g bacon, in reepjes

6 plakjes witbrood/tostibrood

3 el saladedressing (yoghurt)

30 g ijsbergsla

2 tomaten

1 avocado

1 tl citroensap

50 g komkommer

Bereiding

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Spis treści

W step 78

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....96

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Obsah

Úvod....114

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations
