Product Type	32-inch LED TV
Brand	Telefunken
Model	D32F472M4
Screen Size	32 inches (81 cm)
Resolution	1920 x 1080 (Full HD)
Display Technology	LED
Receiver	DVB-T2/C/S2 (DTT, cable, satellite)
Audio Power	2 x 6 W (stereo)
Power Consumption	65 W
Power Supply	220-240 V, 50 Hz
Dimensions with stand (W x H x D)	735 x 494 x 185 mm
Dimensions without stand (W x H x D)	735 x 438 x 78/90 mm
Connectivity	HDMI (x2), USB, VGA, SCART, Satellite input (LNB), SPDIF coaxial output, Headphone
Main Features	Auto standby, Timer, Parental control, Energy saving, Teletext, EPG, USB playback (video, audio, image), CEC, Game Mode
Included Accessories	Remote control, AAA batteries (x2), instruction manual
Safety	Child lock, automatic shutdown after 8h, standby without signal
Operating Temperature	0°C to 40°C, max humidity 85%

Frequently Asked Questions - D32F472M4 TELEFUNKEN

How to turn on the TV?

Press the Standby button on the remote or the central button of the switch located on the side of the TV until the screen lights up.

What to do if the remote doesn't work?

First check that the batteries are not dead and are inserted with the correct polarity. If the problem persists, replace the batteries with new ones (AAA). Also ensure that no obstacle blocks the signal between the remote and the TV.

Why is there no picture?

Check that the antenna or cable is properly connected. Make sure the input source (HDMI, etc.) is correctly selected. If using an antenna, check that it is not damaged. A weak signal can also cause no picture.

How to connect a USB stick?

Plug the USB stick into one of the USB ports on the side of the TV. Then press Source and select USB. The Media Browser menu appears, and you can play your video, audio, or image files.

How to set up channels for the first time?

At first power-on, the Initial setup menu appears. Select your language, country, and broadcast type (Digital antenna, Cable, Satellite, or Analog). The TV will automatically search for available channels. You can also start a search from the Installation menu.

How to activate parental control?

Go to System > Settings > Parental control. Enter the default PIN code (0000 or 1234). You can then lock certain menus, restrict access to channels according to ratings, or enable child lock.

What to do if there is no sound?

Check that the volume is not muted and is not set to zero. Make sure the audio mode of the channel is correct. If sound comes from only one speaker, adjust the balance in the Sound menu.

How to update the TV software?

Go to System > Settings > Other > Software update. Select Search for update. If an update is available, it will be downloaded automatically. Do not unplug the TV during the process.

What does the blinking LED indicator mean?

A blinking LED indicator in standby indicates that functions such as standby channel search, OTA download, or timer are active. This can also occur at startup. If the indicator blinks rapidly, refer to the manual.

How to save energy with this TV?

Use the Energy saving mode in the Picture menu (Minimum, Medium, Maximum, or Automatic). You can also activate screen off (select Screen off). The TV will automatically go into standby after inactivity or no signal.

USER MANUAL D32F472M4 TELEFUNKEN

Black-and-white family photo of a family watching movies, with no visible text or symbols

BEDIENUNGSANLEITUNG

INSTRUCTION MANUAL

MODE D'EMPLOI

ISTRUZIONI PER L'USO

Two views of a black metal bracket with a screw and a hole, shown from different angles (no text or symbols visible)

Close-up of a black mechanical component with a white cylindrical pin and a small inset showing a separate view (no text or symbols visible)

1. Nach oben

2. Nach unten

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Safety Information

CAUTION

RISK OF ELECTRIC SHOCKDO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off. Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised. - Use this TV set at an altitude of less than 2000 meters above the sea level, in dry locations and in regions with moderate or tropical climates. - The TV set is intended for household and similar general use but may also be used in public places. - For ventilation purposes, leave at least 5cm of free space around the TV.

- The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. - The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

- Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit). - Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

Safety Information	24
Markings on the Product	24
Environmental Information	25
Features	26
Accessories Included	26
Standby Notifications	26
TV Control Switch & Operation	26
Inserting the Batteries into the Remote	27
Connect Power	27
Antenna Connection	27
Notification	27
Specification	28
Remote Control	29
Connections	30
Switching On/Off	31
First Time Installation	31
Using SatcoDX Feature	31
Media Playback via USB Input	32
Media Browser Menu	32
CEC and CEC RC Passthrough	32
TV Menu Contents	33
General TV Operation	37
Using the Channel List	37
Configuring Parental Settings	37
Electronic Programme Guide (EPG)	37
Teletext Services	38
Software Upgrade	38
Troubleshooting & Tips	38
PC Input Typical Display Modes	39
AV and HDMI Signal Compatibility	39
Supported File Formats for USB Mode	40
Supported DVI Resolutions	41

TV Control Switch & Operation

1. Up direction

2. Down direction

3. Volume / Info / Sources List selection and Standby-On switch

The Control button allows you to control the Volume/Programme/Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.
To change channel: Press the middle of the button in, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.

To change source: Press the middle of the button in twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button in and hold it down for a few seconds, the TV will turn into standby mode.

To turn on the TV: Press the middle of the button in, the TV will turn on.

Notes:

- If you turn the TV off, this circle starts again beginning with the volume setting. - Main menu OSD cannot be displayed via control buttons.

Operation with the Remote Control

Press Menu button on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press Return/Back button or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press Source button on your remote control consecutively to select the different sources.

Features - Remote controlled colour TV

- Fully integrated digital terrestrial/cable/satellite TV (DVB-T2/C/S2) - HDMI inputs to connect other devices with HDMI sockets

- USB input - OSD menu system - Scart socket for external devices (such as DVD Players, PVR, video games, etc.) - Stereo sound system

- Teletext

• Headphone connection

- Automatic programming system - Manual tuning

- Automatic power down after up to eight hours. - Sleep timer - Child lock

- Automatic sound mute when no transmission. - NTSC playback

- AVL (Automatic Volume Limiting) - PLL (Frequency Search)

- PC input - Game Mode (Optional)

- Picture off function

Accessories Included

- Remote Control

- Batteries: 2 x AAA - Instruction Book

Standby Notifications

If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue. If the TV is on and it isn't being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because no operation was made for a long time." Press OK to continue.

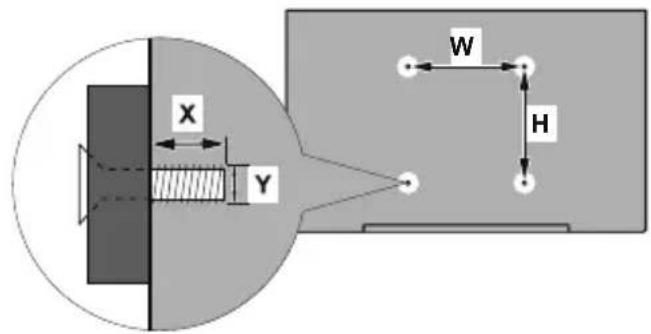

WALL MOUNTING WARNINGS

- Read the instructions before mounting your TV on the wall. - The wall mount kit is optional. You can obtain from

your local dealer, if not supplied with your TV. - Do not install the TV on a ceiling or on an inclined

wall. - Use the specified wall mounting screws and other accessories.

- Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

WARNING

Apparatus connected to the protective earthing of the building installation through the MAINS

connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard.

Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Environmental Information

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:

If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the

Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending on the selected Mode in the System>Picture menu. The Energy Saving settings can be found in the System>Picture menu. Note that some picture settings will be unavailable to be changed.

If pressed Right button while Auto option is selected or Left button while Custom option is selected, "Screen will be off in 15 seconds." message will be

displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.

Note: Screen Off option is not available if the Mode is set to Game. When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead

to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from

children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNING

Never place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple

precautions such as; - Using cabinets or stands recommended by the manufacturer of the television set. - Only using furniture that can safely support the television set.

- Ensuring the television set is not overhanging the edge of the supporting furniture. - Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

- Not standing the television set on cloth or other materials placed between the television and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

Changing Channels and Volume

Specification

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only] Equipment bearing these symbols should not be disposed as general household waste. You should look for appropriate recycling facilities and systems for the disposal of these products. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

Inserting the Batteries into the Remote

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Lift the cover gently. Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket or satellite plug to the SATELLITE INPUT (LNB) socket located on the back of the TV.

satellite

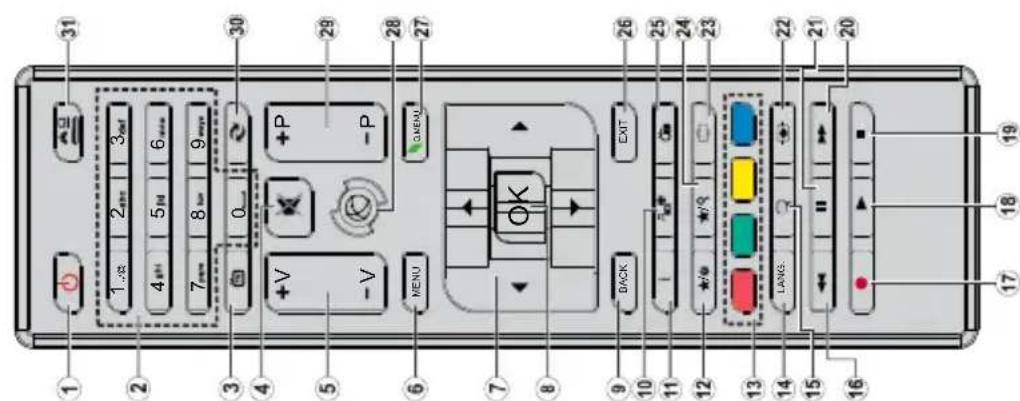

Remote Control

English - 29 -

English - 30 -

NOTE: When connecting a device via the YPbPr or Side AV input, you must use the connection cables to enable connection. See the illustrations on the left side. You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. You cannot use VGA and YPbPr at the same time. To enable PC/YPbPr audio, you will need to use the side audio inputs with a YPbPr/PC audio cable for audio connection. If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. When using the wall mounting kit (available from third party in the market, if not supplied), we recommend that you plug all your cables into the back of the TV before mounting on the wall. Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. The/Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. By connecting an HDMI cable to your TV, you have to use only a shielded HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

Connector	Type	Cables	Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	YPbPr/PC Audio Cable
	HDMI Connection (back)
SPDIF	SPDIF (Coaxial Out) Connection (back)
SIDE AV	Side AV (Audio/Video) Connection (side)	AV Cable
HEADPHONE	Headphone Connection (side)
PC to YPBPR	YPbPr Video Connection (back)	PC to YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

1. Standby: Switches On / Off the TV

2. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.

3. TV: Displays channel list / Switches to TV Source
4. Mute: Completely turns off the volume of the TV

5. Volume +/-

6. Menu: Displays TV menu

7. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left

8. OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)

9. Back/Return: Returns to previous screen, opens index page (in TXT mode)

10. Media browser: Opens the media browsing screen

11. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)

12. My button 1 (*)

13. Coloured Buttons: Follow the on-screen instructions for coloured button functions

14. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available)

15. Subtitles: Turns subtitles on and off (where available)

16. Rapid reverse: Moves frames backwards in media such as movies
17. No function
18. Play: Starts to play selected media
19. Stop: Stops the media being played

20. Rapid advance: Moves frames forward in media such as movies

21. Pause: Pauses the media being played

22. Screen: Changes the aspect ratio of the screen
23. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)
24. My button 2 (*)

(*) MY BUTTON 1 & MY BUTTON 2: These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function. 25. EPG (Electronic programme guide): Displays the electronic programme guide 26. Exit: Closes and exits from displayed menus or returns to previous screen 27. Quick Menu: Displays a list of menus for quick access 28. No function 29. Programme +/-

1. Swap: Quickly cycles between previous and current channels or sources
2. Source: Shows all available broadcast and content sources

device via the YPbPr or Side

AV input, you must use the connection cables to enable

connection. See the illustrations

on the left side. You can use

YPbPr to VGA cable to enable YPbPr signal via VGA input

You cannot use VGA and YPbPr

at the same time. To enable

to use the side audio inputs

with a YPbPr/PC audio cable

for audio connection. If an

external device is connected via the SCART socket, the TV will

automatically switch to AV mode.

When receiving DTV channels (Mneg4 H 264) or while in Media

Browser mode, output will not be

available via the scart socket.

When using the wall mounting kit (available from third party

it (available from third party in the market, if not supplied).

we recommend that you plug all

your cables into the back of the

TV before mounting on the wall. Insert or remove the CI module

only when the TV is SWITCHED

OFF. You should refer to the module instruction manual for

details of the settings. The/Each

USB input of your TV supports

devices up to 500mA. Connecting devices that have current value

above 500mA may damage your

TV. By connecting an HDMI cable

to your TV, you have to use only a shielded HDMI cable to guarantee

a sufficient immunity against

parasitic frequency radiation.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

广力云智慧零售收银系统

vice are turned off before making

em.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

1. Standby: Switches On / Off the TV

2. Numeric buttons: Switches the channel, enters a

number or a letter in the text box on the screen.

1. TV: Displays channel list / Switches to TV Source

2. Mute: Completely turns off the volume of the TV

3. Volume +/-

4. Menu: Displays TV menu

5. Directional buttons: Helps navigate menus, content

etc. and displays the subpages in TXT mode when

pressed Right or Left

1. OK: Confirms user selections, holds the page (in TXT

mode), views channel list (DTV mode)

1. Back/Return: Returns to previous screen, opens index

page (in TXT mode)

1. Media browser: Opens the media browsing screen

2. Info: Displays information about on-screen content,

shows hidden information (reveal - in TXT mode)

1. My button 1 (*)

2. Coloured Buttons: Follow the on-screen instructions

for coloured button functions

1. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language

TV, displays and changes audio-subtric language (digital TV, where available)

1. Subtitles: Turns subtitles on and off (where available)

2. Rapid revenue Move frame backwinds is media

3. Rapid reverse: Moves frames backwards in media such as movies

4. No function

5. Play: Starts to play selected media

6. Step: Steps the media being played

7. Stop: Stops the media being played

8. Rapid advance: Moves frames forward in media such as movies

9. Bruns: Bruns the media being played

10. Pause: Pauses the media being played

11. Screen: Changes the aspect ratio of the screen

12. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast

picture (mix)

1. My button 2 (*)

2. EPG (Electronic programme guide): Displays the

3. E.P.C (Electronic programme guide). Displays the electronic programme guide

4. Exit: Closes and exits from displayed menus or returns

to previous screen

1. Quick Menu: Displays a list of menus for quick access

2. No function

3. Programme +/-

4. Swan: Quickly cycles between previous and current

5. E-Map: quality system between provides and current channels or sources

6. Source: Shows all available broadcast and content

sources

Switching On/OffTo Switch the TV OnConnect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).To switch on the TV from standby mode either:Press the Standby button, Programme +/- or a numeric button on the remote control.Press the side function switch on the TV until the TV comes on from standby.To Switch the TV OffPress the Standby button on the remote control or press the side function switch on the TV until the TV switches into standby mode.To power down the TV completely, unplug the power cord from the mains socket.Note:When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.First Time InstallationWhen turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.On the next screen, set your preferences using the directional buttons.Note:Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.About Selecting Broadcast TypeDigital Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.Digital Cable: If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.Note:Searching duration will change depending on the selected Search Step.Satellite: If Satellite broadcast search option is turned on, the TV will search for digital satellite broadcasts after other initial settings are completed. Before satellite search is performed some settings should be made. Antenna Type menu will be displayed first. You can select Antenna Type as Direct, Single Satellite Cable or DiSeqC switch by using "◀" or "▶" buttons.	Direct:If you have a single receiver and a direct satellite dish, select this antenna type. Press OK to continue. Select an available satellite on the next screen and press OK to scan for services.Single Satellite Cable:If you have multiple receivers and a single satellite cable system, select this antenna type. Press OK to continue. Configure settings by following instructions on the next screen. Press OK to scan for services.DiSeqC switch:If you have multiple satellite dishes and a DiSeqC switch, select this antenna type. Press OK to continue. You can set four DiSeqC options (if available) on the next screen. Press OK button to scan the first satellite in the list.Analogue:If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the Channel List. When finished, press OK to continue.You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned off/on later.Press OK button on the remote control to continue. After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*). Select Yes and press OK to confirm. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).Note:Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.Using SatcoDX FeatureYou can perform SatcoDX operations using the Installation>Satellite Settings menu. In the SatcoDX menu, there are two options regarding to the SatcoDx.	You can download or upload SatcoDX data. In order to perform these functions a USB device must be connected to the TV.You can upload current services and related satellites & transponders in TV, to a USB device.Additionally you can download one of the SatcoDx files stored in USB device, to the TV.When you select one of these files, all services and related satellites and transponders in the selected file will be stored in the TV. If there are any installed terrestrial, cable and/or analog services, they will be kept and only satellite services will be removed. Afterwards, check your antenna settings and make changes if necessary. An error message stating "No Signal" may be displayed if the antenna settings are not configured properly.Media Playback via USB InputYou can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.Wait a little while before each plugging and unplugging as the player may still be reading files . Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.Note:When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.Media Browser MenuYou can play photo, music, and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings Menu.	Start playback with the OK button and activate [REDACTED]	The same file will be played continuously (repeat)
		Start playback with the Play button and activate [REDACTED]	All files in the list will be played once in random order
		Start playback with the Play button and activate [REDACTED]	All files in the list will be continuously played in the same random order.CEC and CEC RC PassthroughThis function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.Note:ARC is supported only via the HDMI1 input.System Audio ControlAllows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.Note:The audio device should support System Audio Control feature and CEC option should be set as Enabled.
		Loop/Shuffle Mode OperationStart playback with the Play button and activate [REDACTED]	All files in the list will be continuously played in original order

TV Menu Contents

System - Sound Menu Contents
Volume Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance Adjusts whether the sound comes from the left or right speaker.
Headphone	Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode	You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass	Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed as On or Off.
Digital Out	Sets digital out audio type.

System - Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast Adjusts the light and dark values on the screen.
Brightness Adjusts the brightness values on the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Energy Saving	For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.
Advanced Settings
Dynamic Contrast You can change the dynamic contrast ratio to desired value.
Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
Picture Zoom Sets the desired image size format.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
RGB Gain (Optional)	You can configure the colour temperature values using the RGB Gain feature.
HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position Appears only when the input source is set to VGA/PC.
Autoposition Automatically optimizes the display. Press OK to optimize.
H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Resets the picture settings to factory default settings (except Game Mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Satellite: Searches and stores satellite stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Satellite Settings	Displays satellite settings. Satellite list: Displays available satellites. You can Add, Delete satellites or Edit satellite settings on the list. Antenna installation: You can change satellite antenna settings and/or start a satellite scan. SatcoDX: You can upload or download SatcoDX data using the related options.
Installation Settings (Optional)	Displays installation settings menu. Standby Search(*) : Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*) : If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching. (*) Availability depends on model.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.

System - Settings Menu Contents
Conditional Access Controls conditional access modules when available.
Language You may set a different language depending on the broadcaster and the country.
Parental	Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Accessibility Displays accessibility options of the TV.
	Hard of Hearing Enables any special feature sent from the broadcaster.
	Audio Description A norration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.
More Displays other setting options of the TV.
	Menu Timeout Changes timeout duration for menu screens.
	Standby LED If set as Off, the standby LED will not light up when the TV is in standby mode.
	Software Upgrade Ensures that your TV has the latest firmware. Press OK to see the menu options.
	Application Version Displays current software version.
	Subtitle Mode This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
	Auto TV OFF Sets the desired time for the TV to automatically go into standby mode when not being operated.
	Biss Key Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter Biss key on a broadcast, you can use this setting. Highlight Biss Key and press OK to enter keys on the desired broadcast.
	Store Mode Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
	Power Up Mode This setting configures the power up mode preference. Last State and Standby options are available.
	CEC With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
	CEC Auto Power On This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
	Speakers To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
	OSS Displays Open Source Software license information.

General TV OperationUsing the Channel ListThe TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.Press the OK/TV button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.Managing the Favourite ListsYou can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.Configuring Parental SettingsThe Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.Set PIN: Defines a new PIN number.Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.Some options may not be available depending on the country selection in the First Time Installation.Electronic Programme Guide (EPG)Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.Timeline ScheduleZoom (Yellow button): Press the Yellow button to see events in a wider time interval.Filter (Blue button): Views filtering options.Highlight Genre (Subtitles button): Displays Highlight Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.Options (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.Search (Text button): Displays Guide Search menu.Now (Source button): Displays current event of the highlighted channel.List Schedule(*) (*) In this layout option, only the events of the highlighted channel will be listed.Prev. Time Slice (Red button): Displays the events of previous time slice.Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.Event Details (Info button): Displays detailed information about selected events.Filter (Text button): Views filtering options.Next Time Slice (Green button): Displays the events of next time slice.Options (OK button): Displays event options.Now/Next ScheduleOptions (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.Filter (Blue button): Views filtering options.Event OptionsUse the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.Select Channel: Using this option, you can switch to the selected channel.Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.Notes: You cannot switch to any other channel or source while there is an active timer on the current channel. It is not possible to set timer for two or more individual events at the same time interval.Teletext ServicesPress the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.Software UpgradeYour TV is capable of finding and updating the firmware automatically via the broadcast signal.Software upgrade search via user interfaceOn the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the TV by pressing the OK to continue with the reboot operation.3 AM search and upgrade modeYour TV will search for new upgrades at 3:00 o'clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal. If a new software is found and downloaded successfully, it will be installed at the next power on.Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.

Troubleshooting & TipsTv will not turn onMake sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.Poor pictureCheck if you have selected the correct TV system.Low signal level can cause picture distortion. Please check antenna access.Check if you have entered the correct channel frequency if you have done manual tuning.The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.No pictureThis means your TV is not receiving any transmission. Make sure the correct source has been selected.Is the antenna connected properly?Is the antenna cable damaged?Are suitable plugs used to connect the antenna?If you are in doubt, consult your dealer.No soundCheck if the TV is muted. Press the Mute button or increase the volume to check.Sound may be coming from only one speaker. Check the balance settings from Sound menu.Remote control - no operationThe batteries may be exhausted. Replace the batteries.Input sources - can not be selectedIf you cannot select an input source, it is possible that no device is connected. If not;Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

Supported File Formats for USB Mode
Media	Extension	Format Notes
Video	.mpg, .mpeg	MPEG1-2	MPEG1: 768x576 @ 30P, MPEG2:1920x1080 @ 30P
	.vob MPEG2		1920x1080 @ 30P
	.mp4	MPEG4, Xvid, H.264
	.mkv	H.264, MPEG4,VC-1
	.avi	MPEG2, MPEG4, Xvid, H.264
	.flv	H.264/VP6/ Sorenson	H.264/VP6: 1920x1080 @ 30PSorenson: 352x288 @ 30P
	.mp4, .mov, .3gpp, .3gp, MPEG transport stream, .ts,trp, .tp, .mkv	HEVC/H.265	1080P@60fps - 50Mbps
	.3gp MPEG4, H.264 1920x1080 @ 30P
Audio	.mp3	MPEG1 Layer 2/3	Layer2: 32Kbps ~ 448Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz (Sampling rate)Layer3: 32Kbps ~ 320Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz, 8kHz, 11.025kHz, 12kHz (Sampling rate)
	(works only with video files)	AC3	32Kbps ~ 640Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
		AAC	16Kbps ~ 576Kbps (Bit rate) / 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz (Sampling rate)
		EAC3	32Kbps ~ 6Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
		LPCM	Unsigned 8bit PCM, Signed/Unsigned 16bit PCM (big / little endian), 24bit PCM (big endian), DVD LPCM 16/20/24bit (Bit rate)/ 6kHz, 8kHz, 11.025kHz, 12kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (Sampling rate)
		IMA-ADPCM/ MS-ADPCM	384Kbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)
		LBR	32Kbps ~ 96Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
Picture	.jpeg	Baseline	Resolution(WxH): 17000x10000
		Progressive	Resolution(WxH): 4000x4000
	.bmp	-	Resolution(WxH): 5760x4096
Subtitle	.sub, .srt	-	-

AV and HDMI Signal Compatibility
Source Supported Signals Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
Side AV	PAL 50/60 O
	NTSC 60 O
PC/YPbPr	480I, 480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
	1080P 50Hz,60Hz O
HDMI	480I 60Hz O
	480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
	1080P	24Hz, 25Hz30Hz, 50Hz,60Hz	O

(X: Not Available, O: Available)
In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

PC Input Typical Display Modes The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index Resolution Frequency
1	640x480 60 Hz
2	600 56 Hz
3	600 60 Hz
4	x768 60 Hz
5	x768 66 Hz
6	x768 60 Hz
7	x960 60 Hz
8	x1024 60 Hz
9	x768 60 Hz
10	0x1050 60 Hz
11	0x1200 60 Hz
12	0x1080 60 Hz

Supported DVI Resolutions
Table des matières
When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

1. "I am a little better"

CFC and CFC PG Retor through 72

CEO and CEO RO Passthrough 72

Indice menu TV 74

Two views of a black metal bracket with a small bolt and arrow indicator (no text or symbols)

Close-up of a black metal bracket with a white schematic symbol on the side (no readable text or labels)

Specifiche

Telecomando

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is incorrect because underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line violates the rule and constitutes an error. Therefore, the OCR result is inconsistent with the Ground Truth.

CEC and CEC RC Passthrough

A	Product Fiche
B	Commercial Brand:TELEFUNKEN
C	Product No. 10115051
D	Model No. D32F472M4
E	Energy efficiency class A+
F	Visible screen size (diagonal,approx.) (inch/cm)	32 inches 81 cm
G	On mode average power consumption (Watt)	31
H	Annual energy consumption (kWh/annum)	45
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px) 1920x1030

	A	B	C	D	E	F	Visible screen size(diagonal, approx.) (inch/cm)
English	Product Fiche	Commercial Brand		Product No.	Model No.	Energy efficiency class
Deutsch	Produkt-Datenblatt	Markenzeichen		Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	Sichtbare Bildschirmgroße(diagonal,ca.) (Zoll /cm)
عربي	قابسimenج	العامةeschJE: تليوTKIN		رقمメント	رقم المويبل	قيةmetricalاتلا	الحجمالعربية(طري) (بوصه/ام)
Български	Справоченлист с техническите данни	Търговска марка		Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана(диагонал,прибл.) (инча /см )
čeština	Produktový list	Značka výrobce		Číslo produktu	Model č.	Energetická třída	Viditelná velikost obrazovky(ühlopřicka,přibl.)(palců /cm)
Dansk	Produktoplysningsskema	Varemærke		Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki		Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyvan kuvaruudun koko(diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale		Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'écran visibte (diagonale,approx.)(pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka		Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljiva veličina ekrana(dijagonalna,približno) (inča/cm)
Nederlands	Productfiche	Commercieel merk.		Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermgrootte(diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial		N° de Producto	N° de Modelo	Clasificación Energética	Tamaño de pantalla visibde(diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke		Produktnr.	Modellnr.	Energiklass	Synlig skarmstorlek(diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale		Numero prodotto	Numero modello	Classe di efficienza energetica	Dimenslioni visibili dello schemo(diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU	Marka produktu		Nr produktu	Nr modelu	Klasa efektywności energetycznej	Widoczny obraz ekranu(przekątna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi márka		Termékszám	Modellszám	Energiahatékonysági osztály	Latható képtartomány (diagonálts,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare		Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skjermsstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial		Produto N°	Modelo N°	Classificação eficiência energética	Tamanno ecrà visível (diagonal, aprox.)(polegadas/cm)
Română	Fişă produs	Marcă comercială		Nr. Produs	Nr. Model	Clasa de eficiență energetică	Dimenslunea ecranului vizibili(diagonală, aprox. ) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали, приблизительно)(дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали,Около)(дюймов/см )
македонски	Технички податоци	Комерцијална марка		Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран(дијагонала, окопу) (инчи/см)
український	Технічні дані	Кормеційна марка		Артикул	Модель	Клас енергоспоживання	Видимий розмір екрана (диагональ, Приблизно) (дюймів/см)
Srpski	Tehničke odlike	Komercijalna marka		Proizvod br.	Model br.	Klasa energetske efikasnosti	Velicina vidljivog ekrana (diagonalala,tokom) (inča/cm)
Slovenčina	Produktový list	Značka výrobcu		Číslo produktu	Model č.	Energetická trieda	Viditelná velikost obrazovky(uhlopriečka, zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka		Št. İzdélka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллянік	Делтіо проїóvtос	Еупторіко о́нца		Ар. Проїóvtос	Ар. Монтёлou	Каттуоріа евергейакіңс ато́добоңс	Оропо резвоє одо́внєς (бідядвіює,тер.) (івтоєє/см)
Bosanski	Tehnički podaci	Komercijalna marka		Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva velicina ekrana (diagonala, približno.) (incă/cm)
Эртэсу	Уплт о́ю́з	*проп элін		Уплт о́ю	БЛТ о́ю	Постан дія тірі а́ро	(отүүк)(зүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүу
Türkçe	Ürün fişi	Ticari Marka		Ürün No.	Model No.	Enerji verimilliği sınıfı	Gördlen ekran boyutu (çapraz, yakışk.) (inch/cm)
Shqip	Tě dhēnat e produktit	Marka tregtare		Nr. i produktit.	Nr. i modelit.	Klasa e eficiencès sè energjisë	Madhésia e ekranit té dukshèm (diagonal, afërsisht) (inch/cm)
Lietuvių	Gaminio etiketė	Gamintojas		Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasė	Matomas ekraño dydis (jstrizaine, approx.) (coliú/cm)
Latviešu	Produkta apraksts	Marka		Produkta nr.	Modelja nr.	Energoefektivitätes klase	Ekranā izmērs (pa diognali, aprıçram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma		Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekraani suurus (diagonaal, umbes) (tolli/cm)
فراسی	مشخصات محصول	مارک تجاری		شماره محصول	شماره مثل	گروه کارایی اترزی	(بیچ) بزه خان شاشده (شامسی, تری) (سانتی متر)

	G	H	I	J	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	(Watt)	Stromverbrauch im ausgeschaltetem Zustand (Watt) Display-Auflösung (px)
عربية	متوسط استهلاك الشانة عن الشغير (والمط)	(الاستهلاك المدي للشفراكيل ورناشابن Logistics)	(استهلاك الشانة في وضع الاستحداد (والمط)	(استهلاك الشانة في وضع الإب cubic (والمط)	(وStrong Mod储蓄)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишна консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Průměmá spotřeba elektrické energie v zapnutém režimu (Wattú)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovostním režimu (Wattú)	Spotřeba elektrické energie ve yponutém režimu (Wattú) Rozlišení dispelje (px)
Dansk	Gennemsnitligt stromforbrug i tændt tilstand (Watt)	Ariigt energiforbrug (kWh/Ariigt)	Strømforbrug (standby)(Watt)	Strømforbrug i siukket tilstand (Watt)	Skærmopløsning (px)
Suomi	Păällă-tilan keskimääräinen virrankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakovirran kulutus (Wattia)	Pois-tilan virrankulutus (Wattia)	Năytön erottelukyky (pikselia)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode 'arrêt' (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod sključen (Watta)	Rezolucija zaslona (pikselá)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik(kWh/Jaarlijks )	Stand-by stroomverbruik (Watt)	Jit-modus stroomverbruik (Watt)	Schermresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatic)	Consumo eléctrico anual (kWh/anual) Consumo en modo en espera (Vatic)	Consumo eléctrico modo apagado (Vatic)	Consumo eléctrico modo apagado (Vatic)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PÁ-läge (Watt)	Energi konsumtion per år (kWh/Årlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skärmupplösning (pixlar)
Itallano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Średnie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Średnie zużycie energii w trybie czekiwania (Watów)	Zuzycie energii w trybie włączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmodban (Watt)	Éves energiafogyasztás (kWh/Éves)	Energiafogyasztás standby üzemmodban (Watt)	Energiafogyasztás kikapcsolt üzemmodban (Watt)	Képernyőfelbontás (px)
Norsk	Pámodus gjennomsnittlig strømforbruk (Watt)	Áriig strømforbruk (kWh/Arlig)	Hvilemodus strømforbruk (Watt)	Av-modus strømforbruk (Watt)	Skjermoppløsning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual) Consumo energia em stand-by (Watt)	Consumo annual energia (kWh/anual) Consumo energia em stand-by (Watt)	Consumo energia em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu în modul pornit (Walt)	Consum anual de energie (kWh/anual)	Consum electric în stare de repaus (Walt)	Consum electric în modul oprit (Walt)	Rezolutja ecranului (pixel)
Русский	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (кВтч/Год)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/Градавое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана пикселей)
македонски	Просечна потрошувачка кога е включен	Годишна потрошувачка на енергија (kWh/Годишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран пиксели)
український	Середня споживана потужність у робочому режимі (Вт)	Середньорічна споживана потужність (kWh/Pnче)	Сложивана потужність у режимі чнікування (Вт)	Сложивана потужність у вимкненому стані (Вт)	Роздільна здатність екрана пикселів)
Srpski	Prosečna potrošnja kada je uključení (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključení (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemerná spotreba elektrickej energie v zapnutom režime (Wattov)	Ročná spotreba energie (kWh/Ročná)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo ypututom režime (Wattov)	Rozlíšenie displeja (pixl.)
Slovenščina	Poraba električne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллэнvik	Мėτη κατανάλωση ρεύματος λειτουργίος (Watt)	Ετήσα κατανάλωση ενέργειος (kWh/Erjioa)	Κατανάλωση ρεύματος στην αναμονή (Watt)	Κατανάλωση ρεύματος στην εναμονήση (Watt)	Ανάλυση οδόνης (Пійєз)
Bosanski	Prosječna potrošnja kada je uključení (Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključení (Watt)	Rezolucija ekranа (piks.)
Түркçe	(оки) түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түркщ	(госыт итоги түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрке түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрка түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрку түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрь түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрко түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түркие түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түрки түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түркий түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр, түр
Türkçe	Ақık moddaki ortalama güç tüketimi (Watt)	Yıllık enerji tüketimi (kWh/yıllık)	Bekleme durumunda enerji tüketimi (Watt)	Kapali moddaki güç tüketimi (Watt)	Ekran çözünürlüğü (piks.)
Shqip	Konsumi mesatar i energijsé si i ndezur (Watt)	Konsumi yjetor i energijsé (kWh/yjetor)	Konsumi i energijsé si né gatishméri (Watt)	Konsumi i energijsé si i fikur (Watt) Rezulioni ekranit (piks.)
Lietuvių	Vidutinês energijos sanaudos (jungus (Vatai)	Metinês energijos sanaudos (kWh/Metinês)	Energijos sanaudos budėjimo režimu (Vatai)	Energijos sanaudos išjungus (Vatai)	Ekranok skiriamoji gebapikselių)
Latviešu	Energijas patērīņš aktīvā režimā (Vati)	Gada energijas patērīņš (kWh/gada)	Energijas patērīņš galdīšanas režimā (Vati)	Energijas patērīņš izslēgtā stāvokli (Vati)	Displeja rezolūcija (piksēiam)
Eesti	Keskmine energiakulu töörežimil (Vatti)	Aastane energiakulu (kWh/aastane)	Energiakulu ooterežimil (Vatti)	Energiakulu väljalūlitatud olekus (Vatti)	Ekraani resolutsioon (piksīt)
Фاراسی	(مYZAL متوسط مصرف برق در حات فعل (د) (مYZAL متوسط مصرف برق در د高清ت نام (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د)	(مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL мتوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مصرف برق در د高清ت نامه به کار (د) (مYZAL متوسط مforest<|ref_end|><|rotate_up|>

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		200	100
C	Screw Sizes
D	Length (X)	min. (mm)	5
		max. (mm)	8
E	Thread (Y)	M4

	ABCDE
English VESA WALL MOUNT MEASUREMENTS		Hole Pattern Sizes (mm)	Screw Sizes Length (X)		Thread (Y)
Deutsch	MASSANGABEN FÜR VESA-WANDMONTAGE	Lochmustergrößen (mm)	Schraubengrößen	Länge (X) Gewinde (Y)
Français	DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA	Dimensions des modèles de trous de montage (mm)	Dimensions des vis	Longueur (X) Filetage (Y)
Italiano	Misurazioni installazione a parete VESA	Dimensioni schema foro (mm)	Dimensioni vite	Lunghezza (X)	Filettatura (Y)
Português	MEDIÇÕES DE MONTAGEM MURAL VESA	Dimensões do molde de furação (mm)	Tamanhos do parafuso	Comprimento (X)	Rosca (Y)
Español	MEDIDAS DEL MONTAJE DE PARED VESA	Tamaños de patrón para agujero (mm)	Tamaños de tornillo	Longitud (X)	Rosca (Y)
Türkçe	VESA DUVARA MONTAJ APARATI ÖLCÜLERİ	Açılacak Delik Ölçüleri (mm)	Vida Ölçüleri	Uzunluk (X)	Yüzey (Y)
Еллэнvik	ДАЗТАЗЕІЗ ВАЗНЗ ТОХОУ VESA	МечёӨн охүµатоç оттүв (mm)	МечёӨн ßібůв	Мήкоç (X)	Эпелршума (Y)
Polski	WYMIARY DO MONTAŻU NAŚCIENNEGO VESA	Rozmiary szablonu otworów (mm)	Rozmiary wkrętów	Długość (mm)	Gwint (Y)
čeština	ROZMĚRY DRŽÁKU NA ZEÐ VESA	Rozměry velikosti dér (mm)	Rozměry šroubů	Délka (X)	Závit (Y)
Magyar	VESA FALI TARTÓ MÉRETEK	Lyukak méretének nagysága(mm)	Csavar méret	Hossz (X) Menet (Y)
Română	MĂSURĂTORI SUPORT PERETE VESA	Dimensiuni tipar gaură (mm)	Dimensiuni şuruburi	Lungime (X)	Filet (Y)
Svenska	VESA VÄGGMONTERINGSMÄTT	Hålmönsterstorlear (mm)	Skruvstorlekar	Längd (X) Träd (Y)
Nederlands	VESA WANDMONTAGE METINGEN	Grootte booropening (mm)	Schroefgroote	Lengte (X)	Draad (Y)
Suomi	VESA-SEINĂASENNUKSEN MITAT	Reikäkuvion koot (mm)	Ruuvinkoot	Pituus (x) Kierre (Y)
Norsk	VESA VEGGMONTERINGSMÄL	Hullmønster størrelser (mm)	Skruestørrelser	Lengde (x)	Träd (Y)
Dansk	VESA VÆGMONTERINGS-MÄL	Hulmønster-størrelser (mm)	Skruestørrelser	Længde(X)	Träd (Y)
Русский	РАЗМЕРЫ НАСТЕННОГО КРЕПЛЕНИЯ VESA	Размеры системы отверстий	Размеры винтов	Длина(X)	Резьба (Y)
беларуская	ПАМЕРЫ НАСЦЕННАГА МАЦАВАННЯ VESA	Тамеры сістэмы адтулін	Памеры вінтоў	Даўжыня (X) Разъба (Y)
македонски	МЕРКИ ЗА МОНТИРАЊЕ НА СИД ЗА „BECA“	Шема на големини на дупката (мм)	Големина на шрафот	Должина (X)	Навој (Y)
український	РОЗМІРИ НАСТИННОГО КРИПЛЕННЯ VESA	Відстань між кріпильними отворами, мм	Розміри гвинтів	Довжина (X)	Діаметр різьби (Y)
Srpski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije zavrtnjeva	Dužina (X)	Navoj (Y)
Slovenčina	ROZMERY DRŽIAKA NA STENU VESA	Rozmery velkosti dier (mm)	Rozmery skrutiek	Dížka (X)	Závit (Y)
Slovenščina	MERE STENSKEGA NOSILCA VESA	Velikosti vzorca lukanj (mm)	Velikosti vijakov	Dolžina (X) Navoj (Y)
Hrvatski	VESA MJERE ZIDNOG DRŽAČA	Veličine uzorka otvora (mm)	Veličine vijka	Dužina (X)	Navoji (Y)
Bosanski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije vijaka	Dužina (X)	Navoj (Y)
Български	РАЗМЕРИ ЗА КОМПЛЕКТ ЗА МОНТАЖ НА СТЕНА VESA	Размери на отвора (mm)	Размер на болта	Дължинат (X)	Резба (Y)
Lietuvių	VESA TVIRTINIMO PRIE SIENOS MATAVIMAI	Angos šablono dydis (mm)	Varžtu dydis	Ilgis (X)	Sriegis (Y)
Latviešu	VESA SIENAS STIPRINĀJUMA IZMĚRI	Caurumu šablona izmērs (mm)	Skrūvju izměri	Garums (X) Vitne (Y)
Eesti	VESA SEINALE KINNITAMISE MÕÕDUD	Kruvi suuruse mõõt (mm)	Kruvi suurus	Kõrgus(x)	Keere (Y)
Shqip	PËRMASAT E NJÉSISË SË MONTIMIT NË MUR VESA	Madhësitë modele të vrimave (mm)	Madhësitë e vidhave	Gjatësia (X)	Filetimi (Y)
عرابي	مEqلیس للثیت على الجدار VESA	(م) احجمال Thrوب (م)	(م) احجمال براغي	(Х) الطول (Y)	(Х) ASN
نامع	VESA ١٥٥٥ نهان بفان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهан نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان نهان
فراسى	VESA انتازه گیری لصل ديواری	(م) انتازه های الجوی سوراخ (م) مزی متر)	(م) انتازه های بچ	(Х) طول (Y)	(Х) رشته (Y)

TR: İşbu belgede; VESTEL Elektronik Sanayi ve Ticaret A.Ş., telsiz ekipmanı tipi TFT IDTV 'nin 2014/53/AB sayılı direktife uygun olduğunu beyan eder. AB uygunluk beyanının tam metni internet adresinde mevcuttur: doc.vosshub.com
EN: Hereby, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com
BG: С настоящото VESTEL Elektronik Sanayi ve Ticaret A.Ş., декларира, че този тип радиосъоръжение TFT IDTV е в съответствие с Директива 2014/53/EC. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: doc.vosshub.com
CZ: Tímto VESTEL Elektronik Sanayi ve Ticaret A.Ş., prohlašuje, že typ rádiového zařízení TFT IDTV je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: doc.vosshub.com
DA: Hermed erklærer VESTEL Elektronik Sanayi ve Ticaret A.Ş., at radioudstyrstypen TFT IDTV er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: doc.vosshub.com
DE: Hiermit erklärt VESTEL Elektronik Sanayi ve Ticaret A.Ş., dass der Funkanlagentyp TFT IDTV der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: doc.vosshub.com
EL: Με την παρούσα ο/η VESTEL Elektronik Sanayi ve Ticaret A.Ş., δηλώνει ότι ο radioεξοπλισμός TFT IDTV πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: doc.vosshub.com
ES: Por la presente, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declara que el tipo de equipo radioeléctrico TFT IDTV es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: doc.vosshub.com
ET: Käesolevaga deklareerib VESTEL Elektronik Sanayi ve Ticaret A.Ş., et käesolev raadioseadme tüüp TFT IDTV vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: doc.vosshub.com
FI: VESTEL Elektronik Sanayi ve Ticaret A.Ş., vakuuttaa, että radiolaitetyyppi TFT IDTV on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: doc.vosshub.com
FR: Le soussigné, VESTEL Elektronik Sanayi ve Ticaret A.Ş., déclare que l'équipement radioélectrique du type TFT IDTV est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: doc.vosshub.com
HR: VESTEL Elektronik Sanayi ve Ticaret A.Ş., ovime izjavljuje da je radijska oprema tipa TFT IDTV u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: doc.vosshub.com

^1 TELEFUNKEN licensed by:

TELEFUNKEN Licenses GmbH

Imported by: Vestel Germany GmbH,

D-85748 Garching/Munich
