LED24522HD - Television Andersson - Free user manual and instructions

Brand	Andersson
Model	LED24522HD
Product Type	LED TV
Screen Size	24.5 inches (62 cm)
Resolution	1366 x 768 (HD Ready)
Refresh Rate	60 Hz
Power Consumption (Typical)	35 W
Standby Power Consumption	< 0.5 W
Power Supply	AC 100-240V, 50/60Hz
Dimensions (With Stand)	560 x 370 x 150 mm
Dimensions (Without Stand)	560 x 340 x 75 mm
Weight (With Stand)	3.5 kg
Weight (Without Stand)	3.0 kg
HDMI Inputs	2
USB Ports	1
VGA Input	1
Composite Input	1
Coaxial Output	1
Headphone Jack	1
Tuner	DVB-T/T2/C
Remote Control	Included
Wall Mount Pattern	100 x 100 mm (VESA)
Energy Class	A+
Operating Temperature	0°C - 40°C
Cleaning Instructions	Use a soft dry cloth; avoid solvents

Frequently Asked Questions - LED24522HD Andersson

How do I connect external devices to the TV?

Use the HDMI ports for HD devices like game consoles or Blu-ray players. For older devices, use the composite (AV) input. Connect USB drives to the USB port for media playback.

Can I mount this TV on a wall?

Yes, the TV is VESA compatible with a 100x100 mm pattern. Use a suitable wall mount and ensure proper installation.

How do I reset the TV to factory settings?

Go to Menu > Settings > System > Factory Reset. Confirm with the OK button. This will erase all custom settings.

Why is there no sound from the TV?

Check if the volume is muted or too low. Ensure external speakers/headphones are disconnected. Try a different source or reset the TV.

Can I play media files from a USB drive?

Yes, insert a USB drive with supported formats (e.g., MP4, AVI, MKV for video; MP3 for audio; JPEG for photos). Use the Media Player app.

How do I scan for digital channels?

Go to Menu > Channel > Auto Tuning. Select your region (DVB-T/T2/C) and start scanning. Save channels when done.

What is the warranty period for this TV?

Warranty varies by region; typically 1-2 years. Check your purchase documents or contact Andersson support.

How do I clean the TV screen?

Turn off the TV and let it cool. Use a soft, dry microfiber cloth. Do not spray liquids directly; avoid alcohol or ammonia.

The remote control is not working. What can I do?

Replace the batteries with new ones. Check for obstructions between remote and sensor. If still not working, try resetting the TV.

Can I connect the TV to a Wi-Fi network?

No, this model does not have built-in Wi-Fi. Use an external streaming device via HDMI for smart features.

USER MANUAL LED24522HD Andersson

Abstract purple background with a white stylized letter 'a' and dot (no text or symbols)

Modern flat-screen monitor displaying purple abstract circular graphics with no visible text or symbols on the screen.

Pure electrical circuit lines without any symbols

Ansutningsström

Illustration of two hands performing a medical or surgical procedure on a circular object, with no visible text or symbols.

RISK FÖR ELCHOCK

KLASS 1 LASER PRODUKT

1. Ylös

(\*) OMA PAINIKE 1 & OMA PAINIKE 2:

WARNINGDo not ingest the battery, Chemical Burn HazardThis product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.Keep new and used batteries away from children.If the battery compartment does not close securely, stop using the product and keep it away from children.If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNINGNever place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:Using cabinets or stands recommended by the manufacturer of the television set.Only using furniture that can safely support the television set.Ensuring the television set is not overhanging the edge of the supporting furniture.Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.Not standing the television set on cloth or other materials placed between the television and supporting furniture.Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

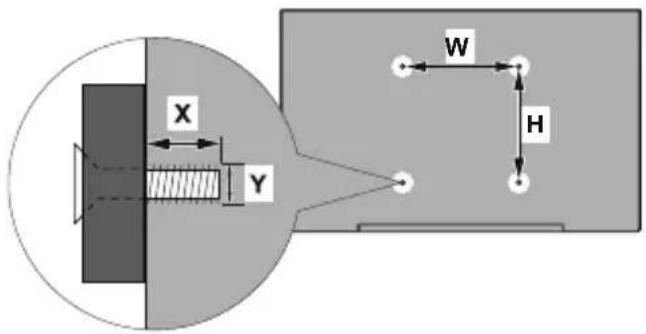

WALL MOUNTING WARNINGSRead the instructions before mounting your TV on the wall.The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.Do not install the TV on a ceiling or on an inclined wall.Use the specified wall mounting screws and other accessories.Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Safety Information
	CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DONOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL.
In extreme weather (storms, lightning) and long inactivityperiods (going on holiday) disconnect the TV set from themains.The mains plug is used to disconnect TV set from the mainsand therefore it must remain readily operable. If the TV set isnot disconnected electrically from the mains, the device willstill draw power for all situations even if the TV is in standbymode or switched off.Note: Follow the on screen instructions for operating the relatedfeatures.
IMPORTANT - Please read theseinstructions fully before installing oroperating
WARNING: Never let people (includingchildren) with reduced physical, sensory ormental capabilities or lack of experience and / orknowledge use electrical devices unsupervised.Use this TV set at an altitude of less than 2000 metersabove the sea level, in dry locations and in regionswith moderate or tropical climates.The TV set is intended for household and similargeneral use but may also be used in public places.For ventilation purposes, leave at least 5cm of freespace around the TV.The ventilation should not be impeded by coveringor blocking the ventilation openings with items, suchas newspapers, table-cloths, curtains, etc.The power cord plug should be easily accessible. Donot place the TV, furniture, etc. on the power cord.A damaged power cord/plug can cause fire or giveyou an electric shock. Handle the power cord by theplug, do not unplug the TV by pulling the power cord.Never touch the power cord/plug with wet hands asthis could cause a short circuit or electric shock.Never make a knot in the power cord or tie it withother cords. When damaged it must be replaced, thisshould only be done by qualified personnel.Do not expose the TV to dripping or splashing ofliquids and do not place objects filled with liquids,such as vases, cups, etc. on or over the TV (e.g.,on shelves above the unit).Do not expose the TV to direct sunlight or do notplace open flames such as lit candles on the top ofor near the TV.

Contents
Safety Information	49
Markings on the Product	50
Environmental Information	51
Features	51
Accessories Included	51
Standby Notifications	51
TV Control Switch & Operation	52
Inserting the Batteries into the Remote	52
Connect Power	52
Antenna Connection	53
Notification	53
Remote Control	54
Connections	55
Switching On/Off	56
First Time Installation	56
Media Playback via USB Input	56
Recording a Programme	57
Timeshift Recording	57
Instant Recording	57
Watching Recorded Programmes	57
Recording Configuration	57
Media Browser Menu	58
CEC and CEC RC Passthrough	58
TV Menu Contents	59
General TV Operation	62
Using the Channel List	62
Configuring Parental Settings	62
Electronic Programme Guide (EPG)	62
Teletext Services	63
Software Upgrade	63
Troubleshooting & Tips	63
PC Input Typical Display Modes	64
AV and HDMI Signal Compatibility	64
Supported File Formats for USB Mode	65
Supported DVI Resolutions	66
DVD Mode	67
Overview of the Remote Control	70
General DVD Operation (depending on model)	71
MOBIL TV INSTRUCTIONS	72

WARNINGApparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard.Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)Environmental InformationThis television is designed to be environment friendly.To reduce energy consumption, you can follow these steps:If you set theEnergy Savingto Minimum, Medium,Maximumor Autothe TV will reduce the energy consumption accordingly. If you like to set theBacklightto a fixed value set asCustomand adjust theBacklight(located under the Energy Savingsetting) manually using Left or Right buttons on the remote. Set asOffto turn this setting off.Note:Available Energy Savingoptions may differ depending on the selectedModein theSystem>Picturemenu.TheEnergy Savingsettings can be found in the System>Picturemenu. Note that some picture settings will be unavailable to be changed.If pressedRightbutton whileAutooption is selected orLeftbutton whileCustomoption is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. SelectProceedand pressOKto turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.Note:Screen Offoption is not available if the Mode is set to Game.When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.FeaturesRemote controlled colour TVFully integrateddigital terrestrial/cable TV (DVB-T-T2/C)HDMI inputs to connect other devices with HDMI socketsUSB inputOSD menu systemScart socket for external devices (such as DVD Players, PVR, video games, etc.)Stereo sound system

Headphone connectionAutomatic programming systemManual tuningAutomatic power down after up to eight hours.Sleep timerChild lockAutomatic sound mute when no transmission.NTSC playbackAVL (Automatic Volume Limiting)PLL (Frequency Search)PC inputGame Mode (Optional)Picture off functionProgramme recordingProgramme timeshiftingAccessories IncludedRemote ControlBatteries: 2 x AAAInstruction BookDC 12 V Input Power AdaptorStandby NotificationsIf the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: “TV switched to stand-by mode automatically because there was no signal for a long time.” PressOKto continue.If the TV is on and it isn’t being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. “TV switched to stand-by mode automatically because no operation was made for a long time.” Press OKto continue.

TV Control Switch & Operation[IMAGE]1. Up direction2. Down direction3. Volume / Info / Sources List selection and Standby-On switchThe Control button allows you to control the Volume/ Programme/Source and Standby-On functions of the TV.To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.To change channel: Press the middle of the button in, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.To change source: Press the middle of the button in twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.To turn the TV off: Press the middle of the button in and hold it down for a few seconds, the TV will turn into standby mode.To turn on the TV: Press the middle of the button in, the TV will turn on.Notes:If you turn the TV off, this circle starts again beginning with the volume setting.Main menu OSD cannot be displayed via control buttons.Operation with the Remote ControlPress Menubutton on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OKto enter. Use the directional buttons again to select or set an item. PressReturn/ Backbutton orMenubutton to quit a menu screen.Input SelectionOnce you have connected external systems to your TV, you can switch to different input sources. PressSourcebutton on your remote control consecutively to select the different sources.

Changing Channels and VolumeYou can change the channel and adjust the volume by using theVolume+/- andProgramme+/- buttons on the remote.Inserting the Batteries into the RemoteRemove the screw that secure the battery compartment cover on the back side of the remote control first. Lift the cover gently. Insert two sizeAAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.[IMAGE]Connect PowerIMPORTANT:The TV set is designed to operate on 12 V DC. For this, an adaptor is used which gives 12 V voltage. Connect this adaptor to a system that supplies 100-240V AC, 50/60Hz.[IMAGE]Important safety informationBe sure to ground the connection properlyConnect the ground terminal of the AC adaptor with the ground terminal provided at the power outlet using the enclosed power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.Surely connect the ground wire.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket located on the back of the TV.

Notification

TRADEMARK ACKNOWLEDGMENT

Logo are trademarks or registered trademarks of HDMI Licensing Administrator, inc. in the United States and

other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

Information for and Batteries

[European Union only]

Equipment bearing these symbols should not be disposed as general household waste.

You should look for appropriate recycling facilities and systems for the disposal of these products.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

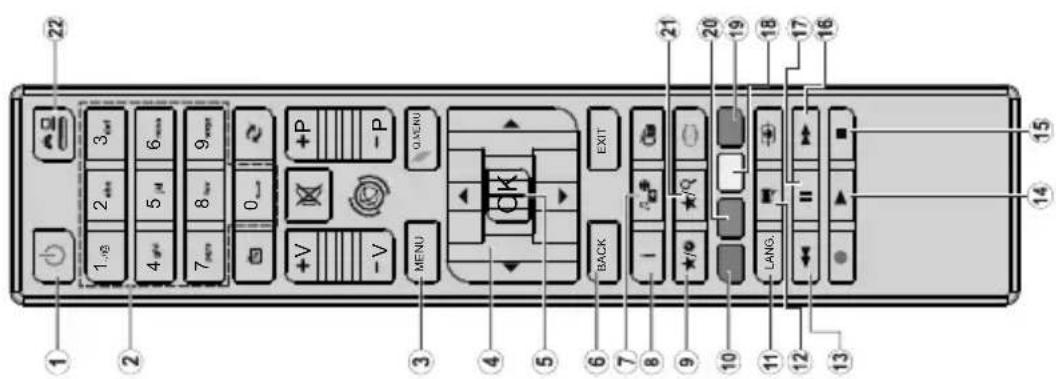

Remote Control

(\*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function.

Note that if you perform First Time Installation, MY BUTTON 1&2 will return to their default function.

Switching On/OffTo Switch the TV OnConnect the power cord to a power source such as a wall socket (100-240V AC, 50/60 Hz).To switch on the TV from standby mode either:Press the Standby button, Programme +/- or a numeric button on the remote control.Press the side function switch on the TV until the TV comes on from standby.To Switch the TV OffPress the Standby button on the remote control or press the side function switch on the TV until the TV switches into standby mode.To power down the TV completely, unplug the power cord from the mains socket.Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.First Time InstallationWhen turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.On the next screen, set your preferences using the directional buttons.Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.About Selecting Broadcast TypeDigital Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.Digital Cable: If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.Note: Searching duration will change depending on the selected Search Step.Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the

channels of it will be listed on the top of the Channel List. When finished, press OK to continue.You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned off/on later.Press OK button on the remote control to continue.After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*) . Select Yes and press OK to confirm. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.Media Playback via USB InputYou can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks.While formatting USB hard drives which have more than 1TB (Tera Byte) storage space you may experience some problems in the formatting process. Wait a little while before each plugging and unplugging as the player may still be reading files . Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.

Connections

Connector Type Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	YPbPr/PC Audio Cable
	HDMI Connection (back)
SPDIF	SPDIF (Coaxial Out) Connection (back)
SIDE AV	Side AV (Audio/Video) Connection (side)	AV Cable
HEADPHONE	Headphone Connection (side)
PC to YPBPR	YPbPr Video Connection (back)	PC to YPBPr Connection Cable
	USB Connection (side)
	CI Connection (side)
	12V DC Connection (back)	DC 12V Input

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

that device from the source list. In that case volume control keys are directed to connected audio device. Note: ARC is supported only via the HDMI1 input.

Note: ARC is supported only via the HDMI1 input.

System Audio Control

Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate	All files in the list will be continuously played in original order
Start playback with the OK button and activate	The same file will be played continuously (repeat)
Start playback with the Play button and activate	All files in the list will be played once in random order
Start playback with the Play button and activate	All files in the list will be continuously played in the same random order.
CEC and CEC RC Passthrough
This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select

Note: When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.Recording a ProgrammeIMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option in the Media Browser>Settings>Recording Settings menu.To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.To use recording your USB drive should have 2 GB free space and be USB 2.0 compatible. If the USB drive is not compatible an error message will be displayed.To record long duration programmes such as movies, it is recommended to use USB Hard disk drives (HDD's).Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours.Recoded programmes are split into 4GB partitions.If the writing speed of the connected USB disk is not sufficient, the recording may fail and the timeshifting feature may not be available.It is recommended to use USB hard disk drives for recording HD programmes.Do not pull out the USB/HDD during a recording. This may harm the connected USB/HDD.Multipartition support is available. A maximum of two different partitions are supported. The first partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used for the PVR ready features.Some stream packets may not be recorded because of signal problems, as a result sometimes videos may freeze during playback.Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is on. If a recording starts from timer when teletext is on, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback.Timeshift RecordingPress Pause button while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk.Press Play button again to resume the paused programme from where you stopped. Press the Stop

button to stop timeshift recording and return to the live broadcast.Timeshift cannot be used while in radio mode.You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option.Instant RecordingPress Record button to start recording an event instantly while watching a programme. You can press Record button on the remote control again to record the next event after selecting the next programme from within the EPG. Press Stop button to cancel instant recording.You can not switch broadcasts or view the Media Browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.Watching Recorded ProgrammesSelect the Recordings from the Media Browser menu. Select a recorded item from the list (if previously recorded). Press the OK button to view the Play Options. Select an option then press OK button.Press the Stop button to stop a playback and return to the Recordings.Slow ForwardIf you press Pause button while watching recorded programmes, the slow forward feature will be available. You can use Rapid advance button to slow forward. Pressing Rapid advance button consecutively will change slow forwarding speed.Note: Viewing main menu and menu items will not be available during the playback. Please also note that previously set recording timer/s will not function while using the Recordings menu.Recording ConfigurationSelect the Recording Settings item in the Media Browser>Settings menu to configure the recording settings.Format Disk: You can use the Format Disk feature for formatting the connected USB disk. Your PIN is required to use the Format Disk feature.Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.IMPORTANT: Formatting your USB drive will erase ALL the data on it and it's file system will be converted to FAT32. In most cases operation errors will be fixed after a format but you will lose ALL your data.If "USB disk writing speed too slow to record" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does

System - Sound Menu Contents
Volume Adjusts the volume	level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance Adjusts whether the	sound comes from the left or right speaker.
Headphone	Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode	You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass	Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed as On or Off.
Digital Out	Sets digital out audio type.

System - Settings Menu Contents
Conditional Access		Controls conditional access modules when available.
Language		You may set a different language depending on the broadcaster and the country.
Parental		Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers		Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time		Sets date and time.
Sources		Enables or disables selected source options.
Accessibility		Displays accessibility options of the TV.
	Hard of Hearing	Enables any special feature sent from the broadcaster.
	Audio Description	A norration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.Note: Audio description sound feature is not available in recording or time shifting mode.
More		Displays other setting options of the TV.

TV Menu Contents

System - Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast Adjusts the light and dark values on the screen.
Brightness Adjusts the brightness values on the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Energy Saving	For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.
Advanced Settings
Dynamic Contrast You can change the dynamic contrast ratio to desired value.
Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
Picture Zoom Sets the desired image size format.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
RGB Gain (Optional)	You can configure the colour temperature values using the RGB Gain feature.
HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position Appears only when the input source is set to VGA/PC.
Autoposition Automatically optimizes the display. Press OK to optimize.
H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Resets the picture settings to factory default settings (except Game Mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

General TV OperationUsing the Channel ListThe TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the OK/TV button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.Managing the Favourite ListsYou can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.Configuring Parental SettingsThe Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.Set PIN: Defines a new PIN number.Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.Some options may not be available depending on the country selection in the First Time Installation.Electronic Programme Guide (EPG)Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.Timeline ScheduleZoom (Yellow button): Press the Yellow button to see events in a wider time interval.Filter (Blue button): Views filtering options.Highlight Genre (Subtitles button): Displays Highlight Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.Options (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.Search (Text button): Displays Guide Search menu.Now (Source button): Displays current event of the highlighted channel.Rec./Stop (Record button): The TV will start to record the selected event. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.List Schedule(*) (*) In this layout option, only the events of the highlighted channel will be listed.Prev. Time Slice (Red button): Displays the events of previous time slice.Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Menu Timeout Changes	times timeout duration for menu screens.
Software Upgrade	Ensures that your TV has the latest firmware. Press OK to see the menu options.
Application Version	Displays current software version.
Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated.
Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
CEC Auto Power On	This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
OSS Displays Open Source Software license information.

Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Installation Settings (Optional)	Displays installation settings menu. Standby Search(*) : Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*) : If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching. (*) Availability depends on model.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.

PC Input Typical Display Modes
The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.
Index Resolution Frequency
1	640x480 60 Hz
2	600 56 Hz
3	600 60 Hz
4	x768 60 Hz
5	x768 66 Hz
6	x768 60 Hz
7	x960 60 Hz
8	x1024 60 Hz
9	x768 60 Hz
10	0x1050 60 Hz
11	0x1200 60 Hz
12	0x1080 60 Hz
AV and HDMI Signal Compatibility
Source	Supported Signals		Available
EXT(SCART)	PAL 50/60		O
	NTSC 60		O
	RGB 50		O
	RGB 60		O
Side AV	PAL 50/60		O
	NTSC 60		O
PC/YPbPr	480I, 480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
	1080P 50Hz,60Hz O
HDMI	480I 60Hz O
	480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
	1080P	24Hz, 25Hz30Hz, 50Hz,60Hz	O

No picture

This means your TV is not receiving any transmission.Make sure the correct source has been selected.Is the antenna connected properly?Is the antenna cable damaged?Are suitable plugs used to connect the antenna?If you are in doubt, consult your dealer.

No soundCheck if the TV is muted. Press the Mute button or increase the volume to check.Sound may be coming from only one speaker. Check the balance settings from Sound menu.

Remote control - no operationThe batteries may be exhausted. Replace the batteries.

Input sources - can not be selectedIf you cannot select an input source, it is possible that no device is connected. If not;Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

Recording unavailableTo record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device.

USB is too slowIf a “USB disk writing speed too slow to record” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

will become colour-coded and can be selected bypressing the coloured buttons. Follow the instructionsdisplayed on the screen.

Digital TeletextPress the Text button to view digital teletext information.Operate it with the coloured buttons, cursor buttonsand the OK button. The operation method may differdepending on the contents of the digital teletext. Followthe instructions displayed on the digital teletext screen.When the Text button is pressed again, the TV returnsto television broadcast.

Software UpgradeYour TV is capable of finding and updating the firmwareautomatically via the broadcast signal.

Software upgrade search via user interfaceOn the main menu select System>Settings and thenMore. Navigate to Software upgrade and press theOK button. In Upgrade options menu select Scanfor upgrade and press OK button to check for a newsoftware upgrade.

If a new upgrade is found, it starts to downloadthe upgrade. After the download is completedconfirm the question asking about rebooting theTV by pressing the OK to continue with the rebootoperation.

3 AM search and upgrade modeYour TV will search for new upgrades at 3:00 o'clock ifAutomatic scanning option in the Upgrade optionsmenu is set to Enabled and if the TV is connectedto an aerial signal. If a new software is found anddownloaded successfully, it will be installed at thenext power on.Note: Do not unplug the power cord while led is blinking duringthe reboot process. If the TV fails to come on after the upgrade,unplug, wait for two minutes then plug it back in.

Troubleshooting & TipsTv will not turn onMake sure the power cord is plugged in securely towall outlet. Check if batteries are exhausted. Press thePower button on the TV.

Poor pictureCheck if you have selected the correct TV system.Low signal level can cause picture distortion. Pleasecheck antenna access.Check if you have entered the correct channelfrequency if you have done manual tuning.The picture quality may degrade when two devicesare connected to the TV at the same time. In such acase, disconnect one of the devices.

Event Details (Info button): Displays detailed information about selected events.Filter (Text button): Views filtering options.Next Time Slice (Green button): Displays the events of next time slice.Options (OK button): Displays event options.Rec./Stop (Record button): The TV will start to record the selected event. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.Now/Next ScheduleOptions (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Filter (Blue button): Views filtering options.Rec./Stop (Record button): The TV will start to record the selected events. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.Event OptionsUse the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.Select Channel: Using this option, you can switch to the selected channel.Record / Delete Rec. Timer: Select the Record option and press the OK button. If the event is going to be broadcasted at a future time, it will be added to Timers list to be recorded. If the selected event is being broadcasted at the moment, recording will start immediately.To cancel an already set recording, highlight that event and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled.Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.Notes: You cannot switch to any other channel or source while there is an active recording or timer on the current channel. It is not possible to set timer or record timer for two or more individual events at the same time interval.Teletext ServicesPress the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages

Supported DVI Resolutions
When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz	60Hz	66Hz	70Hz	72Hz	75Hz
640x400				☑
640x480		☑	☑		☑	☑
800x600	☑	☑		☑	☑	☑
832x624						☑
1024x768		☑	☑	☑	☑	☑
1152x864		☑		☑		☑
1152x870						☑
1280x768		☑				☑
1360x768		☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑

Supported File Formats for USB Mode
Media Extension Format Notes
Video	.mpg,.mpeg	MPEG1-2 MPEG1:	768x576 @ 30P, MPEG2:1920x1080 @ 30P
	.vob MPEG2		1920x1080 @ 30P
	.mp4 MPEG4, Xvid,H.264
	.mkv H.264,	MPEG4,VC-1
	.avi MPEG2	MPEG4, Xvid,H.264
	.flv H.264/VP6/Sorenson		H.264/VP6: 1920x1080 @ 30PSorenson: 352x288 @ 30P
	.mp4, .mov,.3gpp, .3gp,MPEGtransportstream, .ts.,trp, .tp,.mkv	HEVC/H.265 1080P	@60fps - 50Mbps
	.3gp MPEG4 , H.264 1920x1080 @ 30P
Audio	3 MPEG1 Layer2/3		Layer2: 32Kbps ~ 448Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz (Sampling rate)Layer3: 32Kbps ~ 320Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz, 8kHz, 11.025kHz, 12kHz (Sampling rate)
	(worksonly withvideofiles)	AC3 32Kbps ~ 640Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
		AAC 16Kbps ~ 576Kbps (Bit rate) / 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz (Sampling rate)
		EAC3 32Kbps ~ 6Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
		LPCM Unsigned 8bit PCM, Signed/Unsigned 16bit PCM (big / little endian), 24bit PCM (big endian), DVD LPCM 16/20/24bit (Bit rate) / 6kHz, 8kHz, 11.025kHz, 12kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (Sampling rate)
		IMA-ADPCM/MS-ADPCM	384Kbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)
		LBR 32Kbps ~ 96Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
Picture	.jpeg	Baseline	Resolution(WxH): 17000x10000
		Progressive	Resolution(WxH): 4000x4000
	.bmp	-	Resolution(WxH): 5760x4096
Subtitle	.sub, .srt	-	-

General PlaybackBasic Play1. Press on the power button2. Please insert a disc into the loader.The disc will be automatically loaded and play willcommences if the disc does not have any menusrecorded on it.A menu may appear on the TV screen after a fewmoments or the film may start immediately. Thisbehaviour depends on the disc content and maychange.Note:Step 3 and 4 is available only when a menu is recordedon the disc.3. Press Down / Up / Left / Right or the numericbutton (s) to select the preferred title.4. Press OK.To confirm the selected items. The played item maybe a motion picture, a still picture or another submendepending on the disc.For your reference:If an action corresponding to a button is prohibited the " symbol appears.Notes on Playback:1. No sound will be heard during Rapid advance orRapid reverse.2. No sound will be heard during Slow motion play.3. Reverse slow motion play may not be availabledepending on the dvd content.4. In some cases, the subtitle language is notchanged immediately to the selected one.5. When the preferred language is not selected evenafter pressing the button several times, it means thatthe language is not available on the disc.6. When the player is restarted or the disc ischanged, the subtitle selection is automaticallychanged back to the initial settings.7. If a language is selected, not supported by thedisc, the subtitle language will automatically beset to the disc's priority language.8. Usually a circulation will happen while switchingto another language, that is you can cancel thesubtitle by pressing this button a number of timesuntil "Subtitles Off" appears on the screen.9. When the power is turned on or the disc isremoved, the language heard is the one selectedat the initial settings. If this language is notrecorded on the disc, only the available languageon the disc will be heard.10. Some DVDs may not contain root and/or titlemenus.11. Reverse stepping is not available.12. For your convenience:If you attempt to enter a number greater thanthe total time of the current title, the time searchbox disappears and "Input Invalid" messageappears on up-left corner of screen.13. Slide Show is disabled when the ZOOM mode is on.

DVD TroubleshootingPoor picture quality (DVD)Make sure the DVD disc surface is not damaged.(Scratch, fingerprint etc.)Clean the DVD disc and try again.See instructions described in "Notes on Discs" to cleanyour disc properly.Ensure that the DVD disc is in the tray with the labelfacing upward.A damp DVD disc or condensation may effect theequipment. Wait for 1 to 2 hours in Stand-by to drythe equipment.Disc does not playNo disc in the machine. Place a disc into the loader.Disc incorrectly loaded.Ensure that the DVD disc is in the tray with the labelfacing upward.Wrong type of disc. The machine cannot play CD-ROMS etc. The region code of the DVD must matchthe player.Wrong OSD languageSelect the language in the set-up menu.The language for the sound or subtitles on a DVDcannot be changed.Multilingual sound and/or subtitles not recorded onthe DVD.Try to change the sound or subtitles using DVD's titlemenu. Some DVD's do not allow the user to changethese settings without using the disc's menuThese functions are not available on the DVD.No pictureMake sure you have pressed the correct buttons onthe remote control. Try once more.No soundCheck if volume is set to an audible level.Make sure the sound isn't turned off by mistake.Distorted soundCheck that the appropriate listening mode settingis correct.If nothing worksIf you have tried the above solutions and none seemto work, try switching your TV-DVD off and on again.If this does not work, contact your supplier or TV-DVDrepair technician. Never attempt to repair a defectiveTV-DVD yourself.

On cleaning

Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

Licence Notification

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

How to Watch a DVD

When placing a disc into the loader, labeled side of the disc should be on the front.

When TV set is turned on, first switch to DVD source by using the Source button on the remote control. Press play on the remote control, or directly press play button at the front panel. If there is no disc inside the loader, place a DVD first and press play.

Note:If you switch to another source by pressing Source, Swap or Programme +/- buttons on the remote control, DVD playback will be paused automatically. You should press Play button and resume the playback manually when you switch to DVD mode.

DVD Control Panel Buttons

Play / Pause)

Plays/pauses the disc. When DVD menu (root menu) is active, this button functions as "button select" (selects the highlighted item in menu) if this is not prohibited by the disc.

Stop playing disc / Eject or Load the disc.

Note:You cannot eject the disc via the remote control.While playing a file, you should press STOP button three times to eject.

DVD Mode

Safety Information CAUTION

DVD Player is a class 1 laser product. However this product uses a visible laser beam which could cause hazardous radiation exposure. Be sure to operate the player correctly as instructed.

CLASS 1 LASER PRODUCT

RISK OF ELECTRIC SHOCK

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock of persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Notes on Discs

On handling discs

- To keep the disc clean, handle the disc by its edge. Do not touch the surface. - Do not stick paper or tape on the disc. - If the disc is contaminated with any substance like glue remove before using it.

Two diagrams showing a hand pressing a circular object on the left and a cross symbol on the right (no text or symbols present)

- Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature can rise quickly and damage the disc. - After playing, store the disc in its case.

1. Standby

2. Numeric buttons

3. TV Menu

4. Navigation buttons

5. OK / Select

6. Back

7. Angle

8. Info

9. Display / DVD Menu

10. Zoom

11. Language selection

12. Subtitle

13. Rapid reverse

14. Play

15. Stop

16. Rapid advance

17. Pause

18. Root

19. Title

20. Repeat

21. Search mode

22. Source

Note: Buttons not indicated with a number are not functional in DVD mode.

Overview of the Remote Control

Disc Types Compatible with This Unit

Disc Types (Logos)	Recording Types	Disc Size	Max. Playing Time	Characteristics
DVD DVD VIDEO	Audio + Video	12 cm	Single-sided; 240 min.Double-sided; 480 min.	• DVD contains excellent sound and video due to Dolby Digital and MPEG-2 System.• Various screen and audio functions can be easily selected through the on screen menu.
AUDIO-CD COMPACT DISC DIGITAL AUDIO	Audio 12 cm	74 min.		• An LP is recorded as an analog signal with more distortion. CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
MP3-CD MP3 READABLE	Audio (xxxx.mp3)	12 cm	It depends on MP3 quality.	• MP3 is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
PICTURE-CD JPEG READABLE	Video (still picture)	12 cm	It depends on JPEG quality.	• JPEG is recorded as a Digital Signal with better picture quality over time.

For proper operation, only 12 cm discs must be used.

Specifications

Types of Discs Supported	DVD: SS/SL 4.7" (DVD-5)SS/DL 4.7" (DVD-9)DS/SL 4.7" (DVD-10)DS/DL 4.7" (DVD-18)	CD-DCD-RCD-RWMP-3/JPEG
Video Type	MPEG-2 Video Standard Decoding (MPEG-1 supported)Full-Screen Video Display of 720 x 576 (PAL) & 720 x 480 (NTSC) pixels50 and 60 Hz frame refresh rates (PAL & NTSC)Digital bit-stream processing rate up to 108Mbits/secLine resolution more than 500 lines
Audio Type	MPEG Multichannel DecodingLPCM
Audio Output	Analog Outputs:24 bit /48, 44.1kHz down-sampling DAC

General DVD Operation (depending on model)
You can operate DVD, movie CD, music or picture CD's content by using the proper buttons on your remote control. Below are main functions of commonly used remote control buttons.
2. Plug the other side of 12 volt cable into DC 12 socket on the back side of the TV. Then the standby LED will light up.
3. Press the Standby button, Programme +/- buttons or a numeric button on the remote control or press the middle of the control switch on the TV in. The TV will then switch on. 4. Adjust the antenna position for better reception or reinstall TV channels if necessary.
Switching the TV Off
1. Press the Standby button on the remote control or press the middle of the control switch on the TV in and hold it down for a few seconds, so the TV will switch into standby mode. 2. Unplug cable connectors and power plugs.

ATTENTION: 12 V Input :

Other Functions – Button Combinations (During playback)

||+▶▶	Slow forward
(||+▶▶)+◀◀▶▶	Sets slow forward speed
▶▶+▶▶	Sets rapid advance speed
◀◀+◀◀	Sets rapid reverse speed
■+■	Confirms stop command
||;▶▶|	Press▶▶peatedly to advance manually

(*) You can switch to title by pressing numeric keys directly. You need to press 0 and then digit key to switch one digit titles (example: to select 5, press 0 and 5).

Close-up of a mechanical component with glowing light beams and mounting holes (no visible text or symbols)

Tilslut strøm VIGTIGT: TV

(\*) MIN KNAP 1 & MIN KNAP 2:

KLASSE 1 LASERPRODUKT

RISIKO FOR ELEKTRISK ST∅D

Two hand-drawn diagrams showing a hand pressing down on a circular object and a cross symbol on a ring (no text or symbols)

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		75	75
C	Screw Sizes
D Length (X)		min. (mm)	5
		max. (mm)	8
E	Thread (Y)	M4

	A B C D E
English	VESA WALL MOUNT MEASUREMENTS	Hole Pattern Sizes (mm)	Screw Sizes Length (X)		Thread (Y)
Deutsch	MASSANGABEN FÜR VESA-WANDMONTAGE Lochmustergrößen (mm)		Schraubengrößen	Länge (X) Gewinde (Y)
Français	DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA	Dimensions des modèles de trous de montage (mm)	Dimensions des vis	Longueur (X) Filetage (Y)
Italiano	Misurazioni installazione a parete VESA Dimensioni schema for (mm)		Dimensioni vite	Lunghezza (X) Filettatura (Y)
Português	MEDIÇÕES DE MONTAGEM MURAL VESA Dimensões do mold de furação (mm)		Tamanhos do parafuso	Comprimento (X) Rosca (Y)
Español	MEDIDAS DEL MONTAJE DE PARED VESA	Tamaños de patrón para agujero (mm)	Tamaños de tornillo	Longitud (X)	Rosca (Y)
Türkçe	VESA DUVARA MONTAJ APARATI ÖLÇÜLERİ	Açılacak Delik Ölçüleri (mm)	Vida Ölçüleri	Uzunluk (X)	Yüzey (Y)
Ελληνικ	ΔΙΑΣΤΑΣΕΙΣ ΒΑΣΗΣ ΤΟΙΧΟΥ VESA	Μεγέθη σχήματος σπών (mm)	Μεγέθη βιδών	Μήκος (X)	Σπείρωμα (Y)
Polski	WYMIARY DO MONTAZU NAŚCIENNEGO VESA	Rozmiary szablonu otworów (mm)	Rozmiary wkrętów	Długość (mm)	Gwint (Y)
čeština	ROZMĚRY DRŽÁKU NA ZEŐ VESA	Rozměry velikosti děr (mm)	Rozměry šroubú	Délka (X) Závit (Y)
Magyar	VESA FALI TARTÓ MÉRETEK	Lyukak méretének nagysága(mm)	Csavar méret	Hossz (X)	Menet (Y)
Română	MĂSURĂTORI SUPORT PERETE VESA	Dimensiuni tipar gaură (mm)	Dimensiuni şuruburi	Lungime (X)	Filet (Y)
Svenska	VESA VÄGGMONTERINGSMÄTT	Hålmönsterstorlear (mm)	Skruvstorlekar	Längd (X) Träd (Y)
Nederlands	VESA WANDMONTAGE METINGEN	Grootte booropening (mm)	Schroefgroote	Lengte (X)	Draad (Y)
Suomi	VESA-SEINÄASENNUKSEN MITAT	Reikäkuvion koot (mm)	Ruuvinkoot	Pituus (x) Kierre (Y)
Norsk	VESA VEGGMONTERINGSMÄL	Hullmønster størrelser (mm)	Skruestørrelser	Lengde (x)	Träd (Y)
Dansk	VESA VÆGMONTERINGS-MÄL	Hulmønster-størrelser (mm)	Skruestørrelser	Længde(X)	Träd (Y)
Русский	РАЗМЕРЫ НАСТЕННОГО КРЕПЛЕНИЯ VESA	Размеры системы отверстий	Размеры винтов	Длина(X)	Резьба (Y)
беларуская	ПАМЕРЫ НАСЦЕННАТА МАЦАВАННЯ VESA	Памеры сістамы адтулін	Памеры вінтоў	Даўжыня (X)	Разьба (Y)
македонски	МЕРКИ ЗА МОНТИРАЊЕ НА SИД ЗА „BECA”	Шема на големини на дупката (mm)	Големина на шрафот	Должина (X)	Навој (Y)
український	РОЗМІРИ НАСТИННОГО КРІПЛЕННЯ VESA	Відстань між кріпильними отворами, мм	Розміри гвинтів	Довкина (X)	Діаметр різьби (Y)
Srpski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije zavrtnjeva	Dužina (X)	Navoj (Y)
Slovenčina	ROZMERY DRŽIAKA NA STENU VESA	Rozmery veľkosti dier (mm)	Rozmery skrutiek	Dĺžka (X)	Závit (Y)
Slovenščina	MERE STENSKEGA NOSILCA VESA	Velikosti vzorca lukenj (mm)	Velikosti vijakov	Doližina (X)	Navoj (Y)
Hrvatski	VESA MJERE ZIDNOG DRŽAČA	Veličine uzorka otvora (mm)	Veličine vijka	Dužina (X)	Navoji (Y)
Bosanski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije vijaka	Dužina (X)	Navoj (Y)
Български	РАЗМЕРИ ЗА КОМПЛЕКТ ЗА МОНТАЖ НА СТЕНА VESA	Размери на отвора (mm)	Размер на болта	Дължинат (X)	Резба (Y)
Lietuvių	VESA TVIRTINIMO PRIE SIENOS MATAVIMAI	Angos šablono dydis (mm)	Varžtu dydis	Ilgis (X)	Sriegis (Y)
Latviešu	VESA SIENAS STIPRINĀJUMA IZMĚRI	Caurumu šablona izmērs (mm)	Skrūyju izmēri	Garums (X)	Vitne (Y)
Eesti	VESA SEINALE KINNITAMISE MÕÕDUD	Kruvi suuruse mõõt (mm)	Kruvi suurus	Kõrgus(x)	Keere (Y)
Shqip	PĚRMASAT E NUŠISĚ ŠÉ MONTIMIT NĚ MUR VESA	Madhėsitě modele të vrimave (mm)	Madhėsitě e vidhave	Gjatėsia (X)	Filetimi (Y)
عربي	مQUISSI للتشبیت على الجدار	(م) ح minimالنوب (م)	اح minimالنراعی	(Х) الطول (Y)	(Х)
لازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلا�لازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلاузلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازlaزلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaز laزلازlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaز laزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزлаزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزLaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlarlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizi laizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlalizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizllaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlasa laizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizi lozilai laizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizu laizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaiza laizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaix laizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaize laizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaikaa laizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlauzlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizlaizu l'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuz l'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajazl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajuzl'ajazn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajazn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuz n'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuz n'ajazn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuznl'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuznl'ajazn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuzn'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuznd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzd'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzda'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzdu'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzds'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzdi'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzdl'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzdn'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd'ajuzd

A	Product Fiche
B	Commercial Brand:andersson
C	Product No.	10111744
D	Model No.	LED24522HD DVD
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	24 inches	61 cm
G	On mode average power consumption (Watt)	19
H	Annual energy consumption (kWh/annum)	27
I	Stand by power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1366x768

	A	B	C	D	E	F	Visible screen size(diagonal, approx.) (inch/cm)
English	Product Fiche Commercial Brand Product No.			Model No. Energy efficiency class
Deutsch	Produkt-Datenblatt	Markenzeichen		Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	Sichtbare Bildschirmgroise(diagonal,ca.) (Zoll /cm)
العربية	العربية الحرفية	العربية الحرفية	العربية	العربية	العربية	العربية	العربية
Български	Справочен лист с техническите данни	Търговска марка	Продукт No	Модел No	Клас на енергийна ефективност	Клас на енергийна ефективност	Видим размер на екрана(диагонал,прибл.) (инча /см )
čeština	Produktový list	Značka výrobce	Číslo produktu	Model č.	Energetická třída	Energetická třída	Viditelna velikost obrazovky(ühlopříčka,přibl.) (palců /cm)
Dansk	Produktoplysningsskema	Varemærke	Produktnr.	Model nr.	Energieffektivitetsklasse	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Virran tehokkuusluokka	Nákyván kuvaruudun koko(diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Classe d'efficacité énergétique	Taille d'écran visibile (diagonale,approx.(pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Klasa energetske učinkovitosti	Vidljiva veličina ekrana(dijagonalna,približno) (inča/cm)
Nederlands	Productfiche	Commercieel merk.	Productnr.	Modelnr.	Energie efficiëntie klasse	Energie efficiëntie klasse	Zichtbare schermgrootte(diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial	N° de Producto	N° de Modelo	Clasificación Energética	Clasificación Energética	Tamaño de pantalla visibile(diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke	Produktnr.	Modellnr.	Energiklass	Energiklass	Synlig skärmstorlek(diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di efficienza energetica	Classe di efficienza energetica	Dimensioni visibili dello schermo(diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU Marka produktu Nr produktu Nr modelu				Klasa efektywności energetycznej	Klasa efektywności energetycznej	Widoczny obraz ekranu(przekątna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka	Termékszám	Modellszám	Energiahatékonysági osztály	Energiahatékonysági osztály	Latható képtartomány (diagonális,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Modell nr.	Energieffektivitet klasse	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial	Produto N°	Modelo N°	Classificação eficiência energética	Classificação eficiência energética	Tamarrho ocrã visível (diagonal, aprox.) (polegadas/cm)
Română	Fişă produs	Marcă comercială	Nr. Produs	Nr. Model	Clasa de eficiență energetică	Clasa de eficiență energetică	Dimensiunea ecranului vizibil(diagonală, aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Класс энергопотребления	Видимый размер экрана (по диагонали, приблизительно)(дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Класс энергопотребления	Видимый размер экрана (по диагонали,Около)(дюймов/см)
македонски	Технички податоци	Комерцијална марка	Производ бр.	Модел бр.	Класа на енергетска ефикасност	Класа на енергетска ефикасност	Големина на видлив екран(дијагонала, околу) (инчи/см)
український	Технічні дані	Кормеційна марка	Артикул	Модель	Клас енергоспоживання	Клас енергоспоживання	Видимий розмір екрана (диагональ, Приблизно) (дюймів/см)
Srpski	Tehničke odlike	Komercijalna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Klasa energetske efikasnosti	Velicina vidljivog ekrana (diagonalala,tokom) (inča/cm)
Slovenčina	Produktový list	Značka výrobcu	Číslo produktu	Model č.	Energetická trieda	Energetická trieda	Viditeňná velikost obrazovky(uhlopriečka, zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka	Št. Izdelka	Št. Modela	Razred energetske učinkovitosti	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллэнvik	Делтіо проϊόντος	Еупторіко σήμα	Ар. Проϊόντος	Ар. Монтёлου	Каттуорія евергейакің апобосты	Каттуорія евергейакің апобосты	Орото музе́юс о́дуо́юн‘с (діагу́юн’юс, тпр.) (інтегс/см)
Bosanski	Техніčki podaci	Komercijalna marka	Produkt br.	Model br.	Klasa energetske efikasnosti	Klasa energetske efikasnosti	Vidljiva veličina ekrana (diagonala približno.) (inča/cm)
لاوي	لاوي علاب	لاوي علاب	لاوي علاب	لاوي علاب	لاوي علاب	لاوي علاب	(لاوي)(لاوي,لاوي) (لاوي)
Türkçe	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimliliği sınıfı	Enerji verimliliği sınıfı	Gorulien ekran boyutu (çapraz, yakışk.) (inch/cm)
Shqlp	Të dhēnat e produktit	Marka tregtare	Nr. i produktit.	Nr. i modelit.	Klasa е eficiencès sê energjisë	Klasa е eficiencès sê energjisë	Madhęsla e ekranit té dukshèm (diagonal, afërsisht) (inch/cm)
Lietuvių	Gaminio etiketė	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasė	Energetinio efektyvumo klasė	Matomas ekranо dydis (jstrizainė,approx.) (colių/cm)
Latviešu	Produkta apraksts	Marka	Produkta nr.	Modela nr.	Energoefektivitätes klase	Energoefektivitätes klase	Ekran a izmers (pa diognali, apmçram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma	Toote nr.	Mudeli nr.	Energiaklass	Energiaklass	Vaadatava ekraani suurus (diagonaal,umbes) (tolli/cm)
فرمسی	مشخصات محصول	مارک تجاری	ثموزه محصول	ثموزه مثل	گروو کارایی انرزی	گروو کارایی انرزی	(انزی، صط. خاطن، مشخصات (شاسی، تقریا) (بیچ) (سانتی متر)

	G	H	I	J	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	(Watt)	Stromverbrauch im ausgeschalletem Zustand (Watt) Display-Auflösung (px)
عربية	مترسط استهلك الطاقة عند التشغير (فولط)	(الاستهلك السنوي للطاق/اكيليو واملاط/الم lacta)	(استهلك الطاقة في wrضع الاستعد/أ "(وط)	(استهلك الطاقة في wrضع الإيفر/أ "فولط)	(وصح الشاش/كىمل)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишна консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Prüměrná spotřeba elektrické energie v zapnutém režimu (Wattú)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovstním režimu (Wattů)	Spotřeba elektrické energie ve vypnutém režimu (Wattů) Rozlišení disp	peje (px)
Dansk	Gennemsnitligt stromforbrug i taëndt tilstand (Watt)	Ärligt energiforbrug (kWh/Ärligt)	Strømforbrug (standby)(Watt)	Strømforbrug i slukket tilstand (Watt)	Skæmopløsning (px)
Suomi	Päällä-tilan keskimääräinen virrankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakovirran kulutus (Wattia)	Pois-tilan virrankulutus (Wattia)	Näytön erottelukyky (pikselia)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode 'arrêt' (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod sključen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik(kWh/Jaarlijks )	Stand-by stroomverbruik (Watt)	Jit-modus stroomverbruik (Watt)	Schemresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual) Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PÄ-läge (Watt)	Energikonsumtion per år (kWh/Arlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skämupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Srednie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Srednie zużycie energii w trybie oczekiwania (Watów)	Zużycie energii w trybie włączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt) Éves energiafogyasztás	(kWh/Éves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pàmodus gjennomsnittlig strømforbruk (Watt)	Ärlig strømforbruk (kWh/Ärlig)	Hvilemodus strømforbruk (Watt)	Av-modus strømforbruk (Watt)	Skjermopplösning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual) Consumo energia em stand-by (Watt)	Consumo annual energia (kWh/Anual) Consumo energia em stand-by (Watt)	Consumo energy em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu în modul pornit (Wat)	Consum anual de energie (kWh/anual)	Consum electric în stare de repaus (Wat)	Consum electric în modul oprit (Wat)	Rezoluția ecranului (pixel)
Русский	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kВтч!Год)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/гадавое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е включен	Годишна потрошувачка на енергија (kWh/Годишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня споживана потужність у робочому режимі (Вт)	Середньорична споживана потужність (kWh/Річне)	Споживана потужність у режимі очікування (Вт)	Споживана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključeni (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključeni (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priememă spotreba elektrickej energie v zapnutom režime (Wattov)	Ročnă spotreba energie (kWh/Ročnă)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo yupnutom režime (Wattov)	Rezlišenie displeja (pixl.)
Slovenščina	Poraba električne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллэнvik	Мёсяن катанάλωση ρεύματος λειτουργίος (Watt)	Etήσια κατανάλωση ενέργειος (kWh/Etήσια)	Κατανάλωση ρεύματος στην αναφονή (Watt)	Κατανάλωση ρεύματος στενεργοποιηση (Watt)	Ανάλωση οθόνης (Піξελ)
Bosanski	Prosjčna potrošnja kada je uključen(Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucija ekrana (piks.)
Түйкçe	(оки)'(/ызн ат түнізн ат түнізн ат түнізн ат түнізн ат түнізн ат түнізн ат түнізн ат түнізн ат түнізн ат түнізн ат түнізн ат түнізн ат түнізн а:	(подостів'/'б'я')	(подостів'/'б'я')	(подостів'/'б'я')	(подостів'/'б'я')
Türkçe	Açık moddaki ortalama güç tüketimi (Watt)	Yıllik enerji tüketimi(kWh/yıllik)	Bekleme durumunda enerji tüketimi (Watt)	Kapali moddaki güç tüketimi (Watt)	Ekran çözünürlüğü (piks.)
Shqip	Konsumi mesatar i energijisë si i ndezur (Watt)	Konsumi vjetor i energijisë (kWh/vjetor)	Konsumi i energijisë si në gatishmëri (Watt)	Konsumi i energijisë si ifikur (Watt)	Rezolucioni i ekranit (piks.)
Lietuvių	Vidutinës energijos sąnaudos jungus (Vatai)	Metinës energijos sąnaudos (kWh/Metinës)	Energijos sąnaudos budėjimo režimu (Vatai)	Energijos sąnaudos išjungus (Vatai)	Ekrano skiriamoji geba (pikselių)
Latviešu	Energijas patērīņš aktívă režimă (Vati)	Gada energijas patērīņš (kWh/gada)	Energijas patērīņš galdīšanas režimă (Vati)	Energijas patērīņš izslēgtă stāvokli (Vati)	Displeja rezolūcija (piksđiem)
Eesti	Keskmine energiakulu töörežiimil (Vatti)	Aastane energiakulu (kWh/aastane)	Energiakulu ooterežiimil (Vatti)	Energiakulu väljalülitatud olekus (Vatti)	Ekraani resolutsioon (pikslt)
افراسي	(муزان متوسط مصرف بوق در حاتت فمال (وان)	(муزان اززوي مصرف نر سالا)(کفیروات)ساعتبادر سال)	(مصرف بوق حکل آ Monacoه به کار (وان)	(муزان مصرف بوق در حاتت غیرف Oman (وان)	(وضع被 مبناز) (م deckار)

andersson

Företagsgatan 69

504 64 Borås

Sweden
