101E NEON - Tablet ARCHOS - Free user manual and instructions

Product Type	Touchscreen Tablet
Brand	ARCHOS
Model	101E NEON
Screen Size	10.1 inches
Power Supply	Rechargeable lithium-ion battery, mains charger included
Battery Life	Varies by usage (can be extended by reducing brightness and disabling wireless connections)
Wireless Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth
Sensors	Accelerometer (automatic orientation)
Camera	Front webcam and rear camera
Ports and Connectors	3.5 mm audio jack, micro-USB, HDMI output, power connector, micro-SD card reader
Speakers	Built-in speaker
Microphone	Built-in microphone
Operating System	Android
Memory	Not specified (internal storage capacity varies by version)
Weight	Approximately 500 g (estimated)
Dimensions	Not specified (10.1-inch tablet)
Box Contents	Tablet, quick start guide, warranty and legal notices guide, charger
Care and Cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture or extreme temperatures. Use only the supplied charger.
Repairability and Spare Parts	Not specified (contact ARCHOS customer service)
General Information	Brand: ARCHOS, Model: 101E NEON, Made in China

Frequently Asked Questions - 101E NEON ARCHOS

How to turn on the ARCHOS 101E NEON tablet?

Press the ON/OFF button on the side of the device for a few seconds until the screen turns on.

How to connect the tablet to a WiFi network?

Pull down the status bar, tap it again to access quick settings, then select the WiFi icon. Turn on WiFi and choose your network from the list. Enter the password if required.

How to reset the tablet if it becomes unresponsive?

Press and hold the ON/OFF button for 10 seconds until the device restarts.

How to extend battery life?

Reduce the screen brightness and disable wireless connections (WiFi, Bluetooth) when not in use.

How to insert a micro-SD card?

Insert the micro-SD card into the card reader on the side of the tablet, label facing up, until it clicks.

How to take a screenshot?

Press and hold the ON/OFF button and the Volume Down button simultaneously for one second. The screen will flash and the screenshot will be saved in the gallery.

How to update the tablet's software?

Go to www.archos.com/support to download updates. You can also check for updates in Settings > About Tablet > Software Update.

What to do if the tablet does not turn on?

Make sure the battery is charged. Plug in the charger and let it charge for at least 10 minutes. Then press the ON/OFF button for 10 seconds.

How to factory reset?

Go to Settings > Backup & Reset > Factory Data Reset. Note: this erases all data.

How to contact ARCHOS customer service?

Visit www.archos.com, click on Support > After-Sales Service, or send a message on Facebook: www.facebook.com/ARCHOS.

USER MANUAL 101E NEON ARCHOS

Congratulations for the purchase of an ARCHOS device!

This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device,

• You can consult the frequently asked questions on our website:
  go to http://faq.archos.com/

• You can send us a message on Facebook:
  go to www.facebook.com/ARCHOS

• You can contact our After-sales department:
  go to www.archos.com, click Support > After-sales support >

• You can consult the declaration of conformity:
  go to www.archos.com, click Support > Downloads >

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Contents

Front view of a tablet device with no visible text or symbols on the screen face

ARCHOS 101e Neon

QSG booklet

Warranty, legal & safety booklet

Illustration of a black cable with a USB port icon (no text or symbols)

USB cable

Charger

Getting Started

Charging

Simple diagram of a tool interacting with a vertical bar, no text or symbols present

1. Charge your device by plugging your power cable into the power connector. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.
3. You can use your ARCHOS whilst it charges.
4. Let your device charge completely the first time you use it.
5. Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

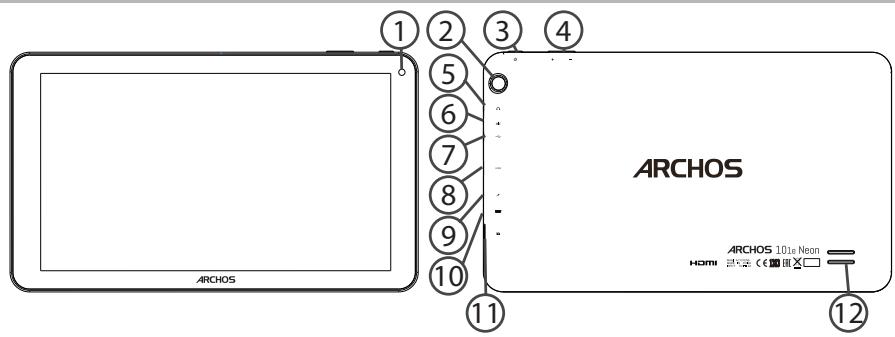

Description of the device

① Front camera
②Back camera
③ON/OFF button
④Volume buttons

⑤ Headphone jack
⑥ Microphone
⑦ Micro-USB port
⑧ HDMI video output*

⑨ Power connector
⑩ Reset button
⑪ Micro-SD card slot
⑫ Loudspeaker

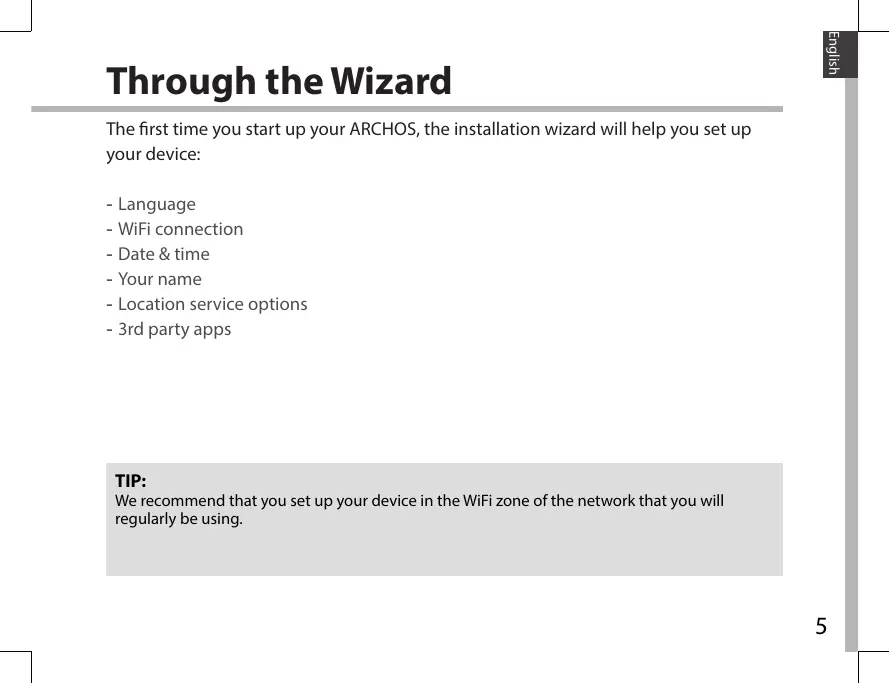

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Language
• WiFi connection
• Date & time
• Your name
• Location service options
• 3rd party apps

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

WARNING: Make sure that you are in a WiFi zone.

You can access the WiFi settings quickly from the status bar.

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon 📋 to activate the WiFi connection 🔊.

4. Select "WiFi" below the WiFi icon.

5. Touch the name of network you want to connect to. Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

Connecting to WiFi using WPS

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon 📋 to activate the WiFi connection 📋.
4. Select "WiFi" below the WiFi icon.
5. Select the Menu button, then Advanced.
6. Select WPS Push Button.
7. Press the WiFi Protected Setup button on your router. It may be called "WPS" or contain a symbol:

Wi-Fi

Add network

Saved networks

Refresh

Advanced

Wi-Fi Direct

WPS Push Button

WPS Pin Entry

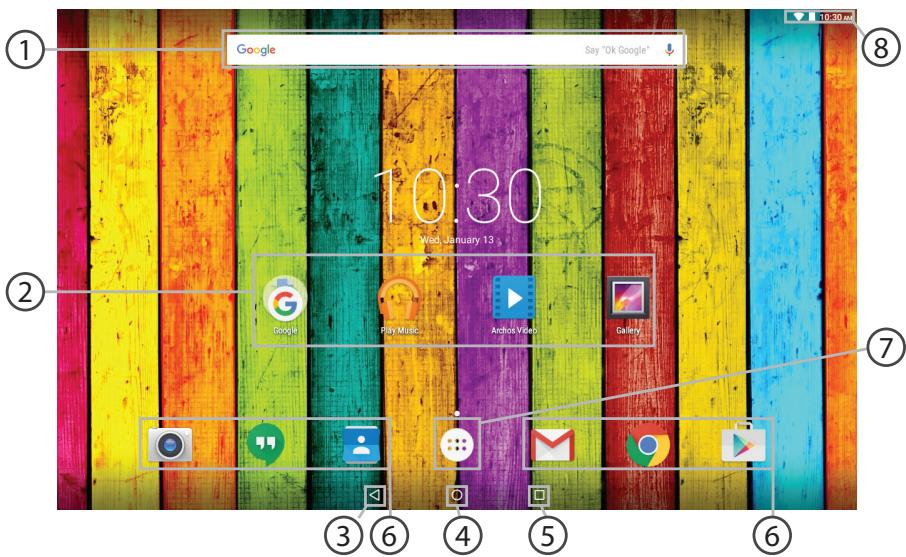

The Android™ Interface

① Google™ Search

Touch "Google" for text search or touch the microphone icon for voice search.

② Android™ apps shortcuts

Touch to start an application.

③ Back button

④ Home button

⑤ Recent apps buttons

⑥ Permanent Android™ apps shortcuts

Touch to start an application

⑦ All Apps button

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

⑧ The status bar

Displays notifications and quick settings

The Android™ Interface

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

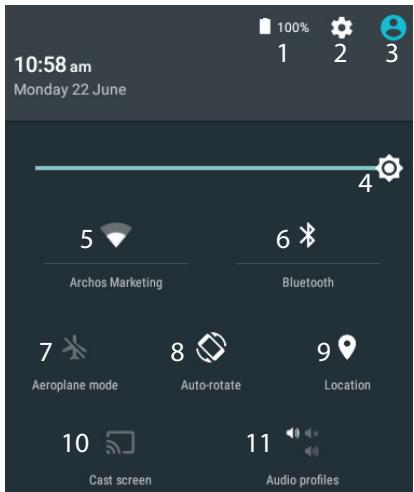

The Quick settings

1 Percentage of battery remaining
2 To access all your settings.
3 Current user*
4 To adjust the screen brightness.
5 To turn on/off your WiFi connection.
6 To turn on/off your Bluetooth connection.
7 To activate/deactivate all wireless connections, especially when flying.
8 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
9 Location services
10 To mirror your Android device to the TV so you can enjoy your great content exactly as you see it on your mobile device.
11 To select a notification type

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Archos GamePad 2 Unboxing leader
1 year ago · 20K views

Archos GamePad 2 Unboxing leodee
1 year ago · 20K views

Archos GamePad 2 Unboxing leodee
1 year ago · 20K views

Touch: to open an app.

Swipe left or right: to close an app.

Scroll up or down: to view other recent apps

Getting familiar with Android™

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.
Update the firmware of the device: http://www.archos.com/support.
Reset and redefine your connection parameters.
Contact your WiFi connection provider.
