Product Type	Freestanding Refrigerator-Freezer
Overall Dimensions (H x W x D)	1430 x 550 x 600 mm
Net Weight	45 kg
Energy Efficiency Class	F
Annual Energy Consumption	220 kWh/year
Climate Class	N-ST
Noise Level	40 dB(A)
Refrigerator Net Capacity	188 L
Freezer Net Capacity	64 L
Freezer Star Rating	4 stars
Defrost Type	Manual (freezer), Auto (refrigerator)
Adjustable Shelves	4 tempered glass shelves
Door Reversibility	Yes (user reversible)
Interior Light	LED
Refrigerant Type	R600a
Power Supply	220-240 V ~ 50 Hz
Spare Parts Availability	Contact manufacturer or authorized service centers

Frequently Asked Questions - MTR122W17E MATSUI

How do I adjust the temperature in the refrigerator?

Use the thermostat dial inside the refrigerator. Turn it to a higher number for colder temperatures and a lower number for warmer settings. Typically, setting 3-4 is recommended for normal use.

What do the different control settings mean?

The dial controls the refrigerator temperature. '0' turns off cooling, '1' is warmest, '5' or 'MAX' is coldest. For freezer, if separate, it may have its own thermostat. Refer to the manual for exact markings.

Can I reverse the door opening direction?

Yes, the door is reversible. You need to remove the upper hinge, door, lower hinge, and handle, then refit them on the opposite side. A detailed procedure is in the user manual.

How often should I defrost the freezer?

Defrost when the ice layer reaches 5-10 mm (about 1/4 inch). For manual defrost models, turn off the appliance, remove food, and let ice melt. Do not use sharp tools to remove ice.

Can I put hot food in the refrigerator?

No, allow hot food to cool to room temperature before placing it inside. Hot food raises the internal temperature, causing extra energy consumption and potential food safety issues.

Why is the refrigerator making a humming noise?

Normal operation sounds include a hum from the compressor and gurgling from refrigerant flow. If the sound becomes loud or irregular, check that the appliance is level and not touching walls or cabinets.

What is the energy consumption of this fridge?

The Matsui MTR122W17E has an annual energy consumption of approximately 220 kWh and is rated energy class F. Actual consumption depends on usage and placement.

What should I do if the fridge stops cooling?

First, check if it's plugged in and the thermostat isn't set to '0'. Ensure the condenser coils at the back are clean. If problem persists, contact a qualified technician. Do not attempt internal repairs.

How do I replace the interior light bulb?

This model uses an LED light that is not user-replaceable. If the light fails, contact customer support or a qualified service technician for replacement.

What are the dimensions and weight?

The dimensions are approximately 1430 mm high, 550 mm wide, and 600 mm deep. The net weight is about 45 kg. Ensure clearance for door opening and ventilation.

USER MANUAL MTR122W17E MATSUI

Front view of a white rectangular refrigerator with a handle and side panel (no visible text or symbols)

FRIDGE FREEZER

INSTRUCTION MANUAL

KOMBISKAP KJ∅L-FRYS

INSTRUKSJONSMANUAL

KYL FRYS

INSTRUKTIONSBOK

JÄÄKAAPPIPAKASTIN

KÄYTTÖOPAS

KÖLESKAB FRYSER

BRUGERVEJLEDNING

GB

NO

SE

FI

DK

Safety Warnings....7

Unpacking....13

Installation....14

Location....14

Levelling the Unit....14

Installing the Spacers....14

Free Space Requirements 14

Reversing the Door Swing 15

Installing The Door Handle 19

Cleaning Before Use 20

Before Using Your Unit 20

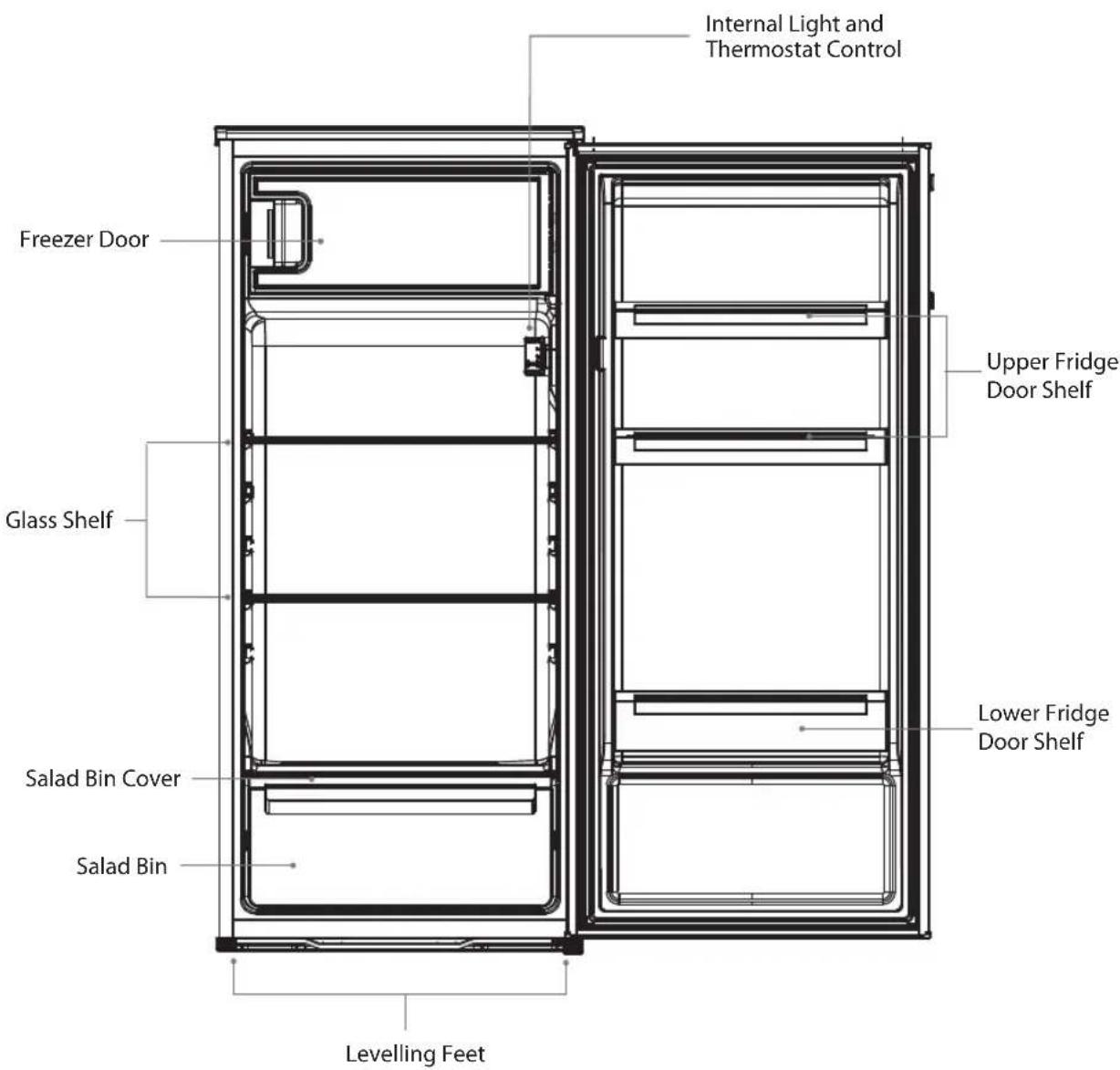

Product Overview....21

Operation 22

Switching On Your Unit 22

Smart Mode....22

Super Mode 22

Turning on / off the appliance....22

Door open alarm 22

Noises Inside the Unit! 23

Tips for Keeping Food in the Unit....23

Preparations for Freezing 23

Defrosting Frozen Food 24

Cleaning 25

Defrosting 25

Cleaning the Interior and the Exterior of the Unit....25

Maintenance 26

Changing the Internal Light....26

Care When Handling / Moving the Unit....26

Servicing....26

Switching Off for Long Periods of Time....26

Condensation 26

Disposal....26

Specifications....27

Product Fiche 27

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:
  – farm houses and by clients in hotels, motels and other residential type environments;
  – bed and breakfast type environments;
  – catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (if applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Sikkerhetsadvarsler

NO

Thank you for purchasing your new Matsui Fridge Freezer.

You must spend some time reading this installation/instruction manual in order to fully understand how to install and operate it.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

Unpacking

GB

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Fridge Glass Shelf X 2 Salad Bin Cover

Line drawing of a rectangular storage cabinet or drawer with handle and side panel (no text or symbols)

Salad Bin

Line drawing of a rectangular refrigerator with lid and frontrest (no text or symbols)

The Main Unit

Upper Fridge Door Shelf X 2

Lower Fridge Door Shelf X 1

Rear Spacer x 2

Handle

Caps x 2Screw hole covers x 2

Egg Tray

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Ice Tray Instruction Manual

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 32^ C. If the room temperature drops below 16^ C your freezer may start to defrost. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

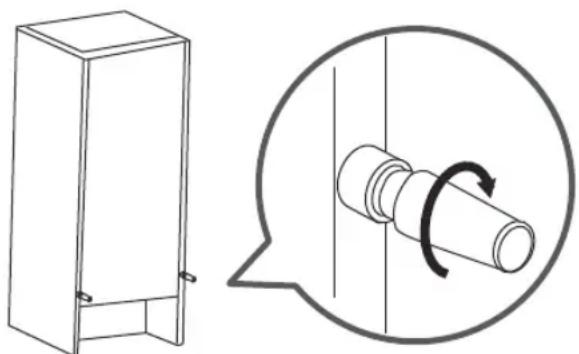

Installing the Spacers

Screw the spacers to the left and right side of the unit's rear part.

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

Pure mechanical diagram showing a rectangular block with a tilted support and dimension lines, no text or symbols present.

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

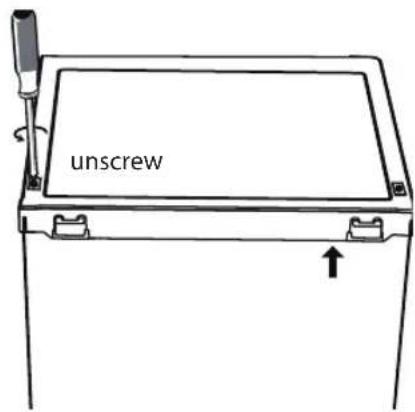

1. Remove the 2 screws.

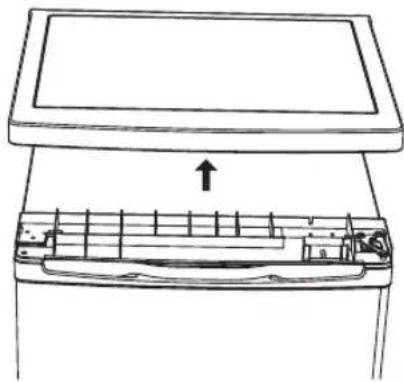

1. Carefully lift the top cover away from the fridge.

Line drawing of a mechanical device with a top panel and internal components, no text or symbols present

1. Remove the three screws, then remove the upper hinge that holds the door in place. Lift the door and place it on a padded surface to prevent it from scratching.

INSTALLATION

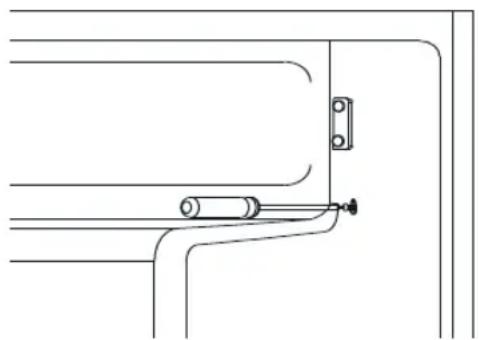

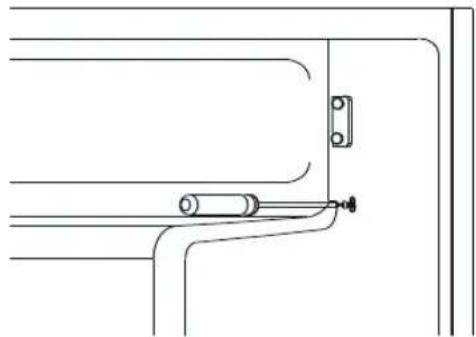

1. Unscrew the bottom hinge from under the right side of the freezer door. Then remove the freezer door and place it on a padded surface to prevent it from scratching.

Technical line drawing of a mechanical assembly with a rectangular component and a lever (no text or symbols)

1. Move the door holder and hinge hole covers from the left side to the right side of the freezer compartment.

1. Rotate the freezer door and fix it back to the freezer compartment. Screw the bottom hinge under the left side of the freezer door securely. Insert the screw into the lower hole under the right side of the freezer door.

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical or electrical component without any text, numbers, or symbols

1. Remove the screws and bottom hinge. Then remove the levelling feet from both side.

INSTALLATION

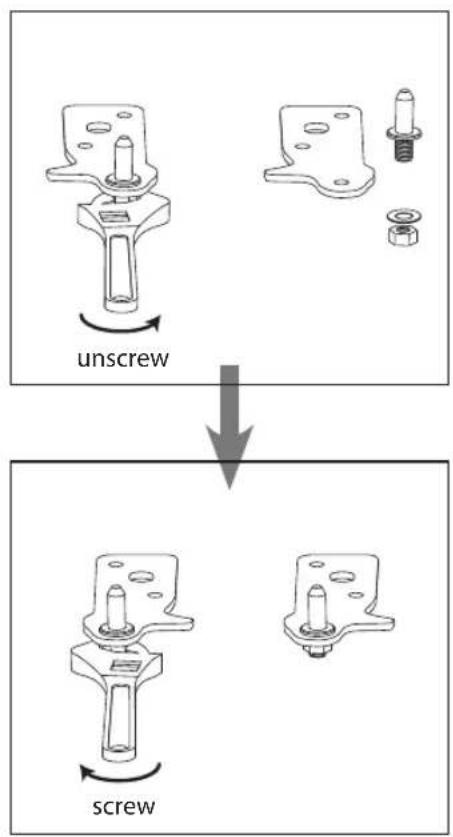

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Re-fit the bottom hinge. Replace both levelling feet.

1. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

INSTALLATION

1. Put the top cover back.

Line drawing of a mechanical device with a downward arrow indicating force or movement (no text or symbols)

1. Screw the 2 screws.

1. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

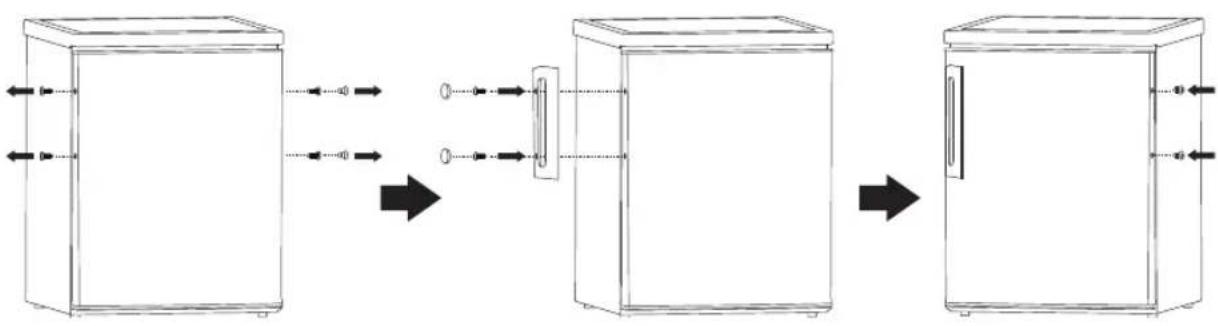

Installing The Door Handle

Please ensure you install the handle on the side of the door that opens, i.e., opposite side to the hinges.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Egg Tray

Ice Tray

Switching On Your Unit

1. Connect the mains cable to the mains socket.

2. Press the Adjust button repeatedly to adjust setting of the fridge compartment in cycle from 1 to 5 (5 is the coldest). The temperature of freezer is automatically controlled at around -18°C.

3. Press the Mode button repeatedly to cycle through the options available: Smart Mode, Super Mode, User Defined.

4. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.

5. To ensure that the unit is cool enough to sufficiently chill and freeze your food, wait 24 hours before filling it with food.
6. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be lower than 4^ C. The correct temperature for the freezer compartment should be -18^ C or lower.

Smart Mode

When Smart mode is selected, the unit will run automatically according to the ambient temperature around the appliance.

Super Mode

When Super mode is selected, the unit will run to make the freezer compartment the coldest. After 54 hours, the original temperature will be automatically restored.

Turning on / off the appliance

Press and hold the Adjust button for 5 seconds to turn on or off the appliance.

Door open alarm

The alarm will sound when the door is left open for 90 seconds and it will not stop until the door is closed.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or uncleaned used food containers.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special fridge freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Illustration of a hand pouring liquid into a container with a small object inside (no text or symbols)

Defrosting Frozen Food

1. Take the frozen food out from the freezer compartment and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted out unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Defrosting

Frost might build up in the freezer compartment after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10mm. Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep it cool.
2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.
3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Maintenance

Changing the Internal Light

The internal light is an LED light. It cannot be changed by the user; please contact your service agent.

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the unit, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Specifications

Rated Voltage 220-240V~, 50 Hz
Rated Current 0.55 A
Rated Power 90 W
Overall Dimension (H x W x D) 1240 x 550 x 580 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand Matsui
Model MTR122W17E
Household Appliance Category 7
Energy Efficiency Class A+
Energy consumption 201 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume 177 L
Freezer Storage Volume	14L ***
Manual Defrost for the compartment.
Temperature Rise Time	12 hours
Freezing Capacity	2kg / 24h
Climate Class	N, STThis appliance is intended to be used at an ambient temperature between 16°C and 32°C.
Airborne Acoustical Noise 42 dB(A) re 1 pW

Takk for at du kjøpte ny Matsui Kombiskap Kjøl-Frys.

Line drawing of a rectangular storage unit with a handle and side panel (no text or symbols)

Salatskuff

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Hovedenheten

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Isterningbrett

Instruksjonsmanual

Plassering

Innstallering av avstandsstykker

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Plassbehov

Pure mechanical diagram showing a rectangular block with a tilted support and dimension lines, no text or symbols present.

Line drawing of a computer monitor with an open top panel and internal circuit board (no text or symbols)

Technical line drawing of a mechanical assembly with a rectangular component and a lever (no text or symbols)

INSTALLASJON

Technical line drawing of a mechanical assembly or enclosure with no visible text or symbols

Pure technical line drawing of a mechanical or electrical component without any text, numbers, or symbols

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Isterningbrett

Slå på enheten

Illustration of a hand pouring liquid into a container with a small plant inside (no text or symbols)

Tine frossen mat

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Huvudenhet

Kylskåpsglashylla X 2

Lock salladslåda

Line drawing of a rectangular storage unit with a handle and side panel (no text or symbols)

Salladslåda

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Islåda

Instruktionsbok

Plats

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Luftcirkulationsbehov

Pure mechanical diagram showing a rectangular block with a tilted support and dimension lines, no text or symbols present.

Line drawing of a mechanical device with a top panel and internal components, no text or symbols present

INSTALLATION

Technical line drawing of a mechanical assembly with a bracket and lever (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical device with a cylindrical component and scroll wheel (no text or symbols)

Pure technical line drawing of a mechanical or electrical component with no text, numbers, or symbols

INSTALLATION

Line drawing of a device with an open lid and internal circuit board (no text or symbols)

Isometric line drawing of a rectangular grid pattern with triangular cutouts (no text or symbols)

Islåda

Slå på din enhet

Line drawing of a hand pouring liquid into a container with a small object inside (no text or symbols)

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Pure mechanical diagram showing a rectangular block with two vertical supports and a curved dashed line indicating dimension (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating force or movement (no text or symbols)

Technical line drawing of a mechanical assembly with a rectangular component and a lever (no text or symbols)

ASENNUS

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical or electrical component with no text, numbers, or symbols

Line drawing of a device with a lid and internal components, showing a downward arrow indicating compression or disassembly (no text or symbols)

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Jääastia

Illustration of a hand pouring liquid into a container with a small container inside (no text or symbols)

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Krav til fri plads

Pure mechanical diagram showing a rectangular block with a tilted support and dimension lines, no text or symbols present.

Line drawing of a mechanical device with an upward arrow indicating force or movement (no text or symbols)

Technical line drawing of a mechanical assembly with a rectangular component and a lever (no text or symbols)

INSTALLATION

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of a mechanical or electrical component without any text, numbers, or symbols

Line drawing of a computer monitor with an open keyboard and a downward arrow indicating compression (no text or symbols)

Rengøring før brug

Isometric line drawing of a rectangular grid pattern with triangular cutouts (no text or symbols)

Isbakke

Line drawing of a hand pouring liquid into a container with a small container inside (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
