MTT50W18E - Refrigerator MATSUI - Free user manual and instructions

Product Type	Refrigerator with Ice Box (Freezer)
Brand	Matsui
Model	MTT50W18E
Overall Dimensions (H x W x D)	510 x 440 x 470 mm
Rated Voltage	220-240 V ~, 50 Hz
Rated Current	0.45 A
Rated Power	60 W
Energy Efficiency Class	A+
Annual Energy Consumption	107 kWh/year
Fridge Storage Volume	42 L
Freezer Storage Volume	4 L
Climate Class	ST (16°C – 38°C)
Airborne Acoustical Noise	41 dB(A)
Defrost Type	Manual
Temperature Control	Thermostat (positions 0-5, 5 coldest)
Recommended Temperature Setting	3 (for normal ambient 16°C – 38°C)
Refrigerant	Combustible, environmentally friendly gas
Reversible Door	Yes (can be reversed left/right)
Leveling Feet	2 adjustable front feet
Interior Shelves	1 wire shelf, 1 top wire rack, 1 bottom wire rack
Water Pan	Yes (for defrost water collection)
Free Space Requirements	25 mm sides, 50 mm rear, 25 mm top
Intentional Use	Indoor household and similar (e.g., hotels, catering)

Frequently Asked Questions - MTT50W18E MATSUI

How do I adjust the temperature on my Matsui MTT50W18E fridge?

The temperature is controlled by a thermostat dial. There are six settings: position 0 turns the unit off, position 5 is the coldest. For normal room temperature (16°C – 38°C), we recommend setting position 3. Adjust according to the environment: lower settings (1-3) for colder rooms, higher (4-5) for warmer rooms.

How do I reverse the door swing?

The door can be reversed. You will need a Phillips screwdriver, flat bladed screwdriver, and hexagonal spanner. Unplug the unit and empty it. Tilt it backwards, remove the top hinge cover, unscrew the hinge, move the core cover, lift off the door, swap the bottom hinge pin, and reassemble. We recommend contacting a qualified technician if you are unsure.

How do I defrost the ice box?

Defrost manually when frost builds up to 10 mm. Remove food, turn off the unit, leave the door open. Use a plastic scraper to remove frost – do not use metal or sharp tools. You can place a bowl of hot water inside to speed up defrosting. Clean and dry thoroughly before restarting.

Why is my fridge making unusual noises?

Most noises are normal. They come from the compressor motor and the circulation of refrigerant. Since CFC-free gases are used, these sounds may be more noticeable. This is not a fault and does not affect performance.

How should I clean the fridge?

Unplug the unit. Remove shelves and wash them in warm soapy water. Wipe the interior with a weak bicarbonate soda solution, then rinse with warm water and dry. Clean the exterior with a damp cloth and standard furniture polish. Vacuum the condenser grille at the back with a soft brush attachment.

What is the recommended clearance for installation?

Leave at least 25 mm on both sides, 50 mm at the rear, and 25 mm on top. Ensure the door can open fully (more than twice the width/depth space of the unit). The room should be well-ventilated and between 16°C and 38°C.

Can I store bottles in the freezer compartment?

No. Do not store bottles or glass containers in the ice box (freezer compartment). Contents (especially fizzy drinks) can expand when frozen, causing the bottle to break and damage the compartment.

How do I maintain the fridge during long periods of non-use?

Unplug the unit, empty all food, and clean it thoroughly. Leave the door slightly ajar to prevent unpleasant odors and mold.

How long should I wait before turning on the fridge after moving it?

Wait at least 2 hours after moving the unit before plugging it in. This allows the coolant fluid to settle. Then wait 24 hours with the unit on before placing food inside to ensure it reaches the correct temperature.

What is the energy consumption of the Matsui MTT50W18E?

The annual energy consumption is 107 kWh based on standard test results. Actual consumption depends on usage and location. It is rated energy efficiency class A+.

USER MANUAL MTT50W18E MATSUI

White refrigerator with closed lid and side door, no visible text or symbols

Safety Warnings....7

Unpacking....13

Installation....14

Location 14

Levelling the Unit 14

Free Space Requirements....14

Reversing the Door Swing 15

Cleaning Before Use 18

Before Using Your Unit 18

Product Overview....19

Font View....19

Rear View....19

Operation 20

Switching On Your Unit 20

Adjusting the Temperature....20

Noises Inside the Unit! 20

Tips for Keeping Food in the Unit....20

Cleaning 21

Defrosting 21

Cleaning the Interior and the Exterior of the Unit....21

Maintenance 22

Care When Handling / Moving the Unit....22

Servicing....22

Switching Off for Long Periods of Time....22

Condensation 22

Disposal 22

Specifications.... 23

Product Fiche 23

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:
  – farm houses and by clients in hotels, motels and other residential type environments;
  – bed and breakfast type environments;
  – catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (if applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Sikkerhetsadvarsler

NO

Thank you for purchasing your new Matsui Fridge.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a rectangular box with lid and side connectors (no text or symbols)

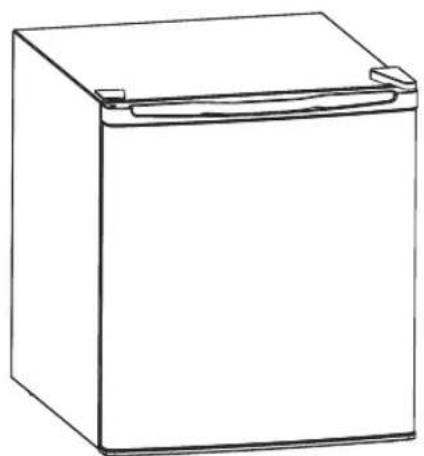

The Main Unit

Wire Shelf

Top Wire Rack

Bottom Wire Rack

Instruction Manual

Line drawing of a rectangular tray or tray with a small curved indentation on top (no text or symbols)

Water Pan

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

Pure mechanical diagram showing a rectangular block with a tilted support and dimension lines, no text or symbols present.

INSTALLATION

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm ^2 (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation.

Benefits of increased ventilation:

• Lowered power consumption
• Improved cooling performance
• Reduce running costs
• Prolong product life span

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
  • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
  • All parts removed must be saved to do the reinstallation of the door.
  • Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

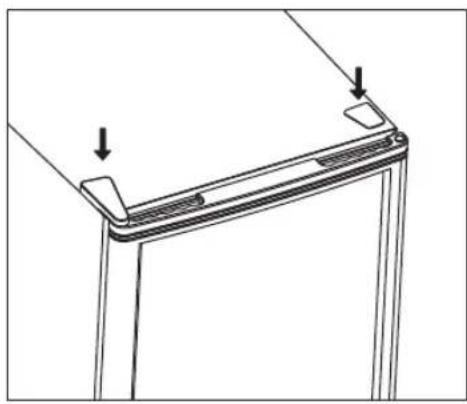

• Remove the top right hinge cover.

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)

INSTALLATION

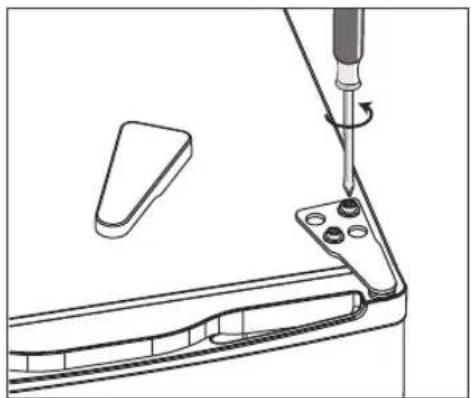

1. Undo the screws. Then remove the hinge bracket.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

1. Remove the top left screw cover.

Diagram of a screwdriver inserted into a mechanical component, showing a downward force (no text or symbols present)

1. Move the core cover from left side to right side. And then lift the door and place it on a padded surface to prevent it from scratching.

Technical line drawing of a mechanical bracket with dashed arc indicating arc (no text or symbols)

1. Remove the screws and bottom hinge. Then remove the adjustable feet from both side.

INSTALLATION

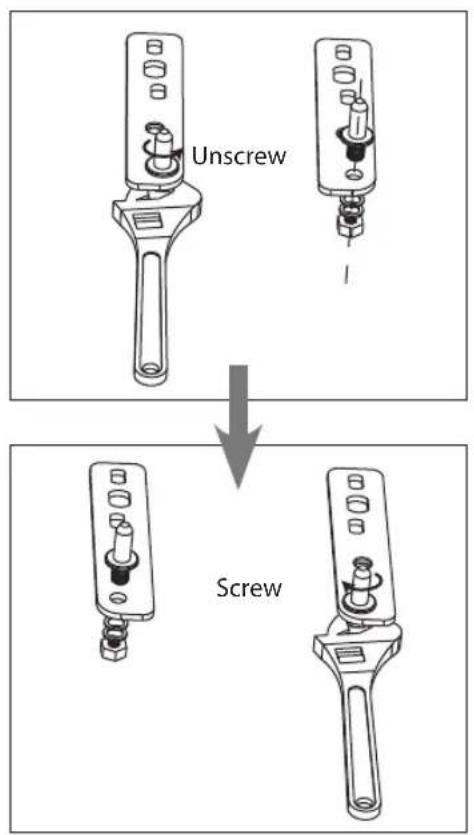

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

1. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

2. Insert the hinge bracket and screw it to the top of the unit.

3. Use a spanner to tighten it if necessary.

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

INSTALLATION

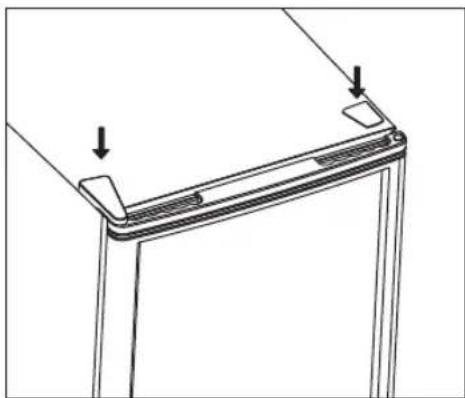

1. Put the hinge cover and the screw cover back.

Line drawing of a device's front panel with two arrows indicating movement or assembly (no text or symbols)

1. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Simple line drawing of a rectangular box with lid and side clip (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelf in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

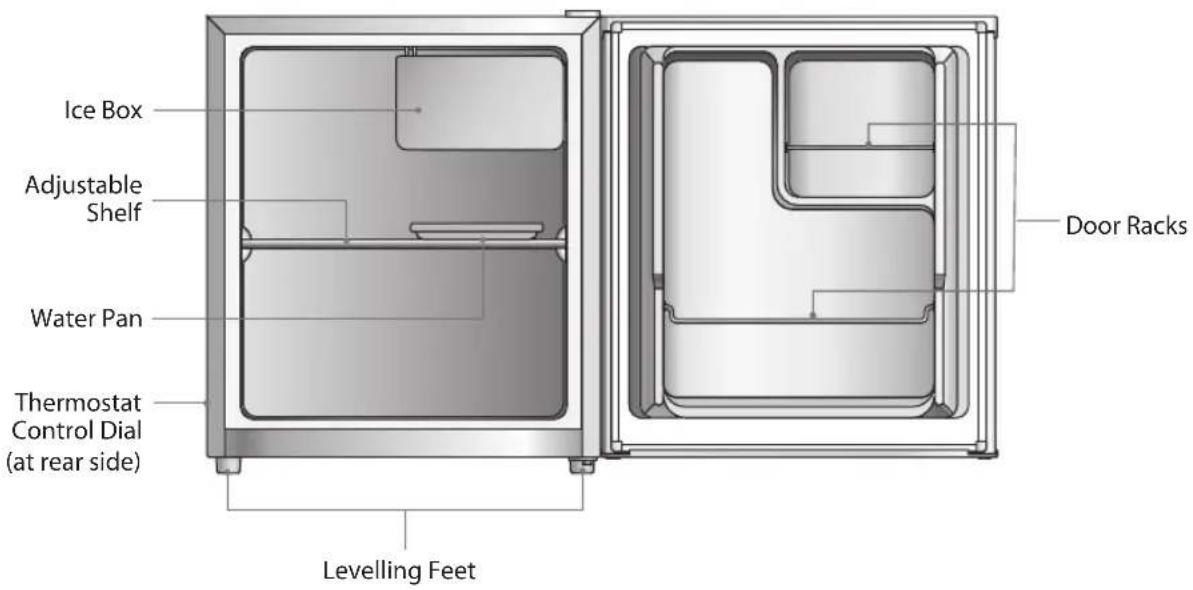

Font View

GB

Temperature range in the Ice Box: 2°C - 10°C

The Ice Box is not a freezer compartment. The temperature inside is lower than the outside which is suitable for keeping food fresh.

The Water Pan is used to collect defrost water dripped from the Ice Box.

Rear View

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are six settings, of which position 5 is the coldest and position 0 turns the unit off.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 3 recommended setting when operating at normal room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be around 4^ C.

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 3 for colder working environments (i.e. during winter) and between 4 to 5 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.

• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.

• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.

• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Cleaning

Defrosting

Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrap away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10 mm (0.39"). Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep it cool.
2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.
3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove the shelf before cleaning.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelf.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Specifications

Rated Voltage 220-240V~, 50 Hz
Rated Current 0.45 A
Rated Power 60 W
Overall Dimension (H x W x D) 510 x 440 x 470 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand Matsui
Model MTT50W18E
Household Appliance Category 1
Energy Efficiency Class A+
Energy consumption 107 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume 42 L
Freezer Storage Volume	4 L
Manual Defrost
Temperature Rise Time	-
Freezing Capacity	-
Climate Class	STThis appliance is intended to be used at an ambient temperature between 16°C and 38°C to achieve the claimed Energy Consumption and Grading.
Airborne Acoustical Noise 41 dB(A) re 1 pW

Line drawing of a rectangular refrigerator with lid and side slots (no text or symbols)

Hovedenheten

Trådhylle

∅verste trådstativ

Nederste trådstativ

Bruksanvisning

Line drawing of a rectangular tray or container with a small curved indentation on top (no text or symbols)

Vannpanne

Plassering

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

INSTALLATION

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)

INSTALLATION

1. Løsne skruene. Fjern deretter hengselbraketten.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Line drawing of a tool interacting with a bracket, showing a screwdriver and handle (no text or symbols)

Technical line drawing of a mechanical component with dashed arc and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

INSTALLATION

1. Sett hengseldekslet og skruedekslet tilbake.

Line drawing of a door frame with two arrows pointing to the top panel (no text or symbols)

1. Se etter at døren, när den er lukket, har riktig innretning både vannrett og loddrett samt at pakningene er lukket på alle sidene för du til slutt strammer det nederste hengslet. Juster nivåføttene på nytt etter behov.

Simple line drawing of a rectangular box with lid and front panel (no text or symbols)

Rengjøring før bruk

Line drawing of a rectangular refrigerator with lid and side buttons (no text or symbols)

Huvudenhet

Trådhylla

Övre trådhållare

Nedre trådhållare

Bruksanvisning

Line drawing of a rectangular tray or tray with a small curved indentation on top (no text or symbols)

Vattenpanna

Plats

Luftcirkulationsbehov

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

INSTALLATION

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)

INSTALLATION

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Diagram of a screwdriver inserted into a mechanical component, showing tool path and mounting bracket (no text or symbols)

Technical line drawing of a mechanical bracket with dashed arc indicating arc (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

INSTALLATION

Line drawing of a device frame with two arrows pointing to the top panel (no text or symbols present)

Simple line drawing of a rectangular box with lid and front panel (no text or symbols)

Line drawing of a rectangular refrigerator with lid and front panel (no text or symbols)

Laite

Ritilähylly

Yläritilähylly

Alaritilähylly

Käyttöopas

Line drawing of a rectangular tray or tray with a small curved indentation on top (no text or symbols)

Vesiallas

Paikka

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

INSTALLATION

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)

INSTALLATION

1. Irrota ruuvit. Poista sitten saranansuojus.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Diagram of a screwdriver inserted into a bracket with a downward arrow indicating force (no text or symbols present)

Technical line drawing of a mechanical bracket with dashed curved line indicating arc (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

INSTALLATION

Line drawing of a door frame with two arrows pointing to the top panel (no text or symbols)

Simple line drawing of a rectangular box with lid and front panel (no text or symbols)

Line drawing of a rectangular box with a lid and side connectors (no text or symbols)

Hovedenheden

Metalhylde

∅verste stangstativ

Line drawing of a rectangular tray or tray with a curved top edge (no text or symbols)

Vandbakke

Placering

Krav til fri plads

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

INSTALLATION

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)

INSTALLATION

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Diagram of a screwdriver inserted into a mechanical component, showing a downward force (no text or symbols present)

Technical line drawing of a mechanical bracket with dashed arc indicating arc (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

INSTALLATION

Line drawing of a device frame with two arrows pointing to the top panel (no text or symbols present)

Simple line drawing of a rectangular box with lid and front panel (no text or symbols)

Rengøring før brug

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

www.lefdal.com/support

SE www.elgiganten.se/support
