Product Type	LED TV with integrated DVB-T/C tuner
Brand	Telefunken
Model	SOMNIA22ESTV
Screen Size (Diagonal)	24 inches (61 cm)
Display Resolution	1366 x 768 pixels (HD Ready)
Energy Efficiency Class	A+
On-Mode Power Consumption	19 W
Standby Power Consumption	0.5 W
Annual Energy Consumption	27 kWh
Power Supply	220-240 V AC, 50 Hz
TV System	DVB-T (terrestrial), DVB-C (cable), analog PAL/SECAM
Connectivity	2 x HDMI, 1 x USB (500mA), 1 x SCART (EXT1), VGA (PC/YPbPr), Ethernet (LAN), Wi-Fi 802.11 a/b/g/n
Audio Output	Headphone jack (3.5 mm), SPDIF coaxial out
Recording Features	USB PVR (program recording), timeshift, instant recording
Smart TV Features	HbbTV, Internet portal, web browser, Audio Video Sharing (DLNA), FollowMe TV (streaming to mobile)
Remote Control	IR remote with dedicated buttons (Netflix, YouTube, EPG, etc.)
Media Playback (USB)	Video: MPEG1/2/4, H.264, VC1, VP9; Audio: MP3, AAC, WMA; Picture: JPEG, BMP, PNG, GIF
Subtitle Support	External formats: SRT, SSA, SUB, TXT; Internal: MKV, MP4
Parental Controls	Menu lock, maturity lock, child lock, PIN protection
Accessories Included	Remote control, 2 x AAA batteries, instruction manual
Mounting Options	Table stand (included), VESA wall mount (optional)

Frequently Asked Questions - SOMNIA22ESTV TELEFUNKEN

How do I record a TV programme on the Telefunken SOMNIA22ESTV?

Connect a USB storage device (at least 2 GB, USB 2.0) to the TV while it is switched off, then turn on the TV. Press the Record button on the remote to start instant recording. For scheduled recordings, use the EPG menu to set a timer.

What is the screen size and resolution of the SOMNIA22ESTV?

The visible screen diagonal is 24 inches (61 cm) with a resolution of 1366 x 768 pixels (HD Ready).

How do I connect the TV to Wi-Fi?

Go to System > Settings > Network/Internet Settings. Set Network Type to Wireless Device, then select your Wi-Fi network from the list and enter the password using the on-screen keyboard.

Can I use the TV as a PC monitor?

Yes, connect your PC via VGA or HDMI. For VGA, use the PC/YPbPr audio input for sound. The TV supports standard resolutions up to 1920x1080 at 60 Hz.

How do I set parental controls?

Press Menu > System > Settings > Parental. Enter your PIN (default 0000 or 1234). From there you can enable Menu Lock, Maturity Lock, or Child Lock.

Why does the TV automatically go into standby?

The TV will enter standby after 3 minutes without any input signal or after a period of inactivity (e.g., no button pressed). This is a power-saving feature and can be adjusted via Auto TV OFF in the settings.

How do I use the Timeshift function?

While watching live TV, press the Pause button on the remote. Timeshift records the programme to the connected USB disk. Press Play to resume from where you paused, or Stop to return to live broadcast.

What file formats are supported for USB playback?

Video: MPEG1/2/4, H.264, VC1, VP9 (up to 1080p). Audio: MP3, AAC, WMA, FLAC. Picture: JPEG, BMP, PNG, GIF (up to 8192x8192). Subtitle: SRT, SSA, SUB, TXT.

How do I perform a software update?

Go to System > Settings > More > Software Upgrade. Select Scan for upgrade to check for updates via broadcast or internet. The TV can also auto-update at 3:00 AM if enabled.

What should I do if the TV does not turn on?

Check that the power cord is securely plugged into a working wall outlet (220-240V AC, 50 Hz). Try pressing the Power button on the TV itself. If using the remote, replace the batteries with new AAA ones.

USER MANUAL SOMNIA22ESTV TELEFUNKEN

Black-and-white family photo of a family watching movies, with no visible text or symbols

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL

Consultar as figuras no lado

Contents	Safety Information
Safety Information......56	CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN
Markings on the Product......57
Environmental Information......58
Features......58
Accessories Included......58
Standby Notifications......58
TV Control Switch & Operation......58
Inserting the Batteries into the Remote......59
Connect Power......59
Antenna Connection......59
License Notification......59
Remote Control......61
Connections......62
Switching On/Off......63
First Time Installation......63
Media Playback via USB Input......63
Recording a Programme......64
Timeshift Recording......64
Instant Recording......64
Watching Recorded Programmes......64
Recording Configuration......64
Media Browser Menu......65
CEC and CEC RC Passthrough......65
E-Manual......65
TV Menu Contents......66
General TV Operation......69
Using the Channel List......69
Configuring Parental Settings......69
Electronic Programme Guide (EPG)......69
Teletext Services......70
Software Upgrade......70
Troubleshooting & Tips......70
PC Input Typical Display Modes......71
AV and HDMI Signal Compatibility......72
Supported Video File Formats for USB Mode......73
Supported Picture File Formats for USB Mode......73
Supported Audio File Formats for USB Mode......73
Supported Subtitle File Formats for USB Mode......74
Supported DVI Resolutions......74
Connectivity......75
Using Audio Video Sharing Network Service......77
Internet Portal......78
Internet Browser......78
HBBTV System......79
Smart Center......79

English - 56 -

WARNINGApparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazardConnection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)	Headphone connectionAutomatic programming systemManual tuningAutomatic power down after up to eight hours.Sleep timerChild lockAutomatic sound mute when no transmission.NTSC playbackAVL (Automatic Volume Limiting)PLL (Frequency Search)PC inputGame Mode (Optional)Picture off functionProgramme recordingProgramme timeshiftingEthernet (LAN) for Internet connectivity and service802.11 a/b/g/n built in WIFI SupportAudio Video SharingHbbTV
Environmental InformationThis television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.Note: Available Energy Saving options may differ depending on the selected Mode in the System>Picture menu.The Energy Saving settings can be found in the System>Picture menu. Note that some picture settings will be unavailable to be changed.If pressed Right button while Auto option is selected or Left button while Custom option is selected, “Screen will be off in 15 seconds.” message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don’t press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.Note: Screen Off option is not available if the Mode is set to Game.When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.	Accessories IncludedRemote ControlBatteries: 2 x AAAInstruction BookStandby NotificationsIf the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: “TV switched to stand-by mode automatically because there was no signal for a long time.” Press OK to continue.If the TV is on and it isn’t being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. “TV switched to stand-by mode automatically because no operation was made for a long time.” Press OK to continue.TV Control Switch & Operation
FeaturesRemote controlled colour TVFully integrated digital terrestrial/cable TV (DVB-T-C)HDMI inputs to connect other devices with HDMI socketsUSB inputOSD menu systemScart socket for external devices (such as DVD Players, PVR, video games, etc.)Stereo sound systemTeletext	1. Up direction2. Down direction3. Volume / Info / Sources List selection and Standby-On switchThe Control button allows you to control the Volume / Programme / Source and Standby-On functions of the TV.

WARNINGDo not ingest the battery, Chemical Burn HazardThis product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.Keep new and used batteries away from children.If the battery compartment does not close securely, stop using the product and keep it away from children.If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNINGNever place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:Using cabinets or stands recommended by the manufacturer of the television set.Only using furniture that can safely support the television set.Ensuring the television set is not overhanging the edge of the supporting furniture.Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.Not standing the television set on cloth or other materials placed between the television and supporting furniture.Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

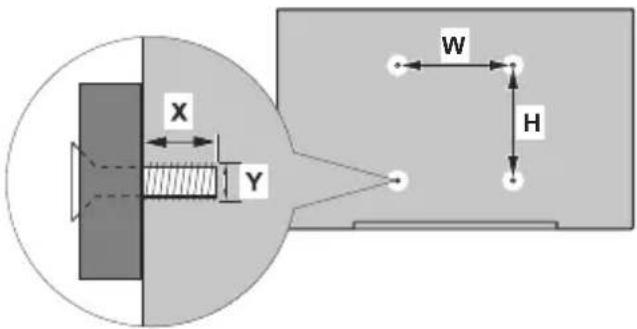

WALL MOUNTING WARNINGSRead the instructions before mounting your TV on the wall.The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.Do not install the TV on a ceiling or on an inclined wall.Use the specified wall mounting screws and other accessories.Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component
Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.
Class II Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety connection to electrical earth, the earth connection is used for functional purposes.
Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with the supply wiring.
Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.
Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.
Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

Wireless LAN Transmitter Specifications

Frequency Ranges Max Output Power
2400 - 2483,5 MHz (CH1-CH13) <	100 mW
5150 - 5250 MHz (CH36 - CH48) <	200 mW
5250 - 5350 MHz (CH52 - CH64) <	200 mW
5470 - 5725 MHz (CH100 - CH140)	< 200 mW

Country Restrictions

This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below.

Country Restriction
Bulgaria	General authorization required for outdoor use and public service
France In-door	Use only for 2454-2483.5 MHz
Italy	If used outside of own premises, general authorization is required
Greece	In-door use only for 5470 MHz to 5725 MHz band
Luxembourg	General authorization required for network and service supply(not for spectrum)
Norway	Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation	In-door use only

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LAN's.

nection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket located on the back of the TV.

ication

The

HDMI

the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

YouTube and the YouTube logo are trademarks of Google Inc.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected

content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke

the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected

content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

Equipment bearing these symbols should not be disposed as general household waste.

You should look for appropriate recycling facilities and systems for the disposal of these products. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.

To change source: Press the middle of the button twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

Notes: - If you turn the TV off, this circle starts again beginnin with the volume setting.

- Main menu OSD cannot be displayed via control button.

Operation with the Remote Control Press the Menu button on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press

Return/Back or Menu button to quit a menu screen. Input Selection Once you have connected external systems to your

TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

Inserting the Batteries into the Remote

Lift the cover on the back of the remote gently. Insert two AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Place the

cover back on.

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Remote Control

See the illustrations on the left side. You can use YPbPr to VGA

cable to enable YPbPr signal via

VGA input. You cannot use VGA

and YPbPr at the same time.

To enable PC/YPbPr audio, you

will need to use the side audio

inputs with a YPbPr/PC audioable for audio connection. If

cable for audio connection. In an external device is connected

an external device is connected via the SCART socket, the TV

will automatically switch to EXT1

mode.When receiving DTV

channels (Mpeg4 H.264) or while

in Media Browser mode, output

will not be available via the scarf

socket. When using the wall mounting kit /available from

mounting kit (available from a third party in the market, if

a third party in the market, if not supplied), we recommend

that you plug all your cables

into the back of the TV before

mounting on the wall. Insert

or remove the CI module only

when the TV is SWITCHED OFF. You should refer to the module

You should refer to the module instruction manual for details of

the settings. The/Each USB input

of your TV supports devices up

to 500mA. Connecting devices

that have current value above

500mA may damage your TV.

When connecting equipment

using a HDMI cable to your TV, to guarantee sufficient imm

against parasitic frequency

radiation, you have to use a high

speed shielded (high grade) HDMI

cable with ferrites.

[Non-Text]

[Non-Text]

(No text)

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

vice are turned off before making

m.

(1)

[Non-Text]

[Non-Text]

[Non-Text]

Connections

Connector Type	Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	YPbPr/PC Audio Cable
	HDMI Connection (back)
SPDIF	SPDIF (Coaxial Out) Connection (back)
SIDE AV	Side AV (Audio/Video) Connection (side)	AV Cable
HEADPHONE	Headphone Connection (side)
YPBPR	YPbPr Video Connection (back)	PC to YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)
LAN	Ethernet Connection (back)	LAN / Ethernet Cable

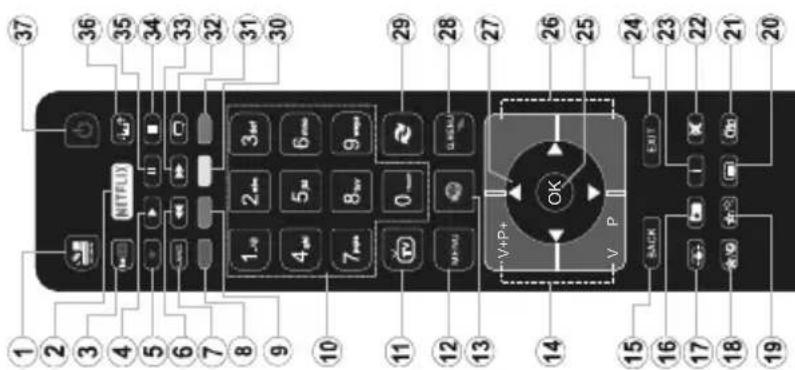

1. Source: Shows all available broadcast and content sources
2. Netflix: Launches the Netflix application.
3. YouTube: Launches the YouTube application.
4. Play: Starts to play selected media
5. Record: Records programmes
6. Rapid reverse: Moves frames backwards in media such as movies
7. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available)
8. Red button
9. Green button
10. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.
11. TV: Displays channel list / Switches to TV Source
12. Menu: Displays TV menu
13. Internet: Opens the portal page, where you can reach many web based applications
14. Volume +/-
15. Back/Return: Returns to previous screen, opens index page (in TXT mode)
16. Favourites: Displays user specified favourite channels
17. Screen: Changes the aspect ratio of the screen
18. My button 1 (*)
19. My button 2 (*)
20. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)
21. EPG (Electronic programme guide): Displays the electronic programme guide
22. Mute: Completely turns off the volume of the TV
23. Info: Displays information about on-screen content
24. Exit: Closes and exits from displayed menus or returns to previous screen
25. OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)
26. Programme + / -
27. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left
28. Quick Menu: Displays a list of menus for quick access
29. Swap: Quickly cycles between previous and current channels or sources
30. Yellow button
31. Blue button
32. Subtitles: Turns subtitles on and off (where available)
33. Rapid advance: Moves frames forward in media such as movies
34. Stop: Stops the media being played
35. Pause: Pauses the media being played, starts timeshift recording
36. Media browser: Opens the media browsing screen
37. Standby: Switches On / Off the TV

(\*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the

model. However you can set a special function to these buttons

by pressing on them for five seconds when on a desired source

or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the

screen. Now the selected MY BUTTON is associated with the selected function

Selected function. Not the following: First Time Installation NXBUTTON

Note that if you perform First Time Installation, MY BUTTON

1&2 will return to their default function.

so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.Note:When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.Recording a ProgrammeIMPORTANT:When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's Format Disk option in the Media Browser>Settings>Recording Settings menu.To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.To use recording your USB drive should have 2 GB free space and be USB 2.0 compatible. If the USB drive is not compatible an error message will be displayed.To record long duration programmes such as movies, it is recommended to use USB Hard disk drives (HDD's). Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours.Recoded programmes are split into 4GB partitions. If the writing speed of the connected USB disk is not sufficient, the recording may fail and the timeshifting feature may not be available.It is recommended to use USB hard disk drives for recording HD programmes.Do not pull out the USB/HDD during a recording. This may harm the connected USB/HDD.If the AC cord is unplugged while there is an active USB-recording timer setting, it will be cancelled.Multipartition support is available. A maximum of two different partitions are supported. The first partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used for the PVR ready features.Some stream packets may not be recorded because of signal problems, as a result sometimes videos may freeze during playback.Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is on. If a recording starts from timer when teletext is on, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback.

Timeshift RecordingPress Pause button while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk.Press Play button again to resume the paused programme from where you stopped. Press the Stop button to stop timeshift recording and return to the live broadcast.Timeshift cannot be used while in radio mode.You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option.Instant RecordingPress Record button to start recording an event instantly while watching a programme. You can press Record button on the remote control again to record the next event after selecting the next programme from within the EPG. Press Stop button to cancel instant recording.You can not switch broadcasts or view the media browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.Watching Recorded ProgrammesSelect Recordings from the Media Browser menu.Select a recorded item from the list (if previously recorded). Press the OK button to view the Play Options. Select an option then press OK button.Note:Viewing main menu and menu items will not be available during the playback.Press the Stop button to stop a playback and return to the Recordings.Slow ForwardIf you press Pause button while watching recorded programmes, the slow forward feature will be available. You can use Rapid advance button to slow forward. Pressing Rapid advance button consecutively will change slow forwarding speed.Recording ConfigurationSelect the Recording Settings item in the Media Browser>Settings menu to configure the recording settings.Format Disk:You can use the Format Disk feature for formatting the connected USB disk. Your PIN is required to use the Format Disk feature.Note:Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.IMPORTANT:Formatting your USB drive will erase ALL the data on it and it's file system will be converted to FAT32. In most cases operation errors will be fixed after a format but you will lose ALL your data.

Switching On/OffTo Switch the TV OnConnect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).To switch on the TV from standby mode either:Press the Standby button, Programme +/- or a numeric button on the remote control.Press the the middle of side function switch on the TV in.To Switch the TV OffPress the Standby button on the remote control or press the middle of the side function switch on the TV in and hold it down for a few seconds, the TV will switch into standby mode.To power down the TV completely, unplug the power cord from the mains socket.Note:When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.First Time InstallationWhen turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.On the next screen, set your preferences using the directional buttons.Note:Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.About Selecting Broadcast TypeDigital Aerial:If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.Digital Cable:If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.Note:Searching duration will change depending on the selected Search Step.Analogue:If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the

channels of it will be listed on the top of the Channel List. When finished, press OK to continue.You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned off/on later.Press OK button on the remote control to continue and the Network/Internet Settings menu will be displayed, if you confirm the previously displayed message asking whether you want to do the network settings. Please refer to Connectivity section to configure a wired or a wireless connection. After the settings are completed press OK button to continue. To skip to the next step without doing anything select No and press the OK button when the message is displayed asking whether you want to do the network settings.After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*) . Select Yes and press OK to confirm.(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).Note:Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.Media Playback via USB InputYou can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks.While formatting USB hard drives which have more than 1TB (Tera Byte) storage space you may experience some problems in the formatting process. Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do

System - Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast Adjusts the light and dark values on the screen.
Brightness Adjusts the brightness values on the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colours.
Energy Saving	For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.
Advanced Settings
Dynamic Contrast You can change the dynamic contrast ratio to desired value.
Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
Picture Zoom Sets the desired image size format.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position Appears only when the input source is set to VGA/PC.
Autoposition Automatically optimizes the display. Press OK to optimize.
H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Resets the picture settings to factory default settings (except Game mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate	All files in the list will be continuously played in original order
Start playback with the OK button and activate	The same file will be played continuously (repeat)
Start playback with the Play button and activate	All files in the list will be played once in random order
Start playback with the Play button and activate	All files in the list will be continuously played in the same random order.
FollowMe TV (if available)
With your mobile device you can stream the current broadcast from your smart TV using the FollowMe TV feature. Install the appropriate Smart Center application to your mobile device. Start the application.For further information on using this feature refer to the instructions of the application you use.Note: This application may not be compatible with all mobile devices. HD channels are not supported and both of the devices must be connected to the same network.CEC and CEC RC PassthroughThis function allows to control the CEC-enabled devices, that are connected through HDMI ports by

Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated.
Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Audio Video Sharing	Audio Video Sharing feature allows you to share files stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. Audio Video Sharing mode will not be available with internet portal feature.
Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
Virtual Remote	Enable or disable the virtual remote feature.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
CEC Auto Power On	This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
OSS	Displays Open Source Software license information.

Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations.Analogue: Searches and stores analogue stations.
Manual channel scan	This feature can be used for direct broadcast entry.
Network channel scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels.
Analogue fine tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Installation Settings(Optional)	Displays installation settings menu. Standby Search(*): Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*): If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching.(*) Availability depends on model.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First time installation	Deletes all stored channels and settings, resets TV to factory settings.

System - Sound Menu Contents
Volume Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance Adjusts whether the sound comes from the left or right speaker.
Headphone	Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed as On or Off.
Digital Out Sets digital out audio type.

System - Settings Menu Contents
Conditional Access Controls conditional access modules when available.
Language You may set a different language depending on the broadcaster and the country.
Parental		Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000or 1234. If you have defined the PIN(isrequested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers		Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Network/Internet Settings Displays network/internet settings.
Accessibility Displays accessibility options of the TV.
	Hard of Hearing Enables any special feature sent from the broadcaster.
	Audio Description	A narration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.Note: Audio description sound feature is not available in recording or time shifting mode.
Netflix		You can view your ESN(*) number and deactivate Netflix.(*) ESN number is an unique ID number for Netflix, created especially to identify your TV.
More Displays other setting options of the TV.
	Menu Timeout	Changes timeout duration for menu screens.
	HBBTV	You can enable or disable this feature by setting it as On or Off.
	Software Upgrade	Ensures that your TV has the latest firmware. Press OK to see the menu options.
	Application Version	Displays current software version.

General TV OperationUsing the Channel ListThe TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the OK/TV button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.Managing the Favourite ListsYou can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channels/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.Configuring Parental SettingsThe Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu. To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed. Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.Internet Lock: If this option is set to ON, the open browser application in the portal will be disabled. Set to OFF to release the application again.Set PIN: Defines a new PIN number.Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the selection) during the First Time Installation use the PIN that you have defined.Some options may not be available depending on the model and/or on the country selection in the First Time Installation.Electronic Programme Guide (EPG)Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.Timeline ScheduleZoom (Yellow button): Press the Yellow button to see events in a wider time interval.Filter (Blue button): Views filtering options.Select Genre (Subtitles button): Displays Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.Options (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.Search (Text button): Displays Guide Search menu.Now (Swap button): Displays current event of the highlighted channel.Rec./Stop (Record button): The TV will start to record the selected event. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.Now/Next ScheduleOptions (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Filter (Blue button): Views filtering options.Rec./Stop (Record button): The TV will start to record the selected events. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.Event OptionsUse the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.Select Channel: Using this option, you can switch to the selected channel.Record / Delete Rec. Timer: Select the Record option and press the OK button. If the event is going to be broadcasted at a future time, it will be added to Timers list to be recorded. If the selected event is being broadcasted at the moment, recording will start immediately.To cancel an already set recording, highlight that event and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled.Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.Notes: You cannot switch to any other channel or source while there is an active recording or timer on the current channel.It is not possible to set timer or record timer for two or more individual events at the same time interval.

Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.Event Details (Info button): Displays detailed information about selected events.Filter (Text button): Views filtering options.Next Time Slice (Green button): Displays the events of next time slice.Options (OK button): Displays event options.Rec./Stop (Record button): The TV will start to record the selected event. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.Now/Next ScheduleOptions (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Filter (Blue button) : Views filtering options.Rec./Stop (Record button): The TV will start to record the selected events. You can press again to stop the recording.IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.Note: Switching to a different broadcast or source is not available during a recording.Event OptionsUse the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available. Select Channel: Using this option, you can switch to the selected channel.Record / Delete Rec. Timer: Select the Record option and press the OK button. If the event is going to be broadcasted at a future time, it will be added to Timers list to be recorded. If the selected event is being broadcasted at the moment, recording will start immediately.To cancel an already set recording, highlight that event and press the OK button and select the option Delete Rec. Timer. The recording will will be cancelled.Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.Notes: You cannot switch to any other channel or source while there is an active recording or timing on the current channel.It is not possible to set timer or record timer for two or more individual events at the same time interval.

Teletext ServicesPress the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.Digital TeletextPress the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast.Software UpgradeYour TV is capable of finding and updating the firmware automatically via the broadcast signal or via Internet.Software upgrade search via user InterfaceOn the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the TV by pressing the OK to continue with the reboot operation.3 AM search and upgrade modeYour TV will search for new upgrades at 3:00 o'clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on.Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.Troubleshooting & TipsTv will not turn onMake sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.Poor pictureCheck if you have selected the correct TV system.Low signal level can cause picture distortion. Please check antenna access.Check if you have entered the correct channel frequency if you have done manual tuning.

AV and HDMI Signal Compatibility
Source Supported Signals Available
EXT(SCART)	PALO
	SECAM O
	NTSC4.43		O
	NTSC3.58		O
	RGB 50/60		O
Side AV	PALO
	SECAM O
	NTSC4.43		O
	NTSC3.58		O
YPbPr	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i	50Hz,60Hz	O
HDMI	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i	50Hz,60Hz	O
	1080p	24Hz, 25Hz,30Hz, 50Hz,60Hz	O

(X: Not Available, O: Available)
In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

PC Input Typical Display Modes The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

Index Resolution Frequency
1	640x480 60Hz
2	x480 75Hz
3	x600 56Hz
4	x600 60Hz
5	x600 72Hz
6	x600 75Hz
7	4x768 60Hz
8	4x768 70Hz
9	4x768 75Hz
10	52x864 75Hz
11	60x768 60Hz
12	60x768 60Hz
13	60x960 60Hz
14	60x1024 60Hz
15	60x1024 75Hz
16	60x1050 60Hz
17	60x900 60Hz
18	60x900 75Hz
19	60x1080 60Hz

The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No pictureThis means your TV is not receiving any transmission. Make sure the correct source has been selected.Is the antenna connected properly?Is the antenna cable damaged?Are suitable plugs used to connect the antenna?If you are in doubt, consult your dealer.

No soundCheck if the TV is muted. Press theMutebutton or increase the volume to check.Sound may be coming from only one speaker. Check the balance settings fromSoundmenu.

Remote control - no operationThe batteries may be exhausted. Replace the batteries.

Input sources - can not be selectedIf you cannot select an input source, it is possible that no device is connected. If not;Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

Recording unavailableTo record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device.

USB is too slowIf a “USB disk writing speed too slow to record” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Supported Subtitle File Formats for USB Mode

External Subtitles
Extension	Specification
.ssa	SubStation Alpha
.ass	Advanced SubStation Alpha
.srt	Subripper
.sub	Micro DVD / SubViewer
.sub + .idx VOBSub
.txt	Micro DVD / TMPlayer / MPL2
.mpl	MPL2
.smi	Sami
.jss	JACOSUB
.ttml	TTML
.txt / .sub	DVDSUBTITLE
.lrc	-
Internal Subtitles
Extension	Specification
.mkv	VOBSub
.mkv	ASS / SSA / TEXT
.dat, .mpg, .mpeg, .vob	DVD Subtitle
.mp4	DVD Subtitle, TEXT

Supported DVI Resolutions
When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz	60Hz	66Hz	70Hz	72Hz	75Hz
640x400				☑
640x480		☑	☑		☑	☑
800x600	☑	☑		☑	☑	☑
832x624						☑
1024x768		☑	☑	☑	☑	☑
1152x864		☑		☑		☑
1152x870						☑
1280x768		☑				☑
1360x768		☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑

Supported Video File Formats for USB Mode

Extension Video Codec	Max. Resolution & Frame Rate & Bit	Rate
.mpg, .mpeg, .dat, .vob	MPEG1/2, H.264, VC1	H.264: 1080Px2@30fps - 50Mbps, 1080P@60fps - 50Mbps Other: 1080P@60fps - 50Mbps
.ts, .trp, .m2ts
.avi MPEG1/2, MPEG4, H	264, MJPEG
.mp4, .m4a, .m4v, .mov, .qt, .3gp, .3g2, .3gpp	MPEG1/2, H.263, MPEG4, H.264
.mkv MPEG 1/2, MPEG4,	H.264
.flv Sorenson Sp, MPEG4, H.264
.ogm, .ogg MPEG1/2, MPEG4
.asf, .wmv MPEG4, WMV3, VC1
.rm, .rmvb RV30, RV40
.webm VP9, VP8

Supported Picture File Formats for USB Mode

Extension Specification Resolution (width x height)
.jpg, .jpeg	Baseline 8192 x 8192
	Progressive 3000 x 3000
.bmp	RGB 1/4/8/16/24/32 bit	8192 x 8192
	RLE 4/8 bit
.gif	87a
	89a (Only 1 picture at animation format)
.png	Grayscale, 24/32 bit per pixel
	Interlace format
	Progressive
.tiff, .tif Tagged image file format
.webp	Lossy compression VP8 key frame version number support 0~3
	Lossless compression

Supported Audio File Formats for USB Mode

Extension	Format
.mp3 .mp3
.ac3 .ac3
.aac .AAC
.wma .WMA
.amr .AMR-NB, .AMR-WB
.wav . MPEG La, .AAG. .PCM
.flac	. FLAC

ConnectivityWired ConnectivityTo Connect to a Wired NetworkYou must have a modem/router connected to an active broadband connection.Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV.Broadband ISP connectionLAN (ethernet) cableLAN input on the rear side of the TVTo configure wired settings please refer to the Network/Internet Settings section in the System>Settings Menu.You might be able to connect your TV to your LAN depending on your network's configuration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet.network wall socketLAN input on the rear side of the TVConfiguring Wired Device SettingsNetwork TypeThe Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an ethernet cable.Internet Speed TestHighlight Internet Speed Test and press the OK button. TV will check the internet connection bandwidth and display the result when complete.

Advanced SettingsHighlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS settings of the TV. Highlight the desired one and press Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and/or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Press the OK button to save settings when complete.Wireless ConnectivityTo Connect to a Wireless NetworkThe TV cannot connect to the networks with a hidden SSID. To make your modem's SSID visible, you should change your SSID settings via the modem's software.To Connect to a wireless LAN, you should perform the following steps:To configure your wireless settings please refer to the Network/Internet Settings section in the System>Settings Menu.Broadband ISP connectionA Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers and wireless gaming.The frequency and channel differ depending on the area.The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.The location where the transmission is most effective differs depending on the usage environment.

The Wireless feature of the TV supports 802.11 a,b & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.Configuring Wireless Device SettingsOpen the Network/Internet Settings menu and select Network Type as Wireless Device to start connection process.The TV will scan the wireless networks automatically. A list of available networks will be displayed. Please select your desired network from the list.Note: If the modem supports N mode, you should mode settings.If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control.Wait until the IP address is shown on the screen.This means that the connection is now established. To disconnect from a wireless network, highlight Network Type and press Left or Right buttons to set as Disabled.Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highlight Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Press the OK button to save settings when complete.Other InformationThe status of the connection will be displayed as Connected or Not Connected and the current IP address, if a connection is established.Connecting to your mobile device via WiFiIf your mobile device has WiFi feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software.Connect to your router following the steps stated above in the Wireless Connectivity section.Afterwards, engage your mobile device with the router and then activate the sharing software on your mobile device. Then, select files that you want to share with your TV.If the connection is established correctly, you will be able to access the shared files from your mobile device via the Media Browser of your TV.

Enter the Media Browser menu and the playback device selection OSD will be displayed. Select your mobile device and press the OK button to continue.If available, you can download a virtual remote controller application from the server of your mobile device application provider.Note: This feature may not be supported on all mobile devices.Wake ONWake-on-LAN (WoL) and Wake-on-Wireless LAN (WoWLAN) are standards that allow a device to be turned on or woken up by a network message. The message is sent to the device by a program executed on a remote device connected to the same local area network, such as a smartphone.Your TV is WoL and WoWLAN compatible. To enable this feature set the Wake On option in the Network/Internet Settings menu as On. It is necessary that both the device, from which the network message will be sent to the TV, and the TV are connected to the same network. Wake On feature is only supported for Android OS devices and can only be used via YouTube and Netflix applications.In order to use this feature the TV and the remote device should be connected at least once while the TV is on. If the TV is powered off, the connection should be reestablished, the next time it is switched on. Otherwise this feature will be unavailable. This does not apply, when the TV is switched into the standby mode.Wireless DisplayWireless Display is a standard for streaming video and sound content by Wi-Fi Alliance. This feature provides the ability to use your TV as wireless display device.Using with mobile devicesThere are different standards which enable sharing of screens including graphical, video and audio content between your mobile device and TV.Plug the wireless USB dongle to TV first, if the TV doesn't have internal WiFi feature.Then press the Source button on the remote and switch to Wireless Display source.A screen appears stating that the TV is ready for connection.Open the sharing application on your mobile device. These applications are named differently for each brand, please refer to the instruction manual of your mobile device for detailed information.Scan for devices. After you select your TV and connect, the screen of your device will be displayed on your TV.Note: This feature can be used only if the mobile device supports this feature. Scanning and connecting processes differ according to the programme you use. Android based

TABLE A: broadband internet connection is required for high quality viewing. You must set the country option accordingly in the First Time Installation for proper operation of the Internet portal.

HINT. A broadband internet connection is required for high quantity viewing. You must set the country option accordingly in the First Time Installation for proper operation of the Internet portal.

Internet PortalNote: There may be some PCs, which may not be able to utilize the audio video sharing failure due to administrator and security settings (such as business PCs).

Wireless Network Not Available
Connectivity Troubleshooting
Using Audio Video Sharing Network Service
Audio Video Sharing feature uses a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network. This standard allows you to view and play photos, music home network.1. Server Software InstallationThe Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC or if the required media server software is not installed onto the companion device. Please prepare your PC with a home network.2. Connect to a Wired or Wireless Network See the Wired/Wireless Connectivity Chapters for detailed conflaguration information.3. Play Shared Files via Media BrowserSelect Media Browser by using the directional buttons from the main menu and presses OK. The media browser will then be displayed. Audio Video SharingSelect directed media type on the main media browser may be displayed. Device Selection screen will be displayed properly. Device Selection screen will be displayed properly and select the media type as videos and choose a device from the selection menu. Then select the radio with video files in it on the next screen and all the available video files will be listed. To play other media types from this screen, you can go information on file playback.P/C/HD/Media Player or any other devices that are compatible should be used with a wired connection for your television off at the wall socket and back on again. Tik mode and jump are not supported with the Audio Video Sharing feature.Video Sharing mode or while browsing via Audio Video Ensure that you have already logged on to your PC with an authorized usmemame/password and also ensure an authorized usmemame/password and also ensure your media server program on your PC. If the domain has that your domain is active, prior to sharing any files in your media server program on your PC. If the domain has that your domain is active, prior to sharing any files in your media server program on your PC. If the domain has that your domain is active, prior to sharing any files in your media server program on your PC. If the domain has that your domain is active, prior to sharing any files in your media server program on your PC. If the domain has that your domain is active, prior to sharing any files in your media server programs on your PC. If the domain has that your domain is active, prior to sharing any files in your media server programs on your PC. If the domain has that your domain is active, prior to sharing any files in your media server programs on your PC. If the domain has that your domain is active, prior to sharing any files in your media server programs on your PC. If the domain has that your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has that your domain is active, prior to sharing any files in your media server programs on your PC. If the domain has that your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has that your domain is active, prior to sharing any files in your media server programs on your PC. If the domain has that your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has That your domain is active, prior to sharing any files in your media server programs on your PC. If the domain has That your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has That your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has That your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has That your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has That your domain is active, prior to sharing any files in your media server programs on your PC, if the domain hasThat your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has That your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has That your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has That your domain is active, prior to sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in Your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programson your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain hasThat your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain hasThat your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isactive, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC, if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain hasThat your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC, if the domain hasThat your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC, if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain hasThat your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in our media server programs on your PC, if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Shipping any files in your media server programs at your media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain hasThat your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain hasThat your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain hasThat your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain hasThat your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain hasThat your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain hasThat your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isfine, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Switching any files in your media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in our media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs at your media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server Programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server Programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server Programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server Programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server Programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server Programs on your PC,if the domain hasThat your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC. If the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has That your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isactive, prior to Sharing any files in your media server programs on your PC, if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC, if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isfine, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isframe, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isfine, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isfine, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isfine, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isfine, prior to Sharing any files in your media server programs on your PC,if the domain has Than that your domain isfinetary with such a case, the high speed connection for your model.Keep at least three meters distance from microwave channel on the WLAN router.	Use in Audio Video Sharing Network Service
Connectivity Troubleshooting
Using Audio Video Sharing Network Service
Wireless Network Not Available
Connectivity Troubleshooting
Ensure that any firewalls of your network allow the mobile devices should have the software version 5 inside this might cause problems while browsing files in Audio Video Sharing Mode.

Conceivity Troubleshooting

Wireless Network Not Available

• Ensure that any fireworks of your network allow the TV wireless connection.

• Try searching for wireless networks again, using the Network/Internet Settings menu screen.

If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connectivity section for more information on

If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection

Disruption during playback or slow reactions

You could try the following in such a case.

a high speed connection for your modem.

speed, signal quality and other settings. You need to have

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try charging the active channel on the WLA/N router.

IF the MAC addresses (a unique identifier number) of your

Sharing Not Working

Internet Connection Not Available / Audio Vid

Possible that your TV might not connect to the internet in such a case, the MAC addresses is authenticated.

precation against unauthorized access. Since your precision against unauthorized access.

In TV has its own Magic address, your neighbor service provider cannot validate the MAC addresses of your TV. For this reason, your TV cannot connect to the internet. Contact your internet service provider and request information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, Such Information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such Information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, such information on how to connect a different device, Such

is also possible that the connection may not beavailable due to a newell problem. If you thin

a causes your problem, contact your internet service

Provider: A renewal might be the reason of a connecting video sharing mode or while browsing via Audio Video and discovery problem while using the TV in Audio

Invalid Domain

Encure that you have already logged on to your PC with an authorized usname/password and also ensure that your domain is active, prior to sharing any files in your media service program on your PC. This company has not yet been able to ensure that your domain is active, prior to sharing any files in your domain is active, prior to sharing any files in your domain is active, prior to sharing any files in your domain is active, prior to sharing any files in your domain is active, prior to sharing any files in your domain is active, prior to sharing any files in your domain is active, prior to sharing any files in your domain is active, prior to sharing any files in your domain is active, prior to sharing any files in your domain is active, prior to sharing any files in my domain is active, prior to sharing any files in my domain is active, prior to sharing any files in my domain is active, prior to sharing any files in my domain is active, prior to sharing any files in my domain is active, prior to sharing any files in my domain is active, prior to sharing any files in my domain is active, prior to sharing any files in my domain is active, prior to sharing any files in my domain is active, prior to sharing any files in my domains

Install the Smart Center application onto your mobile device.Start the smart center application. If all connections are configured properly, you will see your TV's name on your mobile device. If your TV's name doesn't appear on the list, wait a while and tap on the Refresh widget. Select your TV from the list.Mobile Device screenOn the main screen you can find tabs to access various features.The application retrieves actual channel list from TV first when it starts.MY CHANNELS: The programmes of first four channels from the channel list retrieved from the TV are shown. You can change the listed channels. Press on the channel thumbnail and hold. A list of channels will be displayed and you can choose your desired channel to be replaced.TV: You can watch content through the TV tab. In this mode you can navigate through the channel list retrieved from your TV and click on thumbnails to view the detail pages.RECORDINGS: You can view your active recordings(if available) and reminders through this tab. To delete any item, simply press on the delete icon found on each row.EPG: You can view the broadcast schedules of selected channel lists through this tab. You can also navigate through channels by pressing on the selected channel on the EPG grid. Please note that updating / refreshing the EPG information may take a while depending on your network and web service quality.Note: Internet connection is required for WEB based informations.PORTAL: This tab displays the Portal applications in scrollable view. Unless FollowMeTV (if available) is active, the selected application will be displayed on your TV screen.Note: Internet connection is required. This tab is enabled if a portal page is in use.SETTINGS: Configure the application to your liking. You can change;Auto-lock (Only in IOS): The screen of the device automatically turns off after a certain amount of time. Default is off, which means the screen will always stay on.Auto-enable FollowMeTV: FollowMeTV function (if available) will start automatically when this setting is enabled. Default is disabled.Auto-connection to TV: When enabled, your mobile device will automatically connect to last connected TV and skips the TV search screen.

Change TV (Only in IOS): Shows the currently connected TV. You can press on this setting to go to the "TV search" screen and change to a different TV.Edit custom channel list: You can edit your custom channel list using this setting.Choose channel list source: You can choose the channel list source to be used in the application. The options are "TV List" and "Custom List". Additionally you can activate "Remember my choice" option to set the selected channel list source as a constant choice. In this case if the selected source is available it will be used in the application.Version No: Displays the current version of the application.Detail PageTo open detail page tap on a programme. On the detail page screen you can get detailed information of the programmes you select. There are "Details", "Cast&Crew" and "Videos" tabs to find on this page.DETAILS: This tab provides summary and information about the selected programme. Also there are links to facebook and twitter pages of the programme selected.CAST&CREW: Shows all the people contributed to the current programme.VIDEOS: Provides videos on Youtube related to the selected programme.Note: For some functions an internet connection may be required.FollowMe TV Feature (if available)Tap on the FOLLOW ME TV widget located at the bottom left of the screen of your mobile device to change the layout for FollowMe TV feature.EPG Tap the play icon to start streaming of the content from the TV to your mobile device. Available if your device is in your routers operation range.Notes:Note that only digital(DVB-T/C/S) SD channels are supported.Multilanguage audio support and subtitle on/off features are not functional.The streaming performance may change depending on the quality of your connection.Media Share PageTo access the Media Share widget tap on the Up-arrow on the bottom left side of the screen.If the Media Share widget is pressed, a screen is displayed where you can select the media file type to share with your TV.Note: Not all image file formats are supported. This function will not work if Audio Video Sharing feature is not supportedPortal LauncherTo access the Portal Launcher(■) widget tap on the Up-arrow on the bottom left side of the screen.English - 80 -

Figure a: Start bar application

Figure b: EPG application, broadcast video is shown on the left bottom, can be terminated by pressing 0.

HbbTV applications use keys on the remote control to interact with the user. When an HbbTV application is launched, the control of some keys are owned by the application. For example, numeric channel selection may not work on a teletext application where the numbers indicate teletext pages.

HbbTV requires AV streaming capability for the platform. There are numerous applications providing VOD (video on demand) and catch-up TV services. The user can use play, pause, stop, forward, and rewind keys on the remote control to interact with the AV content.

Note: You can enable or disable this feature from the More menu in System>Settings menu.

Smart Center

Smart Center is a mobile application running on iOS and Android platforms. With your tablet or phone, you can easily stream your favourite live shows and programmes from your smart TV. Also; you can launch your portal applications, use your tablet as a remote control for your TV and share media files.

Note: Being able to use all functions of this application depends on the features of your TV.

Getting Started

To use Smart Center features, connections have to be done properly. To get connected to your network wirelessly, plug in the Wi-Fi dongle to one of the USB ports if your TV doesn't have internal wifi feature. To be able to use internet based features, your modem/router must be connected to the internet.
IMPORTANT: Make sure the TV and mobile device are connected to the same network.

For media sharing feature Audio Video Sharing option should be enabled(if available). Press the Menu button on the remote, select System>Settings>More menu and press OK. Highlight Audio Video Sharing and change as Enabled. Your TV is ready to connect to your mobile device now.

HBBTV System

HbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, EPG, interactive advertising, personalisation, voting, games, social networking and other multimedia applications.
HbbTV applications are available on channels where they are signalled by the broadcaster (currently various

channels on Astra broadcast HbbTV applications). The broadcaster marks one application as "autostart" and this one is started by the platform automatically. The autostart

applications are generally launched with a small red button icon to notify the user that there is an HbbTV application on that channel. Press the red button to open the application page. After the page is displayed you can go back to the initial red button icon state by pressing the red button

again. You can toggle between the red button icon mode and full UI mode of the application via pressing red button. It should be noted that the red button switching capability is provided by the application and some application may behave differently. If you switch to another channel while an HbbTV application is active (either in red button icon mode or full

UI mode), the following scenarios can occur.

- The application can continue running. - The application can be terminated.

- The application can be terminated and another autostar red button application can be launched.

HbbTV allows the applications to be retrieved both from broadband or broadcast. The broadcaster may enable both ways or one of them. If the platform does not have an operational broadband connection, the platform can still launch applications transmitted on broadcast.

The autostart red button applications generally provide links to other applications. An example of this is shown below. The user then can switch to other applications by using the links provided. The applications should provide a way to terminate themselves, usually Exit button is used for this.

You can access the portal page by tapping on the Portal Launcher widget.

Note: Internet connection is required. This function will not work if a portal page is not in use.

Smart Remote Feature

You can use your mobile device as a remote control for your TV once it has connected to the TV. To use smart remote's full features tap on the Up-arrow on the bottom left side of the screen.

Voice Recognition

You can tap on the Microphone(■) widget and

manage your application, giving voice commands such as "Portal!", "Volume Up/Down!", "Programme Up/Down!"

Note: This fo

Note: This feature is a Keyboard Page

The keyboard page can be opened in two ways; by pressing the Keyboard(☐) widget on the application screen or automatically by receiving a command from the TV.

Requirements

1. Smart TV

2. Network connection

3. Mobile Device based on Android or iOS platform (Android OS 4.0 or higher; IOS 6 or higher version)

4. Smart Center app.(to be found on online

application stores based on Android and iOS platforms)

1. Router modem

2. USB storage device in FAT32 format (required for

PVR feature, if available)

Notes:

Extra

For Android devices, Normal(mdpi), Large(hdpi) and

Large(xhdpi) screen sizes are supported. Devices with 3 ^rd or

smaller screen sizes are not supported.

For iOS devices, all screen sizes are supported.

User interface of the Smart Center application is subject to change according to version installed on your device.

Especificación Especificação Specification
Señal de Televisión	PAL B/G D/K K I/I'	Emissão de TV	PAL B/G D/K K I/I'	TV Broadcasting	PAL B/G D/K K I/I'
Canales de Recepción	VHF (BANDA I/III) UHF (BANDA U) HIPERBANDA	Receção de Canais	HIPERBANDA - VHF (BANDA I/III) - UHF (BANDA U)	Receiving Channels	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Recepción Digital	Televisor de cable/digital totalmente integrado (DVB-T-C)	Receção Digital	TV(DVB-T-C) cabo digital terrestre satélite totalmente integrada	Digital Reception	Fully integrated digital terrestrial-cable TV(DVB-T-C)
Número de Canales Predefinidos	1 000	Número de Canais Predefinidos	1 000	Number of Preset Channels	1 000
Indicador de Canal	Ayuda en pantalla	Indicador de canal	Visualização no Ecrã	Channel Indicator	On Screen Display
Entrada de Antena RF	75 Ohm (sin balance)	Entrada de antena RF	75 Ohm (não equilibrado)	RF Aerial Input	75 Ohm (unbalanced)
Tensión de Funcionamiento	220-240V AC, 50Hz.	Tensão de funcionamento	220-240V AC, 50Hz.	Operating Voltage	220-240V AC, 50Hz.
Audio	Alemán+Nicam Estéreo Áudio		Alemanha+Nicam Estéreo	Audio	German+Nicam Stereo
Potencia de salida del audio (WRMS.) (10% THD)	2 x 2,5	Potência Saída Áudio (WRMS.) (10% THD)	2 x 2,5	Audio Output Power (WRMS.) (10% THD)	2 x 2,5
Consumo Eléctrico (en W.)	45	Consumo de energia (W)	45	Power Consumption (W)	45
Red en espera (en W)	< 3	Em espera ligado à rede (W)	< 3	Networked Standby (W)	< 3
Dimensiones del TV AxAxF (con soporte)	134 x 554 x 373	Dimensões TV P/C/A (com pé) (mm)	134 x 554 x 373	TV Dimensions DxLxH (with foot) (mm)	134 x 554 x 373
Dimensiones del TV (sin soporte) AxAxF (en mm.)	35/61 x 554 x 339	Dimensões TV P/C/A (sem pé) (mm)	35/61 x 554 x 339	TV Dimensions DxLxH (without foot) (mm)	35/61 x 554 x 339
Pantalla	24"	Exibir	24"	Display	24"
Temperatura y humedad de funcionamiento	Desde 0°C hasta 40°C, 85% humedad máx.	Temperatura e humidade de funcionamento	0°C até 40°C, 85% humidade máx.	Operation temperature and operation humidity	0°C up to 40°C, 85% humidity max

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		75	75
C	Screw Sizes
D Length (X)		min. (mm)	5
		max. (mm)	8
E	Thread (Y)	M4

	A B C D E
English	VESA WALL MOUNT MEASUREMENTS	Hole Pattern Sizes (mm)	Screw Sizes Length (X)		Thread (Y)
Deutsch	MASSANGABEN FÜR VESA-WANDMONTAGE Lochmustergrößen	(mm)	Schraubengrößen	Länge (X) Gewinde (Y)
Français	DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA	Dimensions des modèles de trous de montage (mm)	Dimensions des vis	Longueur (X) Filetage	(Y)
Italiano	Misurazioni installazione a parete VESA Dimensioni schema foro	(mm)	Dimensioni vite	Lunghezza (X) Fillettatura (Y)
Português	MEDIÇÕES DE MONTAGEM MURAL VESA Dimensões do molde de furação (mm)		Tamanhos do parafuso	Comprimento (X) Rosca (Y)
Español	MEDIDAS DEL MONTAJE DE PARED VESA	Tamaños de patrón para agujero (mm)	Tamaños de tornillo	Longitud (X)	Rosca (Y)
Türkçe	VESA DUVARA MONTAJ APARATI ÖLCÜLERİ	Aclacak Delik Ölçüleri (mm)	Vida Ölçüleri	Uzunluk (X)	Yüzev (Y)
Ελληνικ	ΔΙΑΣΤΑΣΕΙΣ ΒΑΣΗΣ TOIXOY VESA	Μεγέθη σχήματος οπών (mm)	Μεγέθη βιδών	Μήκος (X)	Πείρωμα (Y)
Polski	WYMIARY DO MONTAZU NAŚCIENNEGO VESA	Rozmiary szablonu otworów (mm)	Rozmiary wkrętów	Długość (mm)	Gwint (Y)
čeština	ROZMĚRY DRŽÁKU NA ZEŐ VESA	Rozměry velikosti děr (mm)	Rozměry śroubú	Délka (X) Závit (Y)
Magyar	VESA FALI TARTÓ MÉRETEK	Lyukak méretének nagysága(mm)	Csavar méret	Hossz (X)	Menet (Y)
Română	MĂSURĂTORI SUPORT PERETE VESA	Dimensiuni tipar gaură (mm)	Dimensiuni şuruburi	Lungime (X)	Filet (Y)
Svenska	VESA VÄGGMONTERINGSMÄTT	Hålmönsterstorlear (mm)	Skruvstorlekar	Längd (X) Tråd (Y)
Nederlands	VESA WANDMONTAGE METINGEN	Grootte booropening (mm)	Schroefgroote	Lengte (X)	Draad (Y)
Suomi	VESA-SEINÄASENNUKSEN MITAT	Reikäkuvion koot (mm)	Ruuvinkoot	Pituus (x) Kierre (Y)
Norsk	VESA VEGGMONTERINGSMÄL	Hullmønster størrelser (mm)	Skruestørrelser	Lengde (x)	Tråd (Y)
Dansk	VESA VÆGMONTERINGS-MÄL	Hulmønster-størrelser (mm)	Skruestørrelser	Længde(X)	Tråd (Y)
Русский	РАЗМЕРЫ НАСТЕННОГО КРЕПЛЕНИЯ VESA	Размеры системы отверстий	Размеры винтов	Длина(X)	Резьба (Y)
беларуская	ПАМЕРЫ НАСЦЕННАГА МАЦАВАННЯ VESA	Памеры сістэмы адтулін	Памеры вінтоў	Даўжыня (X)	Разьба (Y)
македонски	МЕРКИ ЗА МОНТИРАЊЕ НА СИД ЗА „BECA“	Шема на големини на дупката (мм)	Големина на шрафот	Должина (X)	Навој (Y)
український	РОЗМІРИ НАСТИННОГО КРІПЛЕННЯ VESA	Відстань між кріпильними отворами, мм	Розміри гвинтів	Довжина (X)	Діаметр різьби (Y)
Srpski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije zavrtnjeva	Dužina (X)	Navoj (Y)
Slovenčina	ROZMERY DRŽIAKA NA STENU VESA	Rozmery velkosti dier (mm)	Rozmery skrutiek	Dížka (X)	Závit (Y)
Slovenščina	MERE STENSKEGA NOSILCA VESA	Velikosti vzorca lukanj (mm)	Velikosti vijakov	Dolžina (X)	Navoj (Y)
Hrvatski	VESA MJERE ZIDNOG DRŽAČA	Veličine uzorka otvora (mm)	Veličine vijka	Dužina (X)	Navoji (Y)
Bosanski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenie	Dimenzije vijaka	Dužina (X)	Navoi (Y)
Български	РАЗМЕРИ ЗА КОМПЛЕКТ ЗА МОНТАЖ НА СТЕНА VESA	Размери на отвора (mm)	Размер на болта	Дължинат (X)	Резба (Y)
Lietuvių	VESA TVIRTINIMO PRIE SIENOS MATAVIMAI	Angos šablono dydis (mm)	Varžty dydis	Igis (X)	Sriegis (Y)
Latviešu	VESA SIENAS STIPRINĀJUMA IZMĚRI	Caurumu šablona izmērs (mm)	Skrūvju izmēri	Garums (X)	Vitne (Y)
Eesti	VESA SEINALE KINNITAMISE MÖÖDUD	Kruvi suuruse mööt (mm)	Kruvi suurus	Kõrgus(x)	Keere (Y)
Shqip	PËRMASAT E NJËSISË SË MONTIMIT NË MUR VESA	Madhësitë modele të vrimave (mm)	Madhësitë e vidhave	Gjatësia (X)	Filetimi (Y)
عرابي	مقييس للstitي على الجدار VESA	(م) أح-demand التقوب	(م) أح-demand المراعی	(طول) (X)	(السن) (Y)
لازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلا�لازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلاازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلازلاузلازلازلازلازلازلازلازلازlaزلازلازلازلازلازlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزлаزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزLaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaز laزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزLAزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزta laزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزlaزla: 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

TR: İşbu belgede; VESTEL Elektronik Sanayi ve Ticaret A.Ş., telsiz ekipmanı tipi TFT IDTV 'nin 2014/53/AB sayılı direktife uygun olduğunu beyan eder. AB uygunluk beyanının tam metni internet adresinde mevcuttur: doc.vosshub.com
EN: Hereby, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com
BG: С настоящото VESTEL Elektronik Sanayi ve Ticaret A.Ş., декларира, че този тип радиосъоръжение TFT IDTV е в съответствие с Директива 2014/53/EC. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: doc.vosshub.com
CZ: Tímto VESTEL Elektronik Sanayi ve Ticaret A.Ş., prohlašuje, že typ rádiového zařízení TFT IDTV je v souladu se směrnici 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: doc.vosshub.com
DA: Hermed erklærer VESTEL Elektronik Sanayi ve Ticaret A.Ş., at radioudstyrstypen TFT IDTV er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: doc.vosshub.com
DE: Hiermit erklärt VESTEL Elektronik Sanayi ve Ticaret A.Ş., dass der Funkanlagentyp TFT IDTV der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: doc.vosshub.com
EL: Με την παρούσα ο/η VESTEL Elektronik Sanayi ve Ticaret A.Ş., δηλώνει ότι ο radioεξοπλισμός TFT IDTV πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: doc.vosshub.com
ES: Por la presente, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declara que el tipo de equipo radioeléctrico TFT IDTV es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: doc.vosshub.com
ET: Käesolevaga deklareerib VESTEL Elektronik Sanayi ve Ticaret A.Ş., et käesolev raadioseadme tüüp TFT IDTV vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: doc.vosshub.com
FI: VESTEL Elektronik Sanayi ve Ticaret A.Ş., vakuuttaa, että radiolaitetyyppi TFT IDTV on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: doc.vosshub.com
FR: Le soussigné, VESTEL Elektronik Sanayi ve Ticaret A.Ş., déclare que l'équipement radioélectrique du type TFT IDTV est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: doc.vosshub.com
HR: VESTEL Elektronik Sanayi ve Ticaret A.Ş., ovime izjavljuje da je radijska oprema tipa TFT IDTV u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: doc.vosshub.com

HU: VESTEL Elektronik Sanayi ve Ticaret A.Ş., igazolja, hogy a TFT IDTV típusú rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: doc.vosshub.com
IT: Il fabbricante, VESTEL Elektronik Sanayi ve Ticaret A.Ş., dichiara che il tipo di apparecchiatura radio TFT IDTV è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: doc.vosshub.com
LT: Aš, VESTEL Elektronik Sanayi ve Ticaret A.Ş., patvirtinu, kad radijo įrenginių tipas TFT IDTV atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: doc.vosshub.com
LV: Ar šo VESTEL Elektronik Sanayi ve Ticaret A.Ş., deklarē, ka radioiekārta TFT IDTV atbilst Direktīvai 2014/53/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: doc.vosshub.com
MT: B'dan, VESTEL Elektronik Sanayi ve Ticaret A.Ş., niddikjara li dan it-tip ta' taghmir tar-radju TFT IDTV huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ğej: doc.vosshub.com
NL: Hierbij verklaar ik, VESTEL Elektronik Sanayi ve Ticaret A.Ş., dat het type radioapparatuur TFT IDTV conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: doc.vosshub.com
PL: VESTEL Elektronik Sanayi ve Ticaret A.Ş., niniejszym oświadcza, że typ urządzenia radiowego TFT IDTV jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: doc.vosshub.com
PT: O(a) abaixo assinado(a) VESTEL Elektronik Sanayi ve Ticaret A.Ş., declara que o presente tipo de equipamento de rádio TFT IDTV está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: doc.vosshub.com
RO: Prin prezenta, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declară că tipul de echipamente radio TFT IDTV este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: doc.vosshub.com
SK: VESTEL Elektronik Sanayi ve Ticaret A.Ş., týmto vyhlasuje, že rádiové zariadenie typu TFT IDTV je v súlade so smernicou 2014/53/EÚ. Uplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: doc.vosshub.com
SL: VESTEL Elektronik Sanayi ve Ticaret A.Ş., potrjuje, da je tip radijske opreme TFT IDTV skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: doc.vosshub.com
SV: Härmed försäkrar VESTEL Elektronik Sanayi ve Ticaret A.Ş., att denna typ av radioutrustning TFT IDTV överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU-försäkran om överensstämmelse finns på följande webbadress: doc.vosshub.com

A	Product Fiche
B	Commercial Brand:TELEFUNKEN
C	Product No.	10112788
D	Model No.	SOMNIA24ESTV
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	24 inches	61 cm
G	On mode average power consumption (Watt)	19
H	Annual energy consumption (kWh/annum)	27
I	Stand by power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1366x768

	A	B	C	D	E	F	Visible screen size(diagonal, approx.) (inch/cm)
English	Product Fiche Commercial Brand Product No.			Model No. Energy efficiency class
Deutsch	Produkt-Datenblatt	Markenzeichen		Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	Sichtbare Bildschirngröße(diagonal,ca.) (Zoll /cm)
العربية	العربية الحرفية	العربية الحرفية	العربية الحرفية	العربية الحرفية	العربية الحرفية	العربية الحرفية	العربية الحرفية
Български	Справочен лист с техническите данни	Търговска марка	Продукт No	Модел No	Клас на енергийна ефективност	Клас на енергийна ефективност	Видим размер на екрана(диагонал,прибл.) (инча /см )
čeština	Produktový list	Značka výrobce	Číslo produktu	Model č.	Energetická třída	Energetická třída	Viditelná velikost obrazový(ühlopříčka,přibl.(palců /cm)
Dansk	Produktoplysningsskema	Varemærke	Produktnr.	Model nr.	Energieffektivitetsklasse	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Virran tehokkuusluokka	Nakyvan kuvaruudun koko(diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Classe d'efficacité énergétique	Taille d'écran visible (diagonale,approx.)(pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Klasa energetske učinkovitosti	Vidljiva veiličina ekrana(dijagonalna,približno) (inča/cm)
Nederlands	Productfiche	Commercieel merk.	Productnr.	Modelnr.	Energie efficiëntie klasse	Energie efficiëntie klasse	Zichtbare schermgrootte(diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial	N° de Producto	N° de Modelo	Clasificación Energética	Clasificación Energética	Tamaño de pantalla visible(diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke	Produktnr.	Modellnr.	Energiklass	Energiklass	Synlig skærmstorlek(diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di efficienza energetica	Classe di efficienza energetica	Dimensioni visibili dello schermo(diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU Marka produktu Nr produktu Nr modelu				Klasa efektywności energetycznej	Klasa efektywności energetycznej	Widoczny obraz ekranu(przekątna,około)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka	Termékszám	Modellszám	Energiahatékonysági osztály	Energiahatékonysági osztály	Latható keptartomany (diagonalls,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Modell nr.	Energieffektivitet klasse	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial	Produto N°	Modelo N°	Classificação eficiência energética	Classificação eficiência energética	Tamanino ecra visível (diagonal, aprox.)(polegadas/cm)
Română	Fişă produs	Marcă comercială	Nr. Produs	Nr. Model	Clasa de eficiență energetică	Clasa de eficiență energetică	Dimensiunea ecranului vizibil(diagonală, aprox. ) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энерголотребления	Класс энерголотребления	Видимый размер экрана (по диагонали, приблизительно)(дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энерголотребления	Класс энерголотребления	Видимый размер экрана (по диагонали,Около)(дюймов/см )
македонски	Технички податоци	Комерцијална марка	Производ бр.	Модел бр.	Класа на енергетска ефикасност	Класа на енергетска ефикасност	Големина на видлив екран(дијагонала, окопу) (инчч/см)
український	Технічні дані	Кормеційна марка	Артикул	Модель	Клас анергоспоживання	Клас анергоспоживання	Видимий розмір екрана (діагональ, Приблизно) (дюймів/см)
Srpski	Tehničke odlike	Komercijalna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Klasa energetske efikasnosti	Veiličina vidljivog ekrana (dijagonala,tokom) (inča/cm)
Slovenčina	Produktový list	Značka výrobcu	Číslo produktu	Model č.	Energetická trieda	Energetická trieda	Viditelná velikost obrazovky(uhlopriečka, zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka	Št. İzdelka	Št. Modela	Razred energetske učinkovitosti	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala,pribl.) (palcev/cm)
Еллянік	Делтію проϊόντος	Емторикó σήμα	Ар. Проϊόντος	Ар. МонтёLou	Кати Yorkа івергейакікіs апобосніс	Кати Yorkа івергейакікіс апобосніс	Орото юридого одвініс (діогуєю,тер.) (івтосє/см)
Bosanski	Техніčki podaci	Komercijalna marka	Produkt br.	Model br.	Klasa energetske efikasnosti	Klasa energetske efikasnosti	Vidljiva veiličina ekrana (diagonala približno.) (incă/cm)
Украль	Украль о'ю 15	Украль о'ю 15	Украль о'ю 15	Украль о'ю 15	Украль о'ю 15	Украль о'ю 15	(у'ярх)(ці 77,21,01,02) (ін'я р'я р'я)
Türkçe	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimliliği sınıfı	Enerji verimliliği sınıfı	Görtüten ekran boyutu (çapraz, yakışk.) (inch/cm)
Shqip	Të dhënat e produktit	Marka tregtare	Nr. i produktit.	Nr. i modelit.	Klasa e eficiencês sê energjisë	Klasa e eficiencês sê energjisë	Madhesia e ekranit te dukshem(diagonal, afërsisht) (inch/cm)
Lietuvių	Gaminio etiketė	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasė	Energetinio efektyvumo klasė	Matomas ekranо dydis (jstrizainė,approx.) (colių/cm)
Latviešu	Produkta apraksts	Marka	Produkta nr.	Modelja nr.	Energoefektivitätes klase	Energoefektivitätes klase	Ekranа ізмірі (pa diognăli, apınçram)(collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma	Toote nr.	Mudeli nr.	Energiaklass	Energiaklass	Vaadatava ekraani suurus (diagonaal,umbes) (tolli/cm)
فارمسی	مشخصات محصول	مارک تجاري	朦داره محصول	朦داره مدل	گروه کار آبی اززی	گروه کار آبی اززی	شداره سطحایل مشطه (هندستی لادریا) (بیچ) (سانتی متر)

	G	H	I	J	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschattelem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	(Watt)	Stromverbrauch im ausgeschaltetem Zustand (Watt) Display-Auflösung (px)
عربية	متوسط استهلاك الطاقة عن اstenشغيل (فرOmega)	(الاستهلاك السنوي للطانيکاکیلی واملاً(الطampa)	(استهلاک الطاقة في wr Problem ASSTEDA) (فرOmega)	(استهلاک الطاقة في wr Problem ASSTEDA) (فرOmega)	(وStrong الشاشتلاک)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишка консумация на електроенергия (kWh/Годишка)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Prüměrná spotřeba elektrické energie v zapnutém režimu (Wattú)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovostním režimu (Wattů)	Spotřeba elektrické energie ve vypnutém režimu (Wattů) Rozlišení disp	peje (px)
Dansk	Gennemsnitligt stromforbrug i tændt tilstand (Watt)	Arligt energiforbrug (kWh/Arligt)	Strømforbrug (standby)(Watt)	Strømforbrug i slukket tilstand (Watt)	Skærmoplesning (px)
Suomi	Päällä-tilan keskimääräinen virrankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakovirran kulutus (Wattia)	Pois-tilan virrankulutus (Wattia)	Näytön erottelukyky (pikselia)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode 'arrêt' (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod sključen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik(kWh/Jaarlijks)	Stand-by stroomverbruik (Watt)	Uit-modus stroomverbruik (Watt)	Schemresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual) Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PÄ-läge (Watt)	Energikonsumtion per år (kWh/Arlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skärmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Średnie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Średnie zużycie energii w trybie oczekiwania (Watów)	Zużycie energii w trybie wyłączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt) Éves energiafogyasztás	(kWh/Éves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pámodus gjennomsnittlig strømforbruk (Watt)	Arlig strømforbruk (kWh/Arlig)	Hvilemodus strømforbruk (Watt)	Av-modus strømforbruk (Watt)	Skjermopplösning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual) Consumo energia em stand-by (Watt)	Consumo annual energy (kWh/anual) Consumo energy em stand-by (Watt)	Consumo energy em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu în modul pomit (Watj)	Consum anual de energie (kWh/anual)	Consum electric în stare de repaus (Watj)	Consum electric în modul oprit (Watj)	Rezolutja ecranului (pixeli)
Русский	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kВтч/Год)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/радавое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е включен	Годишка потрошувачка на енергија (kWh/Годишка)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня сложивана потужність у робочому режимі (Вт)	Середньорічна сложивана потужність (kWh/Річне)	Сложивана потужність у режимі очікування (Вт)	Сложивана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključení (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključení (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemerná spotreba elektrickej energie v zapnutom režime (Wattov)	Ročná spotreba energie (kWh/Ročná)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vypnutom režime (Wattov)	Rezlišenie displeja (pixl.)
Slovenščina	Poraba električne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллэнvik	Мёση κατανάλωση ρεύματος λειτουργίας (Watt)	Ertría σα κατανάλωση ενέργειας (kWh/Ertría σα)	Κατανάλωση ρεύματος στην αναμονή (Watt)	Κατανάλωση ρεύματος στεπενεργοτοιηση (Watt)	Ανάλυση οδόνης (Піξελ)
Bosanski	Prosečna potrošnja kada je uključen (Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucija ekrana (piks.)
Түйүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүү		(тысвы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"бы"Defense
Türkçe	Açık moddaki ortalama güç tüketimi (Watt)	Yilik enerji tüketimi(kWh/yilik)	Bekleme durumunda enerji tüketimi (Watt)	Kapalı moddaki güç tüketimi (Watt)	Ekran çözünürlüğü (piks.)
Shqip	Konsumi mesatar i energijse si i ndezur (Watt)	Konsumi vjetor i energijse (kWh/vjetor)	Konsumi i energijse si ne gatishmēri (Watt)	Konsumi i energijse si i fikur (Watt)	Rezolucioni i ekranit (piks.)
Lietuviių	Vidutinės energijos sąnaudos jungus (Vatai)	Metinės energijos sąnaudos (kWh/Metinės)	Energijos sąnaudos budėjimo režimu (Vatai)	Energijos sąnaudos išjungus (Vatai)	Ekrano skiriamoji geba (pikselių)
Latviešu	Energijas patērīņš aktīvā režīmā (Vati)	Gada energijas patērīņš (kWh/gada)	Energijas patērīņš gaidīśanas režīmā (Vati)	Energijas patērīņš izslēgta stāvokli (Vati)	Displeja rezolūcija (piksđiem)
Eesti	Keskmine energiakulu töörežimil (Vatti)	Aastane energiakulu (kWh/aastane)	Energiakulu ooterežimil (Vatti)	Energiakulu väljalūlitatud olekus (Vatti)	Ekraani resolutsioon (pikslit)
قارمسي	مYZAN متوسط مصرف رиф در حالت نفول (wat)	(زامان الززى مصCDFI در سالإ capturingات) (زامان الززى مصCDFI در سالإ capturingات) (زامان الززى مصCDFI در سالإ capturingات) (زامان الززى مصCDFI در سالإ capturingات) (زامان الززى مصCDFI در سالإ capturingات) (زامان الززى مصCDFI در سالإ capturingات) (زامان الرزى مصCDFI در سالإ capturingات) (زامان الززى مصCDFI در سالإ capturingات) (زامان الززى مصCDFI در سالإ capturingات) (زامان الززى مصCDFI در سالإ capturingات) (زامان الززى مصCDFI در سالإ capturingات) (زامان الززى مصDFI در سالإ capturingات) (زامان الززى مصDFI در سالإ capturingات) (زامان الززى مصDFI در سالإ capturingات) (زامان الززى مصDFI در سالإ capturingات) (زامان الززى مصDFI در سالإ capturingات) (زامان الززى مصDFI در سالا-ابناد) (زامان الززى مصDFI در سالا-ابناد) (زامан الززى مصDFI در سالا-ابناد) (زامан الززى مصDFI در سالا-ابناد) (زامан الززى مصDFI در سالا-ابناد) (زامан الززى مصDFI در سالا-ابناد) (زامан الززى مصDFI در سالا-ابنад) (زامан الززى مصDFI در سالا-ابنад) (زامан الززى مصDFI در سالا-ابنад) (زامан الززى مصDFI در سالا-ابنад) (زامан الززى مصDFI در سالا-ابنад) (زامан الززى مصDFI در سалا-ابنад) (زامан الززى مصDFI در سалا-ابنад) (زامан الززى مصDFI در سалا-ابنад) (زامан الززى مصDFI در سалا-ابنад) (زامан الززى مصDFI در سалا-ابنад) (زامан الززى مсфдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳	(م Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure Лота	(م Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure المAzure «Усл» (2018)	(م Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure الم Azure المase «Усл» (2018)
