Product Type	Kitchen Extractor Hood
Brand	Gram
Model	EFS 5661-92 B
Installation Type	Wall-mounted over gas or electric hob
Operating Modes	Extraction (external venting) and Recirculation (with charcoal filter)
Fan Speeds	3 (Low, Medium, High)
Lighting	2 lamps, independent push-button control
Controls	Push buttons on control panel
Grease Filter Type	Aluminium cassette filter (washable)
Grease Filter Cleaning	Every month; wash in dishwasher or by hand with mild detergent
Charcoal Filter	Optional for recirculation mode; replace every 2 months (or more frequently with heavy use)
Duct Diameter	120 mm (recommended for extraction mode)
Minimum Installation Height (Gas Hob)	650 mm (or as per gas cooker instructions if greater)
Power Supply	Check rating plate (typical 220-240 V, 50 Hz)
Chimney Type	Telescopic (internal and external chimney)
Material	Tempered glass and metal (stainless steel likely)
Manufacturer	Gram A/S, Gejlhavegård 2B, DK-6000 Kolding, Denmark
Safety Features	Automatic shut-off? Not specified; safety instructions for installation and use
Compliance	Low Voltage Directive 2006/95/EC, EMC Directive 2004/108/EC, ErP Directive 2009/125/EC
Product Weight	Not specified (varies by model)

Frequently Asked Questions - EFS 5661-92 B GRAM

How do I install the Gram EFS 5661-92 B hood?

Follow the step-by-step installation instructions in the manual (pages 6-7). Ensure the wall can support the weight, maintain a minimum distance of 650 mm above a gas hob (or as per gas cooker instructions), and connect to a suitable ventilation duct for extraction mode.

How often should I clean the grease filter?

Clean the aluminium grease filter at least once a month. You can wash it in the dishwasher or by hand using a mild detergent or liquid soap.

How often should I replace the charcoal filter?

Replace the charcoal filter every 2 months, or more frequently if you use the hood intensively. The charcoal filter is only used in recirculation mode.

Can I use the hood without a duct?

Yes, you can use the hood in recirculation mode. In this case, you must install an activated charcoal filter and air guide vane (if applicable). No external duct is required.

What type of bulbs does the hood use?

Use incandescent, halogen, or LED modules with the same specification as the factory-installed bulbs. See Figure 7 in the manual for replacement details.

Why is my hood not operating?

First, check that the power cord is plugged in and the wall socket is working. Also ensure the appliance is properly connected to the mains. If it still doesn't work, contact a qualified technician.

Can I install the hood above a gas hob?

Yes, the hood can be installed above a gas hob. Ensure the minimum distance is at least 650 mm, or follow the gas cooker's instructions if they specify a greater distance.

How do I operate the fan speeds?

Use the control panel buttons to select fan speeds 1 (low), 2 (medium), or 3 (high). Use low and medium for normal cooking, and high for heavy fumes like frying or grilling.

How do I clean the exterior of the hood?

Use a damp cloth with a neutral detergent. Do not use solvents, alcohol, caustic substances, or abrasive cloths. Avoid soaked cloths or water jets.

What should I do if the power cord is damaged?

If the power cord is broken, it must be replaced by a specialist repair shop to avoid hazards. Do not attempt to repair it yourself.

USER MANUAL EFS 5661-92 B GRAM

Before using the appliance, please carefully read this manual!

BETJENINGSVEJLEDNING - EMFANG

Technical illustration showing a hand pressing a component on a flat panel, with an inset close-up highlighting the motion (no text or symbols)

Simple diagram with four black icons: a fan, a sun, a flower, and a leaf on a gray background (no text or symbols)

Illustration showing a bulb being inserted into a device with a magnified view of the bulb (no text or symbols present)

THANK YOU FOR PURCHASING AN GRAM APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS
GUIDELINES CONCERNING THE SAFETY OF USE 9

INSTALLATION		12
OPERATION	AND MAINTENANCE		13
ENVIRONMENTAL	PROTECTION	15

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

● Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

● Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

●The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not ex-

tend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

●Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.
- Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.
●The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).
- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is

maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

●Do not lean on hood
●The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
  ●Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.
  ●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ●Children should be su-

pervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  ●Before installing unwind and straighten the power cord.
  ●Warning! The packaging materials (polyethylene bags, small pieces of foamed poly-

styrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

INSTALLATION

Elements

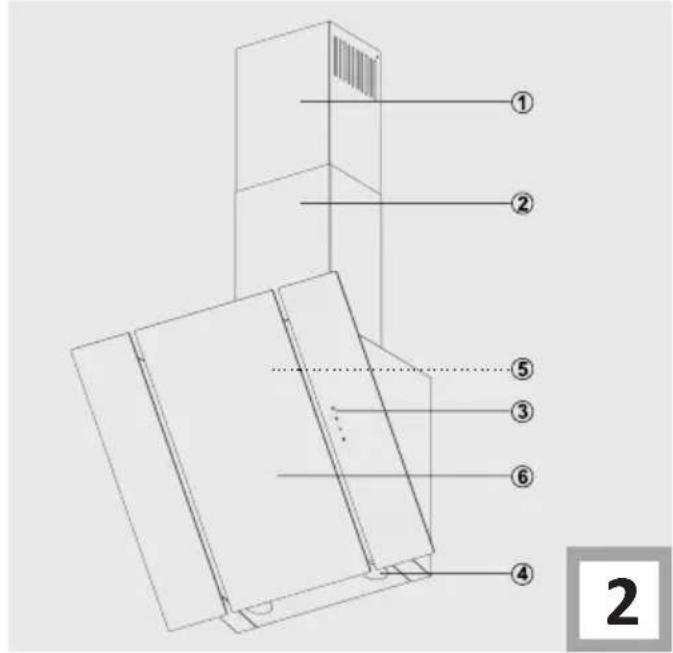

Kitchen hood consists of the following elements (Fig. 2):

1) Internal Chimney
2) External Chimney
3) Control Panel
4) Lighting
5) Aluminum Cassette Filter
6) Tempered Glass

Installation

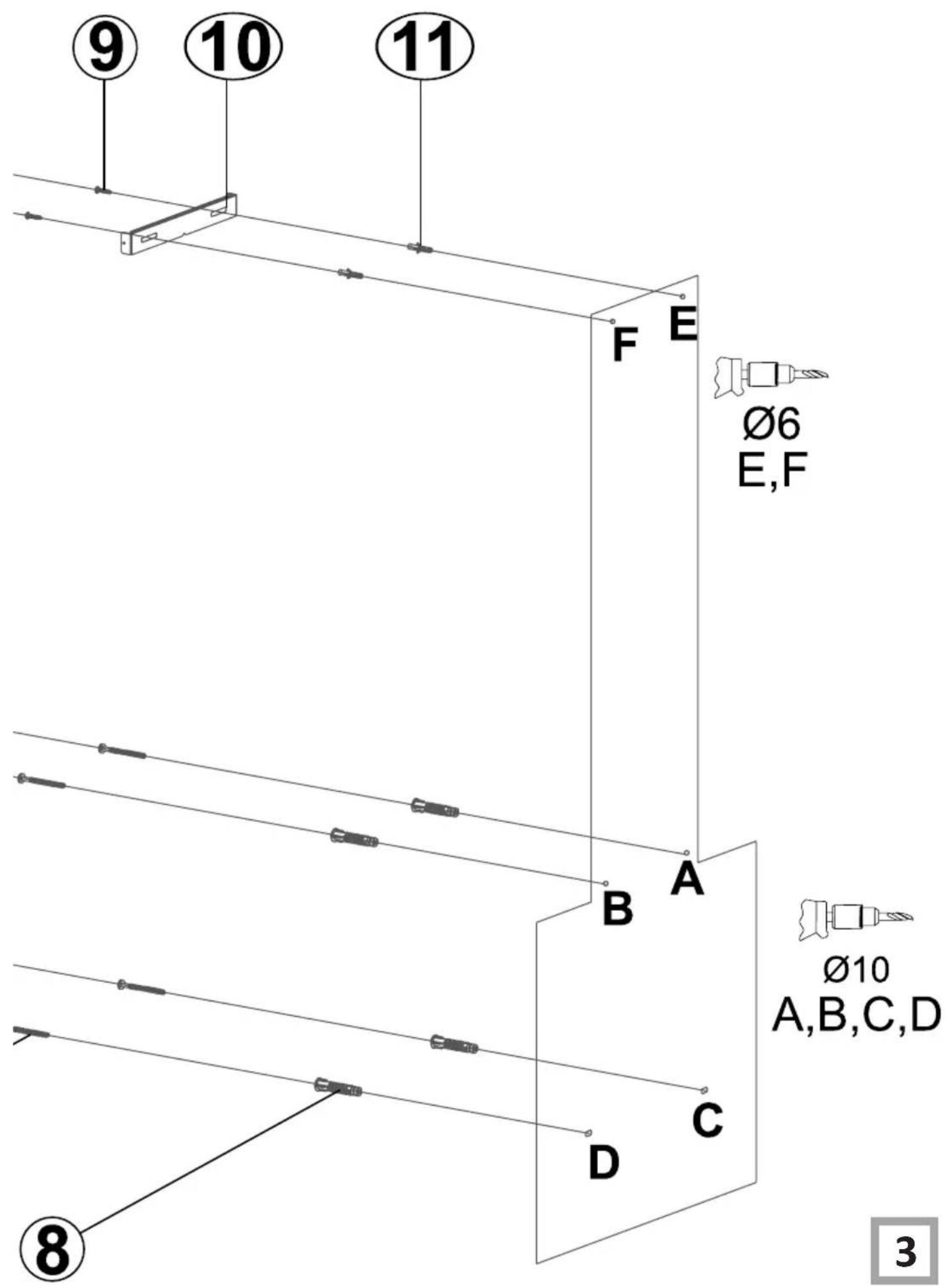

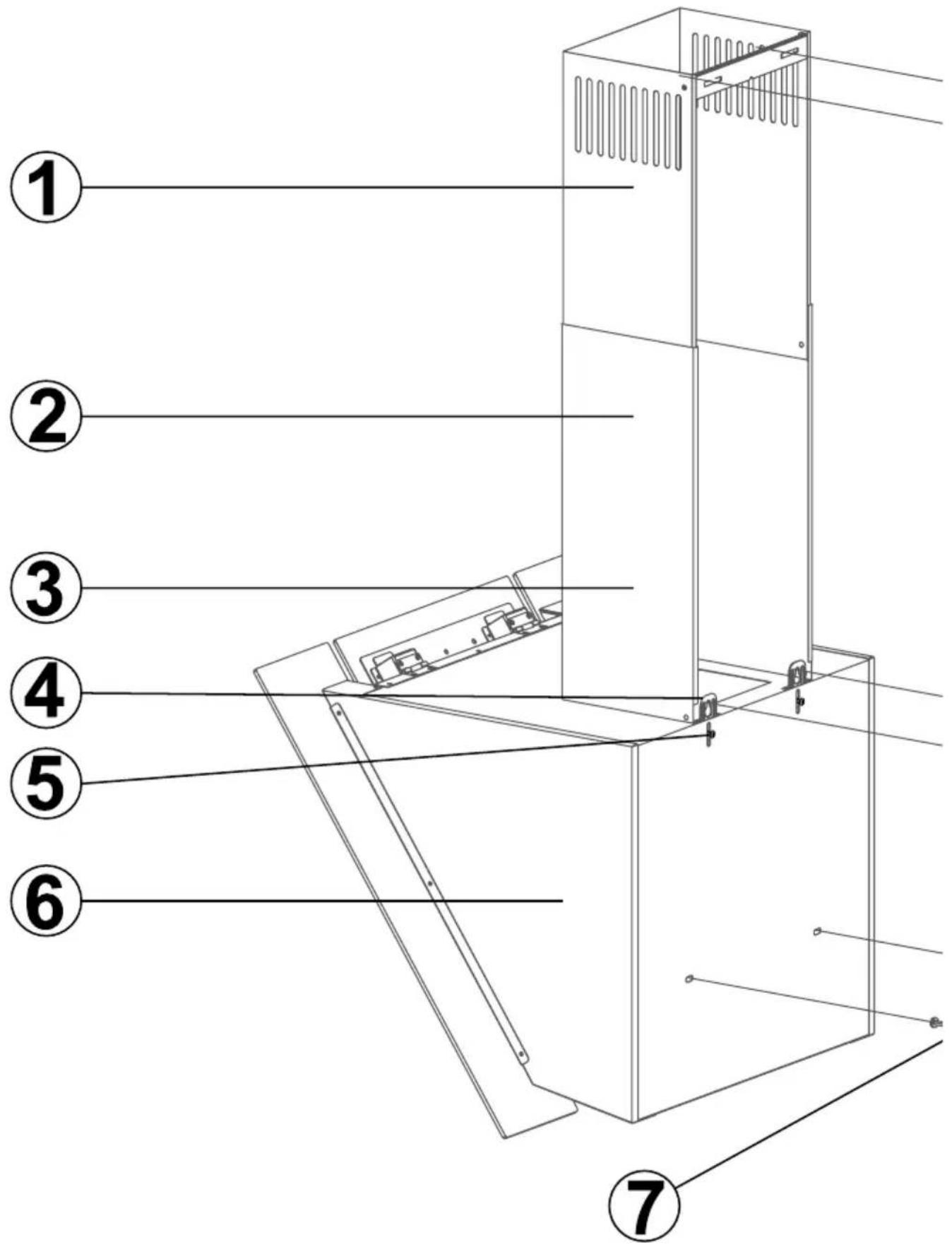

Step-by-step appliance installation is shown on page 6-7

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of

120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

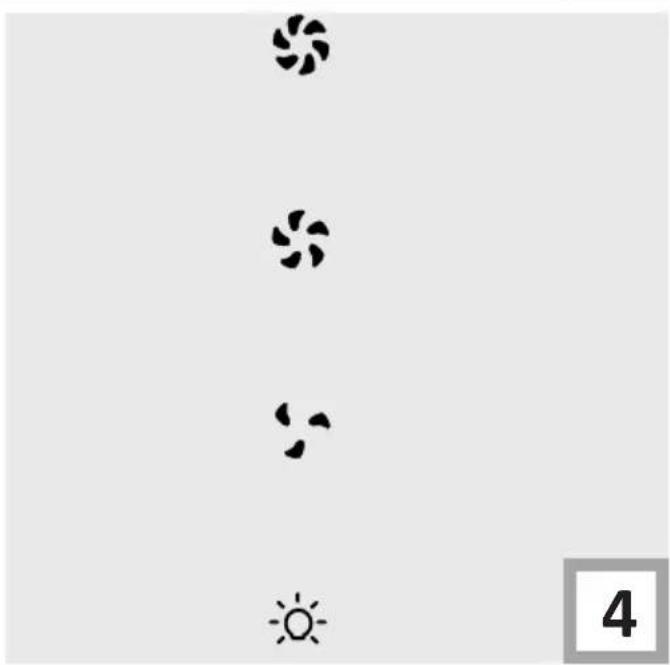

Use control panel to control your cooker hood (Fig. 4)

buttons control cooker hood fan speed in the range from 1 to 3,

Fan speeds

The lowest and medium speeds should be used under normal conditions and with low concentration of fumes. The maximum speed should be used in case of high concentration of kitchen fumes, e.g. during frying or grilling.

We recommend you to operate your product for few minutes more after the cooking is completed to enable absorption rest of smell and steam.

Illumination

The product has 2 lamps and one lamp button to operate illumination. Press lamp button " ✉ in order to start illumination.

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

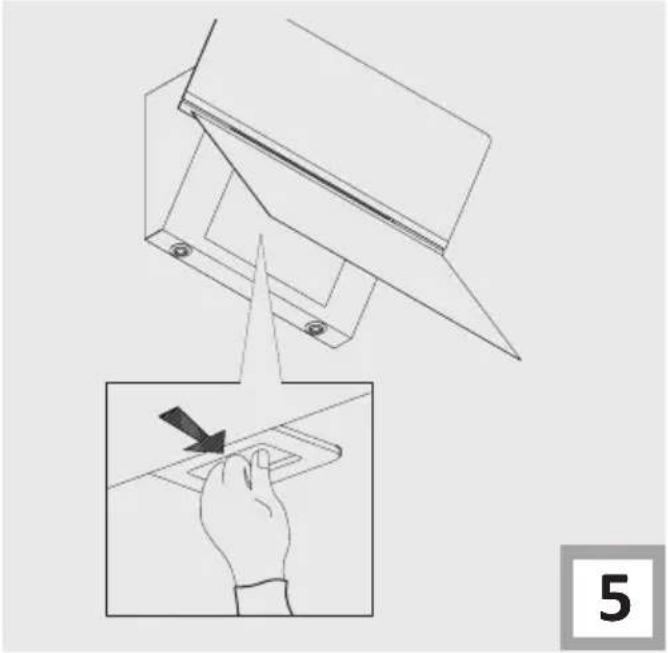

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

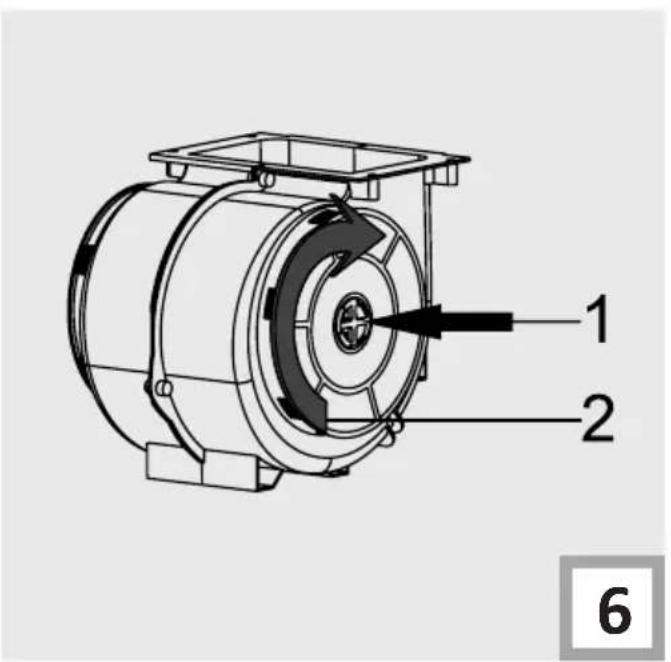

Dismantling of charcoal filter is shown on Figure 6.

Lighting

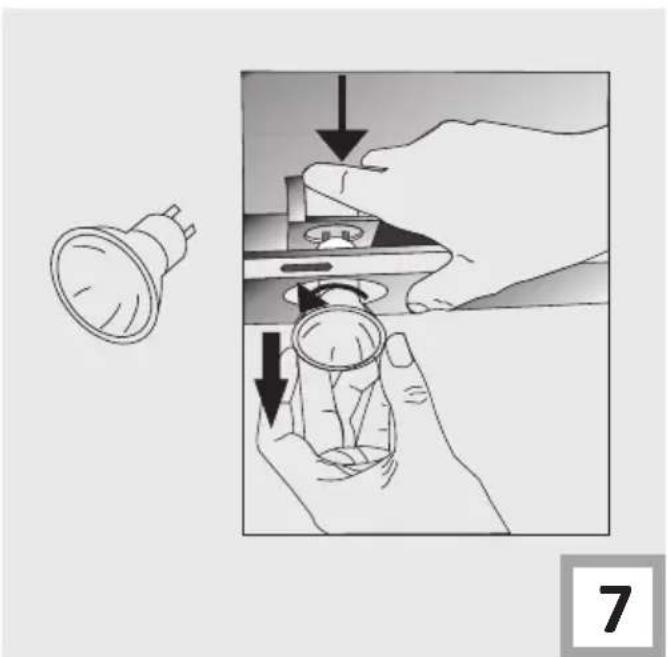

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

RECYCLING OF THE PACKAGING

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU-IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such

marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2006/95/EC,
● Electromagnetic Compatibility (EMC) Directive 2004/108/EC,
● ErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

TIL LYKKE MED DIT NYE GRAM EMFANG

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

INNEHÅLLSFÖRTECKNING

SÄKERHETSANVISNINGAR 33

INSTALLATION 36

ANVÄNDNING OCH SKÖTSEL 37

MILJÖSKYDD 39

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

BRUK OG VEDLIKEHOLD 45

MILJ∅VERN 47

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.
