Brand	ARCHOS
Model	101B / 101B COPPER
Product Type	Touchscreen Tablet
Operating System	Android
Connectivity	WiFi, micro-USB port, 3.5mm audio jack, micro-SD card reader
Camera	Front webcam and rear camera
Speaker	Built-in
Microphone	Built-in
Power Supply	Provided mains charger, charging via micro-USB port
Battery	Rechargeable, full charge recommended before first use
Box Contents	Tablet, power cable, quick start guide, warranty guide
Main Functions	Startup wizard, quick settings, expandable home screen, app folders, widgets, wallpapers, screen lock
Security	Lock by pattern, PIN code or password
Troubleshooting	Reset by long press (10s) on the ON/OFF button, software update via ARCHOS website

Frequently Asked Questions - 101B, 101B COPPER ARCHOS

How to turn on the ARCHOS 101B tablet?

Press the ON/OFF button located on the side of the device. The first power-on launches the startup wizard.

How to charge the tablet?

Connect the provided power cable to the micro-USB port and plug it into a mains socket. The charging indicator lights up. Use only the provided charger.

How to connect to a WiFi network?

Swipe down the status bar, enable WiFi by sliding the switch, then select the desired network. Enter the password if necessary and check 'Show password' to verify.

How to lock the tablet screen?

Go to Settings > Security > Screen lock. Choose between pattern, PIN code or password. Once set, the screen locks automatically.

What to do if the tablet does not turn on?

Make sure the battery is charged (let it charge for at least 10 minutes). If it still doesn't turn on, press the ON/OFF button for 10 seconds to perform a hardware reset.

How to extend battery life?

Reduce the screen brightness and disable wireless connections (WiFi, Bluetooth) when not in use.

How to close a recent app?

Press the Recent apps button (square or double square), then swipe the app thumbnail up or down to close it.

How to move an icon on the home screen?

Press and hold the icon until positioning lines appear, then drag it to the desired location and release.

How to create an app folder?

On the home screen, press and hold an icon and drop it onto another icon. A folder is created automatically; you can rename it.

How to reset WiFi settings?

Go to Settings > WiFi, forget the problematic network, then reconnect. If the problem persists, restart the tablet or contact the internet provider.

USER MANUAL 101B, 101B COPPER ARCHOS

Package contents....2

Getting started....3

Description of the device....4

Through the wizard....6

Connecting to a WiFi network....7

The Android™ interface....8

Getting familiar with Android™ ....12

Troubleshooting....14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Package Content

ARCHOS 101b Neon

QSG booklet

Warranty, legal & safety booklet

USB cable

Charger

2

Getting Started

Charging

1. Charge your device by plugging your power cable into the micro-USB port. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.

The charging indicator light is on when the battery is charging.

• You can use your ARCHOS whilst it charges.
• Let your device charge completely the first time you use it.
• Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

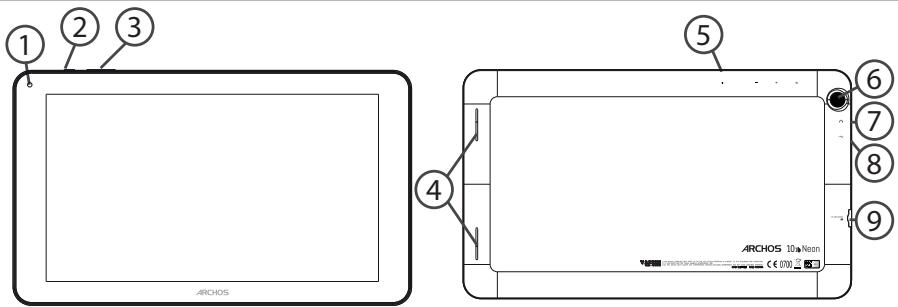

Description of the device

① Front camera ② ON/OFF button ③ Volume buttons

④ Loudspeaker ⑤ Microphone ⑥ Back camera

⑦ Headphone jack ⑧ Micro-USB port ⑨ Micro-SD card slot

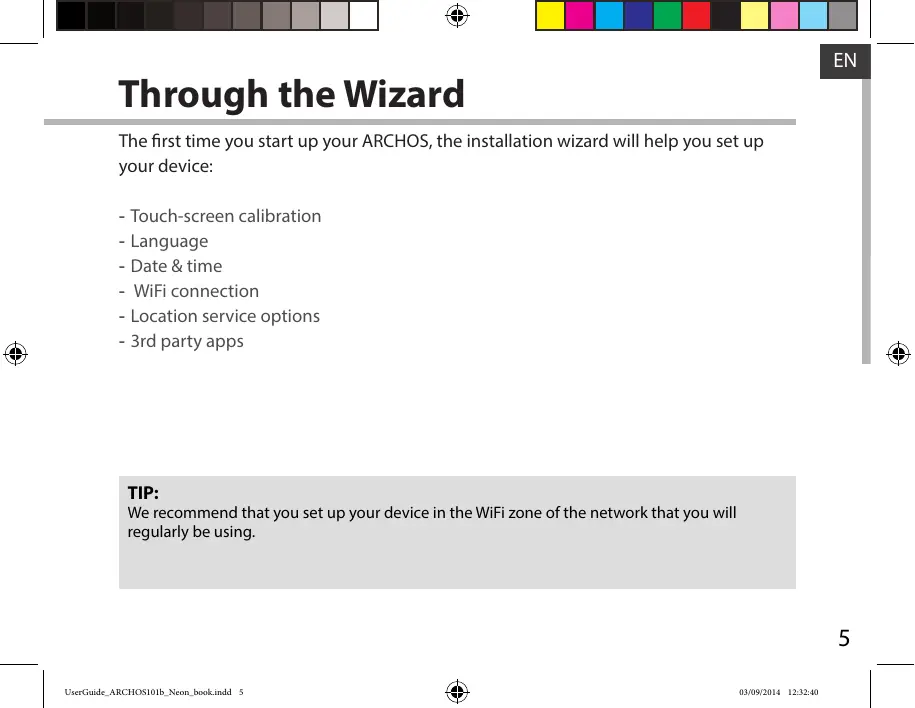

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Touch-screen calibration
• Language
• Date & time
• WiFi connection
• Location service options
• 3rd party apps

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

CAUTION: Make sure that you are in a WiFi zone.

① Touch and hold the time & battery icons to reveal the status bar. A blue line is displayed.

② Pull the blue line down to display the status dashboard.

③ Touch "WiFi off" in the status dashboard. The WiFi page will be displayed.

④ Slide the WiFi switch to "ON" position.

⑤ The ARCHOS will scan for WiFi networks in range. Touch the name of the network you want to connect to.

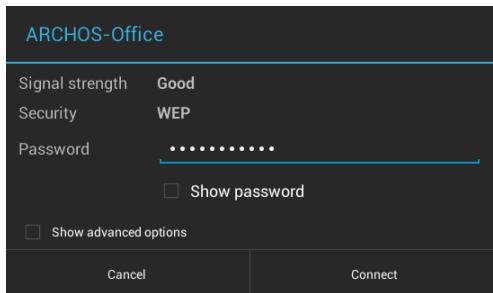

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

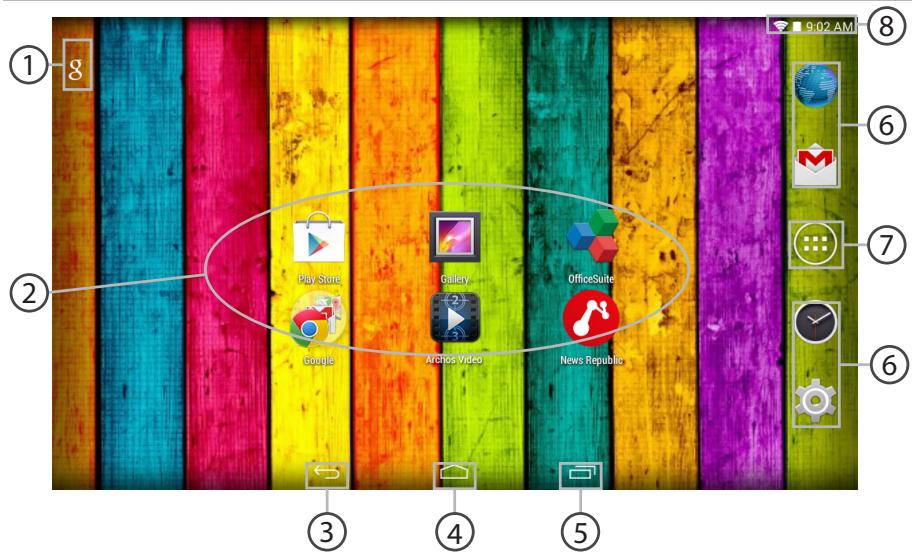

The Android™ Interface

① Google™ Search

Touch "Google" for text search or touch the microphone icon for voice search.

② Android™ apps shortcuts

Touch to start an application.

③ Back button

④ Home button

⑤ Recent apps buttons

⑥ Permanent Android™ apps shortcuts

Touch to start an application

⑦ All Apps button

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

⑧ The status bar

Displays notifications and quick settings

The Android™ Interface

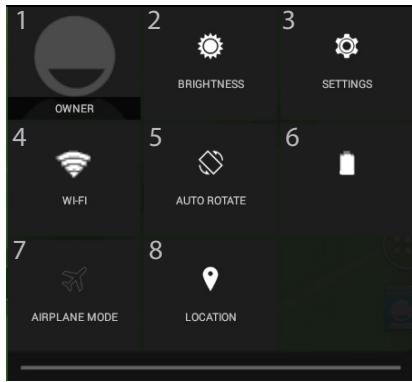

The Quick settings

1 Current user* 2 To adjust the screen brightness. 3 To access all your settings. 4 To turn on/off your WiFi connection. 5 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 6 Percentage of battery remaining 7 To activate/deactivate all wireless connections, especially when flying. 8 Location services

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

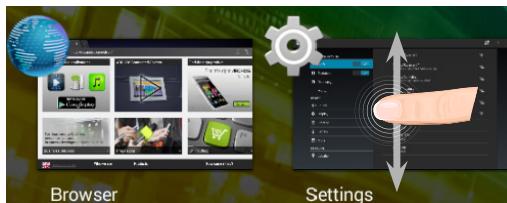

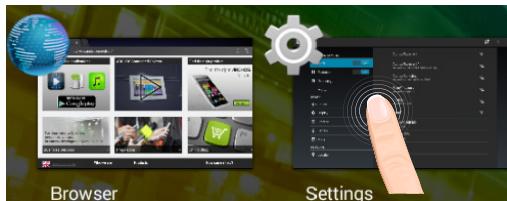

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Hold down: to display options

Swipe up or down: to close an app.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot. Update the firmware of the device: http://www.archos.com/support. Reset and redefine your connection parameters. Contact your WiFi connection provider.

Table of Contents

Box Contents

ARCHOS 101b Neon

USB Cable

Charger

Getting Started

Charging the Battery

The Android™ Interface

① Google™ Search

ARCHOS 101b Neon

User Manual

USB Cable

Charger

Getting Started

Charging the Battery

Security Choose screen lock

None

Slide

Pattern

PIN

Password

ARCHOS 101b Neon

User Guide

USB Cable

Charger

ARCHOS 101b Neon

User Guide

USB Cable

Charger

Getting Started

ARCHOS 101b Neon

USB Cable

Charger

Getting Started

Charging the batteries

The Android™ Interface

① Google™ Search

Recent apps

ARCHOS 101b Neon

User guide

USB cable

Charger

Home

Charging the battery

Recent applications

Locking the touch screen:

ARCHOS 101b Neon

Quick start guide

USB cable

Charger

Getting Started

Charging

Device Description

① Webcam

⑤ Microphone

ARCHOS 101b Neon

USB cable

Charger

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

ARCHOS 101b Neon

USB cable

Charger

Getting Started

Charging

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian Federation	None	Only for indoor applications

Note: Frequency 2454-2483.5 MHz is restricted to indoor use in France.

Consult the declaration of conformity at http://www.archos.com/products/declaration_conformity.html

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access the "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of the Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of the GNU General Public License, Version 2 at the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC

C € 0700
