L20BIG17E - Microwaves Logik - Free user manual and instructions

Product Type	Built-in Microwave with Grill
Model	L20BIG17E
Brand	Logik
Color	Black
Capacity	20 L
Microwave Output Power	800 W
Grill Power	1000 W
Power Consumption (Microwave)	1270 W
Frequency	2450 MHz
Voltage	230 V ~ 50 Hz
Dimensions (H x W x D)	382 x 594 x 319 mm
Control Type	Digital with LCD display
Functions	Microwave, Grill, Combination, Defrost by weight/time, Auto menus, Quick start, Kitchen timer, Child lock, Two-stage cooking
Turntable	Glass turntable plate included
Grill Rack	Included
Door Type	Push to open button
Safety Features	Child lock, auto shut-off on door open, overheat protection
Cleaning	Manual cleaning with damp cloth; do not use steam cleaner

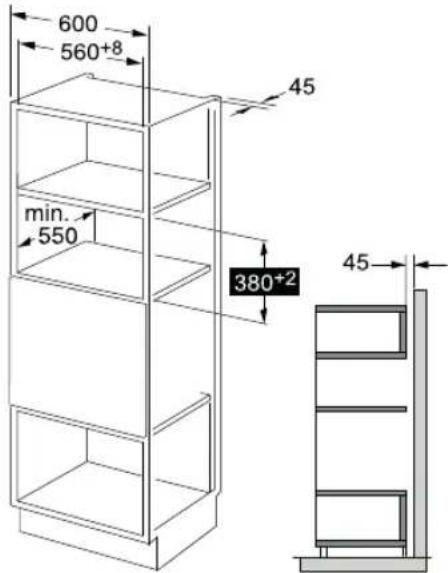

Installation	Built-in, requires cabinet min 60 cm width, depth 36.2 or 38.0 cm
Accessories	Glass turntable, turntable support, bottom plastic cover, feet, screws, grill rack, instruction manual

Frequently Asked Questions - L20BIG17E Logik

Why doesn't the food seem to cook?

Check that the cooking time has been set, the door is closed, and the mains socket is not overloaded causing the fuse to blow.

How can I stop eggs from popping in the microwave?

Pierce the yolk with a toothpick before cooking. Never cook eggs in their shells.

Why is standing time important after microwave cooking?

Many foods continue cooking after being removed due to internal heat. Standing time allows the centre to cook without overcooking the outside.

Why does my microwave sometimes take longer than the recipe says?

Differences in weight, size, shape, and starting temperature of food affect cooking time. Use your judgment along with the recipe.

Why do I get condensation on the inside of the door?

Condensation is normal, especially when cooking foods with high moisture content like potatoes.

Does microwave energy escape through the window on the door?

No. The door has a special metal screen with holes that lets you see inside but stops microwave energy from escaping.

Can microwave energy escape through the vents?

No. The door and vents are designed to let steam out while keeping microwave energy in. The gaps are too small for energy to escape.

What happens if the microwave is operated when empty?

The microwave can be damaged. Always keep a cup of water inside to prevent accidental operation when empty.

Why doesn't the interior light illuminate?

The bulb may have blown. Call a qualified technician – do not attempt to change it yourself.

Why do I get interference on my TV/radio when using the microwave?

Microwaves use radio waves similar to TVs and radios. Move the microwave further away from the TV or radio to reduce interference.

USER MANUAL L20BIG17E Logik

Built-in Microwave with Grill

GB

Instruksjonsmanual

Black microwave oven with digital display and control panel (no visible text or symbols on main body)

Safety Warnings....8

Unpacking....28

Getting Ready 29

Installation 30

Introducing Microwave Cooking....32

Cooking with a Microwave....32

Using Aluminium Foil in Your Microwave 33

Materials That Can Be Used in the Microwave ....34

Steam 35

Condensation....35

Product Overview....36

The Main Unit....36

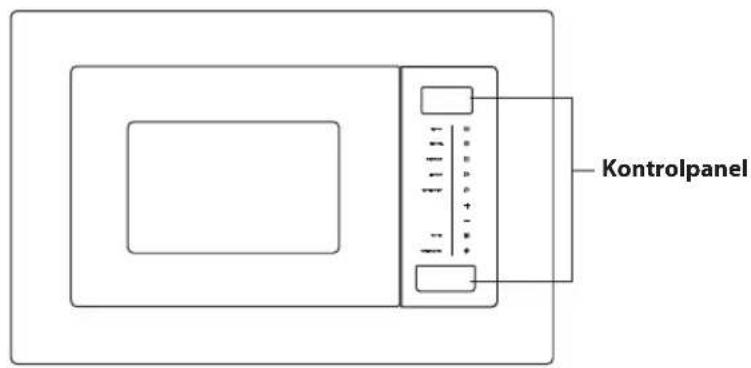

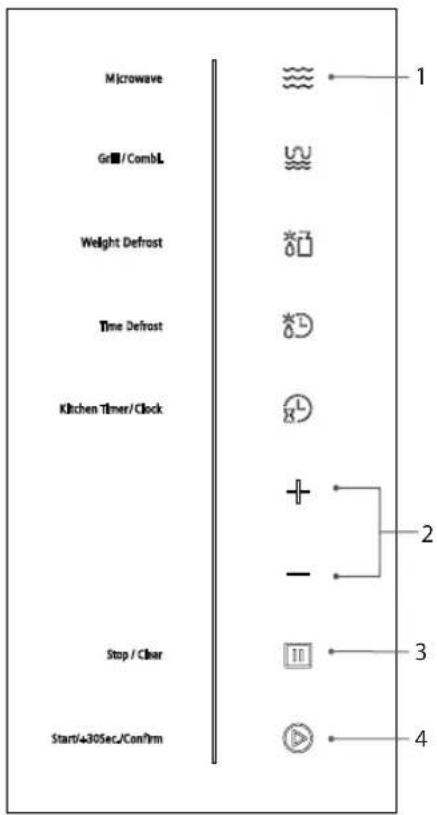

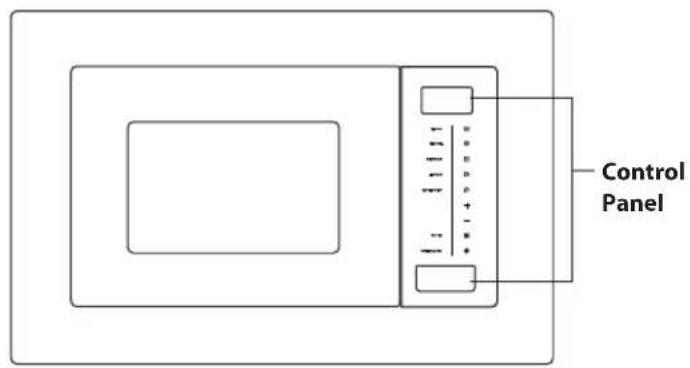

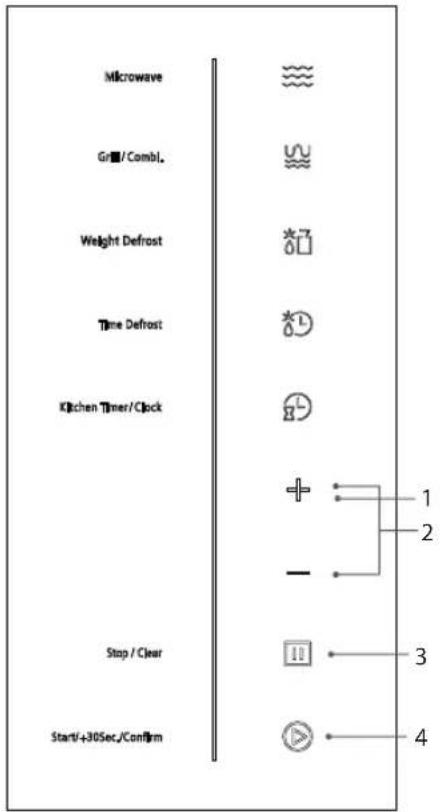

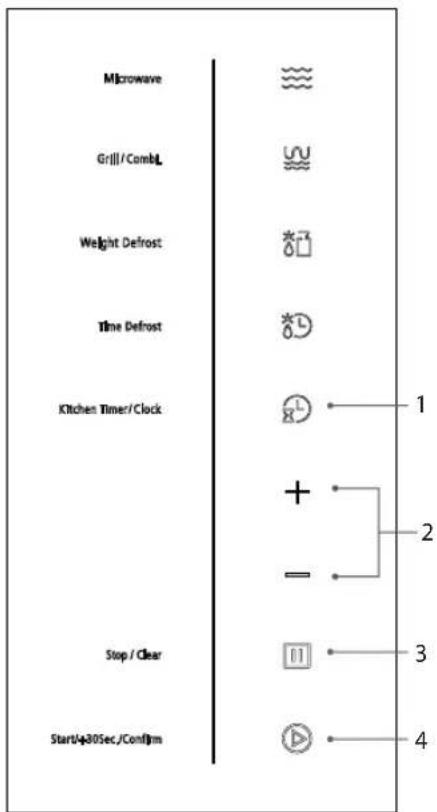

The Control Panel....36

Checking Your Microwave....37

Clock Setting....38

Kitchen Timer....39

Setting the Child Lock 40

Microwave Cooking....41

Grilling and Combination Cooking ....42

Grill Menu Table....42

Two-Stage Cooking 43

Auto Cooking 44

Auto Menu....44

Auto-cook Menu Table....45

Defrosting 46

Defrost by Weight 46

Defrost by Time....46

Quick Start Cooking 47

Querying the Cooking Function....48

To Find Out the Current Cooking Setting....48

Cleaning Your Microwave....49

Frequently Asked Questions ....50

Specifications....51

Tining Etter Tid....70

Hurtigstartstilberedning 71

Upptining After Tid....94

Snabbstartstillagning 95

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

General safety

• Switch off and unplug before fitting or removing parts/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
  • Never use a damaged appliance.
  • Never operate the appliance when it is empty.
• Keep the unit, mains cord and plug away from water.
  • Never exceed the maximum capacities.
• When using an attachment, read the accompanying safety instructions.
  • Take care when lifting this appliance as it is heavy.
• You should always have your appliance checked by a qualified service agent if it has been dropped or damaged to ensure it is safe to use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years old.
  • Only use the appliance for its intended indoor, household, domestic use.
  • This appliance is intended for door household use and similar applications such as:

— farm houses and by clients in hotels, motels and other residential type environment;
– bed and breakfast type environment;
— staff kitchen areas in shops, offices and other working environments.

Warning: The appliance must be used and maintained in accordance with the instructions provided.

Maintenance of your microwave

Warning: It is hazardous for anyone other than a qualified service agent to carry out any service or repair operation which involves the removal of a cover that gives protection against exposure to microwave energy.

Warning: If the door or door seals are damaged, the microwave must not be operated until it has been repaired by a qualified service agent.

• If smoke is emitted, switch off and unplug the microwave and keep the door closed in order to stifle any flames.
• If the mains cord is damaged, it must be replaced by a qualified service agent.
• If you have a pacemaker, please contact your doctor before using a microwave.

Microwave use

• This microwave is not intended for commercial use.
- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

• This microwave must be used indoors, in a dry well-ventilated area.
• Do not place the microwave in a cabinet.
- Install or locate this oven only in accordance with the installation instructions provided.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• The microwave should not be left unattended when in use.
- The temperature of accessible surfaces may be high when the microwave is operating.
- To prevent high moisture content gathering inside the microwave cavity, open the door immediately after the cooking function has stopped to allow steam to escape.
• Only use utensils that are suitable for microwave use.
- Care should be taken when using paper, plastic, wooden or other combustible materials in the microwave as they can catch fire.
- Oil & fat for deep frying should not be heated in the microwave.
- Only use cling film designed for microwave use and take extra care when removing the film to avoid steam burns.
• Only heat popcorn that has been designed for microwave use.
- Do not operate the microwave empty as this could damage the product.
- Do not attempt to operate this unit with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
- Do not obstruct the unit's front or door, or allow soiling or cleaner residue to accumulate on sealing surfaces.

Cooking use

• As the power of different microwaves can vary considerably, care must be taken when first using this microwave as it may cook faster than expected.
• Do not leave the microwave unattended during use.
• Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire.
  • Do not overcook food.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

Grill

• Always keep the turntable plate and grill rack clean as any fat there may catch fire.
• Do not leave unit or appliance unattended when in use.
- Always make sure that (thick portions of) food on the grill rack is kept away from the sides and top of the unit's cavity.
- Accessible parts may become hot when the unit is in use. Keep children away.

Hazardous materials

• Keep combustible materials, such as: curtains, drapes, furniture, pillows, clothing, linens, bedding, paper, etc., at least 3 feet (0.9 metres) from the front sides and rear of the oven. Do not use this unit in areas where gasoline, paint or other flammable liquids or their associated vapours may be present.
• Make sure that if using cling film or plastic or similar materials in the unit, that they are microwave-safe and suitable for the chosen function. If in doubt, do NOT use such materials.

Warning: DO NOT assume that because a child has mastered one cooking skill he/she can cook everything without close supervision.

Fire!

In the event of fire:

• Keep the microwave door closed.
• Turn off the power.
  • Unplug the microwave from the mains power.

First aid

Treat scalding by:

• Quickly placing the scald under cold running water for at least 10 minutes.
• Cover with a clean dry dressing. Do not use creams, oils or lotions.

Cleaning your microwave

• The microwave should be cleaned regularly and food deposits removed. Failure to maintain the microwave in a clean condition can affect the life of the microwave and possibly result in a hazardous situation. (See cleaning your microwave.)
  • Do not use a steam cleaner to clean the unit.

Do not use these in your microwave

- Metal objects are not to be used in the microwave. These include:

• Metal cooking utensils
• Metal plates or trays
• Wire twist ties
• Crockery with metal trims

• Meat thermometer

• Never use equipment made of metal, except aluminium foil in your microwave. The microwave energy cannot pass through metal so it bounces off and sparks against the inside of the microwave.

• Stop the microwave straight away if any equipment is causing sparks.
• Remember that some crockery has a metal trim around the edge. Even this trim can cause sparks.

Containers

Warning: Pressure will build up in sealed containers and can cause them to explode. Therefore, do not use the following in your microwave:

- Sealed containers - Capped bottles - Vacuum containers

- Sealed jars - Hard-boiled eggs - Eggs in their shells

• Always pierce the skin of fruit and vegetables, such as potatoes.
• Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.
- Caution should be used when using combustible containers, never leave the microwave unattended when in use.

Delayed boiling

Heating of beverages in a Microwave can result in delayed eruptive boiling, therefore care must be taken when handling the container.

Take the following precautions:

• Always stir liquids, before and after cooking.
- Allow them to stand.
- Use containers that are wider at the top than at the bottom.

Preparing food for babies

Extra care must be taken when preparing food or drink for babies and small children.

• Always test the food or liquid temperature before feeding it to the baby.
- When using a baby bottle, ensure the teat is removed before heating.
- When warming baby food or milk ensure the food is thoroughly stirred and at a safe consumable temperature.

Caution!

Hot Surface

During cooking the outer surface will become hot. Do not touch the outer casing of the microwave. Care should be taken not to store any items on top of your microwave.

Earthing Instructions

Warning: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cord having an earthed plug.
- The plug must be plugged into an appropriate mains socket that is installed and earthed in accordance with all local standards and requirements.

Warning!

• Improper connection of the appliance-earthing conductor can result in a risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
  • Never modify the plug provided with the appliance.
• If the plug does not fit properly in the mains socket, have a qualified electrician install a proper mains socket.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

VIKTIGE SIKKERHETSANVISNINGER LESES NÖYE OG BEHOLDES FOR FREMTIDIG OPPSLAG

Generell sikkerhet

- t.ex. bed and breakfast;

Thank you for purchasing your new Logik Microwave.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

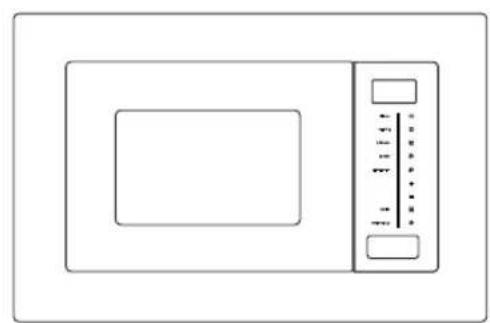

Simple line drawing of a microwave oven with control panel (no text or symbols)

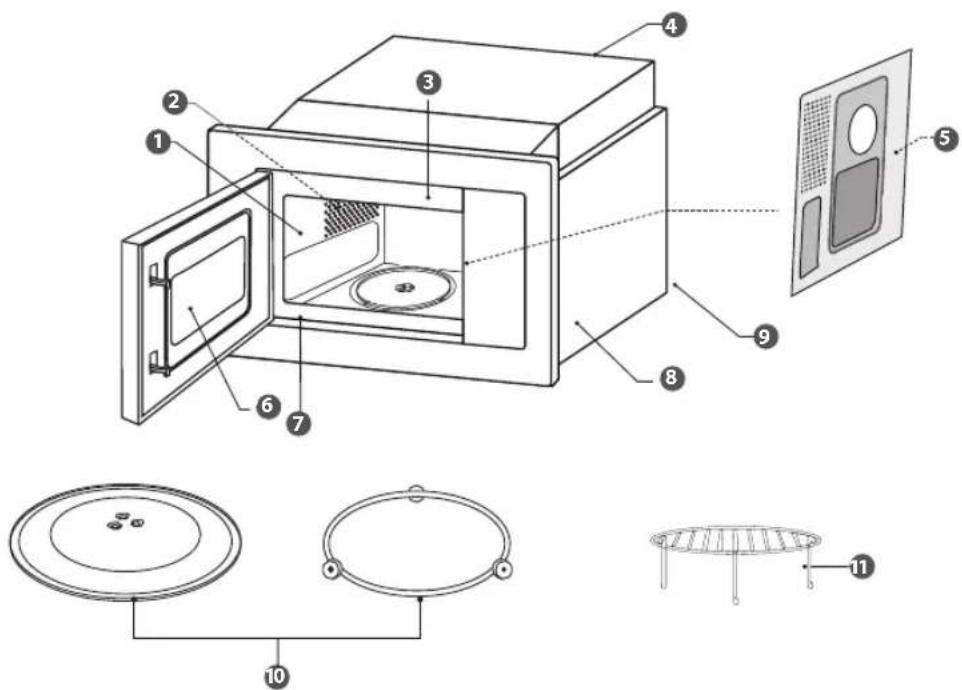

The Main Unit

Simple diagram of concentric ovals with small circles at the center (no text or symbols)

Glass Turntable Plate

Turntable Support

Isometric line drawing of a mechanical bracket with multiple circular holes (no text or symbols)

Bottom Plastic Cover

Four identical 3D block diagrams with no text or symbols

Feet x 4

Screw x 4

Grill Rack (For grill only)

Hinge

Instruction Manual

This microwave is designed for home use. It should not be used for commercial catering.

1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. Make sure that you have taken out all the packaging from the inside of the microwave. Please dispose of the plastic wrappings / bags safely and keep out of the reach of babies and young children.

2. Choose a flat work surface for your microwave away from heat sources such as radiators or fires and away from cold areas. The surface should be at least 85cm above the floor. This microwave is designed to be installed in a cabinet at least 60cm wide, and at least 30cm / 55cm deep. Do not cover any opening or vents.

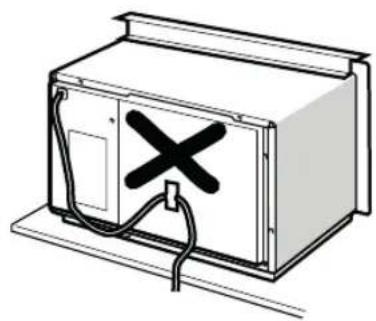

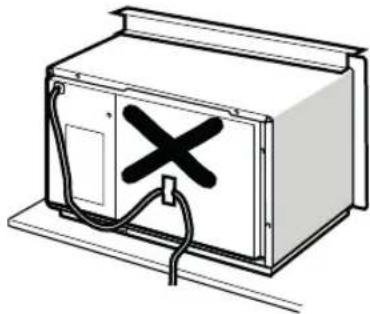

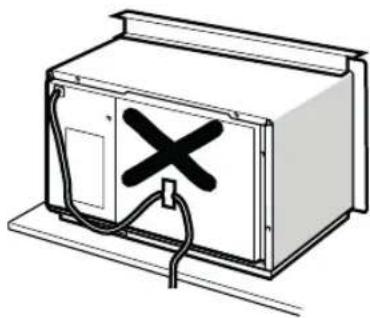

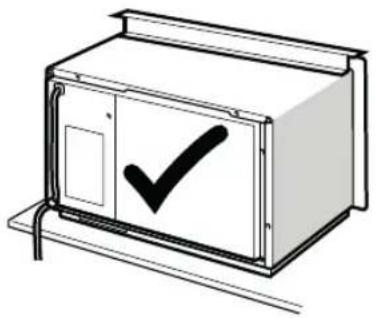

3. Plug your microwave into a standard household electrical socket (230 volt, 13 amp rated). Avoid using a socket that also has an adapter and other equipment plugged in. Do not use a multi-adapter.

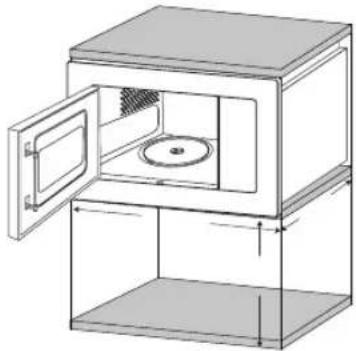

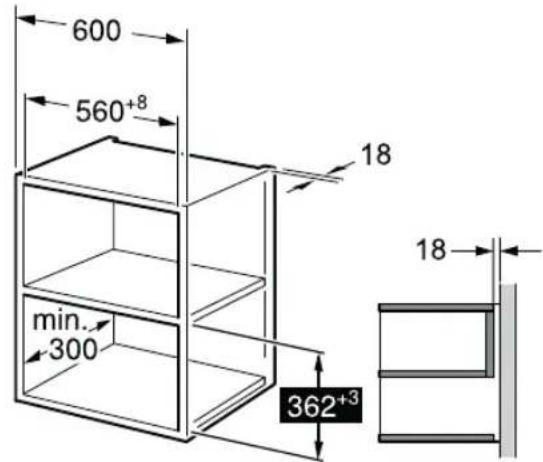

(36.2 cm cabinet)

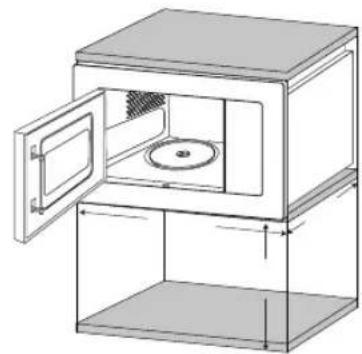

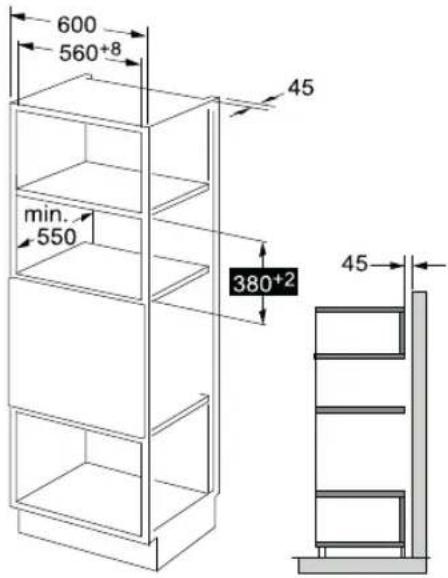

Technical line drawing of a microwave oven with open door and side panel (no text or symbols)

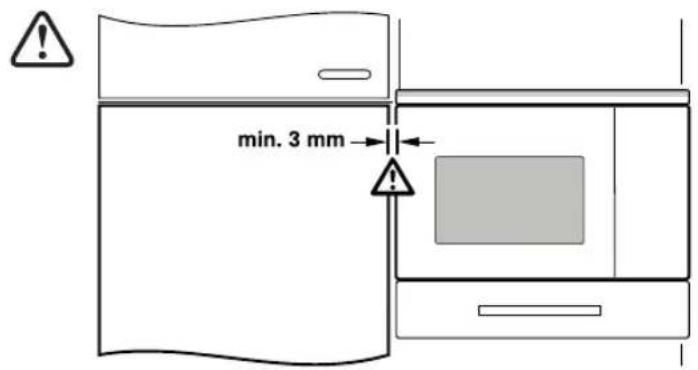

(38.0 cm cabinet)

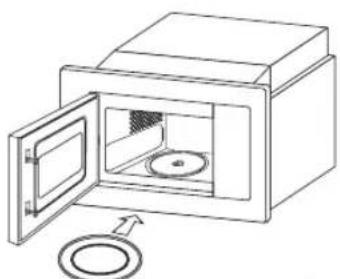

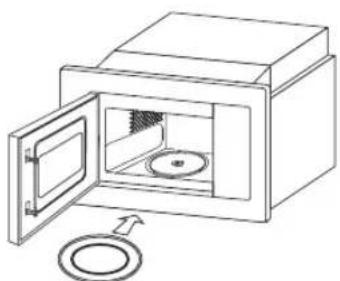

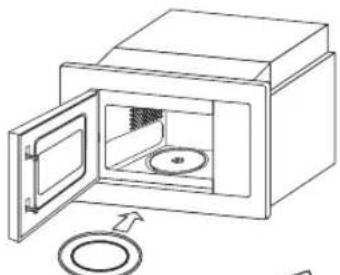

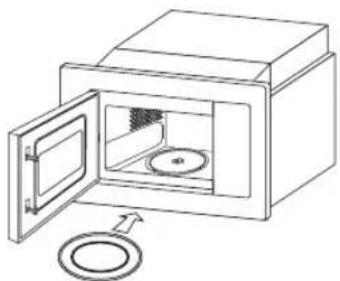

1. Put the turntable support inside the microwave and place the glass turntable plate on top of the support. The turntable support is shaped to sit securely on the spindle. You must always use the turntable plate and support whenever you use the microwave.

2. To protect your work surface, we recommend that you fix some non-slip cushion buttons (not included) to the underside of the microwave.

- Remove the turntable plate and turntable support before turning the microwave upside down.

- Do not remove the unit's feet.

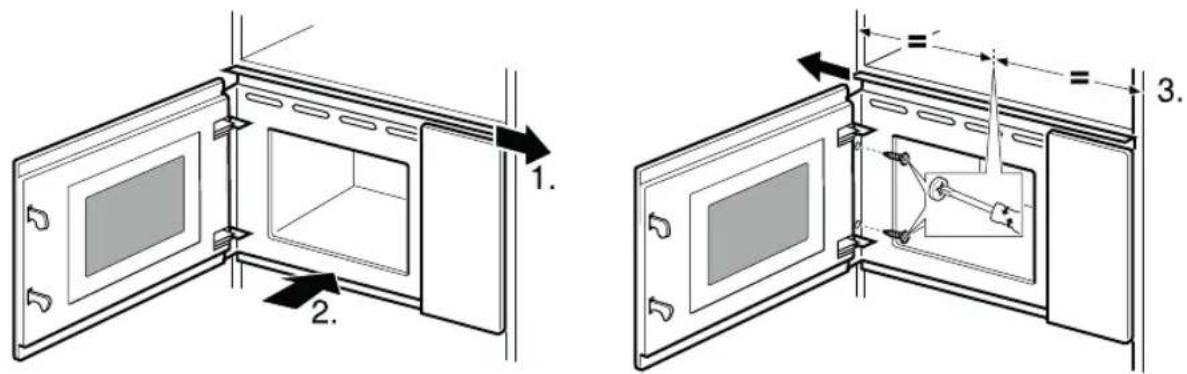

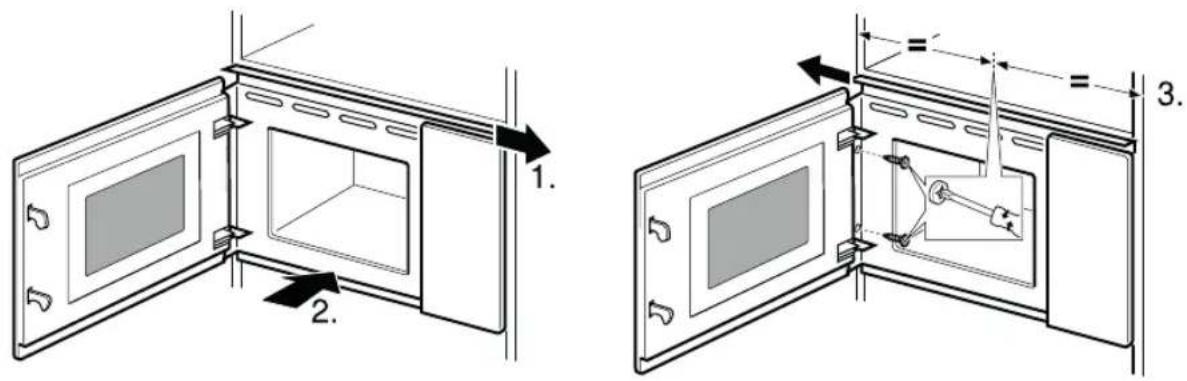

Line drawing of a microwave oven with open door and circular vent, showing internal components (no text or symbols)

Simple line drawing of a rectangular block with a diagonal line and circular holes, no text or symbols present.

Underside View

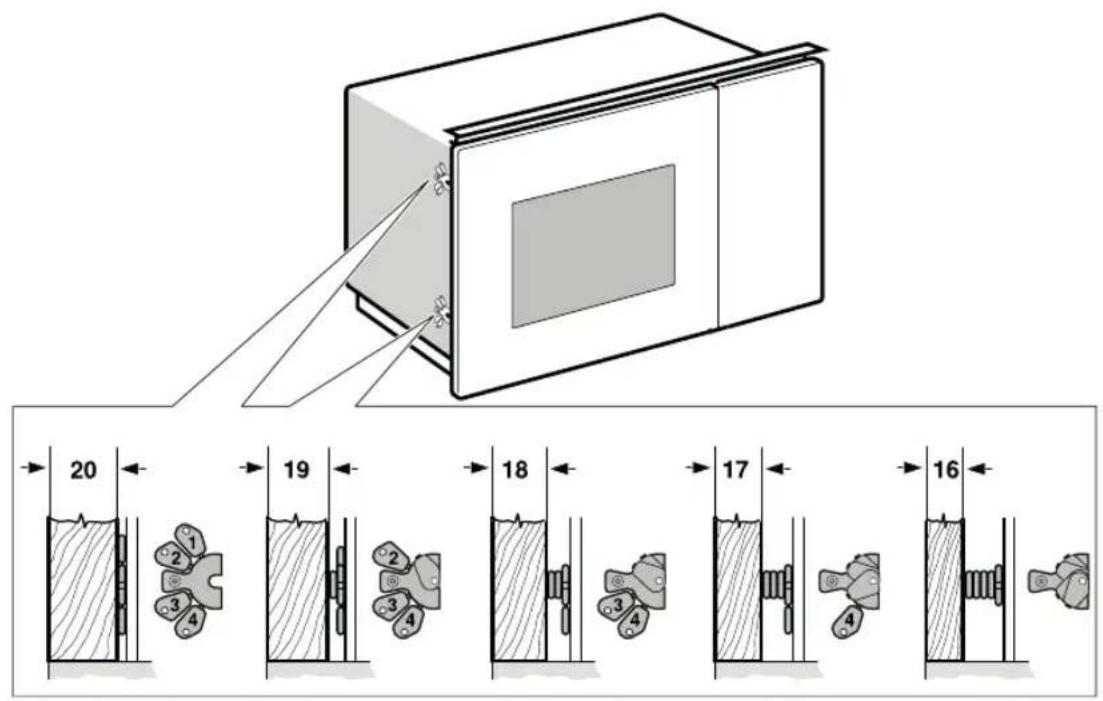

1. Fix the 4 feet at the bottom of the unit (only for 38.0 cm cabinet).

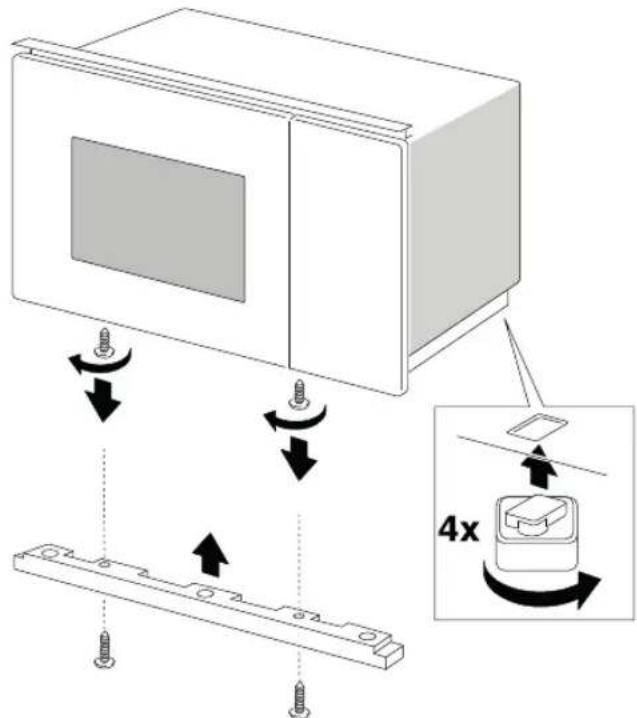

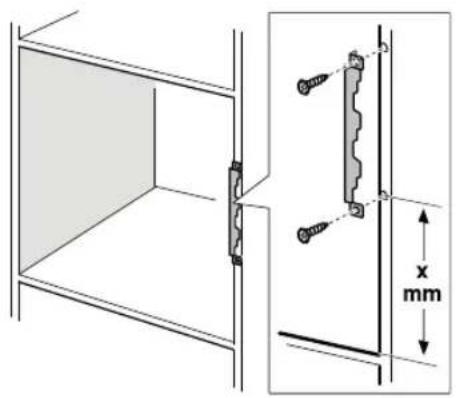

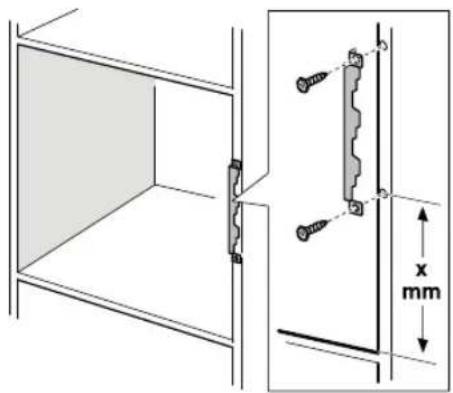

2. Remove the 2 screws from the bottom of the unit, then fit and screw the bottom plastic cover onto the bottom.

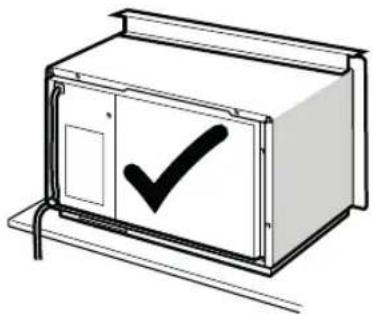

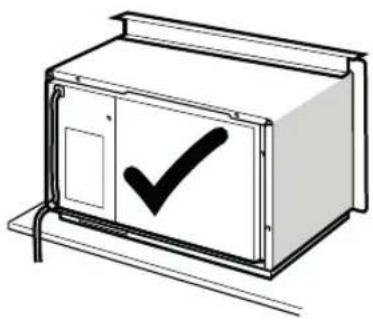

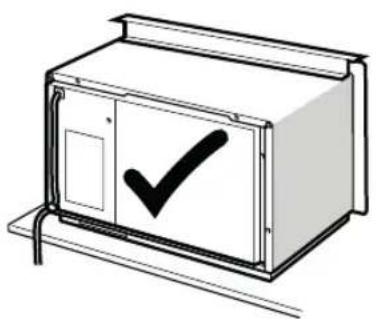

Simple line drawing of a cabinet with a checkmark on the door (no text or symbols)

Simple line drawing of a cabinet with an X mark on the door and cables, no text or symbols present.

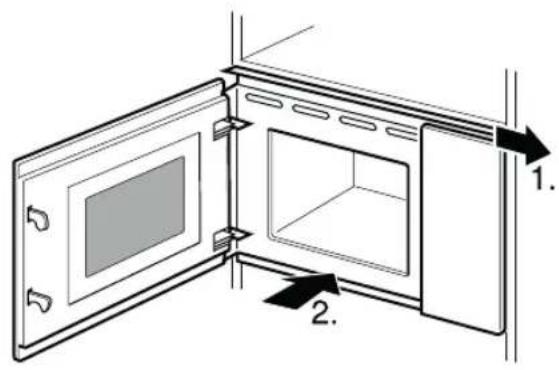

1.

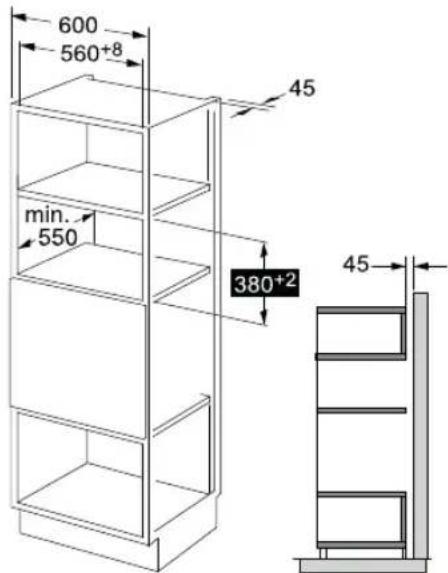

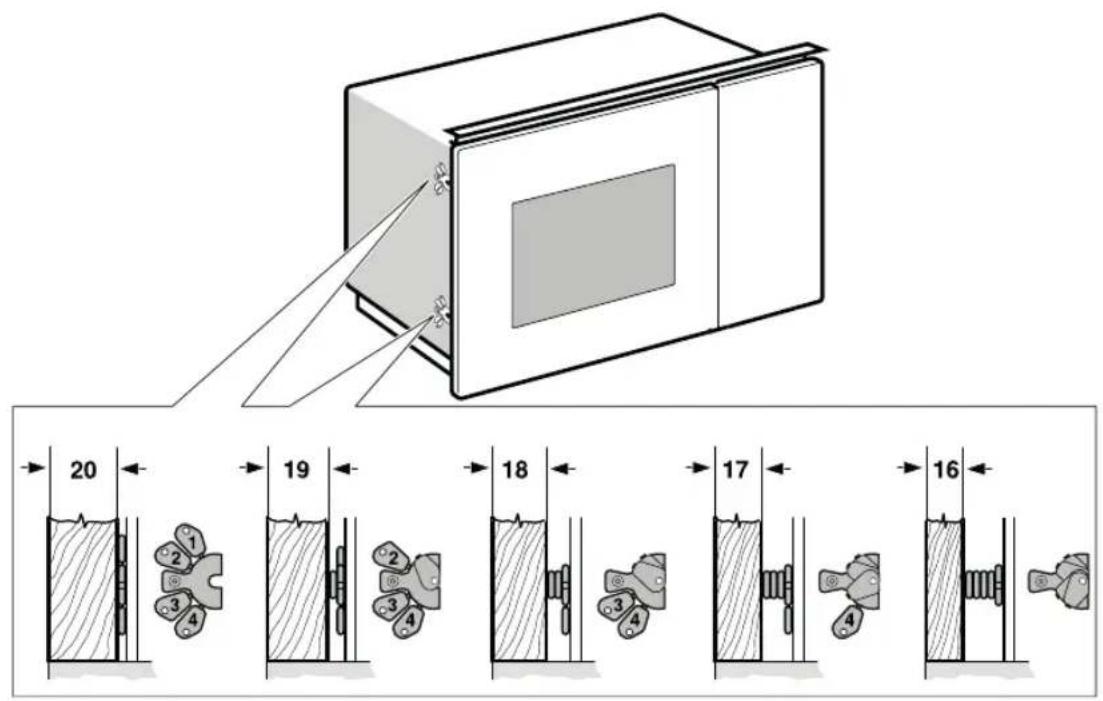

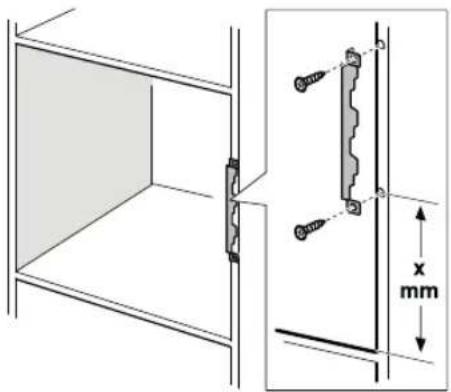

Technical diagram showing a 3D panel assembly with a close-up of a mechanical component and dimension annotation (no text or symbols present)

(38.0 cm)

(36.2 cm)

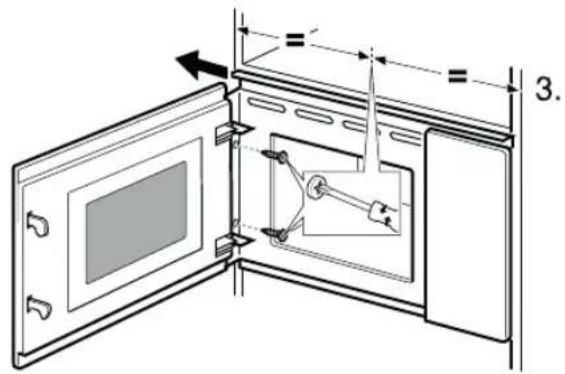

4.

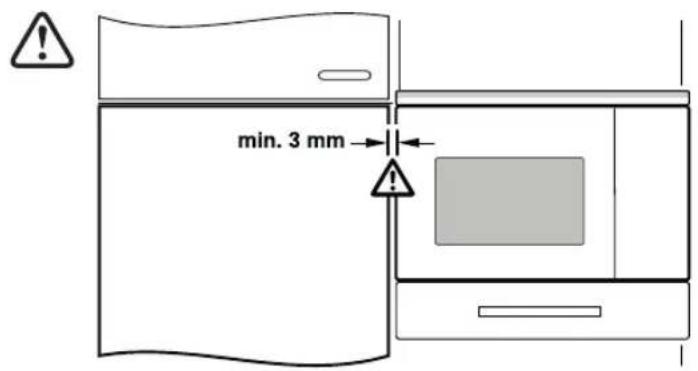

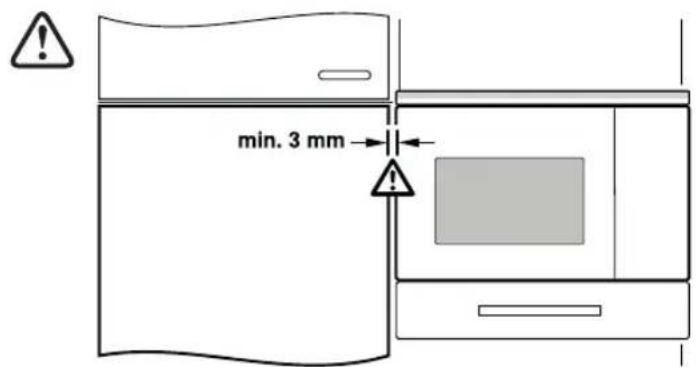

5.

Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food.

This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a microwave, there is more information at the back of this instruction manual.

Cooking with a Microwave

Cooking with a microwave is much faster than conventional cooking and, whilst you should make sure that food is fully cooked, you should be careful not to overcook it. Food can catch fire if excessive cooking times are used.

• Microwave energy can heat unevenly so stirring to distribute heat is very important. Always stir from the outside, inwards.
• If you are cooking a number of individual foods at the same time, such as baked potatoes or small cakes, arrange them evenly on the turntable plate so that they cook evenly. Never stack food in your microwave.
• Turn larger foods such as meat roasts and poultry during cooking so that the top and bottom cook evenly. It is also recommended to turn pieces of meat or poultry, especially if they have not been deboned.
• Meat and poultry which is cooked for 15 minutes or more will brown lightly in its own fat. Anything cooked for a shorter time can be brushed with a browning sauce to give an appetising colour.

If you are unsure how long the food should cook, begin cooking at the lowest recommended time, then add more time if necessary. The moisture content of food can vary. Ensure food is thoroughly cooked all the way to the centre before serving.

• Strips of aluminium foil can be used to cover the thinner pieces of food to stop them from overcooking before the thicker parts of the food have had the chance to cook. Use the aluminium foil sparingly and wrap around the food or container carefully to stop it from touching the inside of the microwave which could cause sparks.
• Microwaves cook food using microwave energy that is similar to naturally occurring radio waves. Normally, these “waves” would fade as they disappear into the atmosphere but in a microwave they are concentrated on the food causing it to heat up.
• Microwave energy cannot pass through metal – so it cannot escape from the inside of your microwave – but it can pass through materials like glass, porcelain, plastic, and paper. These are the things used to make microwave-safe cooking equipment.
• Microwave-safe cooking equipment will still get hot as the food it contains heats up.
• The microwave energy focuses on the moisture in the food causing lots of tiny vibrations. The vibrations get so great that the moisture – and the food – heat up.

Simple line drawing of a bowl with arrows indicating flow or motion, no text or symbols present

Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If made of plastic or glass, utensils will be marked as “microwave safe” or similar.

If you are not sure and/or there is no “microwave-safe” marking on the utensil, do NOT use it in the microwave.

For the types of utensils you can use in the microwave, please see the "Materials That Can Be Used" section.

• Never use equipment made of metal, except aluminium foil in your microwave oven.
• The microwave energy cannot pass through the metal so it bounces off and sparks against the inside of the oven.
• Stop the microwave immediately if any equipment or utensils cause sparks.
• Remember that some crockery has a metal trim around the edge. Even this trim can cause sparks.
• Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.

Using Aluminium Foil in Your Microwave

It is safe to use aluminium foil in your microwave as long as you follow these safety guidelines.

As with all metals, microwave energy cannot pass through aluminium foil, but provided you keep the aluminium foil away from the side of the microwave it will not cause sparks and there will not be any damage to your microwave.

Using aluminium foil is a good way of shielding parts of the food that you do not want to cook as quickly as others – perhaps where the food is narrower and would otherwise overcook.

Place the aluminium foil over the area you want to shield, taking care that the aluminium foil will not touch the sides of the microwave when the turntable plate rotates. Only use one piece of aluminium foil at a time so that you do not get sparks between the separate pieces.

Follow these guidelines when using aluminium foil in your microwave:

• Remove aluminium foil lids from containers before using in the microwave. Some lids are made of card with an aluminium foil covering – these should be removed too. Use a microwave-safe transparent lid if possible.
  • Stir food during cooking if the container has a lid or film cover.
  • Always use the glass turntable plate.
• Use shallow containers with a large surface area. Do not use containers that are more than 1.25in (3.5cm) deep.
  • Use gloves when handling any aluminium foil.
• Do not completely cover food with aluminium foil. The microwave energy cannot pass through the aluminium foil so the food will not cook.
• Do not let aluminium foil touch the inside of the microwave.
• Do not use more than one piece of aluminium foil in the microwave at the same time.

Utensils Remarks
Aluminium foil Shielding	only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if the foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow the	manufacturer's instructions. The bottom of a browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow the manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove	lid. Use only to heat food until just warm. Most glass jars are not heat, resistant and may break.
Glassware Heat-resistant	oven glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Oven cooking bags Follow the manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for short-term cooking only.
Greaseproof paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labelled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by the instructions on their packaging.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture.Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Steam

GB

When you microwave food, steam is created as water in the food heats up and evaporates.

The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door.

Condensation

As the steam cools, you may find that condensation gathers in small pools inside your microwave and on the work surface beneath the door and vents. Always dry the microwave after cooking foods with a high moisture content.

Your microwave is designed to let steam escape from the vents and around the door without microwave energy escaping. There is no danger of microwave energy escaping with the steam.

Simple line drawing of a rectangular box with two internal square cutouts, above a cloud-like shape (no text or symbols)

The Main Unit

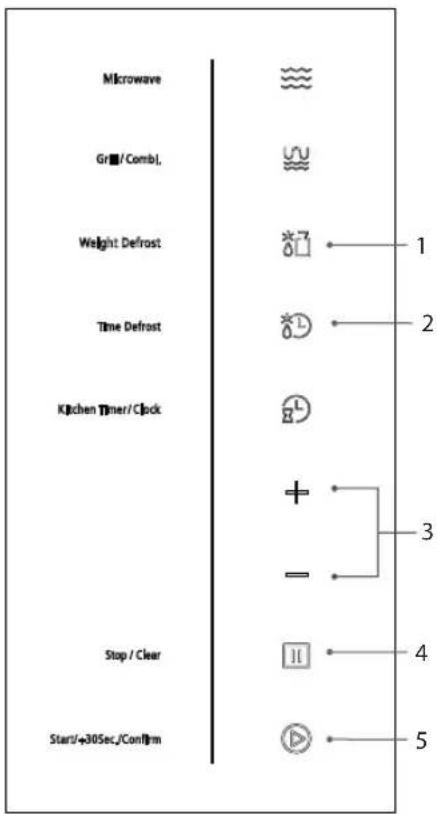

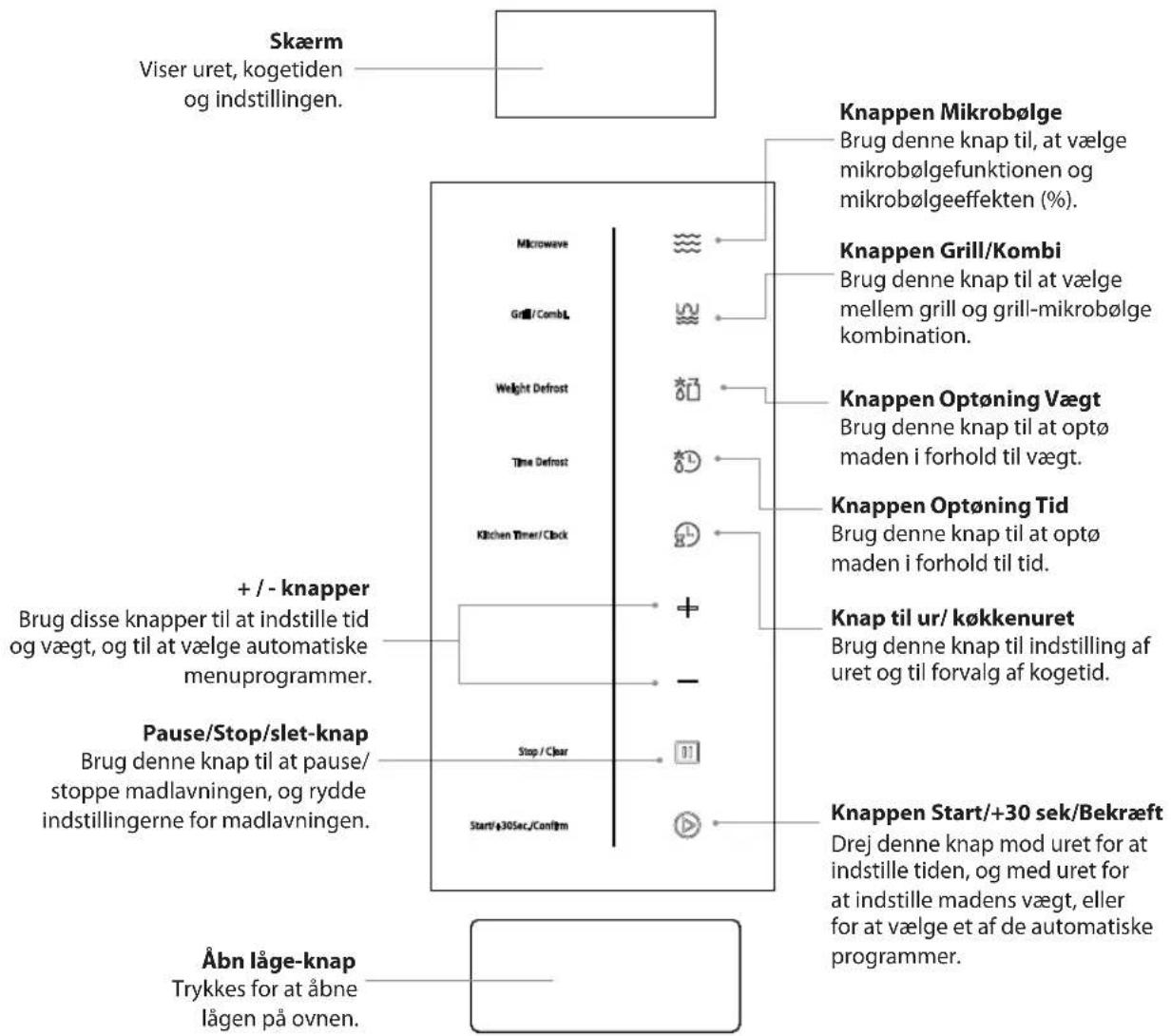

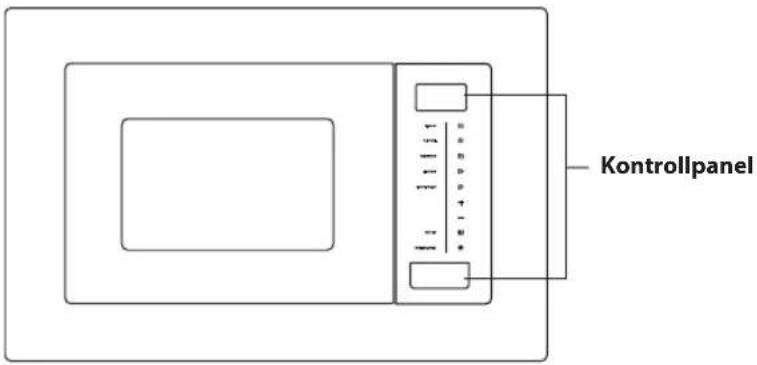

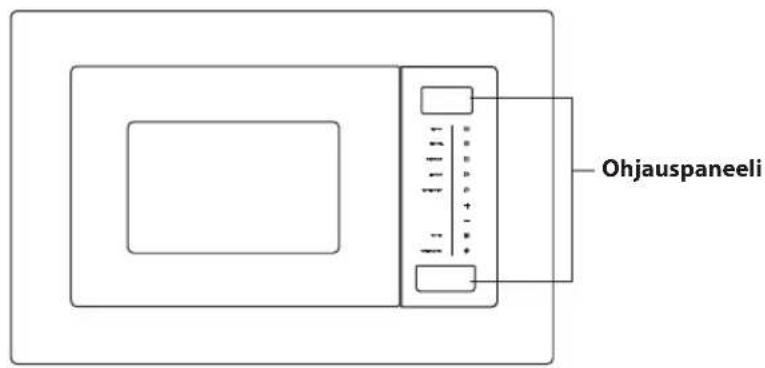

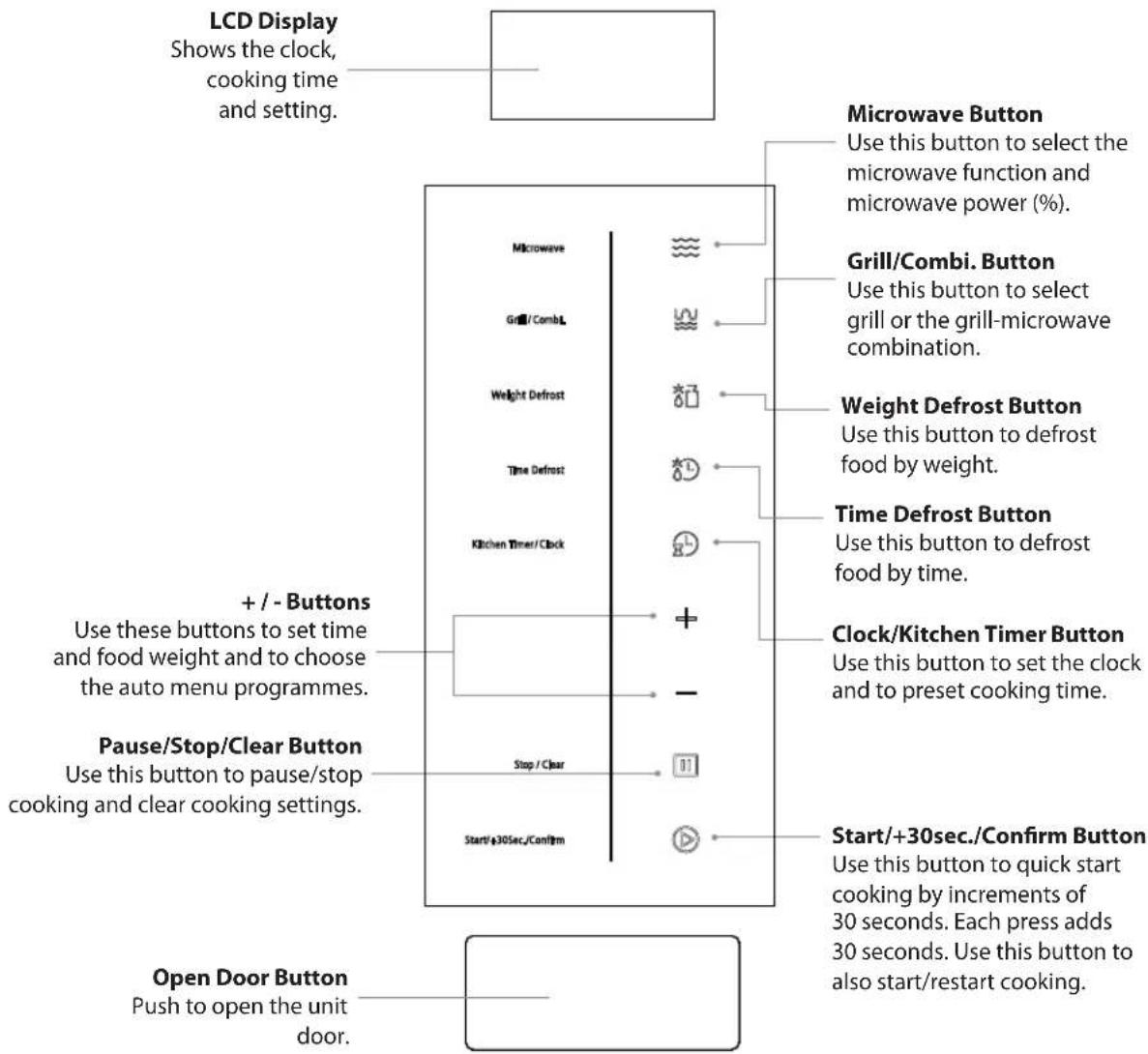

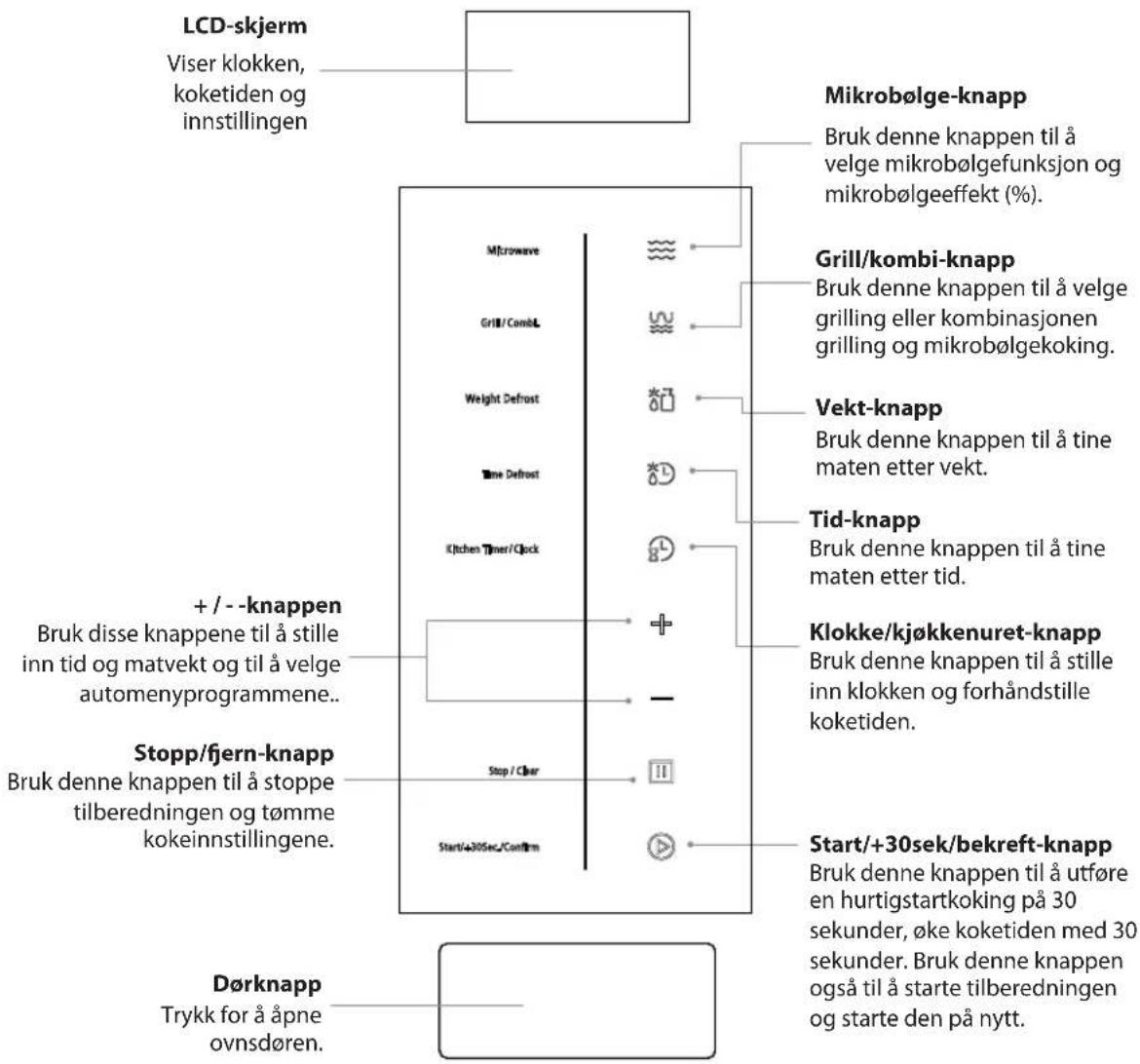

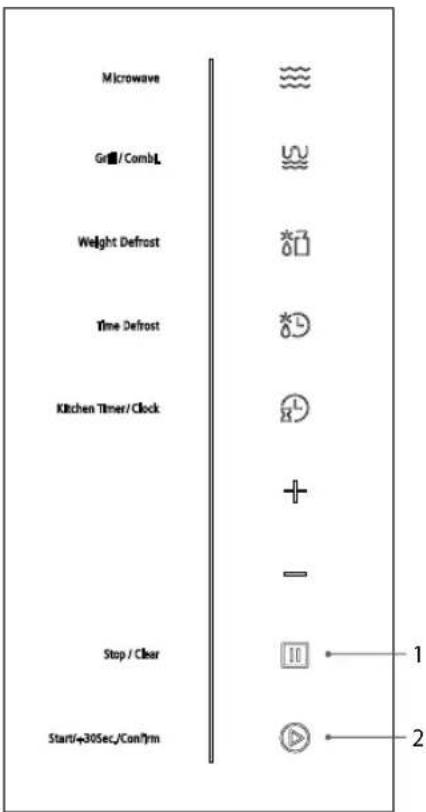

The Control Panel

Check your microwave after unpacking.

For your safety, the microwave stops if the door is opened during cooking. Close the door and press the (2) button to continue the cooking cycle.

Line drawing of a microwave oven with open door and lid (no text or symbols)

1. Push the Open Door Button to open the door.
2. Place a cup of water on the glass turntable plate. Make sure the cup is microwave-safe (it should not have any decorative metal trim).
3. Close the door.
4. Press the ☐ (1) button to clear any settings that have already been set.
5. Press the ▶ (2) button to start a simple 30-second microwave cooking cycle that allows you to check the operation of the microwave.
6. When the cooking cycle has finished, the water should be hot (be careful when you take the cup out of the microwave).
7. Press the ☐(1) button to pause the cooking and press the ☐(1) button again to stop/clear any settings.

Smoke and smell may emit during first time use, this is not a fault and will disappear after a few uses.

When the microwave is connected to the mains power, the LCD display will show "WELCOME" and the microwave will sound once. Please ensure that you have set the clock prior to use.

Please follow the steps below to set the clock.

1. Press the Ⓤ(1) button twice, the hour digits will flash. The unit will also beep.
2. Press the + / - (2) buttons to adjust the hour digits. The input time has to be within 0-23.
3. Press the Ⓜ(1) or ⏻ button, the minute digits will flash. The unit will also beep.
4. Press the + / - (2) buttons to adjust the minute digits. The input time should be within 0-59.
5. Press the Ⓤ (1) or Ⓐ button to finish clock setting. The unit will also beep. “:” will start flashing and the time will illuminate.

• This is a 24-hour clock. When the microwave is connected to the mains power for the first time or when the power is resumed after a power interruption, the LCD display will show "0:00". To re-set the clock, simply follow the above 5 steps.
• In the process of clock setting, if the (3) button is pressed or if there is no operation within 5 minutes, the microwave will go back to the previous status automatically.
• If the clock needs to be reset, please repeat steps 1 to 5.
• To find out the current time while the microwave is operating, press the 📞(1) button. It will last for 3 seconds and then return to its original display.

When the kitchen timer is running, other functions cannot be used.

When the microwave is not in use, this feature allows you to use the microwave as a timer.

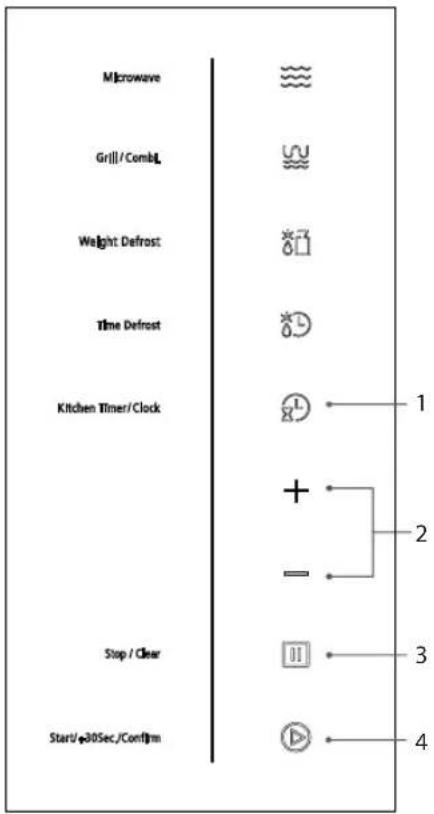

To set the kitchen timer, follow the steps below.

1. Press the 📋 (1) button. The LCD display will show "KT 00:00".
2. Press the + / - (2) buttons to select the timer time. The input time has to be within 5sec-95min.
3. Press the Ⓜ (1) or ⏻ button to confirm the setting.
4. Once the elapsed time is reached, the microwave will sound 5 times and return to its original state.
5. Press the ⑪ (3) button to cancel the timer.

• The Kitchen Timer is not the clock; it is a timer.
• If the clock has been set, the LCD panel will display the current time.
  • The time setting is between 0:05 - 95:00.

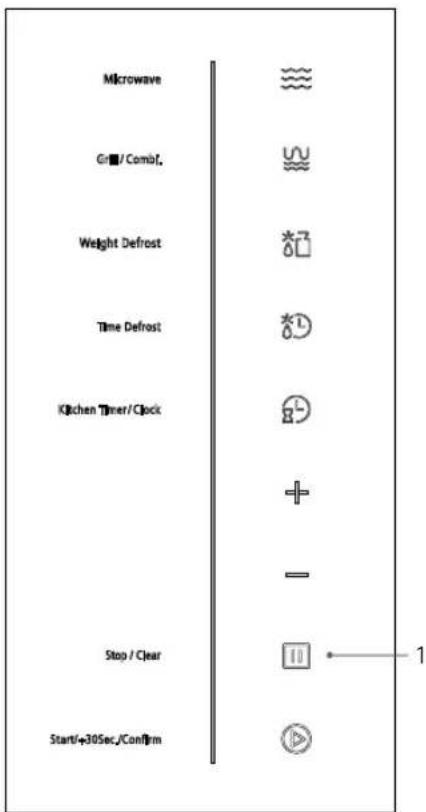

This feature prevents the electronic operation of the microwave by locking the operation of the control panel until you have cancelled it.

Please follow the steps below to set the child lock.

1. While the microwave is not in use, press the ③(1) button for 3 seconds; the unit will beep. The child lock indicator will illuminate on the LCD display to indicate the microwave has set the child lock. The LCD will also display the current time or "C: : :".

2. To release the child lock, press the ☐(1) button again for 3 seconds; the unit will beep. The child lock indicator will disappear from the LCD display to indicate that the microwave has released the child lock.

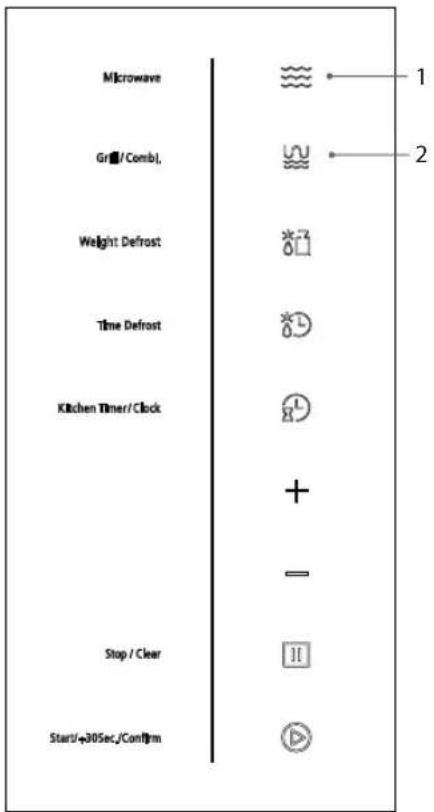

For simple Microwave Cooking, follow the steps below.

For instance, if you want to use 80% microwave power to cook for 20 minutes.

1. Press the ≈(1) button once and the LCD display will show "P100". Press the ≈(1) button repeatedly until the LCD display shows "P80".
2. Press + / - (2) to adjust cooking time. The input time must be within 5 sec - 95 min.
3. Press the ▶(4) button to confirm and start cooking.
4. Press the Ⅲ(3) button once to pause the cooking. Press the Ⅱ(3) button again to stop/clear the setting.

• Stop the microwave before removing food from it.
• Operating the microwave without food in it can result in overheating and damaging the magnetron.
• Cooking with a microwave is much faster than conventional cooking. Whilst you should ensure that food is thoroughly cooked, you should be careful not to overcook it.

Microwave Button Control
Press Order LCD Display Microwave Power
1 P100 100%
2 P80 80%
3 P50 50%
4 P30 30%
5 P10 10%

Time Adjustment using + or -
Time Range Increment
0 - 1 min 5 secs
1 - 5 mins 10 secs
5 - 10 mins 30 secs
10 - 30 mins 1 min
30 - 95 mins 5 mins

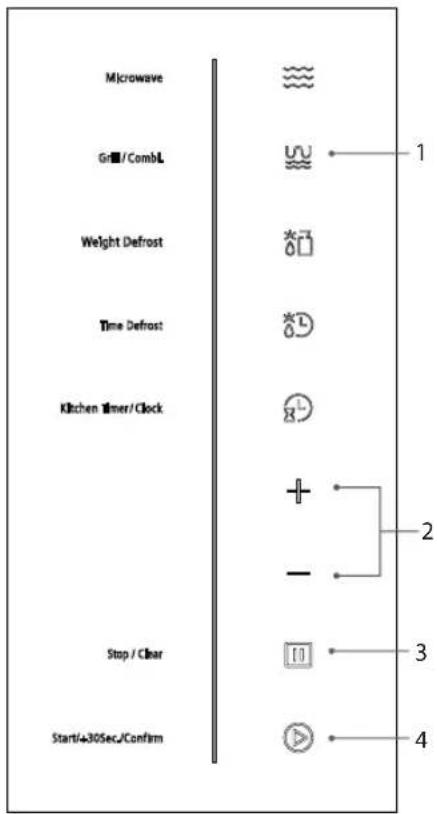

For Grilling and Combination Cooking, follow the steps below.

1. Press the ⬆(1) button and the LCD display will show "G". Press the ⬆(1) button repeatedly to select the desired cooking power (G, C-1, C-2).
2. Press the + / - (2) buttons to adjust the cooking time. The input time must be within 5 sec - 95 min.
3. Press the ▶(4) button to confirm and start cooking.
4. Press the ⑪ (3) button once to pause the cooking. Press the ⑪ (3) button again to stop/clear the setting.

Grill/Combi. button control
press order LCD display microwave grill
1 G 0%	100%
2 C-1	55% 45%
3 C-2	36% 64%

We recommend that you use the supplied grill rack. Place your food on the grill rack then place on top of the glass turntable plate.

In order to obtain better grilling performance for your food, please turn your food over. When half the grilling time has passed, turn the food over. After you turn over the food, you need to press the ▶ (4) button to continue. If there are no button presses or interruptions, the unit will continue cooking without pausing.

Grill Menu Table

Menu Time
Bread slices 3'40"
Frozen pizza	12'00"
Frozen chicken nuggets	14'00" (+14'00")
Chicken wings	20'00" (+20'00")

The grilling times stated are guides only. Grilling times will vary depending on the amount of food, the size and shape of the food pieces, the freshness and temperature of the food and personal taste. As you become familiar with your oven, you can adjust cooking times to suit your personal preference. For larger or smaller quantities, adjust the time accordingly.

For Two-Stage cooking, please follow the steps below.

For instance: If you want to defrost your food for 5 minutes and then to cook it with 80% microwave power for 7 minutes.

You can set a maximum of 2 stages for two-stage cooking. If defrosting is among one of the stages, then it will be set as the first stage. Auto cooking, quick start cooking are not available in two-stage cooking.

1. Press the 📋 button and the LCD display will show "00:00".
2. Press + / - (3) to input the defrosting time (05:00).
3. Press the ≈(1) button repeatedly until the LCD display shows "P80".
4. Press + / - (3) to adjust cooking time (07:00).
5. Press the ▶(5) button to confirm and start cooking.
6. Press the ⑪ (4) button once to pause the cooking. Press the ⑪ (4) button again to stop/clear the setting.

This feature allows you to cook most of your food based on the food category and the weight. Select the category and choose the weight of your food. For quick reference of the cooking time and the weight, please refer to the auto menu table.

Auto Menu

While the unit is not in use:

1. Press + (1) to choose the desired auto-cooking function.
2. Press ▶(4) to confirm the auto-cook setting.
3. Press + or - (2) to select the weight.
4. Press ▶(4) to confirm and start cooking.
5. Press the (3) button once to pause the cooking. Press the (3) button again to stop/clear the setting.

Menu Weight Display Time Comments
Pizza	200g 200g 1'30"			This setting is designed for re-heating cooked pizza slices (not frozen pizza). Allow extra time for thicker pieces.
	400g 400g 4'
Meat	250g 250g 4'			Make sure food is cooked thoroughly before consuming. Additional cooking time may be required for thicker pieces.
	350g 350g 5'30"
	450g 450g 6'50"
Vegetable	200g 200g 2'40"			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check the cooking regularly to make sure the water does not boil over.
	300g 300g 3'40"
	400g 400g 4'40"
Pasta	50g 50g 13'			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check the cooking regularly to make sure the water does not boil over.
	100g 100g 16'
Potato *	200g 200g 4'40"			For best results, pierce the potatoes' skin before cooking. Once the potatoes are cooked, wrap in aluminium foil for at least 5 minutes to ensure they are cooked thoroughly.
	400g 400g 7'30"
	600g 600g 9'10"
Fish	250g 250g 4'40"			Make sure food is cooked thoroughly before consuming. Additional cooking time may be required for thicker pieces of fish.
	350g 350g 6'10"
	450g 450g 7'30"
Beverage	120ml 1 1'10"			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check the cooking regularly to make sure the water does not boil over.
	240ml 2 2'20"
	360ml 3 3'30"
Popcorn	50g 50g 1'25"			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.
	100g 100g 2'25"

* It is recommended that when auto-cooking a potato, the potato should weigh at least 230g.
Note: Potatoes will vary in water-content depending on age, type, weight, etc.

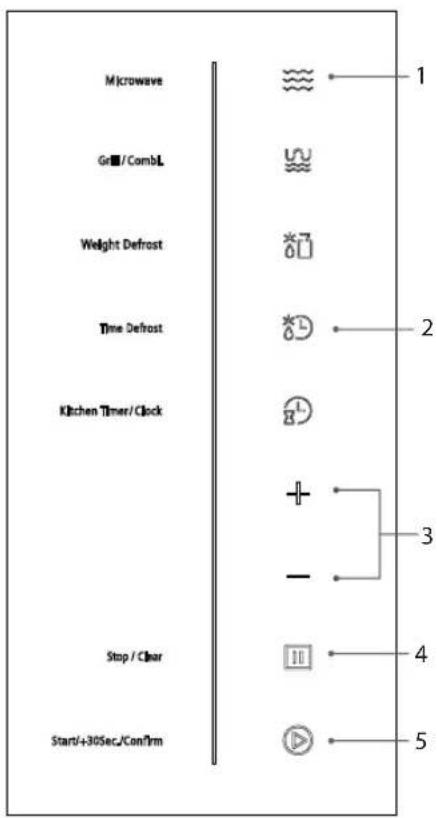

This feature allows you to defrost your frozen foods simply by entering the weight or time.

Defrost by Weight

1. Press the 📄 button and the LCD display will show "100".
2. Press + / - (3) to input the weight (100-2000g).
3. Press the ▶ (5) button to start defrosting. When half the defrosting time has passed, the unit will beep to remind you to turn over the food. If no action is taken, the unit will continue cooking without pausing.
4. Press the | (4) button once to pause the defrosting. Press the | (4) button again to stop/cancel the setting.

After pressing 14) once, if the unit is paused for 5 minutes or more, the unit will automatically cancel the setting and return to standby.

Defrost by Time

1. Press the (2) button and the LCD display will show "00:00".
2. Press + / - (3) to input the defrosting time. The input time must be within 5 sec - 95 min.
3. Press the ▶ (5) button to start defrosting.
4. Press the | (4) button once to pause the defrosting. Press the | (4) button again to stop/cancel the setting.

• Large items may be frozen in the centre. To ensure even thawing, turn them over from time to time and break them into smaller pieces during defrosting.
• You will need to press the (4) button once to hold the defrosting programme and open the door. After you rotate the food, you need to press the (5) button to re-start defrosting.
• Place roasts fat-side down or whole poultry breast-side down.
• Drain liquids during defrosting as the juices from food can get hot and cook the food.

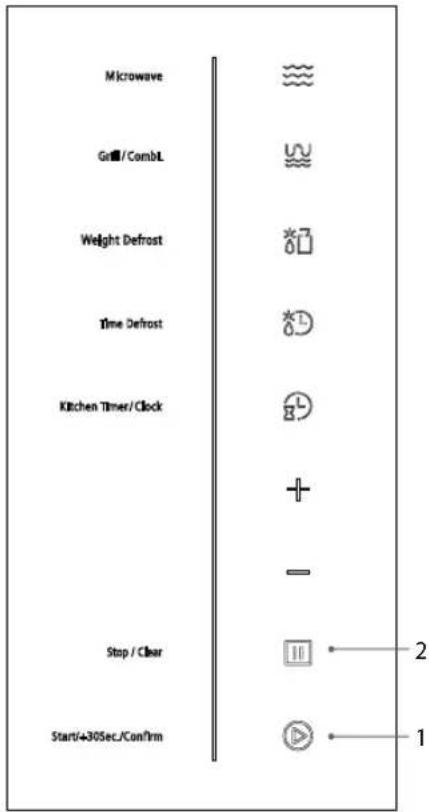

This feature allows you to quickly cook your food for 30 seconds with 100% microwave power. Make sure the unit is in standby mode, then follow the steps below.

1. Press the ▶(1) button to start the quick start cooking at 100% cooking power. Press the ▶(1) button again to increase by another 30 seconds. You may increase the cooking time up to 95 minutes.

Each press of Ⓗ) increases cooking time by 30 seconds in general.

1. Press the ☐ button once to pause cooking. Press the ☐ (2) button again to stop/cancel the setting.

This feature can be used during: microwave, grill, combination and time defrost cooking. This feature cannot be used during weight defrost and auto-menu cooking.

This feature allows you to check and view the current cooking settings.

To Find Out the Current Cooking Setting

1. Press the ☐ or (2) button once and the LCD display will show the current cooking power while the microwave is in microwave or grill/combination cooking. It will last for 3 seconds and then return to its original display.

Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean.

Unplug your microwave from the mains and wait for it to completely cool down before cleaning.

On the right hand side wall of the cavity is the wave guide cover. Microwaves are passed through this to enable your food to cook. It is important that this wave guide cover is kept clean at all times. Wipe it with mild detergent and water and leave to dry.

The microwave walls have a special enamel coating which makes cleaning very easy. Use a soft damp cloth to wipe off any splashes or a paper towel to mop up any spills. Wipe off grease with a damp cloth and a little detergent. Dry thoroughly. If grease is left to accumulate, it can smoke and even catch fire.

② Make sure you keep the outlet grids clean.

3 Keep the front of the microwave clean so that the door can close properly.

4 Be careful not to spill water into the vents.

Do not remove the wave guide cover: It is important to keep the cover clean in the same manner as the inside of the microwave. If grease is left to accumulate, it can smoke and even catch fire.

6 Keep the inside of the door clean with a damp cloth. Use warm soapy water for stubborn marks and dry thoroughly. The inside of the door has a special coating and must not be cleaned with abrasive pads or cleaning powders.

⑦ Clean behind the door ledge.
8 Use warm soapy water to clean the outside of the microwave. Do not use abrasive cleaners, pads or powders that could scratch the surface.
9 Unplug the microwave before cleaning the power lead and the microwave. Wipe with a damp cloth and leave to dry before plugging it back in.
10 Treat the glass turntable plate as you would any glass plate. After you have used it for more than 15 minutes, allow it to cool down before you use it again. Do not wash the glass turntable plate in very hot water, doing so could crack it. Wash the turntable support in warm water. Make sure the glass turntable plate and turntable support are dry before you put them back in the microwave.
11 Wash the racks in warm water. Do not use very hot water.

Do not remove any fixed parts from the inside of your microwave during cleaning or at any other time.

If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem.

Questions Answers
Why doesn't the food seem to cook? Check that:the cooking time has been set.the door is closed.the mains socket is not overloaded causing the fuse to blow.
Why does the food seem undercooked or overcooked?	Check that:the correct cooking time has been set.the correct power setting has been used.
How can I stop eggs from popping? When you bake or poach eggs in the microwave, the yolk can sometimes pop as steam builds up inside it. You can stop the egg from popping by piercing the yolk with a toothpick before cooking.Never cook eggs that are still in their shells.
Why is it so important that I allow standing time after cooking?	With microwave cooking, many foods build up enough heat inside them to continue cooking even after they've been taken out of the microwave. Because microwave cooking works from the outside of food inwards, standing time lets you cook the centre of the food without the outside being overcooked.
Why does my microwave sometimes take longer to cook than it says in the recipe?	First check that the microwave was set just as the recipe said. Cooking times and heat settings are suggestions to help prevent overcooking but differences in the weight, size, shape and starting temperature of food will all affect how long it takes to cook - just as it does with a conventional oven. Use your judgement along with the recipe to check whether the food has been cooked properly.
Why do I get condensation on the inside of the door?	Condensation is perfectly normal, especially when you are cooking food with a high moisture content such as potatoes.
Does the microwave energy get through the window on the door?	No. The door has a special metal screen with holes that lets you see inside but stops microwave energy from getting out.
Steam comes out of the side of the door and vents. Can microwave energy get out too?	No. The door and vents are carefully designed to let steam out during cooking but keep microwave energy in. The gaps are not big enough for microwave energy to escape.
What happens if the microwave is switched on while the microwave is empty?	The microwave will be damaged. Do not switch the microwave on when there's nothing inside the microwave. It is a good idea to keep a cup of water in the microwave just in case someone accidentally starts the microwave.
Why doesn't the microwave's light illuminate?	Open the door. If the light does not illuminate, the bulb has probably blown. Call a qualified technician - do not try to change the bulb yourself.
There are sparks inside the microwave when I use the microwave. Will this cause any damage?	Yes. Make sure that you are not using any metal utensils and that your containers don't have a metal trim. You must not use metal in your microwave when you cook (except aluminium foil).
Light is showing through the vents and door. Does this mean the microwave energy can escape?	No. It is normal for the light to be visible and is nothing to be concerned about.
Why do I get interference on my TV and radio when I use the microwave?	Microwaves use radio waves similar to those received by TVs and radios. You can lessen the interference by moving your microwave further away from the TV or radio.
Model L20BIG17E
Input 230V~ 50Hz
Microwave Output 800W
Microwave Frequency 2450 MHz
Outside Dimensions (Height x Width x Depth)	382 mm x 594 mm x 319 mm
Power consumption
Microwave Input	1270 W
Grill Input	1000 W

We continually strive to improve our products. Features and specifications may change without prior notice.

Takk for at du kjøpte ny Logik Mikrobølge.

Line drawing of a microwave oven with control panel and door (no text or symbols)

Hovedenheten

Simple line drawing of concentric ovals with three small dots at the center (no text or symbols)

Glassdreieplate

Dreieplatestøtte

Technical line drawing of a mechanical bracket with multiple holes and flanges (no text or symbols)

Nedre plastdeksel

Four identical 3D block diagrams with rectangular blocks and vertical connectors, no text or symbols present.

Føtter x 4

Skrue x 4

Grillrist
(kun for grill)

Hengslet

Instruksjonsmanual

(36,2 cm skap) (38,0 cm skap)

Technical line drawing of a microwave oven with open door and internal sink (no text or symbols)

Line drawing of a microwave oven with an open door and a circular lid, showing internal components (no text or symbols)

Simple line drawing of a lever with pivot point and dashed arrow indicating rotation (no text or symbols)

Sett fra undersiden

Installasjon

NO

Simple line drawing of a cabinet with a checkmark on the door (no text or symbols)

Simple line drawing of a box with a black X mark on the front panel and cables, placed on a base (no text or symbols)

3.

(38.0 cm)

(36.2 cm)

4.

NO

5.

NO

Simple line drawing of a bowl with arrows indicating flow or motion, no text or symbols present

Kontrollere Redskaper For Tilberedning

Simple line drawing of a rectangular frame with two internal rectangles, above a cloud-like shape (no text or symbols)

NO

Hovedenheten

Kontrollpanel

Line drawing of a microwave oven with open door and lid (no text or symbols)

NO

NO

Aktivere Barnesikringen

NO

NO

Vi anbefaler at du bruker den vedlagte grillristen. Sett maten på grillristen og sett den deretter oppå glassdreieplaten.

NO

NO

Automatisk Tilberedning

Auto-Kokemeny-Tabell

Med denne funksjonen kan du raskt tilberede maten i 30 sekunder med 100 % mikrobølgeeffekt.

NO

NO

Line drawing of a microwave oven with control panel and door (no text or symbols)

Huvudenheten

Simple diagram of concentric ovals with small dots at the center (no text or symbols)

Snurrande glastallrik

Vridbart stöd

Isometric line drawing of a mechanical bracket with multiple circular holes (no text or symbols)

Bottenskydd i plast

Four identical 3D block diagrams arranged in a 2x2 grid, each with a rectangular block on top (no text or symbols)

Fötter x 4

Skruv x 4

Technical line drawing of a microwave oven with open door and internal dish (no text or symbols)

Line drawing of a microwave oven with open door and circular vent, showing internal components (no text or symbols)

Simple line drawing of a right-angled rectangular block with a diagonal line and circular holes, no text or symbols present.

Vy undersida

Installation

Simple line drawing of a cabinet with a checkmark on the door (no text or symbols)

Simple line drawing of a cabinet with an X mark on the door and cables, no text or symbols present.

1.

Technical diagram showing a 3D panel assembly with a close-up of a mechanical component and dimension annotation (x, mm) — no text or symbols present.

(38.0 cm)

(36.2 cm)

4.

SE

5.

Introduktion Till Matlagning I Mikrovågsugn

Simple line drawing of a bowl with wavy lines indicating motion or flow, no text or symbols present.

Kontrollera Matlagningsutrustningen

Line drawing of a microwave oven with open door and lid (no text or symbols)

SE

Automatisk Tillagningstabell

Line drawing of a microwave oven with control panel (no text or symbols)

Laite

Simple line drawing of concentric ovals with three small dots at the center (no text or symbols)

Technical line drawing of a mechanical bracket with multiple circular holes (no text or symbols)

Alamuovikansi

Four identical 3D block diagrams with rectangular bases, no text or symbols present

Jalat x 4

Ruuvi x 4

Technical line drawing of a microwave oven with open door and internal sink (no text or symbols)

Line drawing of a microwave oven with open door and sink (no text or symbols)

Simple line drawing of a rectangular block with a diagonal beam and circular holes, no text or symbols present.

Näkymä alta

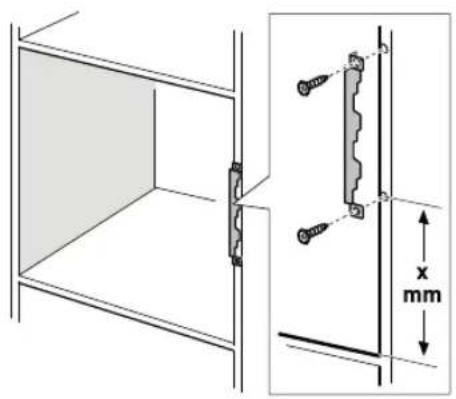

Asennu

Simple line drawing of a cabinet with a checkmark on the door (no text or symbols)

Simple line drawing of a cabinet with an X-shaped symbol on the door, connected to wires (no text or labels)

1.

Technical diagram showing a 3D panel assembly with a close-up of a mechanical component and dimension annotation (x, mm) — no text or symbols present.

(38.0 cm)

(36.2 cm)

4.

FI

5.

Simple line drawing of a bowl with steam rising from it, no text or symbols present

Simple line drawing of a rectangular frame with two internal rectangles, above a cloud-like shape (no text or symbols)

FI

Laite

Line drawing of a microwave oven with open door and lid (no text or symbols)

FI

Line drawing of a microwave oven with control panel and indicator lights (no text or symbols)

Hovedenheden

Simple diagram of concentric ovals with small dots at the center (no text or symbols)

Drejeskive af glas

Technical line drawing of a mechanical bracket with multiple circular holes (no text or symbols)

Four identical 3D block diagrams with rectangular bases, no text or symbols present

Fødder x 4

Skrue x 4

Technical line drawing of a microwave oven with lid open and internal components (no text or symbols)

Line drawing of a microwave oven with an open door and a circular vent, showing internal components (no text or symbols)

Simple line drawing of a right triangle on a rectangular base with four corner holes (no text or symbols)

Set nedefra

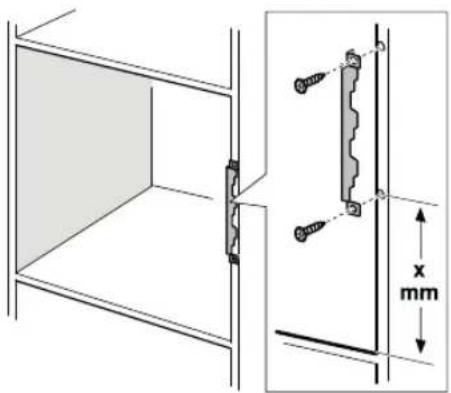

Installation

Simple line drawing of a cabinet with a checkmark on the door (no text or symbols)

Simple line drawing of a box with a black X mark on its side, connected to wires (no text or symbols)

1.

Technical diagram showing a 3D panel assembly with a close-up of a mechanical component and a dimension label (x, mm) — no text or symbols present.

(38.0 cm)

(36.2 cm)

4.

DK

5.

Simple line drawing of a bowl with arrows indicating flow or motion, no text or symbols present

Simple line drawing of a rectangular box with two internal square cutouts, above a cloud-like shape (no text or symbols)

Hovedenheden

Kontrolpanel

Line drawing of a microwave oven with open door and lid (no text or symbols)

Automatisk Madlavning

Tabel For Automatisk Kogemenu

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
