Product Type	Chest Freezer
Model Number	CFB4102V
Brand	Elvita
Total Internal Volume	102 liters
Width	570 mm
Depth	520 mm
Height	850 mm
Weight	24 kg
Electrical Connection	220-240 V, 50 Hz
Refrigerant	R600a (environment-friendly)
Recommended Room Temperature	16-32 °C
Temperature Control	Thermostat knob with settings 1-6 (1 warmest, 6 coldest) and OFF
Indicators	Power, Run, and Alarm lights
Defrosting	Manual (requires drainage of meltwater)
Compressor	Efficient compressor from well-known manufacturer
Insulation Foam Blowing Agent	Cyclopentane (environment-friendly)
Door Seals	Integrated, removable for cleaning
Clearance Required	At least 70 cm above, 20 cm on sides and rear
Max Transport Angle	45°
Included Accessories	Shelf/basket, door handle, drain hole, temperature control panel, wheels
Cleaning Method	Lukewarm water and soft cloth; dry thoroughly
Safety Features	Earthed plug, child supervision warning, avoid flammable gas sparks

Frequently Asked Questions - CFB4102V Elvita

How do I set the temperature on the Elvita CFB4102V freezer?

Use the thermostat knob. Numbers 1 to 6 do not represent specific temperatures; lower numbers give higher temperatures (warmer), higher numbers give lower temperatures (colder). Turn to OFF to switch off the freezer.

Why is the compressor running for a long time?

It is normal during summer when ambient temperature is high. Also ensure you haven't overfilled the freezer, avoid placing hot food inside, and minimize door openings. If ice layer is thick, defrost the freezer.

How do I defrost the freezer?

Disconnect from power, remove food, open drain holes, place a container under the outflow hole to collect meltwater. Use a soft cloth to dry and an ice scraper for faster removal. Do not use mechanical devices or damage the refrigeration circuit.

Why is the door hard to open?

A pressure difference between inside and outside due to freezing may cause temporary difficulty. This is normal. Wait a moment and try again.

What should I do during a power outage?

Food stays frozen for a few hours even in summer. Avoid opening the door frequently and do not add unfrozen items. Keep the door closed as much as possible.

How do I clean the freezer?

Unplug the freezer before cleaning. Use lukewarm water and a soft cloth. Do not rinse with water; use a dry cloth for electrical components. Clean door seals frequently.

What refrigerant does the Elvita CFB4102V use?

It uses R600a, an environment-friendly refrigerant. The insulation foam uses cyclopentane, also environment-friendly.

Can I store sealed bottles or beverages in the freezer?

No, do not place sealed bottles or containers holding liquids (e.g., beer bottles) in the freezer as they may burst and cause damage.

Why is the alarm light on?

The Alarm indicator shines when the temperature inside the freezer is too high. Check if the door is closed properly, if there was a recent power outage, or if too much warm food was added. The alarm should turn off once the temperature drops.

What maintenance is required for the freezer?

Regular cleaning of interior and door seals. Defrost when ice layer is thick. Keep the door slightly ajar if not used for long periods to prevent odors. Avoid moving the freezer unnecessarily.

USER MANUAL CFB4102V Elvita

Before using this product, please read the user manual carefully. Save the user manual for future reference.

White refrigerator with lid and front panel, no visible text or symbols on body

GRATTIS TILL DIN NYA ELVITA FRYSBOX!

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

TEKNISKA DATA

ELVITA FRYSBOX 102 L MOD NR CFB4102V
Total inre volym 102 liter
Bredd 570 mm
Djup 520 mm
Höjd 850 mm
Vikt 24 kg
Elektrisk anslutning 220 -240 V, 50 Hz
Köldmedium R600a
Rekommenderad rumstemperatur 16 - 32 °C

ELVITA FRYSBOX 295 L MOD NR CFB4295V
Total inre volym 295 liter
Bredd 640 mm
Djup 1110 mm
Höjd 850 mm
Vikt 42 kg
Elektrisk anslutning 220 -240 V, 50 Hz
Köldmedium R600a
Rekommenderad rumstemperatur 16 - 32 °C

SÄKERHETSVARNINGAR

Read the user manual thoroughly!

This unit is designed for domestic use.

WARNING!

So that they do not play with the unit, keep young children under supervision.

This unit must be connected to an earthed power outlet.

CONTENTS

Materials recycling 11

Technical data 11

Safety warnings 12

Product presentation

Components 14

Location 15

Starting 15

Freezer maintenance

Cleaning 16

Defrosting 16

Switching off 16

Troubleshooting 17

MATERIALS RECYCLING

Dispose of packaging materials in accordance with local regulations. Discarded units still have a certain residual value. Correct and environment-friendly disposal ensures that valuable raw materials can be recycled and used again.

The refrigerant used in the unit's refrigeration circuit requires special handling. The same applies to the insulation materials. Before disposal, ensure that the pipes on the rear of the unit are not damaged. Your local authority can supply information on where you can leave worn-out units and packaging materials.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

TECHNICAL DATA

ELVITA FREEZER 102 L MOD. No. CFB4102V
Total internal volume 102 litres
Width 570 mm
Depth 520 mm
Height 850 mm
Weight 24 kg
Electrical connection 220 -240 V, 50 Hz
Refrigerant R600a
Recommended room temperature 16 -32°C

ELVITA FREEZER 295 L MOD. No. CFB4295V
Total internal volume 295 litres
Width 640 mm
Depth 1110 mm
Height 850 mm
Weight 42 kg
Electrical connection 220 -240 V, 50 Hz
Refrigerant R600a
Recommended room temperature 16 -32°C

SAFETY WARNINGS

WARNING! This appliance is not designed for use by unsupervised children.

GENERAL

This type of refrigerator/freezer is often used in places such as hotels, offices, student accommodation and private homes. It is primarily suitable for freezing and conserving foodstuffs such as fruits and beverages. Compactness, low weight, low power consumption and ease of use are just some of its advantages.

This manual contains important safety information that is to be followed by all users.

ELECTRICAL SAFETY WARNINGS

• When removing the freezer's plug from an outlet, do not pull it out by the power cable. Grip the plug firmly and pull this.
• Be careful not to damage the power cable. Do not use the freezer if the power cable is damaged or the plug is worn.
• A worn or damaged power cable must be replaced by an authorised workshop.
• Connect the freezer to an earthed power outlet that has a minimum 10 A rating (fuse protection). The power outlet must not be shared with other electrical appliances.
• The plug must be fully inserted in the outlet. There is otherwise a risk of fire. Ensure that the power outlet is correctly earthed.
• The freezer is designed for use at 220 – 240 V AC, 50 Hz. Voltage fluctuations of more than 10% from 220 – 240 V will give rise to faults or damage.
• As with all other electrical appliances, do not pull out the freezer's plug if there is a leak of a flammable gas. A spark could cause a fire here. Turn off the gas tap/valve and open doors and windows.
• To ensure safety, it is not recommended that other electrical appliances are placed on top of the freezer.

USER SAFETY WARNINGS

- Dismantling and/or repair of the freezer by an authorised person is not forbidden. Damaging the refrigerant pipes is forbidden. The freezer may be repaired and maintained by authorised technicians only.

- To avoid danger, a damaged power cable must be replaced by the manufacturer, an authorised workshop or similar.

• To guarantee good ventilation, leave sufficient free space around all sides of the freezer.
• The gaps between the freezer's door (lid) and its body are narrow. Be careful not to catch your fingers in these. Always close the freezer door carefully so that nothing topples over.
• Do not take food or containers out of the freezer compartment when it is running. Metal containers in particular can cause frostbite.

- Do not let children get into or climb onto the freezer.

- Do not spray or let water run onto/into the freezer. Avoid locating the freezer in places where it may get splashed with water. This can impair the freezer's electrical insulation.

- Do not place heavy objects on top of the freezer. They can fall and cause damage when the freezer door is opened.

- When there is a power outage, or when you are cleaning the freezer, always pull the plug out of the outlet. Before connecting it to the power supply, let the freezer stand idle for five minutes. The compressor may otherwise be damaged by frequent starts.

OBJECT PLACEMENT WARNINGS

• Do not place combustible, explosive, volatile or strongly corrosive objects in the freezer. This can result in damage to the appliance and/or fire.
• Do not place combustible objects near the freezer. There is otherwise a risk of fire.
• This freezer is designed for domestic use and is suitable only for storing foodstuffs. In accordance with national standards, domestic freezers must not be used for other purposes (e.g. storing blood, pharmaceuticals or biological products).
• Do not place sealed bottles or other liquid-holding containers (e.g. bottles of beer) in the freezer. They can burst and cause damage.

DISPOSAL WARNINGS

The freezer's refrigerant (R600a) and its foam material (cyclopentane) are combustible. Discarded freezers should be kept away from sources of ignition. They must not be burned. To avoid all risk of environmental damage, take discarded freezers to an authorised, professional recycling facility.

To avoid the risk of children playing and getting trapped in discarded freezers, remove doors and shelves/baskets.

CORRECT FREEZER USE

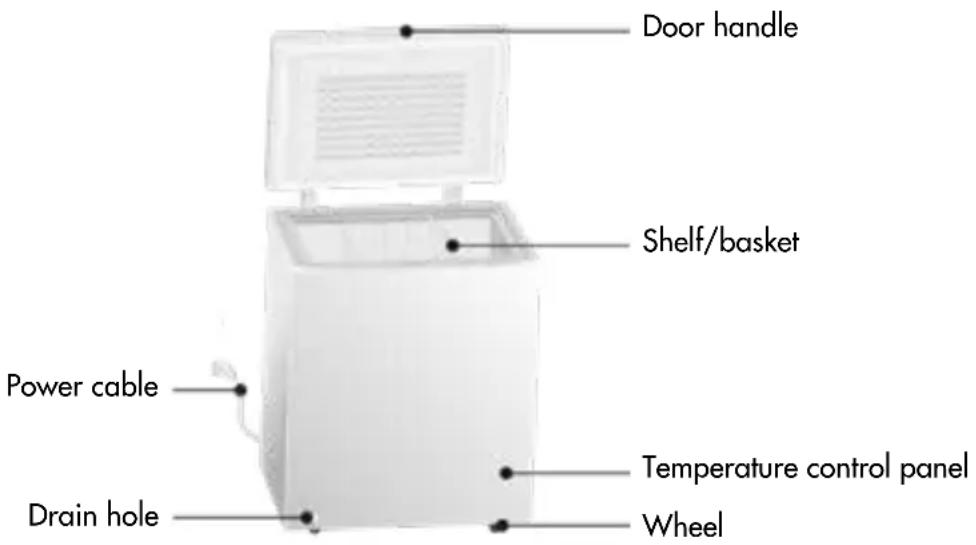

COMPONENTS

Your freezer's functions and the accompanying accessories may not be exactly as detailed here. Refer to the packing list.

PRODUCT FEATURES

• Reliable operation: The freezer has an efficient compressor from a well-known manufacturer. This ensures excellent performance and high dependability.
  • The door includes a high-quality foam.
• The door has integrated seals that are easy to remove for cleaning.
• The freezer's refrigerant (R600a) and the blowing agent (cyclopentane) used for the insulating foam are environment-friendly choices.

TEMPERATURE CONTROL

• Connect the freezer to a working power outlet. The "Power" indicator comes on. The "Run" indicator shines when the freezer is running. The "Alarm" indicator shines when the temperature in the freezer is too high.
• Use the thermostat knob to set freezer temperature. The numbers "1", "2", "3", "4", "5" and "6" do not represent specific temperatures. However, the lower the number, the higher the temperature in the freezer (and vice versa).
• When the thermostat knob is in the "OFF" position, the freezer is off.

LOCATION

• Before using the freezer, remove all packaging materials (this includes impact protection, foam rubber and tape from inside the freezer). Remove the protective film from the door and the sides of the freezer.
• Place the freezer indoors in a well-ventilated place. The surface must be flat and sturdy.
• Protect the freezer from heat sources and direct sunlight. Do not place the freezer in wet or damp environments. Rust can otherwise arise and impair insulation.
• There must be at least 70 cm clear space above the freezer and at least 20 cm clear space around the sides and the rear of the freezer. This is to facilitate opening, closing and heat dissipation.
• Use a warm damp cloth to wipe the interior and exterior of the freezer (add a little detergent to warm water and give a final wipe over with water only).

STARTING

Let the freezer run for two to three hours before placing fresh or frozen foodstuffs in it. In the summer, increase this time to 4 hours. This is because the ambient temperature is higher then.

FREEZER MAINTENANCE

CLEANING

• Before you start cleaning the freezer, pull the plug out of the power outlet.
• Clean with lukewarm water and then dry with a soft cloth.
• The door seals get dirty easily. A coating may build up. Clean frequently.

Do not rinse with water. This may impair the electrical insulation. Use a dry cloth to clean the thermostat knob and electrical components.

DEFROSTING

Defrost the freezer manually. Disconnect the freezer from the power supply. Before defrosting, open the freezer door and remove foodstuffs and containers. Open the outflow/drain holes. Place a suitable container below the outflow hole. The ice in the freezer will gradually melt. Use a dry, soft cloth to dry up the meltwater. When the ice has softened, an ice scraper can be used to remove the ice more quickly. Before removing freezer accessories, and throughout defrosting, place and keep foodstuffs in a cool place.

Other than those recommended by the manufacturer, do not use any mechanical devices or other products to accelerate defrosting. Do not damage the refrigeration circuit.

SWITCHING OFF

If there is a power outage, foodstuffs remain frozen for a few hours, even in the summer. In the event of a power outage, open the freezer door as seldom as possible and do not place any unfrozen goods in the freezer.

Prior to cleaning, and if the freezer is not to be used for a long time, pull the plug out of the power outlet. At such times, keep the door slightly open. This avoids bad odours building up.

Do not place the freezer on any of its sides or upside down. Maximum angle during transport is 45^ . The freezer must not be exposed to vibrations. Secure the door and hinges when moving the freezer.

We recommend running the freezer continuously once it has been started. While conditions remain normal, do not move the freezer. Moving could shorten the freezer's service life.

TROUBLESHOOTING

The following simple problems can be dealt with by the user. Please contact our customer service department if the freezer presents any problems that you cannot solve yourself.

Compressor running for an abnormally long time	It is normal for the freezer's compressor to run for longer periods in the summer when the ambient temperature is higher.Do not have too much food in the freezer at any one time.Do not put foodstuffs into the freezer before they have cooled.The freezer door is being opened too often.Thick ice layer (defrosting required).
Interior light not working Check that the unit is connected to a working power supply.Check that the light is intact.
Freezer door does not close fully	Check that there is nothing blocking the door.Check that there is not too much food in the freezer.Check that the freezer is not at an angle.
Noisy operation Check that the foodstuffs are stably positioned.Check that the freezer is standing firmly and balanced.Check that all parts of the freezer are in the correct positions.
Door not opening easily After freezing, there is a pressure difference between the inside and the outside of the freezer. This can make it temporarily difficult to open the door. This is entirely correct and normal.

Heat:

• Especially in the summer, the freezer may give off heat when it is running. This is heat radiated by the compressor and is entirely normal.
• Condensation: When air humidity is high, condensation may form on the freezer's exterior and the door's seals. This is entirely normal. The condensation can be removed with a dry towel.
• Gurgling: Circulation in the refrigerant lines can produce gurgling noises. This does not affect functionality.
• Humming: There may be a humming noise when the compressor is running (especially during starting and stopping).
• Clicking: There is a click when the solenoid valve (electric switch valve) operates. This is entirely normal and does not affect freezer functionality.

GRATULERER MED DITT NYE ELVITA FRYSEBOKS!

Symbol of a trash bin crossed with no text or numbers, accompanied by a blank rectangular bar (no text or symbols present)

TEKNISKE DATA

ELVITA FRYSEBOKS 102 L MOD.NR. CFB4102V
Totalt innvendig volum 102 liter
Bredde 570 mm
Dybde 520 mm
Høyde 850 mm
Vekt 24 kg
Elektrisk tilkobling 220 -240 V, 50 Hz
Kjølemiddel R600a
Anbefalt romtemperatur 16 -32°C

ELVITA FRYSEBOKS 295 L MOD.NR. CFB4295V
Totalt innvendig volum 295 liter
Bredde 640 mm
Dybde 1110 mm
Høyde 850 mm
Vekt 42 kg
Elektrisk tilkobling 220 -240 V, 50 Hz
Kjølemiddel R600a
Anbefalt romtemperatur 16 - 32 °C

SIKKERHETSADVARSLER

VEDLIKEHOLD AV FRYSER

RENGJ∅RING

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

TEKNISKE DATA

ELVITA KUMMEFRYSER 102 L MOD NR CFB4102V
Samlet indvendig volumen 102 liter
Bredde 570mm
Dybde 520mm
Højde 850mm
Vægt 24kg
El-tilslutning 220-240 V, 50 Hz
Kølemiddel R600α
Anbefalet rumtemperatur 16-32 °C

ELVITA KUMMEFRYSER 295 L MOD NR CFB4295V
Samlet indvendig volumen 295 liter
Bredde 640mm
Dybde 1110mm
Højde 850mm
Vægt 42kg
El-tilslutning 220-240 V, 50 Hz
Kølemiddel R600α
Anbefalet rumtemperatur 16-32 °C

SIKKERHEDSADVARSLER

OFTE STILLEDE SP∅RGSMÅL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

TEKNISET TIEDOT

TIL HAMINGJU MEĐ NÝJA ELVITA FRYSTINN PINN!

Lestu notkunarleiðbeiningarnar vandlega!

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

TÆKNILÝSING

ELVITA FRYSTIR 102 L GERD NÚMER CFB4102V
Samtals innra rúmmál 102 lítrar
Breidd 570mm
Dýpt 520mm
Hæð 850mm
Pyngd 24kg
Rafmagnstenging 220–240 V, 50 Hz
Kæliefni R600α
Ráðlagður stofuhti 16–32°C

ELVITA FRYSTIR 295 L GERD NÚMER CFB4295V
Samtals innra rúmmál 295 lítrar
Breidd 640 mm
Dýpt 1110 mm
Hæð 850 mm
Pyngd 42 kg
Rafmagnstenging 220–240 V, 50 Hz
Kæliefni R600α
Ráðlagður stofuhti 16–32°C

ÖRYGGISVIDVARANIR
