CKF3143V - Refrigerator Elvita - Free user manual and instructions

Product Type	Refrigerator
Brand	Elvita
Model	CKF3143V
Total Net Capacity	Approx. 340 L
Refrigerator Capacity	Approx. 240 L
Freezer Capacity	Approx. 100 L
Energy Class	E
Annual Energy Consumption	Approx. 220 kWh
Climate Class	N-ST
Noise Level	40 dB(A)
Dimensions (H x W x D)	186 x 60 x 65 cm
Net Weight	Approx. 65 kg
Power Supply	220-240 V, 50 Hz
Defrost System	Auto defrost (refrigerator), manual defrost (freezer)
Shelves Material	Tempered glass
Door Alarm	Yes
Interior Light	LED
Reversible Doors	Yes
Maintenance	Clean condenser coils annually; defrost freezer when ice thickness exceeds 5 mm
Safety Features	Child lock, high temperature alarm
Spare Parts Availability	Minimum 7 years after purchase
Repairability Index	7.5/10

Frequently Asked Questions - CKF3143V Elvita

How do I adjust the temperature on my Elvita CKF3143V fridge?

Use the temperature control dial inside the refrigerator compartment. Turn it to a higher number for colder temperature (e.g., 3-4 for normal use).

Why is my fridge not cooling properly?

Check if the door is closed properly, the condenser coils are clean, and the temperature setting is correct. Also ensure the appliance is not overloaded.

How often should I defrost the freezer?

Defrost the freezer when ice thickness reaches 5 mm (approx. every 6 months). Use the manual defrost setting or unplug the appliance.

Can I reverse the door opening direction?

Yes, the doors are reversible. Follow the instructions in the user manual to change the hinges.

What is the energy consumption of this fridge?

The annual energy consumption is approximately 220 kWh, placing it in energy class E.

How do I clean the condenser coils?

Disconnect the fridge. Use a vacuum cleaner with a brush attachment or a soft brush to remove dust from the coils at the back or bottom of the appliance.

What should I do if the door alarm sounds?

Close the door firmly. If the alarm persists, check for obstructions or a faulty door switch. Contact support if needed.

Is there a child lock function?

Yes, the Elvita CKF3143V has a child lock. Activate it by pressing and holding the temperature setting button for 3 seconds.

How long are spare parts available?

Spare parts are available for at least 7 years after purchase. Contact Elvita customer service or authorized dealers.

What does the high temperature alarm indicate?

The alarm sounds if the interior temperature rises above safe levels. Check if the door is open, power outage occurred, or the appliance malfunctioned.

USER MANUAL CKF3143V Elvita

Electrical safety

Defrosting

How to use the refrigerator 23

Layout and controls 26

Maintenance and care 27

Troubleshooting 28

Ambient temperature range 29

Safety warnings

Warning: risk of fire / flammable materials

RECOMMENDATIONS:

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farmhouses and by clients in hotels, motels and other residential-type environments; bed & breakfast accommodation; catering and similar non-retail applications.

Children should be supervised to ensure that they do not play with the appliance.

If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans that contain a flammable propellant in this appliance.

The appliance must be unplugged after use and before any user maintenance is carried out on the appliance.

WARNING: Risk of fire / flammable materials.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please dispose of the appliance in accordance with local regulations, as flammable insulation foam and refrigerant are used.

WARNING: When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING: Do not place multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two-prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
• Leave the shelves in place so that children cannot easily climb inside.

The refrigerator must be unplugged from the power socket before attempting to install accessories.

Refrigerant and cyclopentane foam insulation used in the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it must be kept away from any fire source and be recovered by a specialized recycling company. To prevent damage to the environment or any other harm, do not incinerate the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Meaning of safety warning symbols

This is a mandatory symbol.

Failure to comply with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

This is a warning symbol.

The appliance must be operated according to instructions marked with this symbol, otherwise it may result in damage to the product or personal injury.

This is a caution symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which must be read and understood by users.

Electrical safety

- Do not pull on the power cord when you unplug the appliance. Please grasp the plug firmly and pull it out of the power socket.

• To ensure safe use, do not damage the power cord or use the power cord if it is damaged or worn.

- Please use a dedicated power socket, which must not be shared with other electrical appliances. The plug must be firmly inserted in the power socket to avoid the risk of fire.

- Please ensure that the earthing terminal inside the power socket is connected to a reliable earth conductor.

- If there is a gas leak, turn off the valve to shut off the leak, then open the doors and windows to ventilate flammable gases. Do not unplug the refrigerator or other electrical appliances as this could produce a spark that may ignite a fire.

- Do not place any electrical appliance on top of the refrigerator, unless they are recommended by the manufacturer.

Warnings for use

- Do not disassemble or reconfigure the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be carried out by a specialist. - If the power cord is damaged it must be replaced by the manufacturer, the manufacturer's maintenance department or suitably qualified professionals in order to avoid danger.

- The gaps between refrigerator doors and between doors and the refrigerator body are small, so do not put your hand in these areas to prevent trapping fingers. Close the refrigerator door gently to prevent items from tipping over.

- Do not place food or containers in the freezer compartment with wet hands when the refrigerator is running, especially metal containers, to avoid the risk of frostbite.

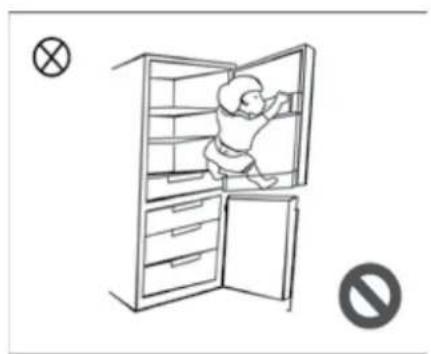

- Do not allow any child to get inside or climb on to the refrigerator, otherwise they may suffocate or fall.

- Do not place heavy objects on the top of the refrigerator, as they may fall off when the door is opened or closed and could cause accidental injury. - Please unplug the appliance from the power socket if there is a power cut or before you clean the appliance. Wait at least five minutes before reconnecting the refrigerator to the power supply, to prevent damage to the compressor due to repeated starting.

Warnings for placement

- Do not put flammable, explosive, volatile or highly corrosive items in the refrigerator, to avoid damage to the product or the risk of fire.

- Do not place flammable items near the refrigerator, to avoid the risk of fire.

- The refrigerator is intended for household use, such as the storage of food; it must not be used for other purposes, such as the storage of blood, drugs or biological products, etc.

- Do not store beer, beverages or other liquids contained in bottles or enclosed containers in the freezing compartment of the refrigerator, otherwise the bottles or enclosed containers may crack due to freezing and cause damage.

Warnings for energy

1) Refrigeration appliances may not operate consistently (possibility that contents may defrost or temperature inside frozen food compartment may get too high) if exposed for an extended period to temperatures at the bottom end of the temperature range for which the appliance is designed.

2) Effervescent drinks should not be stored in the food freezer compartment or in low-temperature compartments, and products such as frozen drinks or ice lollies should not be consumed too cold.

3) Do not exceed the maximum storage time(s) recommended by food manufacturers for any kind of food, and particularly for commercially quick-frozen food from food-freezer and frozen-food storage compartments or cabinets.

4) Take suitable precautions to prevent frozen food from thawing while you defrost the appliance, such as wrapping the frozen food in several layers of newspaper. 5) If the temperature of frozen food rises significantly during manual defrosting, maintenance or cleaning it could shorten the storage life. 6) If doors or lids are fitted with locks and keys, the keys must be kept out of the reach of children and not in the vicinity of the refrigerating appliance, to prevent children from being locked inside.

Warnings for disposal

Refrigerant and cyclopentane insulation foam that are used in the refrigerator are flammable. When the refrigerator is scrapped it must therefore be kept away from any fire source and be recycled by a qualified recycling company. To prevent damage to the environment or any other harm, the appliance must not be incinerated.

Before disposing of the refrigerator, remove the doors, door gasket and shelves, to prevent children from getting trapped inside.

Correct disposal of this product:

This mark indicates that this product must not be disposed of with other household waste in the EU. To prevent possible harm to the environment or human health due to uncontrolled waste disposal, please recycle this product responsibly to promote the sustainable reuse of material resources. To return your used appliance, please use the return and collection systems or contact the retailer where the product was purchased. The retailer can ensure the appliance is recycled in an environmentally friendly way.

How to use the refrigerator

Placement

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes from inside the refrigerator; tear off the protective film on the doors and the refrigerator body.

• Keep away from heat and avoid direct sunlight. Do not place the appliance in a damp or wet location, to prevent rust or a reduction in insulation performance.
• Do not spray or wash the refrigerator; do not put the appliance in a damp location where it could easily be splashed with water, which could impair the electrical insulation of the refrigerator.

- The appliance should be placed in a well-ventilated indoor location on a firm and level floor (turn the feet left or right to adjust the height if the floor is uneven).

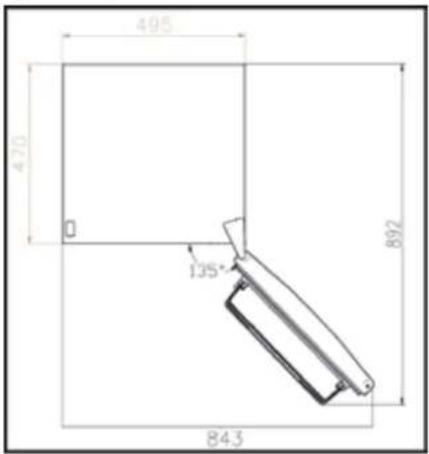

- There should be at least 30 cm clearance above the appliance, and at least 10 cm clearance from the wall, to facilitate heat dissipation.

Precautions before installation:

Before installing or adjusting accessories, make sure that the refrigerator is unplugged from the power socket. Be careful when handling the refrigerator to ensure that it does not fall and cause any personal injury.

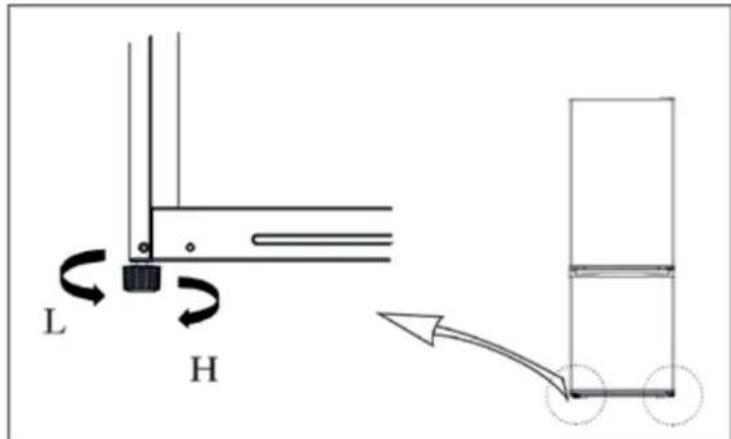

Levelling feet

Diagram of the levelling feet

Adjustment procedure:

a. Turn the feet clockwise to raise the refrigerator. b. Turn the feet counter-clockwise to lower the refrigerator. c. Adjust the right and left feet until the refrigerator is level.

The illustration above is only for guidance. The actual configuration will depend on the actual product or the distributor's specification.

Reversing the door

Tools to be provided by the user: Cross-head screwdriver

5/16" socket and ratchet

Putty knife and thin-bladed screwdriver

Masking tape

1. Unplug the refrigerator, and remove all items from the door trays.

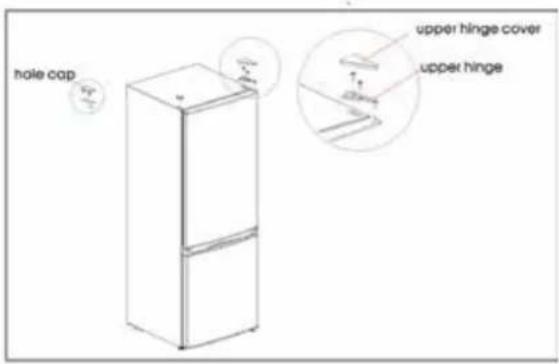

2. Remove the upper hinge cover, upper hinge and hole cap.

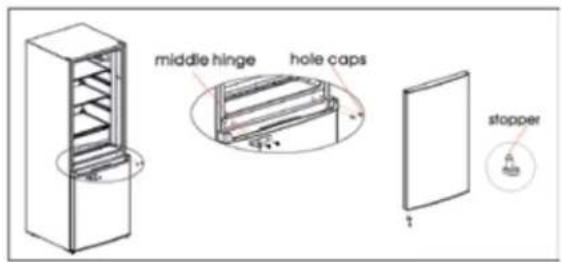

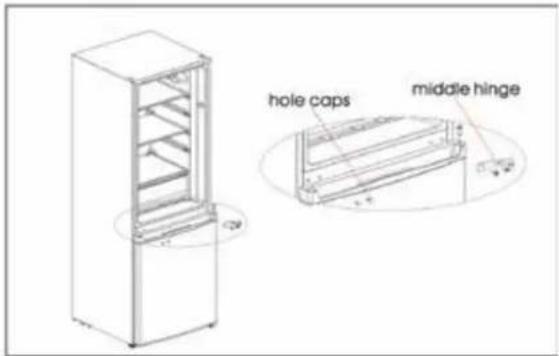

1. Remove the refrigerator door, middle hinge and screw hole caps.

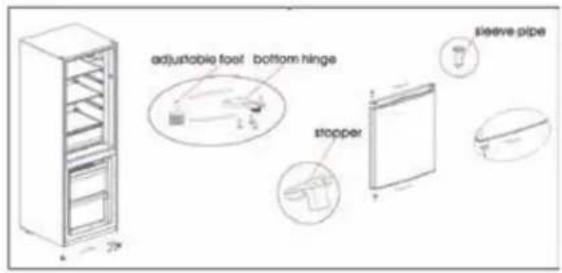

1. Remove the freezer door, bottom hinge and adjustable foot.
2. Install the bottom hinge assembly and adjustable foot on the other side, then install the stopper and sleeve pipe from the freezer door on the other side.

1. Locate the freezer door on the bottom hinge, install the middle hinge and the screw hole caps. Remove the stopper from the bottom right side of the refrigerator compartment door and save it for future use. Take out the spare stopper for the refrigerator compartment door from the accessory package, and install it on the other side.

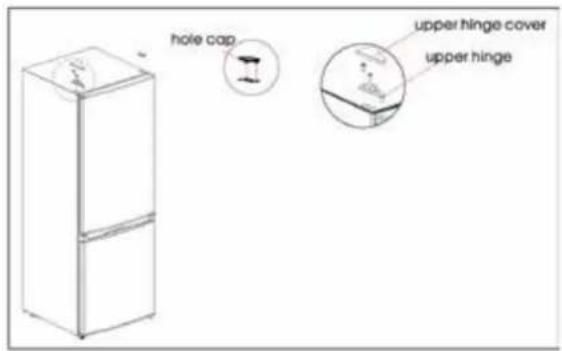

1. Locate the refrigerator door on the middle hinge, install the upper hinge, upper hinge cover and hole cap on the other side.

The illustration above is only for guidance. The actual configuration will depend on the actual product or the distributor's specification.

Replacing the LED lamp

Replacement or maintenance of the LED lamps should be carried out by the manufacturer, the manufacturer's service agent or a suitably qualified person.

Using the refrigerator for the first time

• Before switching on for the first time, allow the refrigerator to stand for half an hour before plugging it in.
• Before placing any fresh or frozen food in the appliance let it run for 2–3 hours, or at least 4 hours in summer when the ambient temperature is high.

- Leave enough space to allow the doors and drawers to open easily, or follow the distributor's recommendations.

Energy-saving tips

• The appliance should be located in the coolest area of the room, away from hot appliances or heating ducts, and out of direct sunlight. - Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run for longer. Foods that freeze too slowly may deteriorate in quality, or spoil.

• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance. • The appliance storage bin should not be lined with aluminium foil, wax paper, or paper towelling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Layout and controls

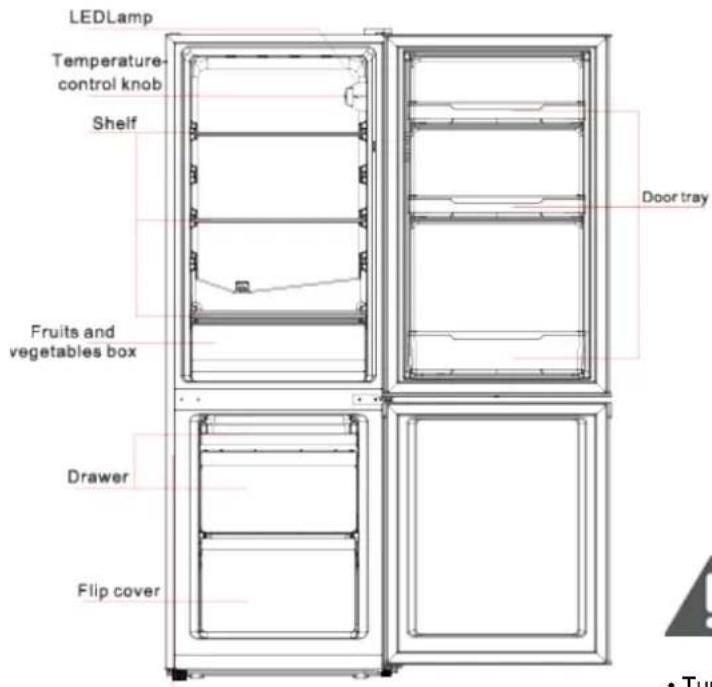

Key components

Controls

The illustration above is only for guidance. The actual configuration will depend on the actual product or the distributor's specification.

The illustration above is only for guidance. The actual configuration will depend on the actual product or the distributor's specification.

Refrigerator compartment

• The refrigerator compartment is suitable for storing a variety of fruits, vegetables, beverages and other food that will be consumed in the short term. - Hot food should not be placed in the refrigerator compartment until it has cooled to room temperature. - It is recommended that food is wrapped or sealed before it is placed in the refrigerator. - The glass shelves can be adjusted up or down to create the required amount of storage space and allow easy use.

Freezer compartment

• The low-temperature freezer compartment can keep food fresh for a long time and is mainly used for storing frozen food and making ice.
• The freezer compartment is suitable for the storage of meat, fish and other food that will not be consumed in the short term.
• Large pieces of meat should preferably be divided into smaller pieces for convenient use. Please note that food must be consumed within the recommended storage time.

Note: If you put too much food in the appliance immediately after switching it on it is likely to reduce the refrigeration performance.

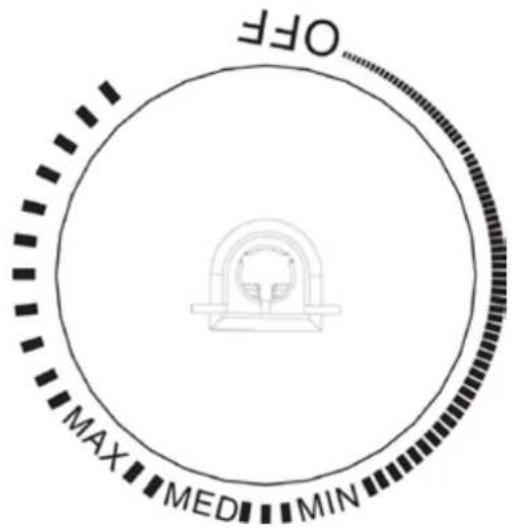

• Turn the temperature control knob to MAX to lower the internal temperature of the refrigerator.
• Turn the temperature control knob to MIN to raise the internal temperature of the refrigerator.
• The markings on the control only indicate the temperature level, not a specific temperature. When it is set to "OFF" the appliance is turned off.

NOTE: Adjust the setting between "MAX" and "MIN".

Maintenance and care

General cleaning

- Regularly remove dust from behind the refrigerator and from the floor to improve cooling performance and save energy. The interior of the refrigerator should be cleaned regularly to avoid odors. It is recommended to use soft towels or a sponge dipped in water and non-corrosive neutral detergents for cleaning. The freezer should be cleaned with clean water and a dry cloth. Open the door to allow natural drying before turning the power back on.

- Do not use hard brushes, steel wool, wire brushes, abrasives such as toothpaste, organic solvents (alcohol, acetone, banana oil, etc.), boiling water, or acidic or alkaline detergents to clean the refrigerator, as this may damage the surface and interior of the appliance.

- Do not rinse with water, as this may affect electrical insulation properties.

Please unplug the refrigerator before defrosting and cleaning.

Defrosting

• Turn off the refrigerator.
• Remove the food from the refrigerator and place it in a cool location to prevent spoilage.
• Clear the drain pipe (use a soft material to avoid damaging the liner). Prepare water containers for defrosting. (Do not forget to clean the compressor compartment water tray, avoiding spillage on the floor.)
• You can allow the appliance to defrost naturally, and use an ice scoop to remove the frost (use a plastic or wooden ice scoop to avoid damaging the liner or pipes).
• You can also use an appropriate amount of hot water to speed up defrosting, and use a dry towel to dry the water from defrosting.
• After defrosting, place the food back in the compartment and turn on the refrigerator.

Out of operation

• Power cut: If there is a power cut, even in summer, food can be kept safely inside the appliance for several hours. During this period, the door should be opened for the shortest time possible, and no more fresh food should be put into the appliance.
• Long periods of non-use: The appliance should be unplugged and then cleaned, and the doors should be left open to prevent odors.
• Moving: Before the refrigerator is moved, remove all the items from inside, secure the glass partitions, vegetable holder, freezing compartment drawers, etc. with tape; tighten the levelling feet; close the doors and seal them with tape. During moving, the appliance must not be laid upside down or horizontally, or be subjected to vibration. The appliance must not be tilted by more than 45° while being moved.

The appliance should be left to run continuously once it is switched on. Generally, the operation of the appliance should not be interrupted, otherwise the service life may be reduced.

Troubleshooting

You can try to rectify the following simple problems yourself. If the problem persists, please contact the after-sales department.

Problem Possible cause and solution
Appliance not working	Check that the appliance is plugged in and that the plug is correctly inserted in the socket.
	Check whether the voltage is too low.
	Check whether there is a power failure or the supply circuit has tripped.
Odour	Food with a strong odour should be tightly wrapped.
	Check whether there is any rotten food.
	Clean the inside of the refrigerator.
The compressor can be heard running for a long time	Extended operation of the refrigerator is normal in summer when the ambient temperature is high.
	Avoid placing too much food in the appliance all at once.
	Allow food to cool before placing it in the appliance.
	The doors are opened too frequently.
Light fails to come on	Check whether the refrigerator is plugged in and whether the lamp is damaged.
	Have the lamp replaced by a specialist.
Doors do not close properly	The door is obstructed by food items.
	The refrigerator is tilted.
Loud noise	Check whether the floor is level and whether the refrigerator is firmly supported.
	Check whether accessories are placed in the proper locations.
Door seal is not airtight	Remove foreign matter from the door seal.
	Heat the door seal and then let it cool down to restore its shape (use a hair dryer or a hot towel to heat up the seal).
Water pan overflows	There is too much food in the compartment or the food contains too much water, resulting in excessive defrosting.
	The doors are not closing properly, resulting in frosting due to the entry of air and more water due to defrosting.
Hot condenser housing	Heat dissipation from the built-in condenser via the housing, which is normal.The housing may get hot due to high ambient temperature or the storage of too much food. Ensure good ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Dry off the condensate with a clean towel.
Abnormal noise	Buzzing: The compressor may buzz occasionally during operation, particularly when starting or stopping. This is normal.
	Creaking: Refrigerant flowing inside the appliance may produce a creaking sound, which is normal.

Ambient temperature range

Table 1: Climate classes

Class Symbol Ambient temperature range
Extended temperate $N +10 to +32
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43

This symbol indicates mandatory measures.

Electrical safety

Electrical safety

Electrical safety

Electrical safety

GARANTIE GARANTIE TAKUU ÁBYRGĐ

The quality warranty applies to consumers.
