USER MANUAL 70B EREADER ARCHOS

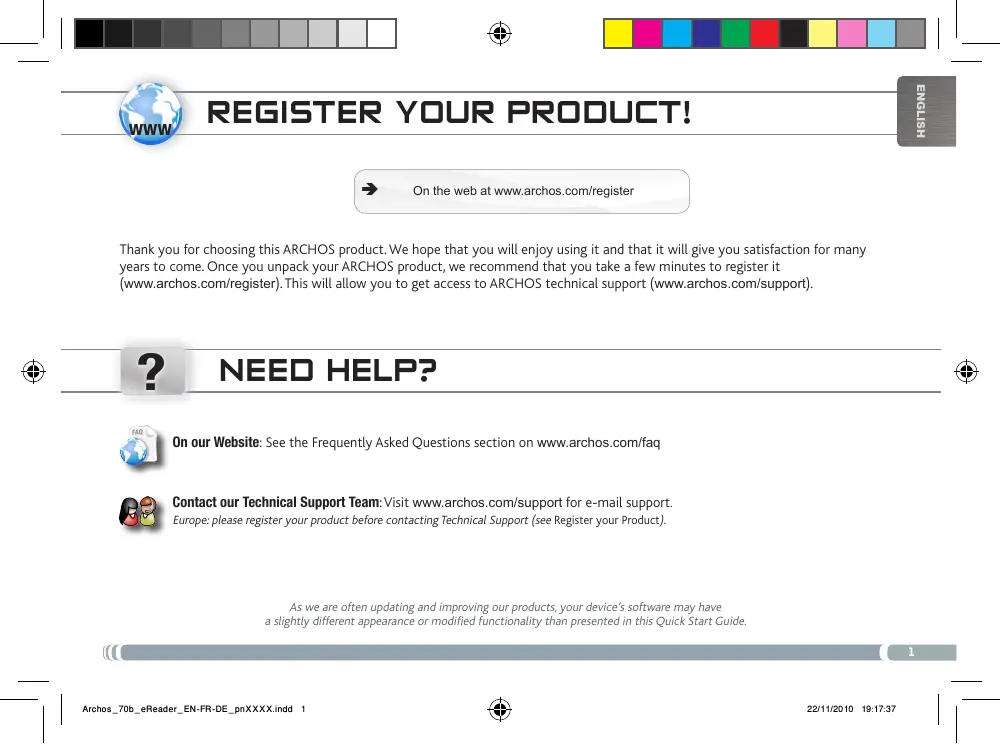

On the web at www.archos.com/register

Thank you for choosing this ARCHOS product. We hope that you will enjoy using it and that it will give you satisfaction for many years to come. Once you unpack your ARCHOS product, we recommend that you take a few minutes to register it (www.archos.com/register). This will allow you to get access to ARCHOS technical support (www.archos.com/support).

?

NEED HELP?

On our Website: See the Frequently Asked Questions section on www.archos.com/faq

Contact our Technical Support Team: Visit www.archos.com/support for e-mail support.

Europe: please register your product before contacting Technical Support (see Register your Product).

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

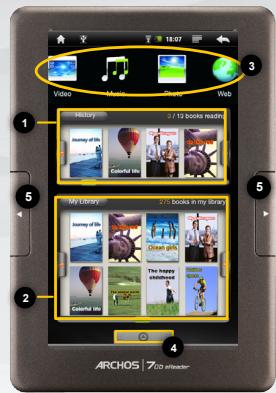

DESCRIPTION AND PRESENTATION

ARCHOS 70e eReader 11 11 10 9 8 7 6

1 HISTORY: displays the last consulted books.
2 MY LIBRARY: displays all your books.
3 APPLICATION SHORTCUTS: Web browser, photo, video, music
4 APPLICATION TAB: access button to all applications
5 PREVIOUS PAGE/NEXT PAGE: available when reading a book.
6 POWER CONNECTOR
7 SD CARD READER
8 HEADPHONE JACK
9 USB PORT
10 ON/OFF BUTTON
11 LOUDSPEAKERS

Video Music Play Web History 3 / 12 books reached My Library 250 books in my library Archos | 7CD entertainment

Hardware Reset: In the event that your ARCHOS freezes operation, you can press the "pinhole reset" button, located on the back the device, by using a sharp object such as a toothpick.

GO! STARTING UP

Before using your ARCHOS for the first time, completely charge the battery!

Charging the Battery

1 Connect the supplied power cable to the ARCHOS Power connector and to a wall outlet.
2 The ARCHOS device will turn on and start charging.

Diagram showing connection between a device and a multimeter with labeled pins UK and EUR, including a close-up of the multimeter.

Installation Wizard

The first time you start up your ARCHOS, the installation wizard will bring you through a few screens to help you set up the principal settings: Language, country, time, etc.

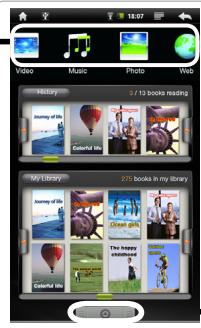

THE ARCHOS INTERFACE

Your ARCHOS device is equipped with a touchscreen. Most screen areas will react when you tap on them with your finger.

These are the default

Android™ shortcuts (Web

Browser, Music, etc.). Tap on an icon to open the corresponding application.

10:07 Photo Music Photo Web History 2/10 books reading Journey of the Colorful life My Library Journey of the Green gift The happy and happy Creative life 25 books in my library

Applications Tab

Tap on this icon to reveal all the

Android™ applications installed on your ARCHOS (Email, Alarm clock, etc.).

Applications you download from APPSLIB will be available here.

Top bar of the Interface

Press this icon to return to the Home screen

Time

2:43 PM

Volume

Tap on Menu to see menu options according to the current screen.

Status icons: (WiFi connection status, battery level, etc.)

Press this icon to return to the previous screen

EBOOK MENU

History

The last books you started reading are displayed in the History menu.

History 3 / 13 books reading Journey of life Colorful life The science In the red

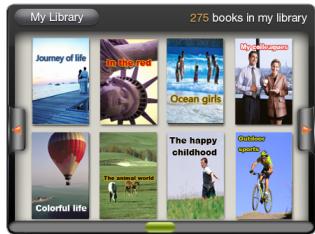

My Library

The My Library menu allows to have access to all your eBooks.

Press the My Library button.

In the My Library menu, choose a display option for your eBooks:

- Title, Author or Size

My Library 275 books in my library Journey of life The happy world Ocean girls Colorful life The happy childhood Gundier quick

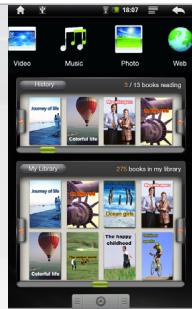

Continue Read

Continue Reading:

Select the desired book. Tap on the Continue Read button to keep on reading a book that you began or to start a new book.

Search function: From the Ebook menu, tap on the Menu icon

then tap on the Search icon. Type keywords corresponding to your search. The Search function is only available from the Ebook menu.

IMPORTANT:

ADOBE DIGITAL RIGHTS MANAGEMENT

You can download the most recent books in protected ePub and PDF format and transfer them onto your eReader. To do so, you need to download and install Adobe Digital Editions® onto your computer. This program will help you when you order and transfer your eBooks onto your ARCHOS. Follow these steps to install Adobe Digital Editions.

1. Go to www.adobe.com/products/digitaleditions.
2. Click on the START INSTALLATION button.
3. Follow the Installation wizard.
4. You can now transfer Adobe DRM epub and PDF eBooks to your ARCHOS eReader.

CONNECTING TO THE INTERNET

First of all, you need to configure a WiFi network. For this procedure to work, you need to be in a WiFi zone that will allow you to connect to it. Every time the ARCHOS is in range of a network that you have already configured once, it will attempt to make a connection.

To configure a new WiFi network, go on the Home screen, tap on the Application tab, then select Settings.
2 In the Settings screen, select Wireless & networks.
3 If the WiFi is off, tap on the Wi-Fi line to turn it on. Then select Wi-Fi settings. The ARCHOS will scan for available WiFi networks and display them.

Settings Wireless & networks

Wireless & network settings Wi-Fi Connected to Archos Public Wifi Wi-Fi settings Set up & manage wireless access points

18:07 Video Music Photo Web History 3/12 books reading Journey of the Colorful life My Library Journey of the Colorful life Other girls The heavy celebrated Colorful life IHS books in my library

4 Tap on the network you want to connect to, enter the required network information* and then tap on Connect. Your ARCHOS will now attempt to establish a connection to that WiFi hot spot with the network parameters you entered.

PLAYING MULTIMEDIA FILES

ENGLISH

18:07 Video Music Photo Web

1 From the Home screen, tap on the video, audio or photo application.
2 The ARCHOS will display a list of files or folders corresponding to the selected category.
3 Tap on an item to start playing it.

Only in Video and Photo modes: to display/hide the on-screen controls, tap anywhere on the screen.

Video

To pause or resume a video, tap on the icon 📄/ ▶ (bottom of screen). To go to any particular point in the video, slide the progression bar to the desired point.

Music

To play the next or previous song, tap on the icons ◀◀ / ▶▶. Use the icons 📋/ ▶ and the progression bar as in the video player screen (see above).


To start or pause a slide show, tap on the icon 🎯 / ▶. To view the next or previous photo, tap on the icons 🎯 / ▶.

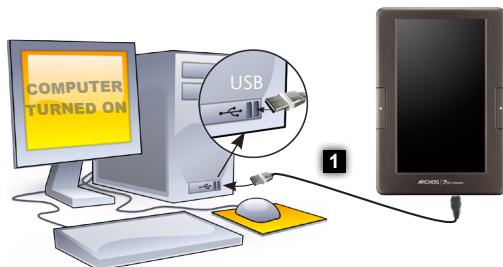

TRANSFERRING MEDIA TO YOUR ARCHOS

1 Connect the supplied USB cable to the ARCHOS and to a running computer.
2 The ARCHOS will turn on and ask you if you want to connect it. Tap on "Mount" to connect it. Within a few seconds the ARCHOS will appear as an icon on your computer.
You can transfer your media files to the ARCHOS either by copy/pasting them into the respective folders using Windows® Explorer (or the Finder on a Mac®), or by using Windows Media® Player. Open Windows Media Player® and then use the Sync tab to synchronize your music, videos, and photos onto your ARCHOS. See Windows Media Player®'s Help to learn more about this.
Once all your file transfers are finished, close Windows® Explorer and any other program that may have read or written to the ARCHOS. Click on the 'safely remove' icon in the system tray, next to the clock. You can now unplug the USB cable.

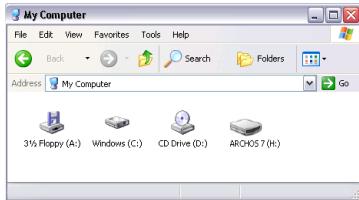

COMPUTER TURNED ON USB 1 AIDS:7.2mA

My Computer File Edit View Favorites Tools Help Back Search Folders Address My Computer 3½ Floppy (A:) Windows (C:) CD Drive (D:) ARCHOS 7 (H:) Go
