Magic Tea ON1108S0 - Kettle OBH NORDICA - Free user manual and instructions

Product Type	Electric tea kettle with brewing basket
Brand	OBH Nordica
Model	Magic Tea ON1108S0
Material	Glass pot, plastic lid and brewing basket
Color	Black/Transparent
Capacity	Water level indicator with min and max marks (approx. 1.7 L max)
Functions	Self-locking removable lid, brewing basket for loose tea, automatic shut-off, manual stop button, bottom heating assembly, power base
Safety Features	Auto shut-off, lid locking, residual heat warning, not for microwave
Cleaning	Rinse with damp cloth; do not immerse; clean basket and lid with hot water and detergent
Descaling	Every 20-40 uses; use white vinegar or citric acid solution
Warranty	2-year limited guarantee (Sweden, Norway, Denmark, Finland)
Power Supply	220-240 V, 50-60 Hz (typical, verify on product label)
Usage	For domestic use only; heat drinking water only
Accessories	Power base, removable lid with brewing basket
Child Safety	Keep out of reach of children under 8; not a toy
Included Manual	Digital PDF available for free on notice-facile.com

Frequently Asked Questions - Magic Tea ON1108S0 OBH NORDICA

How do I use the brewing basket?

Remove the lid unit by squeezing the buttons, then detach the basket from the lid. Place tea or herbs in the basket, reattach lid, and lock it into the pot. Press the start button to brew.

Can I open the lid while the water is boiling?

No, never open the lid when water is boiling risk of scalding. Wait for the kettle to shut off automatically.

How do I clean the kettle?

Unplug and let cool. Rinse the glass pot with a damp sponge and wipe plastic parts with a damp cloth. Wash the basket and lid in hot water with dish soap. Do not immerse the base or electrical parts.

How often should I descale the kettle?

Descale every 20 to 40 uses, or more often if water is hard. Use white vinegar (8°) let stand 1 hour, or citric acid (25g in 0.5L hot water) for 15 minutes. Rinse thoroughly.

What should I do if the kettle does not work?

Check that it is correctly plugged in, not scaled up, the discs in the basket rod are not blocked, and water is filled to at least the minimum level. Press the start button again.

Can I use the kettle for liquids other than water?

No, only use for heating drinking water. Other liquids may damage the appliance or cause injury.

Is the kettle safe for children to use?

Children aged 8 and older can use it under supervision. Keep the appliance and cord out of reach of children under 8. Children should not clean or maintain it unless supervised.

Can I adjust the strength of the tea?

Yes, press the manual stop button to stop brewing earlier for a weaker or cooler drink. The brew time is typically 5-12 minutes.

Can I put the glass pot in the microwave?

No, never place the glass pot in a microwave, on a flame, or on electric cooking plates.

What is the warranty period?

OBH Nordica offers a 2-year limited guarantee for manufacturing defects in Sweden, Norway, Denmark, and Finland from the date of purchase. Proof of purchase is required.

USER MANUAL Magic Tea ON1108S0 OBH NORDICA

DESIGNING GOOD LIFE

Kettle MAGIC TEA

For the perfect cup of tea

Making good!

fig.2a

fig.2b

fig.3

OBH Nordica Denmark A/S

2750 Ballerup

Visiting address: Tempovej 27

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica ON1108S0

BEGRENSET GARANTI for OBH Nordica

Garantien

OBH Nordica Norway AS

Maridalsveien 15 E

0178 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica ON1108S0

1. Please read the instructions for use carefully before using your appliance for the first time and retain them for future reference: The Manufacturer cannot accept any liability for non compliant appliance use.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Your appliance is intended for domestic use inside the home only at an altitude below 4000 m.
5. Never fill the appliance past the maximum water level mark, nor below the minimum water level mark. If the appliance is too full, some water may spray out.
6. WARNING: Never open the lid when the water is boiling. Your appliance should only be used with its lid locked, with the base supplied.
7. Never immerse the appliance, its base or the power cord and plug in water or any other liquid.
8. Your appliance is designed for domestic use only.

9. When using the appliance, always place it on a flat, stable, heat-resistant work surface away from water splashes and any sources of heat.

10. It is not intended to be used in the following applications, and the guarantee will not apply for:

11. staff kitchen areas in shops, offices and other working environments;

12. farm houses;
13. by clients in hotels, motels and other residential type environments;

14. bed and breakfast type environments.

15. Never use the appliance if the power cord or the plug are damaged. Always have them replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.

16. WARNING: Be careful to avoid any spillage on the connector during cleaning, filling or pouring.
17. Always follow the cleaning instruction to clean your appliance;

- Unplug the appliance.

- Do not clean the appliance while hot.

- Clean with a damp cloth or sponge.

- Never immerse the appliance in water or put it under running water.

1. WARNING: Risk of injuries if you do not use the appliance correctly.

2. WARNING: The heating element surface is subjected to residual heat after use.

3. Only use your appliance for heating drinking water.

4. Always hold the glass jug by the handle during operation. Do not touch the glass until it has cooled down after use.

5. This appliance may be used by children of at least 8 years of age, as long as they are

supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

1. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.
2. Keep the appliance and its cord out of reach of children under 8 years of age.
3. This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.
4. Children should not use the appliance as a toy.
5. Before plugging the appliance in, make sure that the power it uses corresponds to your electrical supply system and that the outlet is earthed. Any error in the electrical connection will negate your guarantee.
6. Unplug the appliance when you have finished using it and when you clean it.
7. Do not use the appliance if it is not working properly or if it has been damaged. If this occurs, contact an authorised service centre.
8. All interventions other than cleaning and everyday maintenance by the customer must be performed by an authorised service centre.
9. The power cord must never be close to or in contact with the hot parts of your appliance, near a source of heat or over a sharp edge.

10. For your safety, only use the manufacturer's accessories and spare parts designed for your appliance.

11. Do not pull on the cord to unplug the appliance.

12. Never put your teapot in a microwave oven, on a flame or on electric cooking plates.

13. Do not fill the appliance with water if it is still hot.

14. All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use.

15. Do not use the jug without the lid

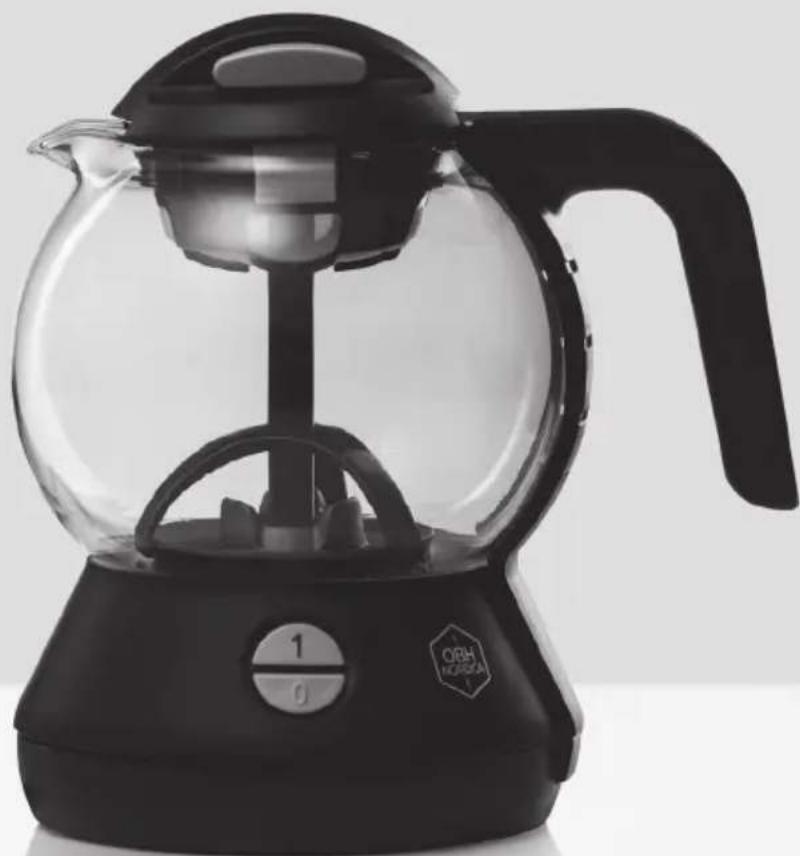

Description

1. Self-locking removable lid
2. Spout
3. Handle
4. Glass pot
5. Water level
6. Brewing basket
7. Start button
8. Manual stop button
9. Bottom heating assembly
10. Power supply base

Before first use

• Remove all packaging, labels or accessories on the inside and outside of the product.
• Set the length of the power supply cord by winding it under the base. Push the cord into the slot.
• Operate your appliance as follows: fill with water up to the maximum level, start by pressing button (7) and wait for the appliance to automatically stop. Rinse.
• Handle the teapot with care as glass is fragile.
• Avoid thermal shocks: do not splash or fill with cold water when the appliance is still hot.

Instructions for use

• Remove the lid unit + brewing basket (Fig 2a), by squeezing in the buttons on the lid.
  • Fill the teapot with the desired quantity of water
• Never fill the teapot above the maximum water level, nor below the minimum level.

• Detach the brewing basket (6) from the lid (1) by applying pressure to the lid then turning it slightly, and release.

• Place the tea or herbal tea in the brewing basket (6). Remove the cardboard label from bags.

• Proportion to taste and in relation to the quality of the tea. As an indication, for 1 litre of water we recommend 1 bag/1 spoonful of tea for a light drink, 2 bags/2 spoonfuls for a fairly strong drink, 3 bags/3 spoonfuls of tea
  • for a strong drink.
• Replace the lid by placing it on the brewing basket and inserting the lips on the rim of the basket in the grooves of the lid, press and turn slightly, then release.
• Squeeze the buttons on the lid and position the whole unit in the pot (brewing basket and rod), taking care to ensure that the washer at the bottom of the rod is correctly centred in the hole (Fig 2b).

IMPORTANT: NEVER attempt to position the brewing basket first and then the lid on the teapot as you are likely to damage the plastic parts. Carefully follow the instructions.

• Release the buttons on the lid to lock it automatically to the pot.
• Start up the teapot by pressing switch "7".
• The water will be sucked in and heated before going up in the pump and sprinkling the tea leaves and running out through the brewing basket (Fig 3).
• After 5 to 12 minutes, according to the quantity of water, your infusion/brew will have reached the correct temperature.
• Note: the brew can be stopped manually to obtain a cooler and/or less strongly brewed drink. To do so, press the "8" button.

Cleaning and maintenance

The combination of (limescale) scale and tannin from tea (brown deposit) in your teapot can lead to impaired performance (tea not so well brewed or not hot enough). Furthermore, the taste of tea tends to impregnate the appliance and is likely to impair the taste of the various varieties you may brew later. To avoid this happening, the whole teapot needs to be cleaned after each use.

To clean your teapot:

• Disconnect it.
• Let it cool down.
• Rinse the inside of the glass pot with a damp sponge and wipe the plastic parts with a damp cloth.
• Put the brewing basket and lid under hot water using your usual washing up liquid.
  • Always check that the electrical connections remain dry.
• DO NOT USE scouring pads or any other abrasive liquid, especially on the bottom heating assembly, as this could damage your teapot.

Descaling

Descale your teapot regularly, preferably every 20 to 40 uses, and more often if your water contains a lot of limestone.

To descale your teapot:

• Use commercially available 8° white vinegar (available from hardware stores): Fill the teapot with 1/2 litre of vinegar. Let this stand for 1 hour cold.
• Citric acid: Heat up 1/2 litre of water. Add 25g of citric acid and allow to stand for 15 min. Empty your teapot and rinse it 5 or 6 times. Repeat if necessary. Never use another method for descaling than that recommended.

If problem occurs

If the teapot fails to work, make certain:

• that it has been correctly plugged in.
• that it is not scaled up.
- that the discs in the bottom of the brewing basket's rod are not blocked.
- that it was correctly filled with water; if not, fill and then press button "7" again.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

OBH Nordica AB

Löfströms Allé 5

These instructions are subject to alterations or improvements.

SE/UL/ON1108S0/040316

REF: NC00133477
