Bronx 6419 - Kettle OBH NORDICA - Free user manual and instructions

Product Type	Electric Kettle
Brand	OBH Nordica
Model	Bronx 6419
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Body Material	Stainless Steel
Lid Type	Hinged with one-button opening
Base	360° swivel cordless base
Filter	Removable scale filter
Water Level Indicator	Transparent window with markings
Safety Features	Auto shut-off, boil-dry protection
Dimensions (W x D x H)	230 x 150 x 240 mm
Weight	1.2 kg
Color	Black and Silver
Cord Length	0.75 m
Warranty	2 years

Frequently Asked Questions - Bronx 6419 OBH NORDICA

What is the capacity of the OBH Nordica Bronx 6419 kettle?

The kettle has a capacity of 1.7 liters, ideal for boiling water for multiple cups at once.

Can I use the kettle on a stove?

No, this is an electric kettle designed to be used only with its base connected to a power outlet.

How do I clean the kettle?

Unplug the kettle and let it cool. Wipe the exterior with a damp cloth. For descaling, use a commercial descaler or a mixture of water and vinegar. Rinse thoroughly.

What does the boil-dry protection do?

The kettle automatically shuts off if it is turned on without enough water or if it runs dry, preventing damage.

How long does it take to boil water?

Boiling time depends on water volume, but typically 3-4 minutes for a full 1.7 L due to the 2200 W power.

Is the filter washable?

Yes, the removable scale filter can be taken out and rinsed under running water. Regular cleaning ensures better performance.

Can I open the lid while boiling?

It is not recommended as steam can cause burns. Wait until the kettle has stopped boiling and cooled slightly.

What should I do if the kettle does not turn on?

Check that the base is properly connected and that the kettle is correctly seated on the base. Ensure the power outlet is working and the auto shut-off has not been triggered.

Can I use the kettle to heat other liquids?

Only water should be boiled in this kettle. Other liquids may cause damage or clog the filter.

What is the warranty period?

The OBH Nordica Bronx 6419 comes with a 2-year warranty. Keep your receipt for service.

USER MANUAL Bronx 6419 OBH NORDICA

DESIGNING GOOD LIFE

Kettle BRONX 1.0 L

Hot water - the fast and stylish way

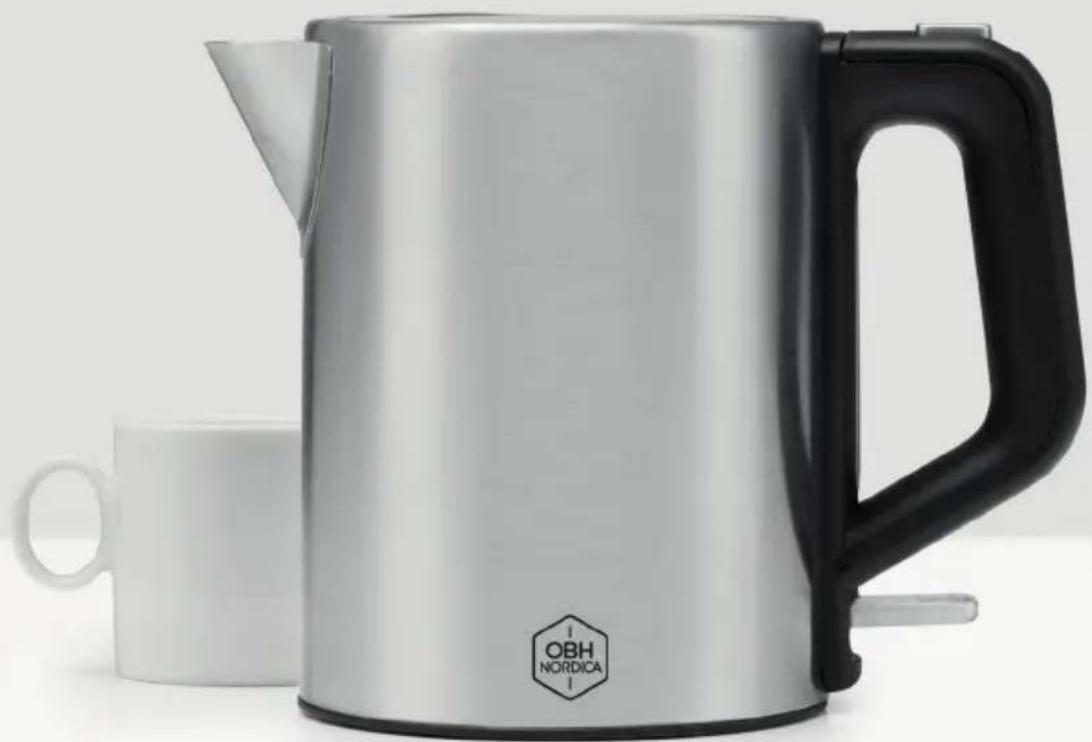

Exterior view of a modern stainless steel water heater with a black handle and white cup, no visible text or symbols on the main subject.

Making good!

Bruksanvisning - svenska......sida 3 - 8

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica 6419

220-240V\~, 50 Hz

1850-2200 W

Maks. indhold 1 liter

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, when parts are applied or removed from the appliance and before cleaning and maintenance.

4. Neither the kettle nor the stand must be immersed into water or other liquids.

5. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.

6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.

7. Cleaning and user maintenance shall not be made by children, unless they are over the age of 8 and supervised.

8. Keep the appliance and its cord out of reach of children aged less than 8 years.

9. Check that the cord is not hanging over the edge of the table.

10. Do not place the kettle on or near hotplates, open fire or the like.

11. The appliance should only be used under supervision.

12. WARNING! Risk of burn injuries! Hot steam and boiling water from the appliance may cause burns. Observe the maximum level of the water gauge. Never open the lid when the kettle is in use and be careful when pouring water..
13. The kettle must only be used with the accompanying stand.
14. Do not operate the kettle without water.
15. Before the kettle is filled with water, always remove the kettle from the stand.
16. WARNING! If the kettle is overfilled, boiling water may splash out.
17. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.
18. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.
19. The appliance is for domestic use only.
20. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Use

The kettle consists of two parts: the kettle itself and a separate, live base, on which the kettle can be placed from any angle. Only use the kettle with the corresponding base. If necessary, wind up a part of the cord under the base and make sure that the cord is as short as possible in order that children cannot grab hold of it. Plug the switch to a wall outlet.

Press the button on top of the handle to open the lid of the kettle. The cover is opened in two stages to avoid water splashing during opening. Pour water in the kettle, see the markings on the outer level indicator and close the lid. Do not exceed the max marking (1 liter) and do not pour water less than the minimum marking and do not pour water when the kettle is on the base. Position the kettle with water on the base and switch on the appliance on the switch under the handle and the signal lamp will go on. The water from the first two boilings should not be used, as there may be impurities from the production of the kettle. Note that the housing of the kettle gets very hot during use. The kettle automatically switches off when the water is boiling and the signal lamp will go off.

WARNING! If there is too much water in the kettle (i.e. water exceeds the MAX marking) boiling water may burst out. The max level of the kettle is 1 liter and should not be exceeded. Never switch on the kettle without water.

Every time the kettle is removed from the base, the kettle switches off and the signal lamp goes out. In this way, unintended heating is avoided when the kettle is put back on the base. If the kettle is shortly removed from the base in order e.g. to add water, remember to switch it on again. Always unplug from the mains supply when the appliance is not in use.

IMPORTANT: Make sure that the lid is always properly closed, when the kettle is in use. If not, the automatic switch-off function will not work and there is furthermore a risk that boiling water will splash out. The automatic switch-off function of the kettle is very sensitive. If the switching off becomes irregular (the kettle switches off too soon or too late), the kettle needs to be descaled as this might be the reason, see the section about descaling below.

Scale build-up/dry boiling protection

The kettle comprises a double protection system: If the kettle has severe scale build-up at the bottom, if it is switched on without water or boils dry, the dry boiling protection system is activated and the kettle switches off automatically. In such case, check for lime in the bottom of the kettle and descale if necessary. Try to switch the kettle on again with water in it.

If the kettle continues to switch off before the water reaches the point of boiling, contact the shop of purchase.

Lime filter

The kettle has a lime filter in the spout. The filter is easily removed for cleaning by opening the lid of the jug and gently pulling the filter out and then lifting it up. Brush the filter with a washing-up brush under running water or place the filter in descaling agent for a few minutes when descaling the jug. Press the filter into place from the inside of the spout afterwards.

It is very important that the filter is cleaned and does not scale again, as if not water cannot pass through the filter, but will run off along the sides, which involves a risk of burning.

Descaling and cleaning

Clean the kettle at regular intervals for scale and be aware of the following:

• Only boil the necessary amount of water – to save current. Empty the kettle after each use. This will reduce the amount of scale, and coffee and tee, brewed on fresh water, have a better taste.
• Check for limescale deposits regularly. To remove, pour in enough vinegar (5-12% acetic acid) to cover the bottom and allow to stand for a few hours. Empty and rinse with plenty of water before use.
• Check the status of scale often. If there is scale in the kettle, use one of the ordinary descaling means – such as e.g. citric acid. Do not use ordinary household vinegar for descaling of the kettle. It is extremely important to carefully follow the instructions of the product and that the product is poured out after the duration of action and that the water used for the first couple of boiling after descaling is not used.
• If there is still a lot of scale left on the heating unit, descale the kettle again and make sure to descale regularly in the future.

Important! Never use sharp items to remove limestone, as these may damage the appliance. If the appliance is not descaled at regular intervals, the appliance may become unusable. Such damage is not covered by the warranty.

The housing of the kettle can be cleaned with a damp cloth and wiped dry. Do not use scouring or etching detergents. Neither the appliance nor the contact plate is dishwasher-proof.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Wireless with contact base

Double descaling/dry boiling protection

These instructions are subject to alterations or improvements.

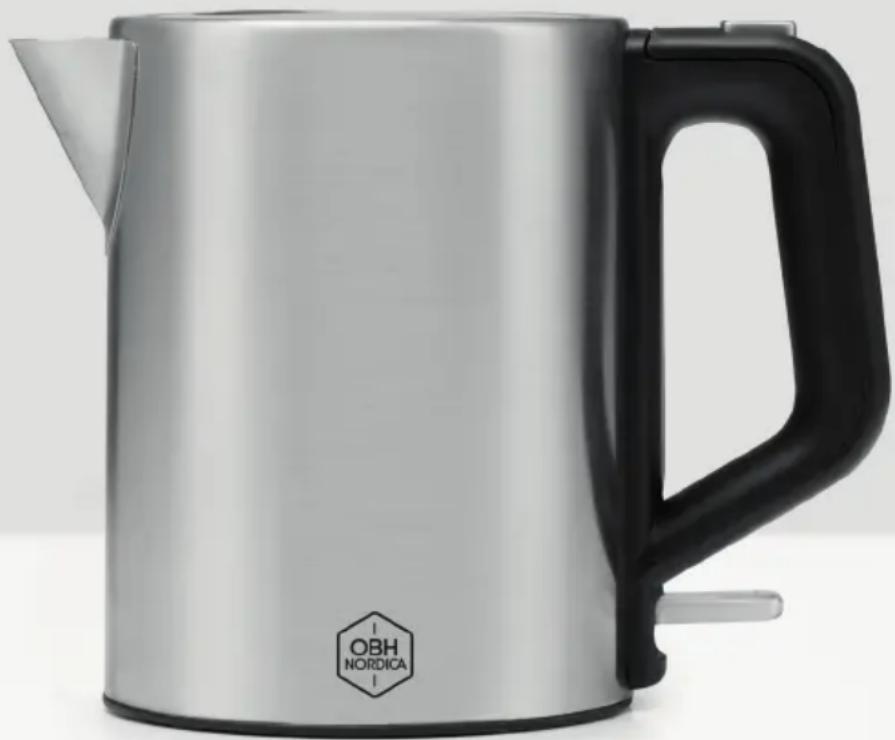

Exterior view of a modern stainless steel water heater with black handle and label (no readable text beyond branding)
