L10RCW16E - Rice cooker Logik - Free user manual and instructions

Product Type	Rice Cooker
Brand	Logik
Model	L10RCW16E
Power Supply	220-240V~ 50Hz
Power Consumption	700-833W
Capacity (Rice)	1.8 litres (10 cups)
Cooking Function	Automatic rice cooking with keep warm
Keep Warm Function	Yes, automatic when cooking finishes
Steam Function	Yes, with included steam basket
Control Type	Mechanical lever (Cook/Warm)
Inner Pot Material	Non-stick coated aluminium
Accessories Included	Main unit, lid, cooking pot, steam basket, rice spatula, measuring cup, instruction manual
Safety Features	Auto shut-off, steam vent release, cool-touch exterior (est.)
Cleaning	Wipe exterior with damp cloth; wash lid and pot in warm soapy water; do not immerse base
Indoor Use Only	Yes
Cord Length	Not specified (est. 1m)
Colour	White/Black (typical)

Frequently Asked Questions - L10RCW16E Logik

How do I use the rice cooker for the first time?

Wash the cooking pot and glass lid in hot soapy water, rinse and dry. Wipe the cooker body with a damp cloth. Then measure rice using the supplied cup, add water up to the appropriate line, and press the control lever to start cooking.

What is the water to rice ratio?

Follow your rice brand's instructions. The cooking pot has water gauges: left gauge for cups of rice, right gauge for volume in litres. Do not exceed the maximum water line.

Can I use the inner pot on a stove or in an oven?

No. The cooking pot is designed only for use with this rice cooker. Do not use it in a conventional oven, on a cooking hob, in a microwave, or on any direct heat source.

How do I steam vegetables or other food?

Pour an appropriate amount of water into the cooking pot (ensure it does not reach the steam basket). Place the steam basket inside, add food, and press the lever to start. The cooker will automatically switch to keep warm when done.

How do I clean the rice cooker?

Always unplug and let cool. Wipe the exterior with a damp cloth. Wash the lid and cooking pot in warm soapy water, rinse and dry. Do not use abrasive scrubbers on the non-stick coating. Never immerse the base unit in water.

Why does the cooker emit a slight odor when first used?

This is normal and will dissipate within a few minutes. It is due to initial heating of new components.

Can I reheat cooked rice in the cooker?

No. Do not reheat cooked rice in the appliance. It is designed for cooking and keeping warm for up to one hour only.

What safety precautions should I take?

Read all safety warnings. Keep away from children. Do not immerse in water. Use oven gloves when handling hot parts. Do not block the steam vent. Unplug when not in use.

How do I know when the rice is done?

The control lever will pop up automatically when cooking is finished. Keep the lid closed for 10-15 minutes to let the rice finish cooking. Then stir and serve.

Can I use metal utensils with the inner pot?

No. Metal utensils will scratch the non-stick coating. Use the supplied rice spatula or plastic/wooden utensils.

USER MANUAL L10RCW16E Logik

Black-and-white illustration of a rice cooker with lid and side buttons (no text or symbols visible)

Contents

GB

Safety Warnings 4

Unpacking....16

Product Overview 17

First Time Use 17

Operation....18

Care and Cleaning....19

Specifications....19

Innhold

NO

Please follow all the safety precautions listed below for your safety and to reduce the risk of injury or electrical shock.

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• Never put the body of the appliance in water or let the mains cable or mains plug get wet – you could get an electric shock. And never put liquid in the body of the appliance.
• Never use a damaged appliance.
• Keep children away from the appliance.
• Only put liquid in the inner pot, never put any type of liquid in the main body.
• Do not get burnt by hot parts, boiling water or steam from the appliance.
• Use oven gloves when removing the inner bowl and lid.
• Do not keep rice warm for longer than one hour and do not reheat cooked rice in the appliance.
• Do not let the mains cable touch hot parts.
• Unplug when not in use and never leave the appliance on unattended.

• Do not place on or near a hot gas or electric burner or in a heated oven.

• Do not leave the appliance on a heat sensitive surface.

• Only use the appliance with the inner bowl and rice spatula supplied.
• Do not use the appliance outdoors.
• Only use the appliance for its intended domestic use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its mains cable out of the reach of children less than 8 years old.
• Children should be supervised to ensure that they do not play with the appliance.
• If the mains cables is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Make sure the unit is earthed properly during use. Use of any extension sockets must have an earth connection. If in doubt, contact a qualified electrician.
• Ensure the appliance is well ventilated.
• Ensure to unplug the appliance from the mains socket before cleaning.

- This appliance is intended for indoor household use and similar applications such as:

• farm houses and by clients in hotels, motels and other residential type environment;
• bed and breakfast type environment;
• staff kitchen areas in shops, offices and other working environments.

Sikkerhetsadvarsler

NO

Thank you for purchasing your new Logik Rice Cooker.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offered.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

GB

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a rice cooker with control panel (no text or symbols)

Main Unit x 1

Lid x 1

Simple line drawing of a bowl or container (no text or symbols)

Cooking Pot x 1

Instruction Manual

Simple line drawing of a rectangular container with a central oval and side supports (no text or symbols)

Steam Basket x 1

Rice Spatula x 1

Measuring Cup x 1

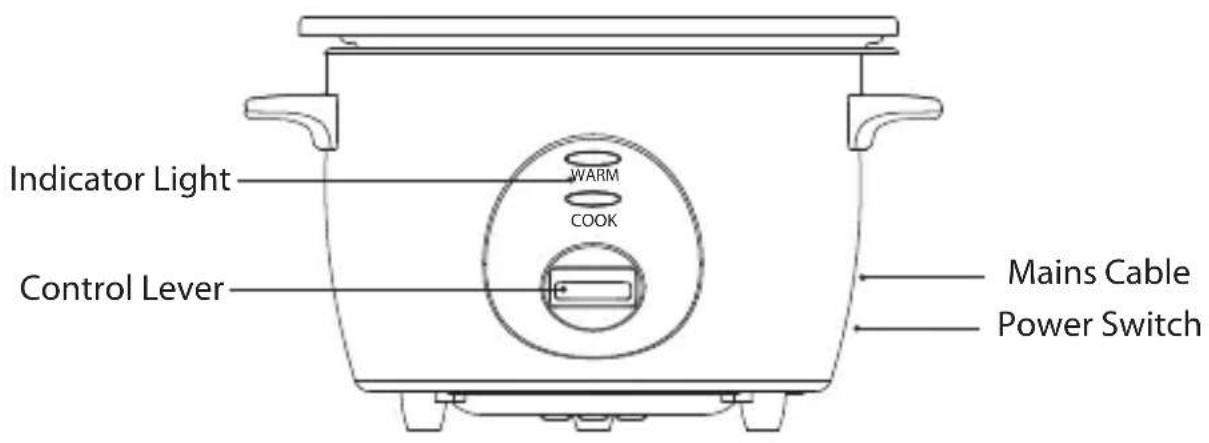

Product Overview

GB

First Time Use

When switched on for the first time the appliance may emit a slight odour. This is normal and will disperse within a few minutes.

• Wash the cooking pot and glass lid in hot soapy water. Rinse well in clear water and dry carefully.
• Wipe the cooker body with a damp cloth containing a small amount of diluted detergent. Remove all traces of detergent with a cloth damped with clean water then dry thoroughly.
• Check that the voltage marked on the rating plate at the bottom of the appliance is the same as the voltage in your area.

The cooking pot supplied with this rice cooker must not be used in a conventional oven, on a cooking hob, in a microwave oven or on any form of direct heat other than this rice cooker.

Operation

1. Do not rinse rice in the cooking pot.
2. Place the appliance on a stable and flat surface.
3. Measure the desired amount of rice with the supplied measuring cup.
4. Place the cooking pot in the base then add water (follow your rice brands instructions for the correct amount of water to add). Do not add water higher than the maximum water line.
5. Water may be added into the cooking pot according to the water gauge on the cooking pot. The gauge on the left corresponds to the number of cup of rice. The gauge on the right corresponds to the volume of rice (in litre).
6. Wipe the outer surface of the cooking pot. Make sure the outer surface is dry before putting into the unit.
7. Check and make sure the cooking pot is sitting in the unit properly and evenly.

When using the steam basket:

• Pour an appropriate amount of water in the cooking pot. The amount of water varies according to the type and quantity of food to be steamed. Make sure that the water level does not reach up to the steam basket.

• Place the steam basket into the cooking pot. You may place the food directly onto the basket or on a plate placed in the basket. Spread the food evenly to ensure even steaming.

• Connect the mains plug to the mains socket and turn on. Press the control lever to start. The COOK indicator will illuminate.

• When cooking has finished the control lever will pop up, and the cooker will automatically start 'Keeping Warm'. The WARM indicator will illuminate. Keep the lid shut for a further 10-15 minutes to completely cook the rice. Stir rice to prevent it from sticking.

After steaming:

• Open the lid carefully and remove the steamed food or the steam basket. They are very hot.
  • Wear kitchen gloves and use tongs.

• When serving and mixing use the spatula provided.

• Always switch off and disconnect the mains plug to power off the cooker.

• Do not use metal utensils, these will scratch the inner pot.
• Do not obstruct, cover or touch the steam vent while in use.
• There will be steam release from the steam hole or edge of the lid during cooking, keep clear from the appliance.

Care and Cleaning

• Always switch off, unplug and allow the rice cooker to cool before cleaning.
- Wipe the outside of the rice cooker with a damp cloth, then dry thoroughly.
• Never immerse the base unit in water.
- Wash the lid and cooking pot in warm soapy water, rinse and then dry thoroughly. Food that has been stuck on can be removed with a soft bristled brush.
- Do not use harsh or abrasive scrubbers to clean the cooking pot as they can damage the non-stick coating of the cooking pot.

Specifications

Model L10RCW16E

Mains supply 220-240V~ 50Hz

Power consumption 700-833W

Rice cooking capacity 1.8 litres (10 cups)

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte nytt Logik Riskoker.

Line drawing of a rice cooker with labeled cooking panes (no text or symbols beyond branding)

Hovedenheten x 1

Simple line drawing of a rectangular container with a circular opening on top (no text or symbols)

Dampkurv x 1

Målebeger x 1

Simple line drawing of a bowl or container (no text or symbols)

Kokekjele x 1

Rissleiv x 1

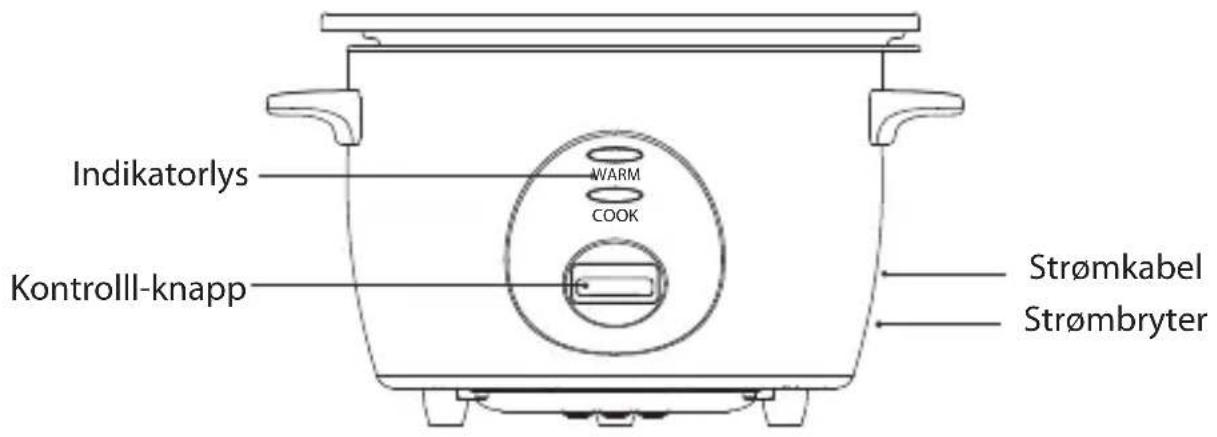

Produktoversikt

NO

Bruk første gang

Line drawing of a rice cooker with side legs and central vent (no text or symbols)

Huvudenhet x1

Bruksanvisning x 1

Lock x 1

Simple line drawing of a rectangular container with a circular opening and side supports (no text or symbols)

Ångkorg x 1

Mätkopp x 1

Simple line drawing of a bowl or container (no text or symbols)

Kokkärl x 1

Risspatel x 1

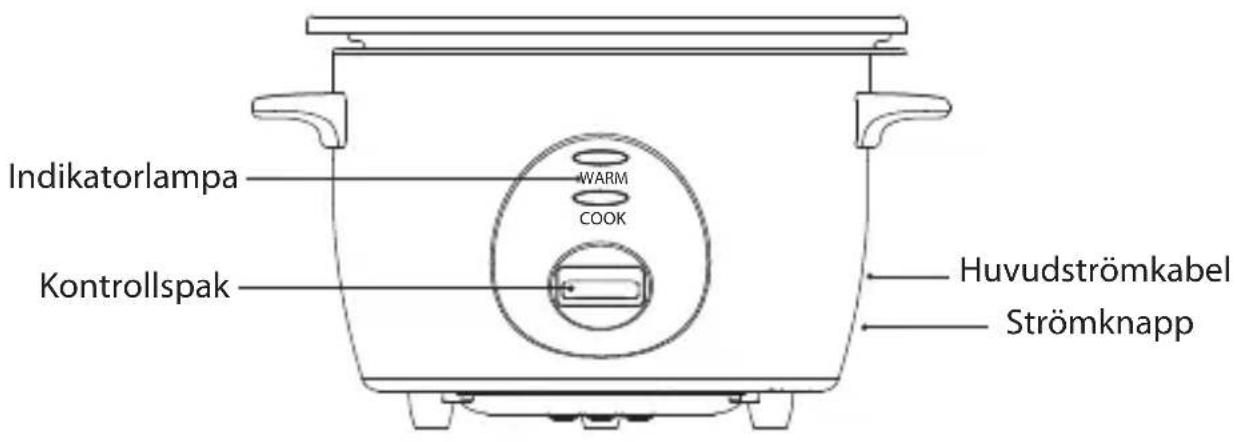

Produktöversikt

Line drawing of a rice cooker with labeled side ports (no text or symbols beyond branding)

Pääyksikkö x 1

Käyttöohje x 1

Kansi x 1

Simple line drawing of a rectangular container with a circular opening on top (no text or symbols)

Höyrykeittimen kori x 1

Mittalasi x 1

Simple line drawing of a bowl or container (no text or symbols)

Keittoastia x 1

Line drawing of a rice cooker with a circular vent and side handles (no text or symbols)

Hovedenhed x 1

Brugsvejledning x 1

Låg x 1

Simple line drawing of a rectangular container with a circular hole on top and side (no text or symbols)

Dampkurv x 1

Målekop x 1

Simple line drawing of a bowl or container (no text or symbols)

Gryde x 1

Risspatel x 1

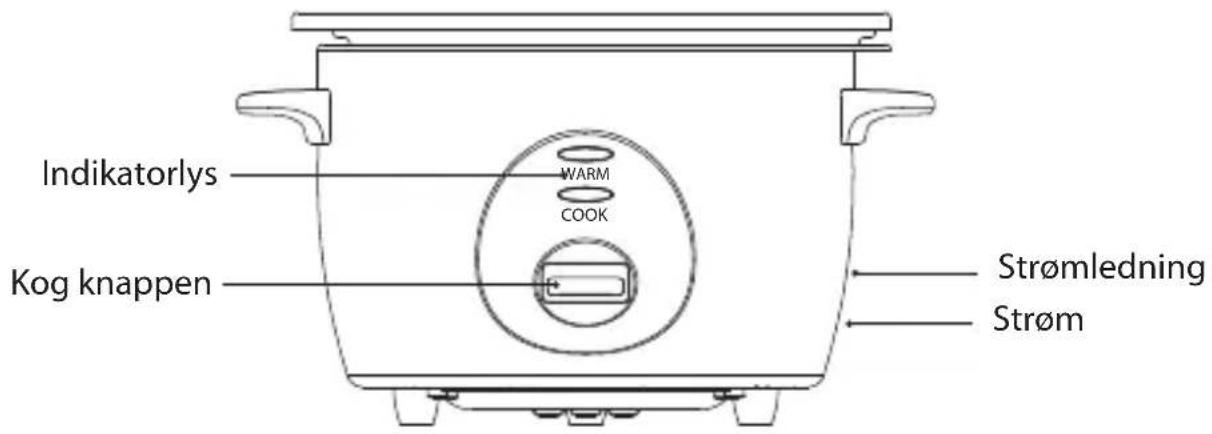

Produktoversigt

Forberedelse

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.
