L13RCSS16E - Rice cooker Logik - Free user manual and instructions

Product Type	Rice Cooker
Brand	Logik
Model	L13RCSS16E
Capacity	2.3 litres
Power Consumption	630-750W
Mains Supply	220-240V~ 50/60Hz
Cooking Functions	Cook, Keep Warm (automatic)
Control Type	Control lever (mechanical switch)
Indicator Lights	Cook indicator, Keep Warm indicator
Included Accessories	Inner cooking pot, glass lid, rice spatula, measuring cup
Material	Stainless steel exterior (illustration), non-stick inner pot (assumed)
Safety Features	Automatic shut-off when cooking completes, keep warm with pop-up lever, steam vent
Care Instructions	Wipe exterior with damp cloth; wash lid and pot in warm soapy water; do not immerse base
Keep Warm Duration	Recommended not more than 1 hour
Weight	Not specified in manual
Dimensions	Not specified in manual

Frequently Asked Questions - L13RCSS16E Logik

How do I use the Logik L13RCSS16E rice cooker?

Measure rice using the supplied measuring cup, place in the inner pot, add water according to your rice brand's instructions (do not exceed maximum water line). Close lid, plug in, press the control lever to start cooking. Once done, the cooker switches to keep warm automatically.

What is the capacity of this rice cooker?

The Logik L13RCSS16E has a capacity of 2.3 litres, suitable for cooking approximately 10 cups of uncooked rice (depending on rice type).

Can I use metal utensils in the cooking pot?

No, do not use metal utensils as they will scratch the non-stick coating of the inner pot. Use the supplied rice spatula instead.

How do I clean the rice cooker?

Always unplug and let the cooker cool before cleaning. Wipe the exterior with a damp cloth. Wash the lid and cooking pot in warm soapy water, rinse and dry thoroughly. Do not immerse the base in water.

What does the indicator light show?

The unit has two indicator lights: COOK (illuminates during cooking) and KEEP WARM (illuminates when in keep warm mode). When plugged in without cooking, the Keep Warm light is on.

Can I cook other grains or soups in this rice cooker?

This rice cooker is designed primarily for cooking rice. Using it for other foods may affect performance and safety. Refer to the manual for any specific guidance.

Why does the lid have a steam vent?

The steam vent allows excess steam to escape during cooking, preventing pressure build-up. Do not cover or block the vent while in use.

How long can I keep rice warm?

It is recommended not to keep rice warm for longer than one hour. Do not reheat cooked rice in the appliance.

What should I do if the power cord is damaged?

If the mains cable is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the appliance.

Is the rice cooker safe to use unattended?

Never leave the appliance unattended while in use. Unplug when not in use. The cooker automatically switches to keep warm, but supervision is still recommended.

USER MANUAL L13RCSS16E Logik

Illustration of a modern stainless steel rice cooker with a LOGK brand label (no visible text or symbols on the device body)

Contents

GB

Safety Warnings .... 5

Unpacking....17

Product Overview 18

First Time Use 18

Operation....19

Care and Cleaning....19

Specifications....19

Innhold

NO

Please follow all the safety precautions listed below for your safety and to reduce the risk of injury or electrical shock.

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• Never put the body of the appliance in water or let the mains cable or mains plug get wet — you could get an electric shock. And never put liquid in the body of the appliance.
• Never use a damaged appliance.
• Keep children away from the appliance.
• Only put liquid in the inner pot, never put any type of liquid in the main body.
• Do not get burnt by hot parts, boiling water or steam from the appliance.
• Use oven gloves when removing the inner bowl and lid.
• Do not keep rice warm for longer than one hour and do not reheat cooked rice in the appliance.
• Do not let the mains cable touch hot parts.
• Unplug when not in use and never leave the appliance on unattended.
• Do not place on or near a hot gas or electric burner or in a heated oven.

- Do not leave the appliance on a heat sensitive surface.

- Only use the appliance with the inner bowl and rice spatula supplied.

- Do not use the appliance outdoors.

- Only use the appliance for its intended domestic use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its mains cable out of the reach of children less than 8 years old.

- Children should be supervised to ensure that they do not play with the appliance.

- If the mains cables is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Make sure the unit is earthed properly during use. Use of any extension sockets must have an earth connection.

- Ensure the appliance is well ventilated.

- Ensure to unplug the appliance from the mains socket before cleaning.

• This appliance is intended for indoor household use and similar applications such as:
• farm houses and by clients in hotels, motels and other residential type environment;
• bed and breakfast type environment;
• staff kitchen areas in shops, offices and other working environments.

Sikkerhetsadvarsler

NO

- bed and breakfast type miljøer;

- personalekøkken i butikker, kontorer og andre erhvervsmiljøer.

Thank you for purchasing your new Logik Rice Cooker.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offered.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

GB

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a rice cooker with lid and side ports (no text or symbols)

Main Unit x 1

Simple line drawing of a conical object with a lid (no text or symbols)

Lid x 1

Simple line drawing of a bowl with a lid (no text or symbols)

Cooking Pot x 1

Simple line drawing of a curved, elongated object resembling a spoon or handle (no text or symbols)

Rice Spatula x 1

Measuring Cup x 1 Instruction Manual

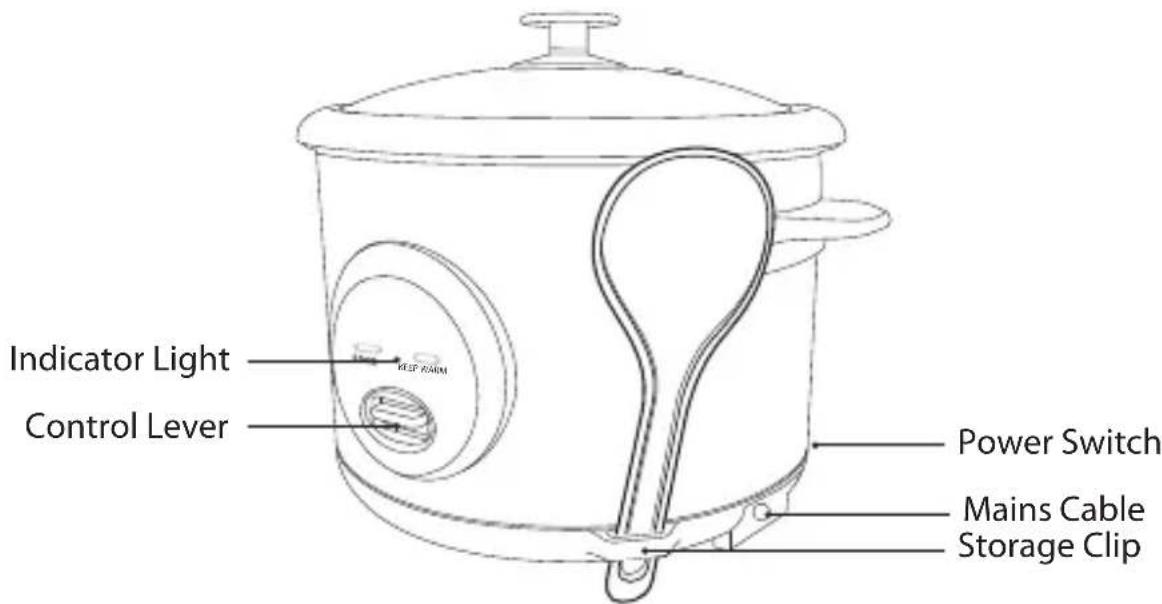

Product Overview

GB

First Time Use

When switched on for the first time the appliance may emit a slight odour. This is normal and will disperse within a few minutes.

• Wash the cooking pot and glass lid in hot soapy water. Rinse well in clear water and dry carefully.
• Wipe the cooker body with a damp cloth containing a small amount of diluted detergent. Remove all traces of detergent with a cloth damped with clean water then dry thoroughly.
• Check that the voltage marked on the rating plate at the bottom of the appliance is the same as the voltage in your area.

The cooking pot supplied with this rice cooker must not be used in a conventional oven, on a cooking hob, in a microwave oven or on any form of direct heat other than this rice cooker.

Operation

1. Do not rinse rice in the cooking pot.
2. Measure the desired amount of rice with the supplied measuring cup.
3. Place the cooking pot in the base then add water (follow your rice brands instructions for the correct amount of water to add). Do not add water higher than the maximum water line.

4. Connect the mains plug to the mains socket and turn on. The KEEP WARM indicator will illuminate. Press the control lever to start. The COOK indicator will illuminate.

5. When cooking has finished the control lever will pop up, and the cooker will automatically start 'Keeping Warm'. The KEEP WARM indicator will illuminate. Keep the lid shut for a further 10 minutes to completely cook the rice. Stir rice to prevent it from sticking.

6. When serving and mixing use the spatula provided.

7. Always switch off and disconnect the mains plug to power off the cooker.

• Do not use metal utensils, these will scratch the inner pot.
• Do not obstruct, cover or touch the steam vent while in use.

Care and Cleaning

• Always switch off, unplug and allow the rice cooker to cool before cleaning.
- Wipe the outside of the rice cooker with a damp cloth, then dry thoroughly.
• Never immerse the base unit in water.
- Wash the lid and cooking pot in warm soapy water, rinse and then dry thoroughly. Food that has been stuck on can be removed with a soft bristled brush.

Specifications

Model L13RCSS16E

Mains supply 220-240V~ 50/60Hz

Power consumption 630-750W

Capacity 2.3 litres

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte nytt Logik Riskoker.

Line drawing of a rice cooker with visible side door and base (no text or symbols)

Hovedenheten x 1

Simple line drawing of a conical object with a lid (no text or symbols)

Lokk x 1

Simple line drawing of a bowl with a lid (no text or symbols)

Kokekjele x 1

Simple line drawing of a spoon handle (no text or symbols)

Rissleiv x 1

Målebeger x 1 Brukerveiledning x 1

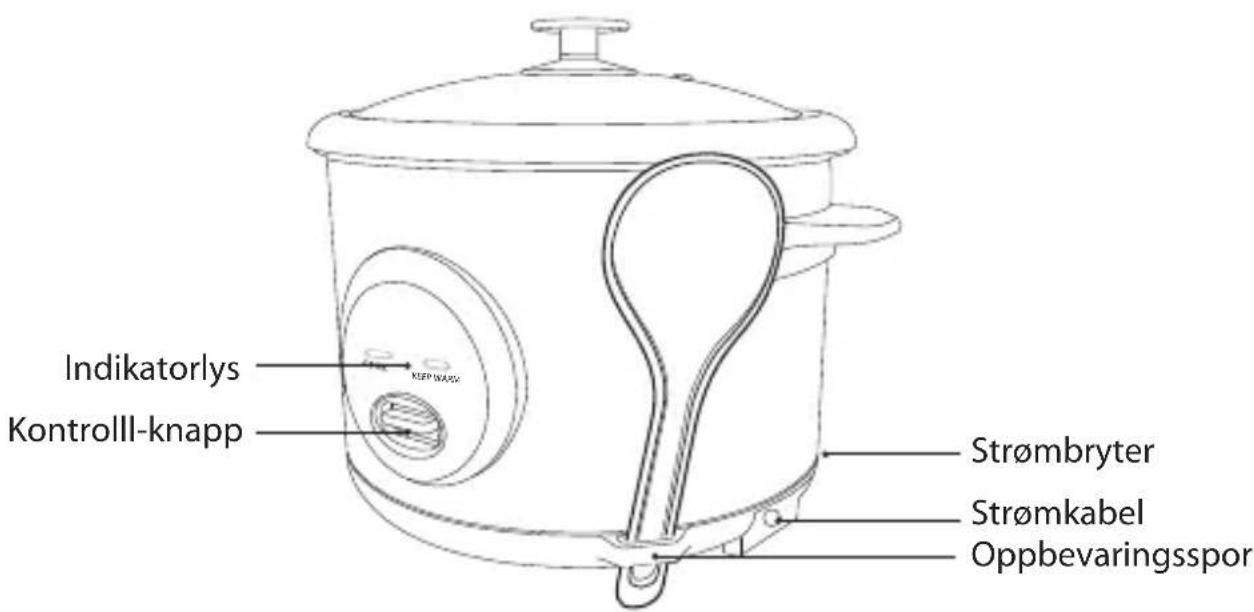

Produktoversikt

NO

Bruk første gang

Line drawing of a rice cooker with lid and side ports (no text or symbols)

Huvudenhet x1

Simple line drawing of a conical object with a lid (no text or symbols)

Lock x 1

Simple line drawing of a bowl with a lid (no text or symbols)

Kokkärl x 1

Simple line drawing of a curved, elongated object resembling a spoon or handle (no text or symbols)

Risspatel x 1

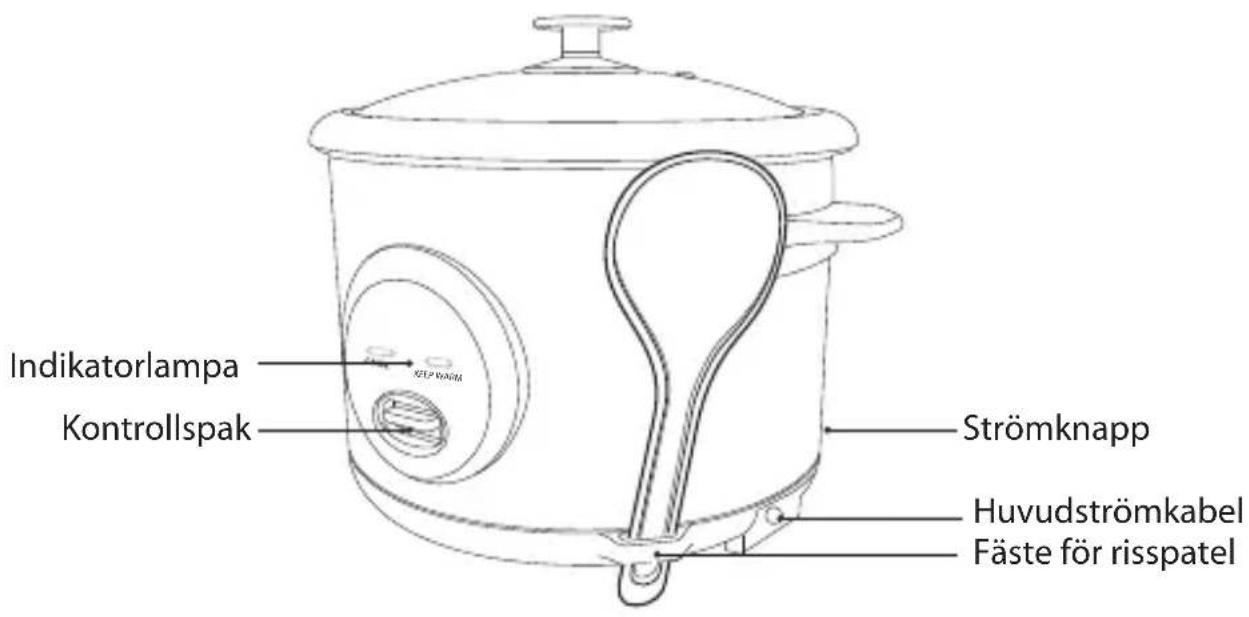

Produktöversikt

Line drawing of a rice cooker with a circular vent and side handle (no text or symbols)

Hovedenhed x 1

Simple line drawing of a conical object with a lid (no text or symbols)

Låg x 1

Simple line drawing of a bowl with a lid (no text or symbols)

Gryde x 1

Simple line drawing of a curved, elongated object resembling a spoon or handle (no text or symbols)

Risspatel x 1

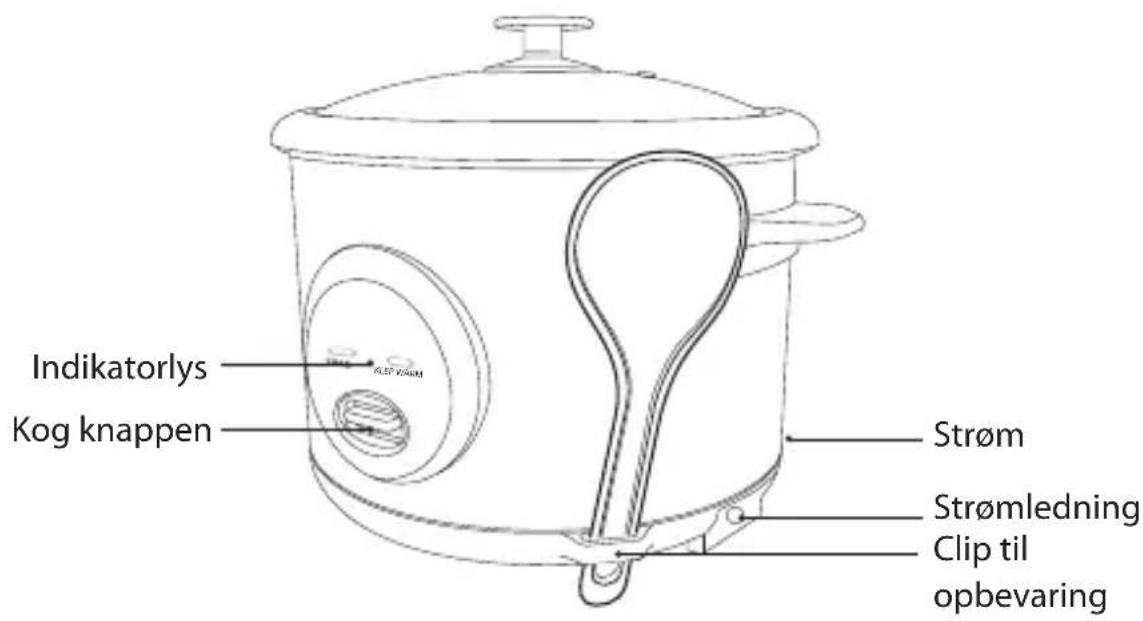

Produktoversigt

DK

Forberedelse

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.
