Product Type Refrigerator-Freezer (Combined)
Model M55CW14E
Brand Matsui
Overall Dimensions (W x D x H) 550 x 580 x 1757 mm
Fresh Food Storage Volume 200 L
Frozen Food Storage Volume 66 L
Defrosting Type Manual Defrost (Freezer)
Climate Class N (16°C – 32°C)
Energy Consumption (24h) 0.654 kWh
Annual Energy Consumption 238 kWh/year
Energy Efficiency Class A+
Noise Level 43 dB(A)
Freezing Capacity 3 kg/24h
Temperature Rise Time 15 hours
Rated Voltage 220-240 V~
Rated Current 0.50 A
Temperature Control Thermostat (0-7, 7 coldest)
Recommended Fridge Temperature Below 4°C
Recommended Freezer Temperature -18°C or lower
Door Reversibility Yes (left/right opening)
Number of Shelves 3 glass shelves (fridge), 2 upper freezer drawers, 1 bottom freezer drawer
Accessories Included Egg tray, ice tray, salad bin, rear spacers
Installation Clearance 25 mm sides, 50 mm rear, 25 mm top

Frequently Asked Questions - M55CW14E MATSUI

How do I adjust the temperature on my Matsui M55CW14E fridge freezer?
The thermostat dial inside the fridge compartment controls temperature. Position 0 turns the unit off, position 7 is the coldest. For normal room temperature (16-32°C), setting 4 is recommended. Turn the dial clockwise for colder temperatures. Wait 24 hours after adjustment to stabilize.
Why is my freezer frosting up and how do I defrost it?
Frost builds up over time. When frost layer reaches 10mm, defrost manually: remove food, unplug unit, leave door open, scrape frost with plastic scraper (metal or sharp tools not allowed). Place a bowl of hot water inside to speed up. Clean after defrosting.
Can I reverse the door swing on this model?
Yes, the door can be reversed. You need a Philips screwdriver, flat-bladed screwdriver, and hexagonal spanner. The process involves removing screws, hinges, and transferring parts. We recommend 2 people and a qualified technician if unsure. Refer to manual for step-by-step instructions.
What are the recommended storage temperatures for fridge and freezer?
The fridge should be below 4°C (ideal 0-8°C) and the freezer at -18°C or lower. Use a separate fridge/freezer thermometer to verify. Wait 24 hours after turning on before storing food.
Why is my fridge making unusual noises?
Normal operating sounds include refrigerant liquid circulating and compressor motor running. These are due to CFC-free gas systems and do not indicate a fault. If noises are loud or change suddenly, contact a technician.
How do I clean the interior and exterior?
Remove shelves and drawers. Wipe interior with a weak bicarbonate soda solution (1 tbsp per litre warm water), rinse, dry completely. Exterior: damp cloth then furniture polish. Avoid polish on door seals. Vacuum condenser grille at back with soft brush.
What is the energy consumption and efficiency class?
The M55CW14E has an energy consumption of 0.654 kWh/24h (238 kWh/year), rated A+ energy efficiency class. Actual consumption depends on location, usage, and door openings.
How much free space do I need around the appliance?
Leave 25 mm clearance on each side, 50 mm at the rear, and 25 mm at the top. The door needs 160° opening space. Ensure floor is level and room is well-ventilated (16-32°C).
What should I do if I move the refrigerator?
Hold the unit by its sides or base, never lift by top edges. After moving, let it stand for 2 hours before plugging in to allow refrigerant to settle. Wait 24 hours before adding food.
How should I dispose of the old appliance?
Do not dispose with household waste. Take to a designated WEEE recycling collection point. Remove doors and locks to prevent child entrapment. Check local council for options.

User questions about M55CW14E MATSUI

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Refrigerator in PDF format for free! Find your manual M55CW14E - MATSUI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. M55CW14E by MATSUI.

USER MANUAL M55CW14E MATSUI

natural_image Exterior view of a white refrigerator with a horizontal handle and side panel (no visible text or symbols)

FRIDGE FREEZER

INSTRUCTION MANUAL

GB

KOMBISKAP KJ∅L-FRYS

INSTRUKSJONSMANUAL

NO

KYL FRYS

INSTRUKTIONSBOK

SE

JÄÄKAAPPIPAKASTIN

KÄYTTÖOPAS

FI

KÖLESKAB FRYSER

BRUGERVEJLEDNING

DK

Contents

GB

Safety Warnings 8

Unpacking....13

Installation....14

Location....14

Levelling the Unit....14

Installing the Spacers....14

Free Space Requirements ....14

Reversing the Door Swing....15

Cleaning Before Use....18

Before Using Your Unit....18

Product Overview....19

Operation 20

Switching On Your Unit ....20

Adjusting the Temperature 20

Noises Inside the Unit! 20

Tips for Keeping Food in the Unit 21

Preparations for Freezing....21

Defrosting Frozen Food....22

Cleaning 23

Defrosting....23

Cleaning the Interior and the Exterior of the Unit 23

Maintenance 24

Care When Handling / Moving the Unit 24

Servicing 24

Switching Off for Long Periods of Time....24

Condensation....24

Disposal 24

Specifications.... 25

Innholdsfortegnelse

NO

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

  • Read all instructions carefully before using the unit and keep them for future reference.
  • Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

• This appliance is intended for indoor household use and similar applications such as:

– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- Keep ventilation openings in the unit enclosure clear of obstructions.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store volatile or flammable substances, such as aerosol cans with a flammable propellant, in the unit.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.

WARNING

MATSUI M55CW14E - WARNING - 1

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

MATSUI M55CW14E - WARNING - 2

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Matsui Fridge Freezer.

You must spend some time reading this installation/instruction manual in order to fully understand how to install and operate it.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

Unpacking

GB

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

MATSUI M55CW14E - Unpacking - 1

natural_image Line drawing of a refrigerator front view with lid and side legs (no text or symbols)

The Main Unit Upper Fridge Door Shelf X 3

MATSUI M55CW14E - Unpacking - 2

MATSUI M55CW14E - Unpacking - 3
Fridge Glass Shelf X 3 Salad Bin Cover

MATSUI M55CW14E - Unpacking - 4

MATSUI M55CW14E - Unpacking - 5
Upper Freezer Drawer X 2 Bottom Freezer Drawer X 1

MATSUI M55CW14E - Unpacking - 6
Salad Bin X 1

MATSUI M55CW14E - Unpacking - 7

MATSUI M55CW14E - Unpacking - 8
Lower Fridge Door Shelf X 1

MATSUI M55CW14E - Unpacking - 9
Rear Spacer x 2

MATSUI M55CW14E - Unpacking - 10
Egg Tray

MATSUI M55CW14E - Unpacking - 11
Ice Tray Instruction Manual

MATSUI M55CW14E - Unpacking - 12

INSTALLATION

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. If the room temperature drops below 16°C your freezer may start to defrost. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or rejection.

Installing the Spacers

Screw the spacers to the left and right side of the unit's rear part.

MATSUI M55CW14E - Installing the Spacers - 1

natural_image Technical line drawing of a cabinet and a mechanical component with rotational motion (no text or symbols)

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location. Please ensure there is adequate space for the door to fully open to 160°.

MATSUI M55CW14E - Free Space Requirements - 1

natural_image Pure mechanical diagram showing a rectangular block with a tilted rectangular component and dimension lines (no text or symbols)

INSTALLATION

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

MATSUI M55CW14E - Reversing the Door Swing - 1

• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

  1. Remove the 4 screw covers first, then undo the screws underneath.

MATSUI M55CW14E - Reversing the Door Swing - 2

natural_image Line drawing of a mechanical device with a screwdriver inserted, showing no text or symbols
  1. Lift the top cover away from the fridge.

MATSUI M55CW14E - Reversing the Door Swing - 3

natural_image Line drawing of a rectangular box with a lid and a small object on the side, no text or symbols present.
  1. Remove the three screws, then remove the upper hinge that hold the door in place. Lift the door and place it on a padded surface to prevent it from scratching.

Unscrew

INSTALLATION

  1. Remove the bolt with a screwdriver and flip the hinge bracket. Then re-attach the bolt to the hinge bracket.

180°

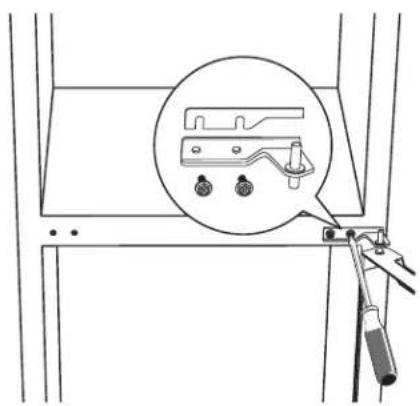

  1. Take off the middle hinge by removing the screws. And then lift the lower door and place it on a padded surface to prevent it from scratching.

MATSUI M55CW14E - INSTALLATION - 2

natural_image Technical line drawing of a mechanical assembly with a magnified inset showing a bracket component (no text or symbols)
  1. Move the hinge hole cover of lower door from left side to right side.

MATSUI M55CW14E - INSTALLATION - 3

natural_image Diagram showing two identical mechanical components with circular features, connected by an arrow indicating rotation or assembly (no text or symbols present)
  1. Remove the levelling feet, screws and bottom hinge.

Unscrew

INSTALLATION

  1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Unscrew Screw

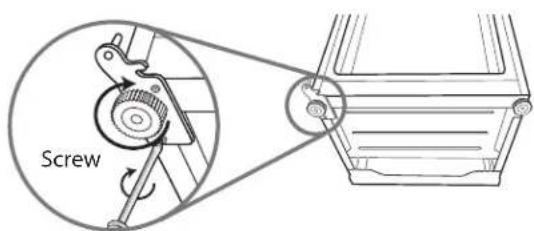

  1. Re-fit the bracket fitting the bottom hinge pin. Replace both levelling feet. Transfer the lower door to the proper position.

Screw

  1. Reverse the middle hinge 180^ , then transfer it to the left position. Insert the middle hinge pin into the upper hole of the lower door, then tighten the bolts.

MATSUI M55CW14E - INSTALLATION - 3

natural_image Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.

INSTALLATION

  1. Place the upper door back on. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

  2. Insert the hinge bracket and screw it to the top of the unit.

  3. Use a spanner to tighten it if necessary.

  4. Put the top cover and then screw back.

  5. With the doors closed, check that the doors are aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

screw

MATSUI M55CW14E - INSTALLATION - 2

natural_image Line drawing of a rectangular container with two side handles and a top lid, no text or symbols present

MATSUI M55CW14E - INSTALLATION - 3

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

MATSUI M55CW14E - Cleaning Before Use - 1

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

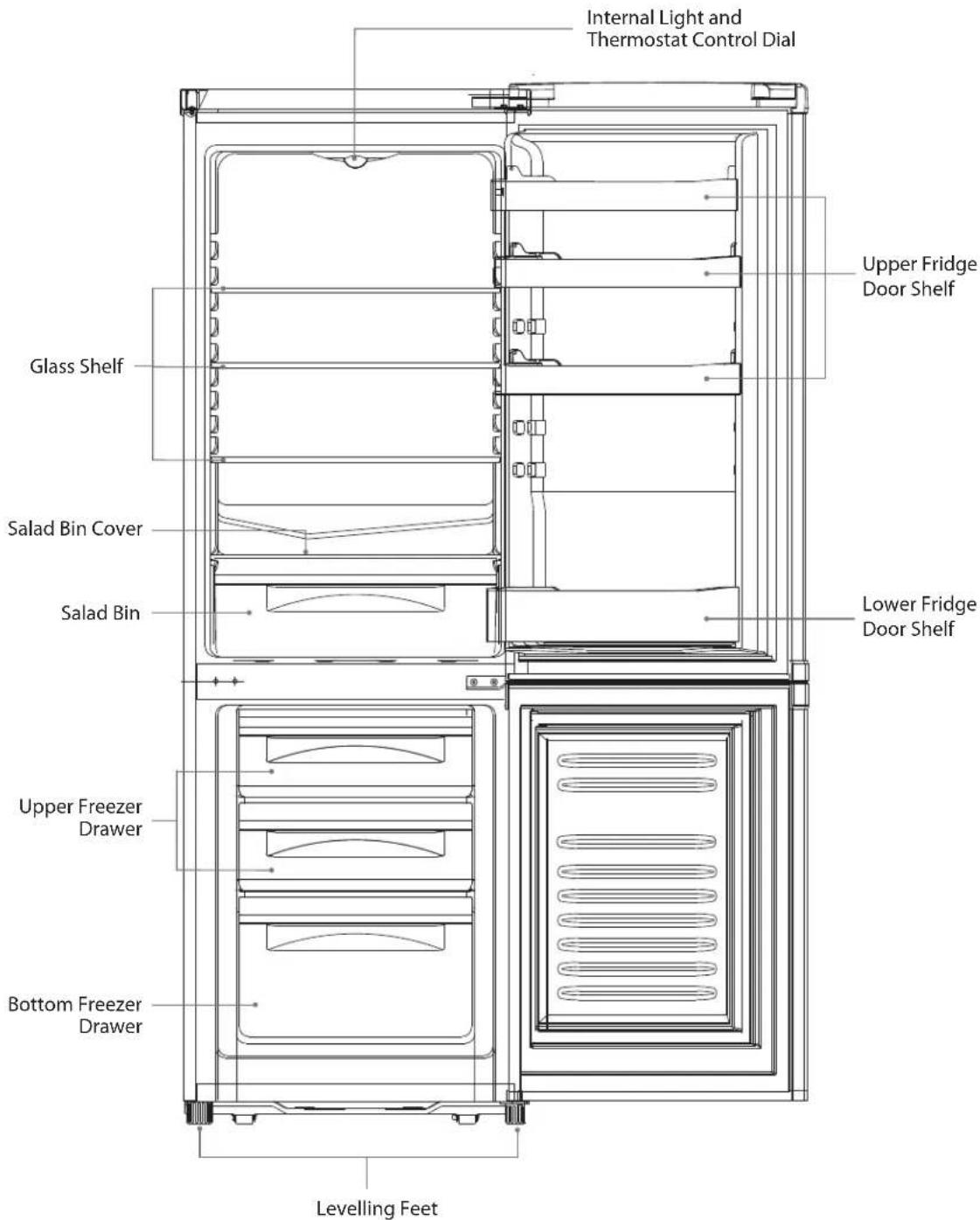

Product Overview

Internal Light and Thermostat Control Dial Upper Fridge Door Shelf Glass Shelf Salad Bin Cover Salad Bin Lower Fridge Door Shelf Upper Freezer Drawer Bottom Freezer Drawer Levelling Feet

MATSUI M55CW14E - Product Overview - 2
Egg Tray

MATSUI M55CW14E - Product Overview - 3
Ice Tray

Operation

Switching On Your Unit

  1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off.

  2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16°C and 32°C).

  3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.

  4. To ensure that the unit is cool enough to sufficiently chill and freeze your food, wait 24 hours before filling it with food.

  5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be lower than 4°C. The correct temperature for the freezer compartment should be -18°C or lower.

7 5

FRIDGE/FREEZER THEMOMETER °C FREEZER FRIDGE -30° -20° -10° 0° +10° +20° -30° +40°

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 2 for colder working environments (i.e. during winter) and between 6 to 7 for hotter ambient environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

  • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
  • Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
  • To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
    • Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
  • To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

Preparations for Freezing

  • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
  • Leave cooked food to cool completely. Chill food before freezing if possible.
  • Consider how you will want to cook the food before freezing it.
  • Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
  • Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or uncleaned used food containers.
  • Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special fridge freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

MATSUI M55CW14E - Preparations for Freezing - 1

natural_image Illustration of a hand pouring liquid into a container with a paper-lined tube (no text or symbols)

Defrosting Frozen Food

  1. Take the frozen food out from the freezer compartment and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
  2. Drain off and throw away any liquid lost during defrosting.
  3. Always make sure there are no ice crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
  4. Cook food as soon as possible after defrosting.
  5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted out unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Cleaning

Defrosting

Frost might build up in the freezer compartment after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

MATSUI M55CW14E - Defrosting - 1

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10mm. Choose a time when the stock of frozen food is low, follow these procedures:

  1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep it cool.
  2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.
  3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

  • Remove all the shelves and drawers.
  • Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
  • Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
  • The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Maintenance

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the unit, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Specifications

Model M55CW14E
Appliance Category Category 7 (Refrigerator - Freezer)
Overall Dimension (W x D x H) 550 X 580 X 1757 mm
Fresh Food Storage Volume 200L
Frozen Food Storage Volume66L * ***
Defrosting Type Manual Defrost
Climate Class N
This appliance is intended to be used at an ambient temperature between 16°C and 32°C.
Storage TemperatureFreezer: ≤-18°CFridge: 0-8°C, average ≤4°C
Energy Consumption 0.654 kWh / 24h
Energy consumption 238 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Airborne Acoustical Noise 43dB(A)
Energy Grading A+
EU Ecolabel N/A
Temperature Rise Time 15 hours
Freezing Capacity 3kg / 24h
Rated Voltage220~240V~
Rated Current0.50A

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte ny Matsui Kombiskap Kjøl-Frys.

natural_image Line drawing of a double refrigerator with top and front panels (no text or symbols)

Innstallering av avstandsstykker

natural_image Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Plassbehov

natural_image Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

INSTALLASJON

natural_image Line drawing of a box with a screwdriver inserted, showing no text or symbols
natural_image Simple line drawing of a rectangular box with an upward arrow and small icons at the bottom (no text or symbols)
natural_image Technical line drawing of a mechanical assembly with a magnified inset showing a bracket component (no text or symbols)
natural_image Diagram showing two identical mechanical components with circular features, connected by an arrow indicating rotation or assembly (no text or symbols present)
natural_image Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)
natural_image Line drawing of a rectangular box with two side tabs and two arrows pointing to top (no text or symbols)

MATSUI M55CW14E - INSTALLASJON - 1

Rengjøring før bruk

NO

FRIDGE/FREEZER THEMOMETER °C FREEZER FRIDGE -30° -20° -10° 0° -10° +20° +30° +40°

Justere temperaturen

natural_image Illustration of a hand pouring liquid into a container (no text or symbols)

Tine frossen mat

natural_image Line drawing of a double refrigerator with lid and front panel (no text or symbols)
natural_image Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Luftcirkulationsbehov

natural_image Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

INSTALLATION

natural_image Line drawing of a mechanical device with a screwdriver inserted, showing no text or symbols
natural_image Simple line drawing of a rectangular container with an upward arrow and small symbols at the bottom (no text or labels)

INSTALLATION

natural_image Technical line drawing of a mechanical clamp or bracket assembly with a magnified inset showing internal components (no text or symbols)
natural_image Diagram showing two identical mechanical components with circular features and directional arrows, no text or symbols present.

INSTALLATION

natural_image Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INSTALLATION

natural_image Line drawing of a rectangular container with two downward arrows indicating top and bottom points (no text or symbols)

MATSUI M55CW14E - INSTALLATION - 1

natural_image Diagram of concentric circular wave patterns around a central bowl with labeled segments (no text or symbols)

FRIDGE/FREEZER THEMOMETER °C FREEZER FRIDGE -30° -20° -10° 0° +10° +20° -30° +40°

natural_image Illustration of a hand pouring liquid from a container into a container with a paper nearby (no text or symbols)

Tina upp fryst mat

natural_image Line drawing of a double refrigerator with top and front panels (no text or symbols)
natural_image Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)
natural_image Pure mechanical diagram showing a rectangular block with a tilted rectangular component and dimension lines (no text or symbols)

ASENNUS

natural_image Line drawing of a device with a screwdriver inserted, showing no text or symbols
natural_image Simple line drawing of a rectangular container with an upward arrow and a small mark at the base (no text or symbols)
natural_image Technical line drawing of a mechanical clamp or bracket assembly with a magnified inset showing a bracket component (no text or symbols)
natural_image Diagram showing two identical mechanical components with circular features, no text or symbols present
natural_image Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)
natural_image Line drawing of a rectangular box with two side handles and a top frame, no text or symbols present

MATSUI M55CW14E - ASENNUS - 1

natural_image Illustration of hands pouring liquid from a container into a container (no text or symbols)

Pakastetun ruoan sulatus

natural_image Line drawing of a double refrigerator with top and front panels (no text or symbols)
natural_image Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Krav til fri plads

natural_image Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

INSTALLATION

natural_image Line drawing of a mechanical device with a screwdriver inserted, showing no text or symbols
natural_image Line drawing of a rectangular box with a lid and an arrow pointing upward (no text or symbols)
natural_image Technical line drawing of a mechanical assembly with a magnified inset showing a bracket component (no text or symbols)
natural_image Diagram showing two identical mechanical components with circular features, connected by an arrow indicating rotation or assembly (no text or symbols present)
natural_image Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)
natural_image Diagram of concentric circular wave patterns around a central bowl with labeled dimensions (no text or symbols)

FRIDGE/FREEZER THEMOMETER °C FREEZER FRIDGE 1 -30° -20° -10° 0° +10° +20° +30° +40°

natural_image Illustration of a hand pouring liquid from a container into a container (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : MATSUI

Model : M55CW14E

Category : Refrigerator
