Product Type	Blender
Brand	Wilfa
Model	Power Crush PB-1600S
Motor Power	1600 W
Jug Capacity	2 liters (Tritan, BPA-free)
Recommended Max Volume (Hot/Foaming)	1.5 liters
Control Panel	ON/OFF switch, speed controller, pulse button, 3 preset programs (Smoothie, Ice cream, Sauce)
Speed Control	Infinitely variable from MIN to MAX
Pulse Function	Yes, momentary max speed
Preset Program Duration	Approximately 26 seconds each
Tamper	Included, with safety ring to avoid blade contact
Blade Material	Stainless steel (assumed)
Jug Material	Tritan (BPA-free)
Safety Features	Overload protection, safety switch (prevents operation without jug)
Cleaning – Motor Base	Wipe with damp cloth; do not immerse
Cleaning – Lid, Lid Plug, Tamper	Dishwasher safe or hand wash in warm soapy water
Cleaning – Jug	Hand wash or use self-cleaning cycle with water and detergent
Overload Protection Reset	Press reset button on bottom of drive unit after cooling
Power Cord Length	Approximately 1 m (estimated)
Weight	Approximately 4 kg (estimated)

Frequently Asked Questions - Power Crush PB-1600S WILFA

How do I use the tamper?

Place the tamper through the opening in the lid after removing the cap. The safety ring prevents blade contact when the lid is locked. Move the tamper along the walls to mix ingredients. Do not force deeper than allowed.

How should I clean the blender?

For initial use or regular cleaning, fill half the jug with warm water and a few drops of dish soap. Run on MAX for 30-60 seconds, then rinse. The lid, lid plug, and tamper are dishwasher safe; the motor base should only be wiped with a damp cloth.

What are the preset programs and how long do they run?

The blender has three preset programs: Smoothie, Ice cream, and Sauce. Each runs for approximately 26 seconds with varying speeds and stops automatically.

How do I reset the blender after overload protection activates?

Move the speed controller to home position, switch off and unplug. Let cool for 15-20 minutes. Remove the jug and press the reset button on the bottom of the drive unit. Wait if button won't press; cool longer.

Can I blend hot liquids?

Yes, but be extremely careful. Always start on OFF and slowly increase to MAX. Do not exceed 1.5 liters for hot liquids. Secure the lid firmly; steam may cause eruptions.

Why does the blender stop during use?

The blender may stop due to overload protection or an air bubble. Reduce load, use the tamper to release air, or let the motor cool down and reset the overload protection.

How do I use the pulse function?

Press and hold the PULSE button to run the motor at maximum speed momentarily. Release to stop. Useful for final mixing before pouring.

Is the jug dishwasher safe?

The jug itself is not specified as dishwasher safe, but the lid, lid plug, and tamper are dishwasher safe. For the jug, hand washing is recommended to preserve the Tritan material.

What is the maximum capacity for blending?

The jug has a total capacity of 2 liters. For foods that foam or are hot, do not exceed 1.5 liters to avoid overflow.

How do I prevent air bubbles when blending?

If food does not circulate, carefully remove the lid plug while the machine runs and insert the tamper to break the air bubble. If problems continue, reduce speed until circulation resumes, then increase to MAX.

USER MANUAL Power Crush PB-1600S WILFA

Exterior view of a modern blender with black handle and silver casing (no visible text or symbols)

Wilfa Power Crush

Blender

Bruksanvisning

Bruksanvisning

Operating Instructions

PB-1600S

LES ALLE ANVISNINGER F∅R BRUK

LÄS IGENOM ALLA INSTRUKTIONER INNAN PRODUKTEN ANVÄNDS

LÆS ALLE VEJLEDNINGER INDEN BRUG

LUE OHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ

READ ALL INSTRUCTIONS BEFORE USING

Top-down view of a black mechanical component with a red circular annotation and 'U' label (no readable text or symbols beyond basic markings)

Symbol of a trash bin with crossed lines and a solid rectangle below (no text or labels)

Top-down view of a black mechanical component with a red circle highlighting a circular feature (no text or symbols)

Symbol of a trash bin with crossed lines and a solid rectangle below (no text or labels)

Top-down view of a black mechanical component with a red circle highlighting a circular feature (no text or symbols)

Symbol of a trash bin with crossed lines and a solid rectangle below (no text or labels)

Top-down view of a black mechanical component with a circular center and a red circle highlighting a small feature (no text or symbols)

Symbol of a trash bin with crossed lines and a solid rectangle below (no text or labels)

Safety instructions....5

Safety precautions for your blender....7

Parts description....8

Control panel 9

How to use the Tamper 10

Care and cleaning 13

Overload protection 14

SAFETY INSTRUCTIONS

Read all instructions and save all the instructions provided with an appliance.

• Always turn the electrical appliance off, before removing the plug from power outlet.
• Only connect the appliance to a properly installed wall socket that matches the voltage of the appliance. Make sure that the connections do not become a stumbling trap.
• Never leave the appliance connected, unattended. Pull the power cord as soon as you have finished using the appliance even if it is for brief moment.
• Keep the appliance and the power cord away from heat, direct sunlight, high humidity, sharp edges and similar.
• The motor must not come in contact with water or any other liquid, to avoid the danger of an electric shock. Do not use the appliance near a wash basin; avoid handling the appliance with wet hands or while standing on wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.
• Do not use the appliance outdoors.
• The appliance is designed for processing household quantities; it is not suitable for commercial purposes. Use the appliance only for the purpose it was designed for. Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.
• Do not attempt to make any modifications to the product. Do not replace the connection cord, special

tools are required. Repairs must be carried out by an authorized dealer.

• To reduce the risk of injuries, never place cutter-assembly blades on base without jar properly attached.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Be careful when processing hot liquids as sudden steaming can erupt from the blender when operating.

CAUTION: There is a potential injury from misuse. Be careful when handling the sharp cutting blades, emptying the bowl and during cleaning.

- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that regularly switched on and off by the utility.

Safety precautions for your blender

• Do not operate the blender without the lid properly attached.
• Blades are sharp. Handle with care.
• Only remove the jar when the motor is turned off.
• Avoid overload of motor.
• Handle the glass jar careful.
• Never place your hands into the jar while the motor is on.
• Avoid contact with moving parts.

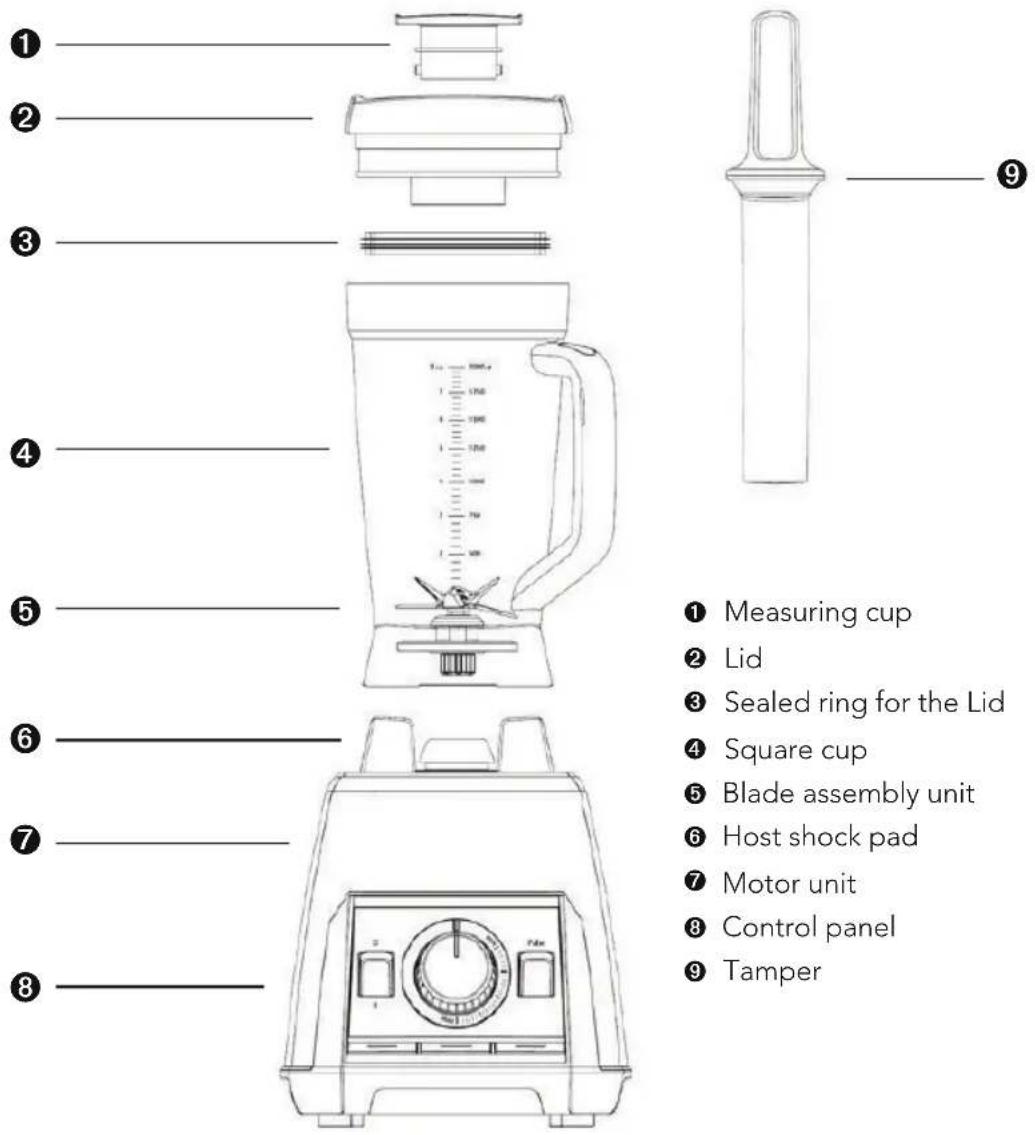

Parts description

① Measuring cup
② Lid
③ Sealed ring for the Lid
④ Square cup
⑤ Blade assembly unit
⑥ Host shock pad
⑦ Motor unit
⑧ Control panel
⑨ Tamper

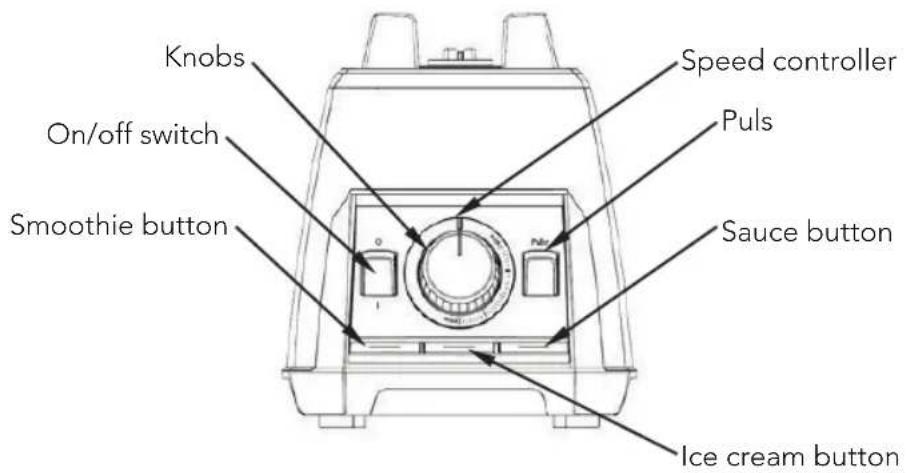

Control panel

ON/OFF switch

To use the appliance, you must first turn the on/off switch to the on position (Pos. I). You can then select automatic programs, use the pulse function or the speed controller.

Speed controller

You can use the speed controller to infinitely adjust the speed of the high performance motor between min and max. For this, switch the appliance on using the on/off button (Pos. I) and select the desired speed with the speed regulator. When you have finished blending, turn the speed controller back to the initial position (see image) and then switch the on/off button off again (Pos. O).

Pulse function

The motor runs at maximum speed as long as the PULSE button is held down. This is particularly useful for a final mix before pouring.

Preset program buttons

In order to carry out common tasks with the Smoothie Blender, the appliance has three automatic programs for smoothies, sauces and frozen foods.

Smoothie

The Smoothie button can be used for preparing smoothies easily. Switch on the appliance using the On/Off button (Pos. I). Now press the Smoothie button, the blender will run a program with different speeds. The program will stop automatically after approximately 26 seconds. You can stop the program at any time by pressing the Smoothie button again or moving the on/off switch to off (Pos. O).

Ice cream

You can use the Ice cream button for crushing frozen foods. This is suitable when preparing ice cream, sorbets and frozen smoothies. Switch on the appliance using the On/Off button (Pos. I). Press the Ice cream button, the blender will start an automatic program with different speeds.

The program ends automatically after approximately 26 seconds. You can stop the program at any time by pressing the Ice cream button again or moving the on/off switch to off (Pos. O).

Sauce

The Sauce button can be used for preparing sauces easily. Switch on the appliance using the On/Off button (Pos. I). Press the Sauce button, the blender will start an automatic program with different speeds.

The program stops automatically after approximately 26 seconds. You can stop the program at any time by pressing the Sauce button again or moving the on/off switch to off (Pos. O).

Jug

The jug is made of high quality Tritan® and is sturdy, light and BPA-free.

The capacity of the jug is 2 liters. Make sure not to overfill it.

In the case of foods which produce lots of foam (e.g. milk) or are hot, we recommend a maximum volume of 1.5 liters.

The closing cap in the lid can be removed by turning it anti-clockwise and used as a measure (10 / 20 / 30 ml).

Tamper

You can use the tamper to scrape any food stuck to the edges of the jug back towards the blade unit. For this, remove the cap from the closed lid and place the tamper in the opening.

The safety ring on the tamper prevents it coming into contact with the blade unit when the lid is closed correctly.

Move the tamper long the walls and corners of the jug so the food can be blended more.

Safety function

The mixer will only switch on if the jug is fitted correctly. A safety switch prevents the device from operating without the jug.

If the jug is removed when the appliance is operating in manual speed mode, the on switch must be on button must be switch off and on before continuing operating the blender. In order to prevent the blender from being used unintentionally.

How to use the Tamper

Important:

1. The splash disk (near the top of the tamper) and lid prevent the tamper from hitting the blades when the lid is secured properly in the locked position.
2. The container should not be more than two-thirds full when the tamper is used during blending.
3. To avoid overheating do not operate for more than 30 consecutive seconds.
4. If the food does not circulate, the machine may have encountered an air bubble. Carefully remove the lid plug while the machine operates and use the tamper to firmly mix the content.
5. Holding the tamper straight down may not help the ingredients circulate. If necessary, point the tamper toward the sides or corners of the container DO NOT try to force the tamper deeper into the container.

Warning:

Rotating Blades Can Cause Severe Injury.

1. DO NOT put hands, spatulas, etc in the container while the machine is running or while the container is still on the base.
2. Lids and tampers are not interchangeable between different container styles, types, and sizes. Use the tamper provided tamper only.

Hints for setting speeds

Set the on/off switch bottom in the lower position use the variable speed control to regulate the speed from its min position. Slowly increase the speed control to by turning it to desired speed. If a recipe calls for processing on high speed, slowly rotate the Variable Speed Dial to MAX. Do not begin processing on Variable 10 or directly on the MAX setting.

Process on the MAX setting for as much of the processing time as possible to make whole food juicer, soups, shakes, frozen mixtures, purees, nut butters and for grinding grains. Processing times will generally be less than one minute (most take less than 30 seconds). MAX speed provides the best quality of refinement, breaking down ice, frozen fruit, whole fruits or vegetables, and grains to a smooth lump-free consistency.

TIP: Blending too long at too low a speed setting will overheat the machine and cause the Automatic Overload Protection to turn the machine off. Use the MAX speed as often as possible to achieve the most uniform consistency. Blending on MAX speed also maximizes the motor's cooling fan to avoid overheating.

When on the MAX, if the food does not circulate, the machine may be overloaded or may have encountered an air bubble. Carefully remove the lid plug while making sure the lid stays firmly in place. Release the air bubble by inserting the tamper through the lid plug opening. If circulation problems continue, reduce the machine speed. A lower speed may allow food to circulate better than operating at maximum speed. Once the food is circulating freely, increase the speed back to MAX and continue processing.

Caution:

Never start on speeds above MIN with hot liquids to avoid possible burns.

Rising steam, splashes or contents may scald.

To secure the contents, lock the lid and lid plug securely in place prior to operating the machine.

Always start on OFF, slowly increase to MAX.

Operating instructions

Designed for processing liquids including juice, frozen mixtures, sauces, soups, purees, batters, and for wet chopping.

1. Make sure that the variable speed control is set to OFF position.
2. Load the container before placing in on the motor base. Place liquids and soft foods in the container first, solid items and ice last. Although not necessary for blending, you may want to cut or break food into smaller pieces for more precise measuring of ingredients.
3. Attach the lid properly. Always use the complete lid when blending (unless the tamper is inserted through the lid plug opening). Especially when blending hot ingredients, make sure the lid is securely latched.
4. With the motor is off, set the wet blade container on the motor base by aligning it over the centering pad.
   Do not attempt to put a container on an operating motor base or to operate a motor base without a container properly in place.
5. Activate the machine by turning the ON/OFF (Pos. O/I) Switch to ON (Pos. I), always start your machine on OFF position and then slowly increase to the desired speed.
6. Be extremely careful when handling and processing hot ingredients and making hot soups and sauces.
7. Due to the machine's speed, processing times are much quicker than standard appliances. Until you are familiar with the machine, count your time carefully to avoid over processing.
8. After turning the machine off, wait until the blades completely stop before removing the lid or container from the motor base.

Blending quantities and processing times

Ingredients Blending quantity Time
Carrot	e.g. 800g carrot + 1200ml water 30 sec

Care and cleaning

Container

To prepare you new machine for initial use, follow the steps below. This will clean the unit. Fill the container half full with warm water and add a couple drops of liquid dish washing detergent to the container.

1. Snap or push the complete 2-part lid into locked position.
2. Turn on the machine and slowly increase the speed to speed MAX.
3. Run the machine on High speed for 30 to 60 seconds.
4. Turn off the machine, and rinse and drain the container.

Lid, Lid Plug and Tamper

Separate the lid and lid plug. Wash the parts in warm soapy water. Rinse clean under running water, and dry. Reassemble before use. Lid, lid plug and tamper are dishwasher safe.

Motor Base

1. Unplug the power cord.
2. Wash the outside surface with a damp soft cloth or sponge, which has been rinsed in a mild solution of liquid detergent. Do not place the motor base in water.
3. Thoroughly clean the switches so they work freely. They may become sticky from use. Use a moistened cotton swab to clean the grooves around the water-shielded switches. Immediately dry any excess water.
4. Polish with a soft cloth.

Warning: Electrical shock hazard.

Disconnect power before cleaning machine. Failure to follow instructions can cause death or electrical shock.

Overload protection

The appliance is equipped with overload protection. This prevents the motor being damaged by overloading.

If the appliance switches off during operation, proceed as follows.

• Move the speed controller to the home position, switch the appliance off using the on/off button (Pos. O), unplug and leave to cool down for approximately 15-20 minutes.
• Remove the jug and place the drive unit to one side.

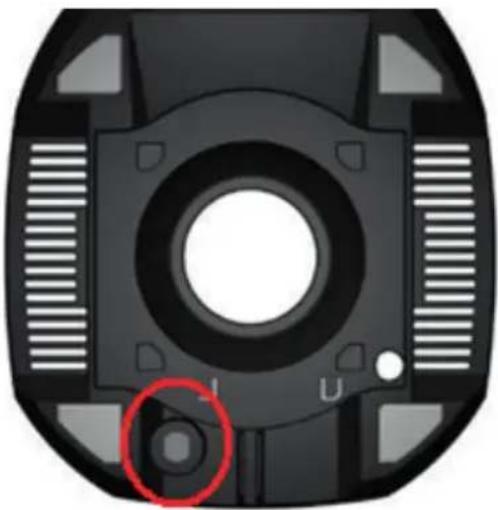

• Press the reset button on the bottom of the drive unit (see image). If the reset button cannot be pressed into the appliance, let it cool down more and try again later.
• Place the jug back on the drive unit, reconnect the appliance to the power supply and continue blending.

Top-down view of a black mechanical component with a red circular annotation and 'U' label (no readable text or symbols beyond basic markings)

Symbol of a trash bin with crossed lines and a solid rectangle below (no text or labels)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

			√
	√	√	√
	√	√	√
	√	√	√
	√	√	√
	√	√	√
	√		√

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.
