Type of product	Range hood
Brand	Gram
Model	EFV 3290-92 X
Width	90 cm
Depth	50 cm
Height (min/max)	65-100 cm (adjustable chimney)
Weight	18 kg
Power supply	220-240 V ~ 50 Hz
Connection rating	280 W
Motor type	Single motor
Number of fan speeds	3
Maximum extraction capacity	650 m³/h
Maximum noise level	65 dB(A)
Lighting	2 x LED (2 W each)
Filter type	Washable metal grease filter + activated carbon filter (optional)
Duct outlet diameter	150 mm
Energy efficiency class	A+
Control type	Electronic push buttons
Installation	Wall-mounted or recirculation
Safety features	Thermal cut-out, motor overload protection

Frequently Asked Questions - EFV 3290-92 X GRAM

How do I install the Gram EFV 3290-92 X range hood?

Installation must be done by a qualified electrician. Ensure the hood is securely mounted at the correct height above the hob (65-75 cm for gas, 65-70 cm for electric). Connect the duct to the outlet or set it for recirculation.

How often should I clean the grease filter?

The metal grease filter should be cleaned every 2-3 months or when the filter saturation indicator lights up. Wash it by hand or in the dishwasher at low temperature.

How do I replace the activated carbon filter?

For recirculation mode, replace the activated carbon filter every 4-6 months. Access it by removing the grease filter and sliding out the old carbon filter. Insert the new one securely.

Can I use the hood without ducting?

Yes, the hood can be used in recirculation mode with an activated carbon filter. The air is filtered and returned to the kitchen.

What should I do if the hood is noisy?

Check for obstructions in the duct or filters. Ensure the hood is level and securely mounted. If noise persists, contact service.

How do I adjust the fan speed?

Use the control buttons on the hood: typically a button for low, medium, and high speed. The hood may also have a boost mode.

What type of light bulb does the hood use?

The hood uses integrated LED lights (2 x 2W). They are not user-replaceable; contact service if faulty.

Is the hood energy efficient?

Yes, it has an energy efficiency class A+, meaning it is very efficient.

What are the maximum dimensions for the duct?

The duct outlet diameter is 150 mm. Use a duct with at least the same diameter for optimal performance.

Where can I find spare parts?

Spare parts such as filters, motors, and control boards are available through Gram service centers or authorized dealers. Use the model number EFV 3290-92 X.

USER MANUAL EFV 3290-92 X GRAM

Before using the appliance, please carefully read this manual!

BETJENINGSVEJLEDNING - EMFANG

Vertical wall pattern composed of rectangular blocks, no text or symbols present

Vertical wall pattern composed of rectangular blocks, no text or symbols present

EFV 3460-92 X
EFV 3490-92 X
EFV 3260-92 X
EFV 3290-92 X

1

2

3a

3b

3c

3d

3e

3f

1st Speed

2nd Speed

3rd Speed

Lamp Button

①

||

3

III

4

Two rectangular panels with grid patterns, one with a handle and the other with a flat top (no text or symbols)

Hand pressing a rectangular object with a downward arrow, no text or symbols present

5

Line drawing of a ceiling-mounted air duct with ventilation grilles and internal components (no text or symbols)

Illustration of hands using a mechanical tool to adjust a circular component, showing force application (no text or symbols)

6

7

THANK YOU FOR PURCHASING AN GRAM APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS
GUIDELINES CONCERNING THE SAFETY OF USE 9

INSTALLATION		12
OPERATION	AND	MAINTENANCE	13
ENVIRONMENTAL	PROTECTION		15

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructions

● Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

● Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

●The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

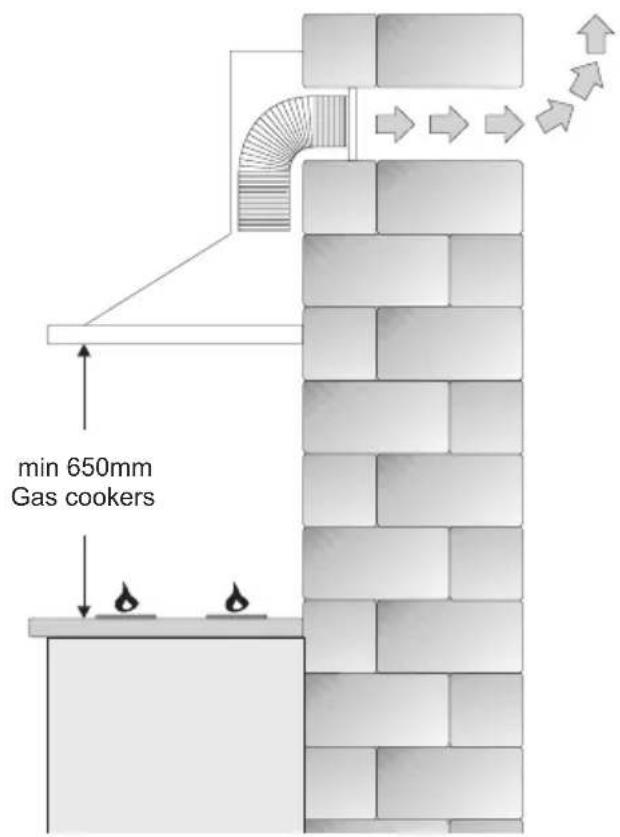

●For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not ex-

tend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

●Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.
●Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.
●The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).
- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is

maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

●Do not lean on hood
●The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
  ●Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.
  ●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ●Children should be su-

pervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  ●Before installing unwind and straighten the power cord.
  ●Warning! The packaging materials (polyethylene bags, small pieces of foamed poly-

styrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

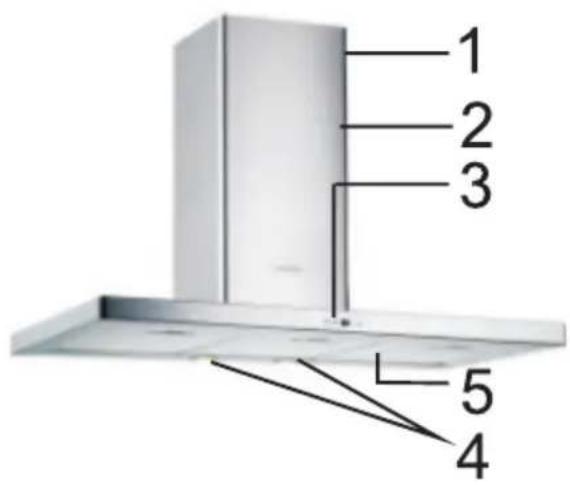

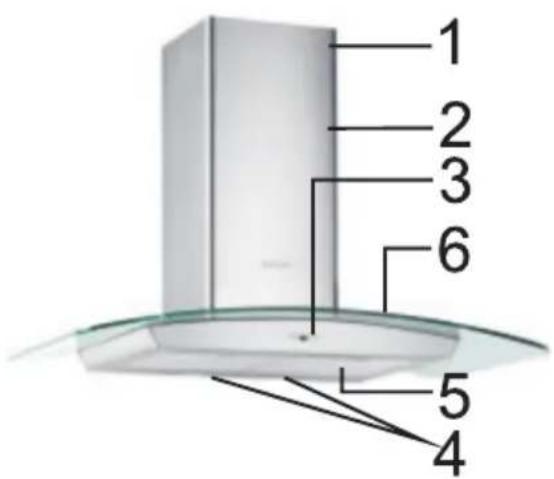

Elements

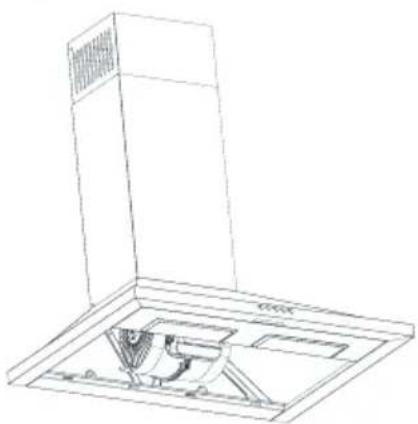

Kitchen hood consists of the following elements (Fig. 2):

1. Internal Chimney
2. External Chimney
3. Control Panel
4. Cooker Lighting
5. Aluminum Cassette Filter
6. Tempered Glass (depend on model)

Installation, unpacking the product:

• Check if there is any damage to the product.
  ●Transportation damage should be immediately reported to the shipping company.
• If you notice any damage please report to the seller.
• Do not allow children to play with packing material!!!

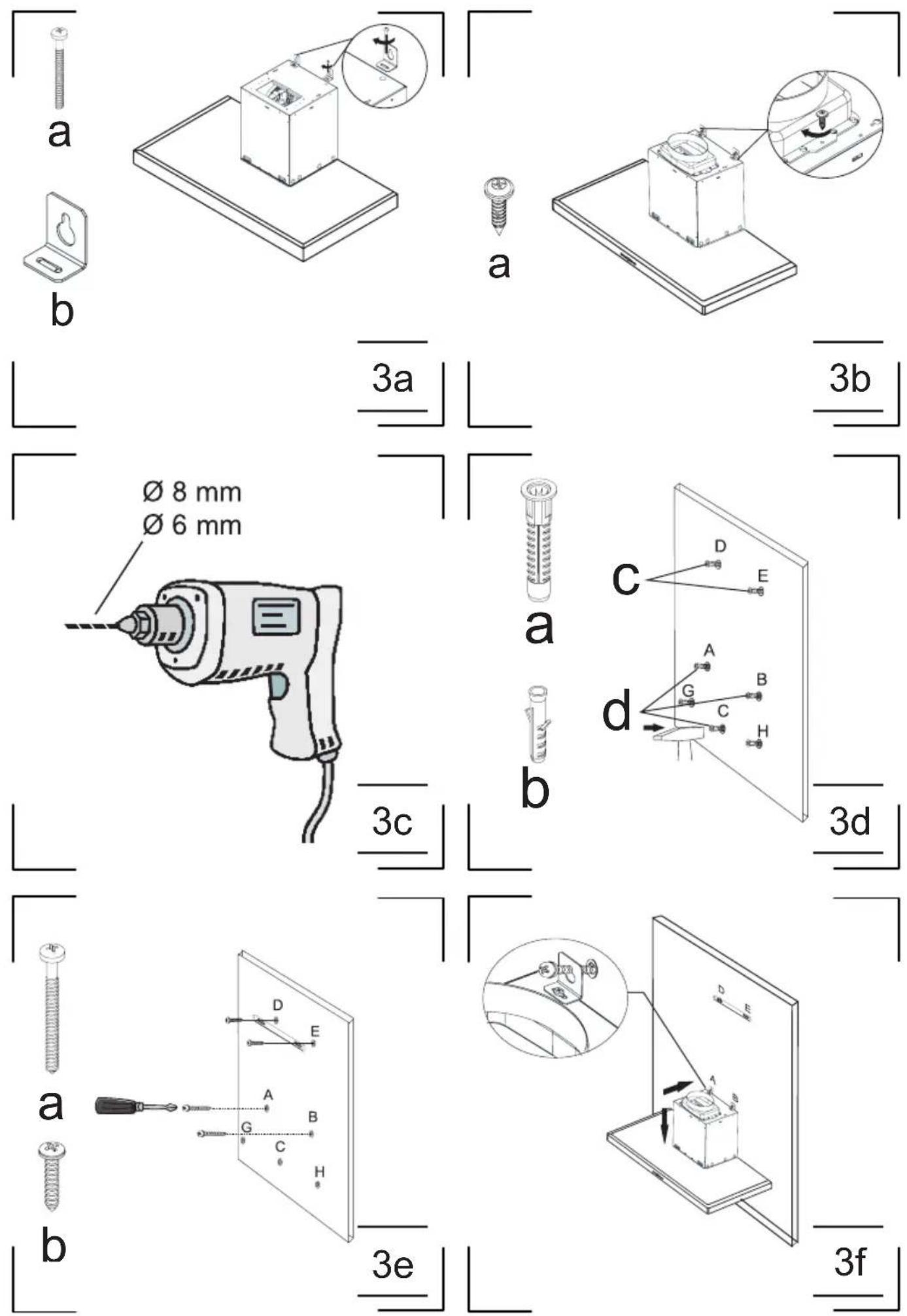

Installing the support bracket

There are 2 L shaped support brackets to install your product, provided with screws. Fix brackets on the product body using M5 x 35 screws into M5 turn screws (figure 3a).

a) M5 x 35 YSB
b) L shaped support brackets

Install plastic duct

Mount plastic duct on top of motor compartment using 3,5x9,5 screws (figure 3b).

Drill mounting holes ∅ 6 mm

Attach mounting template on the wall and drill holes at points marked as A,B,C using ∅8 mm drill bit. To install enclosure, use driller by taking reference of min./max. height dimensions (figure 3c).

WARNING : During drilling of the hanging holes, pay attention to the diameter of the holes to be used for hanging the hood. If the diameters of hanging holes are not as indicated, the hood cannot be assembled properly.

Wall plugs

Drive ∅10 mm wall plugs into ∅8 mm A,B,C holes. Place ∅6 mm wall plug in two ∅6 mm holes (Figure 3d). Drill holes at points marked as G,H and drive ∅10 mm wall plugs in them.
a) 10 mm Plastic wall plug
b) 6 mm Plastic wall plug
c) Outlet Connection Holes ∅ 6 mm
d) Hood hanging holes ∅ 8 mm

Enclosure support bracket screws;

Drill holes in the wall using a ∅6 mm drill-bit. Fix the enclosure support bracket using 3,9 x 22 Ysb screws and ∅6 mm plastic wall plugs. Drill holes in the wall using a ∅10 mm drill-bit. Fix 2 pcs of 5,5 x 60 Ysb screws at A,B points in ∅10 mm plastic wall plugs. The screws should protrude from the wall about 5 mm (Figure 3e).

a) 5,5 x 60 Ysb Screw
b) 3,9 x 22 Ysb Screw

Placing cooker hood on the wall

Hang L shaped support brackets on A and B points (figure 3f)

Tighten the hanging screws:

Using a screwdriver tighten screws to fix the product. You may use the M5x40Ysb screws to make fine adjustment of hood parallel alignment (figure 3g).

Note: You may make fine adjustments to parallel alignment by easing M5 screws on the top.

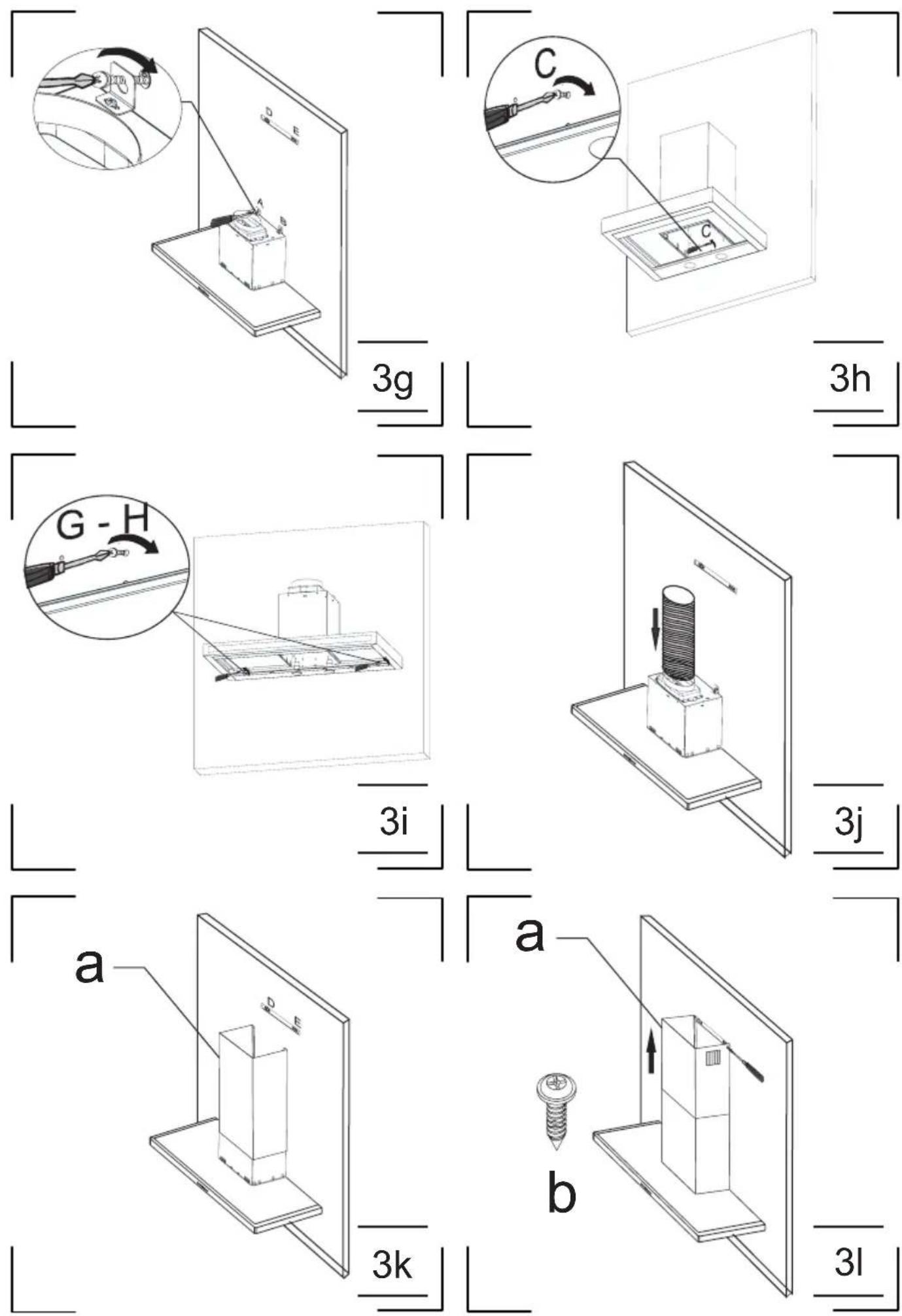

Tighten the Hanging Screws:

Fix product onto wall at point C with 5,5x60 Ysb screw in order to ensure your product is safely installed (figure 3h).

Fix product onto wall at point G,H with 5,5x60 screws in order to ensure your product is safely installed (figure 3i)

Installing aluminium flexible duct:

Connect aluminium flexible duct to outlets on the product and kitchen wall.

Please make sure that this connection is strong enough not to break when the hood operates at highest fan speed (figure 3j).

Installing the lower duct enclosure:

Place upper enclosure onto lower enclosure. Place enclosure onto motor box and push it downward. Make sure that the connection between the body and motor box is tight (figure 3k). a) Lower duct enclosure

Installing the upper duct enclosure:

Push upper enclosure up through the lower enclosure. Fix the enclosure with 3,5 x 9,5 nickel covered screws (figure 3l).

a) Upper duct enclosure
b) 3,5 x 9,5 RYSB Nickel Screw

When hood installation is complete, check all the connections before turning it on. Please take off the protective film from your product.

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

Use control panel to control your cooker hood (Fig. 4)

Speed choice

The appliance has 3 fan speeds. Depending on cooking intensity and the amount of steam, you can choose low, medium or high fan speed. Buttons on the front panel are used for turning the appliance on.

Please turn on hob and hood at the same time to provide effective circulation. Allow the appliance to run for a while after cooking is finished, so the remaining odour and steam will be absorbed.

Lighting

The product has 2 lamps and one lamp button to operate light. Press lamp button in order to turn on the light.

Maintenance

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

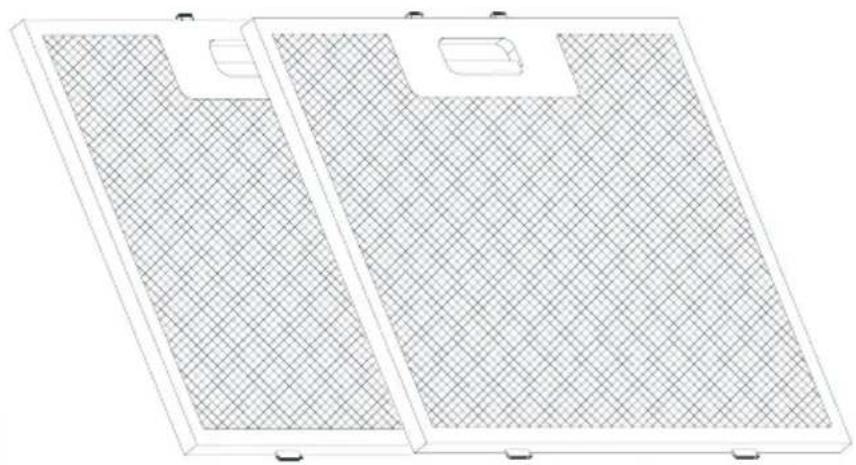

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

Dismounting of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Clean the filter when the display shows “L” approximately every 2-3 weeks.

To clear the above symbol (once the filter is cleaned and re-installed), hold the “button for 3 seconds (make sure the hood is not operating). “E” symbol will be shown on the display and the appliance will operate normally.

If you want to use your appliance while the “C” symbol is still displayed, press the “☐” button. The speed indication will appear for 1 second, and then the “C” symbol and the motor will keep running.

NOTE: The "C" symbol appears after 60 hours of the motor operation.

Clean the grease filter by washing it in a dishwasher (maximum washing temperature of 60^ C) or by hand using a mild detergent or soap.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

Dismantling of charcoal filter is shown on Figure 6.

Lighting

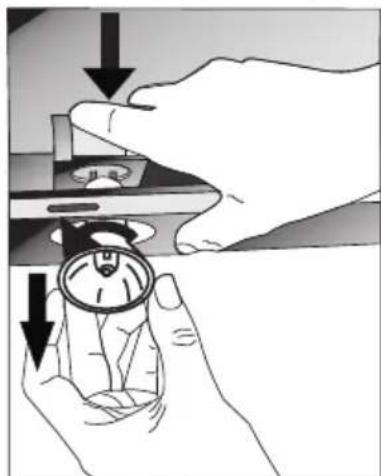

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

RECYCLING OF THE PACKAGING

Simple line drawing of a three chasing recycling symbol (no text or labels)

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU-IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such

marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2006/95/EC,
● Electromagnetic Compatibility (EMC) Directive 2004/108/EC,
● ErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.
